Philips 14PV200 User Manual
CONTENTS
1. CONNECTING YOUR TV-VIDEO COMBI 4..............
Connecting the cables 4.............................
Connecting a decoder or other equipment 4............
2. INSTALLING YOUR TV-VIDEO COMBI 5................
Initial installation 5..................................
Allocating a decoder 5..............................
Manual TV channel search 6.........................
Satellite receiver 6..................................
Special installation functions 6.......................
Automatic TV channel search 6......................
Allocating a channel number 7.......................
Delete a TV Channel 8...............................
Setting the language 8..............................
Setting the time and date 8...........................
3. IMPORTANT NOTES FOR OPERATION 10..............
SUMMARY OF USER GUIDE 10.......................

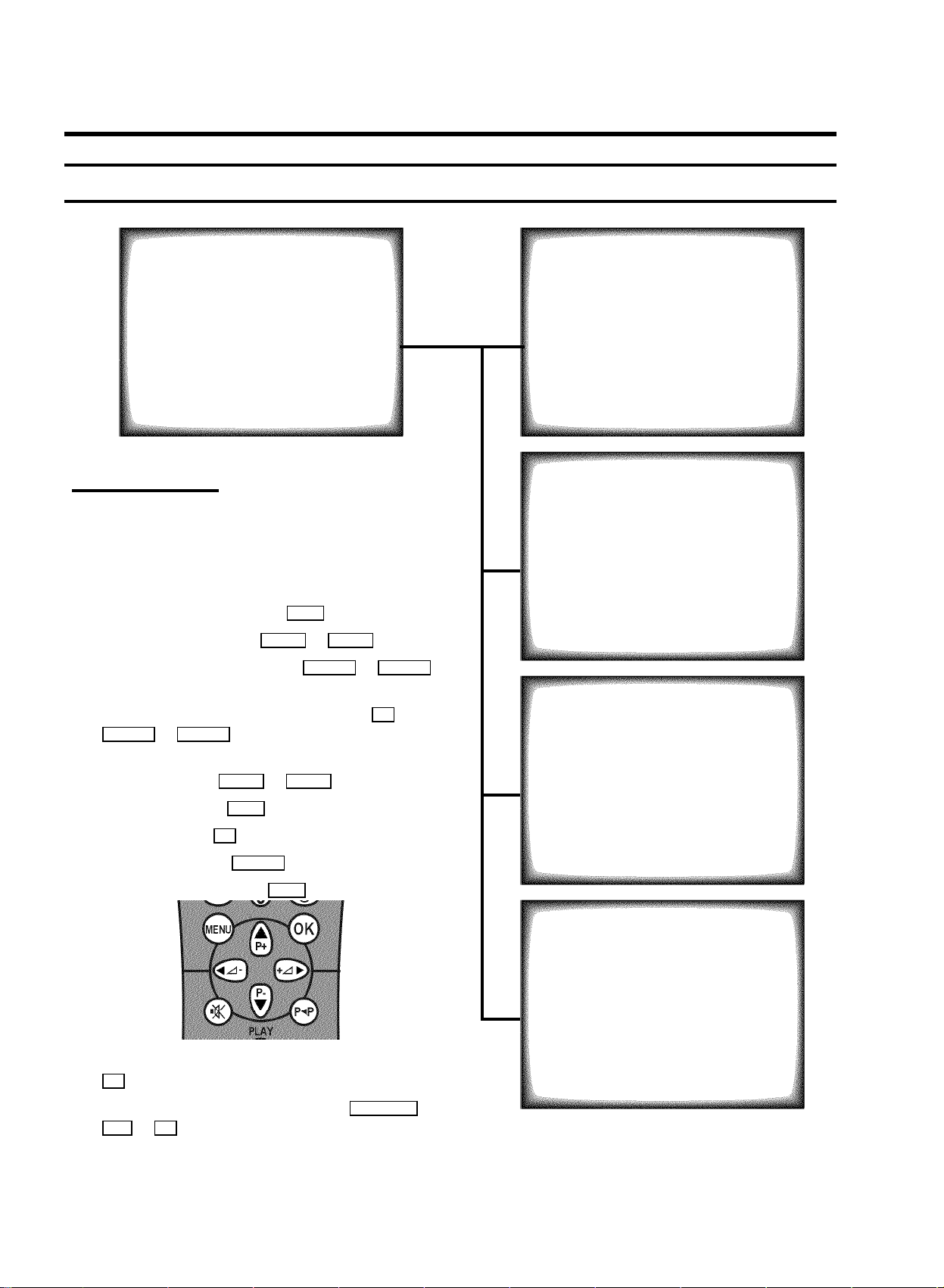

User guide (OSD) 10.................................
4. TV SET FUNCTIONS 11..............................
Selecting a TV programme 11........................
Automatic volume control (AVL) 11....................
5. PLAYBACK FUNCTIONS 12..........................
Playing a cassette 12................................
Playing NTSC cassettes 12...........................
Tape position indication 12...........................
Searching for tape position with the picture (picture
search) 12.........................................
Still picture 12......................................
Searching for tape position without the picture (wind
and rewind) 12.....................................
Instant View 12.....................................
Automatic search for a tape position (index search) 12..

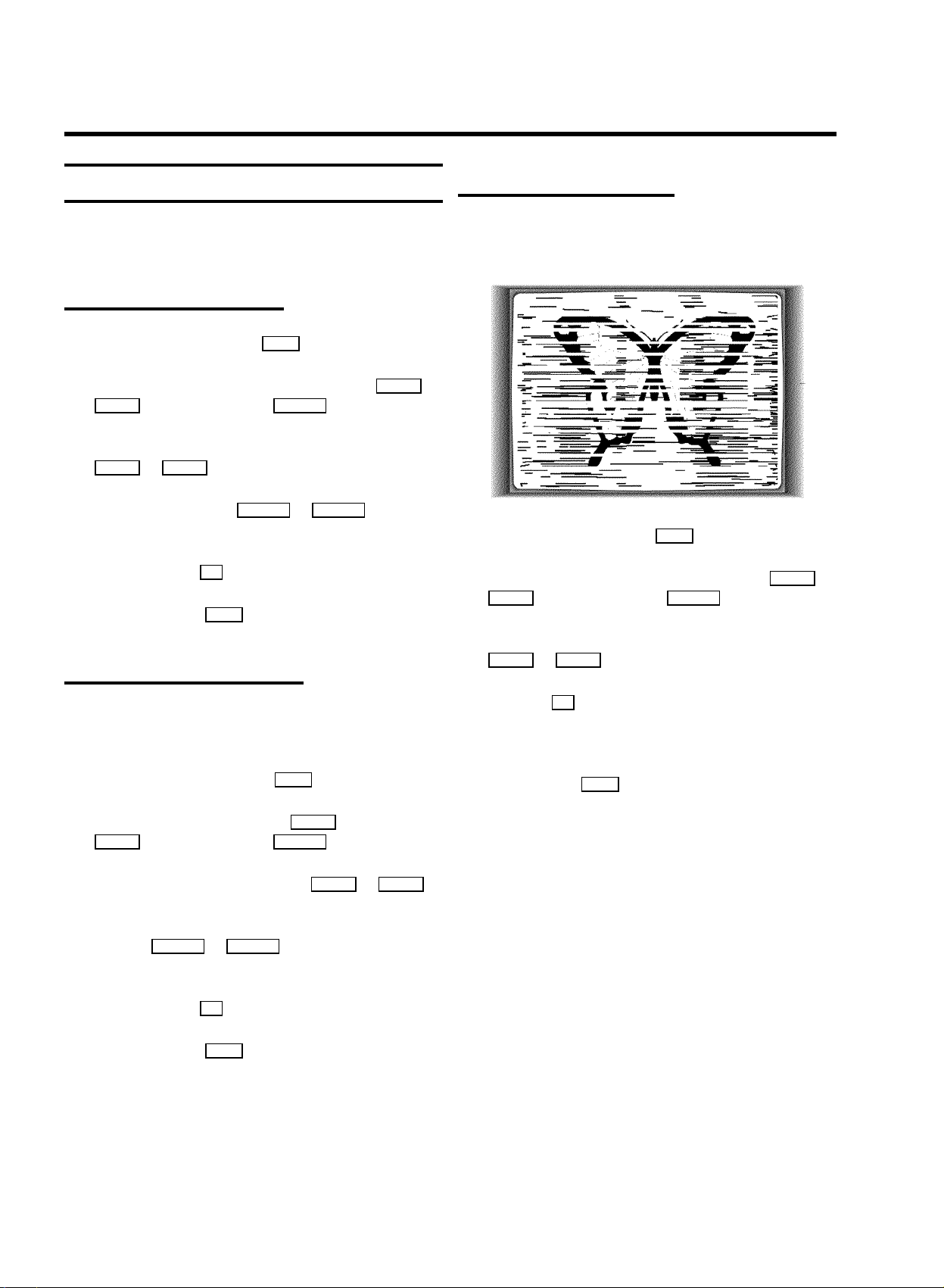

Picture interference 13..............................
Cleaning the video heads 13.........................
Continuous playback 19.............................
Switch off function (SLEEP TIMER) 20.................
Switch on function (WAKE-UP TIMER) 20..............
9. Before you call an engineer 21.......................
Technical terms used 21.............................
6. MANUAL RECORDING 14............................
Recording without automatic switch-off 14............
Recording with automatic switch-off (OTR
one-touch-recording) 14.............................
Protecting your recordings 14........................
Auto-assembling 15.................................
7. PROGRAMMED RECORDING (TIMER) 16...............
’VPS’ (Video Programming System) and ’PDC’
(Programme Delivery Control) 16.....................
Programming a recording 16.........................
How to check or change a TIMER 17..................
8. ADDITIONAL FUNCTIONS 18.........................
How to read TELETEXT 18............................
Parental control 18..................................
Switching the On-screen display (OSD) on or off 19.....
3
OPERATING INSTRUCTIONS IN BRIEF
The remote control
TELETEXT e TELETEXT: To switch TELETEXT on or off
STANDBY m Switch off : To switch off set, interrupt menu
function, interrupt a programmed recording
(TIMER)
0-9 Number buttons:0-9
CLEAR Delete: To delete last entry or clear
programmed recording (TIMER)
TIMER k TIMER: To make a manual TIMER
programming or to alter or clear a
programmed TIMER
MENU Menu : To call up or end main menu
OK Store/Confirm: To store or confirm entry
P pAB Programme number: To select a programme
number up or down
AP q Select: One line up
P rB Select: One line down
SpDC Volume: To regulate the volume
DSr Select: Cursor left
SqC Select: Cursor right
y Volume off: To switch the volume on or off
z Previous programme number: To select the
previous programme number
PLAY G Playback: To play a recorded cassette
H Rewind: During STOP and STANDBY: rewind,
during PLAYBACK: reverse scanning
STOP h Pause/Stop: To stop the tape, except while a
TIMER-recording is being made
I Forward wind: During STOP and STANDBY: forward wind, during PLAYBACK: forward
scanning
INDEX E Index search: In combination with H / I : to search for previous/next recording
on the cassette.
RECORD/OTR n Record: To record the programme selected
STILL R Still picture: To stop the tape and show a still picture
Coloured TELETEXT buttons:To select TELETEXT page directly
(red) TELETEXT: To select page/chapter shown in red at the bottom of the screen
(green) TELETEXT: To select page/chapter shown in green at the bottom of the screen
(yellow) TELETEXT: To select page/chapter shown in yellow at the bottom of the screen
(blue) TELETEXT: To select page/chapter shown in blue at the bottom of the screen
Front of the set
Back of the set
8 Power switch : To switch off the machine
Beware: If you switch off with the power switch 8
Standby : To switch off, interrupt a function, interrupt a programmed recording (TIMER)
m
Programme number : To select programme number up or down
P p
Sp
Volume: To regulate the volume
Record: To record the programme selected
5
Rewind : During STOP and STANDBY: rewind, during PLAYBACK:reverse scanning
H
Forward wind: During STOP and STANDBY: forward wind, during PLAYBACK: forward scanning
I
Playback : To play a recorded cassette
G
Pause/Stop, eject cassette: To stop the tape and during STOPeject the cassette
?
Headphones socket: To connect headphones
w
, TIMER-recordings are not possible!
2 Aerial input socket: To connect the aerial cable
Scart socket: To connect a satellite receiver, decoder, video recorder, etc.
EXT.1
OPERATING INSTRUCTIONS PHILIPS 14PV200/07
Congratulations! You now own one of the most sophisticated
and simple-to-use TV-VIDEO Combinations on the market.
With this TV-VIDEO Combi you can record and play
VHS-standard cassettes.
Please take the time to read this operating manual before
using your TV-VIDEO Combi.
Safety instructions and other notes
ADanger: High voltage!
Do not remove the top cover as there is a risk of an electrical
shock!
AThe TV-VIDEO Combi does not contain any components that can
be repaired by the customer. To switch off the TV-VIDEO Combi
completely you must switch it off with the power switch
BMake sure that air can circulate freely through the ventilation
slots on the TV-VIDEO Combi.
8 .
So that you can identify your machine in the event of theft,
enter the serial number (PROD.NO) here. The serial number is
printed on the type plate fixed at the rear of the set.
MODEL NO. 14PV200/07
PROD.NO: ......
This product complies with the requirements of the Directive
73/23/EEC + 89/336/EEC + 93/68/EEC.
Technical information
Measurements in cm (W / H / D): 39.2 / 40.7 / 39.8
Power consumption (Standby) : less than 44W (less than 4W)
Voltage : 198-264V 50Hz
Headphones : Output resistance less than 120 Ohms maximum
output voltage more than 2.6V at 120 Ohms
BMake sure that no objects or liquids enter the TV-VIDEO Combi.
If liquid is spilt into it, disconnect the TV-VIDEO Combi
immediately from the power supply and call the After-sales
Service for advice.
BThe TV-VIDEO Combi should not be used immediately after
transportation from a cold to a hot area or vice versa, or in
conditions of extreme humidity.
After unpacking the TV-VIDEO Combi, it should be allowed to
acclimatize for at least three hours before installation.
C These operating instructions have been printed on nonpolluting
paper.
C Deposit old batteries at the relevant collection points.
C Please make use of the facilities available in your country for
disposing of the packaging of the TV-VIDEO Combi in a way that
helps to protect the environment.
C This electronic equipment contains many materials that can be
recycled. Please inquire about the possibilitiesfor recycling
your old set.
Emergency interrupt
You can use the STANDBY m button on the TV-VIDEO Combi or
the remote control to interrupt any function. If you want to
interrupt a running Timer recording, hold the STANDBY m
button for several seconds.
So if you are having operating problems, you can just interrupt
the function and start again.
And you can practise operating your set without any worries.
No matter which buttons you press, you cannot damage it.
1
Special functions on your TV-VIDEO Combi
If a TV channel which transmits TXT/PDC is stored under programme number
’P01’, time and date will automatically be taken from the TXT/PDC information.
Philips has developed a system which produces the best possible playback
quality. It reduces disturbance on old, worn video cassettes, and emphasises
the detail on very good quality cassettes.
When you have plugged your TV-VIDEO Combi into the mains, you will be
welcomed with an OSD picture. All you have to do is follow the instructions in
the "intelligent help line" for the next step. Enjoy the Automatic TV channel
search/save function and the automatic time adjustment.
Automatic Volume Leveller. This prevents a sudden increase of the volume, for
example, during commercials.
We guarantee that your TV-VIDEO Combi will switch to the new millennium with
no problems whatsoever.
2
1. CONNECTING YOUR TV-VIDEO COMBI
Important for the United Kingdom
This apparatus is fitted with an approved moulded 13 Amp
plug. To change a fuse in this type of plug proceed as follows:
a Remove fuse cover and fuse.
b Fix new fuse which should be a BS1362 5A, A.S.T.A. or
BSI approved type.
c Refit the fuse cover.
If the fitted plug is not suitable for your socket outlets, it should
be cut off and an appropriate plug fitted in its place.
If the mains plug contains a fuse, this should have a value of
5A. If a plug without a fuse is used, the fuse at the distribution
board should not be greater than 5A.
DNote: * The severed plug must be destroyed to avoid a
possible shock hazard should it be inserted into a 13A
socket elsewhere.
How to connect a plug:
The wires in the mains lead are coloured in accordance with
the following code:
BLUE - ’NEUTRAL’ (’N’)
BROWN - ’LIVE’ (’L’)
d The BLUE wire must be connected to the terminal which
is marked with the letter ’N’ or coloured BLACK.
e The BROWN wire must be connected to the terminal
which is marked with the letter ’L’ or coloured RED.
Connecting the cables
a Insert the aerial plug into the 2 socket.
b Insert the plug of the mains cable into the wall socket.
c If the little red light at the front panel of the set is not lit,
please switch on the set. The power switch 8 is
located on the left side panel of the set.
Connecting a decoder or other equipment
You can also connect additional equipment to the EXT.1
socket. For instance, a satellite receiver, decoder or
camcorder.
f Do not connect either wires to the earth terminal in the
plug which is marked with the letter ’E’ or by the safety
earth symbol \or coloured green or green-and-yellow.
Before replacing the plug cover, make certain that the cord
grip is clamped over the sheath of the lead - not imply over the
two wires.
4
2. INSTALLING YOUR TV-VIDEO COMBI
Initial installation
a Open up the battery compartment of your remote control
and place the batteries in it as shown in the picture.
b Close the battery compartment.
c If you have connected the aerial to the TV-VIDEO Combi,
press the OK button.
’Automatic TV channel search’ starts. This picture will
appear on the screen:
Searching...
CHANNELS FOUND:
Allocating a decoder
Some TV stations will send coded TV channels, that you can
only watch when you use a decoder. You can connect such a
decoder (descrambler) to your TV-VIDEO Combi. With the
following function, the connected decoder will automatically
be activated for the TV programme you want to watch.
a Choose the TV channel on which you wish to use the
decoder with the P pAB button on the TV-VIDEO
Combi or the number buttons 0-9 on the remote control.
b Press the MENU button on the remote control. The main
menu will appear.
c Select the line ’Installation’ with the P rB or
AP q buton and confirm with the SqC button.
d Select the line ’Manual store’ with the P rB or
AP q button and confirm with the SqC button.
e Select the line ’Decoder’ with the P rB or
AP q button.
//////,,,,,,,,,,,,,,,,,,,,,
Wait until all TV channels have been found. This can take
several minutes.
DIf you have connected a decoder, you must install it
as described in the next section.
DIf you have connected a satellite receiver, please
read the section ’satellite receiver’.
MANUAL STORE
Channel/Frequency FREQU.
Search 125
Fine tuning (,,,,,,n=,,,,,,$
Name edit xxx
Programme number 01
Decoder OFF
ã Exit:
« press MENU
f Select function ’ON’ with the DSr or SqC
button. When you select ’OFF’, the function will be
switched off.
g Confirm with the OK button.
h To end, press the MENU button.
Your decoder has now been allocated to this TV channel.
i Press the MENU button again.
5
Manual TV channel search
In certain cases the ’Automatic TV channel search’ may not be
able to find all of the TV channels (e.g. coded TV channels). In
that case, use this manual method to set the channels.
a Press the MENU button on the remote control. The main
menu will appear.
b Select the line ’Installation’ with the P rB or
AP q button and confirm with the SqC button.
c Select the line ’Manual store’ with the P rB or
AP q button and confirm with the SqC button.
i If you want to change the automatic tv channel setting,
select the line ’Fine tuning’.
With the DSr or SqC button you can vary the
automatic tv channel setting. Important: This re-tuning is
only necessary and useful in special cases, e.g.: when
there are stripes on the picture with cable-TV systems.
j Press the OK button to store the TV channel.
DIf you want to search for further TV channels, start
again at step e.
k To end, press the MENU button.
Satellite receiver
MANUAL STORE
Channel/Frequency FREQU.
Search 125
Fine tuning (,,,,,,n=,,,,,,$
Name edit xxx
Programme number 01
Decoder OFF
ã Exit:
« press MENU
d In the line ’Channel/Frequency’, select the
display for:
’FREQU.’: frequency
’CCH’: channel
’SCH’: special channel
e If you know the frequency or channel of the desired TV
channel, you can enter the data in line ’Search’ with
the digit buttons 0-9 .
DIf you don’t know the frequency or channel of the TV
channel of your choice, press the SqC button to
start the channel search.
f In the line ’Programme number’ select the
programme number you want e.g.: ’01’, using the
DSr or SqC button.
g If you want to change the TV channel name, press the
SqC button in line ’Name edit’.
You can receive channels from the satellite receiver via the
scart socket EXT.1 .
To do this, select the channel number ’E1’ with the
P pAB button. You will have to select the channels to be
received by the satellite receiver on the receiver itself.
Special installation functions
You can select one of the following installation functions in
order to adapt your TV-VIDEO Combi to your own specific
requirements.
Automatic TV channel search
Your TV-VIDEO Combi will search for all TV channels.
If you want to start the automatic TV channel search again,
then follow the instructions below.
a Press the MENU button on the remote control. The main
menu will appear.
b Select the line ’Installation’ with the P rB or
AP q button and confirm with the SqC button.
c Select the line ’Autoinstall’ with the P rB or
AP q button.
E Select the character you want to change with the
DSr or the SqC button. Change the character
with the P rB or the AP q button. Select the next
character in the same way.
h Press the OK button to store the changes you have
made.
6
Loading...
