Philips 14PV125-39, 14PV422-39, 14PV225-39 User Manual

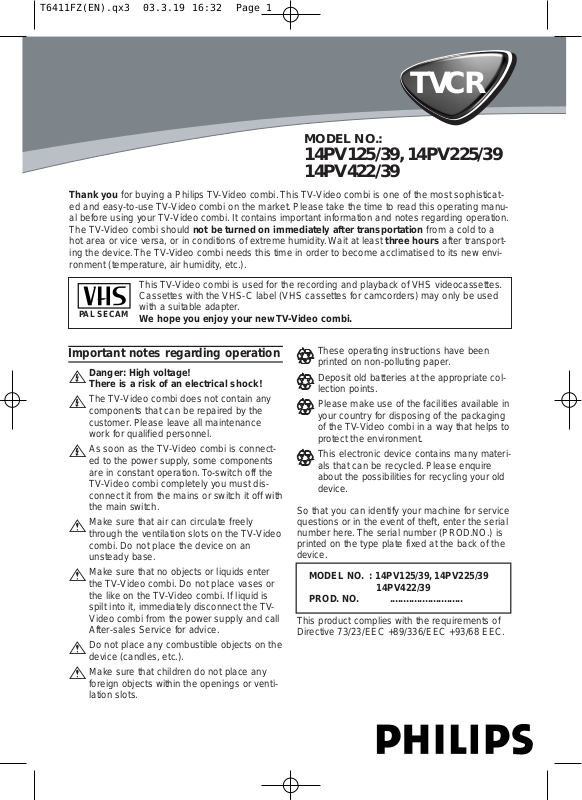

Page 1

TVCR

MODEL NO.:

14PV125/39, 14PV225/39 14PV422/39

Thank you for buying a Philips TV-Video combi.This TV-Video combi is one of the most sophisticated and easy-to-use TV-Video combi on the market. Please take the time to read this operating manual before using your TV-Video combi.It contains important information and notes regarding operation. The TV-Video combi should not be turned on immediately after transportation from a cold to a hot area or vice versa, or in conditions of extreme humidity.Wait at least three hours after transporting the device.The TV-Video combi needs this time in order to become acclimatised to its new environment (temperature, air humidity, etc.).

This TV-Video combi is used for the recording and playback of VHS videocassettes. Cassettes with the VHS-C label (VHS cassettes for camcorders) may only be used

PAL SECAM

with a suitable adapter.

We hope you enjoy your new TV-Video combi.

Important notes regarding operation

Danger: High voltage!

There is a risk of an electrical shock!

The TV-Video combi does not contain any

components that can be repaired by the customer.Please leave all maintenance work for qualified personnel.

As soon as the TV-Video combi is connect-

ed to the power supply, some components are in constant operation.To-switch off the TV-Video combi completely you must disconnect it from the mains or switch it off with the main switch.

Make sure that air can circulate freely

through the ventilation slots on the TV-Video combi. Do not place the device on an unsteady base.

Make sure that no objects or liquids enter

the TV-Video combi. Do not place vases or the like on the TV-Video combi.If liquid is spilt into it, immediately disconnect the TVVideo combi from the power supply and call After-sales Service for advice.

Do not place any combustible objects on the

device (candles, etc.). Make sure that children do not place any

foreign objects within the openings or ventilation slots.

These operating instructions have been printed on non-polluting paper.

Deposit old batteries at the appropriate collection points.

Please make use of the facilities available in your country for disposing of the packaging of the TV-Video combi in a way that helps to protect the environment.

This electronic device contains many materials that can be recycled. Please enquire about the possibilities for recycling your old device.

So that you can identify your machine for service questions or in the event of theft, enter the serial number here.The serial number (PROD.NO.) is printed on the type plate fixed at the back of the device.

MODEL NO. : 14PV125/39, 14PV225/39

14PV422/39

PROD. NO. ...........................

This product complies with the requirements of Directive 73/23/EEC +89/336/EEC +93/68 EEC.

Page 2

IN BRIEF

o l p

The remote control

REC STANDBY/ON

1 2 3

4 5 6

7 8 9

SLEEP SYSTEM

PLAYSTATUS/EXIT CLEAR

REW FWD

STOP

PROGVOL

STILL

MUTE

p l o

o l p

CLEAR

To delete last entr y/Clear programmed recording (TIMER).

REC I

To record the TV channel selected at this moment or press repeatedly to

start a One-Touch Recording.

STILL

To stop the tape and show a still picture.

PROG P–PROG P

To select the programme number. During nor mal or slow

motion playback, press to adjust the tracking or vertical jitter.

MUTE

To eliminate the sound. Press again to restore the volume.

VOL5

SYSTEM SLEEP STANDBY/ON

STATUS/EXIT

–

VOL5

To adjust the volume.

To change the video (colour) system.

To select the switch-off time in 30 minutes intervals.

To switch TVCR on or off, interrupt menu function.

To call up main menu of TVCR.

To access or remove the TVCR’s on-screen status display.To exit on-

screen menus.

0..9

Press to select channels.

FWD

When tape playback is stopped, press to fast forward the tape at hight

1- B

speed. During playback, press to fast forward the tape while the picture stay on the screen.To store or confirm entry in the menu. Press to adjust the controls of TVCR menu.

REW

When tape playback is stoped, press to rewind the tape at high speed.

0- s

During playback, press to rewind the tape while the picture stay on the screen.To return the cursor in the menu. Press to adjust the controls of TVCR menu.

PLAY STOP

To play a tape, select an item in the menu of TVCR.

B- K

C- L

To stop the tape, select an item in the menu of TVCR.

Red button / Green button / Yellow button/ Blue button / Doesn’t work on these models.

<14PV225>

: To switch TELETEXT on or off, or transparent mode. : enlarge font : select TELETEXT sub-page : recall hidden information : stop page changes : go back to start page.

Page 3

Front of the device

EXT/AV1

VIDEO AUDIO

STANDBY

Standby/on: To switch TVCR on or off, interrupt menu function.

Volume:In connection with the button , to adjust the volume.

Programme number minus: previous programme number

P-

Programme number plus: next programme number

P+

Record: To record the programme currently selected.

Playback: To play a recorded cassette.

Pause/Stop, eject cassette: To stop the tape;If this key is depressed while in STOP, the cassette is then

–+

ejected from the machine.

When tape playback is stopped, press to fast forward the tape at hight speed.

When tape playback is stoped, press to rewind the tape at hight speed.

Sockets on the front:

White socket / input socket: To connect a camcorder or video games (audio). Yellow socket / input socket: To connect a camcorder or video games (video).

AUDIO

VIDEO

Small socket / socket for headphones: To connect headphones.

Back of the set

Aerial input socket: To connect the aerial cable

EXT1/AV1

Scart socket :To connect a satellite receiver, decoder, video recorder, etc

Power switch: To switch the TV-Video Combi off.

Caution: If you switch off using the power switch, TIMER-recordings are impossible!

The control lights at the front of machine

STANDBY Standby light: lights up when the TV-Video Combi has been switched on by means of the main

switch. RECORD Recording light:lights up during recording.

Fast blink:recording pause; timer recording not stand-by. Slow blink: timer recording is stored in a timer block.

Page 4

Specifications

Voltage: 220-240V/50Hz Power consumption (Standby): less than 5W Rewind time: less than 260 seconds (cassette E-180) Number of video heads : 2 Recording/playback time: 3 hours (SP)

(cassette E-180)

Weight without packing in kg: 11.5 Dimensions in cm (HxWxD):40.0x37.3x38.0 Power consumption : 52W

Supplied accessories

• Operating instructions

• Remote control and batteries

1. Connecting the TV-Video Combi

3.If the little red standby light (STANDBY ) at

Preparing the remote control for operation

The remote control and its batteries are packed separately in the original TV-Video Combi packaging.You must install the batteries in the remote control before use.

1.Take the remote control and the enclosed bat-

teries (2 batteries).

2.Open the remote control's battery compart-

ment and place the batteries in it as shown in

the picture and close the battery compartment. The remote control is now ready to use. Its range is approximately 7 metres.

Connecting the cable

the front panel of the set is not lit, please switch on the set using the main power switch.The power switch is located on the left side panel of the set.

4.Language setting picture will appear on the

screen.

I do not see a Language setting picture

* Check the cable connections.

You can find more details in chapter 'Preparation for use'.

SELECTIONNER KL

→FRANÇAIS

DEUTSCH NEDERLANDS

APP. MENU POUR CONTINUER

1.Insert the aerial cable plug into the AERIAL at

the back of the TV-Video Combi.

2.Connect the mains cable to the wall socket.

Connecting additional devices

You can connect additional devices such as decoders, satellite receivers, camcorders, etc.to the EXT1 socket.

The respective scart socket is usually marked 'AV'

or 'TV'on the decoder or satellite receiver.

Page 5

2. Important notes for operation

Switching on

You can switch on the TV-Video Combi with

STANDBY/ON

If you press , ,

PROG P–

STOP C-LPLAYB-K REW0- sFWD 1- B

, or while

PROG P+

0..9

the set is in Stand-by, the power will be automatically turned on.

Note that the keys will be inactive for

0..9

about 5 seconds just after having switched the TV-Video combi off.

Power outage/no power

Channel information remains saved for up to 10 year, the time and timer information is saved for up to 1 minute.

Navigation in the screen menu

You can check/change many functions and settings of your TV-Video Combi via on-screen menu.The individual functions are selected, via the remote control as follows:

0..9

CLEAR

STOP C-LPLAYB-K

FWD 1- B

Call up the menu: with . To select: with .

To enter or change your selection: with the

number buttons or with .

To save or confirm: with . To cancel: with . To end: with .

STATUS/EXIT

SELECT KL CHOOSE B

→TIMER

PICTURE CONTROL RECORD SET UP VCR SET UP TUNER SET UP GENERAL SET UP

END=EXIT

Page 6

3. Installing your TV-Video Combi

Preparation for use

This chapter shows you how to prepare your TVVideo Combi for use.The TV-Video Combi automatically seeks out and stores all available TV channels.

Connecting additional devices

After you have connected additional devices (satellite receiver, etc.) through the aerial cable, switch them on. The automatic channel search will recognise them and save them.

1.Select the desired language for the on-screen

menu by pressing .

2.Press .

3.Confirm with .

PROG P+

The automatic TV channel search starts.

PLEASE WAIT

START FINISH

❚❚❚❚❚❚❚❚❚❚❚

<14PV 225>

'TIME' and 'DATE' will appear on the TV

screen.

TIME --:--

DATE --/--/--

SMART CLOCK [ON]

END=EXIT

5.Check 'TIME'. If required, please change the

time with the number buttons .

6.Check if the displayed settings for 'DAY',

'MONTH' and 'YEAR' are correct.

7.When all information is correct, save by

pressing .

The preparation for use is now complete.

Satellite receiver

If you are connecting a satellite receiver, please read the section 'Using the satellite receiver'.

Decoder

If you are connecting a decoder, you must install it as described in the next section.

STATUS/EXIT

STOP C-LPLAYB-K

❚❚❚❚❚❚❚❚❚❚❚❚

0..9

Decoder allocation

Some TV channels transmit encoded TV signals which can only be viewed with a commercially purchased or hired decoder without disturbances.You can connect such a decoder to this TV-Video Combi.The following function will automatically activate the connected decoder for the desired TV channel.

1.Use

PROG P–PROG P+

, TV channel which you would like to allocate the decoder to.

2.Press .The main menu will appear.

3.Use to select 'TUNER

STOP C-LPLAYB-K

SET UP'.Then press .

4.Use to select 'MANUAL

STOP C-LPLAYB-K

TUNING'.Then press .

5.Use to select

STOP C-LPLAYB-K

'DECODER'.

RECHERCHE MANUELLE

SYSTEM [ L ] PROGRAMME P55 CANAL 055

→DECODEUR [NON]

PROG. PREF. [NON]

SELECT. KL SELECTIONNER B TERMIN=EXIT

FWD 1- B

6.Use to select 'ON'

(Decoder switched on).

How can I switch off the decoder?

FWD 1- B

Use to select 'OFF' (Decoder switched off).

7.To end, press .

STATUS/EXIT

The decoder has now been allocated to this TV channel.

0..9

or to select the

FWD 1- B

Page 7

Manual TV channel search

In some cases it can occur that all TV channels are not found and saved during the first installation. In this case, the missing TV channels must be searched for and stored manually.

1.Press .The main menu will appear.

2.Select 'TUNER SET UP' with

3.Select 'MANUAL TUNING' with

4.Select 'SYSTEM' with

5.Select 'L' or ‘BG’with

6.Select 'PROG.' with

7.With

What is a special channel?

TV channels are transmitted in certain pre-defined frequency ranges.These ranges are divided into channels. A specific frequency/channel is assigned to each TV station. Certain frequency ranges are specified as special channels (hyperband channels).

8.Select 'CHANNEL' with ,

When a channel is found,it will stop searching. If this is the channel you want, press . If you set 'SKIP'on for a channel, this channel will be ignored when going through the channels with or .

To search for other TV channels, begin again at step 6.

I don't know the channels for my TV stations

In this case, press in 'CHANNEL' to start the automatic channel search. A changing channel number will appear on the TV screen. Continue the automatic search until you have found the desired TV channel.

PLAYB-K

and confirm with . and confirm with

Then press

MANUAL TUNING

→SYSTEM [L]

SELECT KL CHOOSE B END=EXIT

FWD 1- B

press

FWD 1- B

PROG. P55 CHANNEL 055 DECODER [OFF] SKIP [OFF]

STOP C-LPLAYB-K

FWD 1- BSTOP C-L

FWD 1- B

0..9

PLAYB-K

STOP C-LPLAYB-K

, select the

.Then

desired programme number that you want to use for the TV channel, e.g. 'P01'.Then press

FWD 1- B

and confirm with . Then enter the desired channel with

FWD 1- B

0..9

PROG P–PROG P+

STOP C-LPLAYB-K

FWD 1- B

Using the satellite receiver

You can receive channels from the satellite receiver via the scart socket .

AV1/EXT1

To do this, select the channel number 'AV1' by pressing 0,0,1, with the keys on the remote

0..9

control.You will have to select the channel you want to receive on the satellite receiver itself.

Automatic T uning

During installation, all available TV channels are searched for and saved.If the channel assignments of your cable or satellite TV provider change or if you are reinstalling the TV-Video Combi, e.g. after moving house, you can start this procedure again.This will replace the TV channels already saved with the new ones.

1.Press .The main menu will appear.

2.Select 'TUNER SET UP' with

3.Select 'AUTO TUNING' with

4.The automatic TV channel search starts.This

5.When the TV channel search is complete,

PLAYB-K

and confirm with .

, and confirm with .

PLEASE WAIT

START FINISH

❚❚❚❚❚❚❚❚❚❚❚

FWD 1- BSTOP C-L

PLAYB-K

FWD 1- BSTOP C-L

❚❚❚❚❚❚❚❚❚❚❚❚

allows the TV-Video Combi to save all available TV channels. This procedure may take several minutes.

'AUTO TUNING COMPLETED' will briefly appear on the TV screen.

To end, press

STATUS/EXIT

Page 8

Sorting and clearing TV channels manually

You can use this function to individually sort the TV channels already saved or to delete unwanted TV channels or those with poor reception.

The clock resets automatically

If you save a TV channel that transmits TXT/PDC on programme number ‘P01’, date and time will and constantly be updated. As a result, time changes, i.e. daylight savings time, will be set automatically.

1.Press .The main menu will appear.

2.Select 'TUNER SET UP' with

3.Select 'MOVE' with , and

4.With , select the saved TV

5.Confirm with .

6.Move the selected channel with

7.Confirm with .

8.To assign other TV channels to a programme

9.Confirm the assignment of the TV channel

10.To exit the

10.

PLAYB-K

and confirm with .

confirm with .

FWD 1- B

MOVE

→P01: 02 P06: 90

P02: 03 P07: 99 P03: 05 P08: 121 P04: 10 P09: 124

P05: 74 P10: 130 SELECT KL CHOOSE B END=EXIT

STOP C-LPLAYB-K

FWD 1- BSTOP C-L

STOP C-LPLAYB-K

channel that you want to move.

FWD 1- B

PLAYB-K

STOP C-L

to the programme number you want

to assign. Then pless . The programme num-

FWD 1- B

ber will change to '_ _'

FWD 1- B

number, repeat steps 4 to 7.

with

MOVE menu

, press

STATUS/EXIT

3.Select 'LANGUAGE' with

and confirm with .

SELECTIONNER KL

TERMIN=EXIT

4.Select the desired language with

STOP C-L

5.To end, press .

FWD 1- B

→FRANÇAIS

DEUTSCH NEDERLANDS

STATUS/EXIT

Setting the clock

If the display shows an incorrect time or ' --:-- ' the time and date must be reset manually.

Press .The main menu will appear.

2.Select 'GENERAL SET UP' with

and confirm with .

3.Select 'CLOCK' with and

confirm with .

4.Check the time in 'TIME'. If required, please

FWD 1- B

TIME --:--

DATE --/--/-SMART CLOCK [ON]

END=EXIT

change the time with .

5.Check 'DAY', 'MONTH' and 'YEAR' in the

same way. (Choose 'SMART CLOCK' ON or OFF with

6.To end, press

FWD 1- B

. [14PV225])

STATUS/EXIT

FWD 1- BSTOP C-L

0..9

STOP C-LPLAYB-K

PLAYB-K

STOP C-LPLAYB-K

Setting the language

You have the option of setting one of the displayed languages for the on-screen menu (OSD).

1.Press .The main menu will appear.

2.Select 'GENERAL SET UP' with

and confirm with .

FWD 1- BSTOP C-L

PLAYB-K

Time/date is displayed incorrectly despite manual setting

* With Smart Clock, if you save a TV channel that transmits TXT/PDC on programme number

'P01', date and time will automatically be updated when the TV-Video Combi is in Stand-by

If you wish to switch this automatic time correction off, select 'OFF' for Smart Clock.You can reactivate this function at any time by selecting Smart Clock 'ON'.

Page 9

o l p

4.TV SET FUNCTIONS

Selecting a TV channel

Select the desired TV channel (= the programme number) with , or with

PROG P–PROG P+

0..9

on the remote control.

Selection of the scart socket

To select the Scart socket, please enter 0,0,1, with the keys on the remote control. AV1

0..9

appears on the screen.

Selection of the front A/V sockets

To select the front A/V sockets, please enter 0,0,2, with the keys on the remote control.

'AV2' appears on the screen.

0..9

Volume control

You can adjust the volume using ,

VOL5–

on the remote control.

If you would like to change the volume on the machine, press or on the TV-Video

5+5–

Combi. If you want to mute the sound temporarily

(e.g.:during a telephone call), press on the remote control.When you press

again, the sound will return at its original volume level.

VOL5+

MUTE

Picture settings

The picture can be adjusted according to your personal preferences. These settings are automatically stored after exiting the main menu.

1.Press the . The main menu will appear.

2.Select 'PICTURE CONTROL' with

PLAYB-K

and confirm with ..

FWD 1- BSTOP C-L

3.Select an item using , and

then modify with .

SELECT KL ADJUSTE s/ B

BRIGHTNESS < > CONTRAST < > COLOUR < > SHARPNESS < > TINT < >

END=EXIT

4.To end, press .

STATUS/EXIT

STOP C-LPLAYB-K

FWD 1- BREW0- s

'TINT' appears only when receiving NTSC signals from another source.

How do I read TELETEXT? [14PV225]

Many TV channels transmit TELETEXT information along with their TV channels.With this TVVideo Combi you can retrieve this information and display it on the screen using the built-in TELETEXT decoder.

1.Press to switch the TELETEXT decoder

on.Your TV-Video Combi will now show TELETEXT for the TV channel you have

selected. Press again to show TELETEXT in transparent mode.

2.If you want to select another page, type in the

number of the page with the number buttons

0..9

on the remote control.

With the colour buttons on your remote control you can directly select the page numbers shown at the bottom of the TV screen. The button takes you back to the start page.

3.Press to switch the TELETEXT decoder

off.

Special TELETEXT functions

In TELETEXT mode you can use the special TELETEXT functions.

: enlarge font : select TELETEXT sub-page : recall hidden information : stop page changes :go back to start page

[14PV225]

Page 10

Switch-off function (SLEEP TIMER)

You can programme your set to switch-off automatically after a predetermined period.

1.Press .

2.Press repeatedly to extend the time

SLEEP SLEEP

until switch-off in 30 minute increments. The screen will show the time remaining until switch-off, e.g.:'+0:30'. The machine now counts backwards to the switch-off time.

5. Playback

The maximum time period to be set until switchoff is 2 hours.

If you would like to turn this function off, press

SLEEP

on the remote control several times until switch-off appears.'--:--' will appear on the screen. To check the time until switch-off, press

SLEEP

on the remote control. If a recording is in process, switch-off function will be cancelled.

Playing cassettes

You can use this TV-Video Combi to playback recorded VHS video cassettes. You can operate the TV-Video Combi using the remote control or the buttons on the set. Your TV-Video Combi can only record and play standard VHS cassettes.

1.Put a cassette into the cassette slot.The cas-

sette is inserted automatically.

DIGITAL STUDIO PICTURE CONTROL

Philips has developed a system which produces the best possible playback quality. For old and often-used video cassettes, this system reduces interference.For new or high quality cassettes, it emphasises the details.

Picture/ sound quality is poor

When playing rental videos or older, poorer quality cassettes, it may not be possible to completely filter out picture and sound interference. This is not a fault in your machine.Read the section 'Manual tracking'.

2.Press to view the tape.

3.To stop the playback, press or

4.To eject the cassette, press or

Do I need to change the playback speed when playing back LP recordings?

During playback, the correct speed will automatically be selected. For more information, please read the section 'Selecting the recording speed (SP or LP)' in the chapter 'Manual recording'.

PLAYB-K

STOP/EJECT

the playback.

STOP C-L

on the TV-Video Combi.

EJECT

when the TV-Video Combi stops

Playing back NTSC cassettes

Cassettes that have been recorded in the NTSC standard (for example, American cassettes) can be played back using this TV-Video Combi.

Searching for a tape position with picture (scanning)

1.While a cassette is playing, press

(reverse) or (forward) one or more

FWD 1- B

times.

2.Press to resume playback.

PLAYB-K

REW0- s

Still picture

1.During playback, press to stop the

tape and display a still picture.

2.To continue playback, press .

Scanning and still motion interferes with the picture quality.The sound is switched off.This is not a fault in your TV-Video Combi.

STILL 2

PLAYB-K

Searching for tape position without picture (forward wind and rewind)

1.Stop the tape with .

2.Press (reverse) or

(forward).

3.To stop the tape, press .

STOP C-L

FWD 1- BREW0- s

STOP C-L

Manual T racking

To adjust the tracking manually, press or on the TV-Video Combi during playback

Tracking returns to Automatic Tracking Adjustment when you press or insert a tape.

STOP C-L

P-P+

Page 11

6. Manual recording

General information

Use 'Manual Recording' to make a sponta- neous recording (for example, a programme currently being shown).

If you want to start and stop a recording manually, read the section 'Recording without auto- matic switch-off'.

If you want to start a recording manually but have it stopped automatically, read the section 'Recording with automatic switch-off'.(e.g. not to record to the end of the tape)

Read the section 'Automatic recording from a satellite receiver', if you want a recording to be controlled automatically by a satellite receiver.

Recording without automatic switch-off

1.Insert a cassette.

2.Use or to select the

programme number you want to record, for example, 'P01'.

3.To start recording, press .

4.To stop recording, press .

PROG P–PROG P+

0..9

REC I

STOP C-L

Recording with automatic switch-off (OTR One-Touch-Recording)

1.Insert a cassette.

PROG P+

2.Use or to select the

programme number you want to record.

3.Press .

4.Each time you press you will add 30

minutes to the recording time. To stop recording, press .

PROG P–

REC I

0..9

REC I

STOP C-L

Preventing accidental erasing

All cassettes (except rental and pre-recorded cassettes) have a security tab on the back of the cassette. To prevent recording over important recordings (erasing), you can remove this security tab. If you later decide to record on a protected cassette, simply cover the hole with adhesive tape or slide the tab to the right.

Lining up recordings (assemble cut)

When you add a further recording to a cassette, which already has a recording on it, a short blank (flicker) can appear between the old and the new recording or the picture itself can flicker. To help reduce these from occurring, proceed as follows:

1.Find the tape position of the old recording

where you want to insert the new recording.

2.Look at the last minute of the old recording

(playback).

3.Press at the tape position where

4.Now start recording as usual by pressing

5.Stop recording with .

STILL

the new recording is to go and press .

REC I

on the remote control.

STOP C-L

REC I

Selecting the recording speed (SP or LP)

LP allows to double the recording duration on tape (for example six hours instead of three hours on a E180 cassette).

1.Press .The main menu will appear.

3.Select the required recording speed with

4.To end, press .

'SP'/'LP'

'SP': StandardPlay (normal recording speed) offers the usual first-class picture quality. 'LP': LongPlay (half recording speed, double recording time). 6 hours can be recorded on a 3hour cassette (E180) with a somewhat reduced picture quality.

Select 'RECORD SETUP' with

STOP C-L

FWD 1- B

SELECT KL CHOOSE B

→RECORD SPEED [SP]

END=EXIT

STATUS/EXIT

PLAYB-K

Page 12

7. Programming a recording (TIMER)

General information

Use a TIMER programming to automatically start and stop a recording at a later time or date.The TV-Video Combi will switch to the right programme number and begin recording at the correct time.With this TV-Video Combi, you can pre-programme up to eight recordings within a period of one year.To make a programmed recording, your TV-Video Combi needs to know: *the date you want to make the recording *the programme number of the TV channel *the start and stop time of the recording *VPS or PDC on or off [14PV225] This information is saved in a TIMER block.

[14PV225] What is 'VPS/PDC'?

'VPS' (Video Programming System)/ 'PDC' (Programme Delivery Control) are used to control the start and duration of TV channel recordings. If a TV programme starts earlier or ends later than scheduled, the TV-Video Combi will turn on and off at the correct time.

What do I need to know about 'VPS/PDC'?

Usually the VPS or PDC time is the same as the start time. But if your TV guide shows a VPS or PDC time which is different from the programme’s scheduled start time, e.g.20.10 (VPS/PDC 20.14), you must enter the VPS/PDC time exact to the minute.If you want a start time different from the VPS/PDC time, you must switch VPS/PDC off.

Programming a recording

1.Press .The main menu will appear.

2.Select 'TIMER' with .Then

3.Select ONCE, DAILY, or WEEKLY recording

If all TIMER blocks are in use, 'FULL' will appear on the TV screen.

4.Select the desired TIMER block with .

Selecting once/daily/weekly recordings

Use to select from the following options: 'ONCE': Recording once 'DAILY': Repeated daily recordings from

'WEEKLY': Repeated weekly recordings (every

5.Enter the Start time (START) End time

Programming a recording from the external sources

You can also programme recording from an external source via the Scart socket AV1 or the front A/V connectors AV2.

6.When all inputs are correct, press

7.Insert a cassette with an intact security tab

STOP C-LPLAYB-K

FWD 1- B

press .

with .Then press

FWD 1- B

STOP C-LPLAYB-K

SELECT KL CHOOSE B

ONCE

→

DAILY WEEKLY TIMER LIST

END=EXIT

STOP C-LPLAYB-K

0..9

Monday to Friday

week on the same day)

(STOP), Programme number (PROG.), VPS/PDC information and the Date with .

STATUS/EXIT

.The programming information

0..9

is stored in a TIMER block. (unprotected).

Page 13

How to check, change or delete a programmed recording (TIMER)

1.Press .The main menu will appear.

2.Select 'TIMER' with .Then

3.Select 'TIMER LIST' with ,

5.To cancel the recording, press .

6.To end, press

STOP C-LPLAYB-K

FWD 1- B

press .

ONCE DAILY WEEKLY

FWD 1- B

STATUS/EXIT

FWD 1- B

CLEAR

and confirm with

SELECT KL CHOOSE B

→TIMER LIST

END=EXIT

Select timer block with .

STOP C-LPLAYB-K

8. Other functions

How to change a programmed recording (TIMER)

1.Press .The main menu will appear.

2.Select 'TIMER' with .Then

3.Select ONCE, DAILY, or WEEKLY recording

4.Select a TIMER block with . (The flashing

5.Press to delete information, and

6.To end, press

STOP C-LPLAYB-K

FWD 1- B

press .

with .Then press

FWD 1- B

STOP C-LPLAYB-K

0..9

number indicates an empty TIMER block.)

ONCE

TIMER - 1 2 3 4 5 6 7 8 -

SELECT TIMER NUMBER END=EXIT

CLEAR

input correct information with .

STATUS/EXIT

0..9

Changing the video (colour) system

If you playback recordings made on other video recorders or if you want to record from external sources (via the scart socket), the automatic video-colour detection system may lead to colour distortion. You can switch off this automatic detection-system as follows.

Video (colour) systems

In central Europe transmissions are broadcast in PAL (Phase Alternation Line) standard. France uses SECAM (Séquentiel à mémoire). In some countries (like USA and Japan), TV viewers receive their programmes as an NTSC signal (National Television System Committee).

1.Press on the remote control to

SYSTEM

select the TV-colour system presenting the least distortion during playback.

At each pressing , the display will change

SYSTEM

cyclically; AUTO, SECAM, PAL and ME-SECAM.

AUTO

2.After 5 seconds, the display indication will

disappear.

Page 14

Switching the status display off or on

Along with the on screen menu, the status display also displays information on the current operating status (counter, playback, recording, TV channel, etc.) on the TV screen.

1.Press .The main menu will appear.

2.Select 'VCR SET UP' using

3.Select 'STATUS DISPLAY' with

4.Select 'ON' or 'OFF' with .

and confrim with .

STOP C-L

SELECT KL CHOOSE B

REPEAT PLAY [ON]

→STATUS DISPLAY [ON]

BLUE BACKGROUND[ON]

END=EXIT

PLAYB-K

FWD 1- BSTOP C-L

PLAYB-K

FWD 1- B

Which settings can I choose?

'ON': Shows the status display for a few seconds only. 'OFF': Switches off the status display.

5.To end, press .

STATUS/EXIT

Continuous playback

This function can be used to play a cassette over and over again.When the end of the cassette is reached, it will rewind and start from the beginning again.This function is activated or deactivated as follows.

1.Press . The main menu will appear.

2.Select 'VCR SET UP' using

3.Select 'REPEAT PLAY' with

4.Select 'ON' with .

If you select 'OFF', continuous playback will be switched off.

and confirm with .

STOP C-L

SELECT KL CHOOSE B

→REPEAT PLAY [ON]

STATUS DISPLAY [ON] BLUE BACKGROUND[ON]

END=EXIT

PLAYB-K

FWD 1- BSTOP C-L

PLAYB-K

FWD 1- B

5.To end, press .

6.Insert a cassette.

7.Start the continuous playback with

STATUS/EXIT

PLAYB-K

Your TV-Video Combi will automatically rewind and start playing the tape from the begining when it recognizes a non-recorded part longer 10 seconds.

Blue Background on or off

If you want the TV screen to be solid blue when a weak signal is received, set BLUE BACKGROUND to ‘ON’.The screen will be blue and the sound will be muted. Or, if you want to receive the weak signal, set BLUE BACKGROUND to ‘OFF’.

1.Press . The main menu will appear.

2.Select 'VCR SET UP' using

3.Select 'BLUE BACKGROUND' with

4.Select 'OFF' (no blue background) or 'ON'

5.To end, press .

PLAYB-K

and confrim with .

STOP C-L

SELECT KL CHOOSE B

REPEAT PLAY [ON] STATUS DISPLAY [ON]

→BLUE BACKGROUND [ON]

END=EXIT

(blue background on) with .

STATUS/EXIT

FWD 1- BSTOP C-L

FWD 1- B

PLAYB-K

Parental control (Child lock)

This function protects your TV-Video Combi from unwanted use. All button functions on the front of

Programmed recordings will still be recorded (in spite of the parental control) and cannot be interrupted.

the machine are blocked.

1.Press .The main menu will appear.

2.Use to select 'GENERAL

3. Use to select 'CHILD

STOP C-LPLAYB-K

SET UP'.Then press .

FWD 1- B

STOP C-LPLAYB-K

LOCK'.

4. Use to select 'ON'.

FWD 1- B

'If a button at the front of the machine is pressed while parental control is active, ’CHILD LOCK ACTIVE’will appear on the screen for a few seconds.

Page 15

9. Before you call an engineer

If, contrary to expectation, you have any problems using this TV-Video Combi, it may be caused one of the following reasons.

Your TV-Video Combi does not respond to any button being pressed:

*There is no power supply: check the power

supply.

*Parental control is on:switch the parental con-

trol off.

*There is a technical problem: disconnect from

the mains power supply for 5 minutes, then power-up again.

If this doesn't help, you can reset your TV-Video

Combi to the default factory settings.

Resetting devices to default factory settings

*Warning: All the information stored (TV chan-

nels, time and date, TIMER) will be cleared.

1.Switch the TV-Video Combi to stand-by.

2.Press and hold and at the same time for 2 seconds or more.

A cassette is jammed in the TV-Video Combi

*Don’t use force.Disconnect the set from the

mains and reconnect it again after a few seconds.

Remote control does not work

*Remote control is not pointed at the TV-Video

Combi.

*Take out the batteries, wait for 10 seconds and

place them back in the remote control.

*Batteries have run out. Change the batteries.

REC I

PROG P+

No recording possible

*The TV channel you want to record is not

stored or you have selected the wrong programme number: check TV channels stored.

*A cassette was inserted that does not have the

security tab (cannot be used to record): Insert a cassette with an intact security tab or change cassette. For more information, please see the section ‘Preventing accidental erasing’ in chapter ‘Manual Recording’.

[14PV225]

*’VPS/PDC’ switched on but ‘VPS/PDC time’

wrong: enter ‘VPS/PDC time’exactly to the minute. Check your aerial connection.

Smart Clock does not work

*You have stored on programme number ‘P01’a

TV channel that does not transmit TELETEXT. Store on ‘P01’a TV channel that transmits TELETEXT.

*Poor TELETEXT reception. Store a TV channel

on ‘P01’ with good TELETEXT reception.

*You have not activated the Smart Clock func-

tion. Switch the function ‘ON’.

You can also call the customer service centre in your country.The telephone numbers can be found on the back of this instruction manual. Have the model number (MODEL NO) and the production number (PROD.NO.) of your

Video Combi ready.

TV-

No picture when you play a cassette

*There is no recording on the cassette.

Poor picture quality when you play a cassette

*The cassette is badly worn-out or of poor qual-

ity. Use a new cassette.

*Tracking is not properly adjusted. Turn to sec-

tion ‘Manual Tracking’.

*Magnetism from nearby appliances and geo-

magnetism might affect the colour of the TV picture. Move the TV-Video combi away from such sources.The TV-Video combi will readjust itself automatically. If you want to initiate an immediate readjustment, unplug the TV-Video combi from the mains and plug it in again approximately 30 minutes later.

Page 16

PHILIPS NORGE AS

Sandstuveien 70, PO Box 1, Manglerud N-0612 Oslo

NORWAY

Phone: 2274 8250

OY PHILIPS AB

Sinikalliontie 3, 02630 Espoo

FINLAND

puh. 09 615 80 250

PHILIPS KUNDTJÄNST

Knarrarnäsgatan 7 Kista 164 85 Stockholm

SWEDEN

Tel: (0)8 598 52 250

PHILIPS POLSKA

Al. Jerozolimskie 195B 02-222 Warszawa

POLSKA

TEL.: (022)-571-0-571

PHILIPS Iberia, S.A.

C/Martinez Villergas, 49 28027 MADRID

SPAIN

Phone: 902-11 33 84

PHILIPS AUSTRIA GMBH

Triesterstrasse 64 1101 Wien

AUSTRIA

Tel: 0810 001 203

PHILIPS INFO CENTER

Alexanderstrasse 1 20099 Hamburg

GERMANY

Tel: 0180-53 56 767

SERVICE CONSOMMATEURS PHILIPS

BP 0101 75622 Paris Cédex 13

FRANCE

Phone: 0825-889 789

PHILIPS ELECTRONICS IRELAND LIMITED

Consumer Information Centre Newstead, Clonskeagh

DUBLIN 14

Phone: 01-7640292

PHILIPS CONSUMER ELECTRONICS

Servizio Consumatori Via Casati 23 20052 Monza - Milano

ITALY

Phone: 800 820026

PHILIPS MAGYARORSZÁG KFT.

Fehérvári út 84/a. Budapest 1119

HUNGARY

Phone: (01)-382-1700

PHILIPS PORTUGUESA, S.A.

Consumer Information Centre Rua Dr. António Loureiro Borge, nr. 5 Arquiparque, Miraflores P-2795 L-A-VEHLA

PORTUGAL

Phone: 021-4163063

PHILIPS CE, The Philips Centre,

420 - 430 London Road, Croydon, Surrey CR9 3 QR

UNITED KINGDOM

Phone: 0208-665-6350

PHILIPS KUNDECENTER

Frederikskaj 6, 1780 København V

DANMARK

Tlf.: 80 88 28 14

PHILIPS REPRESENTATION OFFICE

Ul. Usacheva 35a 119048 MOSCOW

RUSSIA

Phone: 095-937 9300

PHILIPS INFO CENTER

Fegistrasse 5 8957 Spreitenbach

SUISSE

Tel.: 0844-800 544

PHILIPS CUSTOMER CARE CENTER

Twee Stationsstraat 80/ 80 Rue des Deux Gares 1070 BRUSSEL/BRUXELLES

BELGIUM (for BENELUX)

Tel: 070-222303

PHILIPS CONSUMENTENLIJN

Postbus 102 5600 AC Eindhoven

NEDERLAND

Tel.: 0900-8406

3143 025 21011 0EMN02130 / T6411FZ-SE*****

Philips 14PV125-39, 14PV422-39, 14PV225-39 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
