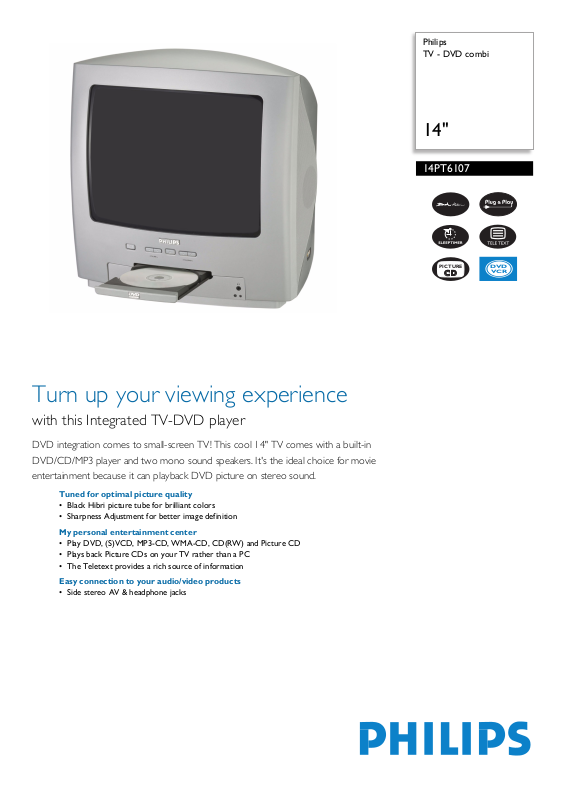

Philips
TV - DVD combi
14"
14PT6107
Turn up your viewing experience
with this Integrated TV-DVD player
DVD integration comes to small-screen TV! This cool 14" TV comes with a built-in
DVD/CD/MP3 player and two mono sound speakers. It's the ideal choice for movie
entertainment because it can playback DVD picture on stereo sound.
Tuned for optimal picture quality
• Black Hibri picture tube for brilliant colors
• Sharpness Adjustment for better image definition
My personal entertainment center
• Play DVD, (S)VCD, MP3-CD, WMA-CD, CD(RW) and Picture CD
• Plays back Picture CDs on your TV rather than a PC
• The Teletext provides a rich source of information
Easy connection to your audio/video products
• Side stereo AV & headphone jacks
DVD
VCR
For preview purpose only
TV - DVD combi
14"
Technical specifications Product highlights
Picture/Display
• Aspect ratio: 4:3
• Diagonal screen size: 14 inch / 37 cm cm
• Visible diagonal screen size: 34 cm cm
• Display screen type: Black Hibri picture tube
• Picture enhancement: Crystal Clear, Black
stretch, Color Temperature Adjustment,
Sharpness Adjustment
• Picture processing: 50 Hz
Sound
• Sound System: Mono, Stereo Playback
• Output power (RMS): 2 x 3w
• Music Power: 12 W
• Teletext enhancements: Program information
Line
• Screen Format Adjustments: 16:9 compress, 4:3
expand, 4:3
• Clock: Sleep Timer, Smart Clock
• Child Protection: Parental Control
Dimensions
• Product weight: 9.8 kg
• Weight incl. Packaging: 12.5 kg
• Color cabinet: Silver Shadow (10811)
• Box dimensions (W x H x D):
460x460x470mm
• Set dimensions (W x H x D):
384x384x384mm
Loudspeakers
• Built-in speakers: 2
Tuner/Reception/Transmission
• Aerial Output: 75 ohm coaxial (IEC75)
• Tuner bands: Hyperband, S-Channel, UHF, VHF
• TV system: PAL B/G, PAL D/K, PAL I, SECAM L/
L'
• Video Playback: NTSC
• Aerial Input: 75 ohm coaxial (IEC75)
• Number of Preset Channels: 100
Convenience
• Ease of Installation: Autostore, Fine Tuning, PLL
Digital Tuning, Sorting, Plug & Play, Smart ATS
and ACI
• Ease of Use: Smart Picture Control, Smart Sound
Control
• Remote control type: RCLE016
• Teletext: 1 page Teletext
Connectivity
• Number of Scarts: 1
• Ext 1 Scart: CVBS in/out, RGB
• Other connections: Audio constant level out,
Digital coaxial out
• Front / Side connections: CVBS in, Headphone
out, Audio L/R in
• Headphone: 3.5 mm
Built-in DVD
• Playback media: CD, CD-R, CD-RW, JPEG, MP3,
VCD, Picture CD, DV D+R, DVD-R, DVD+RW,
DVD-RW, DVD-Video
Power
• Power consumption: 50 W
• Standby power consumption: < 3 w
• Mains power: AC 90 - 276 V, 50/60 Hz
•
14PT6107/00
Black Hibri picture tube
Black HiBri is a TV tube technology used on Philips
small-screen TVs, giving good color reproduction on
smaller sets.
Sharpness Adjustment
Play DVD, MP3, WMA, Picture CD
Micro system's integrated DVD player provide an
attractive combination with its classic design. Video fans
and music lovers can benefit from the widely accepted
DVD and CD formats, and the increasing popularity of
MP3 and WMA digital music. It plays all CD-formats;
DVD-Video discs, Video CDs, Super Video CDs, Audio
CDs, CD(RW) MP3 CDs, WMA-CD and Picture CD.
Picture CD Playback (jpeg)
A Picture CD contains digital still pictures in JPEG
format. Most Philips DVD players and recorders
support playback of Picture CDs – both home created
discs as well as ones from photo shops.
Teletext
The Teletext is a communication system transmitted by
most broadcasters in Europe, which contains a rich
variety of information. This information can only be
viewed by a set equipped with a Teletext decoder.
Side Stereo AV & headphone
Side st ereo A V & headphone m akes it more co nveni ent
to connect external devices like audio equipment,
games and video cameras. It's the easy way to enjoy an
extra audio sensation or a totally immersive gaming
experience.
Date of issue 2006-09-28
Version: 15.0
12 NC: 8670 000 17683
EAN: 87 10895 74614 4
