Philips 14PT4131 User Manual

For preview purpose only

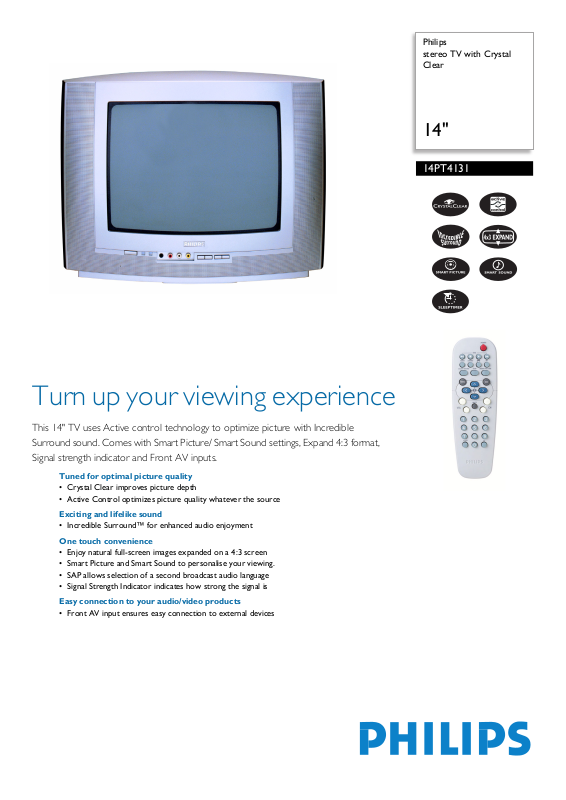

Philips
stereo TV with Crystal
Clear

14"

14PT4131

Turn up your viewing experience

This 14" TV uses Active control technology to optimize picture with Incredible
Surround sound. Comes with Smart Picture/ Smart Sound settings, Expand 4:3 format,
Signal strength indicator and Front AV inputs.

Tuned for optimal picture quality

• Crystal Clear improves picture depth

• Active Control optimizes picture quality whatever the source

Exciting and lifelike sound

• Incredible Surround™ for enhanced audio enjoyment

One touch convenience

• Enjoy natural full-screen images expanded on a 4:3 screen

• Smart Picture and Smart Sound to personalise your viewing.

• SAP allows selection of a second broadcast audio language

• Signal Strength Indicator indicates how strong the signal is

Easy connection to your audio/video products

• Front AV input ensures easy connection to external devices

For preview purpose only

stereo TV with Crystal Clear

14"

Technical specifications Product highlights

Picture/Display

• Aspect ratio: 4:3

• Diagonal screen size: 14 inch / 37 cm

• Visible diagonal screen size: 34 cm

• Picture enhancement: Active Control, Color
Temperature Adjustment, Crystal Clear

• Picture processing: 50 Hz, 60Hz Analog

• Clock: Sleep Timer

• Signal strength indication

Tuner/Reception/Transmission

• TV system: NTSC

• Aerial Input: 75 ohm F-type

Connectivity

Sound

• Sound System: Incredible Surround, SAP, Stereo

• Output power (RMS): 2 x 3W

• Sound Enhancement: Ultra Bass

• Front / Side connections: AV input, Headphone
out

Power

• Mains power: AC 100-250V, 50/60Hz

Loudspeakers

• Built-in speakers: 2

Convenience

• Ease of Use: Smart Picture Control, Smart Sound
Control

• Teletext: Closed Captioning

• Remote control type: RCLB014

• Screen Format Adjustments: 4:3, 4:3 expand

Dimensions

• Box dimensions (W x H x D):
476x378x397mm

• Set dimensions (W x H x D):
450x350x380mm

• Set weight: 9.7 kg

• Weight incl. Packaging: 11.3 kg

• Set color: Techno Silver

•

14PT4131/44R

Crystal Clear

Combining picture enhancements like Contrast plus and
color improvement, Crystal Clear improves picture
depth.

Active Control

Active Control ensure that noise and sharpness
improvements are continuously made at a rate of 60
times per second. By continually adjusting picture
setting over 3,000 times per minute, Active Control Plus
ensures that the viewing experience is optimized.

Incredible Surround™

Incredible Surround is an audio technology from Philips
that dramatically magnifies the sound field to immerse
you in the audio. Using state-of-the-art electronic phase
shifting, Incredible Surround mixes sounds from left and
right in such a way that it expands the virtual distance
between the two speakers. This wider spread greatly
enhances the stereo effect and creates a more natural
sound dimension. Incredible Surround allows you to
experience total surround with greater depth and width
of sound, without the use of additional speakers.

4x3 Expand

4x3 Expand enables widescreen movies to be viewed on
a 4:3 aspect ratio TV screen by removing the black bars
at the top and bottom of the image. You are able to
watch full-screen movies without compromizing on
picture quality and resolution.

Smart Picture and Smart Sound

Philips preset modes for Smart Picture and Smart Sound
provide you with direct access via a single key on the
remote control. You can select optimized picture and
sound settings for the various picture modes such as
Eco, Natural, Rich, Multimedia and Personal, and sound
modes such as Movie, Voice, Music and Personal. Do
refer to the DFU for the various picture and sound
smart modes.

SAP

Secondary Audio Program (SAP) allows you to choose a
an ot her language in pro gr am s whe re two languages are
simultaneous. Broadcast.

Signal Strength Indicator

The signal strength indicator displays signal strength
when you change the channel, and continuously tracks
and updates the incoming signal strength.

Front AV Input

Front AV Input makes it much more convenient to
connect external devices like audio equipment, games
and video cameras. It's the easy way to enjoy an extra
audio sensation or a totally immersive gaming
experience.

Date of issue 2006-08-16

Version: 4.0

12 NC: 8670 000 18754
EAN: 87 10895 77121 4

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.

www.philips.com
