Philips 14PT2002 User Manual

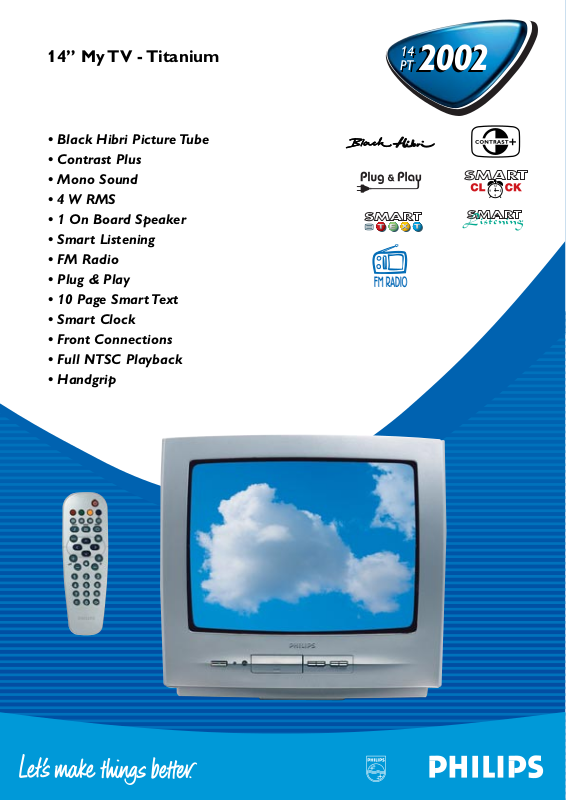

14” My TV - Titanium
• Black Hibri Picture Tube
• Contrast Plus
• Mono Sound
• 4 W RMS
• 1 On Board Speaker
• Smart Listening
• FM Radio
• Plug & Play
• 10 Page Smart Text
• Smart Clock
• Front Connections
• Full NTSC Playback
• Handgrip
14
PT2002
14
PT 2002
Product Information
• Screen Size: 14” (37 cm)
• Visible screen size: 34 cm
• Picture Tube: Black Hibri
• Contrast Plus
• Sharpness Control
• Noise reduction
• Colour Temperature
Sound
• Sound Power: 4 W RMS
8 W Music Power
•1 On Board Speaker
Ease of Use Installation
• Plug & Play
• 100 Preset channels
• Autostore
• Fine Tuning
• Sorting
• Smart ATS and ACI
Ease of Use Utilisation
• Remote Control: RCLE011
• Smart Picture Control: Soft, Natural, Rich,
Multimedia, Personal
• Smart Sound Control: Movie, Speech
Music, Personal
• Smart Listening (Delta Volume + AVL)
• Smart Clock
•Wake up Clock
• Sleep Timer
• Smart Lock (Child Lock + Parental Control)
• 4/3 Expand
14” My TV - Titanium
Connections
Front
• CVBS Video in
• Audio (cinch/RCA) in
• Headphone Jack 3,5 mm out
Back
• Euro A/V connector Ext1 (RGB in, CVBS in/out)
Information
• 10 Page Smart Text
•4 Favourite Pages
•Program Information Line
FM Radio
• 40 Preset channels
• Autostore / Manual store
• Sorting
•Preset List
Reception
•Tuning System: PLL digital tuning
•Tuner :VHF, UHF, S-Channel, Hyperband
• Aerial Input: 75 ohm Coaxial
• TV System: See table
• Video Playback: NTSC 4.43/3.58
Miscellaneous
• Mains:AC 220-240V, 50/60 Hz (stroke /01, /05)
AC 90-276V, 50/60 Hz (stroke /58)
•Power Consumption: 38W Normal Operation
< 3W Stand by
• Set Weight : 9 kg
•Weight Incl. Packaging: 11 kg
• Set Dimension (WxHxD): 376x348x372 mm
•Box Dimension (WxHxD) : 460x480x460 mm
• TV Colour:Titanium 10811
Predecessor : 14PT1574
Chassis : L01 SS
Introduction :Sept 2001
Features and specifications subject to change without notice
14
PT 2002
14
PT 2002
PA LPAL PAL SECAM SECAM SECAM
BG DK I BG DK LL’
version
transmission
system
stand
supplied
in the
box
14PT2002 /01S ••••••
14PT2002 /05S ••••••
14PT2002 /58S • • • •
Product Highlights
Black Hibri
Tv tube technology used for all Philips 14" tv's giving
good colour reproduction on the smaller sets.
Contrast Plus
A special electronic circuit has been incorporated into
this television to enhance the darker portions of the
picture for added realism and improved picture quality.
Smart Listening
This is the combination of Delta Volume and Automatic
Volume Limiter.The former avoids undesirable changes
in volume, caused by the different sound settings of
different programmes.The latter avoids the rapid
increase in volume which can happen in the case of
different commercials
FM Radio
A radio is included inside the TV,capable of stereo
sound (in stereo TV's) and storage of up to 40 FM
Radio stations. On screen naming of all these stations is
also possible for easy navigation."
Plug & Play
Having connected the tv , it automatically searches for
all channels and installs them.
10 Page Smart Text
Fast access to your own programmed favourite text pages.
Smart Clock
The ability of your TV to automatically update its internal clock for easier use of the Wake up clock function
which allows you to program the TV to switch on at a
certain time.
Front Connections
Connections for headphone and other inputs such as
camcorder, front entry for ease of use.
Full NTSC Playback
The TV can be used to watch NTSC material (eg american video tapes), when connected via scart to a video
recorder.
01/2002
