Page 1
Operating Instructions
14PT200114PT2001
14PT2001
1-4/E 03/27/02, 3:04 pm1
1
Page 2
TABLE OF CONTENTS
Introduction
Safety Information/Useful Tips .................................................................................................. 3
Before Calling Service ................................................................................................................. 4
Basic Installation/Functions
Hooking Up Your TV (Basic Connection) ............................................................................... 5
Use/Care of remote Control .................................................................................................... 5
Connecting the Audio/Video Sockets (Playback) .................................................................. 6
Functions of Remote Control ................................................................................................... 7
Functions of TV Controls .......................................................................................................... 9
TV Installation
Selecting the Menu Language...................................................................................................... 10
Automatic Tuning of Channels .................................................................................................. 11
Manual Tuning of Channels ......................................................................................................... 12
Selecting the Colour/Sound System ........................................................................................ 14
Fine Tuning Of Channels ............................................................................................................. 15
Sorting of Channels...................................................................................................................... 16
Editing of Channels........................................................................................................................17
Naming of Channels...................................................................................................................... 18
Features
Adjusting the TV Picture ............................................................................................................. 19
Adjusting the TV Sound ............................................................................................................... 20
Using the Timer...............................................................................................................................21
Activating the Child Lock.............................................................................................................23

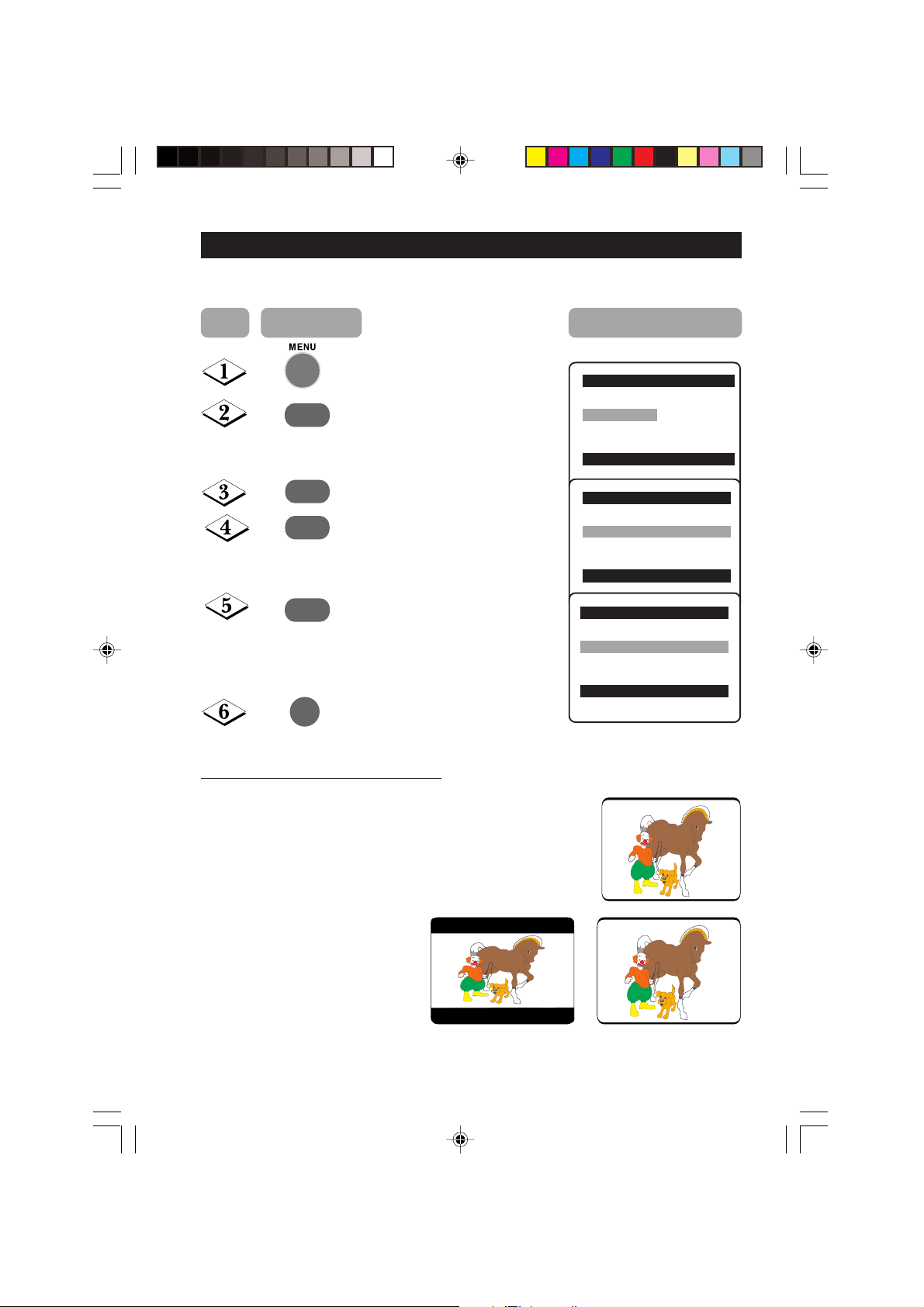

Using the Screen Format ............................................................................................................ 27
Smart Picture Control .................................................................................................................28
Smart Sound Control....................................................................................................................29
Personal Zapping ...........................................................................................................................30
General
Specifications...................................................................................................................................31
Recycling Directive – To minimise harm to the environment, the batteries
supplied with the TV set do not contain mercury or nickel cadmium. If
possible, when disposing of batteries, use recycling means available to you. Your TV
set uses materials which are reusable or which can be recycled. To minimise the
amount of waste in the environment, specialist companies recover used sets for
dismantling and collection of reusable materials (contact your dealer).
2
1-4/E 04/03/02, 5:46 pm2
Page 3
SAFETY INFORMATION AND USEFUL T IPS
Safety Information
• Disconnect mains plug when :
– the red light below the TV screen is flashing continuously.
– a bright white line is displayed across the screen.
– cleaning the TV screen. Never use abrasive cleaning agents. Use a slight damp chamois
leather or soft cloth.
– there is a lightning storm.
– the set is left unattended for a prolonged period of time.
• No naked flame sources, such as lighted candles, should be placed on top of the TV or
in the vicinity.
• Do not place your TV set under direct sunlight or heat.
• Leave at least 5 cm around each side of TV set to allow for proper ventilation.
• Avoid placing your set (e.g. near the window) where it is likely to be exposed to rain
or water.
• No objects filled with liquids should be placed on top the TV so as to avoid dripping
or splashing of liquids on the set.
Useful Tips
• Do not leave your set on standby mode for a prolonged period of time. Switch off set
to allow it to be demagnetised. A demagnetised set supports good picture quality.
• Do not shift or move the set around when it is switched on. Uneveness in colour in
some parts of the screen may occur.
• Never attempt to repair a defective TV yourself. Always consult a skilled service
personnel.
3
1-4/E 1/4/02, 8:48 AM3
Page 4
BEFORE CALLING SERVICE
Below is a list of frequently occurred symptoms. Before you call for service, make these simple
checks. Some of these symptoms can easily be rectified if you know what to do.
Symptom What you should do
Colour patch • Switch off the TV by the mains power button. Wait for 20
(uneveness) minutes before switching on again.
• Check the TV is not placed too near speakers or magnetic
objects.
No power • Check the TV’s AC power cord is plugged into the mains
socket. If there is still no power, disconnect plug. Wait for
60 seconds and re-insert plug. Switch on the TV again.
No picture • Check the antenna connection at the rear of the TV.
• Possible TV station problem. Try another channel.
Good picture • Try increasing the volume.
but no sound • Check that the sound is not muted. If it is muted, press the
Mute button on the remote control to restore sound.
Good sound but poor • Try increasing the contrast and brightness setting.
colour or no picture
Snowish picture and • Check antenna connection at the rear of the TV.
noise
Horizontal dotted lines • Possible electrical interference e.g. hairdryer, vacuum
cleaner, etc. Switch off appliances.
Double images or • Possible poor positioning of antenna. Using a highly
“Ghost” images directional antenna may improve reception.
TV not responding to • Check life span of batteries of remote control handset.
remote control handset • Aim remote control handset directly at remote control
sensor lens on the TV.
4
1-4/E 1/4/02, 8:48 AM4
Page 5
HOOKING UP Y OUR TV (BASIC CONNECTION)
Antenna Connection
• Connect the aerial plug to the antenna socket
on the backcover.
• Insert the mains plug into the wall socket.
Mains Connection
• For correct mains voltage, refer to type sticker at
the rear of the TV set
• Consult your dealer if mains supply is different.
Note : This diagram is not representative of the
actual plug and socket.
Switching on the Set
• Press the main power button to switch on/
off the TV.
• If the set is on standby (indicator is red),
press the Power button on the remote
control to switch on set.
¬¬
¬
¬¬
USE/CARE OF REMOTE CONTROL
5-9/E 1/4/02, 8:52 AM5
• Insert the correct type of batteries into the
compartment.
• Ensure the batteries are placed in the right
direction.
5
Page 6
CONNECTING THE A UDIO/VIDEO SOCKETS (PLAYBACK)
You can view the playback of VCR tapes (Video Disc players, camcorders, etc .) by using the AUDIO
and VIDEO INPUT sockets on the rear of the TV.
– Connect the VIDEO and AUDIO IN sockets on the rear of the TV to the AUDIO and
VIDEO OUT sockets on the VCR.
CONNECTING THE A UDIO/VIDEO SOCKETS (RECORDING)
– Connect the sockets of the VCR which you wish to record from, to the corresponding AV
sockets.
5-9/29252/E 06/24/02, 3:16 PM6
6
Page 7
FUNCTIONS OF REMOTE CONTROL
& Power button
– Switch set off temporarily to standby mode.
(The red light indicator lights up when the
set is on standby mode).
– To switch on set from standby mode, press
Channel +/– , Digit (0 -9) or Power button.

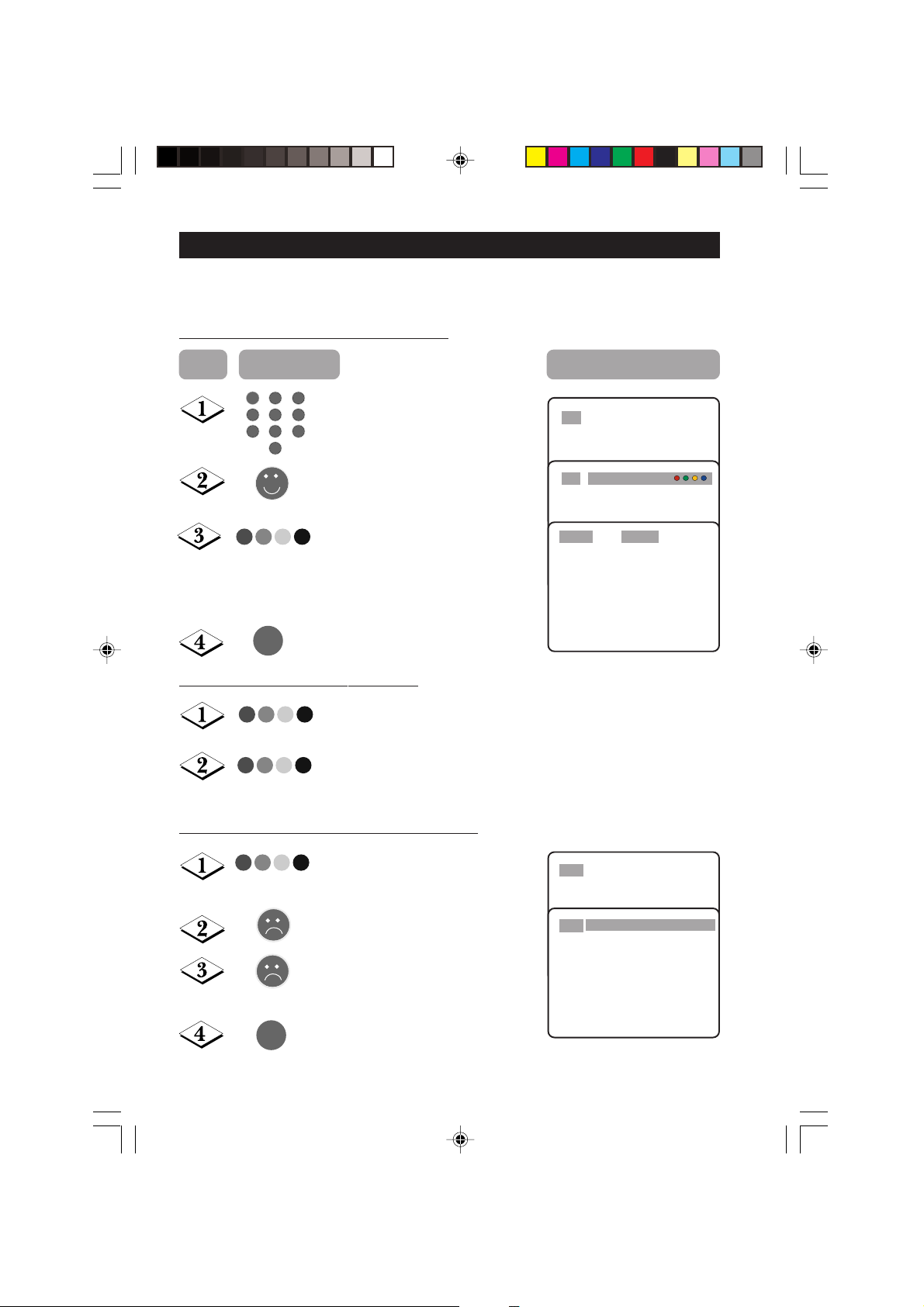

é Personal Zapping buttons
As Personal Zapping buttons, you can surf
up to 10 personal channels for each button.
For detailed description of functions, refer
to section on “Personal Zapping ”.
“ Smiley button
Allows to add and store your personal
preference channels in your Personal
Preference list. For detailed description
of functions, refer to section on “Using
your Personal Zapping feature”.
‘ Sleeptimer Button
Allows you to select a time period after
which the set will switch to standby mode
automatically.
( Smart Sound Button
Press the Smart Sound button repeatedly to
access 4 different types of sound settings and
choose your desired setting.
§ Incredible Surround Button
Not applicable.
è Menu Button
Displays the main menu. Also exits menu from
screen.
! Cursor Up Button
Allows you to select the next item on the
menu.
ç Cursor Left Button
Allows you to select the sub-menus and adjust
the settings.
0 Volume + / – Button
Increases or decreases volume.
1 A/CH(Alternate channel) Button
Allows you to change between the current
channel and the previous channel.
&
é
“
‘
(
§
è
!
ç
0
1
5-9/E 03/27/02, 3:37 pm7
7
Page 8
FUNCTIONS OF REMOTE CONTROL
2 A/V Button
Allows you to select the AV channel.
3 Frownie button
2
3
4
Allows to delete stored personal preference
channels in your Personal Preference list. For
detailed description of functions, refer to section
on “Personal Zapping ”.
5
6
7
8
9
20
21
4 Smart Picture Button
Press the Smart Picture button repeatedly to
access 5 different types of picture settings and
choose your desired setting.
44
51
4
44
Not applicable.
61Cursor Right Button
Allows you to access the sub-menus and adjust
the settings.
7 Cursor Down Button
Allows you to select the next item on the menu.
8 Channel + / – Buttons
Allows you to select channels in ascending or
descending order.
9 Mute Button
Mutes sound. To restore sound, press button
again.
20 Digit (0 -9) Buttons
Press to select a channel. For a 2-digit channel
number, press the first digit and followed
immediately by the second digit.
5-9/E 03/27/02, 3:37 pm8
21 OSD button
Allows you to display the current channel
number. It also allows to exit menu from the
screen after control adjustments.
8
Page 9
FUNCTIONS OF TV CONTROLS
➩
INSTALL /
MENU
˝
LK
VOLUME CHANNEL
&
é
“
& Mains Power button Switch mains power on or off.
‘(
¸
˙
˚
¸
˚
é Standby light indicator Indicate red light when standby mode is activated.
“ Remote Sensor Acts as a sensor for activating the controls of the
‘ Volume
+ / – buttons Adjust sound volume softer/louder.
( Channel 7 / 6 buttons Select channel in descending/ascending order.
Note
• You can enter the main menu by pressing both the Volume- and+buttons at the
same time.
• Press the Channel 7 or 6 button to select the next item on the menu.
• Press Volume - or + button to access sub-menu and adjust the settings.
5-9/E 1/4/02, 8:53 AM9
TV when remote control handset is aimed at it.
9
Page 10

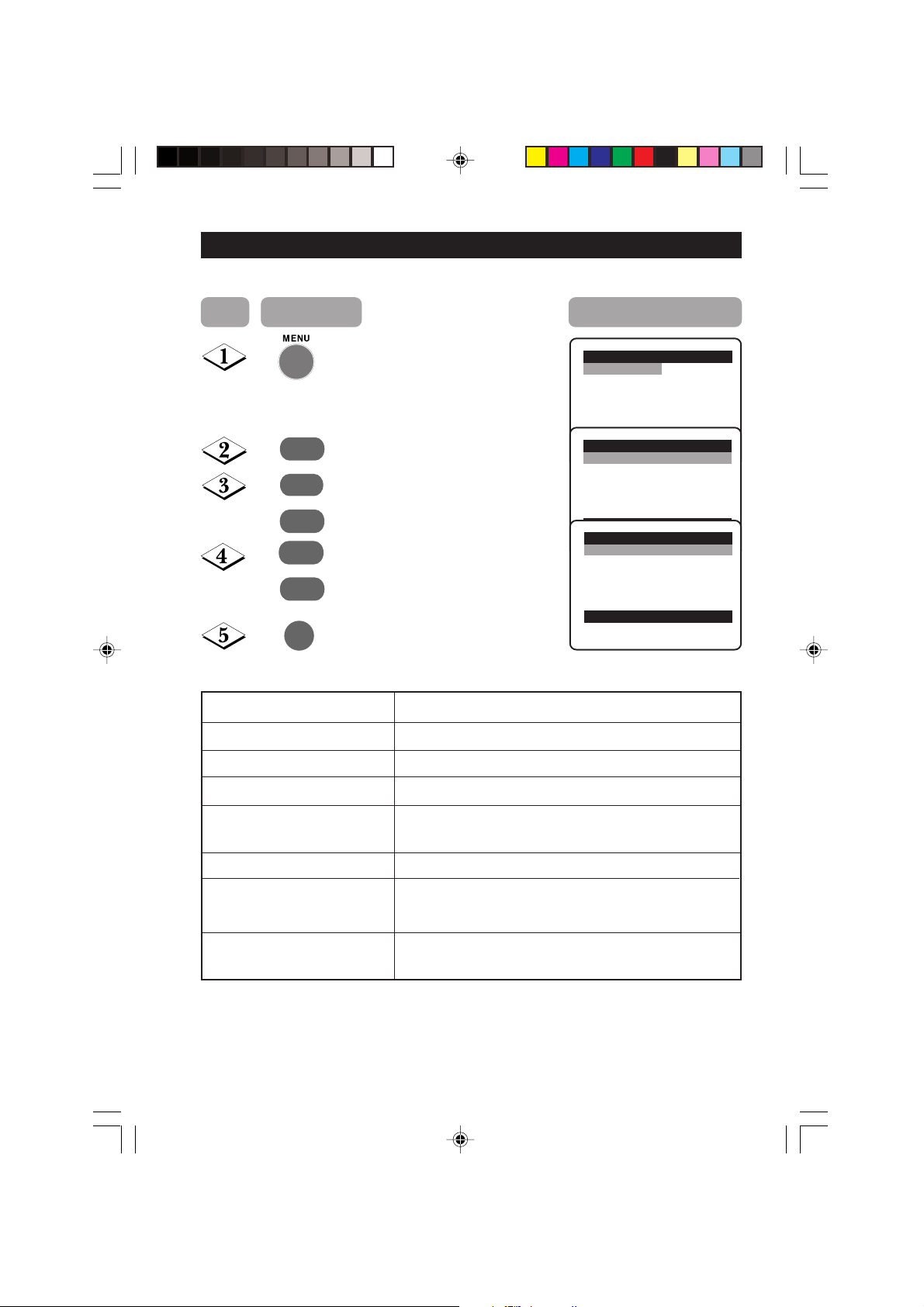

SELECTING THE MENU LANGUAGE
Operating instructions generally explains the operation of the TV
set using the buttons on the remote control unless otherwise stated.
Please read the following instructions carefully and follow the steps
as shown to familiarise yourself with the installations and all features
available in your set.
Note: When there is no signal input to the TV, you may encounter instability of the
on screen display. In this instance, please use the v button on your remote
control to select an AV channel.
The Language feature allows you to set the TV’s on-screen menu to be shown in your
desired language.
Step Press button Result on screen
¸
˙
˙
Enter main menu.
Select Install.
Enter the Install menu.
Press button repeatedly to cycle
through the language list and
select the language of your choice.
Main o
✔ Picture É Brightness
■ Sound Colour
■ Features Contrast
■ Install Sharpness
Main o
■ Picture Language
■ Sound Auto Store
■ Features Manual Store
✔ Install É Sort
Install o
✔ Language English É
■ Auto Store
■ Manual store
■ Sort
■ Channel Edit
■ Name
Colour Temp.
More...
œ
Channel Edit
Name
œ
œ
m
10-18/E 03/27/02, 3:48 pm10
Exit menu from screen.
10
Page 11

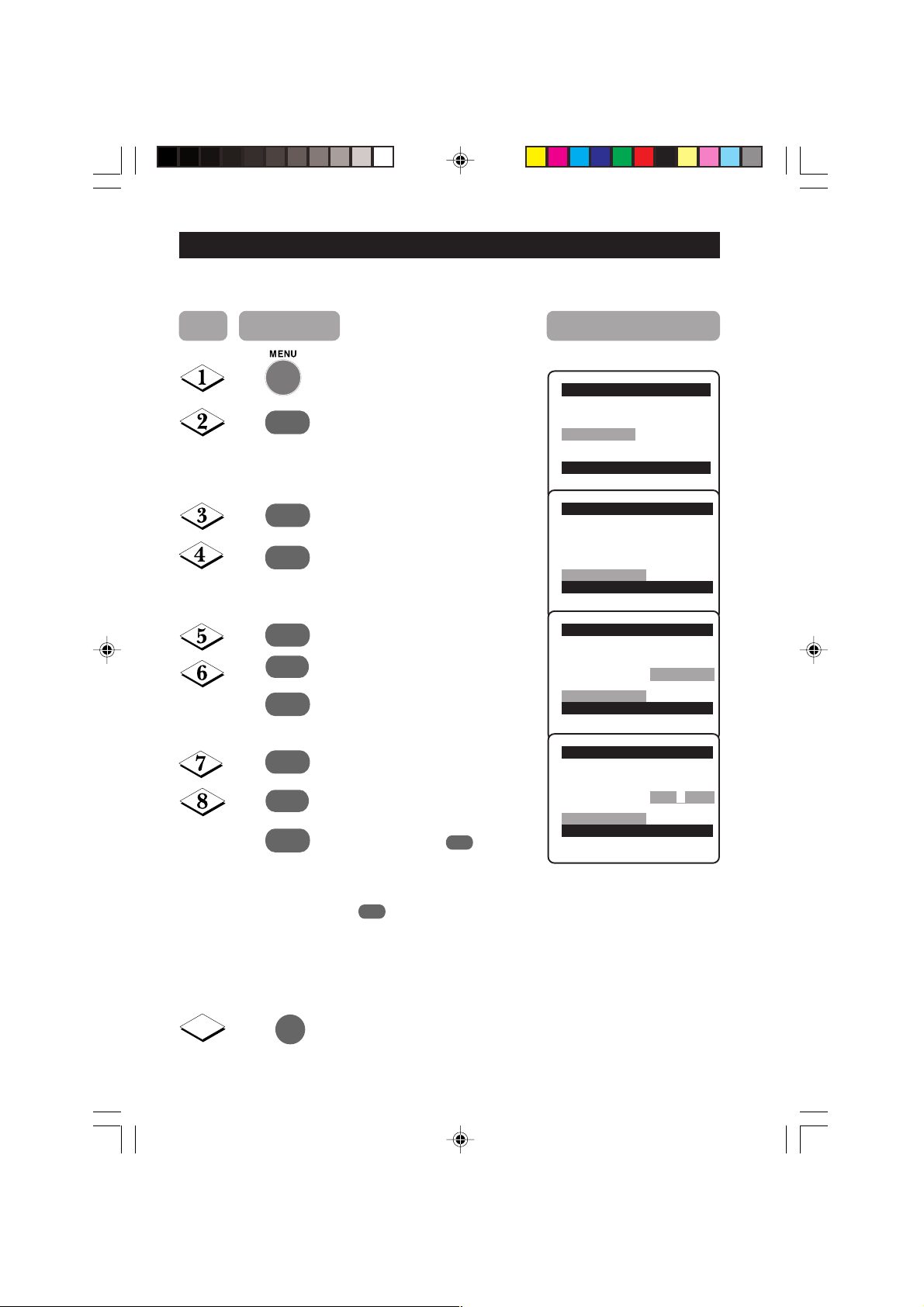

AUTOMATIC T UNING OF CHANNELS
Automatic tuning of channels allows you to store each programme automatically.
Step Press button Result on screen
¸
˙
¸
Enter main menu.
Press button repeatedly until
Install is selected.
Enter install menu.
Select Auto Store.
Main o
✔ Picture É Brightness
■ Sound Colour
■ Features Contrast
■ Install Sharpness
Main o
■ Picture Language
■ Sound Auto Store
■ Features Manual Store
✔ Install É Sort
Install o
✔ Language English É
■ Auto Store
■ Manual store
■ Sort
■ Channel Edit
■ Name
Install o
■ Language
✔ Auto Store É
■ Manual store
■ Sort
■ Channel Edit
■ Name
Colour Temp.
More...
œ
Channel Edit
Name
œ
œ
œ
˙
m
Start automatic tuning of
channels.
When tuning is completed,
exit menu from screen.
10-18/E 04/02/02, 10:00 am11
11
Auto Store
■ Channel 1
■ TV 142 MHz
♦♦♦♦♦♦♦♦♦♦♦♦♦♦π♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦
Install o
■ Language
✔ Auto Store É
■ Manual store
■ Sort
■ Channel Edit
■ Name
œ
Page 12
MANUAL T UNING OF CHANNELS
Manual tuning of channels allows you to select your preferred channel number for every
available programme.
Step Press button Result on screen
¸
˙
¸
Enter main menu.
Press button repeatedly until
Install is selected.
Enter install menu.
Press button repeatedly until
Manual Store is selected.
Main o
✔ Picture É Brightness
■ Sound Colour
■ Features Contrast
■ Install Sharpness
Main o
■ Picture Language
■ Sound Auto Store
■ Features Manual Store
✔ Install É Sort
Install o
✔ Language English É
■ Auto Store
■ Manual Store
■ Sort
■ Channel Edit
■ Name
Install o
■ Language Colour System
■ Auto Store Sound System
Manual Store É Search
✔
■ Sort Channel
■ Channel Edit Fine Tune
■ Name Store
Colour Temp.
More...
œ
Channel Edit
Name
œ
œ
œ
˙
¸
Enter manual store menu.
Press button repeatedly until
Search is selected.
10-18/E 04/02/02, 10:00 am12
MANUAL T UNING OF
12
Manual Store o
■ Colour System
■ Sound System
Search 79 MHz É
✔
■ Channel
■ Fine Tune
■ Store
œ
Page 13
CHANNELSMANUAL T UNING OF CHANNELS
Step Press button Result on screen
9
10
˙
Start manual searching. Searching
stops once a transmitting signal is
found.
¸
2
1
4
5
8
7
0
¸
Select Channel.
Key in the channel number.
3
6
9
Press button repeatedly until
Store is selected.
Manual Store o
■ Colour System
■ Sound System
Search 128 MHz É
✔
■ Channel
■ Fine Tune
■ Store
Manual Store o
■ Colour System
■ Sound System
■ Search
Channel 2 É
✔
■ Fine Tune
■ Store
Manual Storeo
■ Colour System
■ Sound System
■ Search
■ Channel
■ Fine Tune
Store Store?É
✔
œ
œ
œ
11
12
10-18/E 1/4/02, 8:56 AM13
˙
m
Store tuned channel.
Note : If you want to
continue searching for
another transmitting
channel, repeat steps
7 to 11.
Exit menu from screen.
13
Manual Storeo
■ Colour System
■ Sound System
■ Search
■ Channel
■ Fine Tune
Store Stored
✔
œ
Page 14

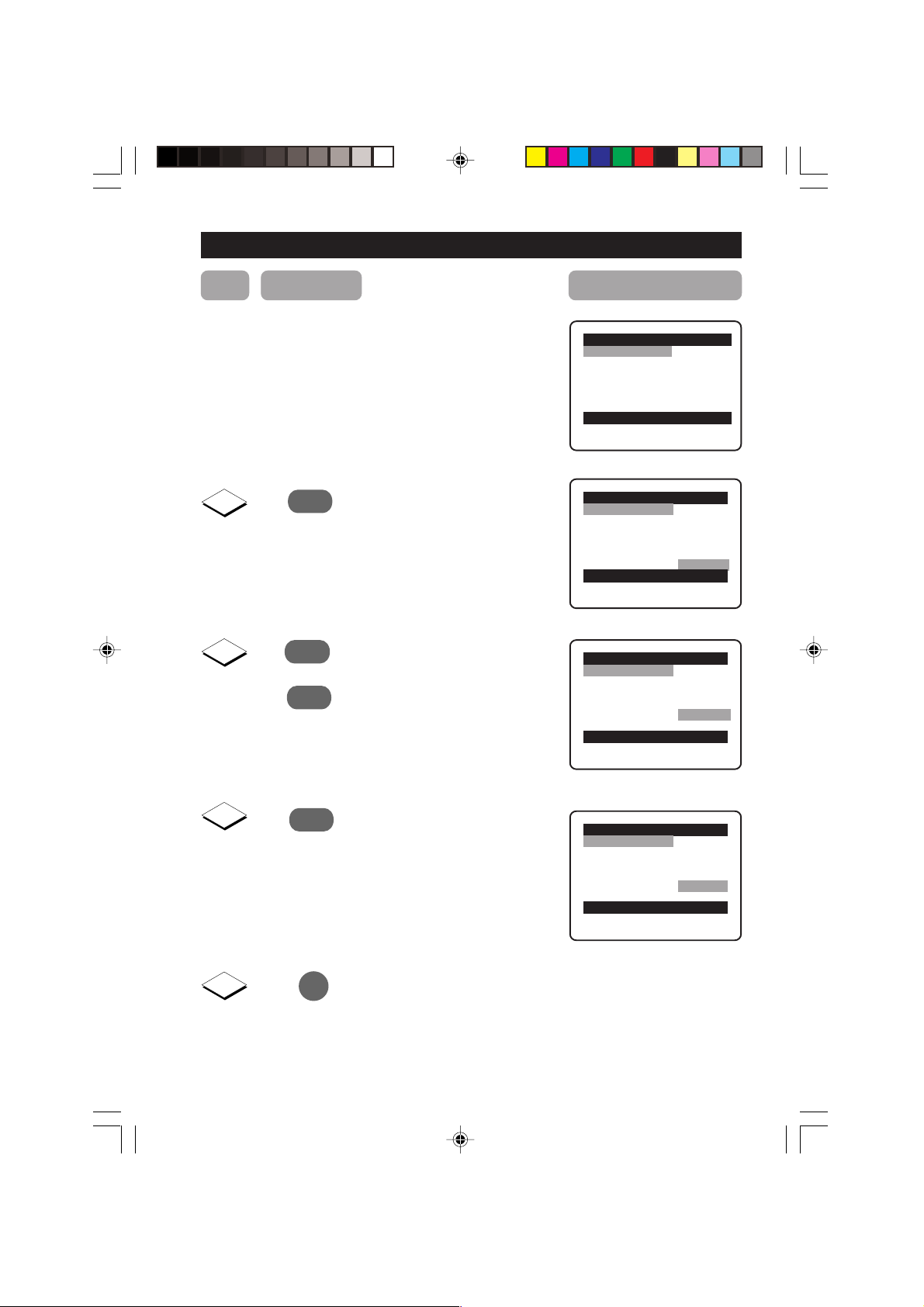

SELECTING THE COLOUR/SOUND SYSTEM
This feature allows you to select your desired Colour and Sound system. If Auto
is selected, the respective colour and sound system will be automatically selected according
to the transmission system. Note : Select your desired colour and sound system manually if
reception is poor at Auto mode.
Step Press button Result on screen
Repeat step 1 Colour System is selected.
to step 5 as in
“Manual Tuning
of TV Channels”
Select the desired colour
system (Auto, PA L ,
NTSC 3.58, NTSC 4.43
or SECAM).
Press button repeatedly
until STORE is selected.
Store selected system.
Proceed to select Sound
System.
Select the desired sound
system (Auto, BG or
DK.
Press button repeatedly
9
10
11
˝
or
˙
¸
˙
¸
or
˚
˝
or
˙
¸
until STORE is selected.
12
˙
Store selected system.
Manual Store o
Colour System Auto
✔
■ Sound System
■ Search
■ Channel
■ Fine Tune
■ Store
Manual Store o
Colour System PAL
✔
■ Sound System
■ Search
■ Channel
■ Fine Tune
■ Store
Manual Store o
■ Colour System
■ Sound System
■ Search
■ Channel
■ Fine Tune
Store Stored
✔
Manual Store o
■ Colour System
Sound System Auto
✔
■ Search
■ Channel
■ Fine Tune
■ Store
Manual Store o
■ Colour System
Sound System DK
✔
■ Search
■ Channel
■ Fine Tune
■ Store
Manual Store o
■ Colour System
■ Sound System
■ Search
■ Channel
■ Fine Tune
Store Stored
✔
œ
œ
œ
œ
œ
œ
É
É
É
É
m
10-18/E 03/27/02, 3:49 pm14
Exit menu from screen.
14
Page 15
FINE TUNING OF CHANNELS
This feature allows you to adjust picture reception in areas of weak reception.
Step Press button Result on screen
¸
˙
¸
˙
¸
Enter main menu.
Press button repeatedly until
Install is selected.
Enter install menu.
Press button repeatedly until
Manual Store is selected.
Enter manual store menu.
Press button repeatedly until
Fine Tune is selected.
Main o
✔ Picture É Brightness
■ Sound Color
■ Features Contrast
■ Install Sharpness
Main o
■ Picture Language
■ Sound Auto Store
■ Features Manual Store
✔ Install É Sort
Install o
■ Language Colour System
■ Auto Store Sound System
Manual StoreÉSearch
✔
■ Sort Channel
■ Channel Edit Fine Tune
■ Name Store
Manual Storeo
■ Colour System
■ Sound System
■ Search
■ Channel
✓ Fine Tune
■ Store
Colour Temp.
More...
œ
Channel Edit
Name
œ
œ
Ñ❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘
œ
π
˙
or
˝
¸
9
10
10-18/E 03/27/02, 3:49 pm15
˙
m
Fine tune until the best reception
is obtained.
Select Store.
Store last fine-tuned status.
Exit menu from screen.
15
Manual Storeo
■ Colour System
■ Sound System
■ Search
■ Channel
✓ Fine Tune
■ Store
Manual Storeo
■ Colour System
■ Sound System
■ Search
■ Channel
■ Fine Tune
Store Stored
✔
Ñ❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘
œ
œ
π
Page 16

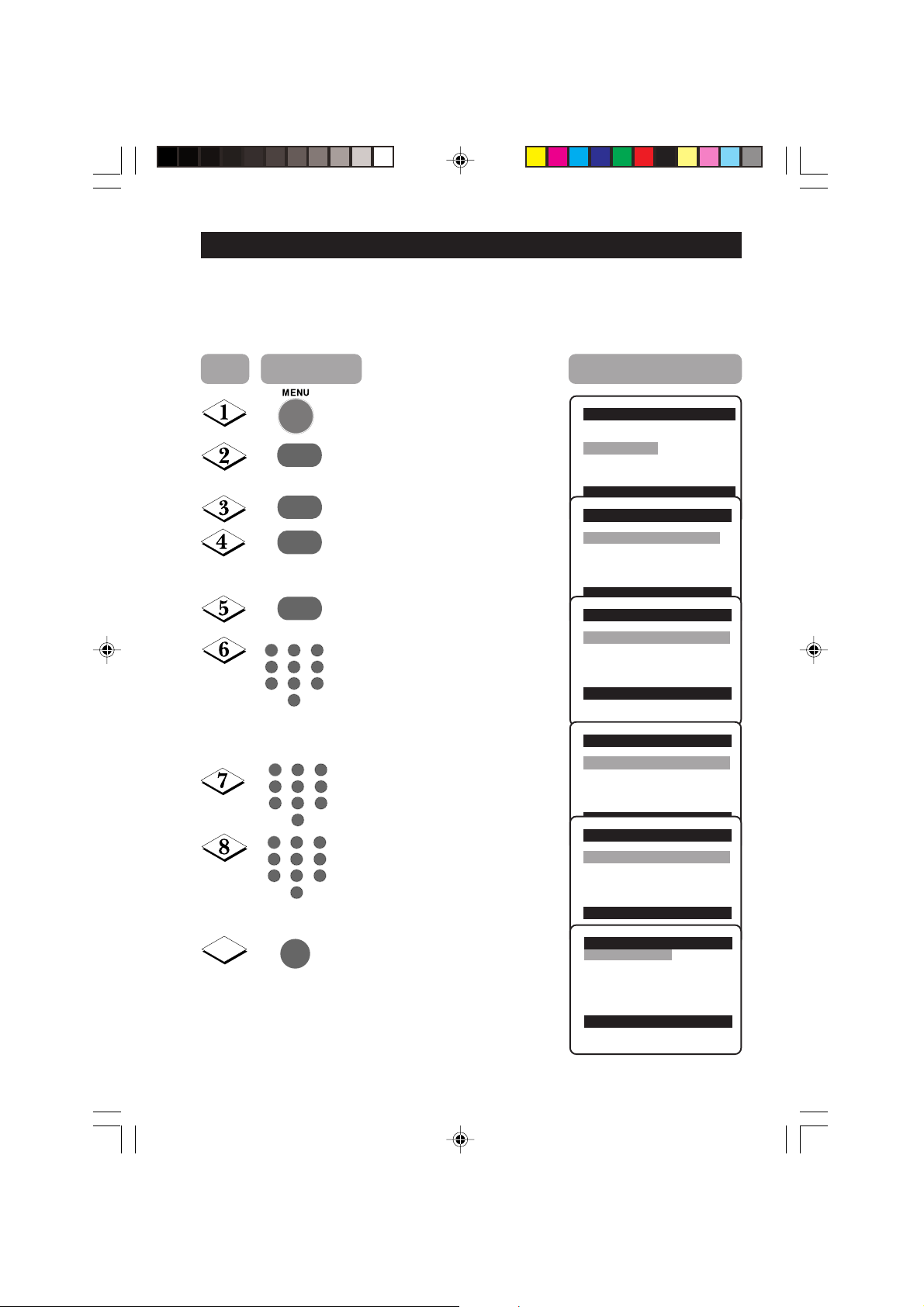

SORTING OF CHANNELS
This feature rearranges channel numbers.
Step Press button Result on screen
Enter main menu.
¸
Press button repeatedly until
Install is selected.
˙
¸
˙
¸
or
˚
˙
¸
Enter install menu.
Press button repeatedly until
Sort is selected.
Enter sort mode.
Select the channel number you want
to change from (e.g. 002).
Confirm selection.
Select the channel number you want
to change to (e.g. 005).
9
˝
Confirm selection.
The change is done.
Note : Channel numbers 5, 4 and 3
will move upwards accordingly. that
is, Channel 5 will move up to Channel
4, Channel 4 to 3 and Channel 3 to 2.
Main o
■ Picture Language
■ Sound Auto Store
■ Features Manual Store
✔ Install É Sort
Install o
■ Language 000
■ Auto Store 001
■ Manual Store 002
Sort É 003
✔
■ Channel Edit 004
■ Name 005
Install o
■ Language 000
■ Auto Store 001
■ Manual Store 002 É
Sort É 003
✔
■ Channel Edit 004
■ Name 005
Install o
■ Language 000
■ Auto Store 001
■ Manual Store 002 Ñ
Sort É 003
✔
■ Channel Edit 004
■ Name 005
Install o
■ Language 000
■ Auto Store 001
■ Manual Store 002
Sort É 003
✔
■ Channel Edit 004
■ Name 005 Ñ
Install o
■ Language 000
■ Auto Store 001
■ Manual Store 002
Sort É 003
✔
■ Channel Edit 004
■ Name 005 É
Channel Edit
Name
œ
œ
œ
œ
œ
œ
10
10-18/E 03/27/02, 3:49 pm16
m
Exit menu from screen.
16
Page 17
EDITING OF CHANNELS
This feature allows you to skip or edit channels which have bad or weak TV signal or channels
that you do not watch often. Note : Once a channel is skipped, you cannot have access to it by
the CH (Channel) + or – button. You can only have access to the channel by the Digit (0 -9)
buttons.
Step Press button Result on screen
Enter main menu.
¸
¸
Press button repeatedly until
Install is selected.
˙
Enter install menu.
Press button repeatedly until
Channel Edit is selected.
Enter Channel Edit menu.
˙
2
1
3
4
7
¸
9
m
Key in the channel number to be
5
6
skipped.
9
8
0
Select Skipped.
Select On to skip channel.
˙
Exit menu from screen.
Main o
■ Picture Language
■ Sound Auto Store
■ Features Manual Store
✔ Install É Sort
Install o
■ Language Channel
■ Auto Store Skipped
■ Manual Store
■ Sort
Channel Edit É
✔
■ Name
Channel Edit o
Channel 2 É
✔
■ Skipped
Channel Edit o
■ Channel
Skipped On
✔
Channel Edit
Name
œ
œ
œ
œ
HOW TO RESTORE SKIPPED CHANNELS
• Repeat Steps 1 to 5 as in”Editing of Channels”.
• Key in the channel number to be restored by the
Digit (0 - 9) button.
• Select Skipped by the
• Select Off to restore channel by the ˙ button.
• Exit menu from screen by the m button.
10-18/E 03/27/02, 3:49 pm17
¸
button.
17
Channel Edit o
■ Channel
Skipped Off
✔
œ
Page 18
NAMING OF CHANNELS (APPLICABLE TO CERTAIN VERSIONS ONLY)
This feature enables you to name or rename channels.
Step Press button Result on screen
¸
¸
˚
or
¸
˚
or
¸
Enter main menu.
Press button repeatedly until
Install is selected.
Enter install menu.
˙
Press button repeatedly until
Name is selected.
Enter name mode.
˙
Select the channel you want to
name.
Move to first character slot.
˙
A cursor appears for you to start
the input of characters. Select the
character you want. Move to next
character slot by the
select the next character. You can
enter up to a maximum of 5
characters. After naming the channel,
press
button repeatedly until
˙
name appears on the top left hand
corner of the screen. This will ensure
that the name is stored in the
memory.
button and
˙
Main o
■ Picture Language
■ Sound Auto Store
■ Features Manual Store
✔ Install É Sort
Install o
■ Language 000
■ Auto Store 001
■ Manual Store 002
■ Sort 003
■ Channel Edit 004
Name É 005
✔
Install o
■ Language 000
■ Auto Store 001
■ Manual Store 002
■ Sort 003É
■ Channel Edit 004
Name É 005
✔
Install o
■ Language 000
■ Auto Store 001
■ Manual Store 002
■ Sort 003É
■ Channel Edit 004
Name É 005
✔
Channel Edit
Name
œ
œ
œ
œ
9
10-18/E/29251 10/5/02, 11:25 pm18
Exit menu from screen.
m
18
Page 19
ADJUSTING THE TV PICTURE
The picture menu allows you to make adjustments to the picture.
Step Press button Result on screen
˙
˚
or
¸
˝
or
˙
m
Display the main menu on screen.
Enter Picture menu.
Select item.
Adjust level or select desired
setting.
Exit menu from screen.
Main o
✔ Picture É Brightness
■ Sound Colour
■ Features Contrast
■ Install Sharpness
Picture o
✔ BrightnessÑ
■ Colour
■ Contrast
■ Sharpness
■ Colour Temp
■ NR
Picture o
✔ Colour Ñ
■ Contrast
■ Sharpness
■ Colour Temp
■ NR
■ Contrast +
Picture menu items Activities
Brightness Increase or decrease brightness level.
Colour Increase or decrease color level.
Contrast Increase or decrease contrast level.
Colour Temp
More...
œ
❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘
œ
❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘
œ
59É
59É
Sharpness Increase or decrease sharpness level to improve detail
Colour temperature Choose from 3 settings (Normal, Warm or Cool).
NR (Noise Reduction) Select “On” to reduce “noisy” picture (little dots on
Contrast + Select “On” to allow you to optimise the total contrast
19-20/E 03/27/02, 3:51 pm19
in picture.
picture) due to weak signal.
for improved picture quality.
19
Page 20
ADJUSTING THE TV SOUND
The sound menu allows you to make adjustments to the sound.
Step Press button Result on screen
¸
˙
˚
or
¸
˝
or
˙
Display the main menu on screen.
Select Sound menu.
Enter Sound menu.
Select item.
Select On/Off.
Main o
✔ Picture É Brightness
■ Sound Colour
■ Features Contrast
■ Install Sharpness
Main o
■
Picture Treble Boost
Sound É Bass Boost
✔
■ Features AVL
■ Install
Sound o
✔ Treble Boost Off
■ Bass Boost
■ AVL
Sound o
✔ Treble Boost On
■ Bass Boost
■ AVL
Colour Temp.
More...
œ
œ
œ
œ
m
Exit menu from screen.
Sound menu items Activities
Treble Boost Select “On” to enjoy enhanced treble output.
Bass Boost Select “On” to enjoy enhanced bass output.
AVL (Auto Volume Leveller) Select “On” to enable volume to remain at a pre-determined
level should there be a sudden change in volume during
commercial breaks or channel switching.
20
19-20/E 03/27/02, 3:51 pm20
Page 21
USING THE T IMER
The Timer feature allows you to set the timer to switch to another channel at a specified
time while you are watching another channel or when the TV is on standby mode.
Note : For the timer to function, the set must not be switched off. Once the set is switched
off, the timer is disabled.
Step Press button Result on screen
Display the main menu on screen.
¸
˙
˙
2
1
4
5
8
7
0
Select Features.
Enter the Features menu.
Enter Timer menu.
Key in the current time starting from
3
the hour follow by minute.
6
This is the time where the “start time”
9
and “stop time” will take reference
from.
Main o
✔ Picture É Brightness
■ Sound Colour
■ Features Contrast
■ Install Sharpness
Main o
■ Picture Timer
■ Sound Child Lock
✔ Features É Format
■ Install
Features o
✔ Timer É Time
■ Child Lock Start Time
■ Format Stop Time
Timer o
✔ Time É 08:30
■ Start Time
■ Stop Time
■ Channel
■ Activate
■ Display
Colour Temp.
More...
œ
œ
Channel
Activate
Display
œ
œ
¸
2
1
4
5
8
7
Select Start Time.
3
Key in the time you want the
6
programme to be switched on.
9
0
21-27/E 03/27/02, 3:54 pm21
21
Timer o
■
Time
Start TimeÉ 10:30
✔
■ Stop Time
■ Channel
■ Activate
■ Display
œ
Page 22
USING THE T IMER
Step Press button Result on screen
9
10
11
12
¸
2
1
4
5
8
7
Select Stop Time.
3
Key in the time you want the
6
programme to be switched off.
9
Timer o
■
Time
■ Start Time
Stop Time É 12:30
✔
■ Channel
■ Activate
■ Display
œ
0
¸
2
1
4
5
8
7
Select Channel.
3
Key in the channel you want to
6
switch to.
9
Timer o
■
Time
■ Start Time
■ Stop Time
Channel É
✔
■ Activate
■ Display
5
œ
0
¸
˙
¸
˙
m
Select Activate.
Activate timer. You can select
Once, Daily or Off.
Select Display.
Select On mode if you want to
display the time on the TV screen.
Exit menu from screen.
Timer o
■
Time
■ Start Time
■ Stop Time
■ Channel
Activate É
✔
■ Display
Timer o
■
Time
■ Start Time
■ Stop Time
■ Channel
■ Activate
Display É
✔
Once
œ
On
œ
Note :
• After the Stop Time is activated, theTV will go to standby mode
immediately.
• If Stop Time is not keyed in, the set will go to standby mode after
2 hours.
• To switch on set from standby mode, press Channel +/–,
Digit (0 -9) or Powe r button.
21-27/E 1/4/02, 8:58 AM22
ACTIVATING THE CHILD LOCK (ACCESS
22
Page 23
ACTIVATING THE CHILD LOCK (ACCESS CODE)
The Child Lock feature allows you to lock channels to prevent your children from watching
programmes you deem undesirable.
Note : You can only have access to the locked channels via the remote control. Keep the
remote control out of reach so as to prevent your children from having access to it.
Step Press button Result on screen
Display the main menu on screen.
Press button repeatedly until
¸
˙
¸
˙
2
1
4
5
8
7
0
Features is selected.
Enter the Features menu.
Select Child Lock.
Enter Child Lock mode.
Key in the 4-digit access code.
3
For the first time or if you have
6
forgotten the access code, enter
9
the universal access code 0711
twice. It will now prompt you to
key in a New Code.
2
1
3
4
5
8
7
0
2
1
4
5
8
7
0
Key in your preferred code (4-digit).
6
9
Key in the new code the second
3
time to confirm code.
6
9
The Child Lock menu will now
appear. You can proceed to lock
9
m
channel (refer to section on
“Lock Channel”). If not, exit menu
from screen.
Note : After you have exit menu from screen and you want to
enter the child lock menu again, you need to key the new
access code only once.
Main o
■ Picture Timer
■ Sound Child Lock
✔ Features É Format
■ Install
œ
Features o
■ Timer
✔ Child Lock É
■ Format
œ
Features o
■ Timer Access Code
✔ Child Lock É xxxx
■ Format Correct
œ
Features o
■ Timer New Code
✔ Child Lock É xxxx
■ Format
œ
Features o
■ Timer Confirm Code
✔ Child Lock É xxxx
■ Format Confirmed
œ
Child Lock o
✔ Lock Channel É 002
■ Change Code 003
■ Clear All 004
■ Lock All 005
006
007
œ
21-27/E 03/27/02, 3:54 pm23
23
Page 24
ACTIVATING THE CHILD LOCK (CHANGE CODE)
Note : You need to key the access code only once.
Step Press button Result on screen
Repeat Steps 1 to 8 as The Child Lock menu will
in “ACTIVATING THE now appear. You can proceed
CHILD LOCK to change code.
(ACCESS CODE)”
9
10
11
12
¸
Select Change Code.
˙
Enter change code mode.
2
1
3
4
5
6
9
8
7
0
2
1
3
4
5
6
9
8
7
0
Key in your preferred code
(4-digit).
Key in the new code the
second time to confirm
code.
Child Lock o
✔ Lock Channel É 002
■ Change Code 003
■ Clear All 004
■ Lock All 005
Child Lock o
■ Lock Channel New Code
✔ Change Code É ----
■ Clear All
■ Lock All
Child Lock o
■ Lock Channel New Code
✔ Change Code É xxxx
■ Clear All
■ Lock All
Child Lock o
■ Lock Channel Confirm Code
✔ Change Code xxxx
■ Clear All Confirmed
■ Lock All
006
007
œ
œ
œ
œ
m
21-27/E 1/4/02, 8:58 AM24
Exit menu from screen.
24
Page 25
ACTIVATING THE CHILD LOCK (LOCK CHANNEL)
Step Press button Result on screen
Repeat Steps 1 to 8 as The Child Lock menu will
in “CHILD Lock (ACCESS now appear. You can proceed
CODE)” to lock channel.
9
10
˙
˚
or
¸
Enter lock channel mode.
Select the channel you want
to lock.
Child Lock o
✔ Lock Channel É 002
■ Change Code 003
■ Clear All 004
■ Lock All 005
Child Lock o
✔ Lock Channel É 002
■ Change Code 003
■ Clear All 004
■ Lock All 005
Child Lock o
✔ Lock Channel É 002
■ Change Code 003
■ Clear All 004
■ Lock All 005
006
007
œ
006
007 É
œ
006 É
007
œ
11
12
21-27/E 1/4/02, 8:58 AM25
˙
m
Activate blocking of channel.
A keylock symbol will appear
beside the channel number
indicating that it is locked.
Note : To lock more than one
channel, repeat Steps 10 to 11
before exiting menu from
screen.
Exit menu from screen.
25
Child Lock o
✔ Lock Channel É 002
■ Change Code 003
■ Clear All 004
■ Lock All 005
006 É
007
œ
F
Page 26
ACTIVATING THE CHILD LOCK (LOCK A LL)
You can choose to lock all channels in the Lock All mode in the Child Lock menu.
Step Press button Result on screen
Repeat Steps 1 to 8 as The Child Lock menu will
in “CHILD Lock (ACCESS now appear. You can proceed
CODE)” to lock all channels.
9
10
11
¸
˙
m
Select Lock All.
Select the On option to
lock all channels.
Exit menu from screen.
Child Lock o
✔ Lock Channel É 002
■ Change Code 003
■ Clear All 004
■ Lock All 005
Child Lock o
■ Lock Channel
■ Change Code
■ Clear All
Lock All É On
✔
006
007
œ
œ
ACTIVATING THE CHILD LOCK (CLEAR A LL)
To unlock channels that you have locked, enter the Child Lock menu and select the Off option
Clear All mode.
Step Press button Result on screen
Repeat Steps 1 to 8 as The Child Lock menu will
in “CHILD Lock (ACCESS now appear. You can proceed
CODE)” to clear all channels.
9
10
¸
˙
Select Clear All.
Select the Off option to
unlock all channels.
Child Lock o
✔ Lock Channel É 002
■ Change Code 003
■ Clear All 004
■ Lock All 005
Child Lock o
■ Lock Channel
■ Change Code
✔ Clear All É Off
■ Lock All
006
007
œ
11
21-27/E 04/02/02, 5:36 pm26
m
œ
Exit menu from screen.
26
Page 27
USING THE SCREEN FORMAT
➩
You can have a choice of two formats for your viewing pleasure, namely : - 4:3 mode and the
EXPAND 4:3 mode through the FORMAT menu.
Step Press button Result on screen
Display the main menu on screen.
¸
˙
¸
Press button repeatedly until
Features is selected.
Enter the Features menu.
Press button repeatedly until
Format is selected.
˙
Press the button repeatedly to
cycle through the different formats
(4:3 or Expand 4:3) or and select
your desired format.
Exit menu from screen.
m
When to use the Screen Formats
4:3 format
Select the 4:3 format if you want to
display the 4:3 picture using the full
surface of the screen.
Main o
■ Picture Timer
■ Sound Child Lock
✔ Features É Format
■ Install
œ
Feature o
■ Timer
■ Child Lock
✔ Format 4:3 É
œ
Feature o
■ Timer
■ Child Lock
✔ Format Expand 4:3É
œ
œ
œ
Expand 4:3 format
Select the Expand 4:3 format if you
want to expand movie images
recorded in the letterbox format.
When this format is selected, the
black horizontal bars at the top and
bottom are expanded thus filling
up the entire TV screen.
21-27/E 03/27/02, 3:54 pm27
➩
➩
27
Page 28
SMART PICTURE CONTROL
Whether you are watching a movie or video game, your TV has automatic video control
settings matched to your current program source or content. The Smart Picture feature quickly
resets your TV’s video controls of program for a number of different types of programs and
viewing conditions you may have in your home. Each Smart Picture setting is preset at the
factory to automatically adjust the TV’s Brightness, Colour, Picture and Sharpness levels.
Step Press button
`
Press botton repeatedly to cycle through the 5 settings namely,
Personal, DVD/VCD, Rich, Natural and Soft and select
your desired picture setting.
m
Exit menu from screen.
Defintion of Picture Settings
Personal : Picture settings are set to your preference.
DVD/VCD : For optimal picture setting, whenever
the source is connected to DVD/VCD
player, select DVD/VCD setting for AV
mode.
Rich : Emphasize very vibrant colours. This
setting is the optimal setting when you
are viewing TV programmes in a
brightly-lit room.
Natural : Emphasize original colours.
Personal
DVD/VCD
Rich
Soft : Emphasize “warm” colours.
(Suitable for dimly-lit room condition and
givescinema-like effect when light is
switched off).
28-30/E 1/4/02, 8:59 AM28
Natural
Soft
28
Page 29
SMART SOUND CONTROL
Whether you are watching a movie or video game, your TV has automatic sound control
settings matched to your current program source or content. The Smart Sound feature quickly
resets your TV’s sound controls of program for a number of different types of programs and
viewing conditions you may have in your home. Each Smart Sound setting is preset at the
factory to automatically adjust the TV’s Treble and Bass levels.
Step Press button
q
Press botton repeatedly to cycle through the 4 settings namely,
Personal, Theatre, Music and Voice and select your desired
sound setting.
m
Exit menu from screen.
Definition of Sound Settings
Personal : Sound settings are set to your preference.
Theatre : Emphasize sensation to action.
(Bass and Treble boosted)
Music : Emphasize low tone (Bass boosted).
Voice : Emphasize high tone (treble boosted).
Personal
Theatre
Music
Voice
28-30/E 1/4/02, 8:59 AM29
29
Page 30
PERSONAL ZAPPING
A list or series of favourite TV programs can be selected and stored in the 4 coloured buttons
with the Personal Zapping feature. With this feature you can easily viewed up to a total of 10
preferred channels for each coloured button.
Adding Channels to the Favourite list
Step Press button Result on screen
2
1
3
4
5
6
9
8
7
0
Select a channel by the Digit
buttons
8
Press button to display list.
Choose your favourite colour
button to store selected channel.
Repeat steps 1 to 3 to add and
store your avourite channels to
the list.
m
Exit menu from screen.
To view through the favourite list
Press the colour button that you
have selected.
Press button repeatedly to cycle
through your favourite list
and view your favourite channel.
Deleting Channels from the Favourite list
Select a colour button and press
button repeatedly to select the
channel you want to delete.
Press button to display list.
8 { Select List!
{ 8 Added!
{ 8
{Remove Item?- Press |
{ 8
Press button to remove item.
Repeat steps 1 to 3 to delete
more channels from list.
m
28-30/E 1/4/02, 8:59 AM30
Exit menu from screen.
30
Page 31
SPECIFICATIONS
14PT2001
Picture tube screen size 370 mm
Picture tube visible area 340 mm
Audio Output :
Speaker 1 x 4 W
TV System PAL B/G
PAL D/K
PAL I (only for certain versions)
SECAM B/G
SECAM D/K
SECAM K1
Playback System NTSC 3.58, NTSC 4.43, PAL 60
Set Dimensions :
Width 360 mm
Depth 370 mm
Height 357 mm
Net Weight of Set (approximate ) 9 kg
Note
For Operating Voltage, Frequency, Power Consumption and Version Number, refer to the
type number at the rear of the set.
31
31-32/E 04/02/02, 10:03 am31
Page 32
31-32/E/29251 06/24/02, 11:54 AM32
3139 125 29252
32
Loading...
