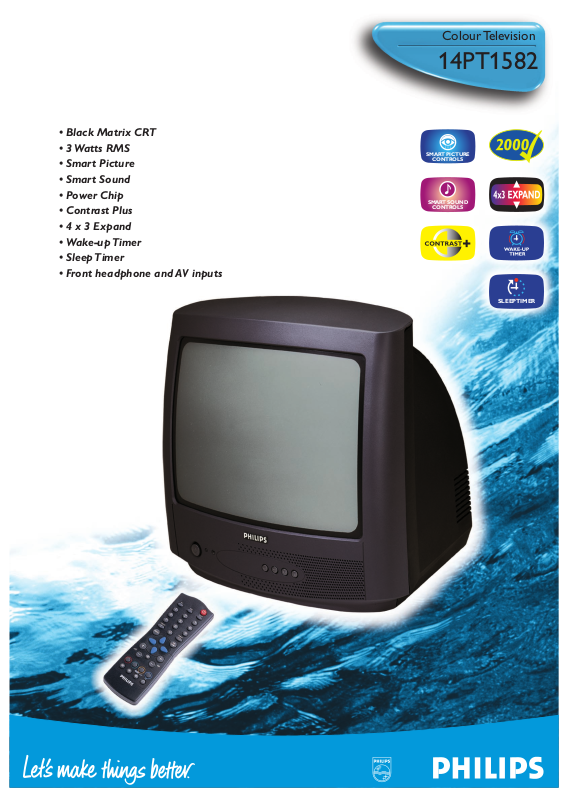

Philips 14PT1582 User Manual
• Black Matrix CRT
• 3 Watts RMS
• Smart Picture
• Smart Sound
• Power Chip
• Contrast Plus
• 4 x 3 Expand
• Wake-up Timer
• Sleep Timer
• Front headphone and AV inputs
Colour Television
14PT1582
SMART PICTURE
CONTROLS
SMART SOUND
CONTROLS
SLEEPTIMER
14PT1582
Product Information
Colour Television
14"
Screen size 14" (37 cm)
Picture tube Black Matrix CRT
Viewing area 34 cm
Smart Picture Modes Soft, Natural, Rich,
Contrast Plus
Power Chip
Sharpness Control
Colour Temperature Control
Personal
Sound
Sound output 3 Watts RMS
Loudspeakers Full Range Speaker
Smart Sound Modes Theatre, Music, Voice,
Auto Volume Leveller (AVL)
Normal
Reception
Tuning system PLL digital tuning
Tuner UV, S and Hyperband,
Full cable
Channel selection 100 presets,
TV systems See table
Video playback NTSC 4.43 /
(for /71 version only)
181 presets
(for /71 version only)
NTSC 3.58 / PAL 60
Connections
Front Headphone out
(3.5 mm)
Audio / Video input
Rear Audio / Video input
Audio / Video output
(monitor out)
Operation
Remote control RC 283501/01,
RC 282903/01
(for /71 version only)
Number of remote 35 buttons,
control buttons 29 buttons
(for /71 version only)
Features
Multi language on-screen display
Smart Surf
Alternate Channel
Child Lock
Clock
Wake-up Timer
Sleep Timer
Measurements
Mains 100 - 250V, 50/60 Hz
Power consumption 48 Watts
(Normal Operation)
9 Watts (Standby)
Net weight 10 kg
Gross weight 11 kg
Set dimension 360 x 370 x 357
(W x D x H mm)
Box dimension 440 x 439 x 445
(W x D x H mm)
Container loading 675 sets
(per 40 ft, loose)
Product Highlights
Power Chip boasts of a Philips BIMOS Picture
Improvement Circuitry which provides better contrast,
good colour transience, accurate colour reproduction
and optimum sharpness for improved picture quality.
Smart Picture provides the option of selecting one of
four preset positions (Soft, Natural, Rich, Personal) to
enhance enjoyment of video games, sports and movies.
By selecting the desired option, all the important picture
elements are instantly adjusted to optimize viewing
pleasure.
Smart Sound provides the option of selecting one of
four preset positions (Theatre, Music, Voice, Personal) to
suit each individual sound preference when viewing
different programs or sources.
Contrast Plus greatly enhances the degree of black
to white contrast, thus optimizing the total contrast for
improved picture clarity.
4 x 3 Expand expands movie images recorded in
letterbox format by removing the black horizontal bars
at the top and bottom and filling the entire screen.
Smart Surf eliminates the frustration of trying to
remember what channels had programs of interest
while channel surfing. After establishing the Smart Surf
configuration with the user-friendly menu, store up to
ten channels in a Smart Surf ring memor y and then
surf the loop at a touch of a button.
Auto Volume Leveller (AVL) suppresses unexpected
volume increases in the sound modulation while viewing
commercials or when switching broadcast channels.
Child Lock is an electronic lock that can be used to
block channel(s) by entering a unique digit code. This
feature is useful in preventing young children from
accessing undesired program(s).
Type
Number
14PT1582
Note :
1. 140 - 250V mains for /75 version only
2. Clock and Wake-up Timer not applicable to /75 version only
3. Closed caption for /71 version only
Chassis : L9
Release Date : June/July 1999
Reference : L9/14LA/Mainstream
Features
Mono
PAL D/K/I
/57
PAL/SECAM
/59 /67
PAL B/G/I
/73 /75
Features and specifications subject to change without notice
NTSC
/71
