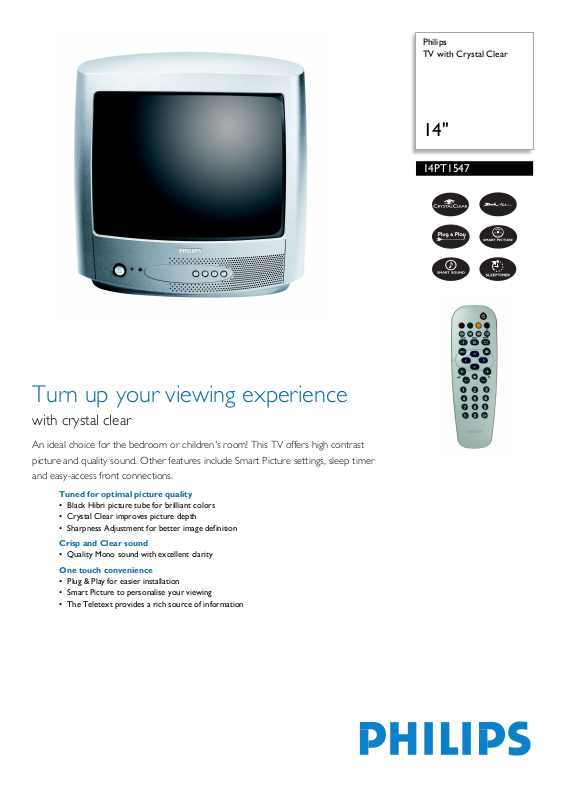

Philips 14PT1547 User Manual
For preview purpose only
Philips
TV with Crystal Clear
14"
14PT1547
Turn up your viewing experience
with crystal clear
An ideal choice for the bedroom or children's room! This TV offers high contrast
picture and quality sound. Other features include Smart Picture settings, sleep timer
and easy-access front connections.
Tuned for optimal picture quality
• Black Hibri picture tube for brilliant colors
• Crystal Clear improves picture depth
• Sharpness Adjustment for better image definition
Crisp and Clear sound
• Quality Mono sound with excellent clarity
One touch convenience
• Plug & Play for easier installation
• Smart Picture to personalise your viewing
• The Teletext provides a rich source of information
For preview purpose only
TV with Crystal Clear
14"
Technical specifications Product highlights
Picture/Display
• Aspect ratio: 4:3
• Diagonal screen size: 14 inch / 37 cm
• Visible diagonal screen size: 34 cm
• Display screen type: Black Hibri picture tube
• Picture enhancement: Crystal Clear, Sharpness
Adjustment, Color Temperature Adjustment,
Black stretch
• Picture processing: 50 Hz
Tuner/Reception/Transmission
• Tuner bands: Hyperband, S-Channel, UHF, VHF
• TV system: PAL B/G, PAL D/K, PAL I, SECAM B/
G, SECAM D/K, SECAM L/L'
• Video Playback: NTSC
• Aerial Input: 75 ohm coaxial (IEC75)
• Number of Preset Channels: 100
• Aerial Output: 75 ohm coaxial (IEC75)
Connectivity
Sound
• Sound System: Mono
• Output power (RMS): 1w
• Music Power: 2W
Loudspeakers
• Built-in speakers: 1
Convenience
• Ease of Installation: Autostore, PLL Digital
Tuning, Plug & Play, Fine Tuning, Sorting, Smart
ATS and ACI
• Ease of Use: Smart Picture Control, Smart Sound
Control
• Remote control type: RCLE011
• Teletext: 1 page Teletext
• Teletext enhancements: Program information
Line
• Clock: Sleep Timer
• Screen Format Adjustments: 4:3 expand, 4:3,
16:9 compress
• Number of Scarts: 1
• Ext 1 Scart: CVBS in/out, RGB
• Front / Side connections: Headphone out
• Headphone: 3.5 mm
Power
• Power consumption: 38 W
• Standby power consumption: < 3 w
• Mains power: AC 90-276V, 50/60Hz
Dimensions
• Product weight: 9kg
• Weight incl. Packaging: 11 kg
• Color cabinet: Metallic Antracite (10897)
• Box dimensions (W x H x D):
420x440x430mm
• Set dimensions (W x H x D):
363x358x377mm
•
14PT1547/01
Black Hibri picture tube
Black HiBri is a TV tube technology used on Philips
small-screen TVs, giving good color reproduction on
smaller sets.
Crystal Clear
Combining picture enhancements like Contrast plus and
color improvement, Crystal Clear improves picture
depth.
Sharpness Adjustment
Quality Mono sound
Crisp and clear mono sound
Plug & Play
Plug & Play gives you the ability to install or add a new
compon ent an d have it work w ithou t having to per form
any complex installation procedure or technical analysis.
Smart picture
Smart Picture button on the remote control enables
one-touch selection of various preset optimized image
settings to suit different TV program. Do refer to the
DFU for the various Smart Picture modes.
Teletext
The Teletext is a communication system transmitted by
most broadcasters in Europe, which contains a rich
variety of information. This information can only be
viewed by a set equipped with a Teletext decoder.
Date of issue 2006-08-16
Version: 16.0
12 NC: 8670 000 18417
EAN: 87 10895 76641 8
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
