Give complete “SERVICE REF. NO.” for parts order
or servicing. It is shown on the rating label at the
cabinet back of the unit.
This T.V. receiver will not work properly in foreign countries where the television transmission system and power source differ from the
design specifications. Refer to the specification
table.
Safety Notice
Safety Precautions
The following precautions must be observed.
1: Comply with all caution and safety-related notes provided on the cabinet back, cabinet bottom, inside the
cabinet or on the chassis.
2: When replacing a chassis in the cabinet, always be certain that all the protective devices are installed
properly, such as, control knobs, adjustment covers or shields, barriers, etc..
DO NOT OPERATE THIS TELEVISION WITHOUT THE PROTECTIVE SHIELD IN POSITION AND PROPERLY
SECURED.
3: Before replacing the cabinet cover, thoroughly inspect the inside of the cabinet to see that no stray parts or
tools have been left inside.
Before returning any television to the customer, the service personnel must be sure that it is completely safe to
operate without danger of electrical shock.
Product Safety Notice
Product safety should be considered when a component replacement is made in any area of a receiver.
Components indicated by mark in the parts list and the schematic diagram designate components in which
safety can be of special significance. It is particularly recommended that only parts designated on the parts list
in this manual be used for component replacement designated by mark . No deviations from resistance
wattage or voltage ratings may be made for replacement items designated by mark .
AV1 Input Video Input: Composite video Input (RCA Jack) x1
S-Video Input: DIN 4-pin Jack x1
Audio Input: L/R Stereo Input (RCA Jack) x 1 set
AV2 Input Video Input: Component Y (combined with composite video input), CB, CR Input (RCA Jack) x1 set
Audio: L/R Stereo Input (RCA Jack) x 1 set
HDMI Input HDMI Terminal 19 pin x1
PC Input Video Input: D-SUB 15 pin x1
Audio Input: Mini stereo jack x 1
Output Terminals Video Monitor Output: RCA jack x 1
Audio Monitor Output: L/R Stereo Output (RCA jack) x 1 set
Headphone Jack : Mini stereo jack x1
6 cm x12 cm x 2 pcs
Dimensions 818 X 624 X 270 mm (including stand)
Weight <14.3kg (Including Stand)
Environmental Considerations
Operating Temperature 0˚C ~ 40˚C (32˚F ~ 104˚F)Operating Humidity 20 ~ 80%Storage Temperature
-10˚C ~ 50˚C (14˚F ~ 122˚F)
Storage Humidity 20 ~ 80%
Specifications subject to change without notice.
-3-
Chassis Block Diagram
2

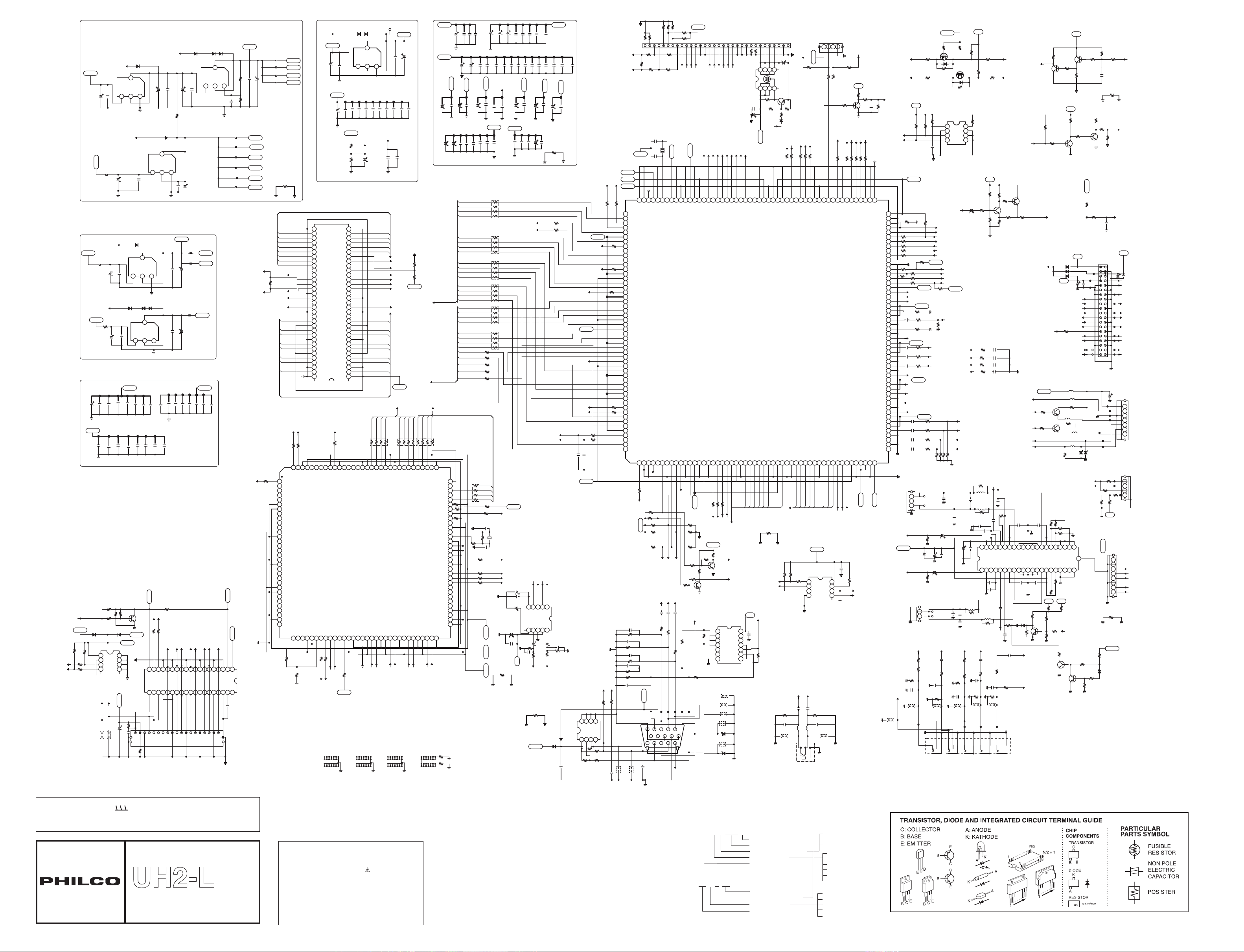

MAIN SIGNAL PROCESSING CIRCUIT
-4-
Chassis Block Diagram
POWER SUPPLY IC (STRW6753)
-5-
IC Block Diagrams (On the ASSY, PWB, MAIN)
IC003 < Sync. Separation> LA7217
IC402 QTC4052BF---P
-6-
IC Block Diagrams (On the ASSY, PWB, MAIN)
IC301 LV1116
-7-
IC Block Diagrams (On the ASSY, PWB, MAIN)
IC403 QYDA138-----M
IC7200 QFLI8531-BE-M
-8-
IC Block Diagrams (On the ASSY, PWB, MAIN)
IC7300 QXXAVC914---M
IC7500 QANX9011L---M
-9-
IC Block Diagrams (On the ASSY, PWB, POWER)
IC601 VIPER53
IC602 L6563
-10-
IC Block Diagrams (On the ASSY, PWB, POWER)
IC603 L6599TR
IC608 LM393
-11-
On-screen Service Menu System
VIDEO MODE
POWER
RECALL
DISPLAY
MUTE
AUDIO MODE
ECO
MAIN/SUB
CHANGE
BACK
PIP
VIDEO MODE
POWER
RECALL
DISPLAY
MUTE
AUDIO MODE
SLEEP
CH
CH
General
This set has an On-screen Service Menu System included in the CPU that allows remote operation for most of the
service adjustments.
On-screen Service Menu System
Quick operation is needed to enter Service Mode.
■ How to enter the Service Menu
1. Press and hold the MENU button on Side Controls.
2. Keep pressing the MENU button and press the NUMERIC "1" button on the remote control, and the service mode
menu will be displayed.
Side Controls
MENU button
Open or close the On-Screen Menu.
[ Service Mode Menu ]
Service Mode
V1.29070612un42
Source All
Properties:NormalRed
Data:88
Data Value
■ How to select the service item and adjust data:
To adjust data:
1) Select “DATA” line by pressingorbutton.
Service Mode
V1.29070612un42
Source All
Properties:NormalRed
Data:88
2) Press + or - button to adjust data.
Version No.
Input Source
Item Name
■ To exit service mode
-12--12-
1. Press MENU button on the Side Controls or remote control.
2. Turn the TV off by pressing the POWER ON/OFF button on the Side Controls or remote control.
Note: The all adjusted data in service mode will be memorized into EEPROM automatically.
On-screen Service Menu System
■ Service Adjustment Data Table
SourceItem NameInitial DataICDescription
1.ALLNormalred88FLI8531White Tone offset
Gerenal Data) Normalgreen99FLI8531(Normal)
(
(Basic data)Normalblue99FLI8531
Warmred88FLI8531White Tone offset
Warmgreen78FLI8531 (Warm)
Warmblue70FLI8531
Coolred72FLI8531White Tone offset
Coolgreen90FLI8531 (Cool)
Coolblue120FLI8531
Red85FLI8531White Balance basic value(AV)
Green85FLI8531
Blue85FLI8531
Brightness14FLI8531User brightness value
Contrast58FLI8531User contrast value
Saturation60FLI8531User saturation value
Hue-50FLI8531User hue value
Sharpness7FLI8531User sharpness value
Picmodedynamicbri50FLI8531Brightness basic value (Dynamic)
Picmodedynamiccon100FLI8531Contrast basic value (Dynamic)
Picmodedynamicsat55FLI8531Saturation basic value (Dynamic)
Picmodesoftbri50FLI8531Brightness basic value (Soft)
Picmodesoftcon20FLI8531Contrast basic value (Soft)
Picmodesoftsat50FLI8531Saturation basic value (Soft)
Picmodepersonalbri50FLI8531Brightness basic value (Personal)
Picmodepersonalcon70FLI8531Contrast basic value (Personal)
Picmodepersonalsat50FLI8531Saturation basic value (Personal)
Picmodenormalbri50FLI8531Brightness basic value (Normal)
Picmodenormalcon70FLI8531Contrast basic value (Normal)
Picmodenormalsat50FLI8531Saturation basic value (Normal)
AGC ENAGC
DISABLE
ADC CalibrationFLI8531ADC adjust entrance
Ver_facNVRecord data in the factory
WhiteRED GREEN
