VISTA EXPLODIDA
New Parts
TV PH 21 SS
Junho/2011
VEX.PH.VÍDEO.031.REV.1
1
PRODUTO
TV PH21SS
(X) - Último algarismo do código e Nº série significam a versão do aparelho
CÓDIGO
057103028ATA
PADRÃO N SÉRIE°
AA 000.000 T24A
2
5
3
6
4
7
10
13
8
9
11
12
NOTA:
- Esta lista está sujeita a alterações sem aviso prévio, consultar
o site www.telecontrol.com.br para informações atualizadas.
- Em caso de dúvidas, entrar em contato com o Suporte Técnico.
- Somente os itens que possuem códigos serão fornecidos.
Página 2/6
Page 3
ITENS DA VISTA EXPLODIDA
New Parts
TV PH 21 SS
Junho/2011
VEX.PH.VÍDEO.031.REV.1
DEMAIS COMPONENTES FORNECIDOS
Código Descrição peça Nº
708347 GAB FRONT TV PH21SS 1
708348 GAB TRAS TV PH21SS 2
708346 CINESCOPIO A51ERU191X03Q (HUAFEI) A
709955 CINESCOP A51ALQ13X01N(D)(CHUNGHWA) B,C
710402 CINESCOPIO A51QHB791X001 (SAMSUNG) D
3
710417 CINESCOP A51QGT310X 10 (LG) E
708344 PCI PRINCIPAL TV 21SS V.A
709951 PCI PRINCIPAL TV 21SS V.B
709252 PCI PRINCIPAL TV 21SS V.C
4
710398 PCI PRINCIPAL PH21SS V.D
710412 PCI PRINCIPAL TV 21SS V.E
708827 PCI CORRECAO PH08-2929-DGXZ PH21SS A,B,C 5
708345 PCI CINESCOPIO TV PH21SS 6
707655 PCI SENSOR(21A2REC.PCB) 7
708349 TECLADO FUNCOES TV PH21SS 8
707656 CHAVE MASTER 5A/8A 250V PH14C 9
707733 ALTO FAL 8? 10W 2" 4,5" 10
707304 CORD 2X0,75 PR 10A 2M TV PH14B 11
708768 BASE GIRATORIA TV PH21 SLIM 12
707735 PCI CONTROLE(2129MCNT.PCB) 13
ACESSÓRIOS
707309
708266
708322
705896
708323
708832
CONTROLE REMOTO TV PH14B ***
EMBALAGEM TV PH21SS SUPER SLIM ***
MANUAL USUARIO TV PH21SS ***
CERTIF GAR AUDIO E VIDEO PHILCO ***
GUIA RAPIDO TV PH21SS ***
CONJ CALCO TV PH21SS ***
709865 SELO PROCEL B 30x100 C1,94 D50,6 PH21SS ***
Página 3/6
Page 4
New Parts
TV PH 21 SS
Junho/2011
VEX.PH.VÍDEO.031.REV.1
DEMAIS COMPONENTES FORNECIDOS
PCI PRINCIPAL
Código Descrição peça
707537
CI TDA11145/TDA12165 PH21B N301 707538 CI MEM 24C08 PH21B N702 708731 CI STV9378 N451
700888
CI TC4052BP N801 707520 CI UTC17821 (HSIP012) N601 707522 CI STR-W6553A N502
701633
CI 817 OPTO (DIP4)(PTH) N501 707523 TRANSISTOR 2SD1555 (TO-3P) V432 707547 CAPACITOR 220uF/400V C507
707295
TRANSISTOR C1674 (TO-92)(PTH) V308 708752 TRAFO CHOPPER BCK42-80531 T511 707533 CAPAC 220µF/160V 105° ELETROLITICO C567
702986
TRANSISTOR C1815 (TO-92)(PTH) V606,V804,V803,V121,V381,V382,V383,V504,V580,V553 708731 CI STV9378 N451 707679 CAPAC 100µF/25V 105° ELETROLITICO C406
707526
TRANSISTOR A1015 (TO-92) V384,V503,V605,V801 707522 CI STR-W6553A N502 707685 CAPAC 39nF/630V POLIESTER C457
707298
TRANSISTOR C2383 (TO-92)(PTH) V501,V431,V502,V574,V505 707547 CAPACITOR 220uF/400V C507 707748 ZENER HZ6C2 6V 0,5W (DO-35) VD560
707529
CRISTAL 24.576MHz Z302 707533 CAPAC 220µF/160V 105° ELETROLITICO C567 700869 ZENER HZ3C3 3,3V 0,5W (DO-35) VD540
708753
FILTRO SAW M1967M30 (45.75Mz) Z301 707679 CAPAC 100µF/25V 105° ELETROLITICO C406 707711 RESISTOR 220K Ohm 1W R501,R478
707524
SELETOR ET5C511-M04 TU101 707685 CAPAC 33nF/630V POLIESTER C457 707756 RESISTOR 0.47 Ohm 2W R209
707531
CAPACITOR 47uF/160V C568 707748 ZENER HZ6C2 6V 0,5W (DO-35) VD560 708761 RESISTOR 12M ohm 2W R531
707540
CAPACITOR 22uF/250V C569 700869 ZENER HZ3C3 3,3V 0,5W (DO-35) VD540 707710 RESISTOR 1K Ohm 1W R441
707680
CAPAC 470µF/50V 105° ELETROLITICO C558 707711 RESISTOR 220K Ohm 1W R501,R478 707708 RESISTOR 120K? 1W R520,R521
707681
CAPAC 1000µF/25V 105° ELETROLITICO C562,C563 707756 RESISTOR 0.47 Ohm 2W R209 708822 RESISTOR 150 Ohm 2W R522,R523
707682
CAPAC 2200µF/35V 105° ELETROLITICO C161A 708761 RESISTOR 12M ohm 2W R531 707724 NTC MF72 7D13 R502
707684
CAPAC 10µF/50V 105° ELETROLITICO C523 707710 RESISTOR 1K Ohm 1W R441 707727 INDUTOR 410uH DIAMETRO 14mm L301
707688
CAPAC 1nF/2KV CERAMICO C520,C525 707708 RESISTOR 120K? 1W R520,R521 707609 FLYBACK BSC26-01N4010F T471
707689
CAPAC 470pF/2KV CERAMICO C525A 708822 RESISTOR 150 Ohm 2W R522,R523 708734 CAPAC 9,1nF/2000V POLIPROPILENO C436,C435
707690
CAPAC 2n2F/400V CERAMICO C515 707724 NTC MF72 7D13 R502 707697 DIODO RU4DS (DO-27)(PTH) VD435
708735
CAPAC 470pF/400V CERAMICO C598B 707727 INDUTOR 410uH DIAMETRO 14mm L301 707699 DIODO FR305 (DO-201AD)(PTH) VD436
707692
CAPAC 1nF/1KV CERAMICO C503,C504 707609 FLYBACK BSC26-01N4010F T471 707712 RESISTOR 1 Ohm 2W R459
707693
CAPAC 470pF/1KV CERAMICO C570,C553 708734 CAPAC 9,1nF/2000V POLIPROPILENO C436 708824 RESISTOR 180 Ohm 2W R460
707694
CAPAC 680pF/2KV CERAMICO C450 707697 DIODO RU4DS (DO-27)(PTH) VD435 708826 INDUTOR 42uH DIAMETRO 15,5mm L441
700167
DIODO 1N4148 (SOD27)(PTH) VD444,VD462,VD461,VD517,VD567,VD602,VD601 707699 DIODO FR305 (DO-201AD)(PTH) VD436 708828 CAPAC 82nF/400V POLIESTER C416,C414A
701725
DIODO FR157 (DO-15)(PTH) VD518,VD558 707712 RESISTOR 1 Ohm 2W R459 708829 CAPAC 300nF/400V POLIESTER C413
707695
DIODO FR154 (DO-15)(PTH) VD562,VD563,VD564,VD565,VD566 708824 RESISTOR 180 Ohm 2W R460 708830 INDUTOR 3uH DIAMETRO 15,5mm L413
707696
DIODO RU4AM (DO-27)(PTH) VD559 708826 INDUTOR 42uH DIAMETRO 15,5mm L441 708831 INDUTOR 290uH DIAMETRO 15,5mm L412
707698
DIODO RL207 (DO-15)(PTH) VD503,VD504,VD505,VD506 708828 CAPAC 82nF/400V POLIESTER C416,C414A 708743 RESISTOR 4,7KR 3W R433A
700259
DIODO 1N4004 (DO-41)(PTH) VD401 708829 CAPAC 300nF/400V POLIESTER C413 708744 CAPAC 4,7uF/250V 85C ELETROLITICO C415
707700
ZENER HZ9A2 7,9V 0,5W (DO-35) VD301,VD361,VD483,VD811,VD823 708830 INDUTOR 3uH DIAMETRO 15,5mm L413 709952 CI MEM ATMLU82008B(DIP-8)PH21SS VB N702
707701
ZENER HZ18-2 17,5V 0,5W (DO-35) VD519 708831 INDUTOR 290uH DIAMETRO 15,5mm L412 709953 TRANSISTOR 3DD5036 (TO-3P) V432
700261
ZENER HZ6B2 5,6V 0,5W (DO-35) VD701,VD702 708743 RESISTOR 4,7KR 3W R433A 709954 TRAFO CHOPPER BCK42-91019 T511
707702
ZENER HZ6C3 6,1V 0,5W (DO-35) VD502 708744 CAPAC 4,7uF/250V 85C ELETROLITICO C415 707558 CI TDA7266SA (CLIPWATT15)(PTH) N601
707703
ZENER HZ5C2 5V 0,5W (DO-35) VD581 707765 CAPAC 8,2nF/2000V POLIPROPILENO C435
707719
RESISTOR 100K ohm 2W R524 708763 RESISTOR 0,82 ohm 2W R491A
707705
RESISTOR 150K ohm 0.5W R554 707720 RESISTOR 12 Ohm 3W R470
707706
RESISTOR 100K ohm 0.5W R552
707755
RESISTOR 270 Ohm 2W R437
708823
RESISTOR 12K Ohm 2W R703
708825
RESISTOR 0,22 Ohm ,2W R621
707723
PTC MZ73BHL-9RM RT501
707725
TRIMPOT 2K? RP551
708054
INDUTOR 10uH DIAMETRO 2.5mm L303,L312,L320,L322,L323,L436
707728
INDUTOR 1uH DIAMETRO 2,5mm L302
707730
TRANS DRIVER HORIZONTAL EI19 T431
707731
FUSIVEL RET 3,15A250V 5X20 VIDRO FU501
Nº
Código Descrição peça
UTILIZADO EM TODAS AS VERSÕES VERSÃO A VERSÃO B
Nº
Código Descrição peça
Nº
Página 4/6
Page 5
New Parts
TV PH 21 SS
Junho/2011
VEX.PH.VÍDEO.031.REV.1
DEMAIS COMPONENTES FORNECIDOS
PCI PRINCIPAL
Código Descrição peça
771134 CI MEM ATMLU82008B (DIP-8) PH21SS N702 707687 CAPAC 7,6nF/2000V POLIPROPILENO C435,C436 710413 CAPAC 6.8nF 2KV POLIPROPILENO C435
771136 TRAFO CHOPPER BCK42-91019 T511 708736 RESISTOR 0,82 ohm 2W R459 710414 RESISTOR 180 ohm 3W R460A
771135 TRANSISTOR 3DD5036 (TO-3P) V432 709089 RESISTOR 220 Ohm 2W R460A 710415 RESISTOR 1 ohm 3W R491
708751 TRANSISTOR FQPF630 (TO-220F) V203 709010 RESISTOR 1,5 Ohm 3W R491 710416 INDUTOR 52uH L441
709859 CAPAC 10uF50V105CD10mm BIPOLELET C305 710401 INDUTOR 60uH L441 707765 CAPAC 8,2nF/2000V POLIPROPILENO C436
709861 RESISTOR 1K Ohm 2W R441 708755 CAPAC 39nF 630V POLIESTER C457 708763 RESISTOR 0,82 ohm 2W R459
708694 RESISTOR 4.7 Ohm 2W R209 710399 FLYBACKBSC25-01N4010D T471 710399 FLYBACK BSC25-01N4010D T471
709253 RESISTOR 0,82 OHM 3W R491 708739 CAPAC 220nF400V POLIESTER C441 708739 CAPAC 220nF400V POLIESTER C441
707609 FLYBACK BSC26-01N4010F (N3601A) N471 710400 RESISTOR 2,2K ohm 2W R441 710400 RESISTOR 2,2K ohm 2W R441
708734 CAPAC 9.1nF2000V POLIPROPILENO C435,C436 708764 RESISTOR 22Kohm 0.5W R448 708764 RESISTOR 22K ohm 0.5W R448
707697 DIODORU4DS (DO-27)(PTH) VD435 709952 CI MEM ATMLU82008B (DIP-8) PH21SS N702 709952 CI MEM ATMLU82008B (DIP-8) PH21SS N702
707699 DIODOFR305 (DO-201AD)(PTH) VD436 709953 TRANSISTOR 3DD5036 (TO-3P) V432 709953 TRANSISTOR 3DD5036 (TO-3P) V432
707712 RESISTOR 1 ohm 2W R459 709954 TRAFOCHOPPER BCK42-91019 T511 709954 TRAFO CHOPPER BCK42-91019 T511
708824 RESISTOR 180 Ohm 2W R460 706911 CI STV8172A (HEPTAWATT)(PTH) N451 706911 CI STV8172A (HEPTAWATT)(PTH) N451
708826 INDUTOR 42uHDIAMETRO 15.5mm L441 707678 CI STR-W6556A N502 707678 CI STR-W6556A N502
708828 CAPAC 82nF/400V POLIESTER C414A,C416 706496 ZENER 33V 0.5W (W574) (TO-92) N703 706496 ZENER 33V 0.5W (W574) (TO-92) N703
708829 CAPAC 300nF/400V POLIESTER C413 707761 NTC MF72-2 7D12M R502 707761 NTC MF72-2 7D12M R502
708830 INDUTOR 3mH DIAMETRO 15,5mm L413 708013 CAPAC 220uF/400VELETROLIT D:25mm C507 708013 CAPAC 220uF/400V ELETROLIT D:25mm C507
708831 INDUTOR 290uHDIAMETRO 15,5mm L412 708754 CAPAC 220uF160VELETROLITICO C567 708754 CAPAC 220uF160V ELETROLITICO C567
708743 RESISTOR 4,7KR 3W R433A 707741 CAPAC 470uF/16V 105 ELETROLITICO C602 707741 CAPAC 470uF/16V 105 ELETROLITICO C602
708744 CAPAC 4,7uF/250V 85CELETROLITICO C415 708757 CAPAC 100nF 100V POLIESTER C316,C458,C460,C521 708757 CAPAC 100nF 100V POLIESTER C316,C458,C460,C521
708755 CAPAC 39nF 630V POLIESTER C457 708758 CAPAC 220nF 100V POLIESTER C332,C404 708758 CAPAC 220nF 100V POLIESTER C332,C404
706911 CI STV8172A (HEPTAWATT)(PTH) N451 709860 RESISTOR 120Kohm 0,5W R520,R521 709860 RESISTOR 120K ohm 0,5W R520,R521
707678 CI STR-W6556A N502 707714 RESISTOR 15 ohm 2W R522A,R523A 707714 RESISTOR 15 ohm 2W R522A,R523A
706496 ZENER 33V 0.5W (W574) (TO-92) N703 707721 RESISTOR 1,2 ohm 3W R470 707721 RESISTOR 1,2 ohm 3W R470
707761 NTC MF72-2 7D12M R502 709862 RESISTOR 220KOHM 0,5W R478,R501 709862 RESISTOR 220K OHM 0,5W R478,R501
708013 CAPAC 220uF/400VELETROLIT D:25mm C507 707707 RESISTOR 12M Ohm 1W R531 707707 RESISTOR 12M Ohm 1W R531
708754 CAPAC 220uF160VELETROLITICO C567 707837 ZENER HZ6B1 5.5V (DO-35) VD701,VD702 707837 ZENER HZ6B1 5.5V (DO-35) VD701,VD702
707741 CAPAC 470uF/16V 105 ELETROLITICO C602 709863 ZENER HZ4B2 3,9V 0,5W (DO-35) VD540 709863 ZENER HZ4B2 3,9V 0,5W (DO-35) VD540
708757 CAPAC 100nF 100V POLIESTER C316,C458,C460,C521 707720 RESISTOR 12 Ohm 3W R586 707720 RESISTOR 12 Ohm 3W R586
708758 CAPAC 220nF 100V POLIESTER C404 707558 CI TDA7266SA (CLIPWATT15)(PTH) N601 707558 CI TDA7266SA (CLIPWATT15)(PTH) N601
709860 RESISTOR 120K ohm 0,5W R520,R521
707714 RESISTOR 15 ohm 2W R522,R523
707721 RESISTOR 1,2 ohm 3W R470
709862 RESISTOR 220K OHM 0,5W R478
707707 RESISTOR 12M Ohm 1W R531
707837 ZENER HZ6B1 5.5V (DO-35) VD701,VD702
709863 ZENER HZ4B2 3,9V 0,5W (DO-35) VD540
707720 RESISTOR 12 Ohm 3W R586
707558 CI TDA7266SA (CLIPWATT15)(PTH) N601
Nº
Código Descrição peça
VERSÃO D VERSÃO EVERSÃO C
Código Descrição peça Nº
707739
TRANSISTOR 2SC2688 (TO-126)(PTH) V911,V921,V931
707535
TRANSISTOR BF423 (TO-92) V913,V923,V933
707536
TRANSISTOR BF422 (TO-92) V912,V922,V932
707713
RESISTOR 15K Ohm 2W R919,R929,R939
708766
RESISTOR 1,5K Ohm 0,5W R918,R928,R938
709864
DIODO RGP10J (DO-41)(PTH) VD911,VD921,VD931
708146 SOQUETE CINESCOPIO GZS10-2-108 XS901
Nº
Código Descrição peça
PCI CINESCÓPIO
Nº
Página 5/6
Page 6
New Parts
TV PH 21 SS
Junho/2011
VEX.PH.VÍDEO.031.REV.1

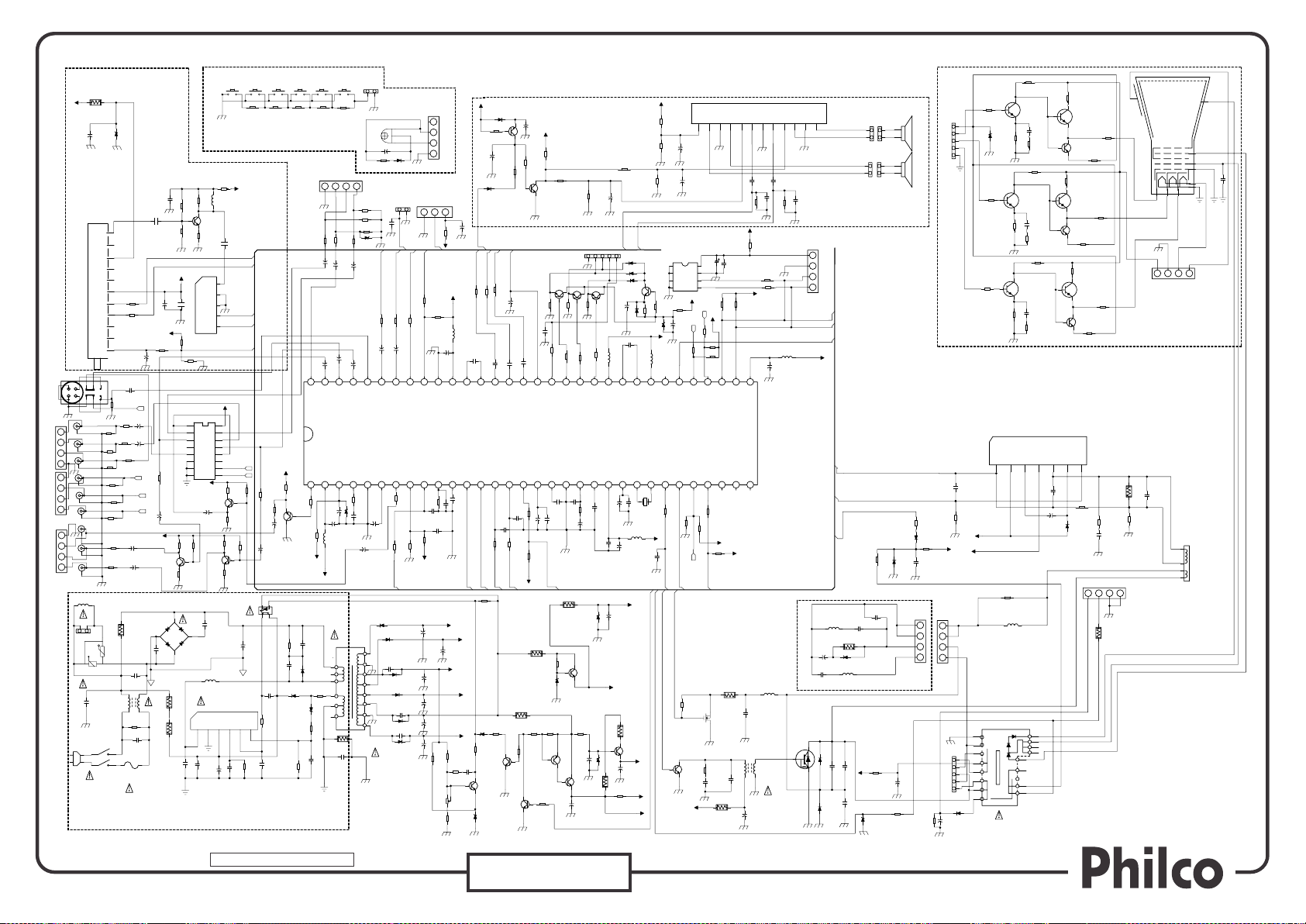

AV/TV
