VISTA EXPLODIDA
VEX.PH.VÍDEO.085.REV.0 JUNHO/2012
TV PH21MG
PRODUTO CÓDIGO TENSÃO PADRÃO DE N° SÉRIE
TV PH21MG 099213002ATX BIV 0 00 00000 00 T026X
(X
) - O último algarismo nas colunas "Código" e "Padrão N° Série" significa a versão do aparelho.
2
1
11
8
9
2
7
10
3
4
6
5
New Parts
12
PAG. 2/9
Page 3
VEX.PH.VÍDEO.085.REV.0 JUNHO/2012
TV PH21MG
ITENS DA VISTA EXPLODIDA DEMAIS ITENS FORNECIDOS
CÓDIGO DESCRIÇÃO DA PEÇA
708921 CONTROLE REMOTO TV PH21/29M SS
712103 MANUAL TV PH21MG SS
708923 GUIA RAPIDO TV PH21/29M SS
710570 SELO PROCEL B 30X100 C1.33 D50.2
709126 CERTIF GARANTIA PHILCO MANAUS
708925 CONJ CALCO TV PH21M SS
712102 EMBALAGEM TV PH21MG SS
ACESSÓRIOS
N° CÓDIGO DESCRIÇÃO DA PEÇA
1 708919 GAB FRONT TV PH21M SS
2 708918 ALTO FAL 8 ohm 8W PH21M
3 712340 PCI PRINC TV PH21MG SS V.A
4 712343 CINESCOPIO A51EMW032X0B1 THOMSON
5 708070 PCI CRT (40-ONX56B-CRD1XG)
6 708920 GAB TRAS TV PH21M SS
7 710572 CONJ TECLAS TV PH21M SS
8 710571 BOTAO POWER TV PH21M SS
9 712344 MOLA BOTAO POWER TV PH21MG
10 709463 EXTENSOR POWER TV PH21M SS
11 712058 BASE GIRATORIA TV PH21M
12 710363 CORD 2X0,75 1,8M PR P RED
New Parts
NOTA:
- Esta lista está sujeita a alterações sem aviso prévio, favor consultar
o site www.telecontrol.com.br para informações atualizadas.
- Em caso de dúvidas entrar em contato com o Suporte Técnico.
- Somente os itens que possuem códigos serão fornecidos.
PAG. 3/9
Page 4
VEX.PH.VÍDEO.085.REV.0 JUNHO/2012
TV PH21MG
N° CÓDIGO DESCRIÇÃO DA PEÇA
IC201 709171 CI TDA11145PSN33AM PH21M SS
IC202 707552 CI 24C16 PTH(PDIP8)(PH29B)
IC301 709495 CI LA78141 TV PH21M PH29M
IC601 707558 CI TDA7266SA (CLIPWATT15)(PTH)
IC801 707556 CI NCP1337 (PDIP-7)(PTH)
IC802 701632 CI TL431.KA431 (TO-92)(PTH)
IC803 707559 CI PC123 (OPTO)(DIP-4)(PTH)
Q451 708687 TRANSISTOR IRFS630B (TO-220F)(PTH)
Q402A 708068 TRANSISTOR 3DD504 (TO-220F)(PTH)
Q401 706495 TRANSISTOR 2SC2235Y(TO-92MOD)(PTH)
Q802 702987 TRANSISTOR 2N551
Q808 707563 TRANSISTOR DTC144ES (SPT)(PTH)
Q001;Q210;Q301;Q601;Q602;Q903;Q904 702986 TRANSISTOR C1815 (TO-92)(PTH)
Q201,Q202,Q804 708069 TRANSISTOR 8050 (TO-92)(PTH)
C803 707547 CAPAC 220uF 400V 105 ELETROLITICO
C824 707592 CAPAC 100uF160V ELETROLITICO
C419 707531 CAPAC 47uF160V ELETROLITICO
C452 710696 CAPAC 4.7uF50V 85 ELETROLITICO
C413 707532 CAPAC 10uF250V ELETROLITICO
C846 707550 CAPAC 47uF100V ELETROLITICO
C827;C829;C832 707681 CAPAC 1000uF25V 105 ELETROLITICO
C833 707850 CAPAC 1000uF16V ELETROLITICO
C456 708018 CAPAC 330nF400V POLIESTER
C457 710812 CAPAC 15nF1600V POLIPROPILENO
C453 712341 CAPAC 6,6nF 1600V POLIPROPILENO
C414,C420 710699 CAPAC 56nF 100V POLIESTER
C454 708690 CAPAC 15n400V POLIESTER
C310,C602,C603 707855 CAPAC 220nF63V POLIESTER
C204,C214 710814 CAPAC 100nF 63V POLIESTER
C208 710815 CAPAC 150nF 63V POLIESTER
C309,C406 710816 CAPAC 2,2nF 63V POLIESTER
C401 710817 CAPAC 10nF 63V POLIESTER
C215 710818 CAPAC 6,8nF 63V POLIESTER
C811A 708020 CAPAC 1n5F1KV CERAMICO
C805 707693 CAPAC 470pF1KV CERAMICO
C817 708021 CAPAC 330pF1KV CARAMICO
C809 707858 CAPAC 10nF1KV CERAMICO
CY803 707860 CAPAC 2n2F250V CERAMICO
C810A 707856 CAPAC 4n7F1KV CERAMICO
CX802 710695 CAPAC 220nF 250V
DB801,DB802,DB803,DB804 707861 DIODO RL255 (D0-15)(PTH)
D803 708023 DIODO HER108 (DO-41)(PTH)
PCI PRINCIPAL
D812 708027 DIODO D-FSR GRU4YX 100V4A
D404;D454;D804;D813;D818;D819 708025 DIODO FR104 (DO-41)(PTH)
D809 708026 DIODO FR107 (DO-41)(PTH)
D815 700191 DIODO 1N4001 (DO-41)(PTH)
D808 710700 DIODO RU3C (DO-15B)(PTH)
D455 708028 DIODO D-FSR GBY228 1,5KV2.5A
D204;D205;D206;D207;D210;D252;D313;
D315;D316;D406;D601;D602;D612;D810;
D811;D814
700167 DIODO 1N4148 (DO-35)(PTH)
D251 707870 ZENER 79C5V6 5.6V 0.5W (DO-35)
D250;D407;ZD805 707865 ZENER 79C8V2 8.2V 0.5W (DO-35)
ZD804 707869 ZENER 79C4V7 4.7V 0.5W (DO-35)
ZD802,ZD803 707867 ZENER 79C3V9 3.9V 0.5W (DO-35)
D101 706496 ZENER 33V 0.5W (W574) (TO-92)
R839 707873 RESISTOR 1M Ohm 0,5W
R812 708047 RESISTOR 47K Ohm 3W
R319,R320 707715 RESISTOR 1.8 Ohm 2W
R814 708045 RESISTOR 18K Ohm 2W
R801 708035 RESISTOR 4.7M Ohm 0.5W
R836 707875 RESISTOR 22K Ohm 2W
R308A 708763 RESISTOR 0.82 ohm 2W
R425A 708044 RESISTOR 3.3 Ohm 2W
R838 708037 RESISTOR 8.2M Ohm 1W
R402 708691 RESISTOR 22 Ohm 1W
R806 712342 RESISTOR 0.1 Ohm 2W
L458 708695 INDUTOR 27uH
L201;L203;L204;L205;L206 708054 INDUTOR 10uH DIAMETRO 2.5mm
Z201 707528 FILTRO SAW D1539C 45.75MHZ
X201 707529 CRISTAL 24.576MHz (YC18pF)
T401 707473 FLYBACK BSC25-0230Z
T402 707885 TRAFO DRIVER HORIZ BCT-1621
TU101 707577 SELETOR 07-457FF5-NF9T
T801 711696 TRAFO CHOPPER BCK 3579
IR01 707622 RECEPTOR IR 37.9KHZ 5V N HM338A
RT801 707723 PTC MZ73BHL-9RM
K001,K002,K003,K004,K005,K006 700251 CHAVE TACT 4 PINOS 6X6X5mm
F801 708055 FUSIVEL RET 4A250V 5X20 VIDRO
K802 708699 CHAVE MASTER KDC-A11 8A128A 250V
Q512,Q522,Q532 707536 TRANSISTOR BF422 (TO-92)
Q513,Q523,Q533 707535 TRANSISTOR BF423 (TO-92)
Q511,Q521,Q531 707739 TRANSISTOR C2688L (TO-126)(PTH)
S501A 708071 SOQUETE CINESCOPIO GZS10-2-DD2
C505 707688 CAPAC 1nF2KV CERAMICO
R515A,R525A,R535A 707713 RESISTOR 15K Ohm 2W
L501 710821 INDUTOR 47uH DIAMETRO 5mm

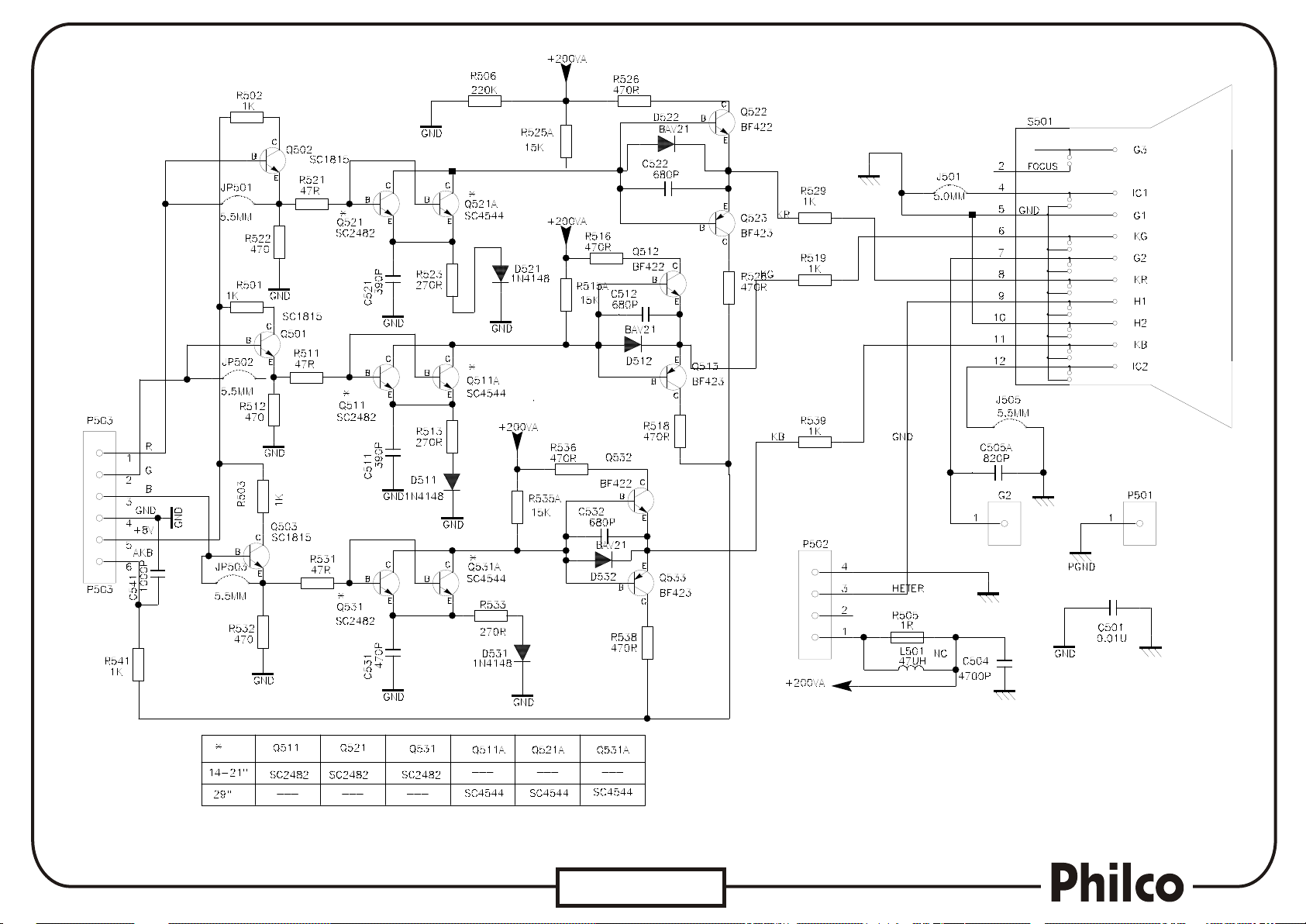

PCI CRT
PCI PRINCIPAL
New Parts
DEMAIS ITENS FORNECIDOS
PAG. 4/9

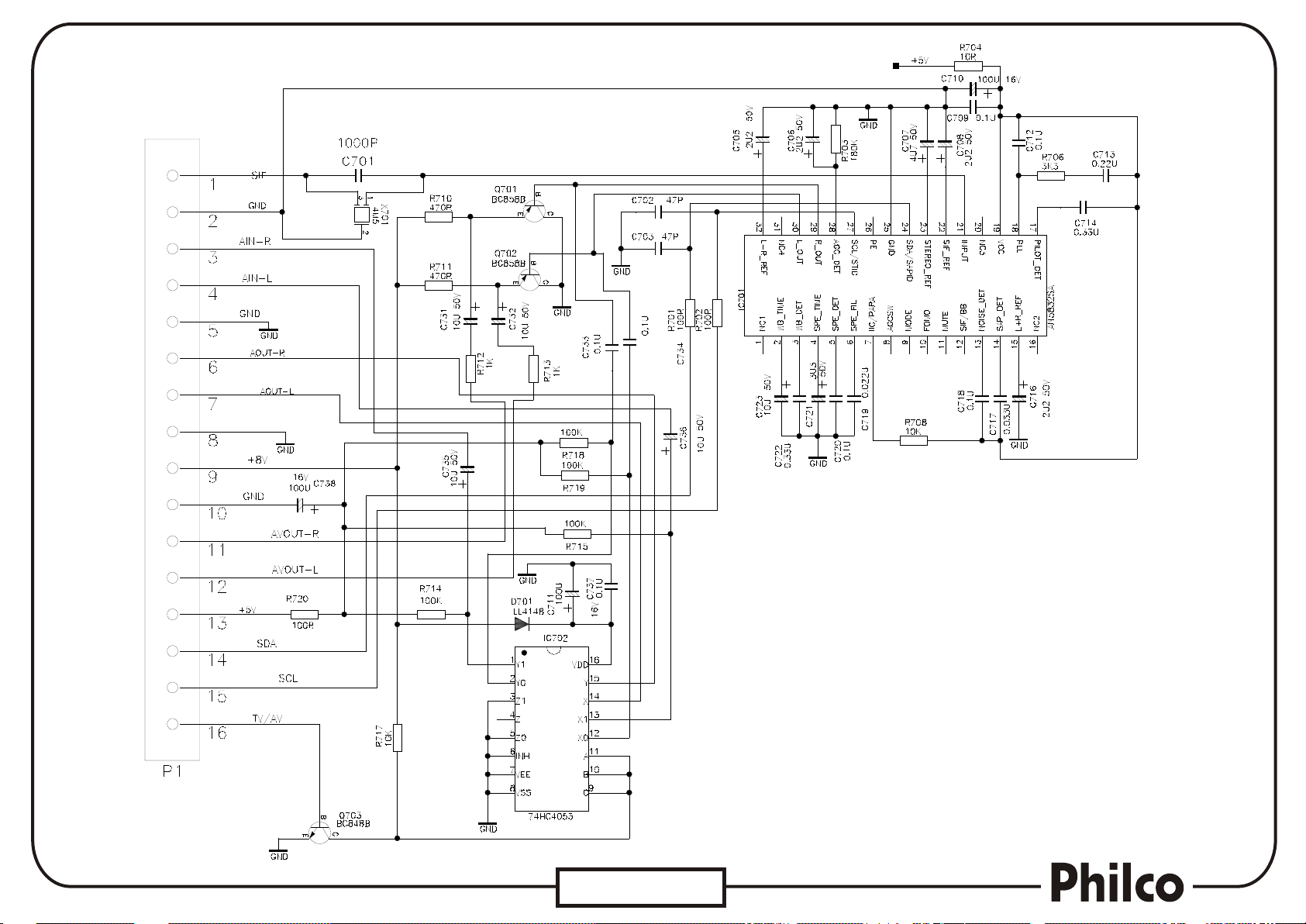

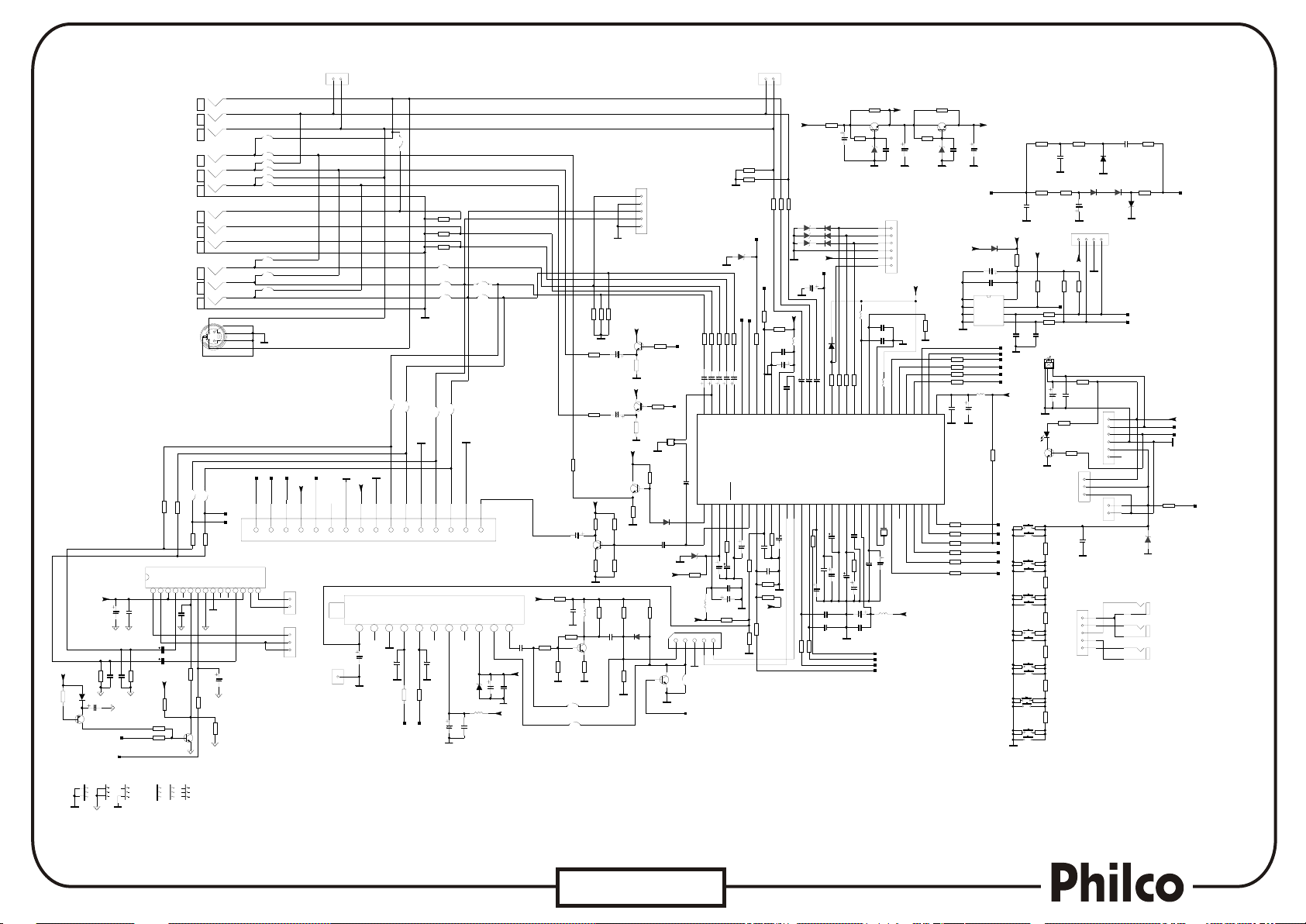

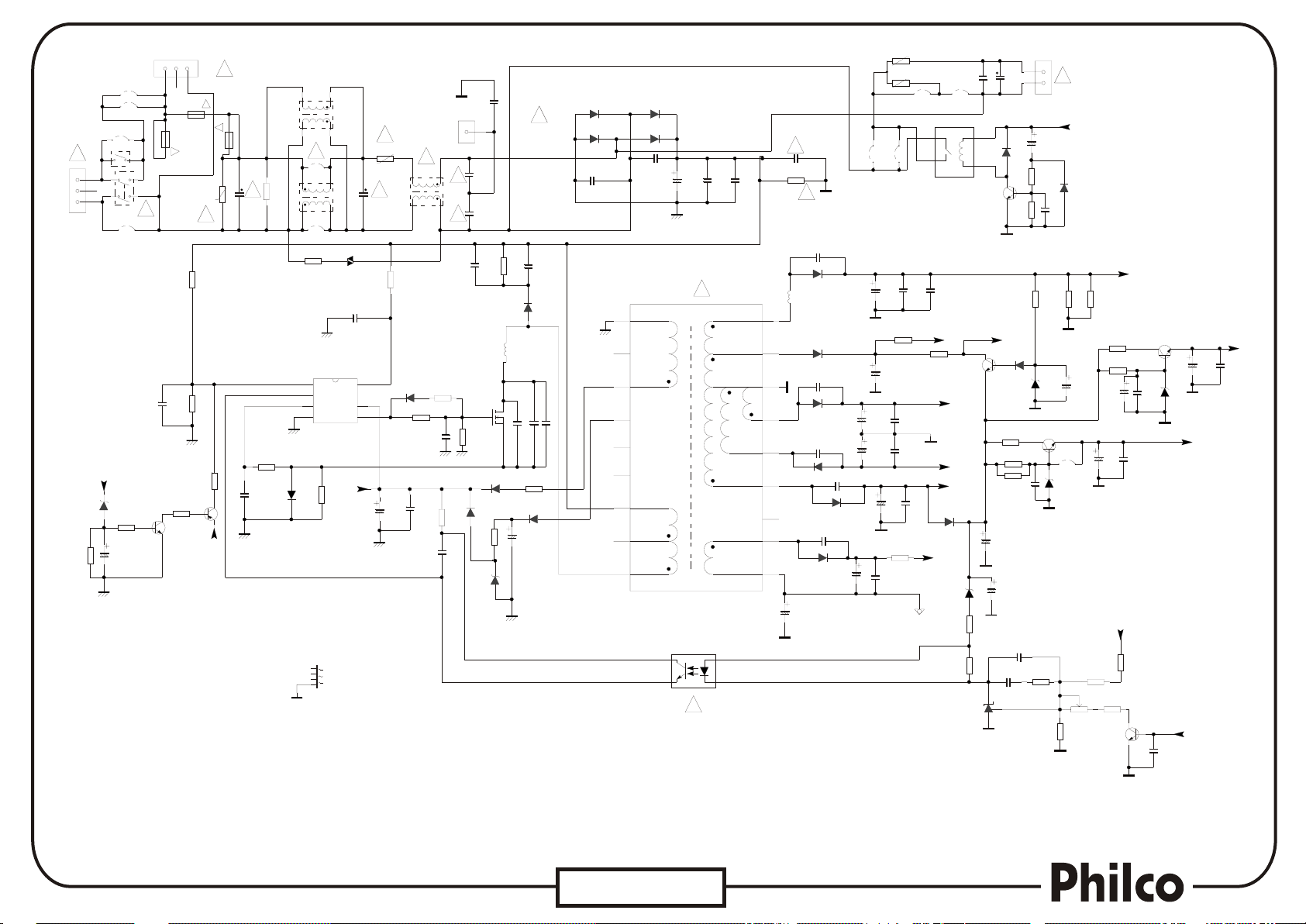

Page 5
VEX.PH.VÍDEO.085.REV.0 JUNHO/2012
TV PH21MG

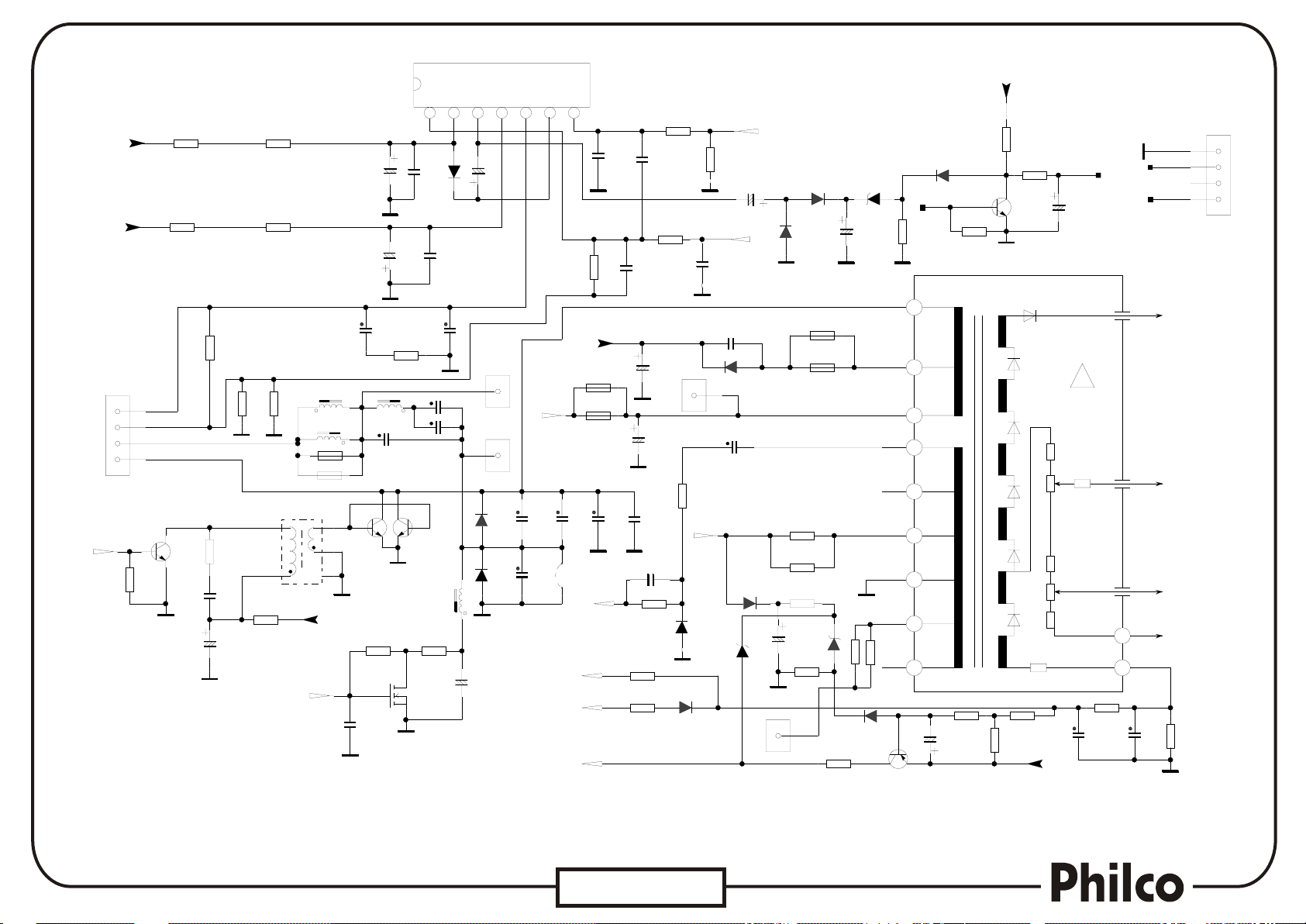

IC301 STV8172A
