RANGE HOOD

USER'S MANUAL

PEW 6713 PEW 9713 PEW 6714GLIX PEW 9714GLIX

Dear customer, Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user's manual.

CONTENTS

PART 1: IMPORTANT SAFETY INSTRUCTIONS ................................................................................................ 2

PART 2: DESCRIPTION OF THE APPLIANCE .................................................................................................... 4

PART 3: INSTALLATION .................................................................................................................................... 5

Unpacking ..................................................................................................................................................................................................5

Dimensions of the appliance ..............................................................................................................................................................5

Placement ..................................................................................................................................................................................................7

Installation .................................................................................................................................................................................................7

Carbon  lter............................................................................................................................................................................................12

Ventilation ...............................................................................................................................................................................................13

PART 4: OPERATION ....................................................................................................................................... 14

Models with touch buttons – 3 speeds ........................................................................................................................................ 14

Models with digital controls – 3 speeds ....................................................................................................................................... 14

Models with digital controls – 5 speeds ....................................................................................................................................... 15

Models with an LCD display – 5 speeds ....................................................................................................................................... 16

Operating tips ........................................................................................................................................................................................ 17

PART 5: MAINTENANCE AND CLEANING ...................................................................................................... 18

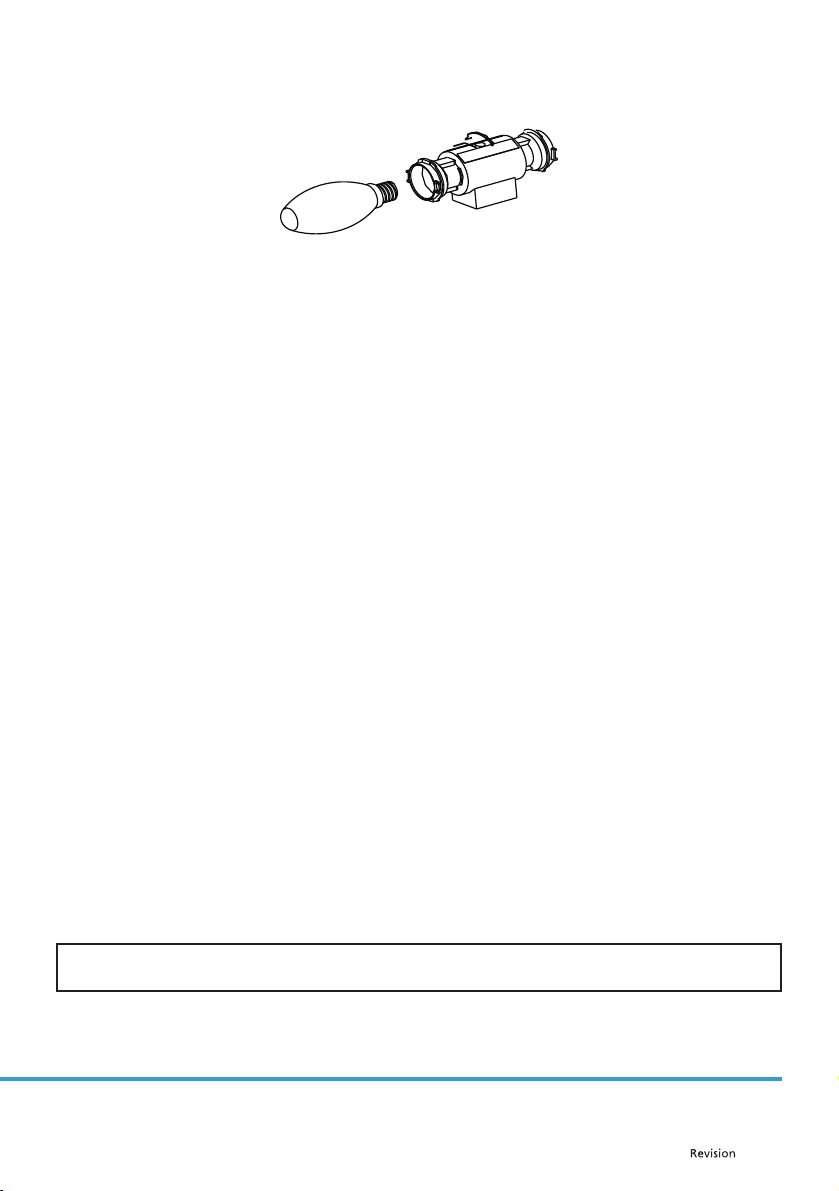

Changing a light bulb .........................................................................................................................................................................18

Cleaning ................................................................................................................................................................................................... 19

PART 6: BEFORE YOU CALL THE SERVICE CENTRE ....................................................................................... 21

PART 7: TECHNICAL SPECIFICATIONS ........................................................................................................... 22

EN - 1

PART 1: IMPORTANT SAFETY INSTRUCTIONS

Recommendation:

Carefully read these instructions before installing and operating this range hood. Write down the serial number found on the rating label of the range hood in the space below. It is essential that you store this user's manual in a safe place so that you can use it in the future. If you intend to sell the appliance, give it to another owner, or if you move, always make sure that the user's manual is attached to the appliance, so that the new owner can also learn about the operation of the appliance and the relevant warnings.

SERIAL NUMBER:

Important safety instructions

 This appliance is designed for household use only.  Before connecting the power cord plug, make sure the voltage stated on the rating label of the appliance

corresponds to the voltage in your wall socket. Connect the power cord plug to a power socket with a voltage of 220 – 240 V ~ 50 Hz.

 Only use a properly grounded power socket. The appliance may only be connected to a properly grounded

power socket.

 All electrical connections must be performed by a quali ed electrician.  Installation performed by an unquali ed person may cause incorrect operation, damage to the appliance,

create a  re hazard or cause injury to persons.

 Neither the manufacturer nor the vendor take responsibility for damages cause by incorrect or

unprofessional installation, connection or operation. Tampering with the appliance by an unquali ed person will void the customer's right to a warranty repair.

 Do not expose the power cord to excessive pressure or loads, do not place heavy objects on it, it must

not be tangled and it must not be stepped on. Do not locate the power cord in or on heat sources such as stoves, heating or other generators of heat. Otherwise this may damage the power cord or create a  re hazard.

 Only connect the power cord plug to a power socket after the entire installation is completed.  The power plug serves as a disconnection device and for this reason the power socket must remain easily

accessible for the event of a dangerous situation, unless it is connected into a terminal box.

 Do not touch the lights if the appliance has been running for some time. Lights heat up during operation

and may cause burns.

 This appliance is designed for fume extraction during standard domestic use. Do not use the appliance

for purposes other than those for which it was designed. Otherwise you expose yourself to the risk of a dangerous situation and voiding the warranty.

 Follow the instructions for installation and ventilation (with the exception of when a  re stove is used).  Do not use the  ambé cooking method under the range hood.  Regularly replace the  lters in the range hood. Otherwise this presents a  re hazard.  Only use  lters suitable for use with the range hood. The manufacturer or distributor will recommend the

suitable  lter type.

 Do not use the appliance without the aluminium  lter inserted. Do not take out the  lters while the

appliance is on.

 Regularly clean the appliance to prevent a dangerous situation from occurring.  Before cleaning, replacing  lters, moving or any other maintenance, turn o the appliance and pull out the

power plug from the power socket, or turn o the respective circuit breaker.

 If you are using another gas or natural gas appliance in the room at the same time, the fumes from this

appliance must be spatially isolated.

EN - 2

 If a chimney is connected to the exhaust of the range hood, use pipes with a diameter of 150 or 120 mm.

The pipe connection should be as short as possible.

 Keep packaging materials out of children's reach. They could su er injury or su ocation.  Children must be supervised to ensure that they do not play with the appliance. If the power cord

is damaged stop using the appliance. Have the power cord replaced at an authorised service centre or by another quali ed person. Under no circumstances should you replace the power cord yourself.

To ensure safety, use a fuse with a maximum rating of 6 A.

WARNING! This appliance must not be used by persons (including children) with physical or mental impairments or by inexperienced persons, unless properly trained or schooled in the safe use of the appliance, or unless they have been properly supervised by a quali ed person who will be responsible for their safety.

Attention when transporting or carrying

The packaging materials are from recyclable materials, so dispose of them in an environmentally conscientious manner according to regulations in force. During transport adhere to the symbols of the cardboard box. When carrying the appliance, hold it by the respective handles.

NOTE: We recommend that you keep the original packaging at least for the duration of the warranty period for the event of repair or refund and transport to the authorised service centre. Adhere to the symbols on the cardboard box. If you do not have the original cardboard box, adhere to the following instructions: a) Do not place any items on the appliance that could damage the appliance during transport. b) Protect the appliance against impacts, falls, etc. c) Wrap the appliance, e.g. in bubble wrap which will protect the appliance from damage.

NOTE: The carbon  lter is not included.

NOTE: If the building is equipped with a heat recovery system system, it is necessary to setup the appliance for internal air circulation (without an exhaust). In that case, it is necessary to purchase the carbon  lter.

EN - 3

PART 2: DESCRIPTION OF THE APPLIANCE

PEW 6713 / PEW 9713

1. Inner chimney

2. Outer chimney

3. Control panel

4. Filter

5. Lighting

PEW 6714GLIX / PEW 9714GLIX

1. Inner chimney

2. Outer chimney

3. Tempered glass

4. Control panel

5. Filter

6. Lighting

EN - 4

PART 3: INSTALLATION

Unpacking

 After unpacking remove all packaging and advertising labels from the appliance.  Check that the appliance has not been damaged and that the package includes all the items described in

this user's manual.

 If the appliance was damaged during transport, contact authorised service centre.  Do not use a damaged appliance under any circumstances.

IMPORTANT: Ensure that children do not play with the packaging material.

Dimensions of the appliance

PEW 6713 / PEW 9713

PEW 6714GLIX / PEW 9714GLIX

EN - 5

IMPORTANT: Before installing or using the appliance, please  rst read all instructions and check that the voltage and frequency values on the rating label correspond to the voltage and frequency in your electricity grid.

We recommend that the appliance be connected by a service technician or another quali ed person in compliance with local codes and regulations.

Before starting the installation

 Check that the purchased appliance has the correct dimensions corresponding to the chosen installation

location. Furthermore ensure that there is an electrical power socket available that will remain accessible even after the range hood is installed.

 Before installing the range hood, check that all necessary masonry work is complete.  Have all electrical connections performed by a quali ed person.  We recommend that you remove the aluminium  lters before installing the range hood.  Check that there are no packaging materials or other materials, e.g. user's manual, warranty card or bags

with screws, inside the appliance. These need to be taken out and kept for possible use in the future.

 We recommend that you disconnect and move to the side freely standing or built in stoves so that you

have easier access to the rear wall or ceiling. If this is not possible place protective material on to the work area, cooktop or stove. This will prevent damaging these surfaces.

 Select an even surface for the necessary assembly of the range hood. Cover the surface with a protective

material and place all parts of the range hood and fastening elements on to it.

 It is necessary that a quali ed technician inspects the suitability of the supplied fastening material and

other components for the speci c wall / ceiling type. The wall / ceiling must be su ciently strong to hold the weight of the range hood.

 Do not attach this range hood to a wall or cabinet furniture by tiling, plastering and do not glue it on using

silicone glue. The appliance is designed to only be installed on a wall / ceiling.

 We recommend that always two people perform the installation of the appliance.

If your range hood is designed to be mounted to the ceiling, adhere to the following instructions.

1) The range hood must only be suspended on ceiling beams or on load bearing ceiling beam connections.

2) Do not suspend the range hood on false ceilings.

3) The ceiling must have a load bearing capacity of at least 40 kg.

4) The ceiling thickness must be at least 30 mm.

IMPORTANT: THE RANGE HOOD MAY ONLY BE CONNECTED TO THE ELECTRICAL GRID AFTER THE ENTIRE INSTALLATION IS COMPLETE.

Supplied accessories (depending on the model)

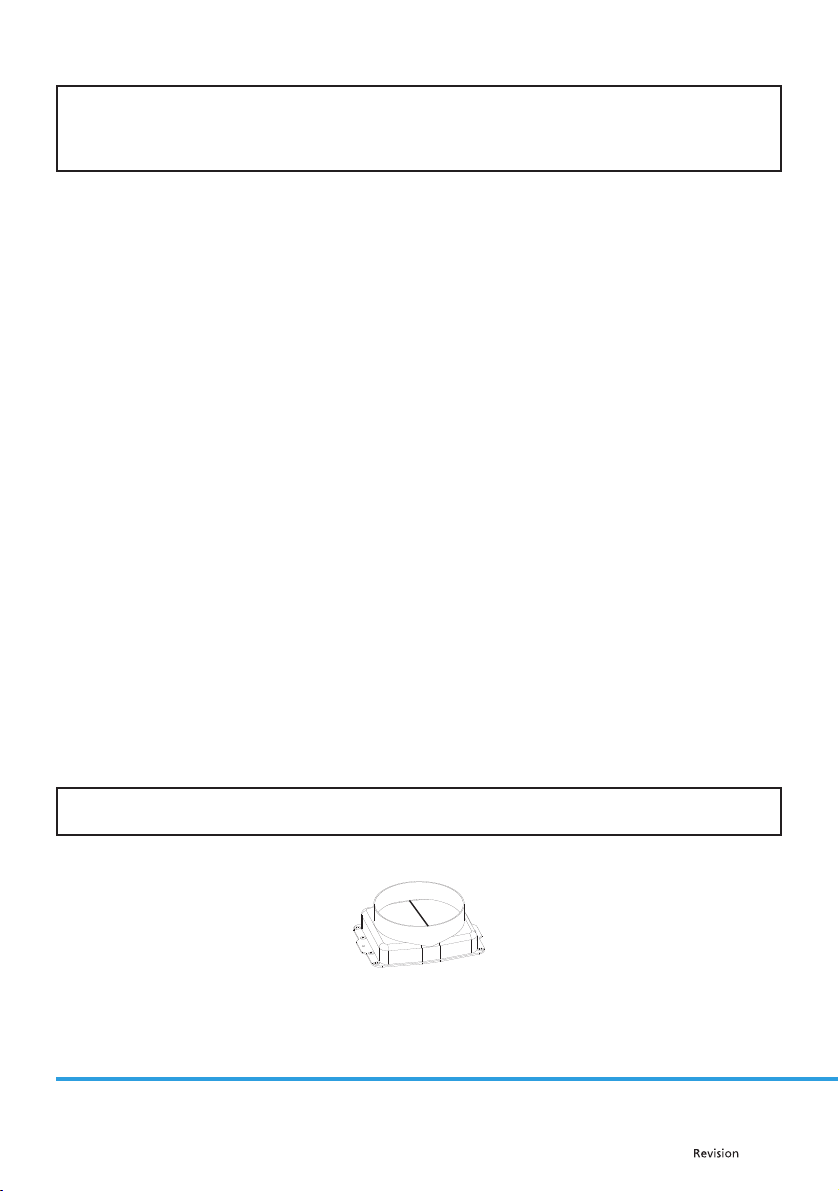

A non-return exhaust  ap must be installed into the air outlet of the range hood (unless one is already factory installed).

EN - 6

Placement

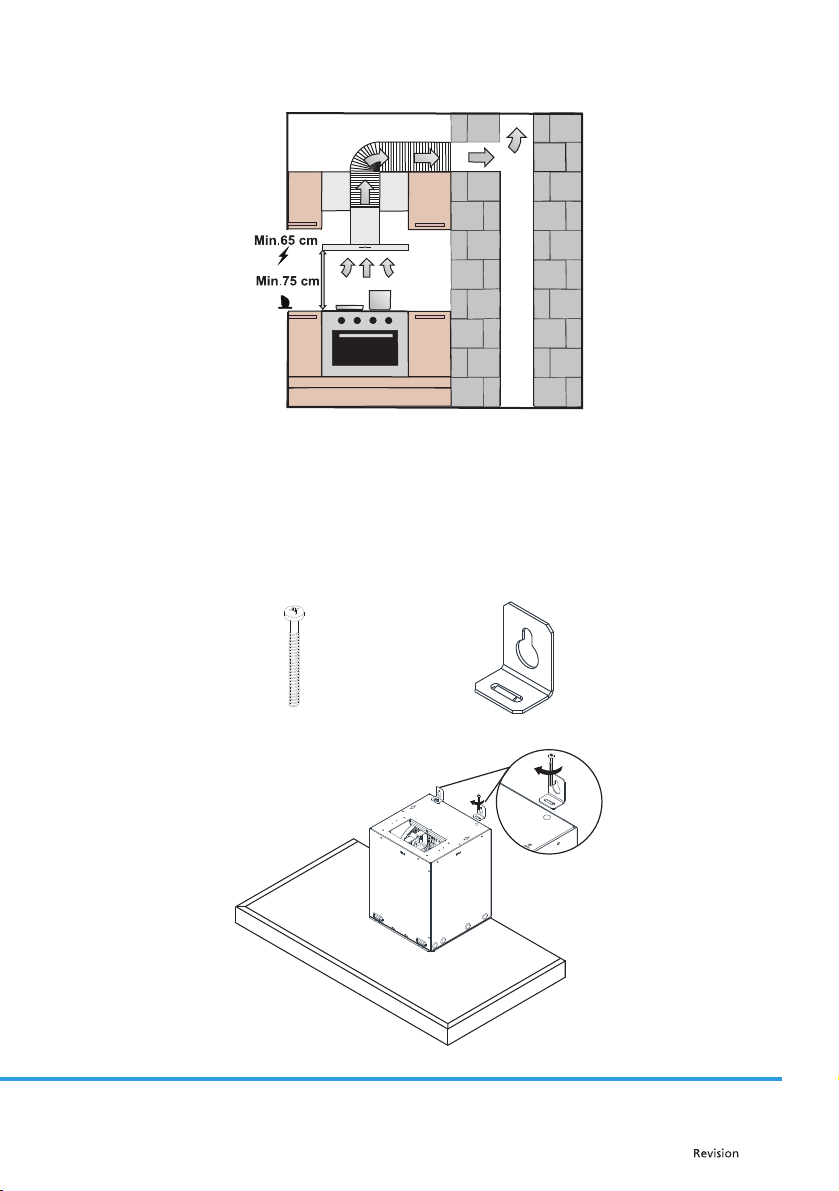

Install the range hood at a height of at least 65 cm above an electric cooktop or at a height of 75 cm above a gas cooktop.

Installation

1. Installation of hanging brackets

To hang the range hood it is necessary to  rst install 2 L-shaped hanging brackets, which are supplied

together with the screws, on to the range hood according to the illustration below. Then secure the brackets using appropriate M5 x 35 screws into an M5 thread.

M5 x 35 screws Hanging bracket

EN - 7

2. Installation of the non-return exhaust  ap

Install the non-return exhaust  ap on to the top part of the range hood using 3.5 x 9.5 screws according to

the illustration below.

3.5 x 9.5 screws

3. Drilling mounting holes

Place the installation template against the wall and drill holes in points A, B, and C using a drill bit with a

diameter of 10 mm. To install the chimney, drill holes using a drill bit with a diameter of 6 mm adhering to the dimensions for the minimum and maximum height. For 80 – 90 cm models drill holes marked G, H using a drill bit with a diameter of 8 mm.

WARNING! When drilling the mounting holes used for hanging the range hood, ensure the holes have the correct diameter. If the holes are drilled incorrectly, then the correct assembly of the range hood will not be possible.

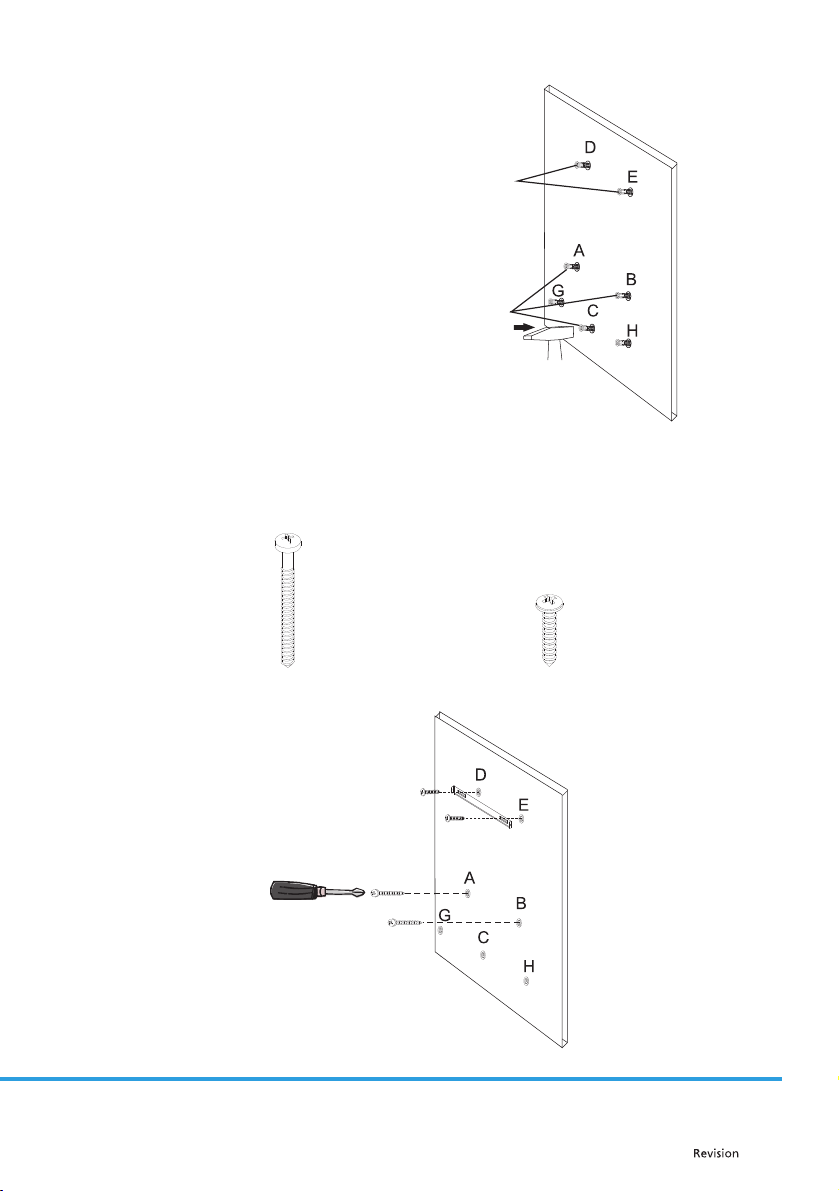

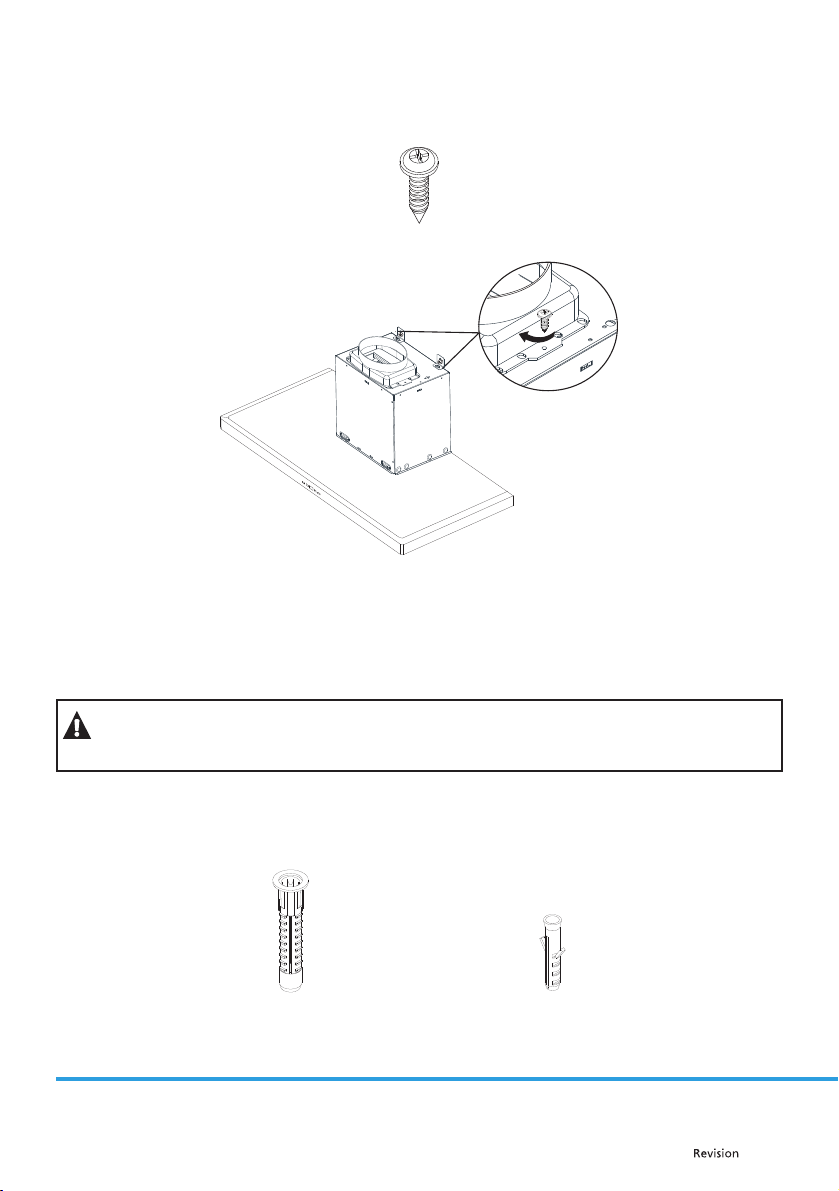

4. Inserting dowels

Into the drilled holes A, B and C with a diameter of 10 mm, insert dowels with a diameter of 10 mm. Into

the two holes with a diameter of 6 mm, insert dowels with a diameter of 6 mm – see illustration below.

For 80 – 90 cm models into the drilled holes G, H insert dowels with a diameter of 10 mm.

10mm plastic dowel 6mm plastic dowel

EN - 8

Holes for connecting the exhaust, diameter 6 mm

Holes for hanging the range hood, diameter 10 mm

5. Attaching the chimney plate

Drill holes into the wall using a drill bit with a diameter of 6 mm. Attach the chimney plate by screwing

3.9 x 22 Ysb screws into the plastic dowels with a diameter of 6 mm.

Into the drilled holes A, B with a diameter of 10 mm, with the dowels inserted, screw in two 5.5 x 60 Ysb

screws. The distance between the wall and the head of the screw must be 5 mm.

5.5 x 60 Ysb screw 3.9 x 22 Ysb screw

EN - 9

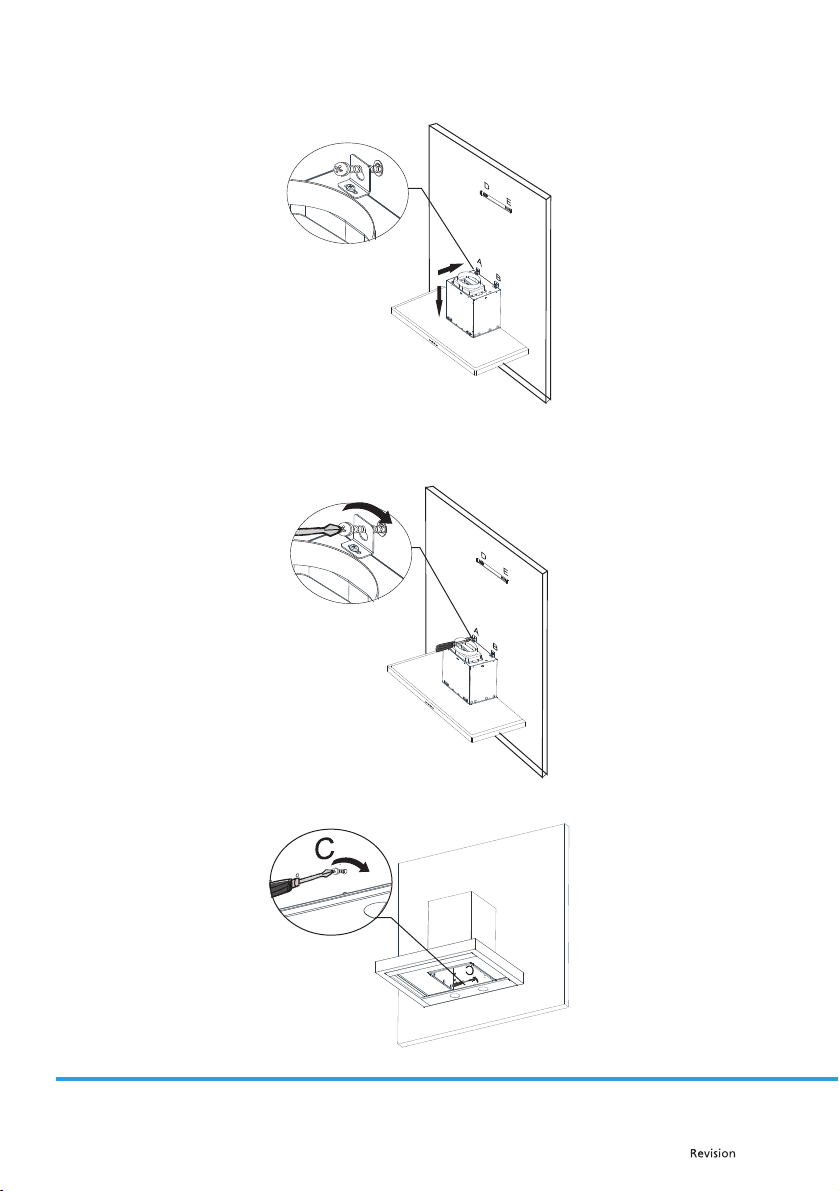

6. Hanging the range hood

Hang the range hood using the hanging brackets on to the screws in holes A and B – see illustration below.

7. Tightening the screws

After hanging the range hood, tighten the screws to secure the range hood in place. You can use the

M5 x 40 Ysb screws to fully stabilise the range hood.

Note: You can use M5 screws to achieve full stability.

8. Tightening the hanging screws

In point C (see illustration below) tighten the 5.5 x 60 Ysb hanging screws to ensure that it is hung safely.

EN - 10

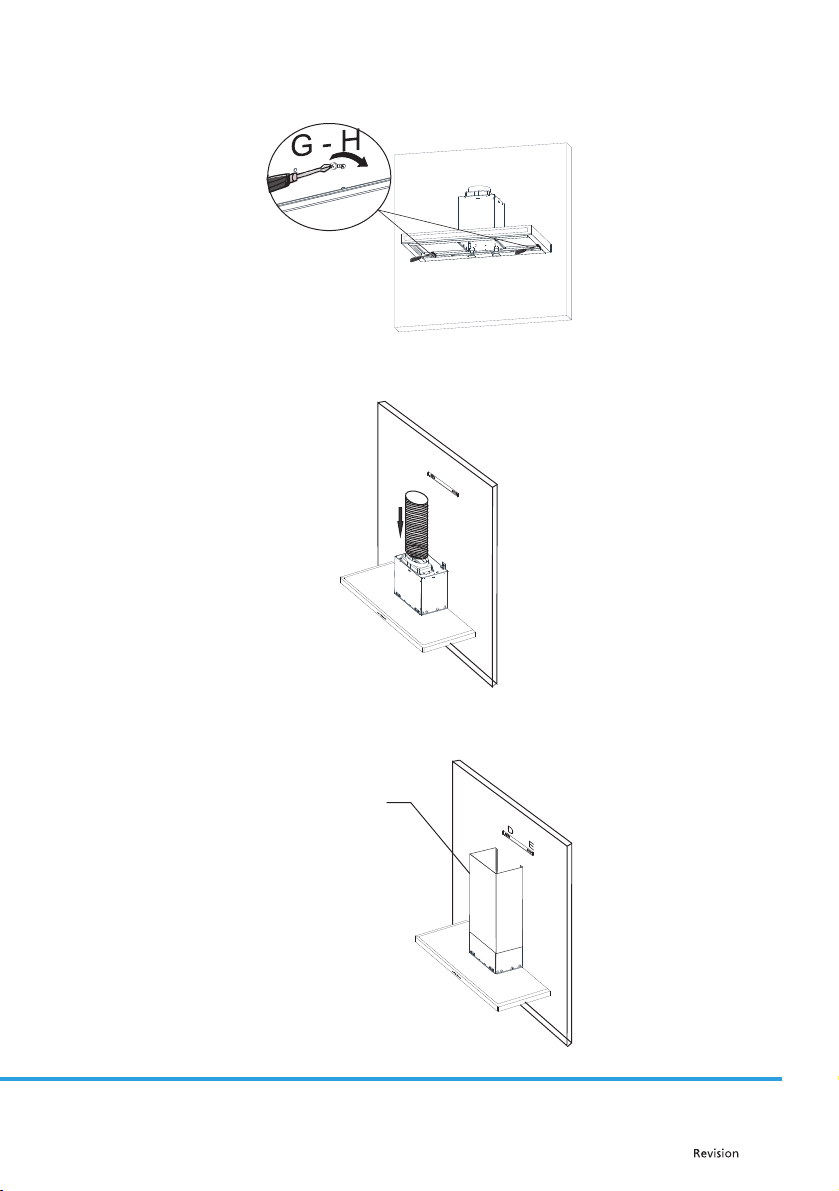

80 – 90 mm models – In points G, H (see illustration below) tighten the 5.5 x 60 Ysb hanging screws to

ensure that it is hung safely.

9. Installation of the aluminium duct tube

Attach the  exible aluminium duct tube on to the air exhaust in the top part of the range hood and insert

the other end into the exhaust opening in the wall. Check that the connection is secure even at full power.

10. Installation of the outer chimney

Insert the inner chimney into the outer chimney. Seat the chimneys on to the base with the motor and

slide downwards. Check that the connection between the body and the base with the motor is secure.

Outer chimney

EN - 11

11. Installation of the inner chimney

Pull the inner chimney out of the outer chimney and secure to the plate using 9.5 x 3.5 screws.

3.5 x 9.5 screw

Inner chimney

After completing the installation check that the range hood is correctly installed and works properly.

Carbon  lter

If you are using the range hood without an air exhaust, it is necessary to use a carbon  lter. The carbon  lter is not included. Contact your vendor or an authorised service centre to purchase this  lter.

 Before installing or replacing the carbon  lter, check that the appliance is turned o and disconnected

from the power socket or that the respective circuit breaker is turned o .

 It is necessary to replace the carbon  lter regularly every 3 – 5 months depending on how much the

appliance is used.

 Never wash the carbon  lter in water unless the manufacturer states otherwise.  Aluminium  lters must always be installed even when the carbon  lter is not installed. Do not use the

appliance without the aluminium  lter installed.

EN - 12

Replacing the carbon  lter

1. For the correct operation of the appliance it is necessary to install a carbon  lter. The number and type depends on the model.

2. Place the carbon  lter on the motor outlets and turn it in the clockwise direction.

3. To remove the carbon  lter turn it in the anticlockwise direction.

Ventilation

To ensure proper ventilation, leave windows closed while the appliance is turned on.

WARNING! Pay increased attention if you are using the appliance together with another appliance that uses air or fuel for its operation (e.g. heating fan, fan, etc.) or that uses gas, coal or wood, as its operation may negatively a ect the performance of the range hood because it expels air out of the room. This warning does not apply if you installed the appliance without an exhaust out of the room.

EN - 13

PART 4: OPERATION

Remove the protective foil from the control panel.

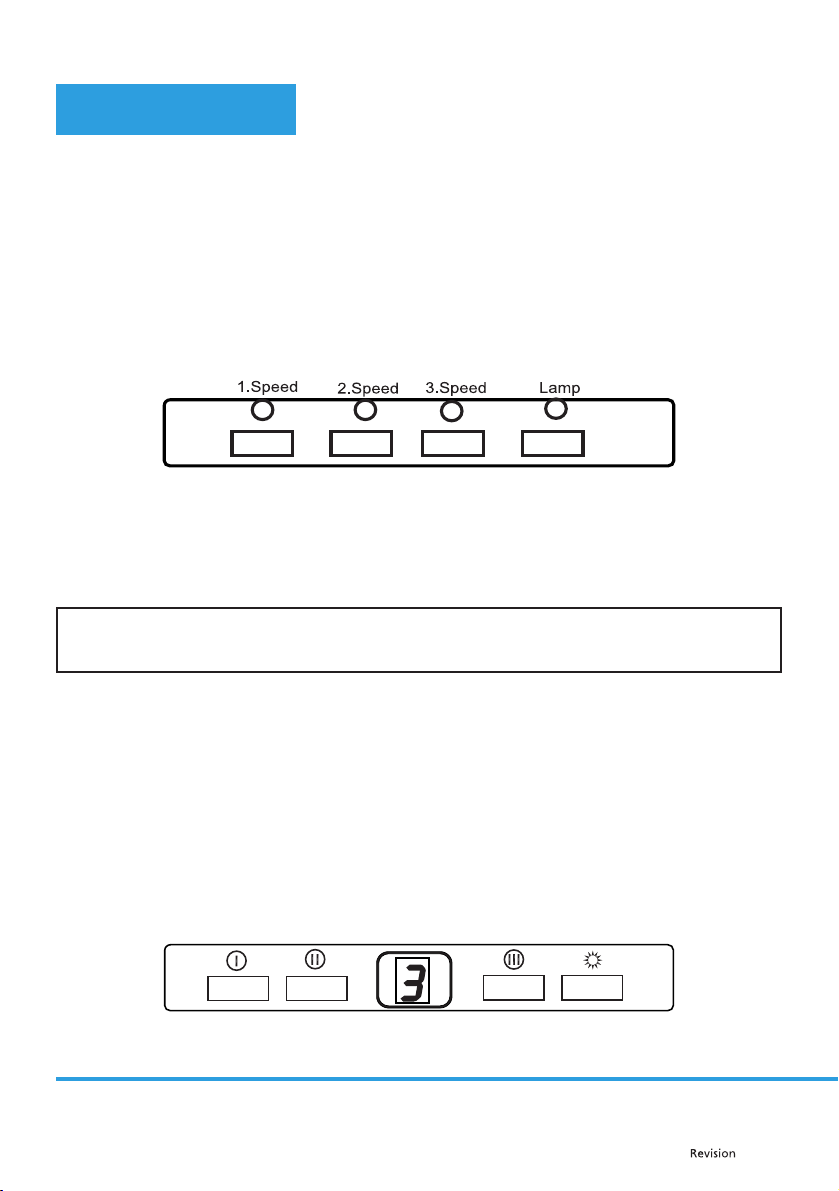

Models with touch buttons – 3 speeds

Exhaust power selection

This range hood is equipped with 3 levels of exhaust power. Select the power level based on the use of the stove and the amount steam that the pots emit. Press the respective button on the control panel.

1st Speed – lowest exhaust power 2nd Speed – medium exhaust power 3rd Speed – highest exhaust power

Automatic timer (TIMER)

All models with electronic controls are equipped with an automatic timer. Press and hold the respective button for the exhaust power level for at least 2 seconds and the automatic timer function will be turned on for a period of 15 minutes. The LED indicator light will  ash. When the function is turned on, the respective symbol will appear on the display and the motor will turn o automatically after 15 minutes.

NOTE: Use the range hood together with the stove. This will ensure the correct air exhaust. We recommend to leave the range hood running a few minutes longer than the stove to ensure that all odours are extracted.

Lighting

The range hood is equipped with lighting. Press the Lamp button once to turn on the lights. Press the button again to turn the lights o .

Models with digital controls – 3 speeds

Exhaust power selection

I – lowest exhaust power II – medium exhaust power III – highest exhaust power

EN - 14

Automatic timer (TIMER)

All models with a remote control are equipped with an automatic timer. Press and hold the respective button for the exhaust power level for at least 2 seconds and the automatic timer function will be turned on for a period of 15 minutes. When the function is turned on, the respective symbol will appear on the display and the motor will turn o automatically after 15 minutes.

Lighting

The range hood is equipped with lighting. Press the button with the light symbol to turn on the lights. Press the button again to turn the lights o .

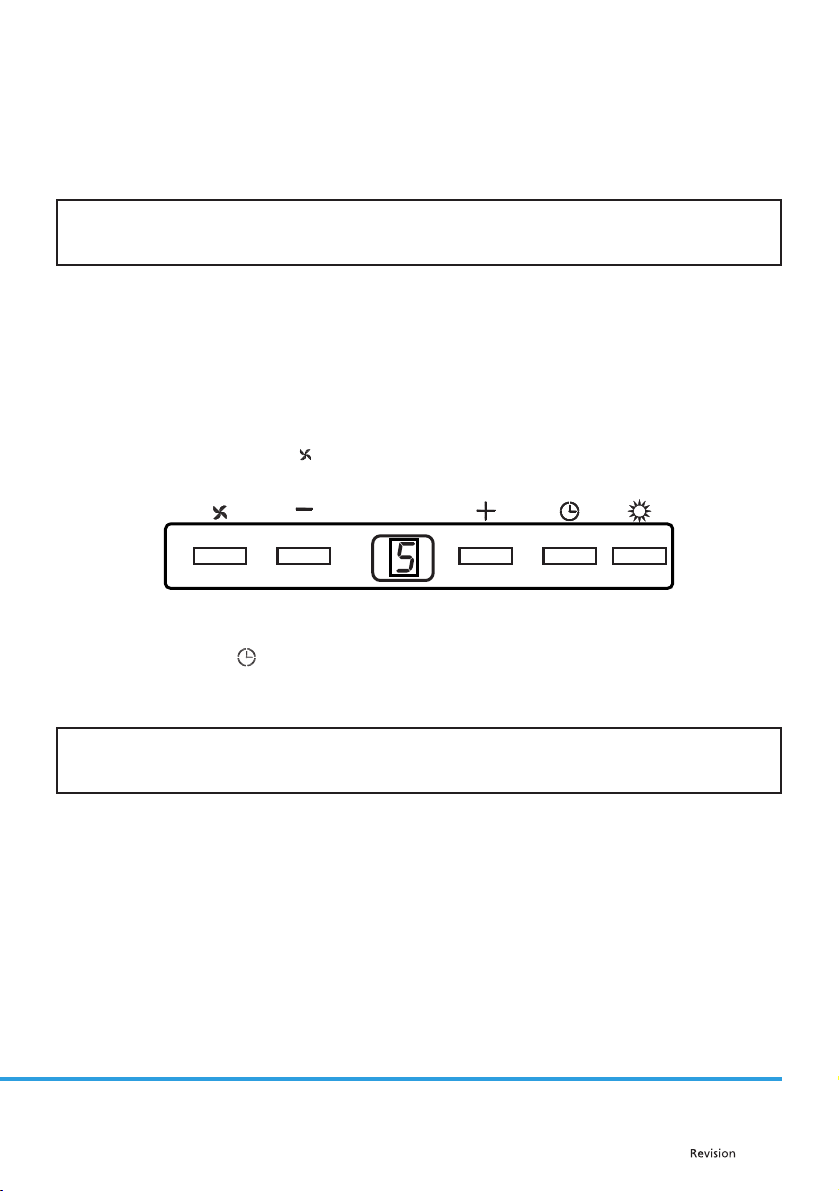

Models with digital controls – 5 speeds

Exhaust power selection

This range hood is equipped with 5 levels of exhaust power. Select the power level based on the use of the stove and the amount steam that the pots emit. To turn on the motor press the button and to set the exhaust power level press the + or – button. Press the + button to increase the exhaust power and the – button to reduce the exhaust power.

Automatic timer (TIMER)

All models with a remote control are equipped with an automatic timer. Press and hold the button at the set exhaust power level for at least 2 seconds and the automatic timer function will be turned on for a period of 15 minutes. When the function is turned on, the respective symbol will appear on the display and the motor will turn o automatically after 15 minutes.

Lighting

The range hood is equipped with lighting. Press the button with the light symbol to turn on the lights. Press the button again to turn the lights o .

EN - 15

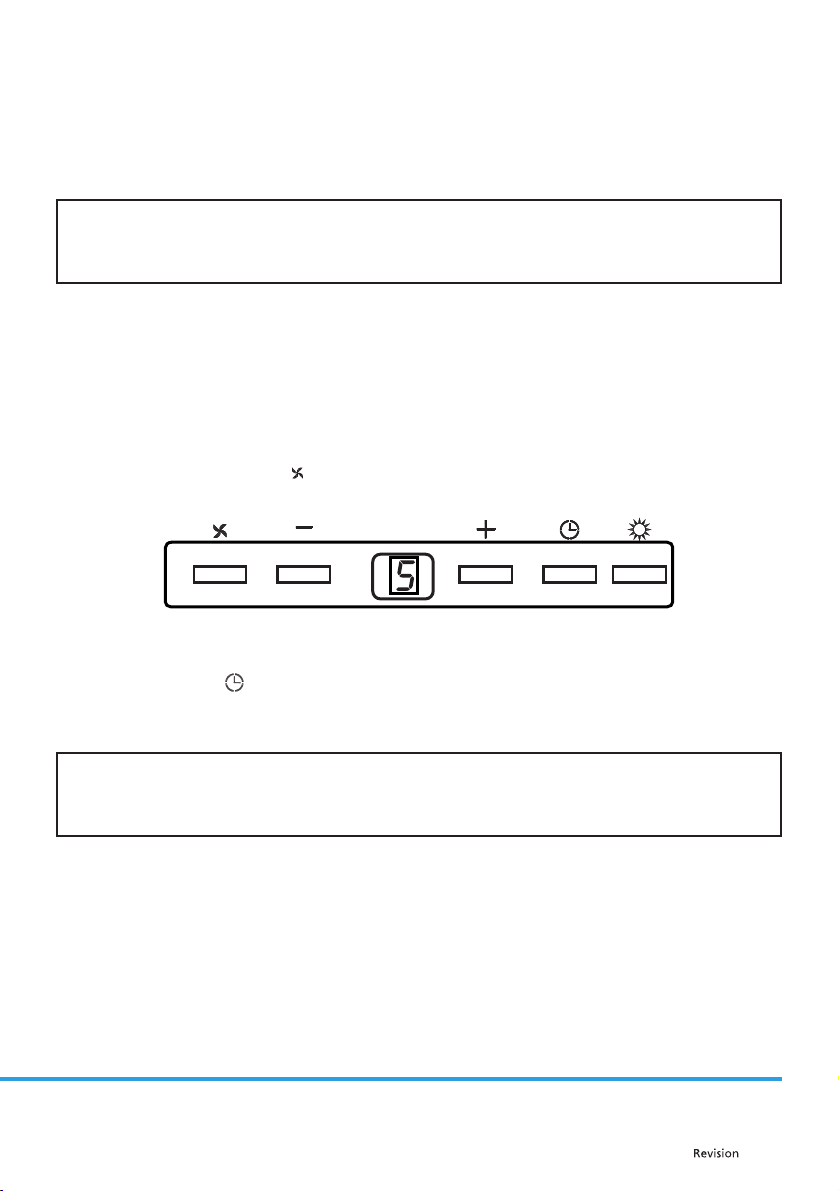

Models with an LCD display – 5 speeds

This range hood is equipped with 5 levels of exhaust power. Select the power level based on the use of the stove and the amount steam that the pots emit. On / O button – Press the button once to turn on the range hood. The initial exhaust power level is 2. Press again to turn the range hood o . Setting the exhaust power level – To set the exhaust power level press the + or – button. Press the + button to increase the exhaust power and the – button to reduce the exhaust power. If you press and hold down the +/- button for at least 2 seconds, the exhaust power levels will increase / decrease in half-second intervals. If you set the exhaust power level to maximum (5), the appliance will work at the maximum exhaust power level for 15 minutes and then continue at the exhaust power level of 2. The maximum exhaust power level is called "turbo speed".

Timer TIMER –

time it is pressed the power level will decrease by 1 level. If you press and hold down this button for at least 2 seconds, the power level will decline faster.

TIMER – button: Set the operating time of the appliance with a count-up feature during operation. Each time it is pressed the power level will increase by 1 level. If you press and hold down this button for at least 2 seconds, the power level will increase faster.

Timer functions:

1. Turn o the range hood – If you set the timer while the range hood is running, the range hood will stop

2. Alarm – If you set the timer while the range hood is not running, then an alarm will be set. As soon as the

If a timer is not set, the clock is displayed.

Clock

The clock on the display shows the current time. If the clock is set, the colon between the hours and minutes will  ash once a second.

Setting the time

1. Press the

2. The hours and minutes will start to  ash for 5 seconds.

3. In this time press the

If a power outage occurs, it will be necessary to set the time again.

button: Set the operating time of the appliance with a countdown feature during operation. Each

running, lights will turn o and a warning sound will be emitted for 5 seconds after the timer duration comes to an end.

set time of the timer comes to an end, a sound will be emitted for 15 seconds. The range hood will not stop and the lights will stay on, if the alarm timer turns o .

and buttons at the same time.

or button to set the hours or minutes.

EN - 16

Additional functions

Additional functions may be set only when the motor and the lights are o .

1. Setting the backlight brightness – Press and hold the button – after about 5 seconds the blue colour intensity in percent will appear (e.g. b00). Press the button – once and the colour of the display colour will change to red (e.g. r100), press the button – once more and the display colour to green (e.g. g10).

After selecting the colour, use the

(e.g. 0 – 100). To con rm the setting press and hold button – for approx. 5 seconds. A sound will be made.

If you do not wish to save the setting, press the button or the button for the light.

2. Backlight – The display backlight is always on. Press and hold the + button for approx. 5 seconds. A sound will be made. Now you can turn o the backlight. If you wish to again turn on the display backlight, press and hold down the + button for approx. 5 seconds.

Blue (%) Red (%) Green (%) Colour

100 100 100 Turquoise 0 100 100 Light green 0 0 100 Green 100 0 0 Blue 50 100 0 Violet 0 100 0 Red 000Colourless display 0 100 10 Orange

/ buttons to set the brightness of the respective display colour

Operating tips

1. Regularly clean the aluminium  lters and regularly replace the carbon  lters.

2. Use the medium exhaust power level. Only use the highest power level when necessary.

3. To ensure proper ventilation, leave windows closed while the appliance is turned on.

EN - 17

PART 5: MAINTENANCE AND CLEANING

WARNING! Before cleaning, regular or other maintenance, installation or removal, check that the appliance is turned o and disconnected from the power socket or that the respective circuit breaker is turned o .

Changing a light bulb

 Turn o the appliance.  Take out the aluminium  lter.  If the light bulb broke during operation wait until it cools down.

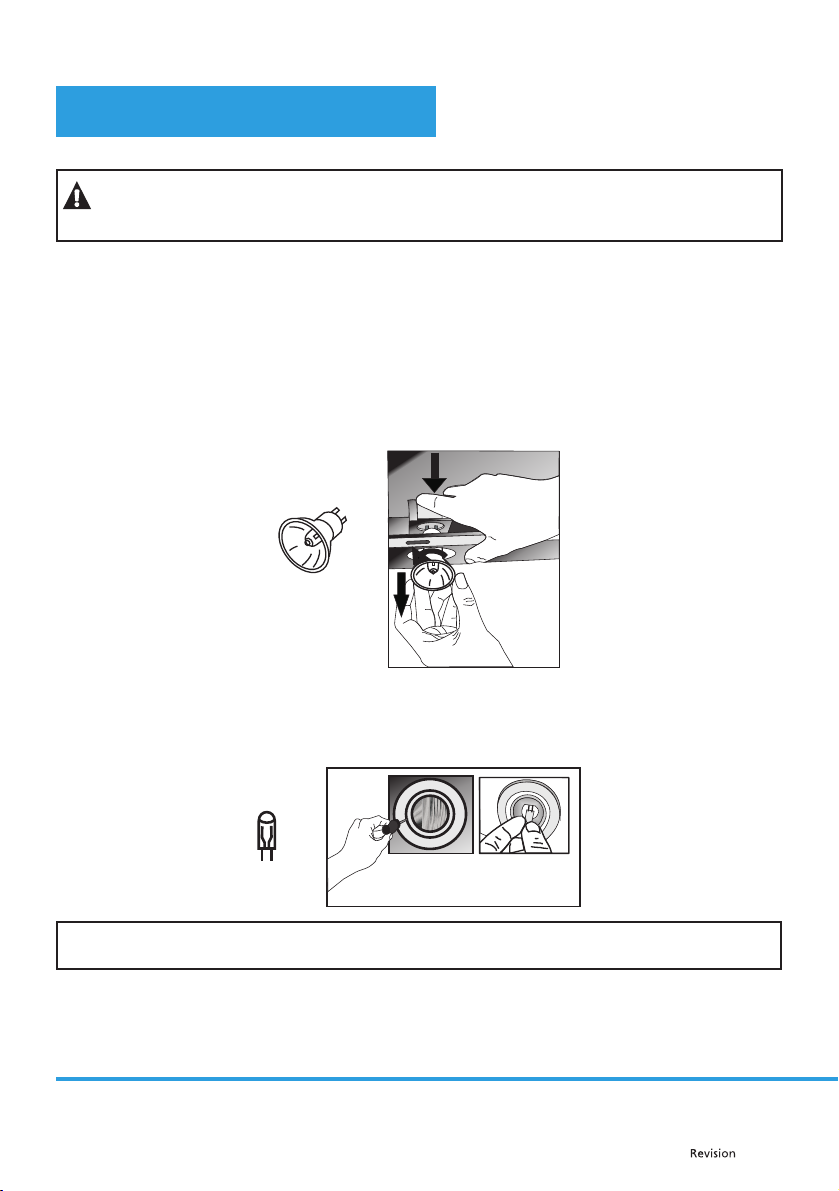

Models with a 50W halogen light bulb

 To remove the halogen light bulb (50 W), press the light bulb holder downwards and gently turn

it anticlockwise. Remove the light bulb.

 Install a light bulb with the same parameters in reverse sequence.

Models with a 20 W light bulb

 To remove the halogen light bulb (20 W),  rst remove the glass cover using a thin screwdriver. Be careful

not to scratch the appliance. Remove a faulty light bulb by pulling downwards and insert a new working light bulb.

 Use a light bulb with the same parameters.

NOTE: Do not hold the light bulb with your bare hands. Dirt or sweat from the hand may shorten their lifetime.

EN - 18

Models with a 25W light bulb

Unscrew the broken light bulb. Install a new one with the same parameters.

Cleaning

 Aluminium  lters capture dust and fat from the extracted air.  It is necessar y to regularly wash these  lters, ideally once a month, depending on the level of use. Wash the

 lters in water with dishwashing detergent, or you may place the  lters in a dishwasher and wash them using a gentle program (max. 60°C).

 Take out the aluminium  lters by pressing the clip.  After cleaning allow the aluminium  lters to dry thoroughly before reinstalling them.  Wipe the outer surface of the range hood with a clean damp wiping cloth lightly dipped in water with

a small amount of dishwashing detergent. Then wipe dry.

 Avoid electrical parts coming into contact with water or another liquid.  For cleaning you can also use special agents for the maintenance and cleaning of INOX surfaces (applies

only for models with an INOX surface treatment).

Cleaning the aluminium  lters

Models with digital controls – 3 speeds

Aluminium  lters need to be cleaned when "C" (depending on the model) appears on the display, e.g. every 2 – 3 weeks (depending on the level of use). Clean the  lters according to the above mentioned instructions and after reinstalling them press and hold down the I fan button for 3 seconds until the "C" symbol (depending on the model) disappears from the display. The symbol "E" (depending on the model) will appear on the display, which means that the appliance is ready for operation.

If you wish to use the appliance without clearing the "C" symbol (depending on the model), press the I button to start extraction for 1 second, then the "C" symbol (depending on the model) will appear again and the motor will continue running.

Models with digital controls – 5 speeds

The aluminium  lters need to be cleaned when "C" appears on the display (depending on the model). Clean the  lters according to the above mentioned instructions and after reinstalling them press and hold down the fan button for 3 seconds until the "C" symbol (depending on the model) disappears from the display. The symbol "E" (depending on the model) will appear on the display, which means that the appliance is ready for operation.

If you wish to use the appliance without clearing the "C" symbol (depending on the model), press the fan button to start extraction for 1 second, then the "C" symbol (depending on the model) will appear again and the motor will continue running.

NOTE: The "C" symbol (depending on the model) appears on the display after approximately 60 hours of operation.

EN - 19

Models with an LCD display – 5 speeds

The aluminium  lters need to be cleaned when Clean the  lters according to the above mentioned instructions and after reinstalling them press and hold

down the fan button for 3 seconds until the display.

NOTE:

The of operation.

symbol (depending on the model) appears on the display after approximately 60 hours

WARNING! For cleaning do not use petrol, benzene, thinners or any other solvents, coarse cleaning agents, steel wool or any sponges with steel wool.

WARNING! You may put the aluminium  lters in a dishwasher. The colour of the aluminium  lters may change after several washes. This is a normal event.

appears on the display.

symbol (depending on the model) disappears from the

EN - 20

PART 6: BEFORE YOU CALL THE SERVICE CENTRE

If the appliance is not working as it should check the following recommendations for resolving the most common problems. If the problem persists or it is not included in the table below, turn o the appliance and disconnect it from the power socket and contact an authorised service centre.

Problem Solution

The range hood is not working. Check that the power plug is properly inserted in a properly

The lights are not working. Check that the power plug is properly inserted in a properly

Exhaust power is weak. Check whether the aluminium  lters are dirty.

The range hood does not extract the air directly out (for models without an exhaust).

Attention:

Use the range hood together with the stove. This will ensure the correct air exhaust. We recommend to leave the range hood running a few minutes longer than the stove to ensure that all odours are extracted.

grounded power socket with the parameters 220 – 240 V ~ 50 Hz. Check that the motor power switch is in the "On" position.

grounded power socket with the parameters 220 – 240 V ~ 50 Hz. Check that the motor power switch is in the "On" position. Check whether the light bulb or  uorescent tube is broken.

Check the air outlet, it should be open. Check whether the carbon  lter is not too dirty. Check whether the aluminium  lters are dirty. Check whether the carbon  lter is not too dirty.

EN - 21

PART 7: TECHNICAL SPECIFICATIONS

PEB 6708

PEC 6406

PEC 5406 -

PEB 6408

PEC 6507

PEC 5507 -

PEC 9405

PEC 6405 -

PEW PEI

~ 50 Hz

220 - 240 V

~ 50 Hz

220 - 240 V

~ 50 Hz

220 - 240 V

~ 50 Hz

220 - 240 V

~ 50 Hz

220 - 240 V

~ 50 Hz

220 - 240 V

~ 50 Hz

220 - 240 V

Voltage (A) 0,5 0,6 0,5 0,5 1 0,6 0,6 0,5

Power (W) 105 90 120 70 135 80 80 110

Air  ow (m³/h) 180 230 200 190 250 190 155 210

Noise level (dB) 36 35 39,7 43 40 45 44 34,5

SPEED 1

Voltage (A) 0,6 0,9 0,6 0,6 1,2 0,9 0,6 0,6

Power (W) 125 120 130 90 170 110 95 125

Air  ow (m³/h) 260 310 265 225 310 400 175 290

Pressure (mmH20) 200 205 230 165 180 190 205 235

Noise level (dB) 43 42 43,6 47,5 48 54 50 43

SPEED 2

Voltage (A) 0,7 1,5 0,7 0,8 1,6 0,9 0,7

Pressure (mmH20) 130 155 170 150 160 160 180 155

NOTE: All the here mentioned data is subject to change.

EN - 22

Power (W) 145 185 150 110 220 110 150

Air  ow (m³/h) 335 500 360 400 500 400 375

Pressure (mmH20) 265 245 290 180 200 225 285

Noise level (dB) 48 52 49 51,5 55 53 49

SPEED 3

Voltage (A) 0,8 0,8 0,8

Power (W) 170 175 175

Air  ow (m³/h) 450 455 470

Pressure (mmH20) 310 325 320

Noise level (dB) 53 53,4 53,5

Voltage (A) 11 1

Power (W) 210 210 210

SPEED 4

Air  ow (m³/h) 750 750 750

Pressure (mmH20) 350 365 380

Noise level (dB) 61 60,2 61

SPEED 5

220 - 240 V

Input voltage

~ 50 Hz

Air outlet diameter 150 mm 150 mm 150 mm 120 mm 120 mm 120 mm 120 mm 120 mm

+ 56 hidden pages
