Phaewo X10 Pro, X10 User guide

User Manual

Foldable Electric Scooter

Thanks for choosing our product.Have fun with this electric scooter.

Contents

1. The Device& Accessories....................................... 02

2. Functions................................................................. 03

3. Assembling.............................................................. 04

4. Charging.................................................................. 05

5. Driving Instructions................................................. 05

6.

SafetyInstructions.....................................................07

Fold and Transportation

7.

................................................ 12

8. Daily Maintenance and Storage...............................13

9. Product parameters................................................... 15

10. Presence of toxic and harmful substances..............16

11.Warranty....................................................................17

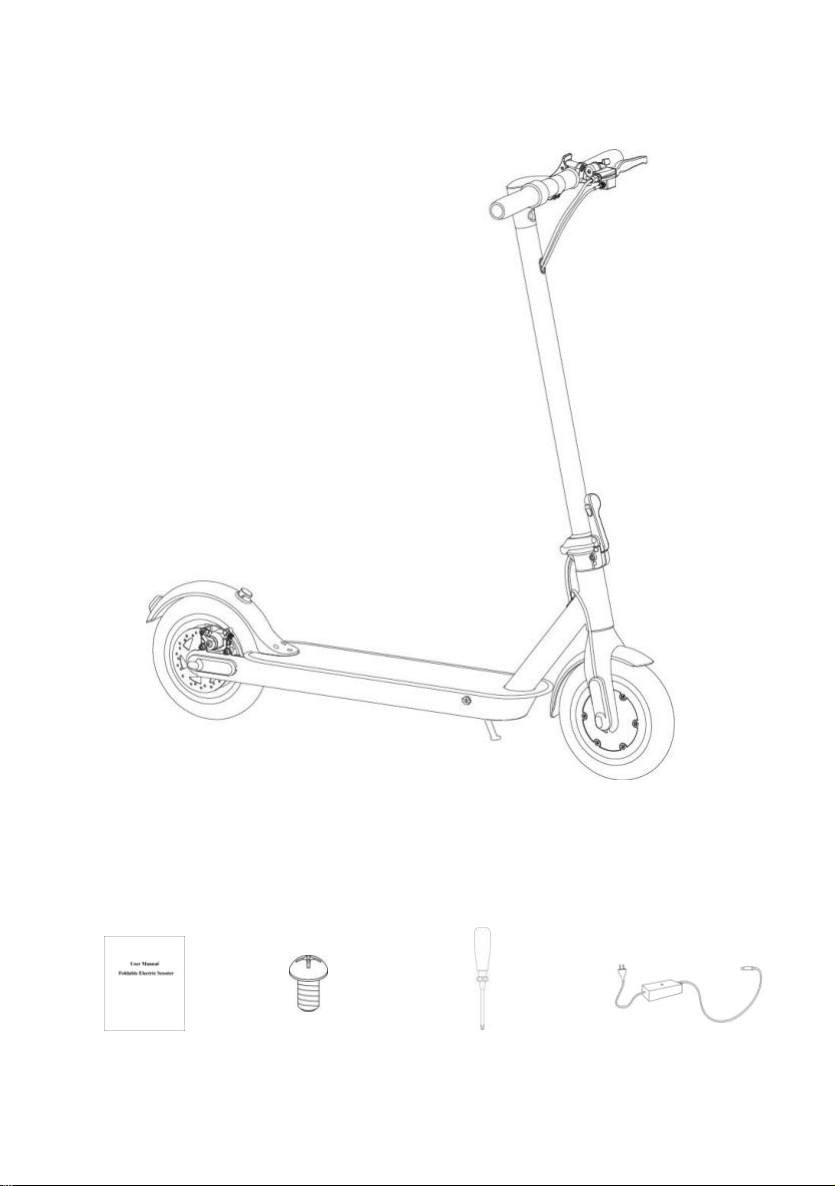

1.The Device& Accessories

Vehicle

Accessories

--------------------------------------------------------------------------------------

Instructions Screws x 4 Cross screwdriver Charging Adapter

2. Functions

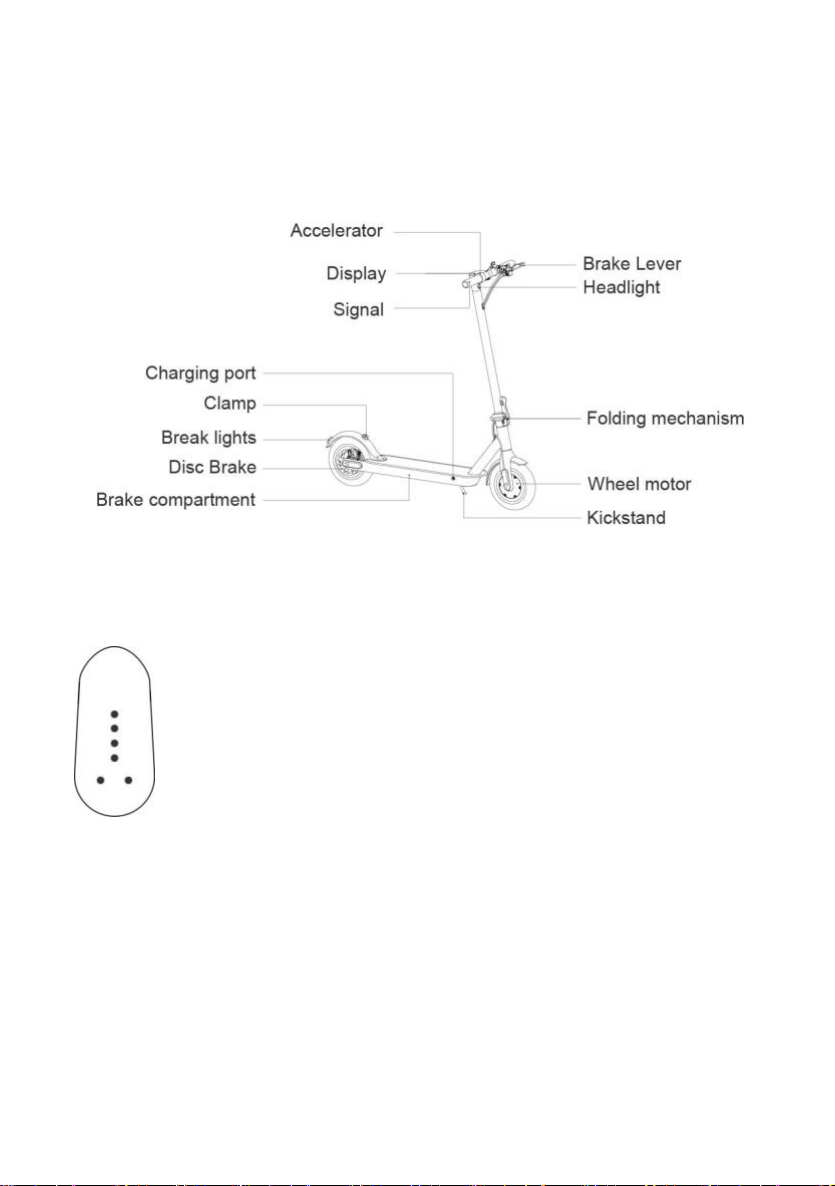

Mode Indicators

The control panel has 4 LEDs, indicating a level of charge.During

consumption of a battery, status indicators are lit, then flashes and

final off one by another. If all 4 LEDs are lit, a battery level is

100%-86%; if 3 LEDs are lit, and one is blinking, charging

level-85%-71%; so all charge level lights begin to flicker, and then

does not light.

Lowest charge level indicator may be white or red . When the vehicle is in

low-speed mode, LED glows white; if the scooter running in high-speed mode,

indicator lit red. ( In low-speed mode: the maximum speed is 15km/h,

speed level is adjusted more smoothly, that is more suitable for beginners.)

3. Assembling the device

open the parking bridge

1).fix the steering rodand

Using3)..hexwrench inthe packing

finish

box to tighten the screw assembling

on handle bar

4). Testing the power switch after

2).Set handle barsvertical;

Power Button

Press power button toturn on the vehicle. Press andhold a button for 2 seconds

to turn on the device. When switched on : press power button to turn on/off a

flashlight; pressa powerbutton twicetonormalmode andpower savingmode.

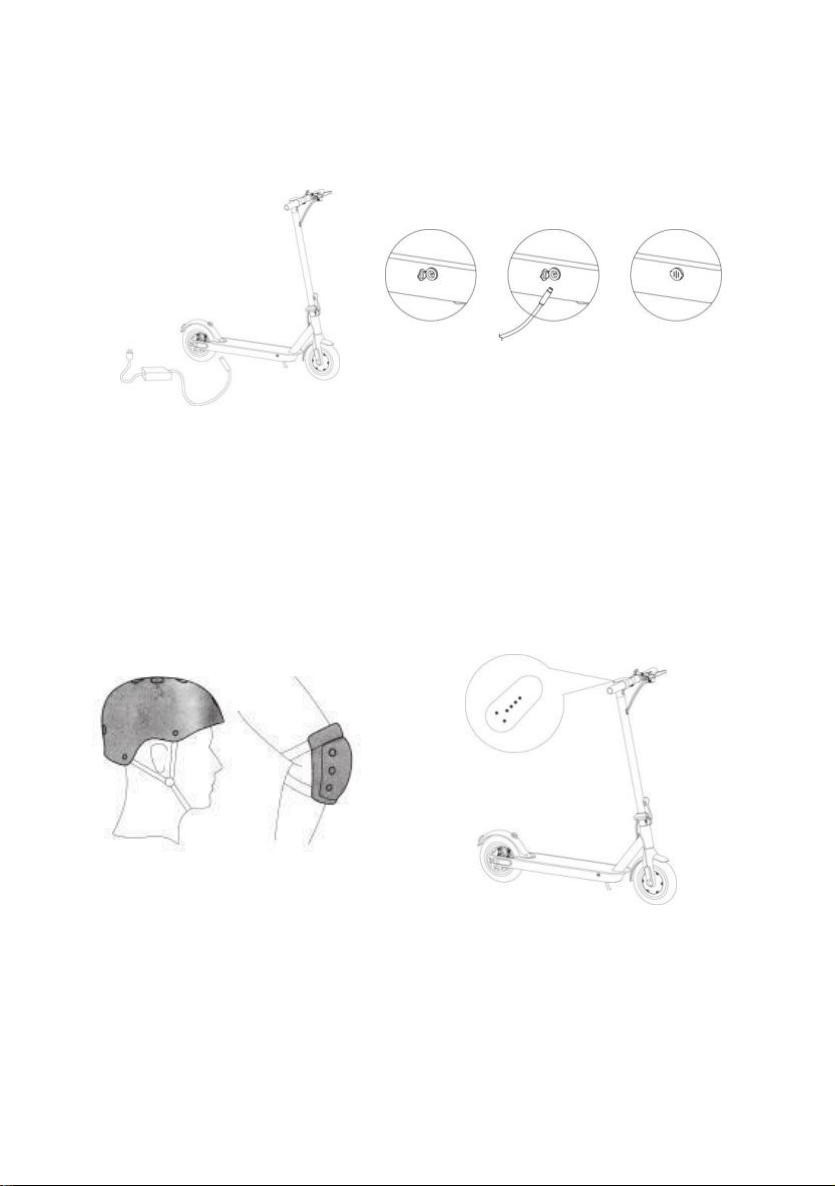

4. Charging scooter

Open the cover connect the charger close the cover

5.

Driving Instructions

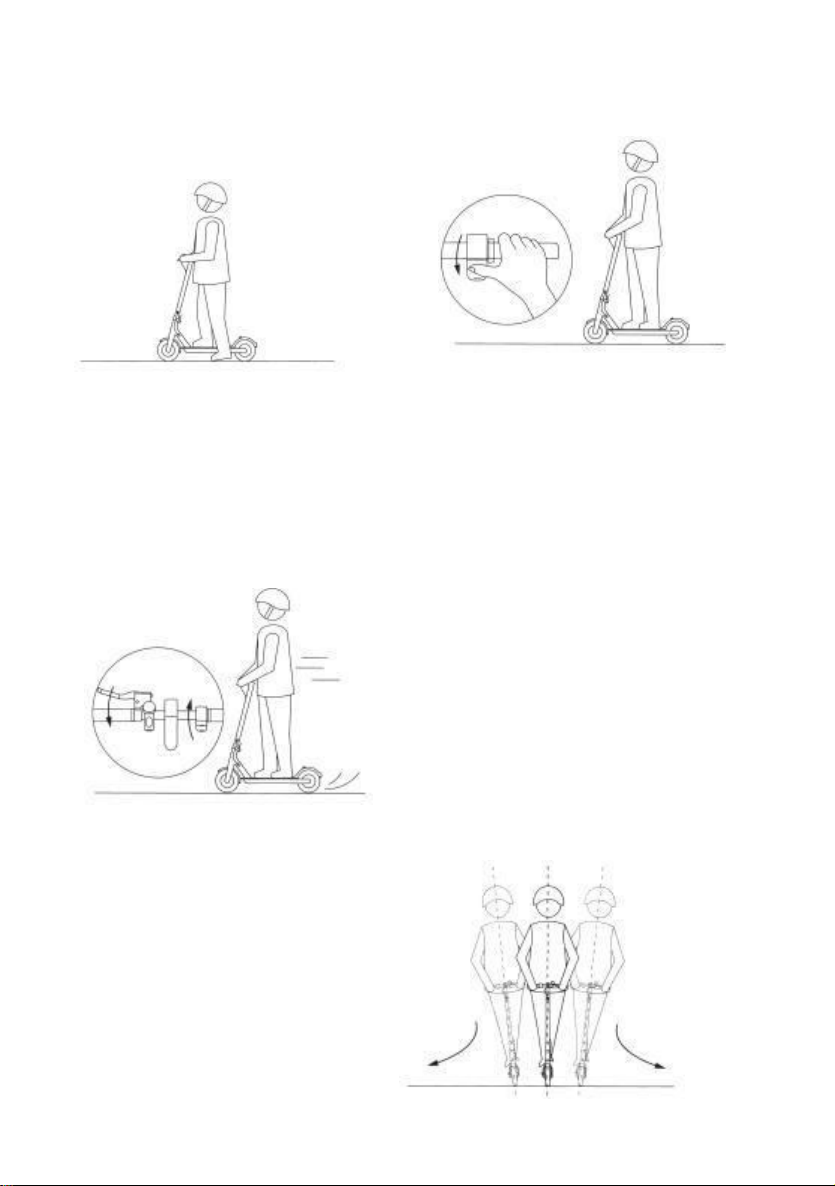

Please wear helmet and knee 1 .Power on and check the battery led

padswhenpractice light

2,.Stand on pedal withone leg,

hit the ground with the other leg

3,.Step on the other leg when the scooter is moving, then press the accelerate

button (only accelerate when the scooter speed is beyond 5km/h)

4.

loose the accelerate button when slow down. Energy recovery systems will

open itself to slow down. Press the left disc brake tightly if want to brake

urgently.

5.

lean your body left slightly to turn left,

lean your body right slightly to turn right.

And turn the handlebar slowly

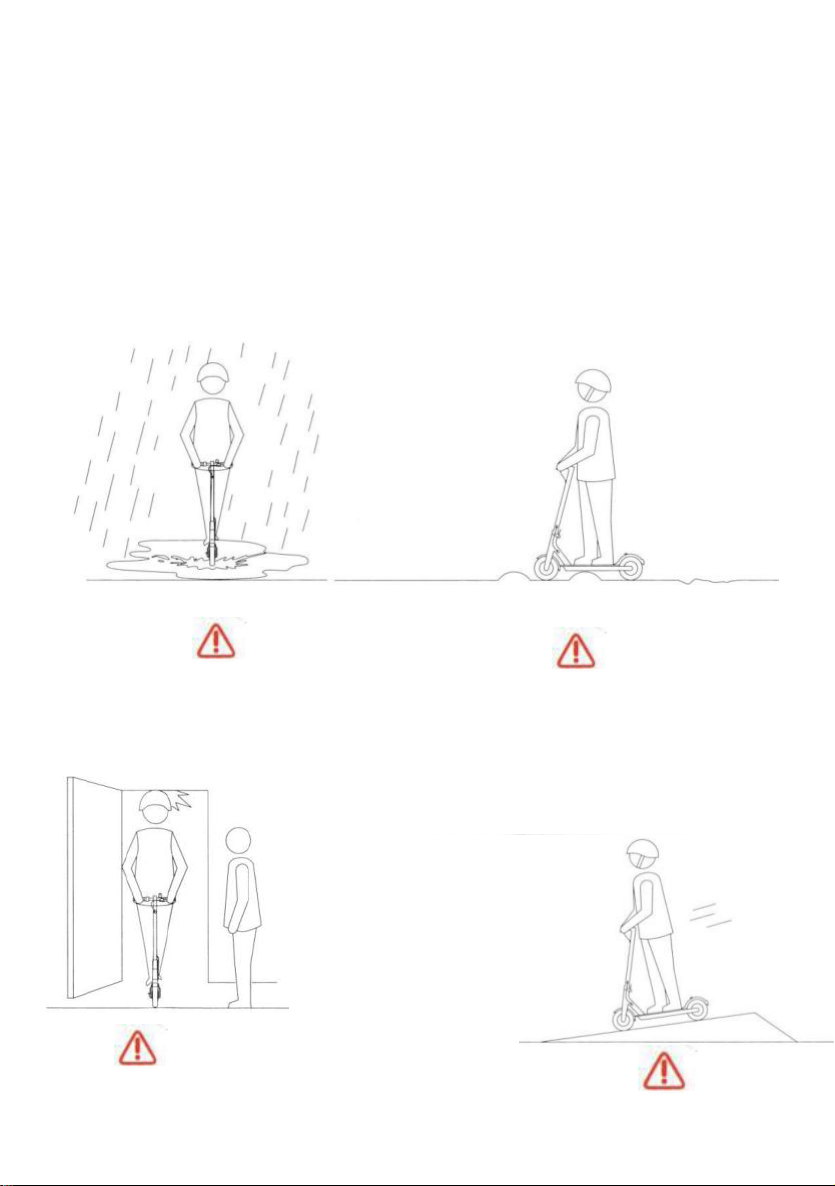

6.SafetyInstructions

It is not recommended driving on the rain It is recommend to slightly bend

knees to better adjust to a

rough road.If you are

travelling on a rough

road,stick to low speed (5-

10km/h)

Entering into any room, elevator, etc.

Be careful not be injured by a door frame.

Please not add speed when descending a hill

While walking with a scooter, Whendriving it isrecommended to

donot press a speed knob

go around various obstacles on

Please do not hang backpacks and When driving is forbidden to place

one foot

other heavyobjects on handle bars on the running board or on the

ground

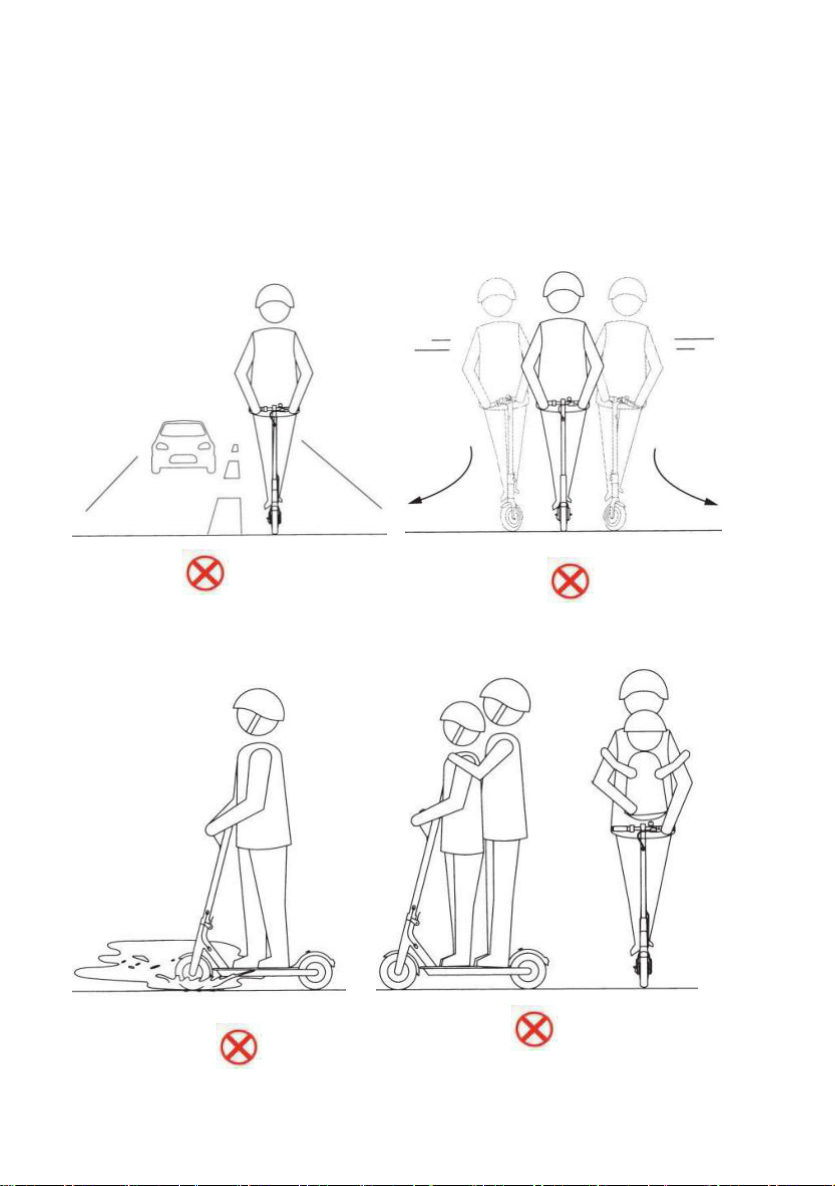

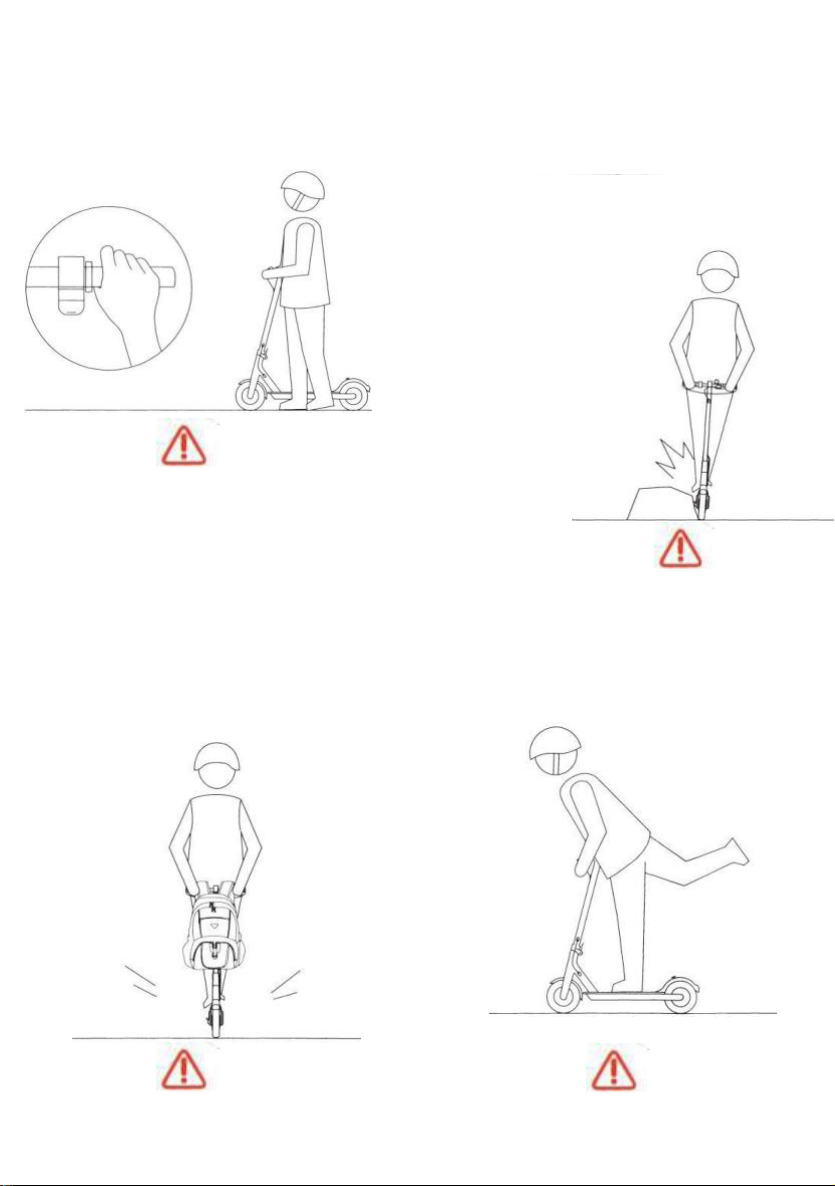

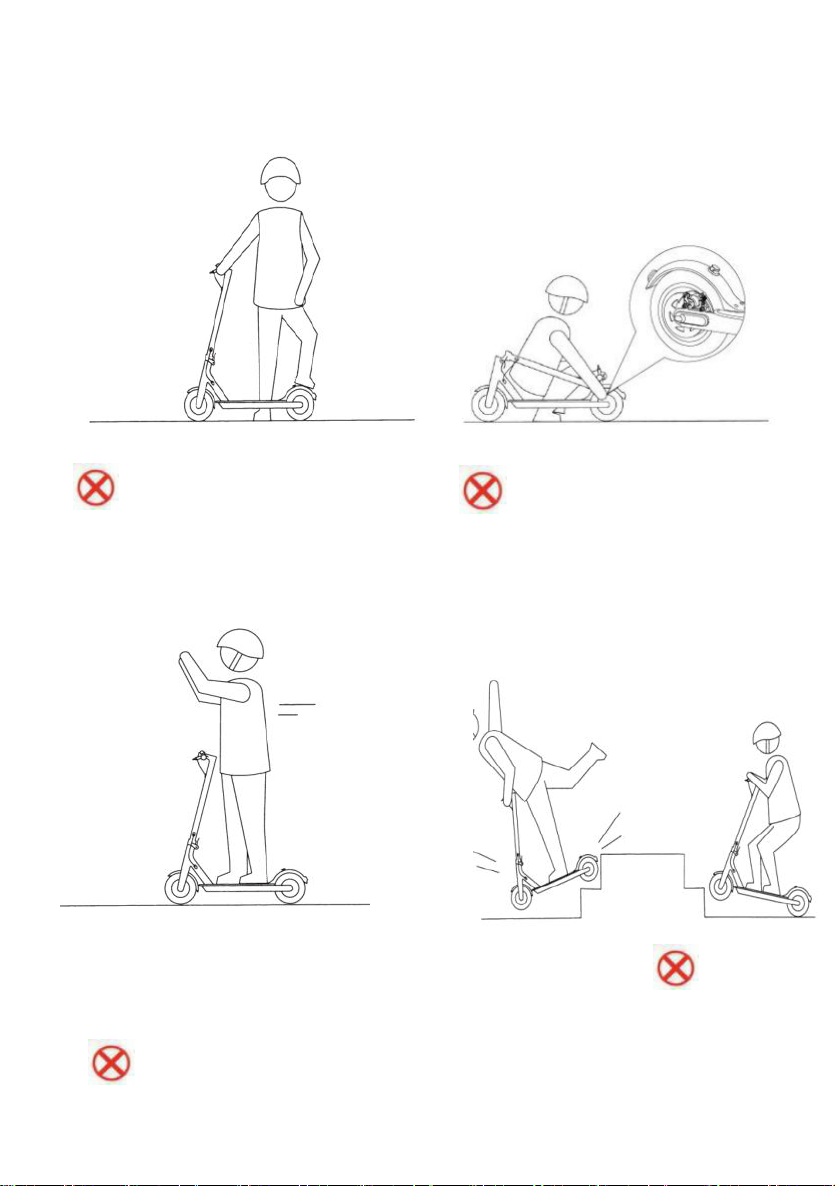

Preventing dangerous driving

It isforbidden to leave a scooter on Itis forbidden to sharply turn a

ascooter wheel athigh roadway for aresidential areawith alarge

motor vehicles or ride flow ofpassers-by

in at a high speed

It isforbidden to drive through puddles, Never rider ascooter morethan or

towhich exceedsdepth of2cm. oneperson, holda child in yourarms.

Do not tread the back of the fender

Do not touch the disc brake

Do not driving leaving your hands

Do not riding electric scooter up,

down steps or jump over obstacles

Safety Recommendations

1)

Electric scooter - it is only a device for entertainment, not vehicle.But once

you driving to public area, the electric scooter brings certain risks for your

safety .For the sake of your safety and others safety,you must strictly follow the

instructions, outlined in this driving manual .

2)

Youshould understand that is you ride a scooter in a public place , you must

comply with all recommendations for safety. Also do not forget that there is a

possibility of collision, due to violation of pedestrians or vehicles traffic rules ,

there is also a risk of injury , due to improper operation of the unit. As in other

types of vehicles, the higher a speed of electric scooter, the greater a braking

distance. On some smooth road emergency braking may cause skidding of

scooter, loss ofbalance and even fall. Therefore, during moving of scooter you

need to be vigilant,to adhere to an appropriate speed , keep a safe distance from

pedestrians and/or with other vehicles . Riding on unfamiliar terrain, keep

vigilance and appropriate speed.

3)

While riding scooter , respect rights of pedestrians . Do not scare

them,especially children.Reduce speed,passing by them.If you are moving in the

same direction with pedestrians,try to stick to the left side as much as

possible(for right-hand traffic countries ).If you are moving in the opposite

direction, stick to the right and slow down.

4)

Please strictly following your country road rules to driving,and also strictly

abide by rules , set out in the instructions and safety recommendations.

Violation of the above rules may result financial expenses, personal injury,

occurrence of traffic accidents, legal disputes, conflict and other unpleasant

situations. Our company doesnot bearany director jointand serveralliability.

5)

Toavoid personal injury , do not loan electric scooter to others whom do not

know how to drive. Please spend a training before you transfer your scooter to

friends, as well as teach he(her)must be wear the proper safety gear .

6)

Please do inspect scooter carefully before each use.If you find shattered

parts ,battery life has decreased obviously, tires leak air or there are signs of

excessive wear, uncharacteristic sounds when turning or other abnormal

symptoms, please discontinue use of the scooter immediately , don't drive it

reluctantly.

7.Fold and Transportation

Fold

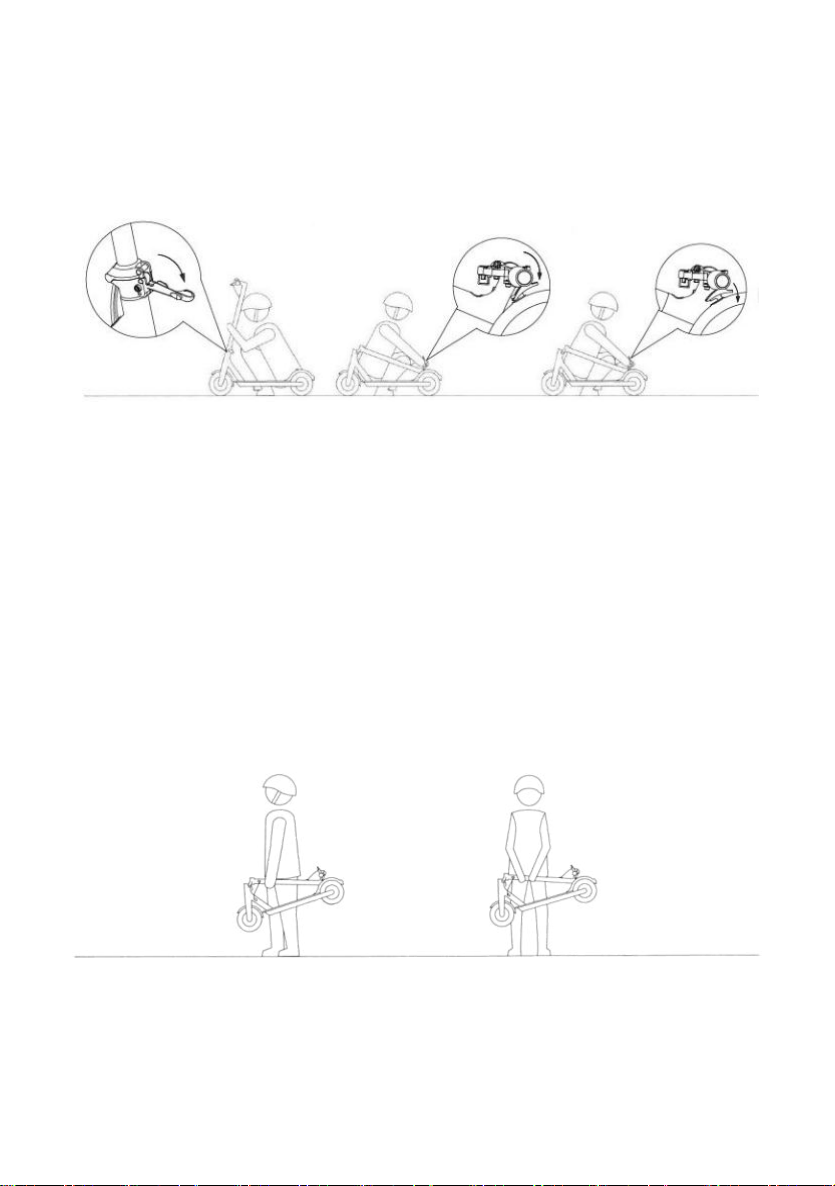

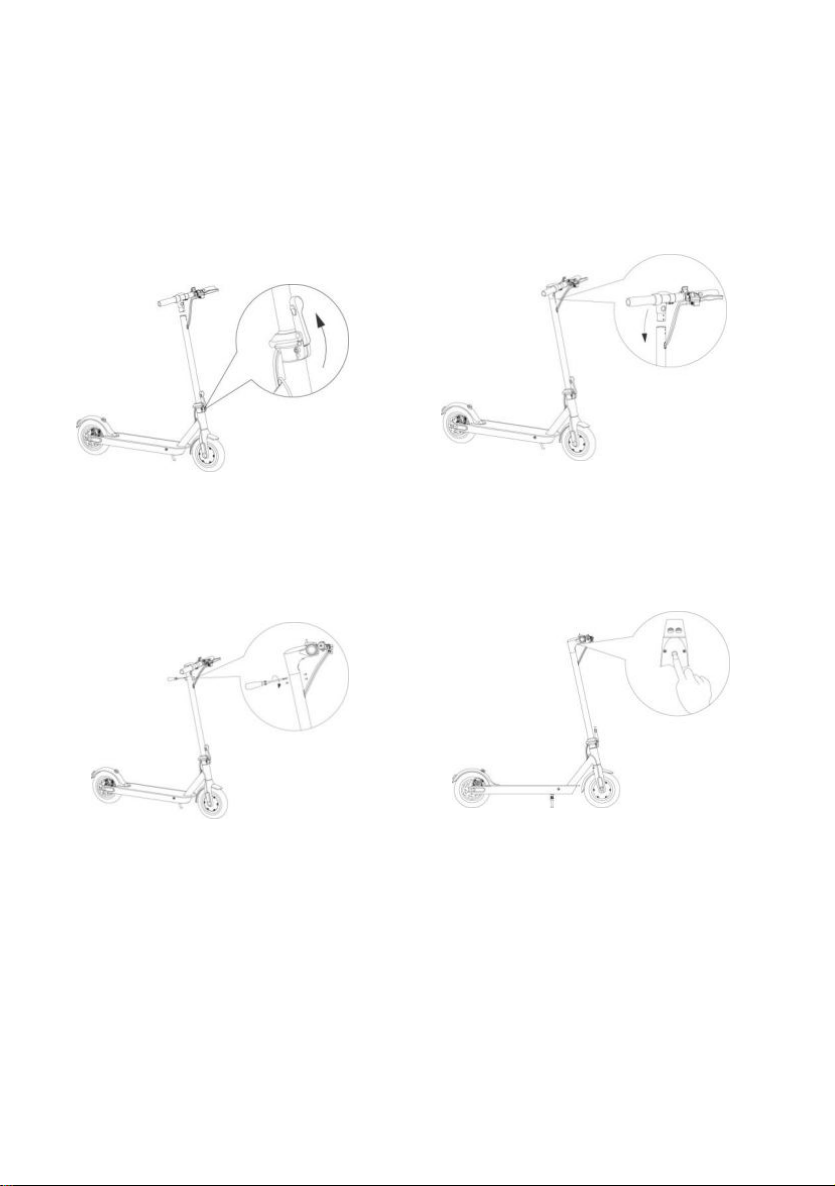

Make sure scooter be off , hold the front pole , loosen a lock lever and lower a

steering rack . Adding a steering rack in a horizontal position and secure it by

inserting a hook through a special ring , which is located on the rear wheel

mudguard . To Assemble the scooter ,disconnect a steering rack lock from a hook

of a mudguard , and then lift it into a vertical position and lock a lever .

Transportation

You can transfer folded scooter with one hand

8.Daily Maintenance and Storage

Clean and store Electric Scooter

If you find any stains on electric scooter housing, use a soft,damp cloth to wipe

the vehicle;You can use toothpaste and a toothbrush to clean the scooter from

stains, and then wipe it clean with a damp cloth. If you find scratched on parts ,

made of plastic, use sandpaper or other grinding materials for their polishing .

Warning : Do not use alcohol, petrol,kerosene or other corrosive solutions ,

volatile chemical solvents to clean the vehicle. Otherwise,it will cause serious

damage to the scooter body and can disrupt a structure of internal elements. Do

not wash electric scooter under a strong pressure of the water, make sure the

scooter in the off status. In addition, after charging of the vehicle, it is necessary

to insert a plug back to a charging connector,otherwise you may get an electric

shock ， or may have serious water damage cause from water falling into this
hole ,may have serious water damage.

If you do not use the scooter ,store it in a dry ,cool place and do not leave the unit

for a long time on the street.Leaving the device under the sun/in extremely high

temperature/over-low temperature can cause rapid aging of an outer body and

wheels of Electric Scooter or reduce battery life.

Maintenance of Electric Scooter battery

1)

Do not use batteries from other brands in order to avoid a dangerous situation;

2)

Do not open or disassemble the battery to prevent electric shock.Avoid contact

with metal objects to prevent an occurrence of a short circuit. Otherwise,the

battery may have malfunction or can injure the user;

3)

It is recommended to use an AC adapter,that comes in original configuration of

the device,to prevent an occurrence of an accident or fire of the vehicle;

4)

Improper disposal of used batteries and accumulators is the cause of severe

environmental pollution.Please,dispose of batteries in accordance with local

laws.Please do not dispose of batteries together with food waste.Protecting the

environment together!

5)

After each use of the device,charge the battery to prolong its service life.

Do not store the scooter battery in rooms with temperatures,that exceed 50℃or-

20℃(for example,do not leave the battery of Electric Scooter and other

batteries in cars in summer time on the hot sun),do not leave the battery near

fire.As a result of these actions may deteriorate the battery,overheating and can

even causeinflammation.

If within 30 days the scooter is not used,charge the battery and keep the device in

a cool,dry place.Every 60 days you need to charge the battery,otherwise there is

the likelihood of its failure,which is not subject to warranty services.

Avoid a full discharge of the device,it will to extend battery life.When using the

device at normal room temperature,the battery will be able to ride much greater

distance and its performance will be better;but if you use the scooter at

temperatures below 0C,vehicle performance and permeability decrease.

At-20C a traveled distance is less,than the scooter in the normal conditions of half

or even less.If a temperature rises,a traveled distance by the vehicle will also

increase.You can check remaining distance in the Application.

Note:A fully charge scooter runs about 120-180 days of standby time.The battery

has a smart chip,that stores information about its charging-discharging.If you are

not charging the battery for a long time,it can cause serious damage,for which it

is impossible to charge the device again.This kind of damage is not included in

free warranty service.(Caution:Do not disassemble the device by unauthorized

people,as there is a risk of electric shock or serious injury as result of a short

circuit.

Adjusting a brake disc

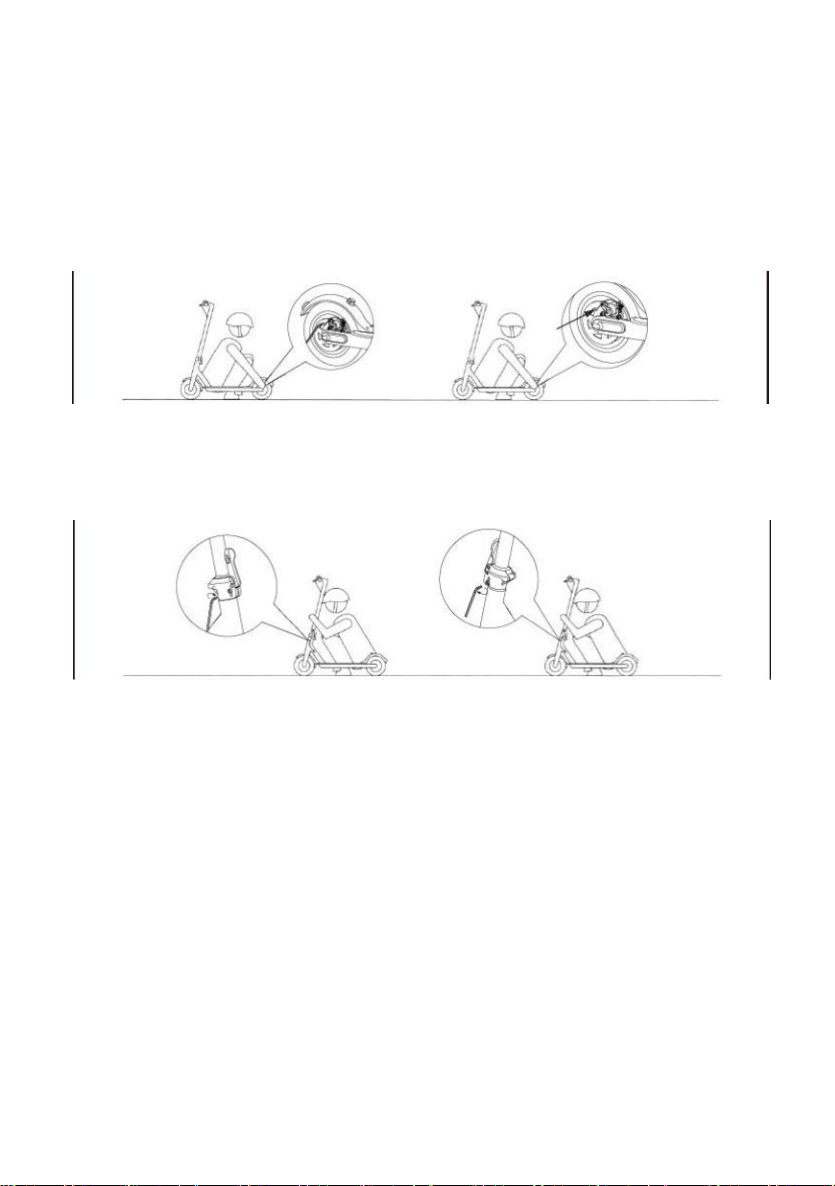

If a brake is very tight:using M5 hex wrench and scroll counterclockwise screws

of brake disc tensioner pulley,slightly shorten a length of a tail brake cable,then

tighten a tensioner pulley.If you think that brake is very free,loosen a tension

pulley,pull a brake cable to slightly increase a length of its tail.Tighten a tension

pulley.

Adjusting a handle bars

Staggering of steering rack: using a M5 hex wrench,tighten two screws near the

folding mechanism.

9. Product parameters

Operating
parameters

Name

H85B parameters

H85B Pro Edition

Dimensions

Length x Width x
Height (mm)

1095*420*1145mm
Folded:Length x Width x Height(mm)

1095*420*495mm

weight

Gross weight

17kg

17KG

Conditions

Max load

120KG

Age

16-50

Height(mm)

1200-2000mm

Main
Parameters

Max
speed(km/h)

25

Endurance
mileage

12-18 km
(Depending on

ground, inclination,
speed,

driving style)

15-20 km
(Depending on

ground, inclination,
speed,

driving style)

Maximum
slope((°)

11

Suitable area

Solid road surface,smooth clay surface to
overtime,obstacles high less than 1cm,a
depth of

pools no more than 2cm

Operating

temperature
range(℃)

-10-40

Temperature of of

storage(℃)

-20-45

Waterproof level

IPX4

Battery
Parameters

Rated
voltages(VDC)

36v

Max voltage of

charging(VDC)

42v

Rated power(Wh)

216

270

Smart

batt

ery

management

system

Stress,insufficient voltage,short

circuit,auto

sleep/wake

up,overheating protection,control of

battery

using

Motor
Parameters

Rated power(W)

250

Power

Adaptor

Parameters

a
d
a
p
t
o
r

Rated power(W)

54

Rated Input

voltage(VAC)

100-240V

Rated Output

voltage(VDC)

42V

Rated current(A)

1.5

Certificate

CE

Charging time(h)

Est . 4～6h

Est . 6～8h

10.Presence of toxic and harmful substances

Name

Toxic and harmful substances elements

PbHgCd

Cr6+

PBB

PBDE

Power

adaptor

XOOOO

O

Battery

XOOOO

Connecti

ng pipe

XOOOO
Charging

port

XOOOO

Indicators

XOOXX

X

Circuit

board

XOOXX

X

Motor

XOOXO

O

Housing

XOOOO

O

Date provided in accordance with provisions of SJ/T 11364.

O:toxic and harmful substances in all components of the device are contained in

an amount below the limit value,according to standard GB/T 26572-2011.

X:presence of toxic and hazardous substances at least one of components of the

device in an amount,that exceeds the threshold,according to GB/T 26572-2011

11.

Warranty

Carefully read all instructions before using the electric kick scooter.
This product is warranted according to the local laws.
The warranty shall not apply to any products that have been
subjected to misuse, negligence, accidental or abnormal conditions
of operation, and does not covers the natural capacity fade out.
Please refer to qualified and authorized people for the repair of the
electric kick scooter.
A non-professional repair may cause malfunction and risks and void
your warranty rights.
