PGP Universal Server - 2.7 Administrator’s Guide

Download

PGP Universal Server

Administrator's Guide

Version Information

PGP Universal Server Administrator's Guide. PGP Universal Server Version 2.7.0. Released December 2007.

Copyright © 1991–2007 by PGP Corporation. All Rights Reserved. No part of this document can be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of PGP Corporation.

Trademark Information

PGP, Pretty Good Privacy, and the PGP logo are registered trademarks of PGP Corporation in the US and other countries. IDEA is a trademark of Ascom Tech AG. Windows and ActiveX are registered trademarks of Microsoft Corporation. AOL is a registered trademark, and AOL Instant Messenger is a trademark, of America Online, Inc. Red Hat and Red Hat Linux are trademarks or registered trademarks of Red Hat, Inc. Linux is a registered trademark of Linus Torvalds. Solaris is a trademark or registered trademark of Sun Microsystems, Inc. AIX is a trademark or registered trademark of International Business Machines Corporation. HP-UX is a trademark or registered trademark of Hewlett-Packard Company. SSH and Secure Shell are trademarks of SSH Communications Security, Inc. Rendezvous and Mac OS X are trademarks or registered trademarks of Apple Computer, Inc. All other registered and unregistered trademarks in this document are the sole property of their respective owners.

Licensing and Patent Information

The IDEA cryptographic cipher described in U.S. patent number 5,214,703 is licensed from Ascom Tech AG. The CAST-128 encryption algorithm, implemented from RFC 2144, is available worldwide on a royalty-free basis for commercial and non-commercial uses. PGP Corporation has secured a license to the patent rights contained in the patent application Serial Number 10/655,563 by The Regents of the University of California, entitled Block Cipher Mode of Operation for Constructing a Wide-blocksize block Cipher from a Conventional Block Cipher. Some third-party software included in PGP Universal Server is licensed under the GNU General Public License (GPL). PGP Universal Server as a whole is not licensed under the GPL. If you would like a copy of the source code for the GPL software included in PGP Universal Server, contact PGP Support ( Corporation may have patents and/or pending patent applications covering subject matter in this software or its documentation; the furnishing of this software or documentation does not give you any license to these patents.

http://www.pgp.com/support). PGP

Acknowledgments

This product includes or may include:

• The Zip and ZLib compression code, created by Mark Adler and Jean-Loup Gailly, is used with permission from the free Info-ZIP implementation, developed by zlib ( under the MIT License found at freely available high-quality data compressor, is copyrighted by Julian Seward, © 1996-2005. • Application server (

http://www.apache.org/), Jakarta Commons (http://jakarta.apache.org/commons/license.html) and log4j, a Java-based library used to parse

server ( HTML, developed by the Apache Software Foundation. The license is at binding framework for moving data from XML to Java programming language objects and from Java to databases, is released by the ExoLab Group under an Apache 2.0-style license, available at Foundation that implements the XSLT XML transformation language and the XPath XML query language, is released under the Apache Software License, version 1.1, available at (JMX), is released under an Apache-style license, available at the work of the Independent JPEG Group. ( MIT License University of Cambridge. ©1997-2006. The license agreement is at Name System (DNS) protocols developed and copyrighted by Internet Systems Consortium, Inc. ( daemon developed by The FreeBSD Project, © 1994-2006. • Simple Network Management Protocol Library developed and copyrighted by Carnegie Mellon University © 1989, 1991, 1992, Networks Associates Technology, Inc, © 2001- 2003, Cambridge Broadband Ltd. © 2001- 2003, Sun Microsystems, Inc., © 2003, Sparta, Inc, © 2003-2006, Cisco, Inc and Information Network Center of Beijing University of Posts and Telecommunications, © 2004. The license agreement for these is at by Network Time Protocol and copyrighted to various contributors. • Lightweight Directory Access Protocol developed and copyrighted by OpenLDAP Foundation. OpenLDAP is an open-source implementation of the Lightweight Directory Access Protocol (LDAP). Copyright © 1999-2003, The OpenLDAP Foundation. The license agreement is at developed by OpenBSD project is released by the OpenBSD Project under a BSD-style license, available at

bin/cvsweb/src/usr.bin/ssh/LICENCE?rev=HEAD. • PC/SC Lite is a free implementation of PC/SC, a specification for SmartCard integration is released

under the BSD license. • Postfix, an open source mail transfer agent (MTA), is released under the IBM Public License 1.0, available at

http://www.opensource.org/licenses/ibmpl.php. • PostgreSQL, a free software object-relational database management system, is released under a

BSD-style license, available at PostgreSQL database using standard, database independent Java code, (c) 1997-2005, PostgreSQL Global Development Group, is released under a BSD-style license, available at specified programs at scheduled times. Copyright © 1993, 1994 by Paul Vixie; used by permission. • JacORB, a Java object used to facilitate communication between processes written in Java and the data layer, is open source licensed under the GNU Library General Public License (LGPL) available at CORBA Object Request Broker (ORB), and is used for communication between processes written in C/C++ and the data layer. Copyright (c) 1993-2006 by Douglas C. Schmidt and his research group at Washington University, University of California, Irvine, and Vanderbilt University. The open source software license is available at services, is open source software provided under a MIT/X derivate license available at 2007, Daniel Stenberg. • libuuid, a library used to generate unique identifiers, is released under a BSD-style license, available at

line options, is released under the terms of the GNU Free Documentation License available at 2000-2003 Free Software Foundation, Inc.

http://www.zlib.net). • Libxml2, the XML C parser and toolkit developed for the Gnome project and distributed and copyrighted

http://jakarta.apache.org/), web

www.apache.org/licenses/LICENSE-2.0.txt. • Castor, an open-source, data-

http://www.castor.org/license.html. • Xalan, an open-source software library from the Apache Software

http://xml.apache.org/xalan-j/#license1.1. • mx4j, an open-source implementation of the Java Management Extensions

http://mx4j.sourceforge.net/docs/ch01s06.html. • jpeglib version 6a is based in part on

http://www.ijg.org/) • libxslt the XSLT C library developed for the GNOME project and distributed under the

http://www.opensource.org/licenses/mit-license.html. • PCRE version 4.5 Perl regular expression compiler, copyrighted and distributed by

http://www.pcre.org/license.txt. • BIND Balanced Binary Tree Library and Domain

http://www.isc.org) • Free BSD implementation of

http://net-snmp.sourceforge.net/about/license.html. • NTP version 4.2 developed

http://www.openldap.org/software/release/license.html. • Secure shell OpenSSH version 4.2.1

http://www.openbsd.org/cgi-

http://www.postgresql.org/about/licence. • PostgreSQL JDBC driver, a free Java program used to connect to a

http://jdbc.postgresql.org/license.html. • 21.vixie-cron is the Vixie version of cron, a standard UNIX daemon that runs

http://www.cs.wustl.edu/~schmidt/ACE-copying.html. • libcURL, a library for downloading files via common network

PGP Universal Server Introduction

Export Information

Export of this software and documentation may be subject to compliance with the rules and regulations promulgated from time to time by the Bureau of Export Administration, United States Department of Commerce, which restricts the export and re-export of certain products and technical data.

Limitations

The software provided with this documentation is licensed to you for your individual use under the terms of the End User License Agreement provided with the software. The information in this document is subject to change without notice. PGP Corporation does not warrant that the information meets your requirements or that the information is free of errors. The information may include technical inaccuracies or typographical errors. Changes may be made to the information and incorporated in new editions of this document, if and when made available by PGP Corporation.

Contents

Introduction 15

What is PGP Universal Server? 15 PGP Universal Server Product Family 16 Who Should Read This Guide 16 Improvements in This Version of PGP Universal Server 16

PGP Universal Server 17 PGP Messaging 17 PGP Keys 18 PGP Desktop 18 PGP Desktop Email 19 PGP NetShare 20

PGP Whole Disk Encryption 20 Using the PGP Universal Server with the Command Line 22 Symbols 22 Getting Assistance 23

Getting product information 23

Contact information 23

The Big Picture 25

Important Terms 25

PGP Products 25

PGP Universal Server Concepts 25

PGP Universal Server Features 26

PGP Universal Server User Types 28 Installation Overview 29

Adding the PGP Universal Server to Your Network

Server Placement 35

Gateway Placement 36

Internal Placement 37 Using a Mail Relay 38 Microsoft Exchange Server 38 Lotus Domino Server 39 Configuration Examples 39

Internal Placement Configuration 40

Gateway Placement Configuration 41

Non-mailstream Placement Configuration 42

Cluster Configuration 43

Clustered Proxy and Keyserver Configuration 44

Gateway Cluster with Load Balancer 46

Gateway and Internal Placement Cluster 47

PGP Universal Server Contents

Encircled Configuration 49

Large Enterprise Configuration 50

Spam Filters and PGP Universal Server 51

Exchange with PGP Client Software 52

Lotus Domino Server with PGP Client Software 53

Unsupported Configurations 53

Open Ports 55

TCP Ports 55 UDP Ports 57

Naming your PGP Universal Server

Considering a Name for Your PGP Universal Server 59 Methods for Naming a PGP Universal Server 60

Installing the PGP Universal Server 61

About the Installation Procedure 61 System Requirements 62 Installation Materials 62 Installation Options 62 Standard Installation Procedure 63 PGP Installation Procedure 64

Setting Up the PGP Universal Server 65

About the Setup Assistant 65 Preparing for Setup after pgp Install 66

Hardware 66

System Information 66

Connect to the PGP Universal Server 67

PGP Universal Server Contents

Initial Configuration with Setup Assistant 67 Primary or Secondary Configuration 76 Restoring From a Server Backup 86 Migrating the Keys from a PGP Keyserver 87

Understanding the Administrative Interface 89

System Requirements 89 Logging In 89 Managing Alerts 92 Logging In For the First Time 93 Administrative Interface Map 94 Icons 95

Licensing Your Software 101

Overview 101 License Changes for PGP Universal Server 2.5 and Later 101 Manual and Automatic Licensing 102 Licensing a PGP Universal Server 103 Licensing the Mail Proxy Feature 103

Operating in Learn Mode 105

Purpose of Learn Mode 105 Checking the Logs 106 Managing Learn Mode 106

Managed Domains 109

About Managed Domains 109 Adding Managed Domains 110 Deleting Managed Domains 111

Managing Organization Keys

About Organization Keys 113 Organization Key 113

Inspecting the Organization Key 114

Regenerating the Organization Key 116

Importing an Organization Key 117 Organization Certificate 119

Inspecting the Organization Certificate 119

Exporting the Organization Certificate 120

Deleting the Organization Certificate 121

Generating the Organization Certificate 122

Importing the Organization Certificate 124

113

iii

PGP Universal Server Contents

Additional Decryption Key (ADK) 125

Importing the ADK 126

Inspecting the ADK 127

Deleting the ADK 128 Verified Directory Key 129

Importing the Verified Directory Key 129

Inspecting the Verified Directory Key 130

Deleting the Verified Directory Key 131

Managing Trusted Keys and Certificates 133

Overview 134

Trusted Keys 135

Trusted Certificates 135 Adding a Trusted Key or Certificate 135 Inspecting and Changing Trusted Key Properties 137 Deleting Trusted Keys and Certificates 138 Searching for Trusted Keys and Certificates 138

Recovering Encrypted Data in an Enterprise Environment 139

Using Key Reconstruction 139 Recovering Encryption Key Material without Key Reconstruction 140

Encryption Key Recovery of CKM Keys 140

Encryption Key Recovery of GKM Keys 141

Encryption Key Recovery of SCKM Keys 141

Encryption Key Recovery of SKM Keys 142 Using an Additional Decryption Key for Data Recovery 142

Setting Mail Policy 145

Overview 146

How Policy Chains Work 147

Mail Policy and Dictionaries 148

Mail Policy and Key Searches 149

Mail Policy and Cached Keys 149 Migrating Settings from Version 2.0.x 149 Understanding the Pre-Installed Policy Chains 150 Mail Policy Outside the Mailflow 151 Building Valid Chains and Rules 152

Using Valid Processing Order 152

Creating Valid Groups 153

Creating a Valid Rule 154 Using the Rule Interface 155

The Conditions Card 156

The Actions Card 158 Managing Policy Chains 158

Mail Policy Best Practices 159

PGP Universal Server Contents

Restoring Mail Policy to Default Settings 159

Editing Policy Chain Settings 159

Adding Policy Chains 160

Deleting Policy Chains 162

Exporting Policy Chains 163

Printing Policy Chains 163 Managing Rules 163

Adding Rules to Policy Chains 163

Deleting Rules from Policy Chains 164

Enabling and Disabling Rules 164

Changing the Processing Order of the Rules 165 Adding Key Searches 165 Choosing Condition Statements, Conditions, and Actions 166

Condition Statements 166

Conditions 166

Actions 174 Working with Common Access Cards 181

Applying Key Not Found Settings to External Users 183

Overview 183

Bounce the Message 184

PDF Messenger 184

Certified Delivery with PDF Messenger 185

Send Unencrypted 186

Smart Trailer 186

PGP Universal Web Messenger 190 Changing Policy Settings 192 Changing User Delivery Method Preference 192

Using Dictionaries with Policy 195

Overview 195 Default Dictionaries 197

Editing Default Dictionaries 198 User-Defined Dictionaries 201

Adding a User-Defined Dictionary 201

Editing a User-Defined Dictionary 203

Deleting a Dictionary 204 Exporting a Dictionary 205 Searching the Dictionaries 205

Keyservers, SMTP Servers, and Mail Policy

207

Overview 207 Keyservers 208

Adding or Editing a Keyserver 209

Deleting a Keyserver 211

PGP Universal Server Contents

SMTP Servers 212

Adding or Editing an SMTP Server 212

Deleting an SMTP Server 214

Managing Keys in the Key Cache

Overview 215 Changing Cached Key Timeout 216

Purging Keys from the Cache 217

Trusting Cached Keys 217

Viewing Cached Keys 217 Searching the Key Cache 218

215

Configuring Mail Proxies 219

Overview 219 PGP Universal Server and Mail Proxies 220

Mail Proxies in an Internal Placement 220

Mail Proxies in a Gateway Placement 222 Changes in Proxy Settings from PGP Universal Server 2.0 to 2.5 and later 223 Mail Proxies Card 224 Creating New or Editing Existing Proxies 224

Creating or Editing a POP/IMAP Proxy 225

Creating or Editing an Outbound SMTP Proxy 227

Creating or Editing an Inbound SMTP Proxy 230

Creating or Editing a Unified SMTP Proxy 231

Email in the Mail Queue 235

Overview 235 Deleting Messages from the Mail Queue 236

Specifying Mail Routes

Overview 237 Managing Mail Routes 238

Adding a Mail Route 238

Editing a Mail Route 239

Deleting a Mail Route 239

237

Customizing System Message Templates 241

Overview 241

Templates and Message Size 242

PDF Messenger Templates 242

Templates for New PGP Universal Web Messenger Users 243

PGP Universal Server Contents

Editing a Message Template 243

Setting Internal User Policy

Overview 246 Managing Internal User Policies 247

Adding a New Internal User Policy 247

Editing Internal User Policies 248

Editing the Excluded Users Policy 258

Deleting Internal User Policies 259 Downloading Client Software 259 Directory Synchronization 262 Choosing a Key Mode For Key Management 262

Disabling Key Generation 266

Adding PGP Desktop Solutions to Existing PGP Universal Gateway Email Environments266

Changing Key Modes 266 X.509 Certificate Management in Lotus Notes Environments 268

Trusting Certificates Created by PGP Universal Server 269

Setting the Lotus Notes Key Settings in PGP Universal Server 270

Technical Deployment Information 271 Customizing the Windows Preinstallation Environment for PGP Whole Disk Encryption 272

Introduction 272

Creating a Windows PE CD 274

Customizing the Vista Installation Package to Upgrade Encrypted Operating Systems to

Windows Vista

Using PGP Whole Disk Encryption with IBM Lenovo ThinkPad Systems 280

Using PGP Whole Disk Encryption with the Microsoft Windows XP Recovery Console 281

Pgppe Commands 281

245

277

Using Directory Synchronization to Manage Users 285

Overview 285 Enabling Directory Synchronization 287

Testing the LDAP Connection 290 Excluding Users 290 Including Only Some Users 292 Matching Attributes 292 Base DN and Bind DN 294 Understanding User Enrollment Methods 296

Before Creating a Client Installer 296

Email Enrollment 297

Directory Enrollment 299

vii

PGP Universal Server Contents

Serving PGP Admin 8 Preferences 301

Configuring PGP Desktop Installations

303

Establishing PGP Desktop Settings for Your PGP Desktop Clients 303 PGP Desktop Licensing 304 Configuring PGP Desktop Settings 305

General Tab 309

Licensing Tab 313

Messaging & Keys Tab 316

File & Disk Tab 318

WDE Tab 322 PGP Desktop Installer Policies 326 Creating PGP Desktop Installers 327

Creating an Installer with No Policy Settings 327

Creating an Installer with Auto-Detect Policy 328

Creating an Installer with Preset Policy 329 Controlling PGP Desktop Components 331 PGP Whole Disk Encryption Administration 332

How Does Single Sign-On Work? 332

Enabling Single Sign-On 333 Managing Clients Remotely Using a PGP WDE Administrator Active Directory Group 335 Managing Clients Locally Using the PGP WDE Administrator Key 337

Setting External User Policy 339

Overview 340 Managing External User Policies 341

Regrouping External Users 341

Adding a New External User Policy 341

Editing External User Policies 342

Deleting External User Policies 352

Configuring PGP Universal Web Messenger 353

Overview 353

High Availability Mode 354 Customizing PGP Universal Web Messenger 355

Adding a New Template 356

Troubleshooting Customization 361

Changing the Active Template 365

Deleting a Template 365

Editing a Template 365

Downloading Template Files 366

Restoring to Factory Defaults 366

viii

PGP Universal Server Contents

Configuring the PGP Universal Web Messenger Service 367

Configuring the PGP Verified Directory

373

Overview 373 Enabling the PGP Verified Directory 374 Configuring the PGP Verified Directory 375

Managing Internal User Accounts 379

Overview 379 Certificate Revocation Lists 380 Adding Internal Users Manually 381 Deleting Internal Users 383 Approving Pending Keys 383 Searching for Internal Users 384 Exporting PGP Whole Disk Login Failure Data 385 Internal User Settings 385

Changing Internal User Settings 386

Exporting an Internal User’s X.509 Certificate 387

Revoking the PGP Key of an Internal User 387

Exporting the PGP Key of an Internal User 388

Deleting the PGP Key of an Internal User 389

Deleting a PGP Desktop Key Reconstruction Block 389

Using Whole Disk Recovery Tokens 390

Deleting Whole Disk Recovery Tokens 391

Viewing PGP Whole Disk Encryption Status 391

Viewing Internal User Log Entries 392 Key Reconstruction Blocks 393

Managing External User Accounts 395

Overview 395 Importing External Users 396 Deleting External Users 397 Searching for External Users 397 Exporting Delivery Receipts 398 External User Settings 399

Changing External User Settings 400

Viewing External User Log Entries 401

Exporting an External User’s X.509 Certificate 401

Exporting the PGP Key of an External User 402

Deleting the PGP Key of an External User 402

Changing the Passphrase of an External User 403

PGP Universal Server Contents

Managing PGP Verified Directory User Accounts 405

Overview 405 Importing Verified Directory Users 406 PGP Verified Directory User Settings 408

Changing PGP Verified Directory User Settings 409

Approving Pending Keys 409

Deleting the PGP Key of a PGP Verified Directory User 410

Viewing PGP Verified Directory User Log Entries 410 Deleting PGP Verified Directory Users 410 Exporting PGP Verified Directory Users 411 Searching for PGP Verified Directory Users 411

Managing Administrator Accounts 413

Overview 413 Creating a New Administrator 414 Importing SSH v2 Keys 416 Deleting Administrators 416 Inspecting and Changing the Settings of an Administrator 417 Daily Status Email 417

PGP Universal Satellite 419

Overview 419 Technical Information 420 Distributing the PGP Universal Satellite Software 421 Configuration 422

Deployment Mode 422

Key Mode 422

Satellite Configurations 423

Switching Key Modes 428 Binding 428

Pre-Binding 429

Manual Binding 430 Policy and Key or Certificate Retrieval 431

Retrieving Lost Policies 431

Retrieving Lost Keys or Certificates 433

PGP Universal Server Contents

PGP Universal Satellite for Mac OS X 435

Overview 435 System Requirements 436 Obtaining the Installer 436 Installation 436 Updates 437 Files 437 User Interface 438

About PGP Universal Server 439

Help 440

Show Log 440

Clear Log 441

Policies 441

Preferences 448

Purge Caches 449

Hide and Quit PGP Universal Satellite 449

PGP Universal Satellite for Windows 453

Overview 453 System Requirements 454 Obtaining the Installer 454 Installation 455 Updates 457 Files 458 MAPI Support 458

External MAPI Configuration 459

Internal MAPI Configuration 460

Using MAPI 461 Lotus Notes Support 461

External Lotus Notes Configuration 461

Internal Lotus Notes Configuration 463

Using Lotus Notes 464

Notes IDs 464 User Interface 464

The Policy Tab 465

The Log Tab 467

The Satellite Tray Icon 469

PGP Universal Server Contents

Configuring the Integrated Keyserver 473

Overview 473 Configuring the Keyserver Service 473

Managing the Certificate Revocation List Service 479

Overview 479 Enabling and Disabling the CRL Service 480 Editing CRL Service Settings 480

System Graphs

Overview 483 CPU Usage 483 Message Activity 484 Whole Disk Encryption 485 Recipient Statistics 487 Recipient Domain Statistics 487

483

System Logs 489

Overview 489 Filtering the Log View 490 Searching the Log Files 491 Exporting a Log File 491 Enabling External Logging 492

Shutting Down and Restarting Services and Power 495

Overview 496 PGP Universal Server 498

Setting the Time 498

Updating Software 499

Licensing a PGP Universal Server 500

Downloading the Release Notes 500

xii

PGP Universal Server Contents

Shutting Down and Restarting the PGP Universal Server Software Services 501 Shutting Down and Restarting the PGP Universal Server Hardware 501

Configuring SNMP Monitoring 503

Overview 503 Downloading the Custom MIB File 504 Configuring the SNMP Service 505

Setting Network Interfaces 509

Overview 510 Connecting to a Proxy Server 511 Changing Interface Settings 512 Adding Interface Settings 512 Deleting Interface Settings 513 Editing Global Network Settings 513 Assigning a Certificate 513 Working with Certificates 514

Importing an Existing Certificate 515

Generating a Certificate Request 518

Adding a Pending Certificate 519

Inspecting a Certificate 520

Exporting a Certificate 521

Deleting a Certificate 522

Clustering your PGP Universal Servers 523

Overview 523 Clustering and PGP Universal Web Messenger 524 Cluster Status 525 Creating Clusters 527 Deleting Clusters 529 Changing Network Settings in Clusters 529 Managing Secondary Settings in Clusters 530

Protecting PGP Universal Server with Ignition Keys

Overview 531

Ignition Keys and Clustering 533

xiii

531

PGP Universal Server Contents

Preparing Hardware Tokens to be Ignition Keys 533 Configuring a Hardware Token Ignition Key 535 Configuring a Soft-Ignition Passphrase Ignition Key 535 Deleting Ignition Keys 536

Backing Up and Restoring System and User Data 537

Overview 537 Creating Backups 538

Scheduling Backups 538

Performing On-Demand Backups 539 Configuring the Backup Location 539 Restoring From a Backup 541

Restoring On-Demand 541

Restoring Configuration 542

Restoring from a Different Version 546

Updating PGP Universal Server Software 549

Overview 549 Inspecting Update Packages 550 Establishing Software Update Settings 550 Checking for New Updates 551 Uploading Update Packages 551 Manually Installing an Update 551

Index 553

xiv

Introduction

This Administrator’s Guide describes both the PGP Universal Server and PGP Universal Satellite. It tells you how to get them up and running on your network, how to configure them, and how to maintain them. This section provides a highlevel overview of PGP Universal Server.

In This Chapter

What is PGP Universal Server? ................................................................15

PGP Universal Server Product Family ......................................................16

Who Should Read This Guide ..................................................................16

Improvements in This Version of PGP Universal Server..........................16

Using the PGP Universal Server with the Command Line.......................22

Symbols....................................................................................................22

Getting Assistance ...................................................................................23

What is PGP Universal Server?

PGP Universal Server provides multiple encryption solutions managed from a single console.

PGP Universal Server with PGP Universal Gateway Email gives you secure messaging: it transparently protects your enterprise messages with little or no user interaction.

The PGP Universal Server also replaces the PGP Keyserver product with a builtin keyserver, and the PGP Admin product with PGP Desktop configuration and deployment capabilities.

It automatically creates and maintains a Self-Managing Security Architecture (SMSA) by monitoring authenticated users and their email traffic. You can also send protected messages to addresses that are not part of the SMSA. The PGP Universal Server encrypts, decrypts, signs, and verifies messages automatically, providing strong security through policies you control.

PGP Universal Satellite, a client-side feature of PGP Universal Server, extends PGP security for email messages all the way to the computer of the email user, it allows external users to become part of the SMSA, and it gives end users the option to create and manage their keys on their own computer (if allowed by the PGP administrator).

PGP Universal Server Introduction

PGP Universal Server Product Family

PGP Universal Server functions as a management console for a variety of encryption solutions. You can purchase any of the PGP Desktop applications or bundles and use PGP Universal Server to create and manage client installations. You can also purchase a license that enables PGP Gateway Email to encrypt email in the mailstream.

The PGP Universal Server can manage any combination of PGP encryption applications. PGP encryption applications are:

 PGP Universal Gateway Email provides automatic email encryption in the

gateway, based on centralized mail policy. This product requires administration by the PGP Universal Server.

 PGP Desktop Email provides encryption at the desktop level for mail, files,

and AOL Instant Messenger traffic. This product can be managed by the PGP Universal Server.

 PGP Whole Disk Encryption provides encryption at the desktop level for

an entire disk. This product can be managed by the PGP Universal Server.

 PGP NetShare provides transparent file encryption and sharing among

desktops. This product can be managed by the PGP Universal Server.

Who Should Read This Guide

This Administrator’s Guide is for the person or persons who will be implementing and maintaining your organization’s PGP Universal Server environment. These are the PGP administrators.

This guide is also intended for anyone else who wants to learn about how PGP Universal Server works.

Improvements in This Version of PGP Universal Server

This release of PGP Universal Server introduces the following new features:

 PGP Universal Server (on page  PGP Messaging (on page  PGP Keys (on page

18)

17)

 PGP Desktop (on page

18)

 PGP Desktop Email (on page

19)

PGP Universal Server Introduction

 PGP NetShare (on page 20)  PGP Whole Disk Encryption (on page

PGP Universal Server

Changes in this release

Where to find

For more information

Additional platform certification. PGP Universal Server is now

certified to operate with VMWare ESX Server Standard 3.0 including VMWare Tools.

LDAP Ping testing. PGP Universal administrators can now test their LDAP Directory Synchronization configuration. The configuration test feature reports success or failure and, to the extent possible, the reason for any failure.

Policy>Internal User Policy>Directory Synchronization

Testing the LDAP Connection (on page

PGP Messaging

Changes in this release

PDF Messenger and certified delivery. PGP Universal Gateway Email

enables users to send secure content to recipients who do not have PGP software installed using Portable Document Format (PDF). PGP Universal Gateway Email can encrypt existing PDFs sent by the user, or also create secure PDFs out of normal email content. The design of this system enables secure delivery certification, ensuring that successful delivery of the message content to the recipient can be recorded at the PGP Universal Server if selected by an Administrator.

20)

290)

Where to find

For more information

Changes in this release

Where to find

For more information

Changes in this release

Policy>Mail Policy, Policy>External User Policy

Editing External User Policies (on page Settings to External Users (on page

342) , Applying Key Not Found

183)

Web Messenger customizable user interface. PGP Universal Gateway Email now provides extensive options for customizing the Web Messenger interface. Administrators are able to make customizations ranging from simple color scheme changes to radical alterations of the Web Messenger HTML itself.

Services>Web Messenger

Customizing PGP Universal Web Messenger (on page

355)

IMAP speed improvements. This release contains significant IMAP performance improvements. Users will experience quicker responses and shorter downloads, particularly when accessing large mailboxes, switching between folders, and checking for new messages.

PGP Universal Server Introduction

Changes in this release

Where to find

For more information

Changes in this release

Where to find

For more information

PGP Keys

Changes in this release

Web Messenger connectivity over HTTP. The PGP Universal Gateway

Email administrator can configure Web Messenger to accept connections over HTTP, enabling interoperability with HTTPS accelerator products.

Services>Web Messenger

Configuring the PGP Universal Web Messenger Service (on page

367)

Improved handling of malformed email messages. PGP Universal administrators have greater control in specifying how to handle malformed email messages not in compliance with Internet standards. When a mail message cannot be parsed in the course of evaluating mail policy, processing immediately jumps to a special chain, designated as the “Exception Chain.” This chain has limited capabilities, but allows the administrator to specify what to do with the malformed mail based on information outside of the mail itself (what interface it came in on, what port, and so on).

Policy>Mail Policy

Understanding the Pre-Installed Policy Chains (on page

150)

Certificate Revocation List (CRL) publishing. PGP Universal Server 2.7 now publishes Certificate Revocation Lists (CRLs) for X.509 certificates that it issues. Administrators are able to revoke individual certificates by adding them to the CRL. CRLs can be retrieved by via HTTP or LDAP.

Where to find

For more information

Changes in this release

Where to find

Benefits

PGP Desktop

Changes in this release

Services>Certificate Revocation

The Certificate Revocation List Service (see " Revocation List Service" on page

Controlled

private key generation. PGP Universal administrators can now

479)

Managing the Certificate

disable key generation in the PGP Desktop user interface, making it impossible for end users to generate their own key pairs.

Policy>Internal User Policy

Configuring PGP Desktop Installations (on page

303)

Additional platform support. PGP Desktop and PGP Universal Satellite are now available for Microsoft Windows Vista 64-bit and Mac OS X

10.5 (Leopard).

PGP Universal Server Introduction

Changes in this release

Where to find

For more information

Changes in this release

Where to find

For more information

Changes in this release

Where to find

Feature deployment control. Administrators can now enforce policy by

providing end users only with authorized client features, enabling or disabling client capabilities before distributing PGP client software to end-users. Disabled features are then unavailable in the PGP Desktop user interface.

Policy>Internal User Policy

Setting Internal User Policy (on page Installations (on page

303)

245), Configuring PGP Desktop

Updated key reconstruction user interface. The PGP Desktop Key Reconstruction user interface has been significantly improved in this release. Primary new features include the ability to select and customize a set of provided questions, a visually more appealing experience, and a new Assistant to help guide the user through the process.

PGP Desktop

PGP Desktop User's Guide

Silent enrollment. Silent setup and enrollment enables pre-configured enrollment settings in PGP Universal-managed environments. PGP Desktop can now be deployed in most cases without installation or enrollment prompts other than the creation of a passphrase.

Policy>Internal User Policy

For more information

PGP Desktop Email

Changes in this release

Where to find

Setting Internal User Policy (on page Installations (on page

303)

245), Configuring PGP Desktop

MAPI support for PGP/MIME formatted messages. PGP Desktop and PGP Universal Satellite now provide the ability to encrypt PGP/MIME messages in Outlook clients using MAPI. PGP/MIME decryption has also been significantly improved in this area.

Microsoft CAPI integration. PGP Desktop and PGP Universal Satellite support the use of Microsoft Cryptographic Application Programming Interface (CAPI) credentials, enabling the user to make use of existing X.509 certificates directly from the Microsoft operating system certificate store. PGP Universal administrators can specify automatic enrollment of such certificates as well.

Out-of-the-mail-stream support. PGP Desktop and PGP Universal Satellite will selectively send email messages directly to the PGP Universal Server via a SOAP connection if required by policy, such that the server does not need to be in the mail stream to support Web Messenger or Smart Trailer functionality.

Policy>Internal User Policy>PGP Desktop

PGP Universal Server Introduction

For more information

Changes in this release

PGP NetShare

Changes in this release

Where to find

For more information

Changes in this release

Where to find

Configuring PGP Desktop Installations (on page

303)

Weak-cipher decryption. PGP products now decrypt S/MIME encoded messages encrypted with weak 40-bit RC2 encryption for backwards compatibility with older email clients. Additional warnings are added to messages decrypted using that algorithm. Note that PGP Desktop and PGP Universal Satellite will not encrypt using weak ciphers.

PGP NetShare per-folder administration. PGP NetShare administrative granularity has been extended to restrict administrator control to a perfolder level, thus limiting administrative access to exactly where it is needed.

Policy>Internal User Policy>PGP Desktop

Configuring PGP Desktop Installations (on page

303)

Whitelists and blacklists. Administrators can now centrally define PGP NetShare policy to protect files stored in specific directory locations, enforcing security policy without impacting user behavior. Conversely, administrators can also force specific directories to prevent encryption.

Policy>Internal User Policy>PGP Desktop

For more information

Changes in this release

Configuring PGP Desktop Installations (on page

Centralized PGP NetShare logging. Centralized logging on PGP Universal provides visibility into the activity of PGP NetShare deployments to satisfy management and auditing requirements.

Where to find

Reporting>Logs

PGP Whole Disk Encryption

Changes in this release

Where to find

For more information

Advanced centralized event logging. PGP Universal now provides

significantly expanded reporting on PGP Whole Disk Encryption usage on client systems. This logging feature itemizes events such as which systems have been encrypted, the progress of encryption or decryption for an individual system, errors encountered during encryption, the status of recovery tokens, removable storage usage, and failed/successful login attempts. Administrators can set thresholds that raise alerts in PGP Universal on the PGP Daily Status Email or dashboard screen after a configured number of failed logins has been exceeded.

Reporting>Graphs, Reporting>Logs

Managing Alerts (on page PGP Whole Disk Login Failure Data (on page

303)

92), System Graphs (on page 483), Exporting

385)

PGP Universal Server Introduction

Changes in this release

Where to find

For more information

Changes in this release

Where to find

Group administration access tokens. PGP Whole Disk Encryption admin

accounts can be added, allowing an administrator with a smart card key to override the BootGuard prompt. This key can be specified separately for each Internal User Policy. Using a single keypair copied to multiple smart cards (each with its own PIN), an organization can enable multiple administrators for each Policy.

Policy>Internal User Policy>PGP Desktop

Configuring PGP Desktop Installations (on page

303)

Domain administrator restart bypass. Windows System and Administrator account(s) may now engage a mode to bypass WDE authentication on the next restart by utilizing the privileges of the administration account to act as the authenticated user. This feature enables administrators to perform remote software installations requiring a restart of the target computer. Use of this feature is logged to the PGP Universal server.

Extended pre-boot smart card support. PGP Whole Disk Encryption has greatly expanded pre-boot authentication to a variety of smart cards.

Partition encryption deployment. Administrators in a PGP Universalmanaged environment may now configure encryption of only the boot partition or only Windows partitions rather than always encrypting entire disks.

Policy>Internal User Policy>PGP Desktop

For more information

Changes in this release

Where to find

For more information

Changes in this release

Where to find

For more information

Configuring PGP Desktop Installations (on page

303)

Customizable WDE BootGuard screens. Administrators in a PGP Universal-managed environment can configure the PGP Whole Disk Encryption boot screen to display the text and graphics of their choice.

Policy>Internal User Policy>PGP Desktop

Configuring PGP Desktop Installations (on page

303)

Lenovo laptop Recovery button. PGP Whole Disk Encryption now provides complete support for the Lenovo Rescue and Recovery software (version 3.x and 4.x) including using the “Access IBM” blue button for boot-level recovery of the OS even when the disk (or partition) is encrypted.

User Interface modifications for ADA compliance. As part of our expanding support for the Americans with Disabilities Act (ADA) standards for accessible design, the PGP WDE BootGuard screen has been modified to provide audible feedback when the screen is ready for user input, when a user types in an incorrect password, and when a user types a correct password. This audio feedback is optional, configurable using PGP Universal for managed clients.

Policy>Internal User Policy>PGP Desktop

Configuring PGP Desktop Installations (on page

303)

PGP Universal Server Introduction

Changes in this release

Microsoft Windows PE support. PGP Desktop provides administrators

with the ability to create a Windows PE (Preinstallation Environment) boot disk containing a subset of PGP Whole Disk Encryption. This bootable disc can be used to perform a variety of management and recovery tasks.

Changes in this release

Trusted Platform Module (TPM) support for PGP WDE. PGP Desktop

supports using the Trusted Platform Module as an additional authentication device for PGP Whole Disk Encryption if present on the motherboard and enabled via proper driver installation for your hardware. When use of the TPM is specified prior to encryption, the user can authenticate to the disk only on that particular machine, locking the disk to the machine hardware and thus deterring attacks such as hard disk theft. This feature works with passphrase users only and is compatible with the PGP WDE Single Sign-On feature.

Where to find

For more information

Policy>Internal User Policy>PGP Desktop

Configuring PGP Desktop Installations (on page

303)

Using the PGP Universal Server with the Command Line

Accessing the PGP Universal Server command line for read-only purposes (such as to view settings, services, logs, processes, disk space, query the database, etc) is supported. However, performing configuration modifications or customizations via the command line may void your PGP Support agreement unless the following procedures are followed. Any changes made to the PGP Universal Server via the command line must be:

Symbols

 Authorized in writing by PGP Support.  Implemented by a PGP Partner, reseller or internal employee who is

certified in the PGP Advanced Administration and Deployment Training.

 Summarized and documented in a text file in /etc/pso on the PGP Universal

Server itself.

Changes made through the command line may not persist through reboots and may be incompatible with future releases. PGP Support may also require reverting any custom configurations on the PGP Universal Server back to a default state when troubleshooting new issues.

Notes, Cautions, and Warnings are used in the following ways.

Note: Notes are extra, but important, information. A Note calls your attention

to important aspects of the product. You will be able to use the product better if you read the Notes.

PGP Universal Server Introduction

Caution: Cautions indicate the possibility of loss of data or a minor security

breach. A Caution tells you about a situation where problems could occur unless precautions are taken. Pay attention to Cautions.

Warning: Warnings indicate the possibility of significant data loss or a major

security breach. A Warning means serious problems will occur unless you take the appropriate action. Please take Warnings very seriously.

Getting Assistance

Getting product information

The following documents and on-line help are companions to the PGP Universal Administrator’s Guide. This guide occasionally refers to information that can be

found in one or more of the following sources:

 PGP Universal Upgrade Guide—Describes the process of upgrading your

PGP Universal Server to version 2.6.

 PGP Universal Mail Policy Diagram—Provides a graphical representation

of how email is processed through mail policy. You can access this document via the PGP Universal Server online help.

 Tutorials—Provides animated introductions on how to manage the mail

policy feature in PGP Universal Server 2.6, and how upgraded PGP Universal Server settings migrate into the new mail policy feature.

You can also access all the documentation and tutorials by clicking the online help icon in the upper-right corner of the PGP Universal Server screen.

 The administrative interface and PGP Universal Satellite for Windows and

Mac OS X include online help.

Refer to these sections for additional resources.

 PGP Universal Server and PGP Satellite release notes are also provided,

Once PGP Universal Server is released, additional information regarding the product is added to the online Knowledge Base available on PGP Corporation’s Support Portal (

Contact information

All PGP customers have access to the comprehensive set of tools and discussion forums available on the PGP Support Portal.

which may have last-minute information not found in the product documentation.

https://support.pgp.com).

PGP Universal Server Introduction

The PGP Support Portal provides access to tutorials, recent support briefs, the Knowledge Base, and other valuable technical information.

Contacting Technical Support

 To learn about PGP support options and how to contact PGP Technical

Support, please visit the PGP Corporation Support Home Page (

http://www.pgp.com/support).

 To access the PGP Support Knowledge Base or request PGP Technical

Support, please visit PGP Support Portal Web Site (

https://support.pgp.com). Note that you may access portions of the

PGP Support Knowledge Base without a support agreement; however, you must have a valid support agreement to request Technical Support.

 For any other contacts at PGP, please visit the PGP Contacts Page

http://www.pgp.com/company/contact/index.html).

(

 For general information about PGP Corporation, please visit the PGP Web

Site (

http://www.pgp.com).

 To access the PGP Support forums, please visit PGP Support

(

http://forums.pgpsupport.com). These are user community support forums

hosted by PGP Corporation.

The Big Picture

This chapter describes some important terms and concepts and gives you a high-level overview of the things you need to do to set up and maintain your PGP Universal Server environment.

In This Chapter

Important Terms.......................................................................................25

Installation Overview................................................................................29

Important Terms

PGP Products

 PGP Universal Server: A device you add to your network that provides

secure messaging with little or no user interaction. The PGP Universal Server automatically creates and maintains a security architecture by monitoring authenticated users and their email traffic. You can also send protected messages to addresses that are not part of the security architecture.

 PGP Universal Satellite: The PGP Universal Satellite software resides on

the computer of the email user. It allows email to be encrypted end to end, all the way to and from the desktop (for both internal and external users). Using PGP Universal Satellite is one of the ways for external users to participate in the SMSA. It also allows users the option of controlling their

PGP Universal Server Concepts

keys on their local machines (if allowed by the PGP administrator).

 Security Architecture: Behind the scenes, the PGP Universal Server

creates and manages its own security architecture for the users whose email domain it is securing. Because the security architecture is created and managed automatically, we call this a self-managing security architecture (SMSA).

PGP Universal Server The Big Picture

 keys.<domain> convention: PGP Universal Server automatically looks for

valid public keys for email recipients at a special hostname, if no valid public key is found locally to secure a message. This hostname is keys.<domain> (where <domain> is the email domain of the recipient). For example, Example Corporation’s externally visible PGP Universal Server is named keys.example.com.

PGP Corporation strongly recommends you name your externally visible PGP Universal Server according to this convention because it allows other PGP Universal Servers to easily find valid public keys for email recipients in your domain.

Refer to Naming your PGP Universal Server (on page information about this convention.

PGP Universal Server Features

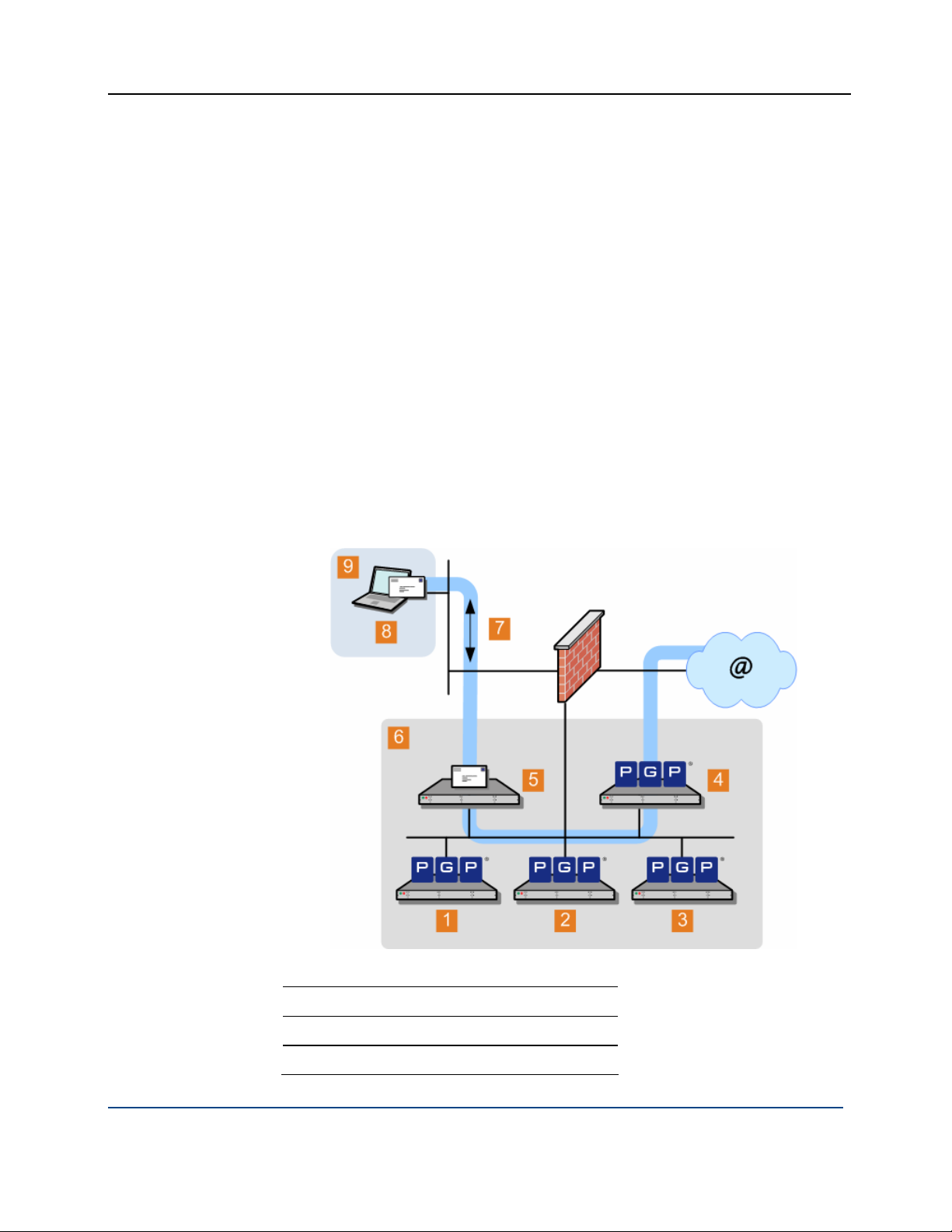

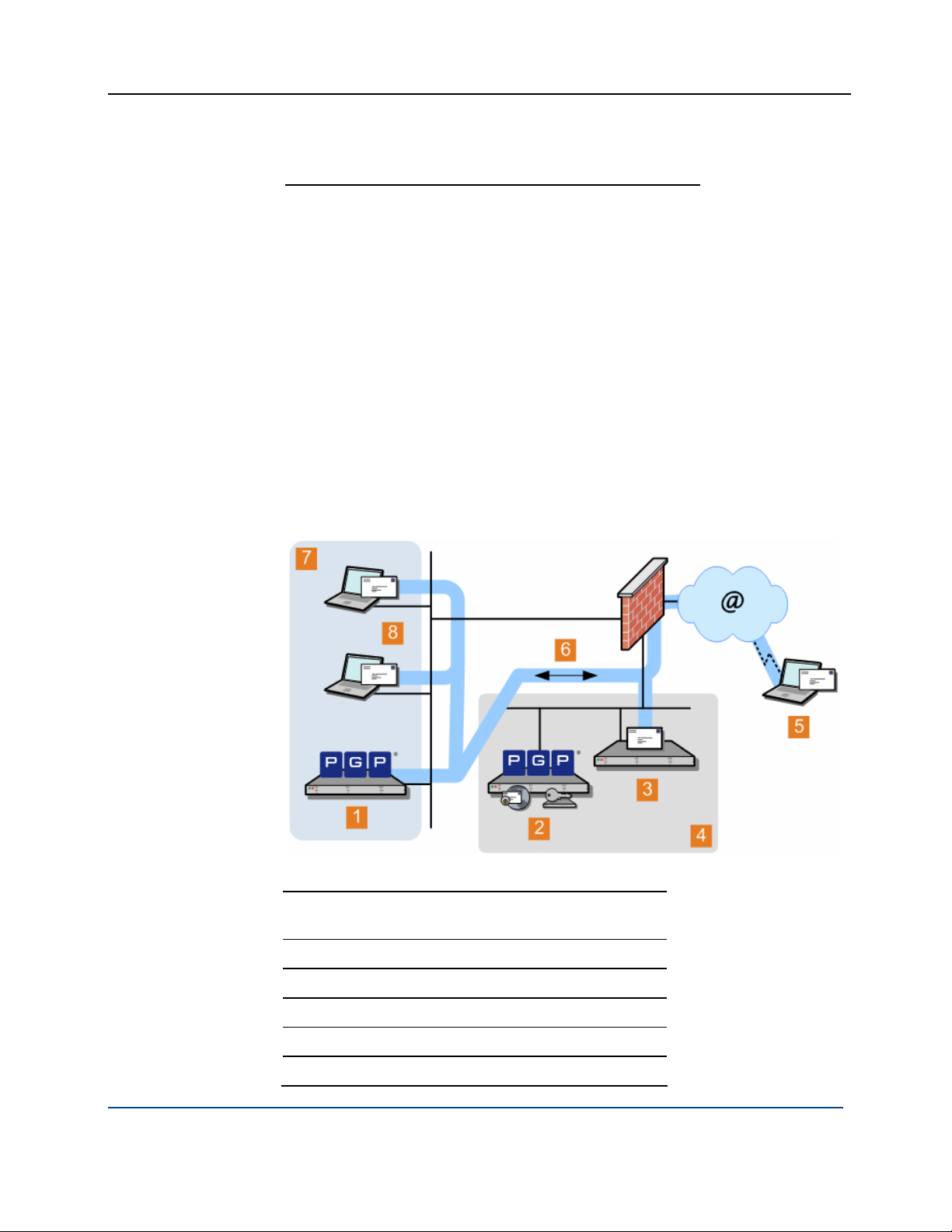

 Server Placement: A PGP Universal Server can be placed in one of two

locations in your network to process email.

With an internal placement, the PGP Universal Server logically sits between your email users and your mail server. It encrypts and signs outgoing SMTP email and decrypts and verifies incoming mail being picked up by email clients using POP or IMAP. Email stored on your mail server is stored secured (encrypted).

With a gateway placement, the PGP Universal Server logically sits between your mail server and the Internet. It encrypts and signs outgoing SMTP email and decrypts and verifies incoming SMTP email. Email stored on your mail server is stored unsecured.

Refer to Adding the PGP Universal Server to Your Network (on page and Configuring Mail Proxies (on page server placement.

 Administrative Interface: Each PGP Universal Server is controlled via a

Web-based administrative interface. The administrative interface gives you control over the PGP Universal Server’s operation. While many settings are initially established using the web-based Setup Assistant, all settings of a PGP Universal Server can be controlled via the administrative interface.

59) for more

35)

219) for more information about

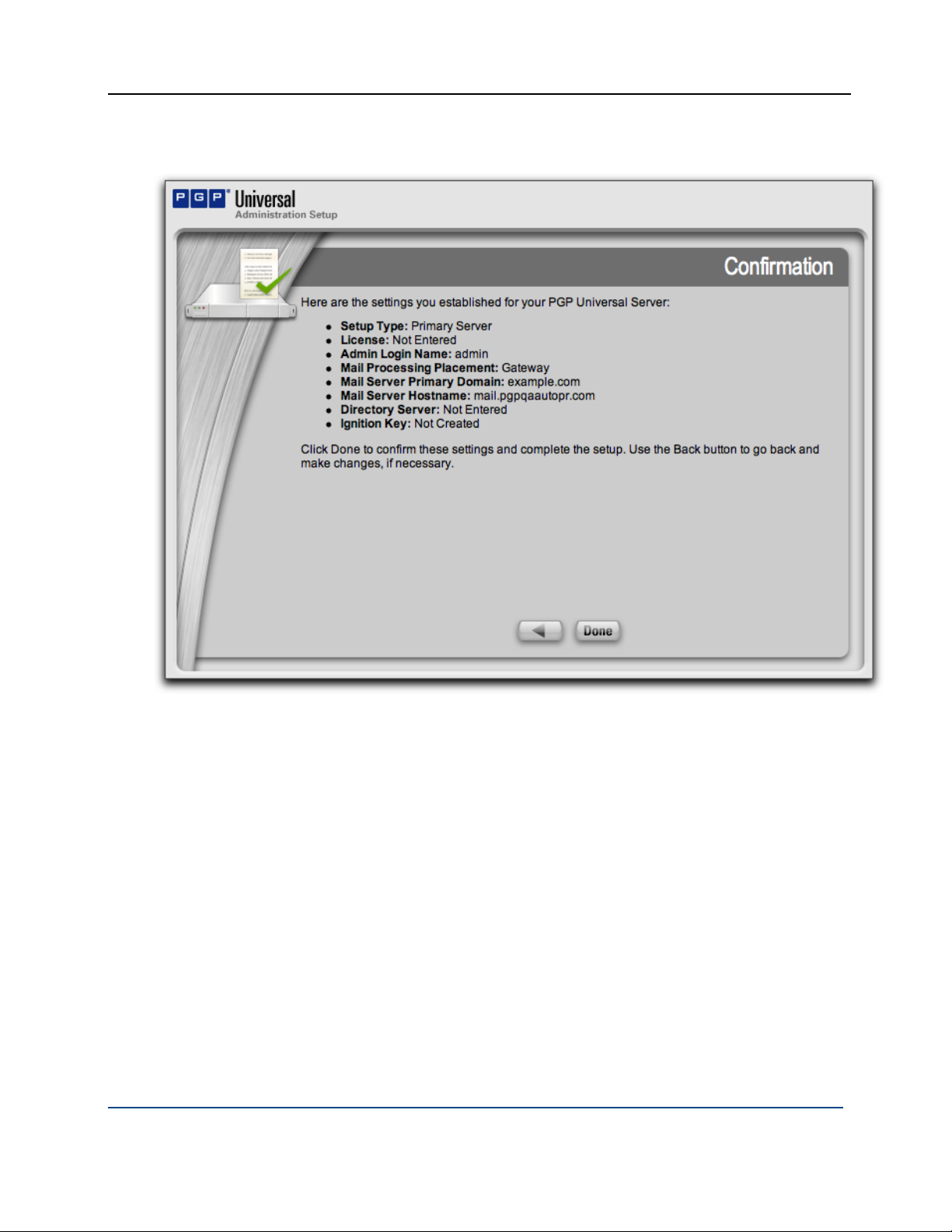

 Setup Assistant: When you attempt to log in for the first time to the

administrative interface of a PGP Universal Server, the Setup Assistant takes you through the configuration of that PGP Universal Server.

 Learn Mode: When you finish configuring a PGP Universal Server using

the Setup Assistant, it begins operation in Learn Mode, which is a special mode where the PGP Universal Server proxies traffic normally but does not encrypt or sign any messages.

PGP Universal Server The Big Picture

Learn Mode gives the PGP Universal Server a chance to build its SMSA (creating keys for authenticated users, for example) so that when it goes live — that is, when Learn Mode is turned off — the PGP Universal Server knows the environment and can immediately begin securing messages. It’s also an excellent way for PGP administrators to learn about the product.

You should check the logs of the PGP Universal Server while it is in Learn Mode to see what it would be doing to email traffic if it were live on your network. You can make changes to the PGP Universal Server’s policies while it is in Learn Mode until things are working as expected.

 Mail Policy: The PGP Universal Server processes email messages based

on the policies you establish. Mail policy applies to inbound and outbound email for both PGP Universal Server traffic and email processed by PGP client software. Mail policy consists of multiple policy chains, comprised of sequential mail processing rules.

 Dictionary: Dictionaries are lists of terms to be matched. The dictionaries

work with mail policy to allow you to define content lists that can trigger rules.

 Cluster: When you have two or more PGP Universal Servers in your

network, you configure them to synchronize with each other; this is called a “cluster.”

In a cluster, one PGP Universal Server is designated Primary for the cluster; all other PGP Universal Servers in the cluster are designated Secondary. The Secondary servers synchronize their users, keys, managed domains, and policies with the Primary.

 Organization Key: The Setup Assistant automatically creates an

Organization Key (actually a keypair) when it configures a PGP Universal Server. The Organization Key is used to sign all PGP user keys the PGP Universal Server creates and to encrypt PGP Universal Server backups.

Caution: It is extremely important to back up your Organization Key: all of the

keys the PGP Universal Server creates are signed by the Organization Key, and all backups are encrypted to the Organization Key. If you lose your Organization Key and have not backed it up, the signatures on those keys will be meaningless and you will not be able to restore from backups encrypted to the Organization Key.

If your organization has one PGP Universal Server, back up the Organization Key from that PGP Universal Server; if you have multiple PGP Universal Servers in a cluster, back up the Organization Key from the Primary server in the cluster, as this Organization Key will be synchronized with the Secondary servers in the cluster.

 Organization Certificate: You must create or obtain an Organization

Certificate to enable S/MIME support by PGP Universal Server. The Organization Certificate signs all X.509 certificates the server creates.

PGP Universal Server The Big Picture

 Directory Synchronization: If you have an LDAP directory in your

organization, your PGP Universal Server can be synchronized with this directory. The PGP Universal Server will automatically import user information from the directory when users send and receive email; it will also create internal user accounts for them, including adding and using X.509 certificates if they are contained in the LDAP directory.

 Keyserver: Each PGP Universal Server includes an integrated keyserver

populated with the public keys of your internal users. When an external user sends a message to an internal user, the external PGP Universal Server will go to the keyserver to find the public key of the recipient to use to secure the message. The PGP administrator can enable or disable the service, and control access to it via the administrative interface.

 PGP Verified Directory: The PGP Verified Directory supplements the

internal keyserver by letting internal and external users manage the publishing of their own public keys. The PGP Verified Directory also serves as a replacement for the PGP Keyserver product. The PGP Verified Directory uses next-generation keyserver technology to ensure that the keys in the directory can be trusted.

 Backup and Restore: Because full backups of the data stored on your PGP

Universal Server are critical in the case of a natural disaster or other unanticipated loss of data or hardware, you can schedule automatic backups of your PGP Universal Server data or manually perform a backup.

Naturally, you can fully restore a PGP Universal Server from a backup. In the event of a minor problem, you can restore the PGP Universal Server to any saved backup. In the event that a PGP Universal Server is no longer usable, you can restore its data from a backup onto a new PGP Universal Server during initial setup of the new PGP Universal Server using the Setup Assistant. All backups are encrypted to the Organization Key and may thus be stored securely off the PGP Universal Server.

 Ignition Keys: You can protect the contents of a PGP Universal Server,

even if the hardware is physically stolen, by requiring the use of a hardware token or a software passphrase, or both, on start.

PGP Universal Server User Types

 Internal and External Users: Internal users are email users from the

domains being managed by your PGP Universal Server; external users are email users from other domains (domains not being managed by your PGP Universal Server) who have been added to the SMSA.

 Multiple Administrators: Only PGP administrators are allowed to access

the administrative interface that controls PGP Universal Server. A PGP Universal Server supports multiple PGP administrators, each of which can be assigned one of five levels of authority: from read-only access to full control over every feature and function.

PGP Universal Server The Big Picture

 Management of PGP Desktop Users: PGP Universal Servers allow you to

manage PGP Desktop deployments to your internal users. The PGP administrator can control which PGP Desktop features are automatically implemented at install, and establish and update mail security policy for PGP Desktop users that those users cannot override (except on the side of being more secure).

 Other Email Users: Users within your organization can securely send

email to recipients outside the SMSA.

First, the PGP Universal Server will attempt to find a key for the recipient. If that fails, there are four fallback options, all controlled by mail policy: bounce the message back to the sender (so it’s not sent unencrypted), send unencrypted, Smart Trailer, and PGP Universal Web Messenger mail.

Smart Trailer sends the message unencrypted and adds text giving the recipient the option of joining the SMSA by installing PGP Universal Satellite, using an existing key or certificate, or using PGP Universal Web Messenger. PGP Universal Web Messenger lets the recipient securely read the message on a secure website; it also gives the recipient options for handling subsequent messages from the same domain: read the messages on a secure website using a passphrase they establish, install PGP Universal Satellite, or add an existing key or certificate to the SMSA.

Installation Overview

The following steps are a broad overview of what it takes to plan, set up, and maintain your PGP Universal Server environment.

All of the steps described briefly here are described in detail in later chapters.

1 Plan where in your network you want to locate your PGP Universal

Server(s).

Where you put PGP Universal Servers in your network, how many PGP Universal Servers you have in your network, and other factors all have a major impact on how you add them to your existing network.

It’s a good idea to create a diagram of your network that includes all network components and shows how email flows; having this diagram may help you understand how adding a PGP Universal Server will impact your network.

Refer to Adding the PGP Universal Server to Your Network (on page information that will help you plan how to add PGP Universal Servers to your existing network.

2 Perform necessary DNS changes.

Add IP addresses for your PGP Universal Servers, an alias to your keyserver, update the MX record if necessary, add keys.<domain>, hostnames of potential Secondary servers for a cluster, and so on.

35) for

PGP Universal Server The Big Picture

Properly configured DNS settings (including root servers and appropriate reverse lookup records) are required in all cases to support PGP Universal Server. Make sure both host and pointer records are correct. IP addresses must be resolvable to hostnames, as well as hostnames resolvable to IP addresses.

3 Prepare a hardware token Ignition Key.

If you want to add a hardware token Ignition Key during setup, install the drivers and configure the token before you begin the PGP Universal Server setup process. See Protecting PGP Universal Server with Ignition Keys (on

531) for information on how to prepare a hardware token Ignition Key.

page

4 If you are going to have more than one PGP Universal Server in your

network, install and configure the Primary server of the cluster first.

The Setup Assistant runs automatically when you first access the administrative interface for the PGP Universal Server.

To configure the Secondary servers in the cluster, you must configure the Primary server first and then add the Secondary servers on the Primary server before you can actually configure the Secondary servers.

Refer to Setting Up the PGP Universal Server (on page

65) for more

information on the Setup Assistant.

5 License your Primary server.

You cannot take a PGP Universal Server out of Learn Mode or install updates until the product is licensed. Once it is licensed, you should check for product updates and install them if found. See Licensing Your Software (on page

101) for more information.

If you want the PGP Universal Server to provide mail proxy services, you must have a PGP Universal Server license with the mailstream feature enabled. See Licensing Your Software (on page

101) for more information.

6 If you have a PGP key you want to use as your Organization Key with

PGP Universal Server, import it and then back it up on your Primary server.

Your Organization Key does two important things: it is used to sign all user keys the PGP Universal Server creates and it is used to encrypt PGP Universal Server backups. This key represents the identity of your organization, and is the root of the Web-of-Trust for your users.

If your organization uses PGP Desktop and already has an Corporate Key or Organization Key, and you want to use that key with PGP Universal Server, you should import it as soon as you have configured your Primary server and then create a backup of the key.

If your organization does not have an existing key that you want to use as your Organization Key, use the Organization Key the Setup Assistant automatically creates with default values. See Managing Organization Keys (on page

113) for more information.

PGP Universal Server The Big Picture

No matter which key you use as your Organization Key, it is very important to make a backup of the key in case of a problem with your PGP Universal Server. Since PGP Universal Server’s built-in back-up feature always encrypts backups to this key, you will need to provide a copy of your Organization Key to restore your data.

Refer to Organization Certificate (on page

119) for more information on

Organization Certificates.

7 If you have a PGP Additional Decryption Key (ADK) that you want to

use with PGP Universal Server, add it on your Primary server.

An ADK is a way to recover an email message if the recipient is unable or unwilling to do so; every message that is also encrypted to the ADK can be opened by the holder(s) of the ADK. You cannot create an ADK with the PGP Universal Server, but if you have an existing PGP ADK (generated by PGP Desktop, an ideal scenario for a split key; refer to the PGP Desktop User’s Guide for more information), you can add it to your PGP Universal Server and use it. You can only have one ADK. Refer to Additional Decryption Key (ADK) (on page

125) for more information.

8 Create a SSL/TLS certificate or obtain a valid SSL/TLS certificate.

You can create a self-signed certificate for use with SSL/TLS traffic. Because this certificate is self signed, however, it may not be trusted by email or Web browser clients. PGP Corporation recommends that you obtain a valid SSL/TLS certificate for each of your PGP Universal Servers from a reputable Certificate Authority, such as GeoTrust, available at the PGP Online Store (

www.pgpstore.com).

This is especially important for PGP Universal Servers that will be accessed publicly. Older Web browsers may reject self-signed certificates or not know how to handle them correctly when they encounter them via PGP Universal Web Messenger or Smart Trailer.

Refer to Working with Certificates (on page

514) for more information.

9 Add trusted keys, configure internal and external user policy, and

establish mail policy.

All of these settings are important for secure operation of PGP Universal Server. Refer to Managing Trusted Keys and Certificates (on page

133) for information on adding trusted keys from outside the SMSA. Read Setting Internal User Policy (on page

245) and Setting External User Policy (on page

339) for information about user policy settings. See Setting Mail Policy (on page

145) to learn about setting up mail policy.

10 Configure the Directory Synchronization feature if you want to

synchronize an LDAP directory with your PGP Universal Server.

Using the Directory Synchronization feature gives you more control over who is included in your SMSA, if you have an existing LDAP server.

PGP Universal Server The Big Picture

If you are going to use the Directory Synchronization feature, it’s best to configure it before you install and configure your Secondary servers. Refer to Using Directory Synchronization to Manage Users (on page

285) for

more information about the Directory Synchronization feature.

11 Install and configure the Secondary servers.

The Setup Assistant runs automatically when you first access a PGP Universal Server. Remember that you must configure the Primary server in the cluster first and tell it about the Secondary servers before you can configure them. See Clustering your PGP Universal Servers (on page

523)

to learn more about Clustering.

12 Reconfigure the settings of your email clients and servers, if

necessary.

Depending on how you are adding the PGP Universal Server to your network, some setting changes may be necessary. For example, if you are using a PGP Universal Server placed internally, the email clients must have SMTP authentication turned on. For PGP Universal Servers placed externally, you must configure your mail server to relay SMTP traffic to the PGP Universal Server.

13 Enable SNMP Polling and Traps.

You can configure PGP Universal Server to allow network management applications to monitor system information for the device on which PGP Universal Server is installed and to send system and application information to an external destination. See Configuring SNMP Monitoring (on page for more information.

14 Distribute PGP Universal Satellite and/or PGP Desktop to your

internal users, if appropriate.

If you want to provide seamless, end-to-end PGP message security without the need for any user training, have them use PGP Universal Satellite. Exchange/MAPI and Lotus Notes environments also require the use of PGP Universal Satellite. PGP Desktop provides more features and user control than PGP Universal Satellite. Refer to PGP Universal Satellite (on page and Configuring PGP Desktop Installations (on page

303) for more

information.

15 Analyze the data from Learn Mode.

In Learn Mode, your PGP Universal Server monitors email traffic and dynamically creates a SMSA; in fact, it does everything it would ordinarily do except encrypt and sign. You can see what the PGP Universal Server would have done without Learn Mode by monitoring the system logs.

Learn Mode lets you become familiar with how the PGP Universal Server operates and it lets you see the effects of the policy settings you have established before the PGP Universal Server actually goes live on your network. Naturally, you can fine tune settings while in Learn Mode, so that the PGP Universal Server is operating just how you want before you go live.

503)

419)

PGP Universal Server The Big Picture

See Operating in Learn Mode (on page 105) for more information.

16 Adjust policies as necessary.

It may take a few tries to get everything working just the way you want. For example, you may decide to revise your mail policy.

17 Perform backups of all PGP Universal Servers before you take them

out of Learn Mode.

This gives you a baseline backup in case you need to return to a clean installation. To learn how to back up the PGP Universal Server, refer to Backing Up and Restoring System and User Data (on page

537) for more

information.

18 Take your PGP Universal Servers out of Learn Mode.

Once this is done, email messages will be encrypted, signed, and decrypted/verified, according to the relevant policy rules. Make sure you have licensed each of your PGP Universal Servers; you cannot take a PGP Universal Server out of Learn Mode until it has been licensed.

19 Monitor the system logs to make sure your PGP Universal Server

environment is operating as expected.

Adding the PGP Universal

Server to Your Network

This chapter provides information about how your PGP Universal Server processes email, to help you decide how to integrate your PGP Universal Servers into your existing network. It also includes information about using Microsoft Exchange Server and Lotus Domino Server with PGP Universal Satellite.

These topics are covered in the following sections:

In This Chapter

Server Placement .................................................................................... 35

Using a Mail Relay ................................................................................... 38

Microsoft Exchange Server ..................................................................... 38

Lotus Domino Server............................................................................... 39

Configuration Examples........................................................................... 39

Server Placement

A PGP Universal Server can be placed in your network in either of two locations in the logical flow of data:

 Internal placement. The PGP Universal Server is located between your

 Gateway placement. The PGP Universal Server is located between your

Caution: The PGP Universal Server must not be behind a proxy server,

unless it is a transparent proxy, to receive licensing and update information automatically. This is true for both gateway and internal placement.

email users and their local mail server in the logical flow of data.

external facing mail server and the Internet in the logical flow of data.

PGP Universal Server Adding the PGP Universal Server to Your Network

Gateway Placement

With a gateway placement, your PGP Universal Server sits between your mail server and the Internet in the logical flow of data.

PGP Universal Server gateway placement

Example Corp. DMZ

External email user

Logical flow of data

Example Corp. internal network

Example Corp. email users

Example Corp. email server

Note: The physical location of the PGP Universal Server and the mail server

are not important. What is important is that, from a mail relay point of view, the PGP Universal Server is between the mail server and the Internet. Both could be on the internal network or in the DMZ.

With a gateway placement, email messages are secured before they are sent to the Internet (on the way to their destination) and decrypted/verified when received from the Internet, over SMTP in both cases.

Be sure to require authentication of incoming mail, or you risk creating an open relay.

PGP Universal Server Adding the PGP Universal Server to Your Network

Note: Email users on your internal network should not be allowed direct

access to a PGP Universal Server in gateway placement. PGP Universal Server will attempt to enforce this automatically based on your configuration. The mail server should also be configured to verify From addresses if you intend to use the signing features of PGP Universal Server.

With a gateway placement, messages are stored unsecured on the mail server (unless PGP Universal Satellite is being used).

For PGP Universal Server to create the SMSA, you must make sure to correctly configure your mail server when you are using PGP Universal Servers in gateway placements.

Internal Placement

With an internal placement, your PGP Universal Server sits between your email users and their email server in the logical flow of data.

PGP Universal Server internally placed

Example Corp. email server

Example Corp. DMZ

External email user

Logical flow of data

Example Corp. internal network

Example Corp. email users

PGP Universal Server Adding the PGP Universal Server to Your Network

Note: The physical location of the PGP Universal Server and the mail server

are not important. What is important is that, from a mail relay point of view, the PGP Universal Server is between the email users and the mail server. Both could be on the internal network or in the DMZ. From a performance perspective, it is generally advisable to put them next to each other on the same network.

With an internal placement of your PGP Universal Server, messages are secured based on the applicable policies when they are sent to the mail server using SMTP; they are decrypted and verified when they are retrieved from the mail server using POP or IMAP.

With an internal placement, messages are stored secured on the mail server. Messages are only transmitted unencrypted between the internal user and the PGP Universal Server, and then only if PGP Universal Satellite has not been deployed globally to your internal users. If your mail server is configured for SSL/TLS communications with the email client, the messages can be passed through that encrypted channel thus maintaining encryption along the entire path.

For PGP Universal Server to create the SMSA, email clients must have SMTP authentication turned on when they are communicating with a PGP Universal Server in an internal placement.

Using a Mail Relay

PGP Universal Server can forward outgoing email, after processing, to a central mail gateway acting as a mail relay. Sites that use explicit mail routing can use the mail relay feature to forward outgoing email to a mail relay that performs this explicit routing.

You cannot configure the mail relay when you initially configure the server using the Setup Assistant. Instead, you have to configure the server for gateway placement and then use the administrative interface to configure the mail relay.

Configure the relay on the Outbound or Unified SMTP proxy. Refer to Creating New or Editing Existing Proxies (on page

Microsoft Exchange Server

Messaging Application Programming Interface (MAPI) support is available for Microsoft Exchange Server environments by using PGP Desktop or PGP Universal Satellite for Windows. MAPI support is not available in PGP Universal Satellite for Mac OS X because there are no MAPI email clients for Mac OS X.

For more information about using MAPI, see Exchange with PGP Client Software (on page

52) and MAPI Support (on page 458).

224) for more information.

PGP Universal Server Adding the PGP Universal Server to Your Network

Lotus Domino Server

Lotus Domino Servers and the Lotus Notes email client (versions 5.x and above) are supported in PGP Desktop and PGP Universal Satellite for Windows.

For more information about using the Lotus Notes email client, see Lotus Domino Server with PGP Client Software (on page (on page

461).

53) and Lotus Notes Support

Configuration Examples

This section shows and describes potential configurations for PGP Universal Server:

 Internal Placement Configuration (on page  Gateway Placement Configuration (on page  Non-mailstream Placement Configuration (on page  Cluster Configuration (on page

43)

 Clustered Proxy and Keyserver Configuration (on page  Gateway Cluster with Load Balancer (on page  Gateway and Internal Placement Cluster (on page  Encircled Configuration (on page

49)

 Large Enterprise Configuration (on page  Spam Filters and PGP Universal Server (on page  Exchange with PGP Client Software (on page  Lotus Domino Server with PGP Client Software (on page  Unsupported Configurations (on page

40)

41)

42)

44)

46)

47)

50)

51)

52)

53)

PGP Universal Server Adding the PGP Universal Server to Your Network

Internal Placement Configuration

In this example, Example Corporation has one main office but wants to support external email users.

PGP Universal Server internally placed

Example Corp. email server

External email user

Logical flow of data

Example Corp. internal network

Example Corp. email users

Settings for 1: Notes

Server type: Primary

Mail processing: Internal placement

Hostname: mail.example.com

Mail server: mail-1.example.com

Change mail.example.com to mail-

1.example.com and the PGP Universal Server becomes mail.example.com.

End users may require no changes to their configuration; SMTP Authentication may need to be enabled for end users.

IP Address, Subnet Mask, Gateway, and DNS Servers: As appropriate

Create a DNS alias for keys.example.com to also point to the PGP Universal Server.

By placing the server in the DMZ, the company can use an internal placement (which means its messages are encrypted even while on its mail server) and still support external email users via Smart Trailers, PGP Universal Web Messenger mail, or PGP Universal Satellite.

PGP Universal Server Adding the PGP Universal Server to Your Network

Gateway Placement Configuration

In this example, Example Corporation has its PGP Universal Server in a gateway placement.

PGP Universal Server gateway placement

Example Corp. DMZ

External email user

Logical flow of data

Example Corp. internal network

Example Corp. email users

Example Corp. email server

Settings for 1: Notes:

Server type: Primary

Mail processing: Gateway placement

Hostname: mail-gw.example.com

Mail server: mail.example.com

Add or modify the MX record for example.com to point to PGP Universal Server’s IP address on mail-gw.example.com.

Also in DNS, create an alias keys.example.com that points to

IP Address, Subnet Mask, Gateway, and DNS Servers: As appropriate

mail-gw.example.com.

Mail server must be configured to relay through the PGP Universal Server.

Gateway placement also supports external email users via Smart Trailers or PGP Universal Web Messenger mail.

PGP Universal Server Adding the PGP Universal Server to Your Network

Non-mailstream Placement Configuration

In this example, Example Corporation has a PGP Universal Server placed outside the mailstream. The PGP Universal Server integrates with PGP Desktop to provide automated user enrollment and real-time end-user security policy management. This is a common configuration for a PGP Universal Server managing client installations without PGP Gateway Email.

PGP Universal Server policy/management

Example Corp. email server

Example Corp. DMZ

External email user

Logical flow of data

Example Corp. internal network

Example Corp. PGP Desktop & email users

Settings for 1: Notes:

Server type: Primary

Mail processing: None

PGP Universal Server is outside of mailstream.

All encryption, decryption, signing, and

IP Address, Subnet Mask, Gateway, and DNS Servers: As appropriate

verification is done through PGP Desktop.

PGP Universal Server Adding the PGP Universal Server to Your Network

Cluster Configuration

In this example, Example Corporation has a cluster, with multiple PGP Universal Servers proxying messages on its internal network, and another server in the DMZ that performs keyserver and PGP Universal Web Messenger functions only.

PGP Universal Server Keyserver/Web Messenger

Example Corp. email server

Logical flow of data

Example Corp. internal network

Manufacturing - PGP Universal Server internally placed

Development - PGP Universal Server internally placed

Administration - PGP Universal Server internally

Example Corp. DMZ

PGP Universal Server Adding the PGP Universal Server to Your Network

Notes:

One internally placed PGP Universal Server configured as Primary in the Cluster; the other and the keyserver configured as Secondary.

Mail server does not relay through the keyserver PGP Universal Server.

Cluster port (444) on firewall between the internally placed servers and the keyserver must be opened.

No mail proxies configured on the keyserver.

Clustered Proxy and Keyserver Configuration

In this example, Example Corporation has a cluster, with one PGP Universal Server proxying messages on its internal network, and another server in the DMZ that performs keyserver and PGP Universal Web Messenger functions only.

PGP Universal Server internally placed

PGP Universal Server Keyserver/Web Messenger

Example Corp. email server

Example Corp. DMZ

External email user

Logical flow of data

Example Corp. internal network

PGP Universal Server Adding the PGP Universal Server to Your Network

Example Corp. email users

Settings for 1: Settings for 2:

Server type: Primary

Server type: Secondary

Mail processing: Internal placement

Hostname: mail.example.com

Mail server: mail-1.example.com

IP Address, Subnet Mask, Gateway, and

Mail processing: Disabled

Hostname: keys.example.com

IP Address, Subnet Mask, Gateway, and DNS Servers: As appropriate

DNS Servers: As appropriate

Notes:

mail.example.com becomes mail-1.example.com. PGP Universal Server becomes mail.example.com.

Mail server does not relay through 2.

Cluster port (444) on firewall between the two servers must be opened.

To support external users via PGP Universal Web Messenger, Example Corp. could also designate the keyserver as a PGP Universal Web Messenger server.

PGP Universal Server Adding the PGP Universal Server to Your Network

Gateway Cluster with Load Balancer

In this example, Example Corporation is using an F5 BIG-IP load balancer to handle address rotation between the PGP Universal Servers in the cluster, ensuring that traffic goes through all of them.

F5 BIG-IP Load Balancer

PGP Universal Server 1

PGP Universal Server 2

PGP Universal Server 3

Logical flow of data

Example Corp. internal network

Example Corp. email user

Example Corp. DMZ

Example Corp. email server

PGP Universal Server Adding the PGP Universal Server to Your Network

Settings for 1: Settings for 2:

Virtual server for trusted interface: cluster-gw-internal.example.com

Virtual server addresses: Trusted

interfaces for hosts 2, 3, and 4, port 25

Virtual server for untrusted interface: cluster-gw.example.com

Virtual server addresses: Untrusted

interfaces for hosts 2, 3, and 4, ports

Server type: Primary

Mail processing: Gateway placement

Hostname: cluster1- gw.example.com

Mail server: mail.example.com

IP Address, Subnet Mask, Gateway, and DNS Servers: As appropriate

25 and 389

IP Address, Subnet Mask, Gateway, and DNS Servers: As appropriate

Settings for 3:

Server type: Secondary

Hostname: cluster2- gw.example.com

IP Address, Subnet Mask, Gateway, and DNS Servers: As appropriate

Notes:

Add DNS MX record that points to cluster-gw.example.com.

Also in DNS, create an alias from cluster-gw.example.com to keys.example.com.

The mail server must be reconfigured to relay through

cluster-gw-internal.example.com.

Gateway and Internal Placement Cluster

You can have a cluster that includes both a PGP Universal Server internally placed and a PGP Universal Server in a gateway placement managing a single mail server, but you should carefully consider why you need both at a single location.

Settings for 4:

Server type: Secondary

Hostname: cluster3- gw.example.com

IP Address, Subnet Mask, Gateway, and DNS Servers: As appropriate

One good reason would be for the PGP Universal Server in gateway placement to act exclusively as a keyserver or as a PGP Universal Web Messenger server, while the PGP Universal Server(s) internally placed handles message processing.

PGP Universal Server Adding the PGP Universal Server to Your Network

The most common usage for this configuration is when you have internal MAPI clients running PGP Universal Satellite in addition to non-MAPI clients using POP, IMAP, and SMTP. In such a scenario, those using standards-based protocols connect to the internally placed PGP Universal Server while the PGP Universal Server in gateway placement ensures proper handling of PGP Universal Web Messenger and Smart Trailer messages for the MAPI clients.

PGP Universal Server gateway placed

Example Corp. DMZ

External email user

Example Corp. internal network

PGP Universal Server internally placed

Example Corp. email users

Example Corp. email server

Notes:

If the same user sends messages from different locations (such as from the internal network using a desktop computer and then from a remote location using a laptop), they may create multiple user accounts and/or keys.

The Primary server is internally placed, with PGP Universal Web Messenger disabled. The Secondary server is in the DMZ, in gateway placement, with PGP Universal Web Messenger enabled.

PGP Universal Server Adding the PGP Universal Server to Your Network

Encircled Configuration

Using PGP Universal Server in an encircled configuration is an alternative to placing two PGP Universal Servers in a clustered internal/gateway placement, when you have internal MAPI clients running PGP Universal Satellite in addition to non-MAPI clients using POP, IMAP, and SMTP.

PGP Universal Server internally placed

Example Corp. email server

Example Corp. DMZ

External email user

Example Corp. internal network

Example Corp. email users

Settings for 1: Notes:

Server type: Primary

Mail processing: Internal placement

Add DNS MX record that points to mail.example.com.

Optional: to hide internal PGP Universal

Hostname: mail.example.com

Mail server: mail-1.example.com

Server IP from outside, use 2nd IP in the DMZ.

IP Address, Subnet Mask, Gateway, and DNS Servers: As appropriate

PGP Universal Web Messenger and keyserver functionality enabled

PGP Universal Server Adding the PGP Universal Server to Your Network

Large Enterprise Configuration

As a large enterprise, Example Corporation has a sophisticated network that includes multiple PGP Universal Servers that are load balanced, PGP Universal Satellite users, a separate PGP Universal Server for PGP Universal Web Messenger and keyserver support, and a standalone Mail Transfer Agent (MTA).

10, 11

PGP Universal Server Keyserver/Web Messenger

Example Corp. DMZ

Example Corp. email server

F5 BIG-IP Load Balancer

PGP Universal Server 1

PGP Universal Server 2

PGP Universal Server 3

MTA

Example Corp. internal network

Example Corp. email user with PGP Universal Satellite

PGP Universal Server Adding the PGP Universal Server to Your Network

The company uses its MTA to perform static email routing and to establish rules that govern which email messages are processed by PGP Universal Server and which are not. Naturally, the features of the MTA being used govern what it can be used for.

Note: PGP Corporation does not recommend any specific MTA for use with

PGP Universal Server. Make sure the MTA you decide to use is correctly configured for use with PGP Universal Server.

Spam Filters and PGP Universal Server

Example Corporation has both a content-based and a Realtime Blackhole List (RBL) spam filter that it wants to use in conjunction with its PGP Universal Server. (An RBL is a list of servers that are known to send out spam or to be open relays.)

The company is careful to locate the respective spam filters in the appropriate locations in the logical flow of data and to configure them correctly.

PGP Universal Server internally placed

Example Corp. email user

Content-based spam filter

PGP Universal Server internally placed

Example Corp. email server

RBL-based spam filter

PGP Universal Server in gateway placement

Example Corp. email user

Example Corp. email server

Content-based spam filter

PGP Universal Server externally placed

RBL-based spam filter

PGP Universal Server Adding the PGP Universal Server to Your Network

Notes:

The content-based spam filter sits between the internal email users and the PGP Universal Server in the logical flow of data so that messages are decrypted before they are checked for spam. This allows even PGP Universal Server–encrypted messages to be checked. Other SMTP filtering devices (such as a standalone antivirus gateway, for example) would be placed in the same location.

Both spam filters must be correctly configured. For example, the content-based spam filter must not treat the PGP Universal Server as a “trusted mail relay” to avoid creating an open relay; this requirement could mean the spam filter must disable its reverse MX lookups feature.

For the gateway placement scenario, the content-based spam filter must be configured on the PGP Universal Server as a mail server. This is done on the inbound or Unified SMTP proxy.

With an internal placement, the content-based spam filter is not filtering SMTP, only POP/IMAP, so no special configuration on the PGP Universal Server is required.

As an alternative configuration, Example Corporation could put both spam filters between its PGP Universal Server and its firewall in the logical flow of data. Although PGP Universal Server–encrypted messages would still be scanned for spam, because they would not yet be decrypted, it is unlikely that any spam would be found.

This alternative configuration would catch any spam that was not in a PGP Universal Server–encrypted message, however. So it would be effective if Example Corp. assumes that its PGP Universal Server–encrypted messages are free of spam or if another factor requires the content-based spam filter to be in this location; for example, if the content-based spam filter requires the use of reverse MX lookups.

Caution: If Example Corporation began receiving encrypted spam, it could

relocate its content-based spam filter to sit between its internal email users and its PGP Universal Server, or it could add another content-based spam filter there. Because spam encryption is CPU-intensive and therefore inefficient, it is unlikely that Example Corporation would receive any.

Exchange with PGP Client Software

Microsoft Exchange Server environments (MAPI) are supported in PGP Desktop and PGP Universal Satellite for Windows for both internal and external PGP Universal Server users.

For more information about Microsoft Exchange Server environments and MAPI support, refer to MAPI Support (on page

458).

PGP Universal Server Adding the PGP Universal Server to Your Network

Lotus Domino Server with PGP Client Software

Lotus Domino Server environments, including the Lotus Notes email client, are supported in PGP Desktop and PGP Universal Satellite for Windows for both internal and external PGP Universal Server users.

For more information about Lotus Domino Server environments and Lotus Notes email client support, refer to Lotus Notes Support (on page

461).

Unsupported Configurations

Not every PGP Universal Server deployment scenario is a supported

Multiple Gateway–Placed Servers

configuration.

You cannot have multiple PGP Universal Servers operating in gateway placements in one DMZ.

PGP Universal Server 1

PGP Universal Server 2

PGP Universal Server 3

PGP Universal Server 4

PGP Universal Server Adding the PGP Universal Server to Your Network

Acmecorp email server

Example Corp. DMZ

Logical flow of data

Example Corp. email user

Example Corp. internal network

Notes:

This configuration will not work as expected because the mail server will only route outbound email through one of the PGP Universal Servers.

You can use load balancing to achieve a similar result; refer to Gateway Cluster with Load Balancer (on page

46) for more information.

Open Ports

This chapter lists and describes the ports a PGP Universal Server has open and on which it is listening.

All of the protocols listed are described in the Glossary.

In This Chapter

TCP Ports................................................................................................. 55

UDP Ports ................................................................................................ 57

TCP Ports

Port Protocol/Service Comment

110

FTP (File Transfer Protocol)

Open SSH (Secure Shell)

SMTP (Simple Mail Transfer Protocol)

HTTP (HyperText Transfer Protocol)

POP (Post Office Protocol)

Used for transmitting encrypted backup archives to other servers. Data is sent via passive FTP, so port 20 (FTP Data) is not used.

Used for remote shell access to the server for low-level system administration.

Used for sending mail. With a gateway placement, the PGP Universal Server listens on port 25 for both incoming and outgoing SMTP traffic

Used to allow user access to the Verified Directory. If the Verified Directory is not enabled, access on this port will automatically be redirected to port 443 over HTTPS.

Used for retrieving mail by users with POP accounts with internal placements only. Closed for gateway placements.

PGP Universal Server Open Ports

Port Protocol/Service Comment

143

389

443

444

465

636

IMAP (Internet Message Access Protocol)

LDAP (Lightweight Directory Access Protocol)

HTTPS (HyperText Transfer Protocol, Secure)

SOAPS (Simple Object Access Protocol, Secure)

SMTPS (Simple Mail Transfer Protocol, Secure)

LDAPS (Lightweight Directory Access Protocol, Secure)

Used for retrieving mail by users with IMAP accounts with internal placements only. Closed for gateway placements.

Used to allow remote hosts to look up public keys of local users.

Used for PGP Universal Satellite policy distribution and PGP Universal Web Messenger access.

Used for clustering, and communication with PGP Desktop installations.

Used for sending mail securely with internal placements only. Closed for gateway placements. This is a non-standard port used only by legacy mail servers. We recommend not using this port, and instead always using STARTTLS on port 25.

Used to securely allow remote hosts to look up public keys of local users.

993

995

9000

IMAPS (Internet Message Access Protocol, Secure)

POPS (Post Office Protocol, Secure)

HTTPS (HyperText Transfer Protocol, Secure)

Used for retrieving mail securely by users with IMAP accounts with internal placements only. Closed for gateway placements.

Used for retrieving mail securely by users with POP accounts with internal placements only. Closed for gateway placements.

Used to allow access to the PGP Universal Server administrative interface.

PGP Universal Server Open Ports

UDP Ports

Port Protocol/Service Comment

123

161

NTP (Network Time Protocol)

SNMP (Simple Network Management Protocol)

Used to synchronize the system’s clock with a reference time source on a different server.

Used by network management applications to query the health and activities of PGP Universal Server software and the computer on which it is installed.

Naming your PGP

Universal Server

This section describes how and why to name your PGP Universal Server using the keys.<domain> convention.

In This Chapter

Considering a Name for Your PGP Universal Server ............................... 59

Methods for Naming a PGP Universal Server ......................................... 60

Considering a Name for Your PGP Universal Server

Unless a valid public key is found locally, PGP Universal Servers automatically look for valid public keys for email recipients by attempting to contact a keyserver at a a special hostname, keys.<domain>, where <domain> is the email domain of the recipient.

For example, let’s assume an internal user at example.com is sending email to

susanjones@widgetcorp.com.” If no valid public key for Susan is found on the

“ Example Corp. PGP Universal Server (keys would be found locally if they are cached, or if Susan was an external user who explicitly supplied her key via the PGP Universal Web Messenger service), it will automatically look for a valid public key for Susan at keys.widgetcorp.com, even if there is no domain policy for widgetcorp.com on Example’s PGP Universal Server.

Naturally, the Example Corp. PGP Universal Server will only be able to find a valid public key for “ Widgetcorp PGP Universal Server is named using the keys.<domain> convention.

Caution: PGP Corporation strongly recommends you name your PGP

Universal Server according to this convention, because doing so allows other PGP Universal Servers to easily find valid public keys for email recipients in your domain. Make sure to name your externally visible PGP Universal Server using this convention.

If your organization uses email addresses like “mingp@example.com” as well

mingp@corp.example.com,” then you need your PGP Universal Server to

as “ be reachable at both keys.example.com and keys.corp.example.com.

susan@widgetcorp.com” at keys.widgetcorp.com if the

PGP Universal Server Naming your PGP Universal Server

If you have multiple PGP Universal Servers in a cluster managing an email domain, only one of those PGP Universal Servers needs to use the keys.<domain> convention.

Note: Keys that are found using the keys.<domain> convention are treated

as valid and trusted by default.

Alternately, keys.<domain> should be the address of a load-balancing device which then distributes connections to your PGP Universal Server’s keyserver service. The ports that would need to be load-balanced are the ones on which you’re running your keyserver service (typically port 389 for LDAP and 636 for LDAPS).

Another acceptable naming convention would be to name your PGP Universal Server according to the required naming convention your company uses, and make sure the server has a DNS alias of keys.<domain>.com.

If you are administering multiple email domains, you should establish the keys.<domain> convention for each email domain.

If your PGP Universal Server is behind your corporate firewall (as it should be), you will need to make sure that ports 389 (LDAP) and 636 (LDAPS) are open to support the keys.<domain> convention.

Methods for Naming a PGP Universal Server

There are three ways to name your PGP Universal Server to support the keys.<domain> convention:

 Name your PGP Universal Server “keys.<domain>” on the Host Name

field of the Network Setup screen in the Setup Assistant.

 Change the Host Name of your PGP Universal Server to keys.<domain>

using the administrative interface on the Network Settings card of the

System>Network screen.

 Create a DNS alias to your PGP Universal Server that uses the

keys.<domain> convention that is appropriate for your DNS server configuration.

Installing the PGP

Universal Server

This section describes how to set up your PGP Universal Server; it lists the system requirements, gives an overview of the installation procedure, and provides step-by-step instructions on how to install the software.

Refer to Installation Overview (on page procedure.

In This Chapter

About the Installation Procedure ............................................................. 61

System Requirements............................................................................. 62

Installation Materials................................................................................ 62

Installation Options.................................................................................. 62

Standard Installation Procedure............................................................... 63

PGP Installation Procedure ...................................................................... 64

29) to understand the entire installation

About the Installation Procedure

You should install and test the upgrade in a lab or staging environment before integrating the upgrade into your network.

Every PGP Universal Server requires a dedicated computer that meets the system requirements listed below. The installation process deletes all data on the system and reconfigures it as a PGP Universal Server.

Warning: Make sure there is no data on the system that you need to save

before you begin the installation process.

The installation software is included on the Server Installation CD. PGP Universal Server also includes a second CD with documentation, software license, PGP Universal Satellite and PGP Desktop software installers, necessary USB token drivers, and Release Notes.

Note: PGP Corporation strongly recommends locating your PGP Universal

Servers in secured areas with restricted access. Only authorized individuals should be granted physical access to PGP Universal Servers.

PGP Universal Server Installing the PGP Universal Server

System Requirements

Refer to the Release Notes for the latest system requirement information.

You must install the PGP Universal Server software on PGP Universal Server Certified Hardware. You can find the latest PGP Universal Server Certified Hardware List available on PGP Corporation's website (

www.pgp.com).

Installation Materials

PGP Universal Server is distributed on two CDs. One CD contains the installer. Use this CD to install the server on PGP Universal Server Certified Hardware. The other CD contains documentation, PGP Universal Satellite and PGP Desktop software installers, and the necessary USB token drivers to initialize PGP Universal Server Ignition Keys.

Installation Options

When you insert the installation CD and reboot the server, you can choose a standard or pgp installation.

If you choose to run a standard installation, during installation you will be asked to provide the following information for the PGP Universal Server:

 IP address  Subnet mask  Default gateway  DNS information  Hostname

Refer to Standard Installation Procedure (on page

If you provide the network information during installation, you will not have to enter it into the Setup Assistant interface later in the configuration procedure. The standard installation also simplifies the steps necessary to connect to the PGP Universal Server during setup.

If you choose to run a pgp installation, you will enter network information after the installation process, through the browser-based Setup Assistant. Refer to PGP Installation Procedure (on page initially, requires a more complicated procedure to connect and continue setting up your PGP Universal Server.

63).

64). The pgp installation, while simpler

PGP Universal Server Installing the PGP Universal Server

Standard Installation Procedure

 To install the PGP Universal Server software using the standard

installation

1 Set up the system that will be hosting the server in a secure location. 2 Attach a keyboard and monitor to the server on which you are installing

PGP Universal Server.

3 Insert the PGP Universal Server Installation CD into the drive. 4 Reboot the system.

When the system reboots, the install begins.

5 At the prompt, press Enter.

The pre-installation will run for approximately 2 minutes.

The Network Configuration screen will appear.

6 Type the IP address and Prefix (Netmask) for the PGP Universal Server, and

select OK.

The Miscellaneous Network Settings screen appears.

7 Type the Gateway, Primary DNS, and Secondary DNS, and select OK.

The Hostname Configuration screen appears.

8 Type the Hostname for the PGP Universal Server, and select OK.

PGP Corporation strongly recommends you name your externally visible PGP Universal Server according to the keys.<domain> convention, which allows other PGP Universal Servers to easily find valid public keys for email recipients in your domain. Refer to Naming your PGP Universal Server (on page

59) for more information.

Installation takes approximately 15 minutes.

When the software is installed, the system will automatically reboot. After the system reboots, you will see a login prompt. Do not log in here. You will not need to log in to complete the setup.

9 Connect to the server through the Setup Assistant browser interface at

https://<hostname>:9000 or https://<IP address>:9000. See Initial

Configuration with Setup Assistant (on page

67) to continue with the

installation and setup.

PGP Universal Server Installing the PGP Universal Server

PGP Installation Procedure

 To install the PGP Universal Server software using the pgp option

1 Set up the system that will be hosting the server in a secure location. 2 Attach a keyboard and monitor to the server on which you are installing

PGP Universal Server.

3 Insert the PGP Universal Server Installation CD into the drive. 4 Reboot the system.

When the system reboots, the install begins.

5 Type pgp at the prompt and press Enter at the first installation screen to

choose the pgp installation.

The pre-installation will run for approximately 2 minutes.

Installation will take approximately 15 minutes.

When the software is installed, the system will automatically reboot. After the system reboots, you will see the prompt “pgpuniversal login.” Do not log in here. You will not need to log in to complete the setup.

6 Connect to the server through the Setup Assistant browser interface. See

Preparing for Setup after pgp Install (on page

66) to continue with the

installation and setup.

Setting Up the PGP

Universal Server

This section describes how to access and use the Setup Assistant, which is a set of screens you use to configure your PGP Universal Server.

In This Chapter

About the Setup Assistant .......................................................................65

Preparing for Setup after pgp Install ........................................................66

Initial Configuration with Setup Assistant ................................................67

Primary or Secondary Configuration.........................................................76

Restoring From a Server Backup .............................................................86

Migrating the Keys from a PGP Keyserver ..............................................87

About the Setup Assistant

The Setup Assistant only appears the first time you access the PGP Universal Server. The Setup Assistant displays a series of screens that ask you questions about your network and about how you want your PGP Universal Server to work; the Setup Assistant uses the answers to those questions to configure your PGP Universal Server.

In many cases, the Setup Assistant will do the majority of the configuration for your PGP Universal Server. You can change any settings you establish with the Setup Assistant anytime after you run it using the administrative interface of the PGP Universal Server; you can also use the administrative interface to configure those features not covered in the Setup Assistant.

The Setup Assistant supports four types of setups:

 Primary. You are configuring a PGP Universal Server that will be your only

PGP Universal Server or the Primary server in a cluster.

 Secondary. You are configuring a PGP Universal Server that will be a

Secondary server in a cluster. You must have already set up the Primary server in the cluster or this setup will not work.

 Restore. You are restoring backed-up data from another PGP Universal

Server onto a new PGP Universal Server. You will need the backed-up data file and the Organization Key used to encrypt the backup file.

PGP Universal Server Setting Up the PGP Universal Server

Refer to the PGP Universal Server Upgrade Guide for more information about configuring a PGP Universal Server with data from a backup.

 Keyserver. You are migrating the keys and data from a PGP Keyserver to a

PGP Universal Server.

Refer to the PGP Universal Server Upgrade Guide for more information about configuring a PGP Universal Server with the keys from a PGP Keyserver.

All four setup types have a common beginning: you read the End User License Agreement, specify the type of setup, and configure the network settings for your PGP Universal Server, then the PGP Universal Server is restarted. Once the PGP Universal Server is restarted, you can connect to it via a Web browser and continue with the rest of the Setup Assistant.

Preparing for Setup after pgp Install

If you chose the standard installation option, you can skip this procedure and refer to Initial Configuration with Setup Assistant (on page

pgp installation, you must gather some necessary materials and information

before you can continue with the setup.

67). If you chose the

Hardware

To configure your PGP Universal Server using the Setup Assistant You must have the following:

 A Windows or Mac OS X computer from which you will connect to the

 A crossover Ethernet cable to connect a Windows or Mac OS X computer

System Information

You will also need some information to configure your PGP Universal Server:

 Connect through the temporary IP address and subnet of the newly

PGP Universal Server using a Web browser so that you can run the Setup Assistant.

to the PGP Universal Server.

installed PGP Universal Server, which will be used for the initial configuration portion of the Setup Assistant:

IP: 192.168.1.100:9000

Subnet: 255.255.255.0

PGP Universal Server Setting Up the PGP Universal Server

You will use this data to connect to the PGP Universal Server you are configuring in the initial configuration portion of the Setup Assistant, before the PGP Universal Server is available via a Web browser.

 An IP address, name, gateway, and DNS server information for the PGP

Universal Server.

 A license or license authorization from PGP Corporation. Which one you

need depends on your Internet connection:

 If your PGP Universal Server can connect to the PGP Licensing Server

over the Internet, the license server will authorize your PGP Universal Server license.

 If your PGP Universal Server cannot connect to the PGP Licensing

Server over the Internet, you will need the License Authorization file to correctly license your PGP Universal Server. The License Authorization file is a text file you will need during the configuration process.

 Other data, such as your Organization Key or a saved backup, may also be

needed, depending on the type of setup you are performing.

Connect to the PGP Universal Server

Connect to the PGP Universal Server to continue the installation and setup. Configure the client machine with a fixed IP address and access the PGP Universal Server from this machine.

You will need a crossover Ethernet cable when connecting the PGP Universal Server.

1 Configure the client machine:

IP: 192.168.1.99

Subnet: 255.255.255.0

If you are using a Mac OS X client machine, you can save this temporary setup as a separate location in Network Preferences (such as “setup”) for future use.

2 Continue setup as described in the section Initial Configuration with Setup

Assistant (on page

67).

Initial Configuration with Setup Assistant

The Setup Assistant guides you through establishing the PGP Universal Server’s network configuration and setup type.

PGP Universal Server Setting Up the PGP Universal Server

After the software installs and the server restart, you can connect to the PGP Universal Server via a Web browser at the configured IP address and finish running the Setup Assistant.

1 Open a Web browser and connect to the PGP Universal Server:

 If you chose the standard installation, connect to

https://<hostname>:9000, using the hostname or IP address you assigned to the PGP Universal Server.

 If you chose the pgp installation, and you are using a client machine

with a fixed IP address, connect to

https://192.168.1.100:9000, as

explained in the section Preparing for Setup after pgp Install (on page

66).

The Welcome screen of the Setup Assistant appears.

2 Read the text, then click the Forward arrow to continue.

PGP Universal Server Setting Up the PGP Universal Server

The End User License Agreement screen appears.

3 Read the text of the License Agreement, then click the I Agree button at

the end of the agreement.

PGP Universal Server Setting Up the PGP Universal Server

The Setup Type screen appears.

4 Make the appropriate selection:

 Select Primary if you want this to be the Primary PGP Universal

Server in a cluster or if this is the only PGP Universal Server in your network.

 Select Secondary if this is a Secondary PGP Universal Server in a

cluster (secondary servers synchronize their settings with the Primary).

If you are setting up a cluster of PGP Universal Servers, you must configure the Primary first, then the Secondary servers. Refer to Clustering your PGP Universal Servers (on page

523) for more

information.

If you are upgrading a Secondary cluster member, you will need to recreate certain settings manually after installation and setup. Follow the procedure in the PGP Universal Server Upgrade Guide for more details.

PGP Universal Server Setting Up the PGP Universal Server

 Select Restore if you want to restore the data from a server backup.

You will need your Organization Key and access to the backup file to proceed with this installation. Refer to the PGP Universal Server Upgrade Guide for more information.

 Select Keyserver if you want to migrate the keys on an existing PGP

Keyserver to the PGP Universal Server you are configuring. See the PGP Universal Server Upgrade Guide for more information.

5 Click the Forward arrow to continue.

The Date & Time screen appears.

Your server preforms many time-based operations, so it is important to set up the correct time.

6 Pull down the Time Zone drop-down list and select your location. 7 Choose Time Format and Date Format settings. 8 Set the correct Time and Date. 9 Optionally, specify an NTP time server in the NTP Server field. The PGP

Universal Server will automatically synchronize the time when the Setup Assistant is finished.

PGP Universal Server Setting Up the PGP Universal Server

10 Click the Forward arrow to continue.

The Network Setup screen appears.

11 If you chose the standard installation, this information is already present.

Otherwise, enter the appropriate information:

a In the Hostname field, enter a name for this PGP Universal

Server. This must be a fully-qualified domain name of the external, untrusted interface.

For example, Example Corporation names its externally visible PGP Universal Server “keys.example.com.” Refer to Naming your PGP Universal Server (on page

59) for more information.

b In the IP Address field, enter an IP address for this PGP

Universal Server.

c In the Subnet Mask field, enter a subnet mask for this PGP

Universal Server.

PGP Universal Server Setting Up the PGP Universal Server

d In the Gateway field, enter the IP address of the default

gateway for the network.

e In the DNS Servers field, enter the IP address(es) of the DNS

servers for your network.

12 Click the Forward arrow to continue.

The Proxy Configuration screen appears.

If your PGP universal Server has a direct Internet connection, or you want to set up a proxy server configuration at a later time, click Skip and go on to step 13.

If your PGP Universal Server does not have a direct Internet connection, you can still receive licensing authorization and automatic system software updates from PGP Corporation through an HTTP proxy server.

Configure the proxy server to authenticate and authorize the PGP Universal Server, and to proxy HTTP traffic for updates and license authorization requests. Make sure the proxy access list and authentication parameters are correct. The proxy server must also be able to contact and relay HTTP traffic to and from PGP Corporation.

Type in the following proxy server information:

PGP Universal Server Setting Up the PGP Universal Server

 Hostname/IP  Port number  Username (optional)  Passphrase (optional)

13 Click the Forward arrow to continue.

The Confirmation screen appears.

14 Make sure the information is correct, then click Done.

Click the Back arrow if you need to go back and make any changes.

PGP Universal Server Setting Up the PGP Universal Server

The Network Configuration Changed dialog appears, while the server restarts automatically.

If you chose the standard installation, skip step 14 and go on to the next section.

If you chose the pgp installation, go on to the next step. At this point, your PGP Universal Server has accepted the new network settings you entered, so you can disconnect the temporary setup.

15 Disconnect the cable between the client machine and the PGP Universal

Server, return the settings of the client machine back to what they were, connect the two machines back to the original network, and continue with the Setup Assistant.

PGP Universal Server Setting Up the PGP Universal Server

Primary or Secondary Configuration

If you selected a Primary or Secondary configuration for the PGP Universal Server you are configuring with the Setup Assistant, the Licensing screen appears automatically.

1 Enter your PGP Universal Server license information, then click the

Forward arrow.

If your PGP Universal Server has an active connection to the Internet, the PGP Universal Server license will be authorized.

2 If your PGP Universal Server does not have an active connection to the

Internet, and you did not previously provide proxy server configuration during setup, your license authorization will be needed; click Manual.

The Manual Licensing screen appears.

PGP Universal Server Setting Up the PGP Universal Server

3 If you want to license your PGP Universal Server at a later time, click Skip,

and go on to step 9.

4 Enter the appropriate license information, paste your license authorization

information in the License Authorization box, then click the Forward arrow.

5 If you want to license your PGP Universal Server at a later time, click Skip.

PGP Universal Server Setting Up the PGP Universal Server

The Administrator Name & Passphrase screen appears.

6 In the Login Name field, enter the administrator’s login name. 7 In the Passphrase field, enter the administrator’s passphrase. 8 In the Confirm field, re-enter the same passphrase. 9 In the Email Address field, enter the administrator’s email address. This is

optional and enables the administrator to receive a daily status email.

10 Click the Forward arrow to continue.

PGP Universal Server Setting Up the PGP Universal Server

The Mail Processing screen appears.

11 Specify the placement of this PGP Universal Server in your network:

 Select Gateway Placement if your PGP Universal Server is logically

located between your mail server and the Internet.

 Select Internal Placement if your PGP Universal Server is logically

located between your email users and your mail server, or if your PGP Universal Server is out of the mailstream.

12 Click the Forward arrow to continue.

PGP Universal Server Setting Up the PGP Universal Server

The Mail Server Selection screen appears.

13 In the Mail Server field, enter the hostname or IP address of the mail

server that this PGP Universal Server will be interacting with.

14 In the Proxy Server field, enter an optional additional mail server to which

all outbound mail will be sent. This only applies if you are installing your PGP Universal server in gateway placement.

15 In the Primary Domain field, enter the email domain that the PGP

Universal Server is going to be managing.

16 Click the Forward arrow to continue.

PGP Universal Server Setting Up the PGP Universal Server

The Directory Server screen appears.

17 In the Directory Server field, enter the hostname or IP address of your

corporate LDAP directory so that PGP Universal Server can synchronize user information with that LDAP directory.

18 Select your LDAP Directory Type. Choose Active Directory or

OpenLDAP (RFC 1274). Refer to Enabling Directory Synchronization (on

287) for more information.

page

Using a directory server is optional. If you do not have one on your network or do not wish to use one, leave the Directory Server field empty and click

Skip to continue with the Setup Assistant.

19 Click the Forward arrow to continue.

PGP Universal Server Setting Up the PGP Universal Server

The Ignition Keys screen appears.

Ignition Keys protect the data on your PGP Universal Server if an unauthorized person gets control of it. If you want to use a hardware Ignition Key, you will need to prepare the token before you add it to the system here. See Protecting PGP Universal Server with Ignition Keys (on

531) for information on how to prepare a hardware token Ignition Key.

page

20 Select the type of Ignition Key you would like to use, then click the

Forward arrow.

Click Skip to proceed with the Setup Assistant without configuring an Ignition Key.

PGP Universal Server Setting Up the PGP Universal Server

The appropriate Ignition Key screen appears. The Passphrase Ignition Key screen is shown here.

21 Enter a name for the Ignition Key, a passphrase, confirm the passphrase,

then click the Forward arrow.

PGP Universal Server Setting Up the PGP Universal Server

The Backup Organization Key screen appears.

The PGP Universal Server generates an Organization Key for you. If you want to generate an S/MIME Organization Certificate, you should do so immediately after finishing setup. Refer to Managing Organization Keys (on

113) for information about the Organization Key and Organization

page Certificate.

22 If desired, enter and confirm the passphrase that will protect the

Organization Key (this is optional, but highly recommended), then click

Backup Key to back up the key. Be aware that without a backup of your

Organization Key, you will not be able to restore your PGP Universal Server from backed-up data.

To skip backing up your Organization Key (not recommended), click

Forward without backing up the key.

23 Click the Forward arrow to continue.

PGP Universal Server Setting Up the PGP Universal Server

The Confirmation screen appears.

This screen summarizes the configuration of your PGP Universal Server.

24 Click Done to finish setup.

PGP Universal Server Setting Up the PGP Universal Server

The Configuration Changed screen appears, and the server restarts automatically.

You will be redirected to the administrative interface of the PGP Universal Server you just configured.

Your PGP Universal Server is initially configured in Learn Mode. Refer to Operating in Learn Mode (on page

Restoring From a Server Backup

To configure a PGP Universal Server with the data from the backup, you need to have both the appropriate backup file and the Organization Key on the setup machine. Restoring from a backup restores everything configured, including proxy and policy settings, as well as keys and user information.

Refer to the PGP Universal Server Upgrade Guide for complete information about how to configure a PGP Universal Server with the data from a backup.

105) for more information about Learn Mode.

PGP Universal Server Setting Up the PGP Universal Server

Migrating the Keys from a PGP Keyserver

The process that allows you to migrate the keys on a PGP Keyserver to a PGP Universal Server includes two steps: getting the keys out of the PGP Keyserver into a format that can be imported into a PGP Universal Server and then using the Setup Assistant to configure a PGP Universal Server and add the PGP keys from the PGP Keyserver.

Refer to the PGP Universal Server Upgrade Guide for complete information about migrating PGP keys from a PGP Keyserver to a PGP Universal Server.

Note: You can find more information online about moving to PGP Universal

Server at the PGP Corporation website.

Understanding the

Administrative Interface

This section describes the PGP Universal Server’s Web-based administrative interface.

In This Chapter

System Requirements............................................................................. 89

Logging In ................................................................................................ 89

Managing Alerts....................................................................................... 92

Logging In For the First Time .................................................................. 93

Administrative Interface Map .................................................................. 94

Icons ........................................................................................................ 95

System Requirements

The PGP Universal Server administrative interface has been fully tested with the following Web browsers:

Logging In

 Windows: Internet Explorer 6, Mozilla Firefox 1.0 (or greater)  Mac OS X: Safari 1.0 (or greater), Mozilla Firefox 1.0 (or greater)

While you may find that the administrative interface works with other Web browsers, we recommend these browsers for maximum compatibility.

The login name and password for the administrative interface were originally established when you configured the server using the Setup Assistant.

 To log in to your server’s administrative interface

1 In a Web browser, type https://<domain name of server>:9000/ and

press Enter.

PGP Universal Server Understanding the Administrative Interface

Note: If you see a Security Alert dialog relating to the security certificate,

it means you need to replace the self-signed certificate created automatically with a certificate from a public Certificate Authority.

The Login screen appears.

2 Enter the current login name in the Username field. 3 Enter the current passphrase in the Passphrase field. 4 Click the Login button or press Enter.

PGP Universal Server Understanding the Administrative Interface

The System Overview screen is the first screen you see when you log on to PGP Universal Server. You can also view it from Reporting>Overview.

The screen provides a general report of system information and statistics. The information displayed includes:

 System alerts, including licensing issues and PGP Whole Disk

Encryption login failures. System alerts appear at the top of the screen.

 System graphs for CPU usage, message activity, and Whole Disk

Encryption. Click the buttons to switch the graphs. See System Graphs (on page

483) for more information about system graphs.

 Services information, including which services are running or stopped.

PGP Universal Server Understanding the Administrative Interface

 Statistics, including software version number, system uptime, and

total messages processed.

 Number of users in each user policy group.  Number of email messages in the queue waiting to be processed, if

applicable.

 Number of messages in the mail queue.

5 Click Refresh (at the top of the System Overview screen) to refresh the

information.

Managing Alerts

The PGP Universal Server groups failed login attempts into reported login failures. This feature is intended to make reporting about failed login attempts more useful, because one or several failed login attempts by a PGP Whole Disk Encryption user does not necessarily mean an attempted break-in. Use the Alerts dialog to choose how many failed login attempts constitutes a login failure. For example, you can specify that an alert should be triggered after 3 failed login attempts. If 6 failed attempts occur, 2 login failure alerts appear.

Alerts about PGP Whole Disk Encryption login failures appear on the System Overview screen and in the Daily Status Email. Alerts for devices belonging to specific users appear on the user's Internal Users dialog.

 To specify how you want to be notified of PGP Whole Disk Encryption

1 From the System Overview screen, click Manage Alerts.

PGP Universal Server Understanding the Administrative Interface

The Alerts dialog appears.

2 Specify how many consecutive failed login attempts a single device must

report before the administrator is notified.

3 Choose how long you want login failure alerts to be displayed on System

Overview screen, the Daily Status Email, and the Internal Users dialog, in hours or days.

4 Specify how long you want to keep login failure records in the database, in

days.

Logging In For the First Time

The first time you log in to the PGP Universal Server, you will see a welcome dialog. The welcome dialog provides access to tutorials and documentation. You can choose to have the welcome dialog appear every time you log in.

 What’s New—Lists the new features in PGP Universal Server 2.7.  Mail Policy Diagram—Provides a graphical representation of how email is

processed through mail policy.

 PGP Universal Upgrade Guide—Provides instructions on how to migrate

PGP Keyserver data, how to upgrade your PGP Universal Server, and how version 2.0.6 settings migrate into the mail policy environment.

PGP Universal Server Understanding the Administrative Interface

 Tutorials—Provides animated introductions on how to manage the new

mail policy feature in PGP Universal Server, and how upgraded PGP Universal Server settings migrate into the new mail policy feature.

You can also access all the documentation and tutorials by clicking the online help icon in the upper right corner of the PGP Universal Server screen.

Administrative Interface Map

The administrative interface is organized as follows:

Sections

Reporting

Policy

Users

Mail

Screens

Overview

Graphs

Logs

Mail Policy

Internal User Policy

External User Policy

Dictionaries

Servers

Internal

External

Verified Directory (If enabled)

Administrators

Proxies

Mail Queue

Mail Routes

Organization

Services

Message Templates

Organization Keys

Trusted Keys

Managed Domains

Web Messenger

Keyserver

SNMP

Verified Directory

PGP Universal Server Understanding the Administrative Interface

Icons

System

Certificate Revocation

General Settings

Backups

Updates

Network

Clustering

Ignition Keys

Key Cache

The administrative interface uses the following icons.

Type

Actions

Icon Description

Add

Remove

Connect

Delete

Clear Search

Install/Export

Reinstall/Regenerate

Restore

Revoke

Forward

PGP Universal Server Understanding the Administrative Interface

Type Icon Description
