Preface

About This Document

This Administrator Guide is a resource written for all users of PGP Endpoint 4.4 SR1. This document defines the concepts and procedures for installing, configuring, implementing, and using PGP Endpoint 4.4 SR1.

Tip:

PGP documentation is updated on a regular basis. To acquire the latest version of this or any other published document, please refer to the PGP Support Portal Web Site (https://

support.pgp.com).

Typographical Conventions

The following conventions are used throughout this documentation to help you identify various information types.

Convention Usage bold Buttons, menu items, window and screen objects.

bold italics Wizard names, window names, and page names.

italics New terms, options, and variables. UPPERCASE SQL Commands and keyboard keys. monospace File names, path names, programs, executables, command

syntax, and property names.

Getting Assistance

Getting Product Information

Unless otherwise noted, the product documentation is provided as Adobe Acrobat PDF files that are installed with PGP Endpoint. Online help is available within the PGP Endpoint product. Release notes are also available, which may have last-minute information not found in the product documentation.

- 11 -

Preface

Contacting Technical Support

• To learn about PGP support options and how to contact PGP Technical Support, please visit the PGP Corporation Support Home Page (http://www.pgp.com/support).

• To access the PGP Support Knowledge Base or request PGP Technical Support, please visit PGP Support Portal Web Site (https://support.pgp.com).

Note:

You may access portions of the PGP Support Knowledge Base without a support agreement; however, you must have a valid support agreement to request Technical Support.

• For any other contacts at PGP Corporation, please visit the PGP Contacts Page (http://

www.pgp.com/company/contact/index.html).

• For general information about PGP Corporation, please visit the PGP Web Site (http://

www.pgp.com).

• To access the PGP Support forums, please visit PGP Support (http://

forums.pgpsupport.com). These are user community support forums hosted by PGP

Corporation.

- 12 -

Chapter

PGP Endpoint System Architecture

In this chapter:

• About Application Control

and Device Control Architecture

• The Database

• The Administration Server

• The Management Server

Console

• The Client

Application Control and Device Control architecture is a 3-tier structure composed of an Administration Server, database, and one or more clients. A Management Server Console provides the administrative interface between the system administrator and Administration Server.

About Application Control and Device Control Architecture

PGP Endpoint architecture is a multi-tier system composed of a database, an Administration Server, and a client.

The three primary components that form the basis of PGP Endpoint system architecture interact as follows. The Administration Server component runs as a service that:

• Keeps track of the connected clients and their status.

• Coordinates data flow between the Administration Server(s) and the SQL database.

The database component serves as the central repository of the authorization and permission policies. The client component stores file authorization and device permission policies locally, and controls user access from the endpoint to software applications and all connected devices. To change authorization and permission policies, an administrator uses a Management Server Console to interface with the Administration Server(s), which then communicate with the database and the client(s).

PGP Endpoint system architecture is scalable to meet the needs of any enterprise. You can use multiple Administration Server(s) and clients.

- 13 -

PGP Endpoint

The Application Control and Device Control architecture components are:

• The database which serves as the central repository of authorization information for devices and applications.

• One or more Administration Servers that communicate between the database, the protected clients, and the Management Server Console.

• The client (installed on each computer, endpoint or server that you want to protect).

• The Management Server Console, which provides the administrative user interface for the Administration Server.

The following figure illustrates the relationships between the components.

Figure 1: Application and Device Control Architecture

- 14 -

PGP Endpoint System Architecture

The Database

The database serves as the central repository of software and device permission data. Administrator and user access logs are also stored in the database.

The database uses one of the following Microsoft® SQL® Server products:

• Microsoft SQL Server 2005

• Microsoft SQL Server 2008

• Microsoft SQL Server 2005 Express

• Microsoft SQL Server 2008 Express

For evaluations and test environments Microsoft SQL Server 2005 Express and Microsoft SQL Server 2005 Express are sufficient. Enterprise implementation must use the Microsoft SQL Server 2005 or 2008 edition.

The Administration Server

The Administration Server runs as a Windows® service that coordinates and tracks data flow between Administration Server(s), connected clients, and the SQL® database.

The Administration Server service runs under any domain account capable of reading domain users, user groups, and computer accounts from the domain controller. The Administration Server performs the following functions:

• Retrieves user access and device permission policies from the database which are stored in the Administration Server cache.

• Signs and/or encrypts the user access and/or device permission list, compresses the list, and communicates updated user access and/or device permission lists to client servers and computers, where the permission policies are stored locally. Permission policy updates only communicate changes to the existing user access and device permission policies, rather than retransmitting entire policies.

• Saves a log of administrator actions and, optionally, users actions including information about when application or device access is denied.

Each PGP Endpoint product installation requires at least one Administration Server and a corresponding DataFileDirectory (DFD). The DFD can reside on the same computer or a shared network resource, to store log information. All servers can write to a shared DataFileDirectory or to a different directory for each Administration Server, depending upon the unique architecture of your network environment.

Up to three Administration Servers can be defined during client installation. Additional servers can be assigned by:

• Changing the Server Address default option in the Management Server Console Tools menu, as outlined in the Application Control User Guide or Device Control User Guide (https://support.pgp.com).

• Modifying the Server parameter for the Command & Control Registry Key on page 74

- 15 -

PGP Endpoint

The Administration Server sends user access and device permission changes to users when:

• A user logs in.

• An administrator sends updated information to all computers, specific computers, or export changes to a file.

• A user requests updated information from a client computer.

An administrator uses the Management Server Console to interact with Administration Server.

The Management Server Console

The Management Server Console is the administrative interface for the Administration Server. This product component is used to configure Application Control and Device Control.

You can install the console on one or more computers, including the database or Administration Server hosts.

The Management Server Console does not connect directly to the database. All communication with the database is conducted via the Administration Server(s). The Management Server Console and Administration Server use Remote Procedure Call (RPC) protocol authenticate encrypted communications.

You use the console to:

• Define administrator roles.

• Monitor system administrator and user activity logs and options.

• Define default settings for administrative tools.

• Generate standard or custom reports.

When you are using Device Control, you can:

• Manage access to removable storage devices.

• Authorize user access to specific CD/DVD media for use with CD/DVD drives.

• Encrypt removable media and devices.

• View lists of files and data transferred using authorized media.

• View the content of files transferred using authorized removable storage devices.

• View information about user attempts to access or connect unauthorized removable storage devices.

When you are using Application Control, you can:

• Build and manage centrally authorized lists of executable files, scripts, and macros.

• Organize authorized application software files into logical file groups.

• Assign file groups to users and user groups.

• Manage and maintain the software authorization database.

- 16 -

PGP Endpoint System Architecture

The Client

The client is installed on each client computer to enforce file authorization and device permissions policies.

You can install the client on the same computer as the Management Server Console when you are using Device Control. Each protected computer can maintain local authorization and device permission files, so that routine application requests do not have to traverse the network. Only log files and periodic differential updates are sent from client computers to the using the Management Server Console.

When a client requests a connection to the Administration Server listed by DNS name, the name is resolved and the first IP address returned is selected, as required by round-robin DNS conventions for a server-client connection attempt. This behavior is controlled by the FirstServer registry key.

If the connection attempt fails, the client selects the next server name from the list and repeats the process. After reaching the end of the list and no server-client connection is established, the client uses the locally cached user access and device permission list. The first connected server receives client logs and shadow files in a compressed format that is stored in the DataFileDirectory (DFD) defined during installation.

When you are using Device Control, the client:

• Ensures that only removable storage devices and media that the user is authorized for can be accessed. Any attempt to access unauthorized devices or media is denied, regardless of the computer the user logs into.

When you are using Application Control, the client performs the following:

• Calculates the digital signature, or hash, for files requiring authorization.

• Checks the digital signature against the locally stored authorization list for a matching digital signature.

• Denies and logs any user attempts to run unauthorized files.

• Allows, when expressly permitted, a user to locally authorize a denied file.

• Generates log records of all application access attempts, approved and denied. The Log Access Denied option is enabled by default.

- 17 -

PGP Endpoint

The client is composed of the following components:

• Kernel driver (Sk.sys), that runs on supported operating systems to enforce defined policies for determining which applications and/or devices users can access.

• Communication service (scomc.exe), which provides communication with the Administration Server(s). This component, PGP Endpoint Command & Control (SCC), runs as a service, that sends log data to the Administration Server that can be viewed via the Management Server Console.

• User interface (RtNotify), which informs the user of updated policy changes completed by the administrator (these messages can be deactivated). RtNotify is used by the client to retrieve user certificates on demand.

• Auxiliary dynamically linked library (DLL) files, which provide additional features to the core components. These files contain support for RtNotify localization information, 16-bit application control, and macro and script protection.

The following illustrates the relationships between the client component layers.

Figure 2: Client Component Layers

After the client is installed, RTNotify appears as an icon in the system tray. Through RTNotify the user receives information about permission changes via pop-up messages. End-users can interact with the client to:

• Locally authorize software application files

• Manage user access to removable storage devices

• Update permissions changes when the client receives event notifications

Important: A user cannot change any Application Control or Device Control administrative

settings or permissions.

- 18 -

PGP Endpoint System Architecture

The administrator can query the client to obtain the salt value used for endpoint maintenance, when the computer is not connected to the network and this value cannot be obtained using the Management Server Console.

When an Administration Server is unavailable at login, the client uses the locally cached permission list from the last successful Administration Server connection. If no permission list exists, the client denies user access to all device and application requests. Permissions lists can be imported to a computer, as necessary, when no server connection is available or the computer is disconnected from the network.

A key security principle of Application Control or Device Control is that, even when the communication service or user interface is disabled, the kernel driver always protects the client computer. Protection remains in force and the least privilege principle applies. This principle denies user access to applications or devices that are not expressly permitted. Client components use client hardening functionality as described in the Application Control User

Guide (https://support.pgp.com) to protect against user tampering.

- 19 -

PGP Endpoint

- 20 -

Chapter

Understanding Cryptography

In this chapter:

• About Encryption

• Advanced Encryption

Standard

• RSA Encryption

Encryption transforms a plain text message using an algorithm, or cipher, into a coded message called ciphertext. Only designated users possessing special knowledge, usually referred to as a key, can access the data.

Cryptography involves two processes:

• Encryption

• Decryption Encryption can be used to protect computer data, such

as files on computers and removable storage devices. The purpose of encryption is to prevent third parties from accessing the sensitive information. This is particularly important for sensitive data. Encrypting such data helps protect it, should physical security measures fail.

Decryption is the process of decoding data that is encrypted using a secret key or password. If the password is not correct, it will be impossible to get the encryption key and subsequently decrypt the encoded information.

About Encryption

The Application Control and Device Control applications use two encryption algorithms to secure data in transit and data at rest.

The encryption algorithms used are:

• Advanced Encryption Standard (AES) 256-bit encryption

• RSA (for Rivest, Shamir, and Adleman)

- 21 -

PGP Endpoint

Using these algorithms Application Control and Device Control accomplish the primary criteria used measure the effectiveness of a cryptographic method:

• Confidentiality (privacy), only an authorized recipient can extract the original data from the encrypted message.

• Integrity, a recipient can determine whether the data was altered during the transmission.

• Authentication, a recipient can unmistakably identify the sender and verify who actually sent the data.

• Non-repudiation, a sender cannot deny sending the data.

Advanced Encryption Standard

Device Control uses the Advanced Encryption Standard (AES) 256-bit encryption standard, which provides a powerful, unbreakable encryption method to ensure data is always protected.

AES is based on a design principle known as a substitution permutation network and has a fixed block size of 128 bits and a key size of 128, 192, or 256 bits. The AES cipher is specified as a number of repetitions of transformation rounds that convert the input plain text into the final output of cipher text.

Assuming one byte equals 8 bits, the fixed block size of 128 bits is 128 ÷ 8 = 16 bytes. AES operates on a 4×4 array of bytes, termed the state. Each turn generates a new state from the previous state. The final state after all rounds contains the ciphered text.

Each round consists of several processing steps, including one that depends on the encryption key. A set of reverse rounds is applied to transform cipher text back into the original plain text using the same encryption key. PGP works with a 256-bit block. In this case, the algorithm uses 8x6 matrices as states and sub keys. The 256-bit algorithm executes 14 rounds.

To ensure that the symmetric AES key is not visible when stored in the database, and cannot be read by anyone who has access to the database, Device Control uses public-private key pairbased encryption to encode a symmetric encryption key. This algorithm uses the same key for encryption and decryption.

The Administration Server and kernel clients contain a default embedded encryption key pair that is only used for software evaluation purposes. You create your own key pair before deploying the client in your environment using the Key Pair Generator tool. If a higher level of protection is required, PGP strongly recommends storing the private key external to the

- 22 -

Understanding Cryptography

Administration Server. Only the public key should be available to the clients. The private key should only be available to the Administration Server, internally or externally.

Figure 3: Device Control Key Encryption

RSA Encryption

In cryptography, RSA (named after its developers, Rivest, Shamir, and Adelman) is an algorithm for public-key cryptography. It is an algorithm known to be suitable for signing messages, as well as encryption. RSA is believed to be secure given sufficiently long keys.

RSA involves a public key and a private key. The public key can be known to everyone and is used for encrypting messages. Messages encrypted with the public key can only be decrypted using the private key.

The RSA algorithm bases its security on the difficulty of factoring large prime numbers. RSA keys are typically 1024–2048 bits long. In cryptography, key size or key length is the size, usually measured in bits or bytes, of the key used in a cryptographic algorithm. PGP Endpoint uses the RSA algorithm with a key size of 2048 bits, making it very difficult to compromise. It is extremely important to use a strong random number generator for the symmetric key, otherwise an eavesdropper wanting to see a message could bypass RSA by guessing the symmetric key.

- 23 -

PGP Endpoint

- 24 -

Chapter

Device Control Encryption Methodology

In this chapter:

• Encrypting Removable

Storage Devices

Device Control supports several encryption methods depending upon the needs of users and the policies established for your enterprise network. Each method uses the Advanced Encryption Standard (AES) 256-bit encryption standard. Device Control encryption can be performed centrally, by a network administrator using the Management Server Console, or decentrally, by a user with permitted access using the client.

Encrypting Removable Storage Devices

Device Control creates encrypted files in virtual memory, and then writes the files to physical media available in various formats, such as removable storage devices and CD/DVDs. Centralized and decentralized encryption provide an administrator with the flexibility to centrally encrypt removable media, enable users to encrypt removable media using the client, and enforce the use of encrypted media.

Device Control supports centralized (from the Management Server Console) and decentralized (from the client) encryption methods for ciphering data copied to removable storage media. The following methods are available for encrypting removable storage devices and CD/DVD media using:

• Easy Exchange encryption, which encrypts devices for portable use. Portable use means that a user can use the encrypted device with a password and the encryption key, without having to connect to the network through a computer running the client.

• Full and slow encryption, which encrypts devices for non-portable use. Non-portable use means that a user can only use the encrypted device with a password when connected to the network through a computer running the client.

- 25 -

PGP Endpoint

Easy Exchange Encryption

Easy Exchange encryption is volume-based. The entire volume of the removable storage media is used for ciphering existing data and all sectors on the volume and installing the Secure Volume Browser (SVolBro.exe) deciphering program.

Devices encrypted using the Easy Exchange method do not require a password or encryption key when attached to a computer running the client. These encrypted devices are transparently deciphered when users attach the device to a computer running the client, and there is a Microsoft® Certificate Authority (CA) available from the network for authentication.

Important: When there is no Microsoft Enterprise CA installed in the network, users can only

access encrypted data using a password and a public encryption key. When a user is working outside your network, they must use the installed Secure Volume

Browser to access encrypted data. The Secure Volume Browser does not require local administrative rights, however a password and a public encryption key are required. The Secure Volume Browser program is automatically copied on to the media when it is encrypted.

The administrator also has an option during encryption to export the public key to the media or to an external file, depending on enterprise network security policies and procedures.

Important: If the encryption key is not exported to the encrypted media, then an administrator

must send the key in a separate file to the user before the decryption process can start. The Easy Exchange encryption method is used for centralized and decentralized encryption

because this method uses the Secure Volume Browser to unlock the medium for user access.

Encrypting Media

Encrypting media from the client uses the Encrypt Medium dialog. The rules governing the behavior of the encryption options depend upon the Export permissions assigned by the administrator for user access.

Encryption from the client offers both Easy Exchange (portable) and Extended Capacity Encryption (non-portable) options. You can also centralize medium encryption with out using

- 26 -

Device Control Encryption Methodology

the Management Server Console. All of these options offer control over exporting the medium encryption key.

Figure 4: Encrypt Medium Dialog

Standard User Options Rules

The default behavior for the Encrypt Medium dialog options are governed by the following rules.

• When a user selects Easy Exchange, the Erase unused space on media option is enabled and selected by default. A user may choose to deselect this option.

• When a user selects Extended Capacity, the PGP user and Windows user options are disabled when selecting Add to add users, user can only have one passphrase.

• When a user selects Extended Capacity, the Erase unused space and Retain existing

data on device options are enabled and selected by default, unless Erase unused space on media is forced by the administrator through the Management Server Console. When

selecting an options, the remaining option is deselected.

• When a user selects Retain existing data on device is selected, the erase unused space on media is deselected regardless of the option set by the administrator in the Management Server Console.

• When a user has Export permission, Central Encryption enabled and deselected by default.

• When a user selects Central Encryption, the current user is automatically added to the users list as centralized user.

• When a user deselects Central Encryption, the centralized user is automatically removed from the list of users granted access to the media.

• When a user does not have Export permission, the Add and Remove controls are disabled.

• When a user has Export permission, the Add and Remove controls are enabled; however, the Remove control remains disabled until a user is selected.

• A user may remove a multiple users from the list using SHIFT or CTRL.

- 27 -

PGP Endpoint

For the list of users granted access:

• When a user does not have valid certificate, the user name is displayed in red and disabled.

• When a user is added, its domain and account name are displayed to distinguish between users having similar names in different contexts.

• When a user selects Extended Capacity the user can add only one passphrase user.

When a user selects Easy Exchange:

• User can add any number of Passphrase users.

• User can add any number of Windows users.

• User can add any number of PGP users.

When a user selects Extended Capacity:

• A user may add one Passphrase user.

• A user may not add certain Windows users.

• A user may not add certain PGP users.

The Encrypt option remains disabled until the valid user is added to list of users granted access.

Advanced Options Rules

The default behavior for the Advanced Options in the Encrypt Medium dialog are governed by the following rules.

List of users granted access the current user is added by default as a:

• Centralized user when no Export permission is available.

• Windows user when Export permission is available.

Note: The number of user or machine certificates is shown for the Windows user.

• The current user is added by default as a PGP user when Export permission is available.

• The user list is disabled when a user, other than the current user, does not have Export permission.

Encryption options for Easy Exchange are:

• Enabled when the device size is less than 128GB.

• Disabled when the device size is greater than or equal to 128GB.

Encryption options for Extended Capacity Encryption are:

• Enabled when the device size is 128GB.

• Disabled when the device size is greater than or equal 128GB.

Central encryption options are:

• Disabled when a user does not have Export permission.

• Enabled when a user has Export permission.

- 28 -

Device Control Encryption Methodology

Data options are set as follows:

• The Retain existing data on device is not selected and is disabled if no recognized file system has been found on the media.

Note: When Retain existing data on device option is selected, the erase unused space on

media is disabled regardless of the option set in the Management Server Console.

• The Erase unused space on media option is selected and disabled if this option is set by the administrator in the Management Server Console.

The Add and Remove controls are:

• Disabled when a user does not have Export permission.

• Enabled when Export permission is available, however, Remove remains disabled until a user is selected.

Centralized Encryption

Centralized encryption is encryption performed at the Management Server Console by a network administrator. Centralized encryption offers users that have a Microsoft Enterprise Certificate Authority installed transparent device use within the network.

A user encrypting a removable storage device, ciphered using centralized encryption does not perceive that the device is encrypted. Users can freely use their removable storage device with any computer on the enterprise network, with delegated permission. There is no need for the user to have the encryption key or know the password. Authentication automatically takes place in the background, between the client and the certification authority. Even if the user loses the device, data protection is ensured.

Decentralized Encryption

Decentralized encryption enables a user to perform device encryption at a computer workstation without requiring network administrator rights. The user is forced to cipher and administer their removable storage devices, based on user access and device permissions established centrally by the network administrator.

Decentralized encryption is defined by an administrator using a central rule that establishes which users have access to removable storage devices, whether a user is forced to encrypt their removable storage devices, and whether they are allowed to access unencrypted devices. Depending upon the rule, a user may be able to:

• Read and/or write data to a removable storage device.

• Encrypt a device.

• Format a device.

Users encrypt their devices using the Easy Exchange method, where all existing data is erased and the remaining storage volume is encrypted. Removable storage devices encrypted using decentralized encryption can also be used outside the enterprise network, when necessary.

When a user has the necessary permissions formats or modifies an encrypted removable storage device, the Security Identification (SID) changes. The new SID that is not recognized

- 29 -

PGP Endpoint

by the Administration Server because there is no matching record in the database. Therefore, access to the new device is restricted. This ensures that no data, encrypted or not, can leave the enterprise network using unauthorized removable storage devices. As an additional security measure when a removable storage device is used outside the network, an administrator can choose to export the public key to an external file that can be sent separately to the user, instead of storing the public key on the removable storage device.

Encryption from the client provides several options:

• Passphrase users can use encrypted media with an encryption key stored on the device at the time of encryption.

• Passphrase users can use encrypted media with an encryption key accessed from a file that is stored separately from the media at the time of encryption.

• Windows Active Directory users can use encrypted media with an encryption key protected by a Certificate Authority.

• PGP key users can use encrypted media with an encryption key protected by a PGP Desktop keyring password.

- 30 -

Chapter

Application Control Methodology

In this chapter:

• About File, Macro, and

Script Execution Control

• Identifying DLL

Dependencies

• Maintaining Application

Control

Application Control is an operating system software application extension that enforces strict control over which executable files, scripts, and macros can be run. An administrator initially creates, and then maintains, a centralized list of authorized applications that users or user groups are explicitly designated to run. This ensures that only applications that have been previously identified and authorized by a network administrator can be run by users. Any unauthorized software application, known or unknown, cannot run.

The initial central Application Control authorization list can be constructed using a combination of tools available in the Management Server Console including:

• Authorization Wizard

• Scan Explorer templates

• Standard File Definitions However, there are other types of executable files,

scripts, and macros that have unique Application Control authorization requirements, including embedded macros, scripts, and Dynamic-Link Library (DLL) executable files.

- 31 -

PGP Endpoint

About File, Macro, and Script Execution Control

You can specify which executable files, scripts, and macros a user is permitted to use. Application Control recognizes the following types of scripts and macros:

• VBScript (short for Visual Basic Scripting Edition) that runs within a host environment, including Windows Script Host (WSH) and Internet Explorer (IE) Internet Information Services (IIS). The script file must have the .vbs file extension to be recognized by Application Control.

• JScript (short for JavaScript) that runs as a Windows Script engine plugged into any application that supports Windows Script, such as Internet Explorer, Active Server Pages, and Windows Script Host. The script file must have the .js file extension to be recognized by Application Control.

• Visual Basic for Applications (VBA) macros that may be embedded and run from many Microsoft® Office formats, such as .doc,.dot, .xls, and .ppt files. A hash is created for the whole file, not just the macro content. VBA is closely related to Visual Basic, but generally only runs code within a host application rather than as a standalone application.

Identifying DLL Dependencies

Dynamic-Link Libraries (DLLs) are executable software applications that cannot run independently. These libraries usually have the file extension .dll, .ocx (for libraries containing ActiveX controls), or .drv (for legacy system drivers). A dependency is the degree to which a program module depends on another to run. When one program depends on another, both of them must be installed and authorized to work together.

You must independently identify all DLL dependencies to authorize the DLLs required for your software applications to work. The Authorization Wizard and Standard File Definitions (SFD) import tools do not identify software DLL dependencies for authorization. After you identify DLL

- 32 -

Application Control Methodology

dependencies, you can identify and assign all required files to the corresponding application file group.

Danger: You must identify and authorize DLLs separately for Application Control, rather than

scanning for these files with Scan Explorer templates or using the Authorization Wizard, because malicious software applications can be hidden in DLLs.

DLLs require independent identification because applications automatically load DLL files:

• Listed in an application DLL/EXE import table before loading a software application, to resolve DLL references.

• Explicitly by the application at run time.

• As dependencies of DLLs that use other DLLs.

Maintaining Application Control

Administrators must perform frequent maintenance tasks for operating system patches and service packs, software updates, new software installations, and frequently changing software application uses in any network environment. These tasks also require frequent updates to the Application Control central file authorization list.

Application Control provides different tools that address:

• Operating System Updates and Patches on page 33

• Frequently Changing Software Use on page 33

• Software Updates on page 34

• New Software Installations on page 34

• Macros and Other Changing Files on page 34

Operating System Updates and Patches

Operating systems are subject to continual updates and upgrades. Microsoft® provides Windows® Server Update Services (WSUS) for downloading, approving,

and managing the distribution of Windows Operating System (OS) updates for all computers in your network. You can use the PGP Endpoint Authorization Service tool to monitor and authorize OS changes and create updates for the central authorization list using Microsoft SUS or WSUS, thereby minimizing the network administration burden.

Frequently Changing Software Use

Some software applications must be updated daily, such as antivirus, antispam, or antispyware applications; other applications only receive periodic upgrades or updates. Using the Path

- 33 -

PGP Endpoint

Rules feature in the Management Server Console, combined with trusted ownership, you can allow software updates and modifications of frequently updated applications.

When software application updates are automatically allowed by your network administration policies, you can create specific path rules for each application that is frequently updated. Instead of individually authorizing application files using file groups, you can administer file authorization updates using path rules, if all of the following policies are true:

• You trust the source of the file updates.

• You are confident the update mechanisms can be trusted.

Finally, you can combine the path rules with trusted ownership verification to complete the Application Control authorization schema.

Software Updates

Periodic or single instance software application updates can modify a few application files or constitute a completely new installation. The methods for authorizing these types of software application updates vary, depending upon the source of the update and the computers and users targeted for the update.

Depending on the type of update and the targeted computers you can:

• Create an application-specific template to assign authorized users and user groups, using the Scan Explorer.

• Use the Log Explorer to identify the software application and assign users and user groups to corresponding authorized file groups.

• Use the Authorization Wizard.

New Software Installations

All enterprise network systems routinely deploy new software installations. For planned, known, and trusted source installations of new application software, the Authorization Wizard is the most administratively efficient method for authorizing new software application installations.

New software application installations are generally deployed from the following locations:

• Deployment from a central file server repository.

• Using Microsoft Systems Management Server (SMS) packages.

• Directly on a client computer using a CD/DVD source.

Regardless of the new software application deployment method, you can use the Authorization Wizard to scan, identify, and authorize the new application software executable files.

Macros and Other Changing Files

As an administrator you may be constantly challenged with authorizing files containing embedded macros. The content of such files may change frequently because any user can edit the macro content stored in the file.

Macros embedded in files with a previously calculated hash, for example Microsoft Word or Microsoft Excel files, are unique. These are legal files that are authorized to run. However,

- 34 -

Application Control Methodology

after a file is modified and re-saved in the system, the file no longer corresponds with the hash calculated when the file was initially authorized.

The next time a user attempts to run the modified file, access will be denied because the hash does not match the hash originally calculated. A good practice is to discourage modifying the macro content embedded in files and assign these types of files Windows® Read-Only file permission.

Deleting Local Authorization Files

Local authorization should only be granted to trusted users. Depending upon your security policies, you may need to periodically delete local user authorization lists.

You can delete locally authorized software applications when:

• An application is locally authorized by numerous users and merits control by central authorization, instead of local authorization.

• Policy changes require that all file authorizations must be centrally controlled.

• A user can no longer be considered trusted.

• A user mistakenly authorizes an application file.

Local authorizations are stored in a local file on the client. To remove local authorization files, delete the .locauth files stored in %WINDOWS%\system32\sxdata folder. You can perform local authorization file maintenance on a per-user basis or delete file batches at startup by defining a task in the Windows Scheduler.

Globally Disable Local Authorization

You can disable locally authorized executable files, scripts, or macros using file group assignments.

When you do not want to delete local authorization files, you can still disable access to locally authorized files through user file group assignments.

1. Create a file group named Not Allowed.

2. Add all applications that are not allowed to run to the Not Allowed file group.

Do not assign this file group to any user/user group.

3. Send updates to all computers.

- 35 -

PGP Endpoint

- 36 -

Chapter

Understanding Administration Server-Client Communications

In this chapter:

• About Administration

Server-Client Communications

• About Administration

Server-Client Communication Encryption

• About Administration

Server-Client Proxy Communications

The Administration Server uses a TCP/IP server. When the Administration Server is not reachable because of a firewall on the client, the client can initiate communication through a proxy server.

About Administration Server-Client Communications

PGP Endpoint is based on standard TCP/IP protocols for all communication between clients and servers.

TCP/IP was chosen due to its pervasive implementation throughout most IT infrastructures. They are the most widely used open-system (non-proprietary) protocols since they are equally well suited for LAN or WAN communication. Using the TCP/IP protocol offers some clear advantages over other protocols, including the following:

• Allows enterprise networking connectivity between Windows and non-Windows based computers.

• Can be used to create client-server applications.

Currently PGP Endpoint uses only two configurable ports for full two-way communication between the client and server components. As with other TCP-based services, Administration

- 37 -

PGP Endpoint

Servers cannot handle clients connecting through a firewall or proxy unless the required ports are opened. By default:

• The server uses port 65129 or 65229 (for the TLS protocol) to listen to clients or other Administration Server requests.

• Clients use port 33115 by default to receive information and respond if the Administration Server initiated the communication.

These three ports are required for full two-way communication. You can configure these ports as required by your environment.

Figure 5: Administration Server-Client Communication

Administration Server Communications

The Administration Server consists internally of two distinct subsystems. The first subsystem handles requests from administrative clients and exposes services via a secure, authenticated Remote Procedure Call (RPC). The second subsystem communicates with the clients.

The Administration Server RPC is used to expose administrative functionality (the interfaces required to browse and manage the hashes and file groups in the database) and to offer control over driver behavior. Internally, the Administration Server uses a thread pool to perform mass updates. It connects to each client individually according to the driver state. The database keeps track of drivers and users that are on-line. This is more than broadcasting, but offers the advantage of guaranteed delivery, a feature not found in broadcast-capable protocols.

- 38 -

Understanding Administration Server-Client Communications

The Administration Server uses a TCP/IP server based on Microsoft Windows Input Output Completion Ports (IOCP). The most important server tasks are responding to login and log off notification messages from the clients, such as processing start (boot) and stop (shutdown) messages from clients, and creating and dispatching hash-lists requested by clients.

The TCP/IP client built into the Administration Server serves primarily to push updates to clients. When an administrator makes changes to options or permissions, clients may need immediate updates. For permission changes, this typically invalidates the existing hash-list cache.

Forced updates create a need for multiple Administration Server instances to communicate intra-server. In particular, when an administrator requests an immediate hash-list update, the instruction to flush the hash-list cache must be relayed to every server to keep the caches coherent. Since all servers share a common database, they register themselves in the database. Intra-server notifications are sent through the respective TCP/IP channel.

Changing Licenses for the Administration Server

When you need to change the license for the Administration Server, you must stop the server, change the license, then restart the server.

1. Select Start > Run.

2. Type cmd in the Open: field.

3. On the command line, type: net stop sxs.

4. Copy the new PGP Endpoint license file to the \\Windows\System32 or \\Windows

\SysWOW64 folder, and rename the file to Endpoint.lic.

5. Select Start > Run .

6. Type cmd in the Open: field.

7. On the command line, type: net start sxs.

Result: The Administration Server restarts with the new license information.

Changing the SysLog Server

During the SXS installation you can enter a SysLog server address specify whether you want to log audit events, system events, client events, or some combination thereof. You may change the SysLog server address and specifications after installation.

You can modify the following Administration Serverregistry keys as described by the General

Registry Keys on page 70 section.

1. Select Start > Run.

2. Type regedit in the Open: field.

3. Select HKEY_LOCAL_MACHINE > SYSTEM > CurrentControlSet > Services > sxs > parameters from the registry keys.

Step Result: The Registry Editor window opens.

- 39 -

PGP Endpoint

4. Select any one or all of the following registry key parameters:

• SysLogServerAddress - specifies the name of the SysLog server.

• SysLogGenerateMsg - specifes the type of log event(s) sent to the SysLog server.

5. Close the Registry Editor window.

Result: SysLog behaviour changes based on the registry key data values that you specify.

About Administration Server-Client Communication Encryption

The Administration Server uses a symmetric encryption system to communicate with the client. There are several methods that generate symmetrical public-private key pairs. The most well

known method is based on the RSA algorithm. The security this algorithm provides relies on the difficulty of factoring large prime numbers. Device Control uses the RSA algorithm with a key size of 2048 bits, making it extremely difficult to compromise. The security of a strong cryptographic system depends on the secrecy of the key and key size.

The need for strong cryptographic security underscores the importance of generating your own key pair during installation and using a long seed value, before deploying Device Control clients in your environment. The private key should not be communicated to the clients and should reside on the Administration Server computer or stored on an external medium for added security.

Digital Signatures and Certificate Authorities (CA)

For complete data security, digital signatures are combined with digital certificates that authenticate the identity of a sender.

Using a digital signature ensures, to a certain extent, the authenticity of the sender. Since only the public key of the sender can decrypt the digital signature, this only ensures that the sender has the private key corresponding to the public key used to decrypt the digital signature. To confirm the authenticity of the sender, a digital certificate is used. A digital certificate is an electronic document that certifies that a particular user owns a certain public key. A third party, called the certificate authority (CA), signs this document. You need to install the Microsoft CA service to create your own CA to use with Device Control encryption.

Digital Signatures

Device Control uses digital signatures to ensure the integrity of the private and public key pair. A digital signature is a stamp attached to a data transmission that can be used to determine whether an intervening malicious user tampered with the transmission.

The digital signature for a message is generated as follows:

1. A message digest or hash is generated using a set of hashing algorithms. A message digest is:

• A summary of the data transmitted.

- 40 -

Understanding Administration Server-Client Communications

• Always smaller than the message.

• Detects even the slightest change in the data that produces a different hash.

2. The private key of the sender is used to encrypt the message hash that is the digital signature.

3. The digital signature is attached to the message which is then sent to the recipient.

The recipient then performs the following:

1. Uses the public key of the sender to decrypt the digital signature and obtain the message hash generated by the sender.

2. Uses the same message hash algorithm as the sender to generate a message hash for the received message.

3. Compares the two message hashes. If the message hashes are not exactly the same, a third-party tampered with the message or there was a problem with the data transmission.

You can be assured that the digital signature was originated by the sender, not by a malicious user, because only the public key of the sender can decrypt the digital signature. If the decryption using the public key renders a faulty signature hash, either the signature, or the data, is not exactly what the sender originally transmitted.

About Administration Server-Client Proxy Communications

The client communicates with the Administration Server using Fully Qualified Domain Name (FQDN) address(es) configured during the client setup. The FQDN addresses may not be reachable when the client initiates communication, particularly when using remote clients via a Virtual Private Network (VPN) connection that does not have a physical connection to the Administration Server or a firewall is blocking the required ports when they should not be open for security reasons.

A client may use a proxy configured for the Internet Explorer to reach the Administration Server, when the client cannot establish communication using a defined fully qualified domain name (FQDN).

When the Administration Server is not reachable for the aforementioned reasons, all communication is accomplished using the Internet through a proxy that acts as a barrier between the internal network and the Internet. Many enterprises use proxy servers to manage a variety of communication protocols and add a higher level of security to their network

- 41 -

PGP Endpoint

environment. Data transferred via proxy connections is very resistant to eavesdropping and interception.

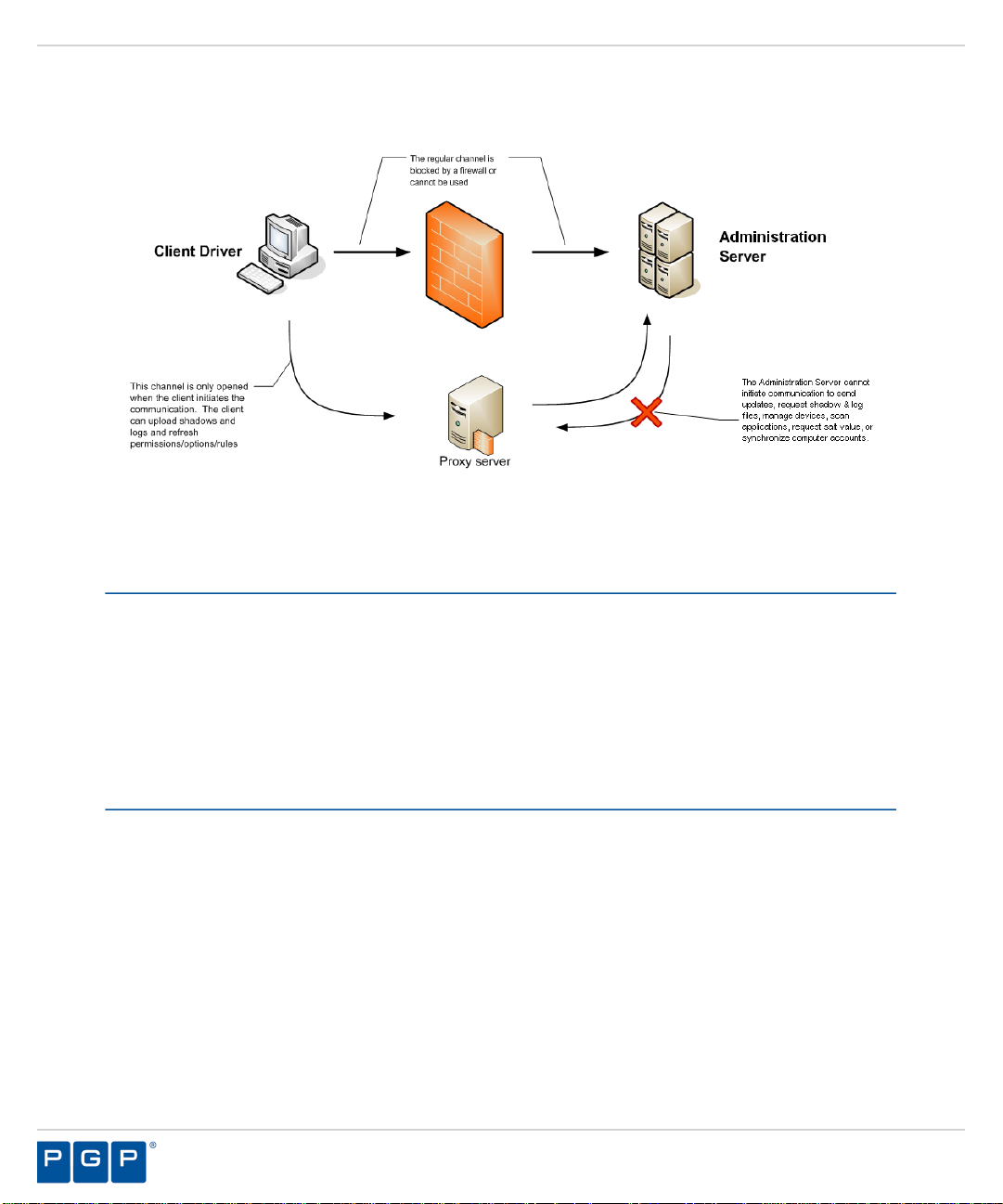

Figure 6: Administration Server-Client Proxy Communications

Configuring Administration Server-Client Proxy Communication

When using a proxy, the client mimics a Microsoft® Internet Explorer proxy configuration.

Prerequisites:

Before configuring proxy communication for the client, you must :

• Install the client on a support operating system using the TLS encryption protocol.

• Set the Administration Server TLS port registry key value to 443. This port is used for secure web browser communications and should be configured for the client, Administration Server, and proxy.

• Install a valid certificate authority.

• Use a supported version of Microsoft Internet Explorer (IE).

Proxy communication can be established in one of the following modes:

• Automatically by detecting settings or using an automatic configuration script with Web Proxy Automatic Discovery (WPAD). Automatic proxy configuration uses a Dynamic Host Configuration Protocol (DHCP) server.

• Manually using a proxy server for your LAN with a secure Hypertext Transfer Protocol Secure (HTTPS) address.

Open Microsoft Internet Explorer®.

- 42 -

Understanding Administration Server-Client Communications

2. Select Tools > Internet Options > Connections > LAN Settings.

Step Result: The Local Area Network (LAN) Settings dialog opens.

Figure 7: Local Area Network (LAN) Settings

3. To define a new WPAD option, select the applicable DHCP server in the DHCP console tree.

4. From the Action menu, select Set Predefined Options.

Step Result: The Predefined Options and Values dialog opens.

Figure 8: Predefined Options and Values

5. Click Add.

6. Select the Options class you want to modify from the drop-down list.

7. Type an Option name.

8. Click OK.

9. Right-click the Server Options branch, in the DHCP console tree.

10.Select New Scope.

11.Select Configure Options, select the WPAD value.

12.Type the proxy address in the String Value field.

13.After creating the Scope, right-click Scope Options.

- 43 -

PGP Endpoint

14.Select Configure Options.

Step Result: The Scope Options dialog opens.

Figure 9: Scope Options Dialog

15.Click the Advanced tab.

16.Select the Option name you created in a previous step.

17.Click OK.

Result: The proxy server is defined.

- 44 -

Chapter

Deploying the Client

In this chapter:

• About PGP Endpoint

Client Deployment

• Deploying the Client with a

Ghost Image

• Deploying the Client with

Windows Group Policy

• Deploying the Client with

Other Tools

The PGP Endpoint Client Deployment tool is generally used to silently deploy the client to a group of computers, after you create deployment packages. Depending upon unique network environment requirements for your organization, you can perform unattended client installations using alternate deployment methods. For information regarding the use of the PGP Endpoint Client Deployment tool, refer to the Device Control User Guide or Application

Control User Guide (https://support.pgp.com).

About PGP Endpoint Client Deployment

You can deploy the client using methods other than the PGP Endpoint Client Deployment tool, depending upon your environment and company policies.

Client deployment methods, in addition to the PGP Endpoint Client Deployment tool, include using:

• A ghost image.

• Windows Group Policy.

• Third-party software deployment tools.

- 45 -

PGP Endpoint

Deploying the Client with a Ghost Image

Network administrators commonly deploy standard computer images for new computers and computer upgrades using General Hardware-Oriented System Transfer (Ghost) software.

Prerequisites:

Before you can create and deploy a ghost image of the client, you must:

• Install the client.

• Disable the Client Hardening default option according to the Device Control User Guide or

Application Control User Guide.

Ghost Imaging is the process of copying the contents of one computer hard disk to another disk or to an image file. Provisioning with a standard set of software allows a new user to begin with a complete application suite and eliminates the need to install individual applications. Using the following procedure, the client can be deployed with ghost imaging.

1. Change all drivers to start in demand mode, by selecting Windows Start > Run.

2. Type regedit in the Open box.

3. Select the HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services/scomc registry

key.

4. Set the Start parameter value REG_DWORD to 4.

5. Select the HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services/sk-ndis registry

key.

6. Edit the Start parameter value REG_DWORD to 4.

7. Select Start > Control Panel > Network Connections > Local Area Connection > Properties.

8. On the General tab, disable the SK-NDIS filter.

9. Select Windows Start > Run > Regedit.

10.Select the HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control

\VirtualDeviceDrivers registry key.

11.Delete the C:\WINDOWS\system32\sxd-vdd.dll value from the registry key.

12.Restart the computer.

13.Create the ghost image from the computer hosting the client.

14.Change the unique SID and name of the computer.

15.Select Windows Start > Run > Regedit .

16.Select the HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services/scomc registry

key.

- 46 -

Deploying the Client

17.Set the Start parameter value REG_DWORD to 2.

18.Select the HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services/sk-ndis registry

key.

19.Edit the Start parameter value REG_DWORD to 0.

20.Select the HKEY_LOCAL_MACHINE\SYSTEM\SOFTWARE\Microsoft\Windows

\CurrentVersion\Run registry key.

21.Add the %SYSTEMROOT%\System32\sxd-vdd.dll value to the VDD registry key.

22.Restart the computer.

23.Select Start > Control Panel > Network Connections > Local Area Connection > Properties.

24.On the General tab, enable the SK-NDIS filter.

Result: The client ghost image is created on the client computer hosting the client.

Deploying the Client with Windows Group Policy

You can implement a computer-based group policy for all computers in a domain. Group policies can be applied to sites, domains, or Active Directory organizational units (OU), based on individual system requirements and the types of computers in the groups. The Group Policy Management Console (GPMC) has superseded the Active Directory Users and Computers dialog for Windows XP®.

Prerequisites:

Before using a third-party software deployment tool to deploy clients, you must:

1. Create a deployment package using the PGP Endpoint Client Deployment tool. Refer to the Device Control User Guide or Application Control User Guide (https://support.pgp.com) for instructions about creating deployment packages.

2. Copy the entire deployment package folder to a local directory on the server that will be used to deploy the client. This directory should include the *.msi installation file and the sx- public.key public key file.

The following procedure demonstrates how to apply Windows® group policy for deploying clients.

Note: Execution of this procedure may vary according to individual operating system

requirements. For the purposes of this example, the operating system reference is Windows 2003 Server.

1. Select Start > All Programs > Administrative Tools > Active Directory Users and Computers.

Step Result: The Active Directory Users and Computers dialog opens.

- 47 -

PGP Endpoint

2. In the console tree, right-click the DomainName, where the DomainName is the name of your domain.

3. Click Properties.

4. Select the Group Policy tab.

5. Click New to create a new group policy.

6. Click Edit.

7. Under Computer Configuration, expand the Software Settings folder.

8. Right-click Software Installation.

9. Select New > Package .

10.In the Open dialog, type the full Universal Naming Convention (UNC) path of the shared

installer package that you want to install using the \\file server\share\client.msi format.

Important: Do not use Browse to access the location. Make sure that you use the UNC

path to the shared installer package.

11.Click Open.

12.Click Assigned.

13.Click OK.

Step Result: The package is listed in the right pane of the Group Policy window.

14.Close the Group Policy tab.

15.Click OK.

16.Close the Active Directory Users and Computers dialog.

Result: When the client computer restarts, the managed software package is automatically

installed.

Deploying the Client with Other Tools

You can use a third-party software deployment tool to deploy the PGP Endpoint client for a group of computers in your network.

Prerequisites:

Before using a third-party software deployment tool to deploy clients, you must:

- 48 -

Deploying the Client

1. Open the third-party tool.

2. Run the following command-line in the appropriate entry: Msiexec /i

"PGPEndpointClient.msi" /qn TRANSFORMS="PGPEndpointClient.mst" /L*v %TMP% \setupcltsu.log

3. Deploy the client using the third-party tool.

Result: The third-party software deployment tool installs the client on the specified target

computers.

- 49 -

PGP Endpoint

- 50 -

Chapter

Controlling Administrative Rights

In this chapter:

• About PGP Endpoint

Access Control Rights

• Defining User Access

• Using the Access Control

Visual Basic Script

Access privileges are set in the system to allow or restrict administrative privileges. Administrative privileges are shown in the Connection panel of the Management Server Console.The system recognizes two types of administrators:

• Enterprise administrators, who have complete, unrestricted administrative privileges.

• Administrators, who have restricted administrative privileges.

About PGP Endpoint Access Control Rights

You can use the ctrlacx.vbs script to manage and show the user access control rights defined in the Active Directory hierarchy.

You can use the Visual Basic® script file, ctrlacx.vbs, to set, view, or modify the Manage PGP Endpoint Settings control rights in the Active Directory. This script allows Active Directory administrators to delegate administrative access to computers, users, user groups, and organizational units without allowing other task management, which is required by default, to the administrators.

- 51 -

PGP Endpoint

Defining User Access

The Management Server Console can only be accessed by authorized network administrators. To control user access to the Management Server Console, you can define two types of

administrators:

• An Enterprise Administrator has full access to all management functions.

Note: Initially, any member of the Windows Administrators group for a Administration

Server has the privileges of a Enterprise Administrator. After an Enterprise Administrator is designated, administrative privileges are automatically restricted for the members of the local Administrators group.

• An Administrator has restricted access to Management Server Console functions as defined by the Enterprise Administrator.

An Enterprise Administrator can delegate administrative rights to other administrators using Active Directory Organizational Units. These rights are described in the following table.

Table 1: PGP Endpoint Administrator Rights

Administrative Rights

View all device permissions and file authorizations

Modify file authorizations

device permissions

level device permissions

Administrator Type Limitations PGP Endpoint

Application

All PGP Endpoint administrators

Enterprise Administrators

Members of the

Settings (Device Control) role

Enterprise Administrators

Members of the

Settings (Device Control) role

NA Application

Control; Device Control

NA Application

Control

NAModify global-level

Only users the administrator is allowed to manage

NAModify computer-

Only for the computers that the administrator is allowed to manage

Device Control

- 52 -

Controlling Administrative Rights

Administrative Rights

group device permissions

Manage builtin accounts (Everyone, LocalSystem, and so forth)

Initially, any administrator with password access to a Administration Server and the Management Server Console can use the Management Server Console.

Before using PGP Endpoint, PGP recommends setting up administrators who have access to the Management Server Console. You can assign different roles to administrators, but you must define at least one Enterprise Administrator.

The following rules apply to administrative user roles:

Administrator Type Limitations PGP Endpoint

Application

Enterprise Administrators

Members of the

Settings (Device Control) role

Enterprise Administrators

NAModify computer-

Only if the administrator is allowed to manage all the computers in the computer group for all accounts

NA Application

Device Control

Control; Device Control

• You must always designate one Enterprise Administrator before you modify the list of administrators.

• All Administration Servers share the same database, so some administrative rights set for an administrator can be used for other Administration Servers.

• Local computer users cannot manage the Management Server Console, even if assigned as an Enterprise Administrator, because they cannot connect to an Administration Server.

Using the Access Control Visual Basic Script

You use the Visual Basic® script file, ctrlacx.vbs, to set, view, or modify the Manage PGP Endpoint Settings control rights in the Active Directory.

Prerequisites:

•

Install the Windows® Script Host (WSH) interpreter. See Script Host (http://

msdn.microsoft.com/en-us/library/ec0wcxh3(VS.85).aspx) for additional information about

the Windows Script Host.

• Schedule domain synchronization.

- 53 -

PGP Endpoint

When ctrlacx.vbs runs, the script creates a special entry in the permissions list of the AD organization unit named Manage PGP Endpoint Settings. This entry only affects Device Control software administrator users and the devices they control permissions for. If you assign this setting to a specific user, who is also an Administrator defined using the User Access Manager dialog in the Management Server Console, this Administrator can only manage, directly from the Management Server Console, the designated users, user groups, and computers that the Administrator is assigned rights for. Administrator access rights are described by Defining User Access in the Application Control or Device Control User Guide (http://support.pgp.com/).

1. Select Start > Run.

2. Type: cscript ctrlacx.vbs [parameter from following list]>filename.txt

3. Add any of the following optional parameters, individually or in combination, to the

parameters list command line:

Parameter Description

- Shows a brief description for each available parameter.

-e Lists all access control rights, with condensed output.

-v Lists all access control rights, with detailed output.

-q cn Shows control rights by canonical name.

-s Shows PGP Manage PGP Endpoint Settings rights.

-create Creates or updates PGP Manage PGP Endpoint Settings rights.

-delete Deletes PGP Manage PGP Endpoint Settings rights.

4. Click OK.

Result: The delegation rights you create can be assigned to Active Directory organizational

units (OUs).

- 54 -

Controlling Administrative Rights

Example:

To list all control access rights in condensed mode redirecting the output to MyFile.txt file, type:

cscript ctrlacx.vbs –e > MyFile.txt

To show the Manage PGP Endpoint Settings rights interactively, type:

ctrlacx.vbs -s

After Completing This Task:

You can assign the delegation rights by using the Windows Management Services and MMC when you run the script with -create parameter. See Windows Management Services and MMC (http://technet.microsoft.com/en-us/library/bb742441.aspx#XSLTsection123121120120) for additional information about assigning delegation rights.

- 55 -

PGP Endpoint

- 56 -

Chapter

Using File Tools

In this chapter:

• About File Tools

• Using the PGP Endpoint

Authorization Service Tool

• Using the PGP Endpoint Application Control File Tool

• Using the SXDomain Tool

As you work with the Application Control and Device Control products, the number of files in the database increases over time, increasing the administrative burden associated with managing large volumes of files. PGP Endpoint provides several administrative functions that allow an administrator to manage multiple files automatically or in a single instance.

About File Tools

PGP Endpoint provides tools for administrators to manage large volumes of files in the PGP Endpoint Application Control database.

You can use the following tools to manage large volumes of files for Application Control, including the:

• Authorization Service

• Versatile File Processor

• File Import/Export

• SXDomain

Using the PGP Endpoint Authorization Service Tool

You can use the PGP Endpoint Application Control Authorization Service Tool to monitor approved and synchronized changes to executable file authorization policies using Microsoft Update Services (SUS) and Windows® Server Update Services (WSUS).

The PGP Endpoint Authorization Service Tool service authorizes all approved Microsoft updates and fixes, creates corresponding hash files, and updates the database.

- 57 -

PGP Endpoint

1. From the location where you saved the PGP Endpoint application software, run the \server

\authsrv\setup.exe file.

Step Result: The Welcome page opens.

2. Click Next.

Step Result: The License Agreement page opens.

Figure 10: License Agreement Page

3. Review the license agreement and, if you agree, select I accept the terms in the license

agreement.

4. Click Next.

5. From the PGP Endpoint Administration Server dialog, enter an Administration Server IP

address in the corresponding field.

- 58 -

6. Click Next.

Step Result: The Software Update Services dialog opens.

Figure 11: Software Update Services Dialog

Using File Tools

7. Select one of the following options:

• Microsoft Software Update Services (SUS version 1.0)

• Microsoft Windows Server Update Services (WSUS version 2.0 and greater)

8. Select any of the following PGP Endpoint Authorization Service Options.

• Provide information on each scan by e-mail

• Use verbose report mode

• Do not automatically start PGP Endpoint Authorization Service when Setup is

finished

Step Result: If you choose to Provide information on each scan by e-mail, the E-mail

configuration dialog opens. The PGP Endpoint Authorization Service tool does not support Outlook Express or Internet Information Server (IIS) as clients for sending email messages. If there is already an account for

- 59 -

PGP Endpoint

Figure 12: E-mail Configuration Dialog

these types of clients, the SMTP IP address is transferred directly to the PGP Endpoint Authorization Service configuration.

Note: If you select Do not automatically start PGP Endpoint Authorization

Service when Setup is finished, the service will automatically start when one

of the following events occurs:

• A change is made by WSUS in the default update folder.

• An administrator approves the SUS updates using the PGP Endpoint Management Server Console.

• One hour elapses after installing the PGP Endpoint Authorization Service.

9. Click Next.

10.From the Destination Folder dialog, click Change to choose an installation destination

folder other than the default folder C:\Program Files\PGP Corporation\PGP Endpoint.

11.Click Next.

Step Result: The Ready to Install the Program dialog opens.

12.Click Install.

A progress bar runs on the page, showing installation progress.

Step Result: The Completed page opens.

- 60 -

Using File Tools

13.Click Finish.

Result: The PGP Endpoint Database Explorer window shows the specified installation

directory(s) in the Files tab.

After Completing This Task:

After installing the PGP Endpoint Application Control Authorization Service Tool you must configure and synchronize WSUS. See Configure and Synchronize WSUS (http://

technet.microsoft.com/en-us/library/cc708455.aspx) for more information about configuring

WSUS or SUS. You can modify PGP Endpoint Authorization Service Tool by rerunning the Authorization

Service Tool.

Using the PGP Endpoint Application Control File Tool

You use the Versatile File Processor tool to scan files in specific locations. The PGP Endpoint Application Control File Tool tool consists of two files:

• The filetool.dll that provides the underlying functionality. This file is used by other PGP tools, such as the Authorization Service Tool.

• The filetool.exe command line executable file that uses the filetool.dll.

The PGP Endpoint Application Control File Tool tool works in one of two modes depending on the parameters you select. The operation modes are:

• Online mode - The online mode is used to scan specific files. The PGP Endpoint Application Control File Tool connects, by default, to the local Administration Server using the login identity of the current user and scans file locations to assign the scanned files to file groups. The files can be assigned automatically, using Administration Server suggestions.

Note: You can override the user login default using the command line parameters –s

<server> and –u <user/password>. After the assignment, and if the –p option is specified, the tool can request Administration Server to notify all the clients (drivers).

• Offline mode - The offline mode produces scan files. Even though the scan files have exactly the same format as the scan files produced by the driver, these cannot be used directly. Offline mode requires an output file name only if using the –o parameter. File assignments cannot be made in offline mode. You can copy the resulting scan files, from the directory that you specified in the command line instruction, to the Administration Server %/ DataFleDirectory/% to compare your results with previously scanned files.

Note: The PGP Endpoint Application Control File Tool tool can scan files contained in

archives files with the following extensions:.cab,.zip,.rar,.ace,.jar, and .cs. However, some.cab archives do not have a standard cabinet structure despite having a.cab extension so it may not be possible to scan them correctly.

1. Select Start > Run .

2. Browse to the location where you saved the PGP Endpoint application software, and select

\bin\tools\FileTool.exe file.

- 61 -

PGP Endpoint

3. Add any of the following optional parameters, individually or in combination, to the parameters list command line.

Tip: If you execute the PGP Endpoint Application Control File Tool without parameters,

help output is displayed.

Parameter Description

-s Administration Server (The default is the current

Administration Server).

-u User/password to connect to the Administration Server. (The default is the current user).

-o Offline mode; generate a scan

-d0 Delta mode off. (This is the default value).

-d1 Delta mode on, avoid rescanning files already scanned.

-d2 Delta mode on, clear the list then memorize files already

scanned.

-f Access failure, retry (n) times with a least (m) seconds between attempts. Example: -f 10,3 (10 retry attempts with 3 seconds) between attempts.

-v Verbose report; generate an xml report that you save to a location you specify in the command line after the parameter.

-r Report; generate an xml report, errors only, that you save to a location you specify in the command line after the parameter.

-i Ignore archive contents.

target File or directory to scan.

Tip: To avoid recursive scan on directory, terminate the

target entry with \\.The target may also be entered using one of the following keywords in brackets:

• [drives] (All hard drives)

• [media] (All removable media)

• [all] (All hard drives and removable media)

-e An option wildcard mask.

- 62 -

Using File Tools

Parameter Description

-c0 File group creation, use only existing groups.

-c1 File group creation, create if necessary. (This is the

default value).

-a0 Keep existing assignment, automatically assign new files to existing groups, and assign remaining files to groups you select.

Tip: Accepts a list of file groups using the format

FileGroup1,FileGroup2...FileGroup

-a1 Keep existing assignment, assign new files to groups you select.

-a2 Assign existing and new files to group.

-x0 Process all files.

Tip: Be very cautious when using this parameter because

all files are scanned, even if the files are not executable.

-x1 Only process executable files.

-x2 Only process executable files having a valid digital

signature.

-p Push updates to all online clients.

Result: The specified file locations are scanned and the files designated by the parameters

are assigned to file groups.

- 63 -

PGP Endpoint

Using the SXDomain Tool

The SXDomain utility provides a method to automatically schedule domain synchronization, using the Windows Task Scheduler. You can schedule domain synchronizations with a task scheduler, such as the Windows Task Scheduler. You create a batch file that contains a list domains to synchronize.

Figure 13: Synchronization Script Process

1. Navigate to C:\Program Files\PGP Corporation\PGP Endpoint\SXTools.

2. Create a batch file named sxsync.bat containing the following command line: CMD/C

SXDOMAIN- s SXS_Server -i -e <mydomains.txt> error_list.txt.

3. Navigate to the Windows Control Panel, select Scheduled Tasks.

- 64 -

4. Select Add Scheduled Tasks.

Step Result: The Scheduled Task Wizard dialog opens.

Using File Tools

Figure 14: Scheduled Task Wizard

5. Click Next.

6. Select the sxsynch.bat file from files shown.

7. Click Next.

8. Type a name for your scheduled task at the prompt.

9. Select a schedule frequency from the options listed from Perform this task.

10.Click Next.

11.Select the day and time you want to perform the task.

12.Click Next.

Step Result: A user name and password information dialog opens.

13.Type the user name in the User Name field.

14.Type the associated password in the Password and Confirm Password fields.

15.Click Next.

Step Result: A dialog opens showing the name of the scheduled task and the date and time

the task is scheduled to perform.

- 65 -

PGP Endpoint

16.Click Finish.

Result: Domain synchronization is scheduled to perform according to your specifications.

- 66 -

Chapter

Managing Registry Keys

In this chapter:

• Database Connection

Loss Registry Key

• Authorization Service

Registry Key

• Debugging Registry Key

• General Registry Keys

• Security Registry Keys

• Command & Control

Registry Key

• Client Kernel Registry Key

• Software Registry Key

• Administration Server

Registry Key

• Authorization Wizard

Registry Key

Registry keys can be used to adapt Application Control and Device Control according to enterprise-specific network environment policies and requirements.Registry keys that can be modified include:

• Administration Server keys

• Client keys

• Management Server Console keys

Database Connection Loss Registry Key

The database connection registry key parameters allow you to define Administration Server behavior during periods of database connectivity loss. The Administration Server can run with intermittent database connectivity, ignoring the lack of database connection for specified periods. During these periods, the Administration Server retries connecting to the database. After repeatedly attempting to establish database connectivity, the Administration Server

- 67 -

PGP Endpoint

declines further connectivity requests from the client and console, until database connectivity is restored.

The following table describes the HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet \Services\sxs registry key parameters for the Administration Server. All registry key entries are of the type: REG_SZ (= string value), unless designated otherwise.

Table 2: Database Connection Loss Registry Key Parameters

Parameter Name Description Default Value

DbConnectionCount Shows the number of database

connections in the connection pool.

DbConnectionString Shows the driver, server,

database, and trusted connection or user name and password.

DbInitializationDelay Shows the period in seconds

that the Administration Server waits before contacting the SQL server.

Provider=sqloledb; DataSource= ; InitialCatalog=sx; Trusted_Connection=yes

300

Authorization Service Registry Key

The parameters for the PGP Endpoint Authorization Service tool registry key parameters are shown in the following table.

Table 3: Authorization Service Tool Registry Key Parameters

Key Name Description Default Values

CmdLineBlockParams Allows user to setup assignment

mode, group name(s), and filters in the FileTool.exe command line parameters.

-a1 = Microsoft Update Files

Log file name Depends upon the Log to file value. authSrvHlpr.log Log to file Sends debug message to the log

file yes=1

- 68 -

no = 0

Managing Registry Keys

Key Name Description Default Values

OutputDirectory Directory path where output XML

reports are located.

SendMail The service sends e-mail at the

end of the scan, which includes the command line and attached XML report.

SXSServer Name or IP address of the

Administration Server.

VerboseReport Report mode.

no=normal report mode

WSUSContentDirectory Absolute directory path where

WSUS files are located.

C:\Program Files\PGP \PGP Endpoint \ Authorization Service\Logs\

no = 0

Not applicable.

yes = verbose report mode

C:\

Debugging Registry Key

You can use the debugging registry key parameters to specify the behavior for debugging the Administration Server.

Table 4: Debugging Registry Key Parameters

Key Name Description Default

Value

Debug For the Administration Server running as a service, a

debugger will launch and attach to the server when the value is set to yes = 1.

Log file name Shows the name of the log file written when Log to file

= yes .

Log to console Sends debug messages to the console when the value

is set to yes = 1.

Log to dbwin Sends debug messages to the DBwin32 when the

value is set to yes = 1.

- 69 -

no = 0

sxs.log

no = 0

PGP Endpoint

Key Name Description Default

Value

Log to file Sends debug messages to the log file when the value

is set to yes = 1.

VerboseSyncLogging The Administration Server logs the important object

attributes retrieved during domain synchronization.

no = 0

General Registry Keys

The general registry key parameters govern the general behavior of the Administration Server. The following table describes the HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet

\Services\sxs registry key parameters for the Administration Server. All registry key entries are of the type: REG_SZ (= string value), unless designated otherwise.

Table 5: General Registry Key Parameters

Parameter Name Description Default Value

AdoVersion Specifies a string representing the version of

Active Directory objects used.

Concurrency Shows how many running threads are

allowed for the input/output connection port (IOCP). Zero is equivalent to one thread per central processing unit (CPU). Maximum number equals MaxThreads.

No value.

0=auto

DataFileDirectory Shows the name of the base directory where

the Administration Server stores data files.

SysLogGenerateMsg Determines what type of logs are sent to the

SysLog server. 1 = Audit logs only 2 = System logs only

SysLogServerAddress The SysLog server that the Administration

Server sends server and audit log events to.

- 70 -

C:\DataFileDirectory

3 = Audit and system logs

Specified during initial client installation.

Managing Registry Keys

Security Registry Keys

The security registry key parameters govern the security configuration for the Administration Server.

Table 6: Security Registry Key Parameters

Parameter Name Description Default

Value

CommVer

MaxSockets Specifies the maximum number of TCP

Port

Specifies the client-server communication protocol that the Administration Server uses as follows:

0 = Client version lower than 3.1 1 = Client versions 3.1 or 3.2 2 = Client version 4.0 3 = Client version 4.1 or higher

connections allowed at any time. Specifies the TCP port where the socket-

based Administration Server listens for new connections.

Minimum value = 1 Maximum value = 65534

5000

65129

- 71 -

PGP Endpoint

Parameter Name Description Default

Value

RpcProtectionLevel

SecureInterSxs Specifies that inter-PGP Endpoint

Specifies whether the RPC server requires RPC clients to authenticate.

0 = OS selects protection level 1 = No protection 2 = Client identify is verified when connecting

to the PGP Endpoint Administration Server 3 = Examines client credentials for TCP

connection. 4 = Examines client credentials for TCP

connection, adds cryptographic signature to every packet.

5 = Examines client credentials for TCP connection, adds additional cryptographic signature to every packet.

6 = Examines client credentials for TCP connection, adds cryptographic signature to every packet, and encrypts data in both directions

Administration Server communication use the TLS protocol.

SndPort

SxdConnectTimeoutMSec Specifies the time in milliseconds that the

Specifies the TCP where the PGP Endpoint client listens for new connections.

Minimum value = 1 Maximum value = 65534

Administration Server waits to accept a TCP connection for the client. The value should be between 500 and 120000 ms.

- 72 -

33115

5000

Managing Registry Keys

Parameter Name Description Default

Value

SxdPort

TLSMaxSockets Specifies the maximum number of TCP

TLSPort

Specifies the TCP port where the built-in client server listens for new connections.

Minimum value = 1 Maximum value = 65534

connections allowed when using the TLS protocol.

Specifies the TLS port where the socketbased Administration Server listens for new connections.

Minimum value = 1 Maximum value = 65534

33115

65229

Configure MaxSockets

When certain security registry key parameters interact, some of the combinations formed are not valid as shown in the following table.

Table 7: Configure MaxSockets

Secure InterSxs

CommVer TLSMax

Sockets

MaxSockets Combined

Result

0 0 Not valid 0 >0 Valid >0 0 Not valid >0 >0 Valid 0 0 Not valid 0 >0 Not valid >0 0 Not valid >0 >0 Valid 0 0 Not validYes <3 0 >0 Not valid

- 73 -

PGP Endpoint

Secure InterSxs

CommVer TLSMax

Sockets

>0 0 Valid >0 >0 Valid

0 0 Not valid 0 >0 Not valid >0 0 Valid >0 >0 Valid

MaxSockets Combined

Result

Configuring MaxSockets and TLSMaxSockets

The following table describes the parameters used for the MaxSockets and TLSMaxSockets configuration rules.

Table 8: Configuring MaxSockets and TLSMaxSockets

TLSMaxSockets and MaxSockets Values Description

TLSMaxSockets>0 AND MaxSockets=0 Only TLS connections are available for

PGP Endpoint Administration Server-client communication using the TLSPort port specification.

TLSMaxSockets=0 AND MaxSockets>0 Only non-TLS connections are available

for PGP Endpoint Administration Serverclient communication using the Port port specification.

TLSMaxSockets>0 AND MaxSockets>0 Both TLS and non-TLS connections are

available for PGP Endpoint Administration Server-client communication using the TLSPort and Port port specifications.

Command & Control Registry Key

The registry key parameters for PGP Endpoint Command & Control (SCC) that govern the behavior for all communication between the server, the client(s), and the Certificate Authority (CA) server are shown in the following table.

The following table describes the HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet \Services\scomc registry key parameters for the PGP Endpoint Command & Control module. All registry key entries are of the type: REG_SZ (= string value), unless designated otherwise.

- 74 -

Managing Registry Keys

Table 9: PGP Endpoint Command and Control (SCC) Registry Key Parameters

Key Name Description Default Value

CertGeneration

ImportDir Shows the directory used import the policies file. C:\Program Files

Log file name Shows the name of the log file. scomc.log Log to console

Log to dbwin

Log to file

Servers Shows a list of PGP Endpoint Administration

TicketDir Shows directory where endpoint maintenance

Yes=Client is in automatic mode and requests CA certificate.

No=Client is in manual mode and a user certificate must be generated manually.

Yes=Sends debug message to console. No=No debug messages sent to console.

Yes=Sends debug message to dbwin. No=No debug messages sent to dbwin.

Yes=Sends debug message to log file. No=No debug messages sent to log file.

Server names by FDQN or IP address.

tickets are stored.

Defined during client install.

\PGP\ PGP Endpoint \Import

No default value.

Defined during server install.

Cannot modify this key.

UseTLS

Yes=TLS protocol used No=TLS protocol not used

Defined during server install.

Client Kernel Registry Key

The client kernel parameter subentries are shown in the following table. The following table describes the HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet

\Services\sk registry key parameters for the client kernel. All registry key entries are of the type: REG_SZ (= string value), unless designated otherwise.

- 75 -

PGP Endpoint

Table 10: Client Kernel Registry Key Parameters

Parameter Name Description Default Value

EncryptionMode EncryptionMode which SK runs one of the

following masks: encLpc = 1 encFips = 2 encPgp = 4

NDISInstallation Specifies how SCOMC installs SK-NDIS .

1 = Uninstall only an existing SK-NDIS driver. 2 = Uninstall an existing SK-NDIS driver, then

install a new SK-NDIS driver.

encDefault = 0

None.

Software Registry Key

The registry key parameters that govern the application software configuration are shown in the following table.

The following table describes the HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft \Windows NT\RPC registry key parameters for the Management Server Console module. All registry key entries are of the type: REG_SZ (= string value), unless designated otherwise.

Table 11: Software Registry Key Parameters

Parameter Name Description Default Value

EnableAuthEpResolution Sets the

RestrictRemoteClients functionality status for the RPC interface. Remote and anonymous RPC call is available only if:

• RPC registry key and EnableAuthEpResolution value described are created during setup.

• The EnableAuthEpResolution registry value is set to 0.

- 76 -

Managing Registry Keys

Administration Server Registry Key

The Administration Server registry key parameters allow you to define default server and number of servers connected to the database and console.

The following table describes the HKEY_USERS\Software\PGP\PGP Endpoint\Server registry key parameters for the Administration Server module. All registry key entries are of the type: REG_SZ (= string value), unless designated otherwise.

Table 12: Administration Server Registry Key Parameters

Parameter Name Description Default Value

DefaultServer Name of the last Administration Server

that the Management Server Console connected to.

Server List Lists the names of the Administration

Servers that the Management Server Console connected to. Server names are separated by commas.

None.

Authorization Wizard Registry Key

The Authorization Wizard registry key parameters allow you to define the behavior for communication between theAdministration Server and the wizard.

The following table describes the HKEY_USERS\Software\PGP\SecureEXE\AuthWiz \Parameters registry key parameters for the Authorization Wizard module. All registry key entries are of the type: REG_SZ (= string value), unless designated otherwise.

Table 13: Authorization Wizard Registry Key Parameters

Parameter Name Description Default Value

AutoAssign Specifies whether the Administration

Server should assign the hashed files to a file group.

Yes

DefaultServer The Administration Server that the

Authorization Wizard sends a result to. The value is the Administration Server IP address.

- 77 -

127.0.0.1

PGP Endpoint

Parameter Name Description Default Value

DefaultTemDir The file location where the

Authorization Wizard stores results before uploading to an Administration Server.

%TEMP%

- 78 -

PGP Endpoint - 4.4 Administrator’s Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

About This Document

Typographical Conventions

Getting Assistance

PGP Endpoint System Architecture

About Application Control and Device Control Architecture

The Database

The Administration Server

The Management Server Console

The Client

Understanding Cryptography

About Encryption

Advanced Encryption Standard

RSA Encryption

Device Control Encryption Methodology

Encrypting Removable Storage Devices

Easy Exchange Encryption

Encrypting Media

Centralized Encryption

Decentralized Encryption

Application Control Methodology

About File, Macro, and Script Execution Control

Identifying DLL Dependencies

Maintaining Application Control

Operating System Updates and Patches

Frequently Changing Software Use

Software Updates

New Software Installations

Macros and Other Changing Files

Deleting Local Authorization Files

Globally Disable Local Authorization

Understanding Administration Server-Client Communications

About Administration Server-Client Communications

Administration Server Communications

Changing Licenses for the Administration Server

Changing the SysLog Server

About Administration Server-Client Communication Encryption

Digital Signatures and Certificate Authorities (CA)

Digital Signatures

About Administration Server-Client Proxy Communications

Configuring Administration Server-Client Proxy Communication

Deploying the Client

About PGP Endpoint Client Deployment

Deploying the Client with a Ghost Image

Deploying the Client with Windows Group Policy

Deploying the Client with Other Tools

Controlling Administrative Rights

About PGP Endpoint Access Control Rights

Defining User Access

Using the Access Control Visual Basic Script

Using File Tools

About File Tools

Using the PGP Endpoint Authorization Service Tool

Using the PGP Endpoint Application Control File Tool

Using the SXDomain Tool

Managing Registry Keys

Database Connection Loss Registry Key

Authorization Service Registry Key

Debugging Registry Key

General Registry Keys

Security Registry Keys

Configure MaxSockets

Configuring MaxSockets and TLSMaxSockets

Command & Control Registry Key

Client Kernel Registry Key

Software Registry Key

Administration Server Registry Key

Authorization Wizard Registry Key
