Pfeiffer Vacuum DCU 002, DCU 110, DCU 310, DCU 180, DCU 400 Operating Instructions Manual

OPERATING INSTRUCTIONS
DCU 002/110/180/310/400
Display and control unit
EN
Translation of the original instructions
PT 0250 BEN/F (1604)

Table of contents

1 About this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3 Product description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4 Connection diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
7 Malfunctions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
8 Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
9 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
10 Technical data and dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
1.1 Validity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.2 Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.1 Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2 Proper use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.3 Improper use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.1 Product identification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.2 Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.3 General connection description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.4 Range of application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5.1 Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.2 Connecting to the mains power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.3 Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5.4 Connecting a measuring device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
6.1 LC-Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
6.2 Key functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
6.3 Symbol description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
6.4 Switching on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
6.5 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6.6 Operation with DCU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6.7 Pressure measurement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6.8 Switching off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
7.1 Operation display via LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
7.2 Error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
10 Technical data and dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
10.2 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Declaration of conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2
About this manual

1 About this manual

1.1 Validity

This operating manual is for customers of Pfeiffer Vacuum. It describes the functioning of the designated product and provides the most important information for safe use of the unit. The description follows applicable EU guidelines. All information provided in this operating manual refers to the current state of the product's development. The documen­tation remains valid as long as the customer does not make any changes to the product.
Up-to-date operating instructions can also be downloaded from www.pfeiffer-vacuum.com.

1.2 Conventions

Safety instructions The safety instructions in Pfeiffer Vacuum operating instructions are the result of risk

evaluations and hazard analyses and are oriented on international certification stan­dards as specified by UL, CSA, ANSI Z-535, SEMI S1, ISO 3864 and DIN 4844. In this document, the following hazard levels and information are considered:
DANGER
Imminent danger
Indicates an imminent hazardous situation that will result in death or serious injury.
WARNING
Possibly imminent danger
Indicates an imminent hazardous situation that can result in death or serious injury.
CAUTION
Possibly imminent danger
Indicates an imminent hazardous situation that can result in minor or moderate injury.
NOTICE
Command or note
Command to perform an action or information about properties, the disregarding of which may result in damage to the product.
3
About this manual

Pictographs

Instructions in the
Work instruction: here you have to do something.
Prohibition of an action to avoid any risk of accidents, the disregarding of which may result in serious accidents
Warning of a displayed source of danger in connection with operation of the unit or equipment
Command to perform an action or task associated with a source of dan­ger, the disregarding of which may result in serious accidents
Important information about the product or this document
text

Abbreviations DCU: Display Control Unit

TC: Electronic drive unit for turbopump
TPS: Mains pack
[P:000]: Parameter of the electronic drive unit with number
4

2Safety

2.1 Safety precautions

Duty to inform
Each person involved in the installation or operation of the unit must read and observe the safety-related parts of these operating instuctions.
The operator is obligated to make operating personnel aware of dangers originating
from the unit or the entire system.
Danger of unsafe electrical installation
Safe operation after installation is the responsibility of the operator.
Do not independently modify or change the pump and electrical equipment.Make sure that the system is integrated in an emergency off safety circuit.Consult Pfeiffer Vacuum for special requirements.
Danger of electric shock
In case of defect, the parts connected to the mains supply are under voltage.
Always keep the mains connection freely accessible so you can disconnect it at any
time.
Safety
WARNING
WARNING

2.2 Proper use

Observe the safety and accident prevention regulations.
Check regularly that all safety precautions are being complied with.
Do not loosen any plug connection during operations.
Keep leads and cables well away from hot surfaces (> 70 °C).
Always ensure a safe connection to the protective earthing conductor (PE, protection
class I).
The unit has been accredited with protection class IP 20. Take necessary measures when installing into ambient conditions, which afford other protection classes.
Before carrying out any work disconnect the unit and all associated installations safely from the mains.
NOTICE
EC conformity
The manufacturer's declaration of conformity becomes invalid if the operator modifies the original product or installs additional components.
Following installation into a plant and before commissioning, the operator must check
the entire system for compliance with the valid EU directives and reassess it accord­ingly.
The DCU is a display and control unit and may only be used to control Pfeiffer Vacuum Turbopumps with electronic drive unit and associated peripheral devices.
The DCU with integrated powerpack is also used to supply power to the turbopump.
Only operate Pfeiffer Vacuum power supplies in the available specification.
5
Safety

2.3 Improper use

Improper use will cause all claims for liability and warranties to be forfeited. Improper use is defined as usage for purposes deviating from those mentioned above, especially:
connection to pumps or units which are not suitable for this purpose according to their operating instructions
connection to units which have exposed voltage-carrying parts
connection to mains supplies, which do not confirm to the regulations IEC 61010 or
IEC 60950
operation of the devices in areas with ionizing radiation
6

3 Product description

DCU
1
2
3
4

3.1 Product identification

Product description
Product characteris­tics
The DCU is a display and control unit for Pfeiffer Vacuum Turbopumps with integrated electronic drive unit. It enables control of all essential parameters for the electronic drive unit. It is also possible to connect a pressure gauge.
Characteristics DCU 002 DCU 110 DCU 180 DCU 310 DCU 400
Mains supply none integrated integrated integrated integrated Power consumption 5 VA 130 VA 210 VA 340 VA 450 VA Suitable for HiPace all 10, 60, 80 300 300, 400, 700, 800 300, 400, 700, 800 Electronic drive unit TC 110
TC 120 TC 400 TM 700 TC 1200
TC 110 TC 110 TC 400 (24 V DC) TC 120 (48 V DC)
TC 400 (48 V DC) TM 700
To correctly identify the product when communicating with Pfeiffer Vacuum, always have the information from the rating plate available.
D-35614 Asslar
Mod.:
HiPace 300 DN 100 ISO-K, 3P
M.-No.:
PM P03 900
Ser. -No.:
Fig. 1: Example for a rating plate
---
Oil:
):
S(N
260 l/s
2
6000 0 1/min, 1000 Hz
n,f:
6.7 kg
Weig ht:
Made in Germany

Scope of delivery Display and control unit DCU

Interface cable M12 to M12, length 3 m
Fixing materials
Operating instructions

3.2 Function

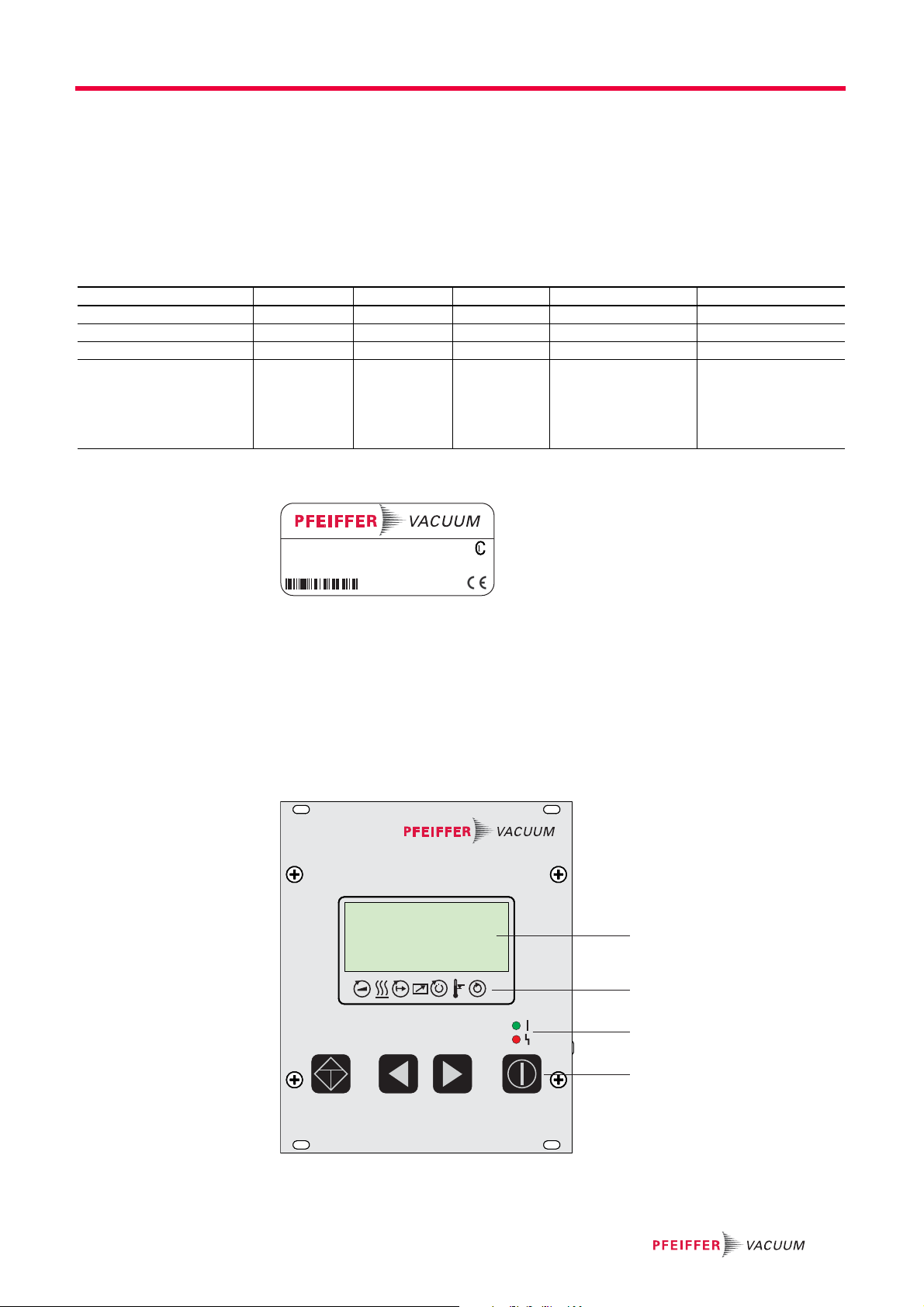

Fig. 2: Front cover DCU
1 LC display, illuminated 2 Status symbols
3 LED "Operating display" 4 Operating keys
7
Product description
X3
DC out
RS485
PE
AC in
S1
DCU 110 / 180 / 310 / 400
c

3.3 General connection description

X3
RS485
c
Fig. 3: Display and control unit DCU, rear view variants
S1 Mains switch AC in Mains connection, input DC out Mains connection, output

3.4 Range of application

Pfeiffer Vacuum display and control units DCU should be installed and operated under the following ambient conditions.
Installation location weatherproof (internal space) Permissible protection class IP 20 Protection class I Temperature +5 °C to +50 °C Relative air humidity max. 80%, at T 31°C, max. 50% at T 40°C Air pressure: 75 kPa - 106 kPa
DCU 002
PE Protective earth connection (M4) X3 Pressure gauge connection RS485 Serial interface C Contrast adjustment
8

4 Connection diagram

X3
1 2 3 4 5 6
1 2 3 4 5 6
1 5 2 3 6 4
1 5 2 3 6 4
RS485 RS485
1 2 3 4 5
1 2 3 4 5
L1
N
PE
DC out
AC in S1
DC in
B C A
B C A
+1
-2
FE
A B C
DCU 110 DCU 180 DCU 310 DCU 400
X3
1 2 3 4 5 6
1 2 3 4 5 6
1 5 2 3 6 4
1 5 2 3 6 4
RS485 RS485
1 2 3 4 5
1 2 3 4 5
DCU 002
Fig. 4: Terminal diagram and layout for DCU, variants with integrated power pack
Connection diagram
Fig. 5: Terminal diagram and layout for DCU 002
Connection to: DCU 002 DCU 110/180/310/400
Connections on electronic drive unit TC 110
Different connection possibilities (not provided in the scope of supply) are dependent on the type of electronic drive unit TC 110.
Connection via connecting cable or adapter
Connection for electronic drive unit "TC 110 RS" direct to the RS485 interface (power
supply separately via TCP or connecting cable)
For more information visit http://www.pfeiffer-vacuum.com, Keyword "HiPace acces- sories"
Turbopump with electronic drive unit:
Gauge type: TP/PCR
TC 110* TC 120 TC 400 TM 700 TC 1200
PKR 2xx APR 250/260 CMR x61 - x65
TC 110* TC 120 TC 400 TM 700
TP/PCR PKR 2xx APR 250/260 CMR x61 - x65
9
Installation

5 Installation

5.1 Assembly

NOTICE
Ensure free convection
Incorrect installation can cause damage by over-heating or create a fire hazard.
Maintain a minimum distance of 50 mm from cooling vents to adjacent components
or boundaries.
Install the device upright.

Rack installation The unit is fitted in a casing that is suitable for installation in 19"/3HE rack modules.

Insert the unit in the guiderails of a 19"/3HE rack and screw on the front panel secure-
ly with four fixing screws provided as part of the scope of supply.

5.2 Connecting to the mains power supply

This only applies to DCUs with integrated power packs. The DCU 002 receives the
operating voltage via the "RS485" interface for the turbopump electronic drive
unit.
WARNING
Danger of unsafe electrical installation
Safe operation after installation is the responsibility of the operator.
Do not independently modify or change the pump and electrical equipment.Make sure that the system is integrated in an emergency off safety circuit.Consult Pfeiffer Vacuum for special requirements.
WARNING
Danger of electric shock
In case of defect, the parts connected to the mains supply are under voltage.
Always keep the mains connection freely accessible so you can disconnect it at any
time.
Order the mains cable separately (see "accessories").Switch off switch S1 on the power pack (position "0").Plug mains cable into the mains connection "AC in".Lock the mains cable with the mounting bracket.Connect the mains cable to the mains.Always ensure a safe connection to the protective earthing conductor (PE, protection
class I).
10

5.3 Connections

X3
RS 485
PM 061 299 -X
DCU 002
TC 110
HiPace 80
TPS
Installation
Connect interface cable (supplied) on "RS485" to DCU and electronic drive unit.Make connection between "DC out" on DCU and "DC in" on electronic drive unit in ac-
cordance with the terminal diagram or with a connecting cable from the Pfeiffer Vacu­um accessories.
Connect pressure gauge if required to "X3" on the DCU.
The RS485 serial interface is used exclusively to control the electronic drive unit on the vacuum pump. See the Operating Instructions for the respective electronic drive unit for the interface protocol specification.
Note the operating priority of the interfaces for the electronic drive unit!
DIL switches in the connecting cable or bridges in the mating connector for the D-Sub connector for the electronic drive unit enable operation of the pump without control unit. This may cause priority conflicts with the RS485 interface.
Disconnect the mating connector from the "remote" terminal prior to connecting a
DCU to electronic drive units TC 400, TC 1200 or TM 700.
Switch off the supreme operating control (DIL switch S1/S2 = OFF) prior to connect-
ing a DCU to the electronic drive unit TC 110.
DCU
X3
RS 485
DC out

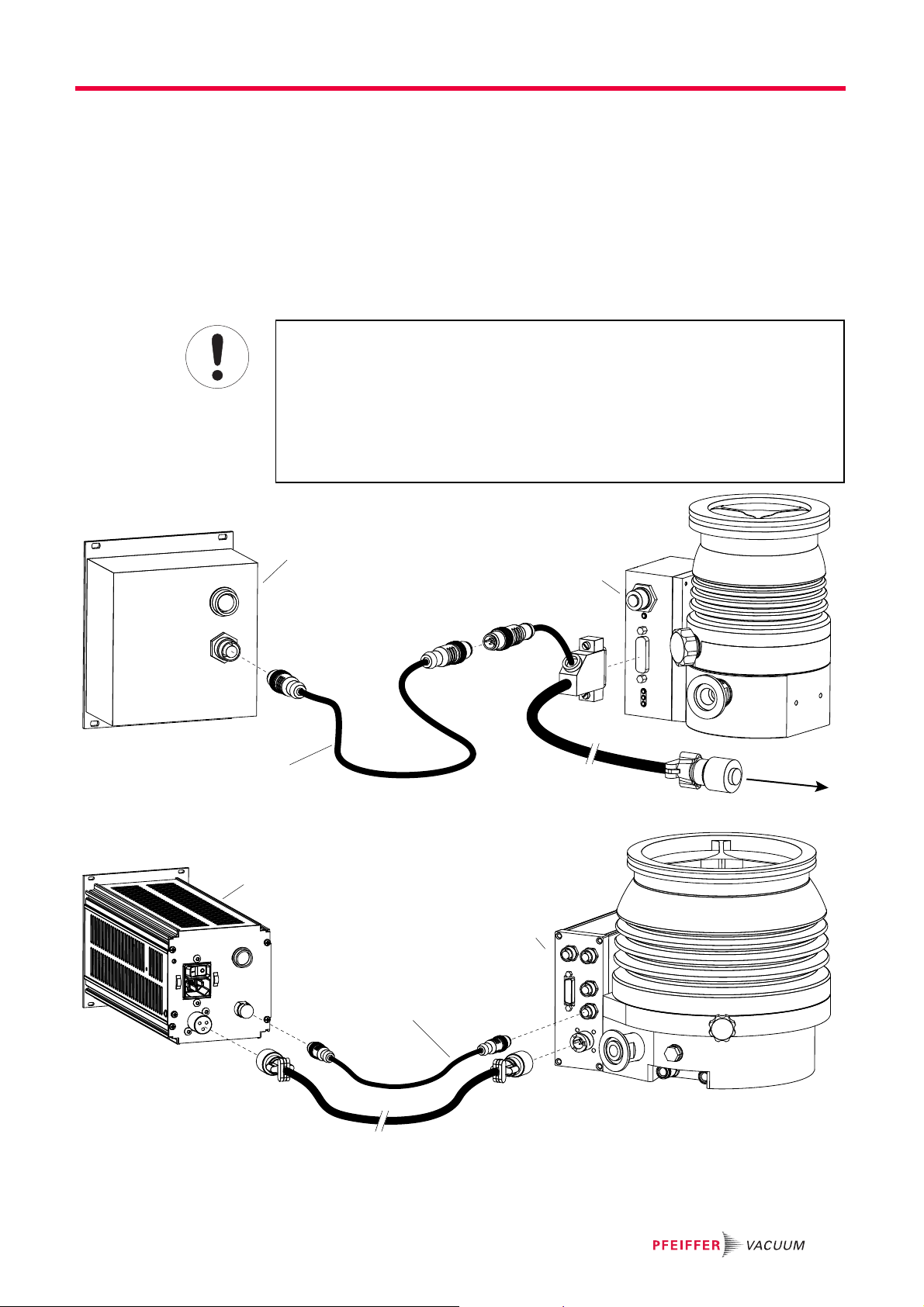

Fig. 6: Example: Connection of DCU 002 toTurbopump HiPace 80 using connecting cable
HiPace 700
TC 400
PM 061 299 -X
Fig. 7: Example: Connection of DCU with integrated power pack to Turbopump HiPace 700
11
Installation

5.4 Connecting a measuring device

The connector socket labelled "X3" can be used to operate a Pfeiffer Vacuum pressure
measuring device from the ActiveLine series.
Gauge Display at the DCU [P:738]
APR 250/260 CMRx61 CMR 261/361 CMRx61, by manual selection CMR 262/362 CMRx62, by manual selection CMR 263/363 CMRx63, by manual selection CMR 264/364 CMRx64, by manual selection CMR 365 CMRx65, by manual selection MPT 200 AR PKR2xx PCR 280 TP/PCR PKR 251/261/360/361 PKR2xx PPT 200 AR TP/PCR RPT 200 AR TP/PCR TPR 270/280/281 TP/PCR
Table 1: Valid pressure gauges for the connection to the DCU
12

6Operation

6.1 LC-Display

Operation
721: Venting time
---> 3600 s 795
1
2
3
4
5
The four line LCD visualizes the functions of the DCU.
Functions are assigned as follows:
Line 1: Number and name of the selected parameter (e.g. 721: Vent time). – Line 2: relevant value for the selected parameter. The arrow ––– indicates Edit
mode.
Line 3 with two functions:
– Function 1: Current messages concerning operation and control will be displayed. – Function 2: presentation of a required second parameter in the format [Parameter
number: value]. The function for this line can be set via parameter [P:795] Servic- elin in Line 1. All parameters can be accessed with "Servicelin". Error messages will be displayed independently of the selected function.
Line 4: presentation of the current equipment status by arrows that point to the asso-
ciated symbols.
Line 5: Symbols (see below)

6.2 Key functions

4 short-travel keys (softkeys) constitute the operator interface for the DCU.
Key Application/Example Explanation
Reset (error acknowledgement) acknowledges errors (red
LED illuminates)
[309]: ActualSpd [308]: SetRotSpd
[310]: DrvCurrent [311]: OpHrsPump
[001]: Heating ––– off
Simultaneous
[001]: Heating on
[010]: PumpgStatn on / off
Scroll back through parmeters
Scrolls back one parameter
Scroll forwards through parameters
Scrolls forwards one parameter
Change value (Edit mode)
Access to displayed value, if possible (Arrow––– is displayed)
Confirm value (Parameter selection mode)
Accept changed value ("change confirmed" is displayed)
Pumping station ON/OFF
switches pumping station on or off. corresponds to parameter [010]: "PumpgStatn"
13
Operation

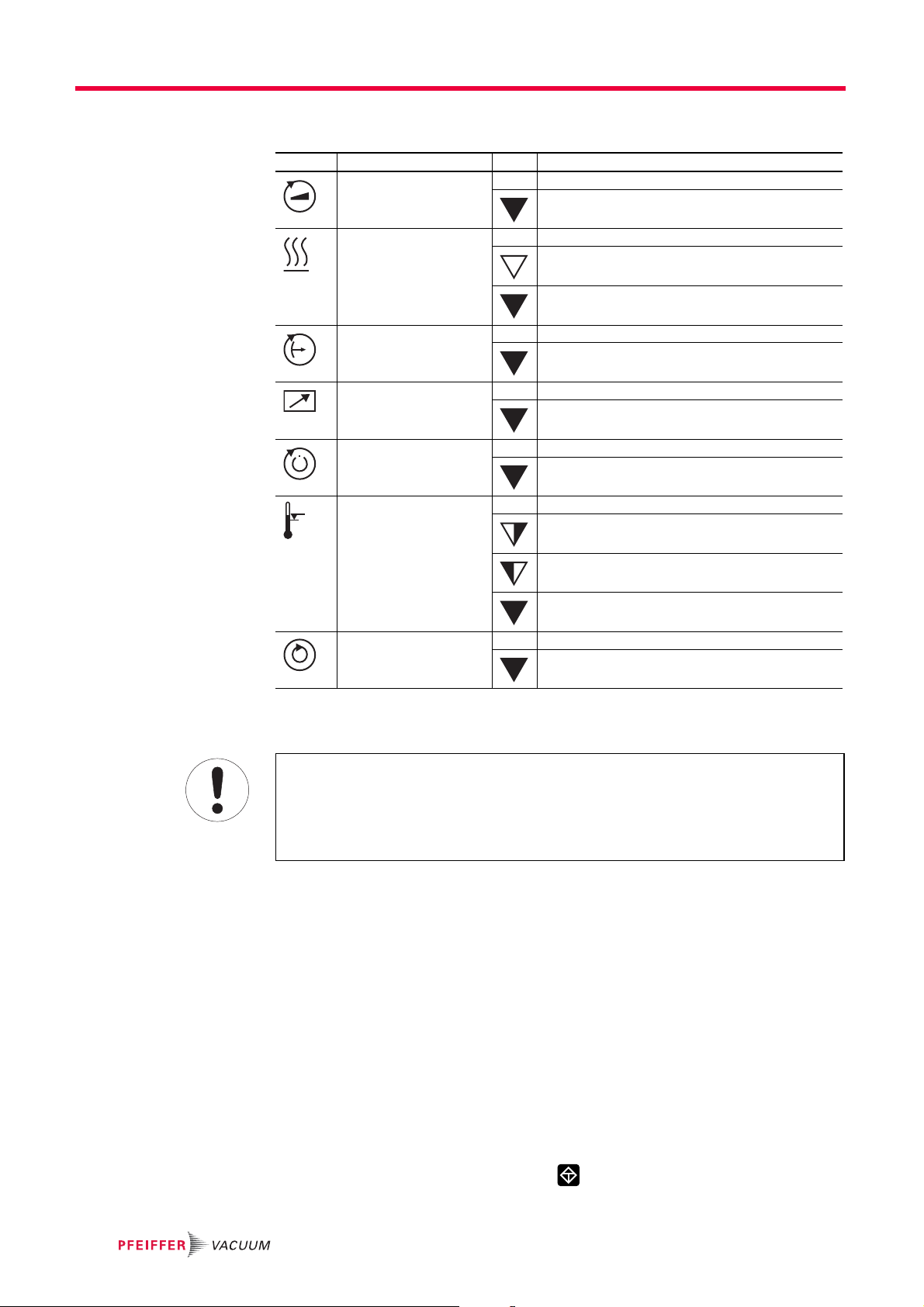

6.3 Symbol description

Symbol Description Arrow Explanation
Pump accelerates = [P:307]
-NO YES
Preselection heating = [P:001]
Standby = [P:002]
Equipment remote con­trolled
= [P:300]
Switchpoint reached = [P:302]
Excess temperature - No excess temperatures
Ultimate speed reached = [P:306]
- No preselection Preselection heating, switchpoint not attained
Heating On, switchpoint attained
-OFF ON
-NO YES
-NO YES
Excess temperature turbopump = [P:305]
Excess temperature turbo-electronics = [P:304]
Excess temperature turbopump and turbo-electronics
-NO YES

6.4 Switching on

Ensure correct connection in the absence of display! All connecting cables must always be connected to the electronic drive unit and the
mains at DCU with integrated power supplies. Otherwise the correct functioning of the unit is not possible; there will be no operating display.
 Connect all connecting cables for "RS485", "DCout" and "ACin".
Switch on the supply voltage with switch S1 on the DCU with integrated power pack,
or when using a DCU 002 switch on via the provided power pack (e.g. TPS).

Self-test The DCU carries out a self-test and a check of the connected units after switch-on. The

duration of the self-test is approx. 20 s and is visualized in the display with a progress bar.
LC display test: All characters in the LC display go dark for a short time.
LED test: The red and green LEDs illuminate during the self-test.
Hardware test of the DCU DCU
Pump electronics connection test: The correct pump electronics connection and iden-
tity will be checked.
Parameter check: Information on operating parameters will be loaded.
Identification of the connected units: Electronic drive unit designation display.
If no error has occurred, the DCU is ready to operate.
The green LED flashes.
Reset malfunction messages using key , if necessary.
14

6.5 Operation

Operation
All function-relevant variables of a turbopump are anchored in the electronic drive unit as parameters. Each parameter has a three-digit number and a designation. Parameters can be used via Pfeiffer Vacuum display and control units or via RS-485 with the Pfeiffer Vacuum protocol.
The value of a parameter is always readable. Editable parameters are adjustment com­mands and target values (See the operating instructions for the respective electronic drive unit for this purpose).
Selecting the parame­ters
Preselect parameter number using the (backwards) or (forwards) keys.
– Fast scrolling by pressing and keeping the relevant key depressed.
The selected parameter appears in line 1, the corresponding value in line 2.

Set parameters  Select a parameter.

Simultaneously press keys and .
The edit mode for the selected parameter is active.
At the beginning of the second line an arrow ( –––) appears.
Using keys , to decrease or increase the value, respective to change op-
tions.
Simultaneously press keys and .
If line 3 = empty (see P:795), the following will be displayed: "change confirmed"
The parameter is set.
Edit mode for the parameter is ended. The arrow ( –––) disappears.
Edit mode( –––) will disappear again automatically under the following condi­tions and without accepting the value to be changed:
Input disruption or no key operation for more than 10s.
If an error occurs.
Key "Pumping station ON/OFF" has been pressed.
If line 3 = empty , "data not changed" will be displayed.

6.6 Operation with DCU

Parameter set and Pfeiffer Vacuum display and control unit
Pfeiffer Vacuum display and control units DCU show the basic parameter set by default. Furthermore the DCU contains parameters, which are not positioned in the electronic drive unit.
Parameter [P:794] = 1 (Display of all available parameters).
# Display Designation Functions
340 Pressure Pressure value (ActiveLine) 7 R hPa 1E-10 1E3 350 Ctr Name Type of display and control unit 4 R 351 Ctr Software Software of display and control unit 4 R 738 Gaugetype Type of pressure gauge 4 RW 794 Param set Parameterset 0 = basic parameter set
1 = extended parameter set
795 Servicelin Insert service line 7 RW 795
The display of further parameters depends on the type of electronic drive unit.
Unit min max default
Data type
Access
7RW 0 1 0
15
Operation
Start pump by pressing "Pumping station ON/OFF" key
The "Pumping station" key only controls the parameter [P:010]. All components con­nected via the electronic drive unit will be activated or deactivated according to their configuration.
Ensure that the parameter [P:023] is also switched on for powering-up the tur-
bopump.

6.7 Pressure measurement

Connection and use of a high vacuum gauge enables pressure measurement in the vac­uum system via the DCU.
Pressure measurement with the DCU
An exact pressure measurement is not possible with the DCU. This is particularly true with linear gauges in the lower pressure range.
Use suitable measuring instrument.

Displaying the gauge type

Displaying the active pressure value

6.8 Switching off

Parameter [P:794] = 1 (display extended parameter set)Select or enter parameter [P:738] Gaugetype.
Gauges with identical surge impedance are only recognized as a group (e.g. CMR?). Manual input of the exact gauge type is also possible via the parameter [P:738].
Display example Meaning
TPR 2xx Gauge TPR 280 connected CMR ? Gauge of the CMR Group connected, exact type not yet set noGaug No pressure gauge connected
Parameter [P:794] = 1 (display extended parameter set)Select parameter [P:340] Pressure.
Display example Meaning
–––––– mbar No pressure gauge connected < 5E-4mbar Measuring range not reached (dependent on the device) > 1E3mbar Measuring range exceeded (dependent on the device)
6.3E-9mbar Valid pressure measurement id fam mbar Gauge type not yet identified; see [P:340] Error Error in pressure gauge
Switch off the pumping station via the "ON/OFF" button on the DCU.Cut of supply voltage with switch S1 on the DCU with integrated power pack, or when
using a DCU 002 via the supplied power pack (e.g. TPS).
16

7 Malfunctions

Ensure correct connection in the absence of display! All connecting cables must always be connected to the electronic drive unit and the
mains at DCU with integrated power supplies. Otherwise the correct functioning of the unit is not possible; there will be no operating display.
Connect all connecting cables for "RS485", "DCout" and "ACin".

7.1 Operation display via LED

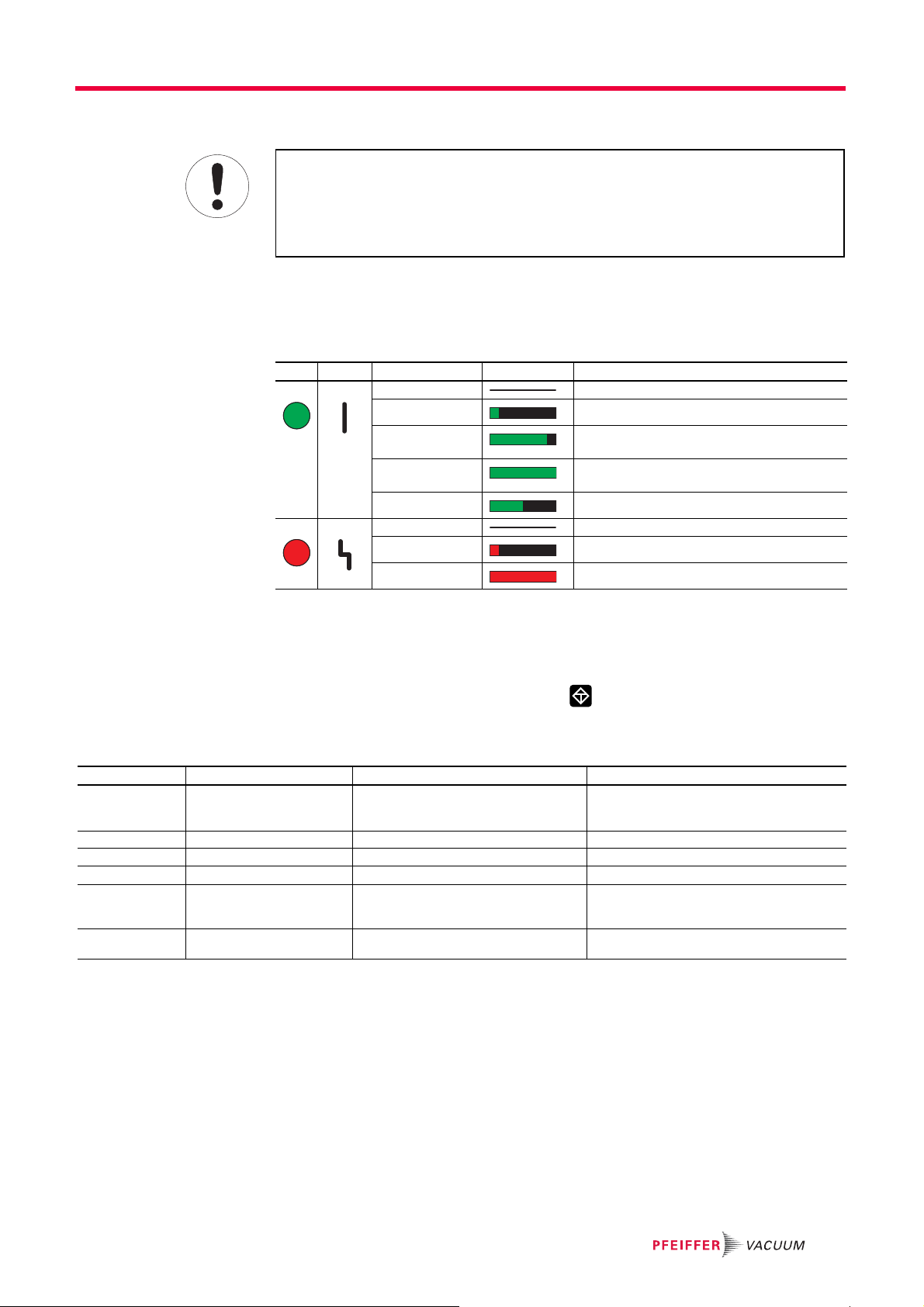

The red LED (error status) and green LED (operating status) on the front panel of the DCU show the following states:
LED Symbol LED status Display Meaning
Green Off currentless
On, flashing "Pumping Station OFF", rotation speed 60 min
On, invers flashing "Pumping Station ON", set rotation speed not at-
On, constantly "Pumping Station ON", set rotation speed at-
On, blinking "Pumping Station OFF", rotation speed > 60 min
Red Off no malfunction, no warning
On, flashing Warning
On, constantly Malfunction
Malfunctions
-1
tained
tained
-1

7.2 Error codes

Errors (** Error –––– **) always cause the connected peripheral devices to be switched off.
Eliminate error and reset by pressing key .
Warnings (* Warning –––– *) are only displayed and do not cause components to be switched off.
Display DCU Problem Possible causes Remedy
* Warning F110 * Pressure measuring device – Gauge faulty
** Error E040 ** Hardware error – external RAM faulty Contact Pfeiffer Vacuum Service. ** Error E042 ** Hardware error – EPROM check total  Contact Pfeiffer Vacuum Service. ** Error E043 ** Hardware error – E ** Error E090 ** Internal device error – RAM not large enough
** Error E698 ** Communication error – The electronic drive unit does not re-
– Connection to gauge detached during
operation
2
PROM write error  Contact Pfeiffer Vacuum Service.
– DCU is connected to incorrect pump
electronics
spond
Further error and warning messages are described in the Operating Instructions for the electronic drive unit.
Restart with gauge connectedChange pressure gaugeInstall pressure gauge correctly
Contact Pfeiffer Vacuum Service.Connect correct pump electronics
Contact Pfeiffer Vacuum Service.
17
Service

8 Service

Pfeiffer Vacuum offers first-class service!
Fast replacement with exchange products in mint condition
Advice on the most cost-efficient and quickest solution
Detailed information, addresses and forms at: www.pfeiffer-vacuum.com (Service).
Service orders
All service orders are carried out exclusively according to our repair conditions for vacu­um units and components.

9 Accessories

An overview about original Pfeiffer Vacuum accessories for the designated device can be found in the operating instructions of the respective vacuum pump.
18

10 Technical data and dimensions

10.1 Technical data

Parameter DCU 002
Connection 12-30 V DC Ambient temperature 5-50 °C Protection category IP 20 Power consumption 5 VA Weight 0.4 kg
Parameter DCU 110 DCU 180
Ambient temperature 5-50 °C 5-50 °C Protection category IP 20 IP 20 Mains requirement: frequency (range) 50/60 Hz 50/60 Hz Mains requirement: power consump-
tion Mains requirement: voltage (range) 115-230 (-20-+15 %) V AC 115-230 (-20-+15 %) V AC Output voltage 24 (± 2 %) V DC 24 (± 2 %) V DC Output current 4.6 A 7.5 A Weight 1.2 kg 1.7 kg
Parameter DCU 310 DCU 400
Ambient temperature 5-50 °C 5-50 °C Protection category IP 20 IP 20 Mains requirement: frequency (range) 50/60 Hz 50/60 Hz Mains requirement: power consumption 340 VA 450 VA Mains requirement: voltage (range) 115-230 (-20-+15 %) V AC 115-230 (-20-+15 %) V AC Output voltage 24 (± 2 %) V DC 48 (± 2 %) V DC Output current 12.5 A 8.4 A Weight 1.85 kg 2.3 kg
130 VA 210 VA
Technical data and dimensions
19
Technical data and dimensions

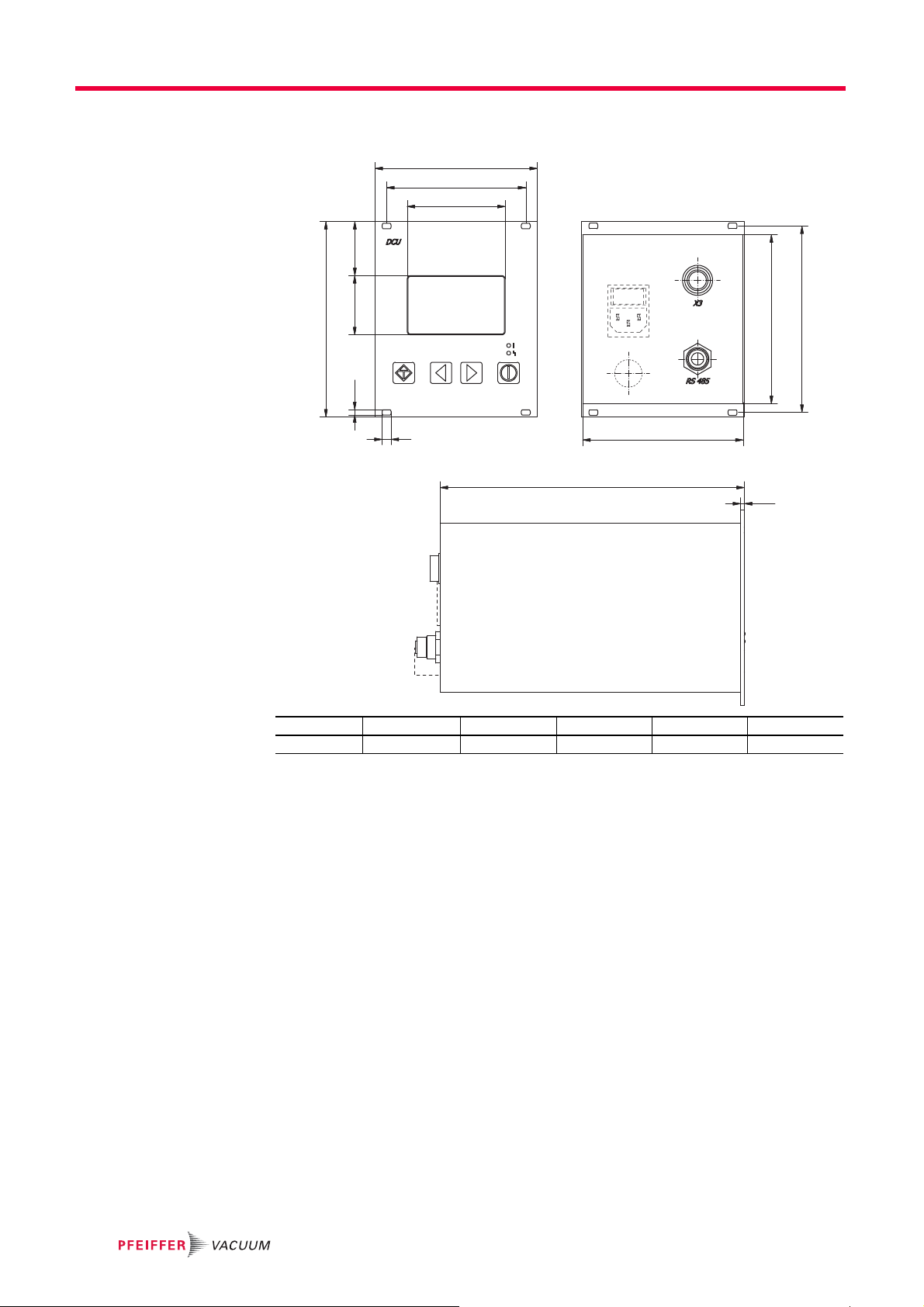

10.2 Dimensions

35.6
38.9
128.5 (3HE)
3.5
106.7 (21TE)
91.5
64.4
111. 2
122.5
6
B
Dimension DCU 002 DCU 110 DCU 180 DCU 310 DCU 400
B 52.5 mm 200.0 mm 230.0 mm 230.0 mm 230.0 mm
105.5
2.4
20

Declaration of conformity

We hereby declare that the product cited below satisfies all relevant provisions accord­ing to the following EC directives:
Electromagnetic Compatibility 2014/30/EU
Low Voltage 2014/35/EU
DCU
DCU 002/110/180/310/400
Harmonised standards and national standards and specifications which have been ap­plied:
DIN EN 61000-3-2 : 2010
DIN EN 61000-3-3 : 2009
DIN EN 61010-1 : 2010
DIN EN 61326-1 : 2013
DIN EN 62061 : 2013
Semi F47-0200
Semi S2-0706
Signature:
(Dr. Ulrich von Hülsen) Managing Director
Pfeiffer Vacuum GmbH Berliner Straße 43 35614 Asslar Germany
2016-04-18
VACUUM SOLUTIONS FROM A SINGLE SOURCE
Pfeiffer Vacuum stands for innovative and custom vacuum solutions worldwide, technological perfection, competent advice and reliable service.
COMPLETE RANGE OF PRODUCTS
From a single component to complex systems: We are the only supplier of vacuum technology that provides a complete product portfolio.
COMPETENCE IN THEORY AND PRACTICE
Benefit from our know-how and our portfolio of training opportunities! We support you with your plant layout and provide first-class on-site service worldwide.
Are you looking for a perfect vacuum solution? Please contact us:
www.pfeiffer-vacuum.com
Pfeiffer Vacuum GmbH
Headquarters • Germany T +49 6441 802-0 info@pfeiffer-vacuum.de
Loading...
