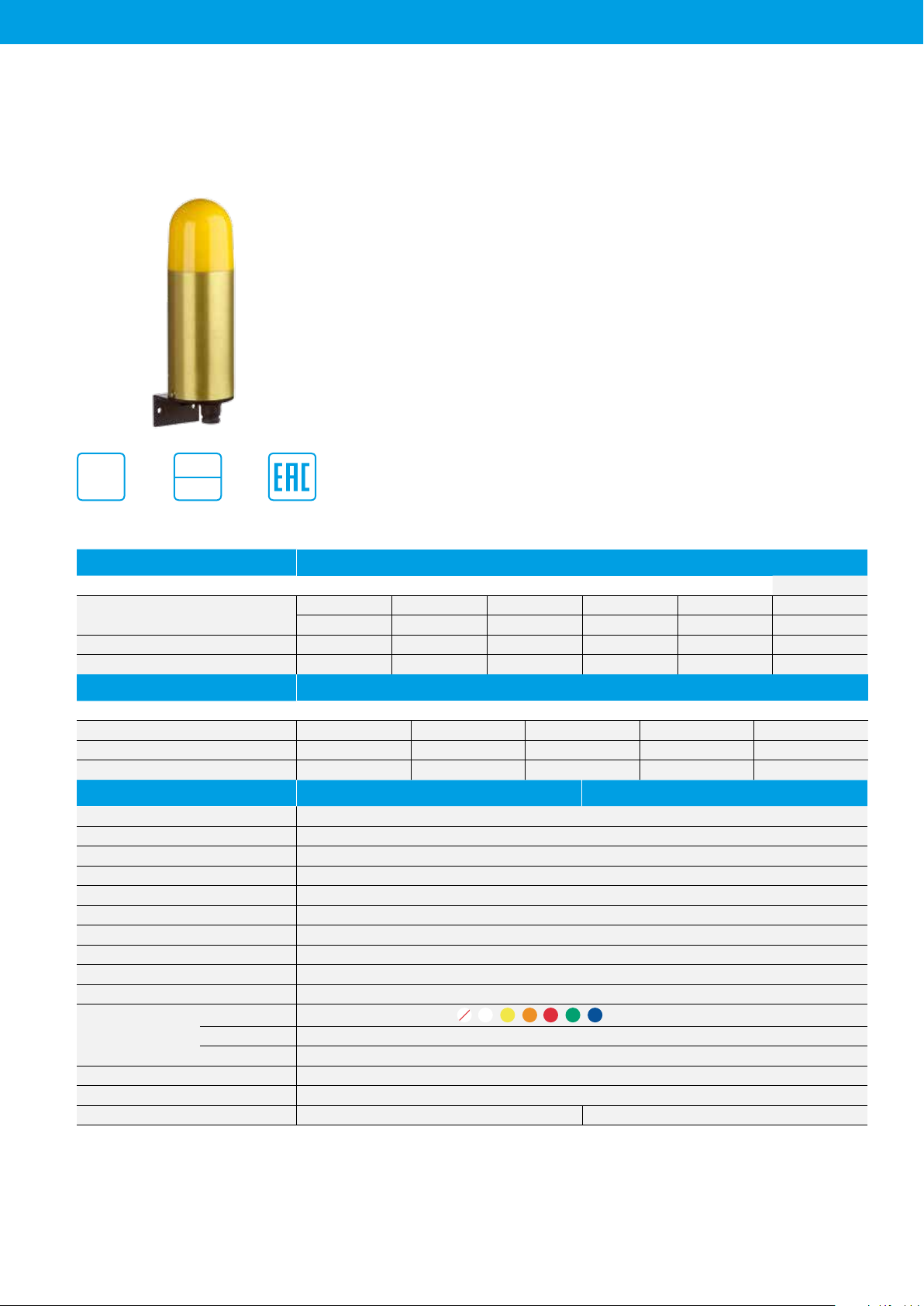

PRODUCTS VISUAL SIGNALING DEVICES
FLASHING ALARM LIGHTS 15 J
ABL/ABS
The powerful flashing light in a metal housing.
• Designed for alarm functions outdoors and in large halls and plants.
• Also available with GL approval.
• Housing and fixing bracket made of sturdy anodised aluminium.
• Aggressive environmental conditions or driving rain cannot damage the
• Impact-proof lens.
• Ideally suited for tough industrial environments.
• Flash tube additionally secured by a steel clamp.
light.
IP 54
protection
system
PRODUCT
DATA
Rated voltage
Operating range 185–255 V 108–140 V 95–127 V 40–54 V 35–50 V 20–30 V
Nominal current consumption 0.18 A 0.25 A 0.33 A 0.69 A 0.78 A 1.29 A
PRODUCT
DATA
Rated voltage 60 V DC 48 V DC 36 V DC 24 V DC 12 V DC
Operating range 50–72 V 40–60 V 29–43 V 18–30 V 10–15 V
Nominal current consumption 0.26 A 0.35 A 0.55 A 0.7 A 1.5 A
+55 °C
–40 °C
operating
temperature
AC
230 V 127 V 110 V 48 V 42 V 24 V
AC 50 | 60 Hz AC 50 | 60 Hz AC 50 | 60 Hz AC 50 | 60 Hz AC 50 | 60 Hz AC 50 | 60 Hz
DC
ABL
ABS
PRODUCT ABL ABS
Flash rate 1 Hz = 60 flashes/min
Flash energy 15 J
Light intensity (DIN 5037)
Max. viewing distance 348 m
Operating temperature –40 °C ... +55 °C
Storage temperature –40 °C ... +70 °C
Relative humidity 90 %
Protection system (EN 60529) IP 54 (vertical mounting)
Duty cycle 100 %
Service life of the light source light emission still 70 % after 8,000,000 flashes
Material
Cable entry M20x 1.5
Connecting terminal single wire 0.5–2.5 mm
Weight 650 g 800 g
1
with a clear lens
1
lens
housing aluminium (Al Mg Si 1), yellow anodised
base polycarbonate (PC) with fibre glass
2
, fine wire 0.5–1.5 mm2, with cable end sleeves DIN 46228/1
226 cd
polycarbonate (PC)
DIMENSIONS CONNECTION DIAGRAM
ABL ABS
84
242
Ø 80
Ø 6.5
40
M20x 1.5
50
65
VISUAL SIGNALING DEVICES
ARTICLE NO.
LENS COLOUR 230 V AC 110 V AC 24 V DC
21001103000 21001163000 21001803000
21001104000 21001164000 21001804000
21001105000 21001165000 21001805000
Article numbers for other colours and voltages on request.
OPTIONS/ACCESSORIES
ABL ABS
30 45
Article no.
28710500042
CONFORMITY TO STANDARDS
The visual characteristics of flashing lights conform to the European standard DIN EN 842; “Machine safety – visual alarm signals”.
Requirements contained in the DIN EN 981 standard; “Machine safety – system of acoustic and visual alarm and information signals”, can be fulfilled.
The colours “red” for the emergency signal and “yellow” for the warning signal conform to the requirements of IEC 73 / DIN EN 60073 / VDE 0199; “Coding of
display devices and control elements using colours and supplementary means”.
References to visual alarm devices can be found in the following standards:
EN 60825-1 Radiation safety of laser devices, identical to IEC 825 and DIN-VDE 0837
DIN EN 54 Fire alarm systems
DIN 54113-2 Radiation protection regulations for the technical operation of X-ray equipment up to 500 kV
