Peugeot 2008 2014 User Manual

Handbook

On-line handbook

Select one of the following means of access to view your
handbook on-line...

Find your handbook on the PEUGEOT website, under
"MyPEUGEOT".

This personal space offers advice and other useful information for
the care and maintenance of your vehicle.

Referring to the handbook on-line also gives you access to the latest information available, easily identified by the bookmark, associated with
this symbol:

Flash this code for direct access to your handbook.

If the "MyPEUGEOT" function is not available on the PEUGEOT
public website for your country, you can find your handbook at the
following address:
http://public.servicebox.peugeot.com/ddb/

Select:

the language,
the vehicle, its body style,
the print edition of your handbook appropriate for the date of registration of
your vehicle.

Within the model range, an item of equipment may be not available,
an option or fitted as standard.
When an option, the customer has the choice of adding to the
vehicle's equipment at extra cost when ordering and before the
vehicle is produced.
Any equipment fitted after the vehicle leaves the production line
becomes an aftermarket accessory.The instructions for the user are
supplied by the manufacturer of the accessory, it is not covered in this
edition of the handbook.

Please note the following point:

The fitting of electrical equipment or accessories which are
not recommended by PEUGEOT may result in a failure of your
vehicle's electronic system. Please note this specific warning.
It is advisable to contact a PEUGEOT dealer to be shown the
recommended equipment and accessories.

Key

Welcome

Thank you for choosing a 2008.
This handbook has been designed to help you make the most

of using your vehicle in all circumstances.

Warning

This symbol marks warnings which it is
essential to observe for your own safety,
for the safety of others or to avoid any risk
of damaging your vehicle.

Information

This symbol draws your attention to
additional information for better use of
your vehicle.

Protection of
the environment

This symbol accompanies advice relating
to protection of the environment.

Contents

Overview

Eco-driving

.

.

Monitoring

Instrument panels 14
Indicator and warning lamps 16
Touch screen 28
Gauges and indicators 32
Trip computer 38
Trip computer with touch screen 40
Setting the date and time 42

Access

Remote control key 43
Alarm 50
Electric windows 52
Boot 54
Panoramic sunroof 55

Comfort

Front seats 56
Rear seats 58
Steering wheel adjustment 59
Mirrors 60
Ventilation 62
Heating 65
Manual air conditioning 65

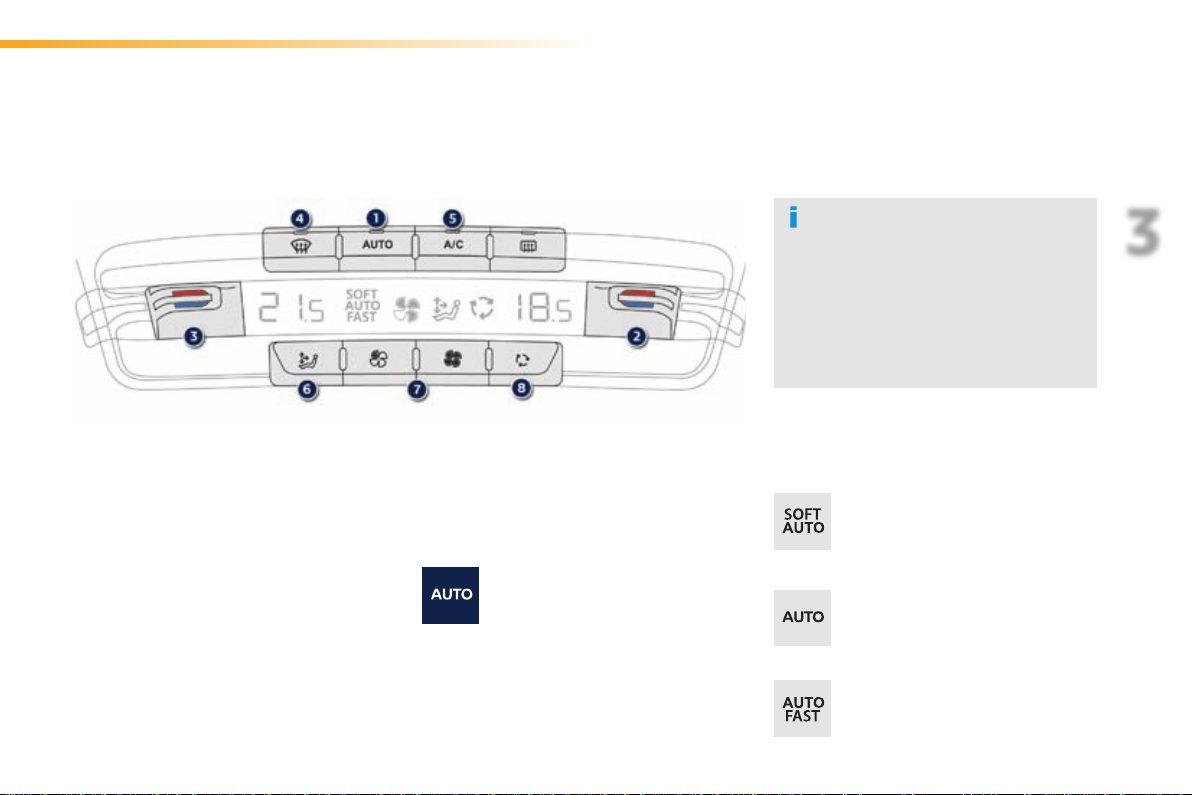

Dual-zone digital air conditioning 67
Front demist - defrost 70
Rear screen demist - defrost 70

Interior ttings 71
Boot ttings 75

Driving

Starting - Stopping the engine 79
Manual parking brake 80
Manual gearbox 81
5-speed electronic gearbox 82
6-speed electronic gearbox 85
Automatic gearbox 89
Gear shift indicator 93
Stop & Start 94

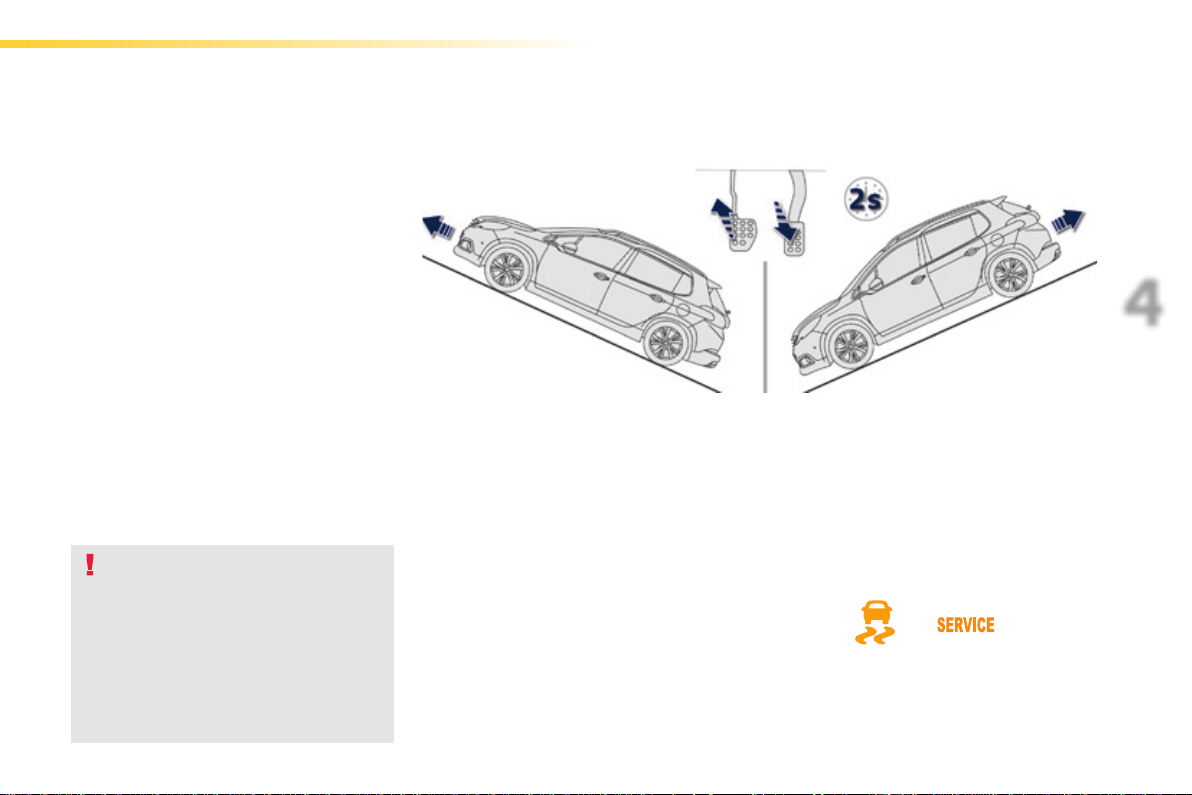

Hill start assist 97
Speed limiter 98
Cruise control 100
Parking sensors 104
Park Assist 106

Visibility

Lighting controls 110
LED lamps 114
Daytime running lamps 114
Automatic illumination of headlamps 116
Headlamp adjustment 117
Cornering lighting 118
Wiper controls 119
Automatic rain sensitive wipers 121
Courtesy lamps 123
Interior mood lighting 124

Contents

Safety

Direction indicators 125
Hazard warning lamps 125
Emergency or assistance call 126
Horn 126

Tyre under-ination detection 127

ESC system 130
Grip control 133
Front seat belts 135
Airbags 138
Child seats 142
Deactivating the passenger's front airbag 144
ISOFIX child seats 151
Child lock 155

Practical info rmat ion

Temporary puncture repair kit 156
Changing a wheel 161
Snow chains 168
Changing a bulb 169
Changing a fuse 176
Battery 182
Electrical energy economy mode 185
Changing a wiper blade 186
Towing the vehicle 187
Towing a trailer 189
Fitting roof bars 191
Advice on care and maintenance 191
Accessories 192

Checks

Bonnet 195
Petrol engines 196
Diesel engines 197
Fuel tank 198
Misfuel prevention (Diesel) 200
Running out of fuel (Diesel) 202

®

AdBlue

additive and SCR system

(Blue HDi Diesel) 203
Checking levels 211
Checks 214

Technical data

General information 216
Petrol engines / weights 217
Diesel engines / weights 218
Dimensions 219

Identication markings 220

Emergency or assistance 221

Audio equipment and telematics

7-inch Touch screen 223
Audio system / Bluetooth 295
Audio system 321

Alphabetical index

.

Overview

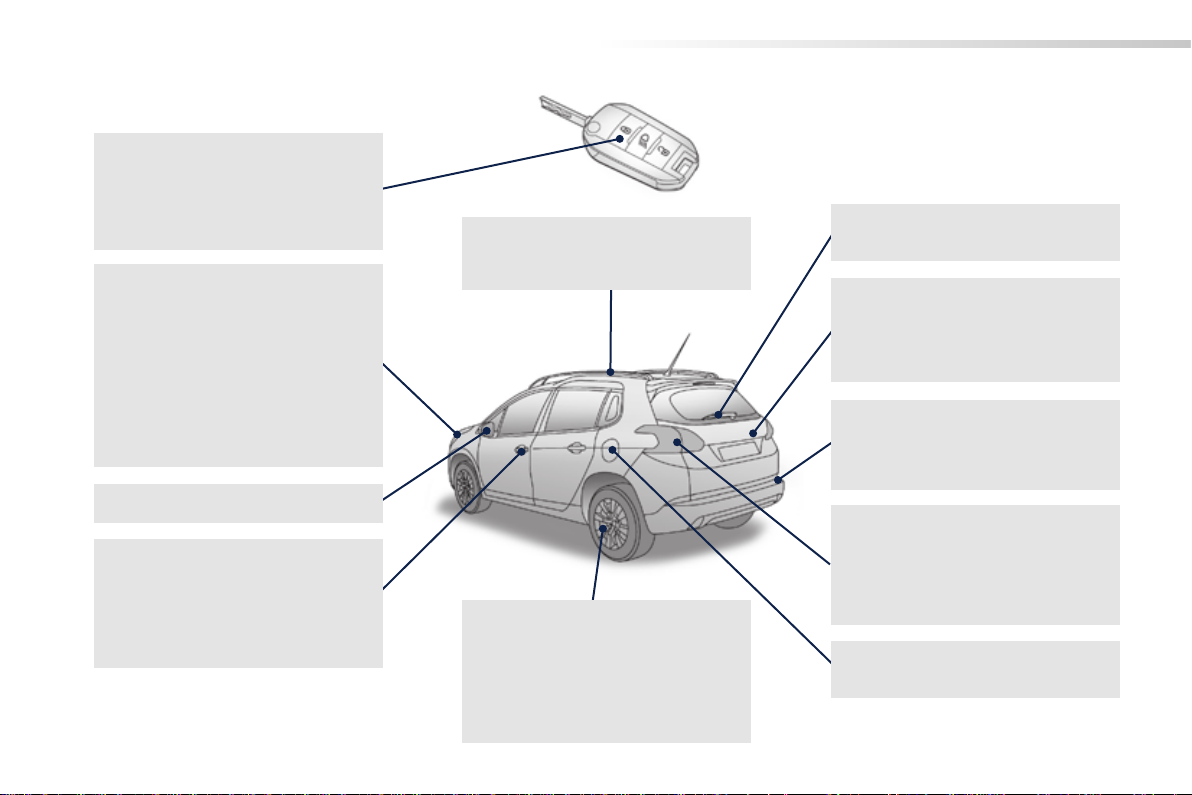

Exterior

Remote control key 43-49

- opening / closing

- anti-theft protection

- guide-me-home lighting

- starting

- battery

Lighting controls 110-116
LED lamps 114
Daytime running lamps 114
Headlamp beam adjustment 117
Cornering lighting 118
Changing bulbs 169-172

- front lamps

- foglamps

- direction indicator repeaters

Door mirrors 60

Doors 43-48

- opening / closing

- central locking

- emergency control
Alarm 50-51

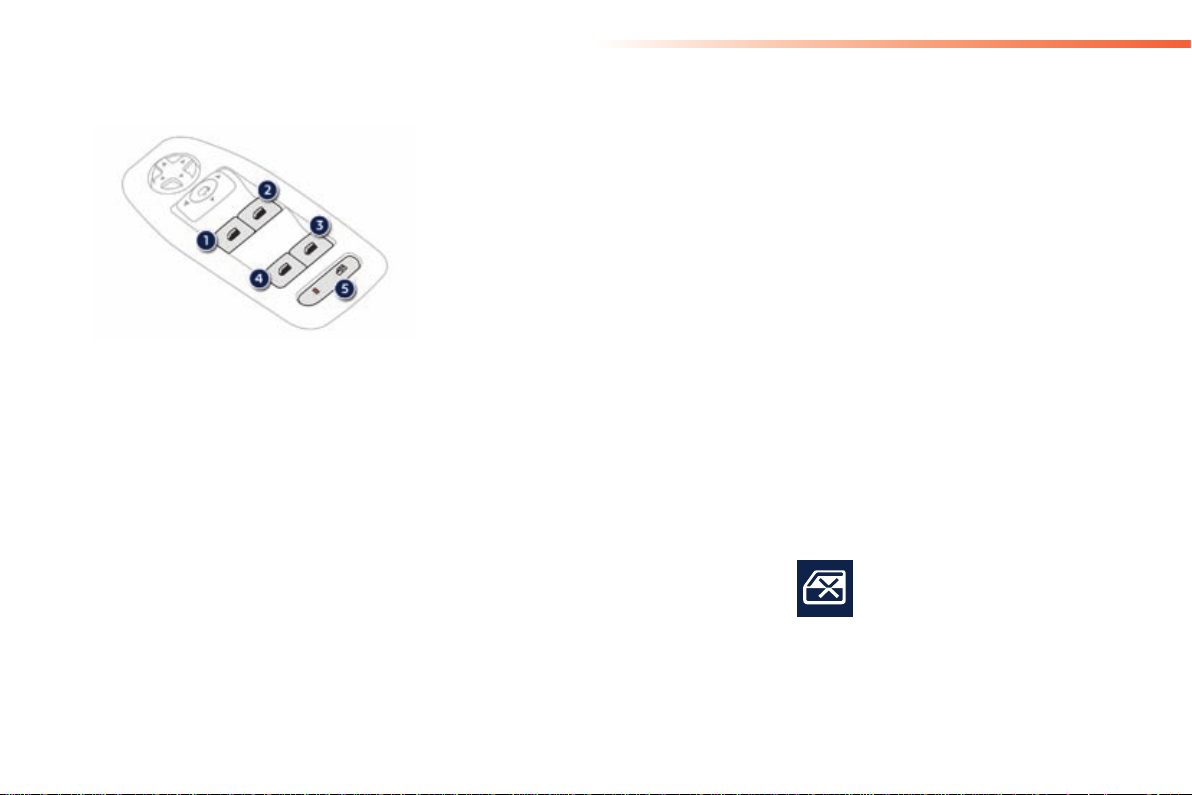

Electric windows 52-53

Panoramic sunroof 55
Roof bars 191
Accessories 192-193

Electronic stability

programme 130-132
Snow chains 168
Tyre pressures 159, 220
Changing a wheel 161-167

- tools

- removing / refitting

Wipers 119-122
Changing a wiper blade 122, 186

Boot 54

- opening / closing

- emergency release
Temporary puncture

repair kit 156-160

Parking sensors 104-105
Park Assist 106-109
Towbar 189-190
Towing 187-188

Changing bulbs 173-175

- rear lamps

rd

brake lamp

- 3

- number plate lamps

- foglamp

- reversing lamp

Fuel tank,

misfuel prevention 198-201

4

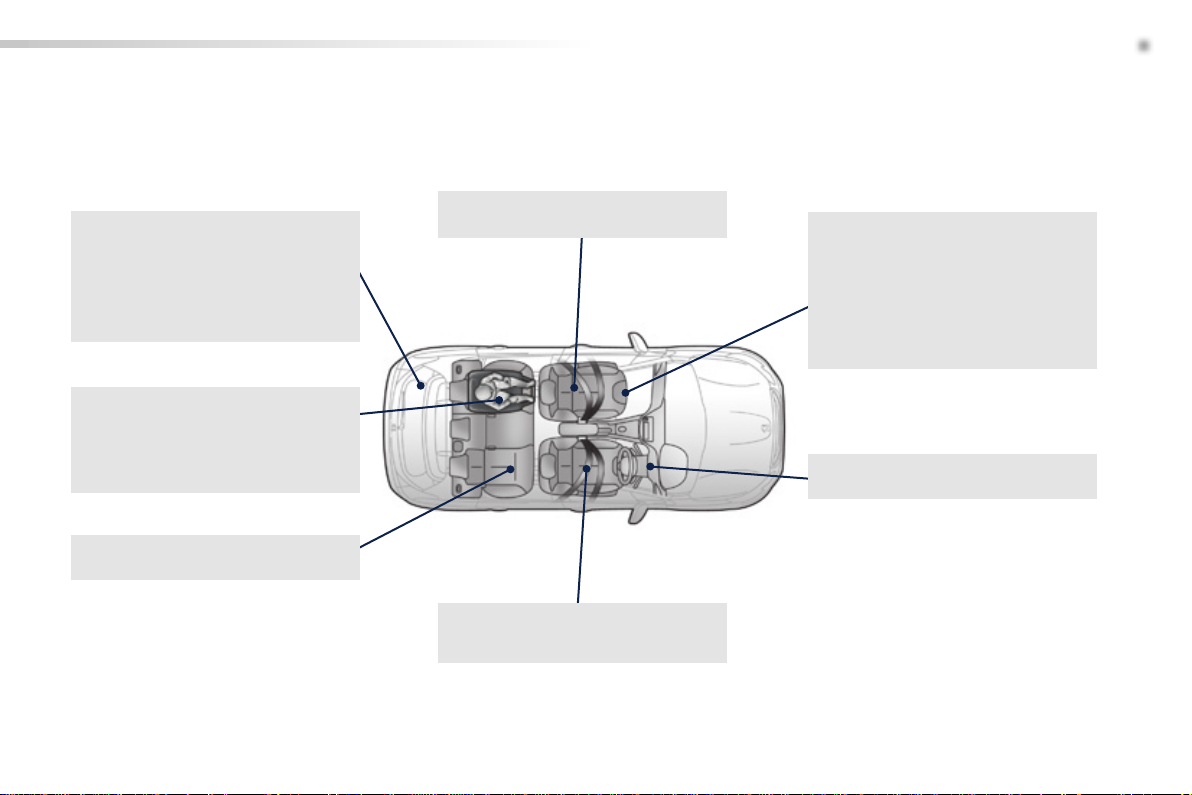

Interior

Overview

.

Boot fittings 75-77

- upper load retaining net

- parcel shelf

- boot lamp

- retaining strap

- lashing rings

- storage net

Child seats 142-154
ISOFIX child seats 151-154
Electric child lock 155

Rear seats 58-59

Front seats 56-57

Interior fittings 71-74

- glove box

- 12 V accessory socket

- USB port / Auxiliary socket

- mats
Deactivating the passenger's front

airbag 139, 144

Airbags 138-141

Seat belts 135-137

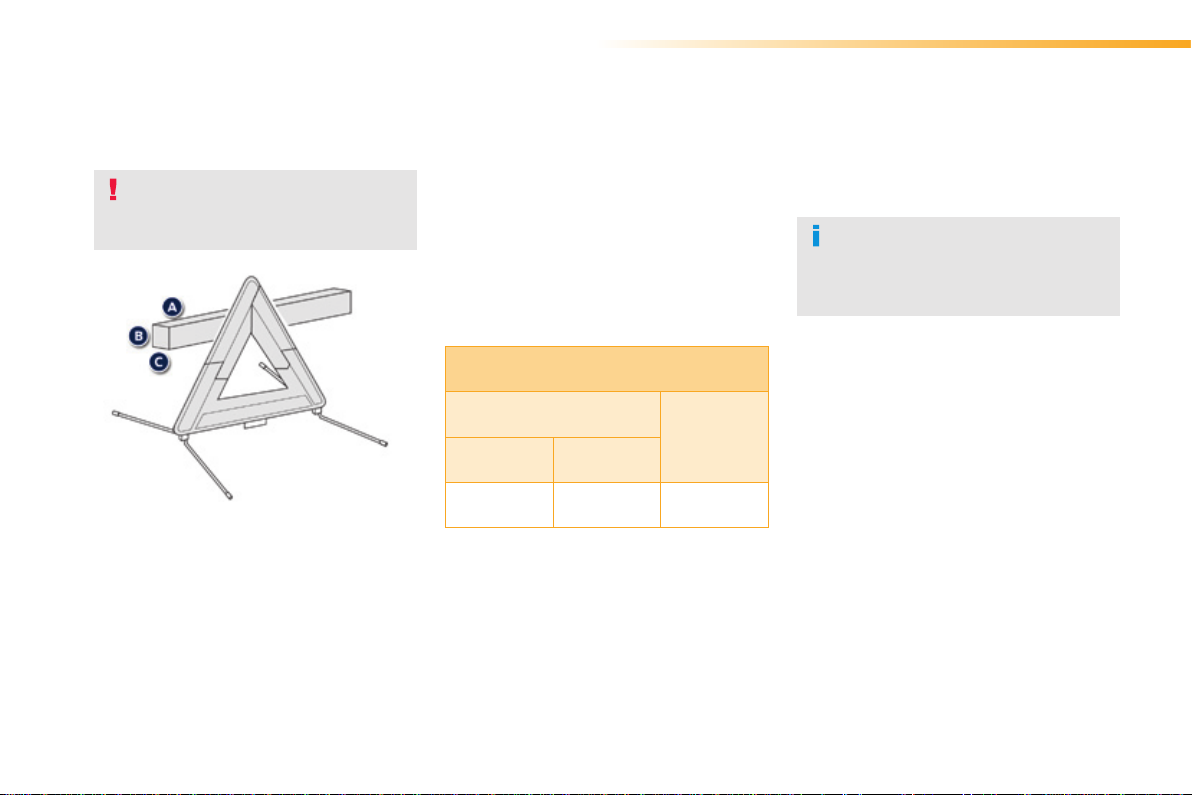

Warning triangle 78

5

Overview

Instruments and controls

Courtesy lamps 123
Interior mood lighting 124

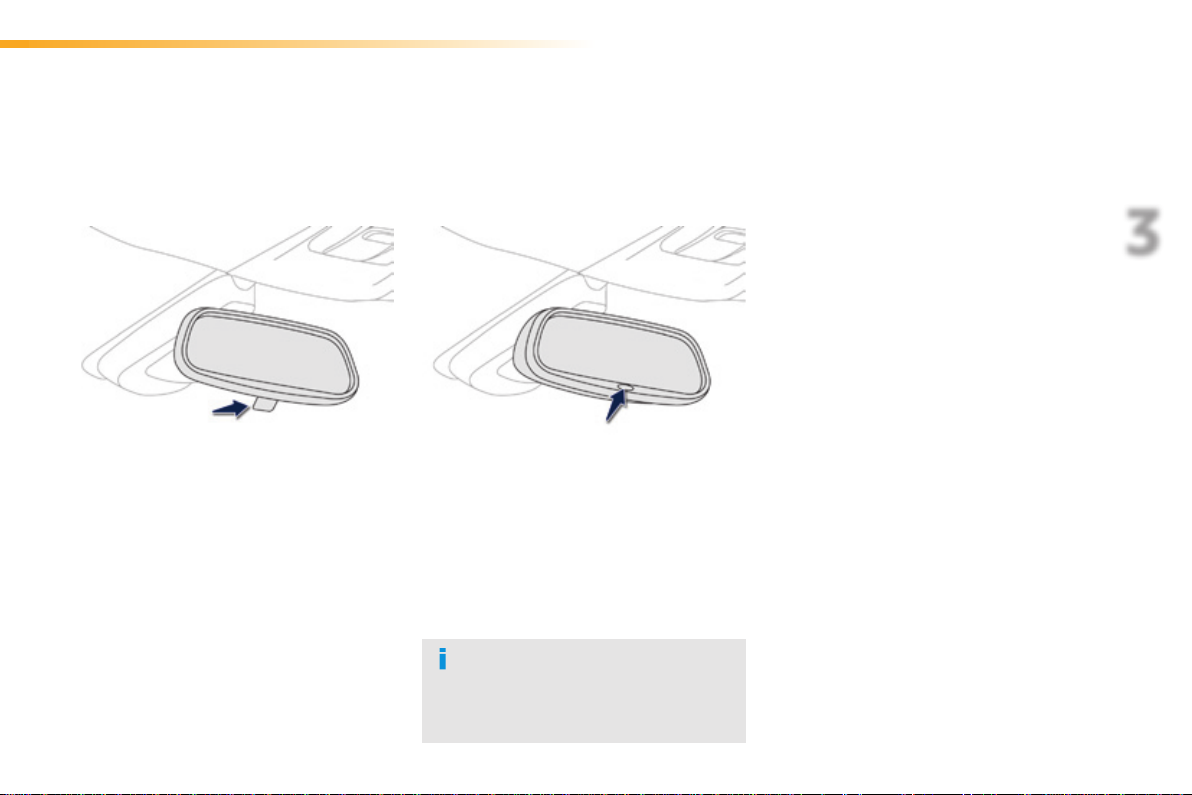

Rear view mirror 61
Emergency or assistance call 126, 221

Touch screen 223-294

Heating, ventilation 62-66
Manual air conditioning 65-66
Dual-zone air conditioning 67-69
Front demisting / defrosting 70
Rear screen emist/defrost 70

Glove box fuses 180

Opening the bonnet 195

Manual gearbox 81
5-speed electronic gearbox 82-84
6-speed electronic gearbox 85-88
Automatic gearbox 89-92
Gear shift indicator 93
Stop & Start 94-96
Hill start assist 97

Manual parking brake 80

Bluetooth audio system 295-320

Audio system 321-336

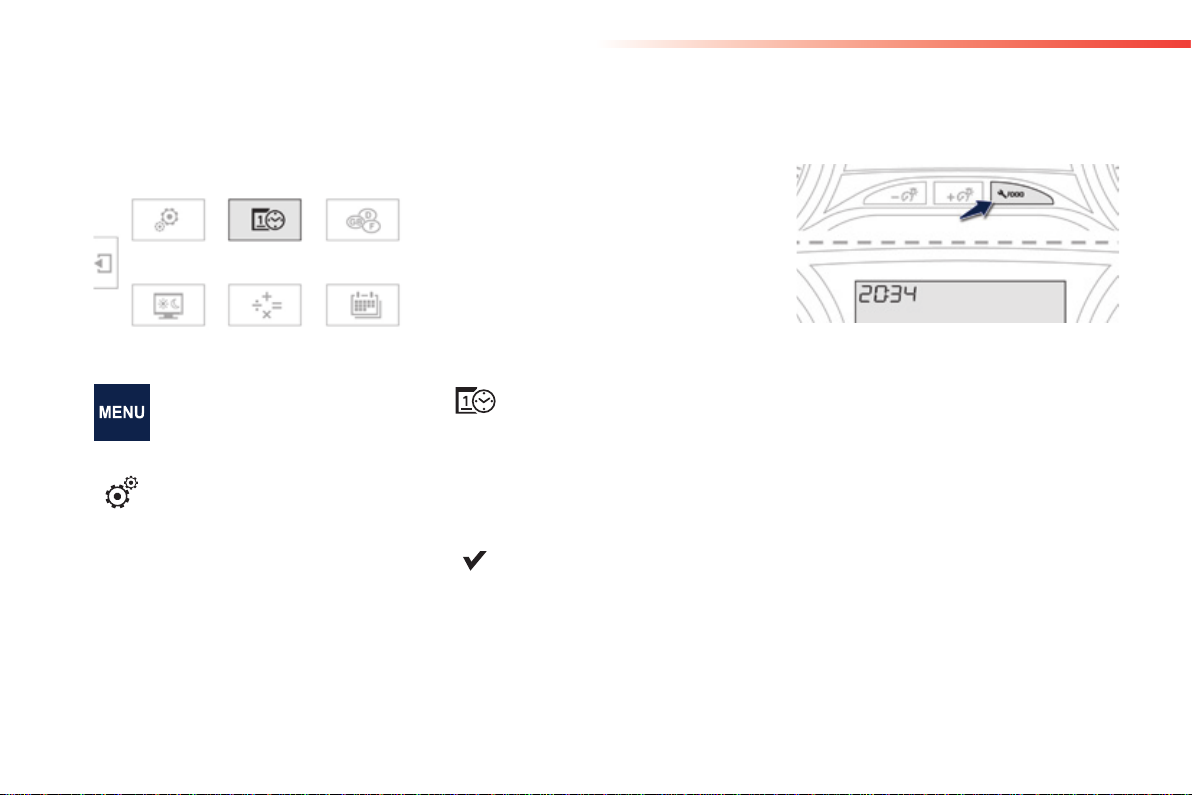

Setting the date/time 42

Dashboard fuses 176-180

Door mirrors 60
Electric windows, deactivating 52-53

USB port / Auxiliary socket 73

6

Instruments and controls (cont.)

Overview

.

Trip computer with touch screen 40, 41
Setting the date/time with the touch

screen 42

Lighting controls 110-116
Direction indicators 125

Hazard warning lamps 125-126
Locking/unlocking from inside 47

Memorising speeds 102
Speed limiter 98-99
Cruise control 100-101

Grip control 133-134

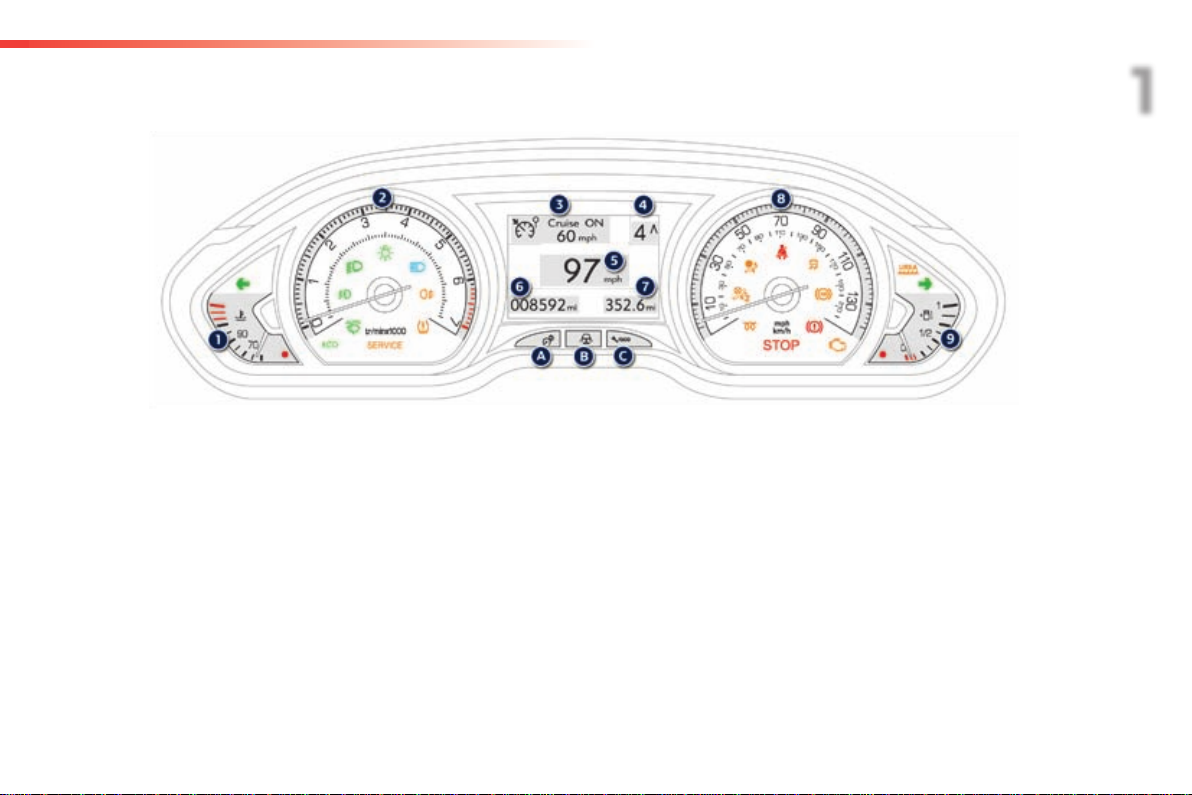

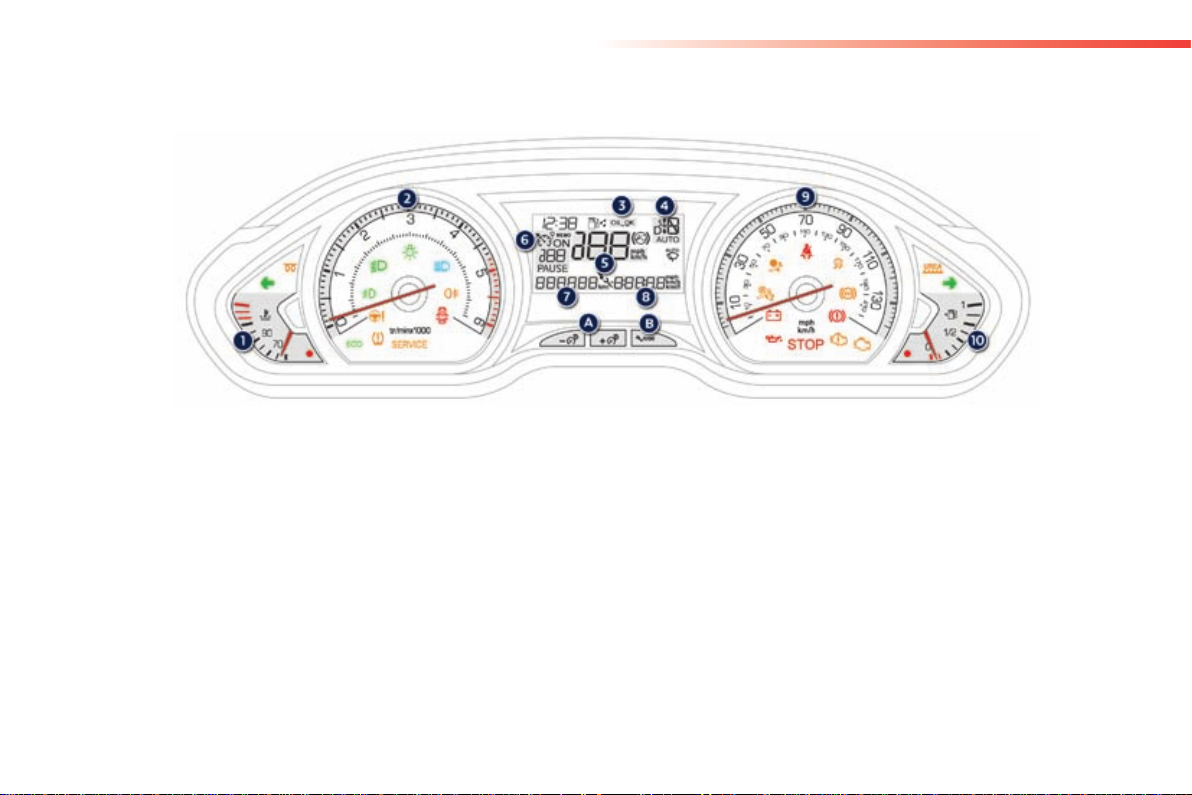

Instrument panels 14-15
Warning lamps 16-27
Touch screen 28-31
Indicators 32-37
Gear shift indicator 93

Stop & Start 94-96
Alarm 50-51
Parking sensors 104-105
Park Assist 106-109

Headlamp beam adjustment 117

Wiper controls 119-122
Trip computer 38-39, 41

Steering wheel adjustment 59
Horn 126

7

Overview

Maintenance - Technical data

AdBlue additive 203-210
Checking levels 211-213

- oil

- brake fluid

- coolant

- screenwash fluid

- additive (Diesel with particle
emissions filter)

Checking components 214-215

- battery

- air / passenger compartment filter

- oil filter

- particle emissions filter (Diesel)

- brake pads / discs

Changing bulbs 169-175

- front

- rear

Running out of fuel, Diesel 202

Opening the bonnet 195
Under the bonnet, petrol 196
Under the bonnet, Diesel 197
Petrol engines 216-217
Diesel engines 216, 218

12 V battery 182-184
Load reduction, energy

economy mode 185

Engine compartment

fuses 176-177, 181

Petrol weights 216-217
Diesel weights 216, 218

Identification markings 220
Dimensions 219

8

Overview

.

9

Overview

10

Dashboard and centre console

Overview

.

1. Cruise control / speed limiter controls.

2. Steering mounted controls for the touch

screen.

3. Wiper / screenwash / trip computer stalk.

4. Driver's front airbag.

Horn.

5. Lighting and direction indicator stalk

6. Bonnet release lever.

7. Steering wheel adjustment control.

8. Headlamp height adjustment.

9. Switch panel:
A. Deactivation of the rear parking sensors

or
Activation of Park Assist.

B. Deactivation of the DSC/ASR system.
C. Deactivation of the Stop & Start system.
D. Reinitialisation of the under-inflation

detection system.

E. Deactivation of the volumetric alarm

monitoring.

F. Activation of the electric child lock.

10. Side adjustable air vents.

11. Front side window demisting/defrosting

vent.

12. Instrument panel.

13. Windscreen demisting/defrosting vent.

14. Sunshine sensor.

15. Glove box / Passenger's front airbag

deactivation.

16. Passenger's front airbag.

17. Multifunction screen / Audio system.

18. Central adjustable air vents.

19. Central locking and hazard warning

buttons.

20. Heating / air conditioning controls.

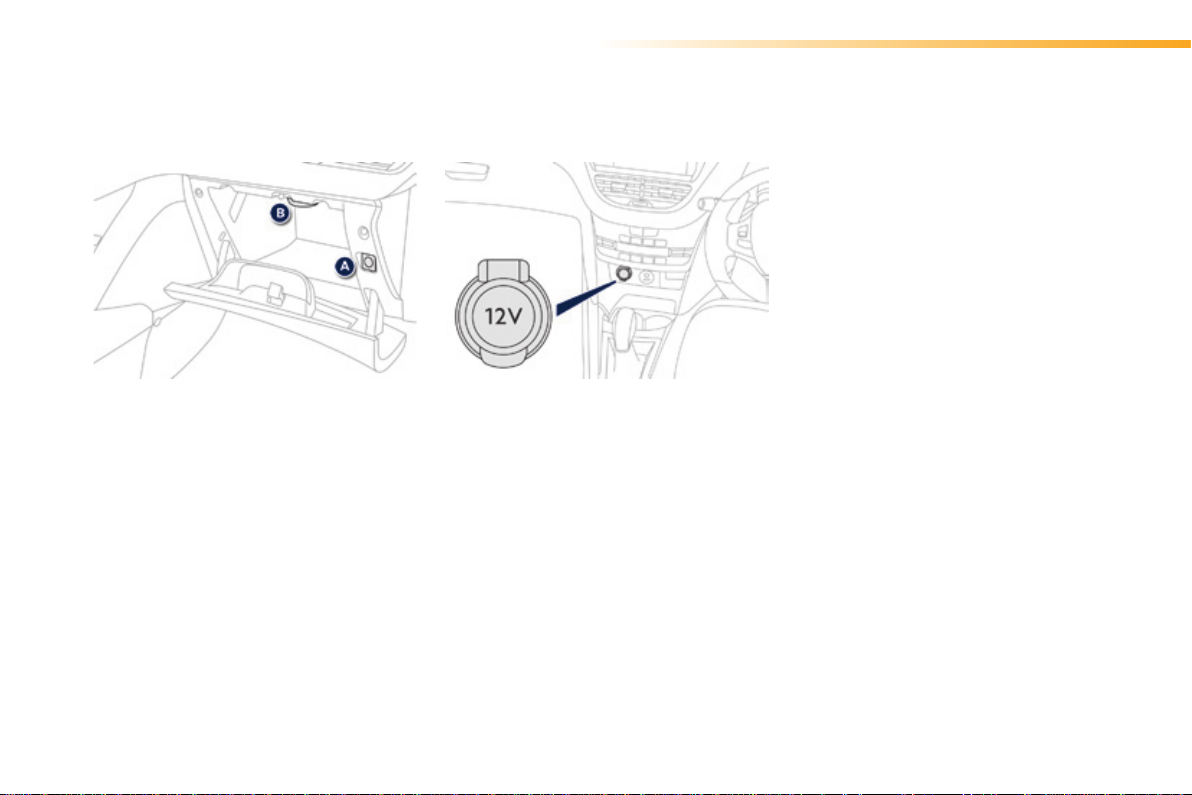

21. 12 V accessory socket.

USB port / auxiliary socket.

22. Open storage.
Cup holder.

23. Gear lever.

24. Grip control switch.

25. Parking brake.

26. Panoramic sunroof blind opening and

closing control.

27. Closed storage compartment.

28. 12 V socket.

11

Eco-driving

Eco-driving

Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.

12

Optimise the use of your gearbox

With a manual gearbox, move off gently and change up without waiting.
During acceleration change up early.

With an automatic or electronic gearbox, give preference to automatic
mode and avoid pressing the accelerator pedal heavily or suddenly.

The gear shift indicator invites you engage the most suitable gear: as
soon as the indication is displayed in the instrument panel, follow it
straight away.
For vehicles fitted with an electronic or automatic gearbox, this
indicator appears only in manual mode.

Drive smoothly

Maintain a safe distance between vehicles, use engine braking rather
than the brake pedal, and press the accelerator progressively. These
practices contribute towards a reduction in fuel consumption and CO
emissions and also helps reduce the background traffic noise.

If your vehicle has cruise control, make use of the system at speeds
above 25 mph (40 km/h) when the traffic is flowing well.

2

Control the use of your electrical
equipment

Before moving off, if the passenger compartment is too warm, ventilate it
by opening the windows and air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air vents
open.
Remember to make use of equipment that can help keep the
temperature in the passenger compartment down ( s unroof and window
blinds...).
Switch off the air conditioning, unless it has automatic regulation, as
soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.

Switch off the headlamps and front foglamps when the level of light
does not require their use.

Avoid running the engine before moving off, particularly in winter; your
vehicle will warm up much faster while driving.

As a passenger, if you avoid connecting your multimedia devices
(film, music, video game...), you will contribute towards limiting the
consumption of electrical energy, and so of fuel.
Disconnect your portable devices before leaving the vehicle.

.Eco-driving

Limit the causes of excess consumption

Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance (roof
bars, roof rack, bicycle carrier, trailer...). Use a roof box in preference.
Remove roof bars and roof racks after use.

At the end of winter, remove snow tyres and refit your summer tyres.

Observe the recommendat ions on
maintenance

Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, driver's side.
Carry out this check in particular:

- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.

Have your vehicle serviced regularly (engine oil, oil filter, air filter,
passenger compartment filter...) and observe the schedule of
operations recommended in the warranty and maintenance record.

With a Blue HDi Diesel engine, if the SCR system is faulty your vehicle
becomes polluting; go to a PEUGEOT dealer or a qualified workshop
without delay to have the emissions of nitrous oxides brought back to
the legal level.

When refuelling, do not continue after the third cut-off of the nozzle to
avoid any overflow.

At the wheel of your new vehicle, it is only after the first 1 800 miles
(3 000 kilometres) that you will see the fuel consumption settle down to
a consistent average.

13

Monitoring

LCD instrument panel

Dials and screens Control buttons

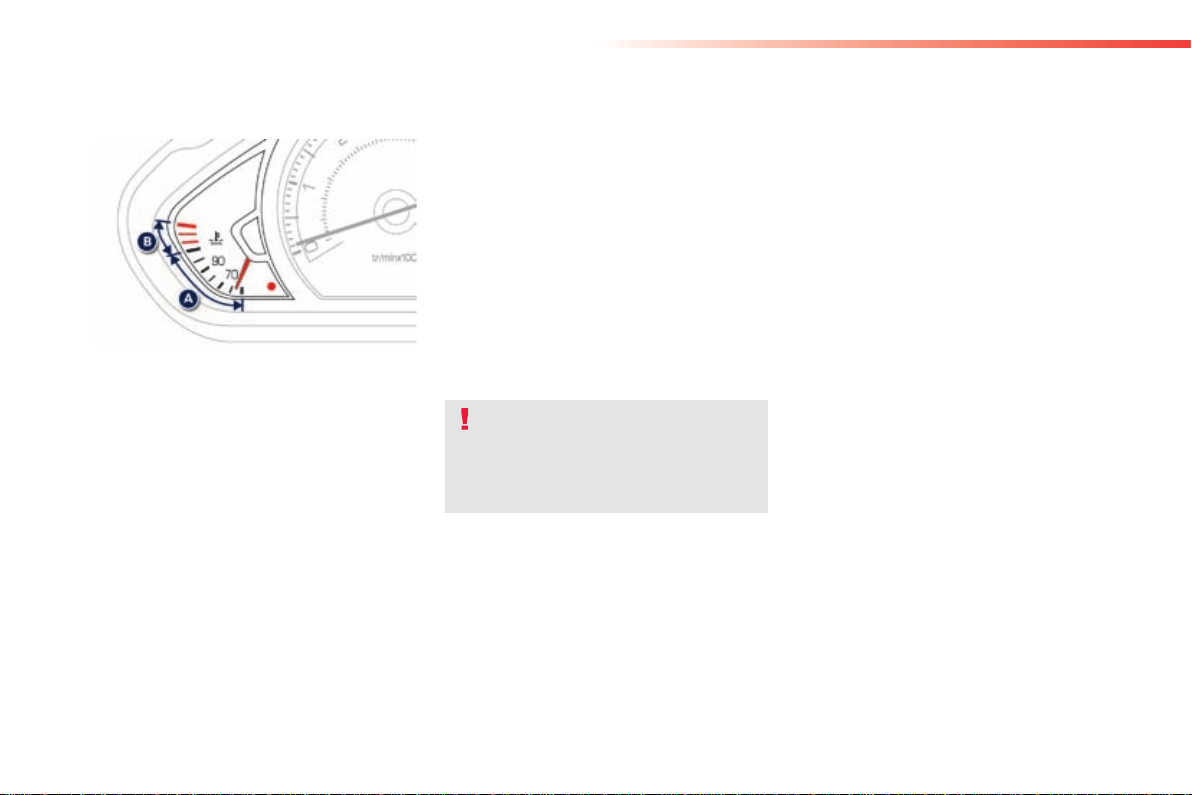

1. Engine coolant temperature

gauge.

2. Rev counter (x 1 000 rpm or tr/min),
graduation according to engine (petrol
or Diesel).

3. Engine oil level indicator*.

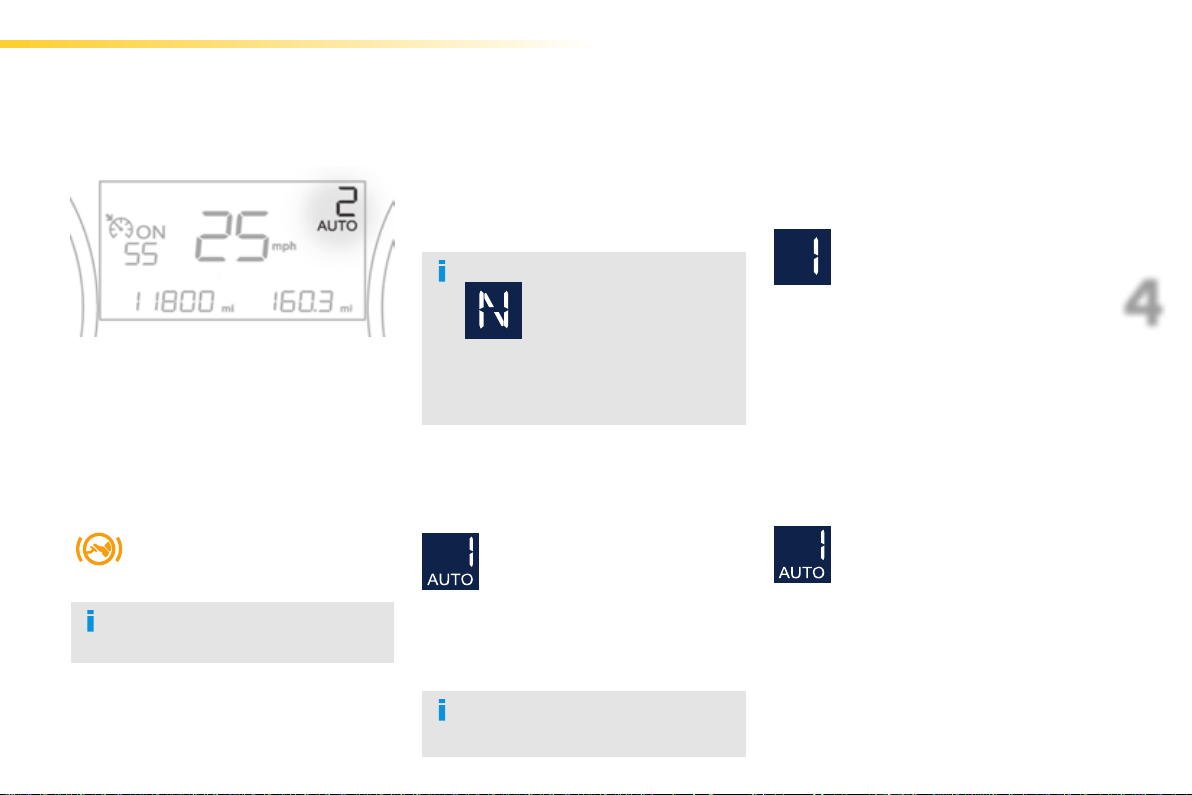

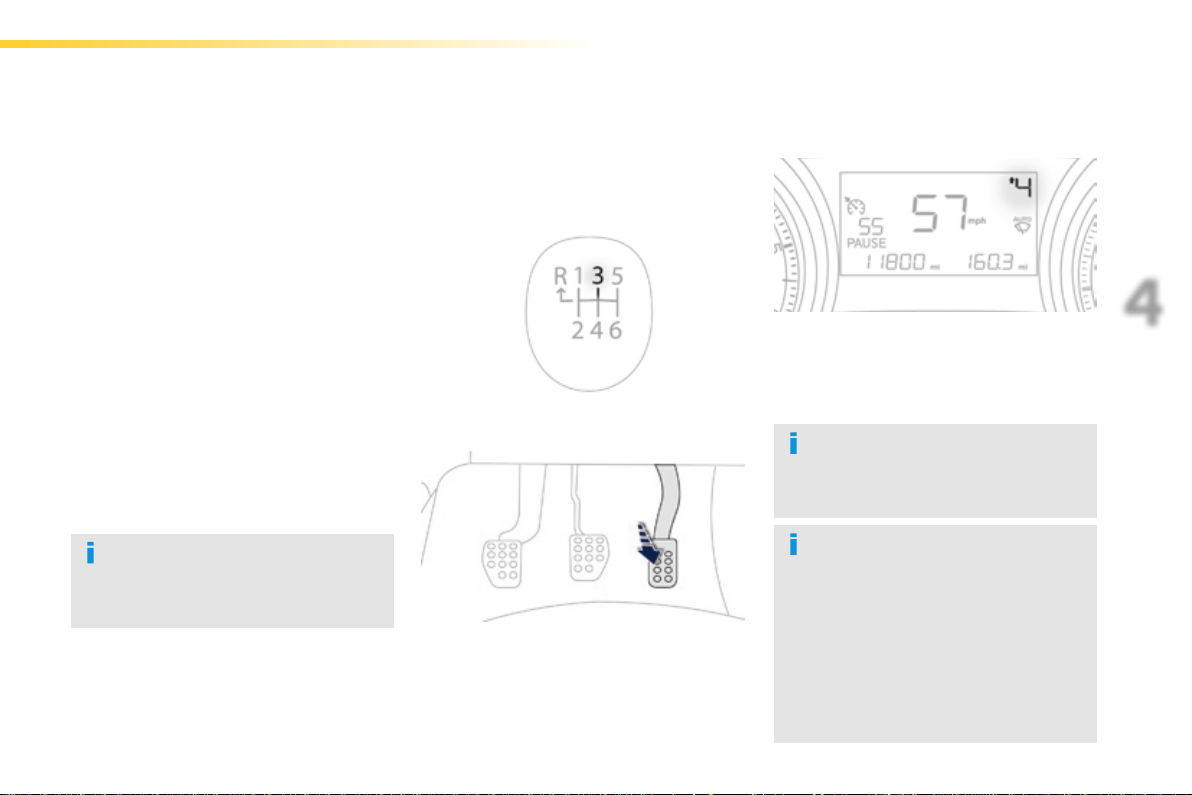

4. Gear shift indicator for a manual gearbox

or gear lever position and gear for an
electronic or automatic gearbox.

5. Digital speedometer (mph or km/h)

This can be switched off with a long

press on B.

6. Cruise control or speed limiter
settings.

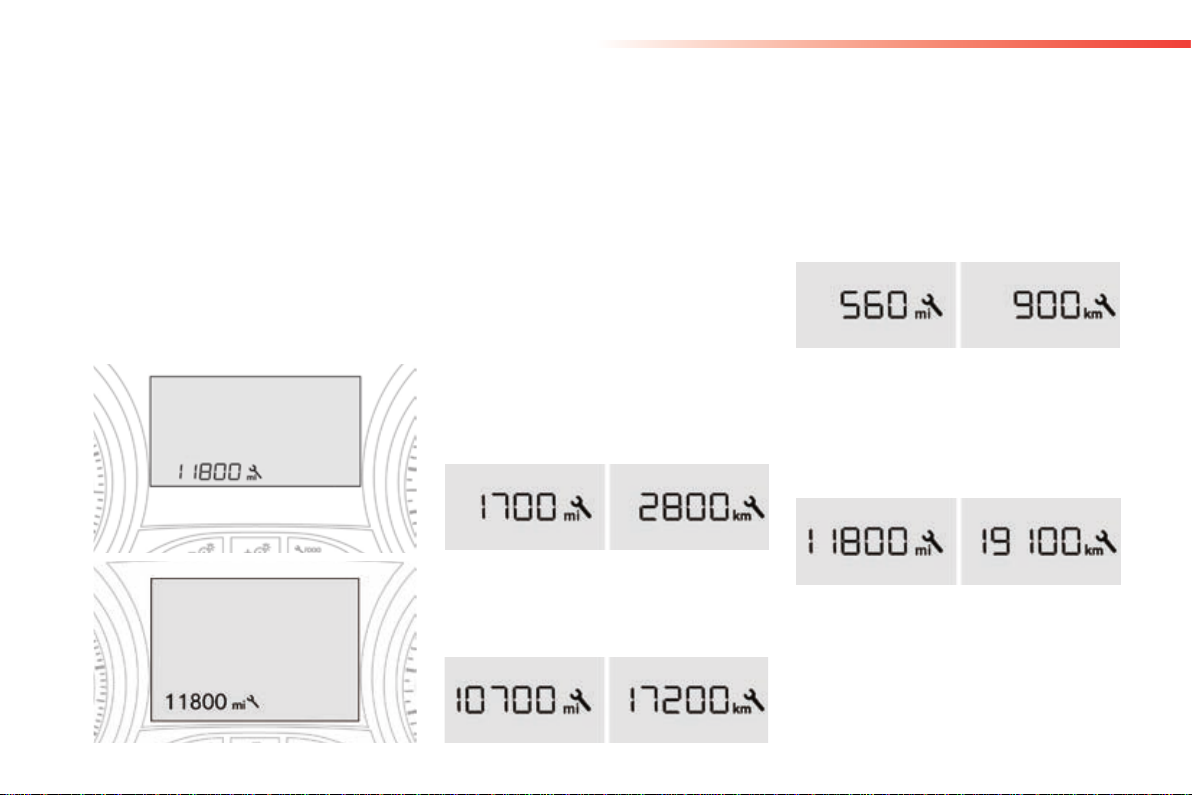

7. Service indicator, then total distance
recorder (miles or km).

These functions are displayed successively

on switching on the ignition.

8. Trip distance recorder (miles or km).

9. Analogue speedometer (mph or km/h).

10. Fuel gauge.

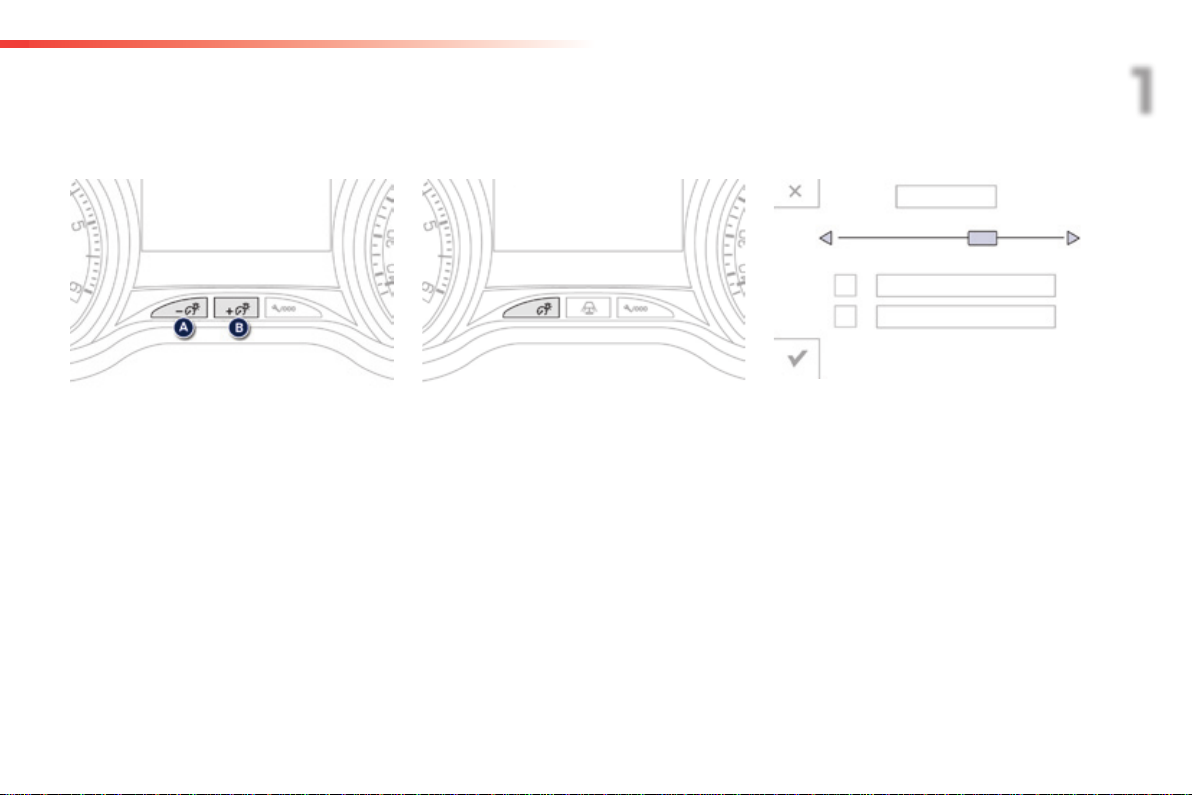

A. General lighting dimmer.
B. Recalling the service information.

Resetting the function selected (service

indicator or trip distance recorder).
Setting the time.
Switching the digital speedometer on

and off.

14

* Depending on version.

Monitoring

Active matrix instrument panel

Dials and screens Control buttons

1. Engine coolant temperature

gauge.

2. Rev counter (x 1 000 rpm or tr/min),
graduation according to engine (petrol
or Diesel).

3. Cruise control or speed limiter settings.

4. Gear shift indicator for a manual gearbox

or gear lever position and gear for an
electronic or automatic gearbox.

5. Speedometer (mph or km/h).

6. Service indicator, then total distance

recorder (miles or km).

These functions are displayed successively

on switching on the ignition.

7. Trip distance recorder (miles or km).

8. Analogue speedometer (mph or km/h).

9. Fuel gauge.

A. Main lighting dimmer.
B. Instrument panel mood lighting.
C. Recall of the service information.

Reset the selected function (service

indicator or trip distance recorder).

1

15

Monitoring

Indicator and warning lamps

Visual indicators informing the driver that a system is switched on (indicator or deactivation lamp) or has a fault (warning lamp).

16

When the ignition is switched on

Certain warning lamps come on for a few
seconds in the instrument panel and/or
instrument panel screen when the vehicle's
ignition is switched on.
When the engine is started, these same
warning lamps should go off.
If they remain on, before moving off, refer to the
information on the warning lamp concerned.

Associated warnings

The switching on of certain warning lamps
may be accompanied by an audible signal
and a message in the instrument panel or
multifunction screen.
The warning lamps may come on continuously
(fixed) or flash.

Certain warning lamps may come on in
one of two modes. Only by relating the
type of lighting to the operating status
of the vehicle can it be ascertained
whether the situation is normal or
whether a fault has occurred.

Monitoring

Operation indicator lamps

If one of the following indicator lamps comes on in the instrument panel and/or instrument panel screen, this confirms that the corresponding system has come into operation.

Warning / indicator lamp State Cause Action / Observations

Left-hand direction
indicator

Right-hand
direction indicator

Sidelamps fixed. The lighting stalk is in the

Dipped beam
headlamps

Main beam
headlamps

Front foglamps fixed. The front foglamps are switched on

Rear foglamp fixed. The rear foglamp is switched on

flashing with buzzer. The lighting stalk is pushed down.

flashing with buzzer. The lighting stalk is pushed up.

"Sidelamps" position.

fixed. The lighting stalk is in the "Dipped

beam headlamps" position.

fixed. The lighting stalk is pulled towards

you.

using the ring on the lighting control
stalk.

using the ring on the lighting control
stalk.

Pull the stalk to return to dipped beam headlamps.

Turn the ring on the lighting control stalk rearwards
twice to switch off the front foglamps.

Turn the ring on the lighting control stalk rearwards to
switch off the rear foglamp.

1

For more information on the lighting controls, refer to the corresponding section.

17

Monitoring

Warning / indicator lamp State Cause Action / Observations

Diesel engine
pre-heating

Parking brake fixed. The parking brake is applied or not

Foot on the
brake pedal

fixed. The ignition switch is at the

2nd position (ignition on).

properly released.

fixed. The brake pedal must be pressed. With an electronic gearbox, press the brake pedal to

flashing. With an electronic gearbox, if you

hold the vehicle on an incline using
the accelerator for too long, the
clutch overheats.

Wait until the warning lamp goes off before starting.
The period of illumination of the warning lamp is
determined by the climatic conditions (up to about
thirty seconds in extreme climatic conditions).
If the engine does not start, switch the ignition off and
then on, wait until the warning lamp goes off again,
then start the engine.

Release the parking brake to switch off the warning
lamp, keeping your foot on the brake pedal.
Observe the safety recommendations.
For more information on the parking brake, refer to the
corresponding section.

start the engine (lever in position N).
With an automatic gearbox, with the engine running,
press the brake pedal before releasing the parking
brake, to unlock the lever and come out of position P.
If you wish to release the parking brake without
pressing the brake pedal, this warning lamp will
remain on.

Use the brake pedal and/or the parking brake.

18

Monitoring

Warning / indicator lamp State Cause Action / Observations

Foot on the
clutch*

Automatic
wiping

Stop & Start fixed. When the vehicle stops (red lights,

fixed. In the STOP mode of Stop & Start,

fixed. The wiper control is pushed

flashes for a few
seconds, then goes
off.

changing to START mode is refused
because the clutch pedal is not fully
down.

downwards.

traffic jams, ...) the Stop & Start
system has put the engine into
STOP mode.

STOP mode is temporarily
unavailable.
or
START mode is invoked
automatically.

You must declutch fully to allow the change to engine
START mode.

Automatic front wiping is activated.
To deactivate automatic wiping, operate the control
stalk downwards or put the stalk into another position.

The warning lamp goes off and the engine restarts
automatically in START mode, as soon as you want to
move off.

For more information on special cases with STOP
mode and START mode, refer to the "Stop & Start"
section.

1

* Except for the active matrix instrument panel.

19

Monitoring

Deactivation indicator lamps

If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and a message in the screen.

Warning / indicator lamp State Cause Action / Observations

20

Passenger's
airbag system

fixed. The control, located in the glove box,

is set to the OFF position.
The passenger's front airbag is
deactivated.
In this case you can install a "rear
facing" child seat.

Set the control to the ON position to activate the
passenger's front airbag.
In this case, do not fit a child seat in the rear-facing
position.

Monitoring

Warning lamps

When the engine is running or the vehicle is being driven, illumination of one of the following warning lamps indicates a fault which requires action on
the part of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated further by reading the associated message in the screen.
If you encounter any problems, contact a PEUGEOT dealer or a qualified workshop.

Warning / indicator lamp State Cause Action / Observations

STOP fixed, associated with

another warning lamp.

Service fixed, associated with

another warning lamp.

fixed associated with a
message (if a display
screen is fitted).

Major faults have occurred. Stop as soon as it is safe to do so.

Major faults have occurred. Refer to the section on this warning lamp and you

Faults have occurred for which there
is no specific warning lamp.

Park, switch off the ignition and call a PEUGEOT
dealer or qualified workshop.

must then contact a PEUGEOT dealer or qualified
workshop.

Identify the fault by reading the message shown in the
screen (if a display screen is fitted) and refer to the
corresponding section:

- engine oil level alert,

- risk of blockage of the particle emissions filter
(Diesel).

- Diesel fuel additive level (Diesel with particle
emissions filter),

You must contact a PEUGEOT dealer or a qualified
workshop.

1

21

Monitoring

Warning / indicator lamp State Cause Action / Observations

Braking fixed. The braking system fluid level has

+

Maximum
coolant
temperature

Anti-lock
Braking System
(ABS)

fixed, associated
with the ABS warning
lamp.

fixed with the needle
in the red zone.

fixed. The anti-lock braking system has a

dropped significantly.

The electronic brake force distribution
(EBFD) system has a fault.

The temperature of the cooling
system is too high.

fault.

You must stop as soon as it is safe to do so.
Top up with brake fluid listed by PEUGEOT.
If the problem persists, have the system checked by a
PEUGEOT dealer or a qualified workshop.

You must stop as soon as it is safe to do so.
Have it checked by a PEUGEOT dealer or a qualified
workshop.

Stop as soon as it is safe to do so.
Wait until the engine has cooled down before topping
up the level, if necessary.
If the problem persists, contact a PEUGEOT dealer or
a qualified workshop.

The vehicle retains conventional braking.
Drive carefully at reduced speed and contact a
PEUGEOT dealer or a qualified workshop without
delay.

22

Monitoring

Warning / indicator lamp State Cause Action / Observations

Dynamic
stability control
(DSC/ASR)

Power steering fixed. The power steering has a fault. Drive carefully at reduced speed.

Engine
autodiagnosis
system

flashing. The DSC/ASR regulation is

fixed. The DSC/ASR system has a fault. Have it checked by a PEUGEOT dealer or a qualified

fixed. The emission control system has a

flashing. The engine management system has

fixed, associated with the
SERVICE warning lamp.

fixed, associated with
the STOP warning
lamp.

operating.

fault.

a fault.

A minor engine fault has been
detected.

A major engine fault has been
detected.

The system optimises traction and improves the
directional stability of the vehicle in the event of loss of
grip or trajectory.

workshop.

Have it checked by a PEUGEOT dealer or a qualified
workshop.

The warning lamp should go off when the engine is started.
If it does not go off, contact a PEUGEOT dealer or qualified
workshop without delay.

Risk of destruction of the catalytic converter.
Have it checked by a PEUGEOT dealer or a qualified
workshop.

Have it checked by a PEUGEOT dealer or a qualified
workshop.

You must stop as soon as it is safe to do so.
Park, switch off the ignition and contact a PEUGEOT
dealer or a qualified workshop.

1

23

Monitoring

Warning / indicator lamp State Cause Action / Observations

®

AdBlue

additive

(Blue HDi Diesel)

fixed, on switching
on the ignition,
accompanied by an
audible signal and a

The remaining driving range is
between 350 miles (600 km) and
1500 miles (2400 km).

Have the AdBlue
as possible: go to a dealer PEUGEOT or a qualified
workshop, or carry out this operation yourself by
referring to the corresponding section.

®

additive tank topped up as soon

message indicating the
remaining driving range.

24

+ flashing associated with

the SERVICE warnin g
lamp, accompanied by
an audible signal and a
message indicating the
remaining driving range.

flashing, associated
with the SERVICE
warning lamp,
accompanied by an
audible signal and a
message indicating that
starting is prevented.

The remaining driving range is
between 0 and 375 miles (600 km).

The AdBlue

®

tank is empty: the
starting inhibition system required
by legislation prevents starting of
the engine.

You must top-up the AdBlue

®

additive tank to avoid
a breakdown: go to a dealer PEUGEOT or a qualified
workshop, or carry out this operation yourself by
referring to the corresponding section.

To be able to start the engine, you must top-up the

®

AdBlue

additive tank: go to a dealer PEUGEOT or a
qualified workshop, or carry out this operation yourself
by referring to the corresponding section.
It is essential to add at least 3.8 litres of AdBlue

®

to

the tank.

Monitoring

Warning / indicator lamp State Cause Action / Observations

SCR emissions
control system
(Blue HDi Diesel)

+

+

fixed, on switching on
the ignition, associated
with the SERVICE
and engine diagnostic
warning lamps,
accompanied by an
audible signal and a
message indicating an
emissions control fault.

flashing, on switching
on the ignition,
associated with the
SERVICE and engine
diagnostic warning
lamps, accompanied by
an audible signal and
a message indicating
the remaining driving
range.

flashing, on switching
on the ignition,
associated with the
SERVICE and engine
diagnostic warning
lamps, accompanied
by an audible signal
and a message
indicating that starting
is prevented.

A fault with the SCR emissions
control system has been detected.

The remaining driving range is
between 0 and 650 miles (1 100 km).

You have exceeded the authorised
driving limit: the starting inhibition
system prevents starting of the
engine.

This alert disappears once the exhaust emissions
return to normal levels.

Contact a PEUGEOT dealer or a qualified workshop
without delay.

To be able to start the engine, you must call on a
PEUGEOT dealer or a qualified workshop.

1

25

Monitoring

Warning / indicator lamp State Cause Action / Observations

Low fuel level fixed with the needle

Engine oil
pressure

Battery charge fixed. The battery charging circuit has a

Under-inflation fixed. The pressure in one or more wheels

+ flashing then fixed,

in the red zone.

flashing with the
needle in the red
zone.

fixed. There is a fault with the engine

accompanied by the
Service warning lamp.

There remains approximately 5 litres
of fuel in the tank.
At this point, you begin to use the fuel
reserve.

There remains very little fuel in the
tank.

lubrication system.

fault (dirty or loose terminals, slack or
cut alternator belt, ...).

is too low.

The tyre pressure monitoring system
has a fault or no sensor is detected
on one of the wheels.

Refuel as soon as possible to avoid running out of
fuel.
This warning lamp will come on every time the ignition
is switched on, until a sufficient addition of fuel is
made.
Fuel tank capacity: approximately 50 litres.
Never continue to drive until you run out of fuel, as
this could damage the emission control and injection
systems.

You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a PEUGEOT
dealer or a qualified workshop.

The warning lamp should go off when the engine is
started.
If it does not go off, contact a PEUGEOT dealer or a
qualified workshop.

Check the pressure of the tyres as soon as possible.
This check should preferably be carried out when the
tyres are cold.

Under-inflation detection is not assured.
Have the system checked by a PEUGEOT dealer or a
qualified workshop.

26

Monitoring

Warning / indicator lamp State Cause Action / Observations

Door(s) open fixed, associated with

Seat belt(s)
not fastened /
unfastened

Airbags on temporarily. This lamp comes on for a few

a message identifying
the door, if the speed is
below 6 mph (10 km/h).

fixed, associated with a
message identifying the
door, and accompanied
by an audible signal if
the speed is above
6 mph (10 km/h).

fixed or flashing
accompanied by an
audible signal.

fixed. One of the airbag or seat belt

A door or the boot is still open. Close the door or boot.

A seat belt has not been fastened or
has been unfastened.

seconds when you turn on the
ignition, then goes off.

pretensioner systems has a fault.

Pull the strap then insert the tongue in the buckle.

This lamp should go off when the engine is started.
If it does not go off, contact a PEUGEOT dealer or a
qualified workshop.

Have it checked by a PEUGEOT dealer or a qualified
workshop.

1

27

Monitoring

Touch screen

It gives access to:

- menus for adjusting settings for vehicle
functions and systems,

- audio and display configuration menus,

- audio system and telephone controls and
the display of associated information.

And, depending on equipment, it allows:

- the display of alert messages and the
visual parking sensors information,

- access to the controls for the navigation
system and Internet services, and the
display of associated information.

For reasons of safety, the driver
should only carry out operations
that require close attention, with the
vehicle stationary.

Some functions are not accessible
when driving.

General operation

Recommendations

It is necessary to press firmly, particularly for
"flick" gestures (scrolling through lists, moving
the map...).
A light wipe is not enough.
The screen does not recognise pressing with
more than one finger.
This technology allows use at all temperatures
and when wearing gloves.
Do not use pointed objects on the touch
screen.
Do not touch the touch screen with wet hands.
Uses a soft clean cloth to clean the touch
screen.

State of indicator lamps

Some buttons contain an indicator lamp that
gives the state of the corresponding function.
Green indicator: you have switched on the
corresponding function.
Orange indicator: you have switched off the
corresponding function.

Principles

Press the "MENU" button for access to the
different menus, then press the virtual buttons
in the touch screen.
Each menu is displayed over one or two pages
(primary page and secondary page).

Use this button to go to the
secondary page.

Use this button to return to the
primary page.

After a few moments with no action on
the secondary page, the primary page
is displayed automatically.

Use this button for access to
additional information and to the
settings for certain functions.

Use this button to confirm.

28

Use this button to quit.

Menus

Monitoring

1

Press this button.

Navigation.
Depending on trim level, navigation can
be not available, an option or standard.
See the "Audio equipment and
telematics" section.

Radio Media.
See the "Audio equi pment and telematics" section.

Settings.
Allows configuration of the display
and the system.

Internet.
These services can be not available, an option or
standard.
See the "Audio equi pment and telematics" section.

Telephone.
See the "Audio equi pment and telematics" section.

Driving.
Allows access to the trip computer and,
depending on version, the adjustment of
settings for certain functions.
See the corresponding section.

1. Volume / mute.
See the "Audio equipment and telematics"
section.

29

Monitoring

"Settings" menu

The functions available through this menu are detailed in the table below.

Button Corresponding function Comments

Audio settings Adjustment of volume, balance...

Turn off screen Turns the screen off.

Color schemes Choice of a color scheme.

Interactive help Access to the interactive user guide.

30

System Settings Choice of units:

- temperature (°Celsius or °Fahrenheit)

- distance and fuel consumption (l/100 km, mpg or km/l).

Time/Date Setting the date and time.

Languages Choice of language used.

Screen settings Adjustment of the screen (brightness) and display settings (scrolling of text,

animations...).

Calculator

Calendar

Monitoring

"Driving" menu

The functions accessible from this menu are detailed in the table below.

Button Corresponding function Comments

Vehicle settings The functions with settings that can be adjusted are grouped together under these tabs:

- "Driving assistance"

● "Automatic rear wiper in reverse" (Activation of rear wiper coupled to reverse gear;

see the "Visibility" section)

- "[Lighting]"

● "Guide-me-home lighting" (Automatic guide me home lighting; see the "Visibility"

section),

● "LED daytime running lamps" (Exterior welcome lighting; see the "Visibility" section),

● "Mood lighting" (Interior mood lighting; see the "Visibility" section).

Select or deselect the tabs at the bottom of the screen to display the functions
required.

Speed settings Memorisation of speeds for use with the speed limiter or cruise control.

1

31

Monitoring

Gauges and indicators

Coolant temperature
gauge

With the engine running, when the needle is:

- in zone A, the temperature is correct,

- in zone B, the temperature is too high;
the maximum temperature and the
central STOP warning lamps come on,
accompanied by an audible signal and a
warning message in the screen.

You MUST stop as soon as it is safe to do so.

Wait a few minutes before switching off the
engine.
Contact a PEUGEOT dealer or a qualified
workshop.

After driving for a few minutes, the temperature
and pressure in the cooling system increase.
To top up the level:

F wait for the engine to cool,
F unscrew the cap slightly to allow the

pressure to drop,

F when the pressure has dropped, remove

the cap,

F top up the level to the "MAX" mark.

Be aware of the risk of burns when
topping up the cooling system. Do not
fill above the maximum level (indicated
on the header tank).

32

Monitoring

Lighting dimmer control

System for the manual adjustment of the
brightness of the instrument panel and the
touch screen to suit the ambient light level.

Two buttons

With the headlamps on, press button B to
increase the brightness of the instruments and
controls and the interior mood lighting or
button A to reduce it.
As soon as the lighting reaches the required
level of brightness, release the button.

One button

Activation

F Press the button to adjust the brightness of

the instruments and controls,

F release the button when the desired level is

attained.

Switching off

When the vehicle lighting is off or in day mode
(daytime running lamps on), pressing the button
has no effect.

1

Touch screen

F Press MENU to display the "MAIN MENU"

then select "Preferences".

F From the secondary page, select "Screen

preferences".

F Adjust the brightness by moving the

cursor.
You can also switch of the screen. To do this:
F Press MENU to display the "MAIN MENU"

then select "Preferences".
F Press "Turn off screen". The screen goes

off completely.
Press the screen again (anywhere on its

surface) to activate it.

33

Monitoring

Service indicator

System which informs the driver when the
next service is due, in accordance with the
manufacturer's servicing schedule.
The point at which the service is due is
calculated from the last reset of the indicator,
according to the mileage covered and the time
elapsed since the last service.
For Blue HDi Diesel versions, the degree of
deterioration of the engine oil is also taken into
account.

More than 1 800 miles (3 000 km)
remain before the next service is due

When the ignition is switched on, no service
information appears in the screen.

Between 600 miles (1 000 km) and
1 800 miles (3 000 km) remain
before the next service is due

For 7 seconds after the ignition is switched on, the
spanner symbolising the service operations comes
on. The distance recorder display line indicates the
distance remaining before the next service is due.
Example: 1 700 miles (2 800 km) remain before
the next service is due.
For 7 seconds after the ignition is switched on, the
screen indicates:

7 seconds after the ignition is switched on,
the spanner goes off; the distance recorder
resumes its normal operation. The screen then
indicates the total and trip distances.

Less than 600 miles (1 000 km)
remain before the next service is due

Example: 560 miles (900 km) remain before

the next service is due.
For 7 seconds after the ignition is switched on,
the screen indicates:

7 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on to
indicate that a service must be carried out
soon.

34

Service overdue

For 7 seconds after the ignition is switched on,
the spanner flashes to indicate that the service
must be carried out as soon as possible.
Example: the service is overdue by 186 miles
(300 km).
For 7 seconds after the ignition is switched on,
the screen indicates:

7 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on.

For Blue HDi Diesel versions, this
alert is also accompanied by the fixed
illumination of the Service warning
lamp, when the ignition is switched on.
The distance remaining may be
weighted by the time factor, depending
on the driving conditions.
Therefore, the spanner may also come
on if you have exceeded the period
since the last service, indicated in the
warranty and maintenance record.
For Blue HDi Diesel versions, the
spanner can also come on early,
according to the degree of deterioration
of the engine oil. The deterioration
of the engine oil depends on the
conditions in which the vehicle is used.

Monitoring

1

Service indicator zero
reset

After each service, the service indicator must
be reset to zero.
If you have carried out the service on your
vehicle yourself:

F switch off the ignition,
F press and hold the trip distance recorder

zero reset button,
F switch on the ignition; the distance recorder

display begins a countdown,
F when the display indicates "=0", release

the button; the spanner disappears.

Following this operation, if you wish to
disconnect the battery, lock the vehicle
and wait at least five minutes for the
zero reset to be registered.

35

Monitoring

Retrieving the service
information

You can access the service information at any
time.
F Press the trip distance recorder zero reset

button.
The service information is displayed for a few
seconds, then disappears.

Mileage recorder Tr ip recorder zero

reset

36

The total mileage is displayed in zone A of the
screen and the trip mileage in zone B.

With the trip mileage displayed, press the
button for a few seconds.

Monitoring

Engine oil level
indicator*

System which informs the driver whether the
engine oil level is correct or not.
This information is indicated for a few seconds
when the ignition is switched on, after the
service information.

The level read will only be correct if
the vehicle is on level ground and the
engine has been off for more than
30 minutes.

Oil level correct

Oil level incorrect

This is indicated by the flashing of "OIL" or
by the display of a dedicated message in the
instrument panel.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to
avoid damage to the engine.

1

Oil level indicator fault

This is indicated by the flashing of "OIL_ _" or
by the display of a dedicated message in the
instrument panel. Contact a PEUGEOT dealer
or a qualified workshop.

Dipstick

Refer to the "Checks" section to locate the
dipstick and the oil filler cap on your engine.
There are 2 marks on the dipstick:

- A = max; never exceed this
level,

- B = min; top up the level via
the oil filler cap, using the
grade of oil suited to your
engine.

* Depending on version.

37

Monitoring

Trip computer

System that gives you information on the
current journey (range, fuel consumption…).

Instrument panel screen

Information display

- The current information tab with:

● the range,

● the current fuel consumption,

● the Stop & Start time counter.

- Trip "1" with:

● the average speed.

● the average fuel consumption,

● the distance travelled,

for the first trip.

38

F Press the button on the end of the wiper

control stalk to display the various tabs in

succession.

- Trip "2" with:

● the average speed,

● the average fuel consumption,

● the distance travelled,

for the second trip.

Tr ip reset

F When the trip required is displayed, press

the control for more than two seconds
or use the left hand thumb wheel of the

steering mounted controls.
Trips "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.

Monitoring

1

39

Monitoring

Trip computer with touch screen

System which provides current information concerning the trip (range, fuel consumption…).

40

Information display

F Press MENU button, then select

"Driving", to display the various
tabs.

F Select the desired tab using your

finger.

- The current fuel consumption tab
with:

● the range,

● the current fuel consumption,

● the Stop & Start time counter.

- The trip "1" tab with:

● the distance travelled.

● the average fuel consumption,

● the average speed,

for the first trip.

- The trip "2" tab with:

● the distance travelled.

● the average fuel consumption,

● the average speed,

for the second trip.

Tr ip reset

F When the desired trip is

displayed, press the reset button.

Trips "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.

Tr ip computer, a few definitions

Monitoring

1

Range

(miles or km)
The distance which can still be
travelled with the fuel remaining
in the tank (related to the
average fuel consumption over
the last few miles (kilometres)
travelled).

This value may vary following a change
in the style of driving or the relief,
resulting in a significant change in the
current fuel consumption.

When the range falls below 20 miles (30 km),
dashes are displayed. After filling with at least
5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km).

If dashes are displayed continuously
while driving in place of the digits,
contact a PEUGEOT dealer or a
qualified workshop.

Current fuel consumption

(mpg or l/100 km or km/l)
Calculated over the last few seconds.

This function is only displayed from
20 mph (30 km/h).

Average fuel consumption

(mpg or l/100 km or km/l)
Calculated since the last trip
computer reset.

Average speed

(mph or km/h)
Calculated since the last trip
computer reset.

Distance travelled

(miles or km)
Calculated since the last trip
computer reset.

Stop & Start time
counter

(minutes / seconds or hours /

minutes)
If your vehicle is fitted with Stop & Start, a time
counter calculates the time spent in STOP
mode during a journey.
It resets to zero every time the ignition is
switched on with the key.

41

Monitoring

Setting the date and time

Touch screen

Press MENU to display the "MAIN
MENU".

Select "Settings". Select "Adjust time" or "Adjust date" and

In the secondary page, select "Time/
Date".

modify the setting using the virtual keypad then
confirm.

Press "Confirm" to quit.

LCD instrument panel

F Press this button to display the following

settings successively:

- hours,

- minutes,

- 12 or 24 hour format.

42

Access

Remote control key

System which permits central unlocking or locking of the vehicle using the lock or from a distance. It is also used to locate and start the vehicle, as well
as providing protection against theft.

Unlocking the vehicle
Complete unlocking

Unlocking is confirmed by rapid
flashing of the direction indicators for
approximately two seconds.
According to version, the door mirrors
unfold at the same time.
Unlocking with the key does not
deactivate the alarm.

Unfolding the key

F First press this button to unfold the key.

Using the key

F Turn the key to the front of the vehicle to

unlock the vehicle.

Using the remote control

F Press the open padlock to unlock

the vehicle.

2

43

Access

Locking the vehicle
Normal locking

Using the key

F Turn the key towards the rear of the vehicle

to lock the vehicle completely.

Using the remote control

F Press the closed padlock to lock

the vehicle completely.

Locking is confirmed by fixed
lighting of the direction indicators for
approximately two seconds.
According to version, the door mirrors
fold at the same time.

As a safety measure (children on
board), never leave the vehicle without
taking your key, even for a short period.

If one of the doors or the boot is still
open or if an electronic key has been
left inside the vehicle, the central
locking does not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will relock
automatically after about thirty seconds
unless a door is opened.

When the key is in the ignition switch,
its locking/unlocking functions are
deactivated.
The folding and unfolding of the door
mirrors by the remote control can be
deactivated by a PEUGEOT dealer or a
qualified workshop.

44

Maintaining the locking action (key or remote
control) automatically closes the windows.

Access

Deadlocking

Deadlocking renders the exterior and

!

interior door controls inoperative.
It also deactivates the manual central
control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.

Using the key

F Turn the key to the rear in the driver's door

lock to lock the vehicle completely.

F Turn the key to the rear again within five

seconds to deadlock the vehicle.

Using the remote control

F Press the closed padlock to lock the

vehicle completely.

F Press the closed padlock again within

five seconds to deadlock the vehicle.

Deadlocking is confirmed by fixed

i

lighting of the direction indicators for
approximately two seconds.
Depending on version, the door mirrors
fold at the same time.

2

Folding the key

F First press this button to fold the key.

If you do not press the button when
folding the key, there is a risk of
damage to the mechanism.

45

Access

Locating your vehicle

F Press the closed padlock to

locate your locked vehicle in a
car park.

This is indicated by lighting of the courtesy
lamps and flashing of the direction indicators
for a few seconds.

Guide- me-home lighting

Make a long press this button to
operate the guide-me-home lighting
(switching on the sidelamps, dipped
beams and number plate lamps).

A second press before the end of the timed
period cancels the guide-me-home lighting.

Anti-thef t p rotection

Electronic engine immobiliser

The key contains an electronic chip which has
a special code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible.
This electronic engine immobiliser locks the
engine management system a few minutes
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.

In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal and

a message in the screen.
In this case, your vehicle will not start; contact
a PEUGEOT dealer as soon as possible.

Keep safely, away from your vehicle,
the label attached to the keys given to
you on acquisition of the vehicle.

46

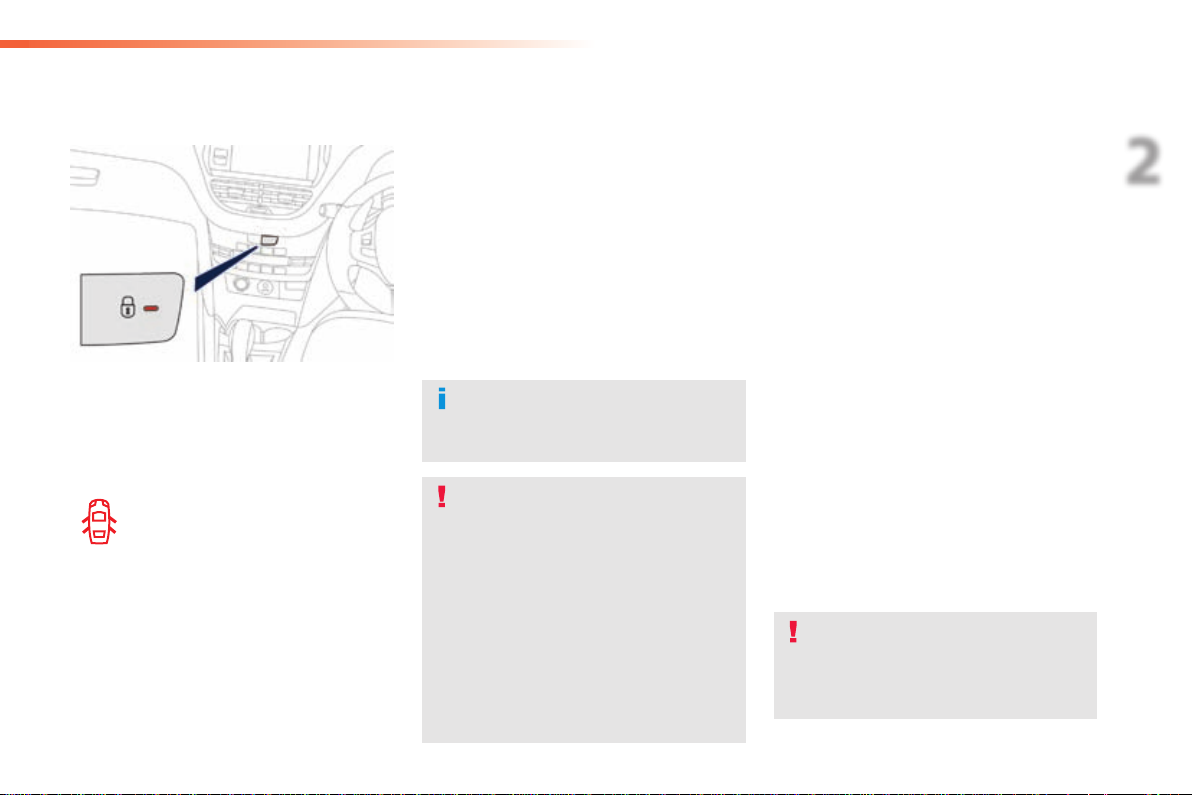

Locking / unlocking from the inside

Access

2

F Press the switch.
This allows the doors and the boot to be locked
or unlocked.

When one of the doors is not properly closed:

- with the engine running,
this warning lamp comes on,
accompanied by the display of an
alert message for a few seconds,

- when driving (speed above 6 mph
(10 km/h)), this warning lamp comes on,
accompanied by an audible signal and
the display of an alert message for a few
seconds.

If one of the doors is open, the doors
are not locked.

When locking / deadlocking from
outside

When the vehicle is locked or
deadlocked from outside, the switch
does not operate.
F After normal locking, pull the

interior door lever to unlock the
vehicle.

F After deadlocking, you have to use

the remote control or the key to
unlock the vehicle.

Automatic central locking of the
doors

The doors can lock automatically while driving
(speed above 6 mph [10 km/h]).
To turn this function on or off (on by default).
F press and hold the button until there is

an audible signal and/or a message in
the screen.

Driving with the doors locked may make
access to the passenger compartment
by the emergency services more
difficult in an emergency.

47

Access

48

Secondary control

For mechanically locking and unlocking the
doors in the event of a fault with the central
locking system or a battery failure.

Driver's door

Insert the key in the lock to lock or unlock
the door.

Passenger doors

F On the rear doors, check that the child lock

is not on.

F Remove the black cap located on the edge

of the door, using the key.

F Insert the key into the aperture without

forcing, then without turning, move the
latch sideways towards the inside of
the door.

F Remove the key and refit the cap.

Remote control problem

Following disconnection of the vehicle battery,
replacement of the remote control battery or
in the event of a remote control malfunction,
you can no longer unlock, lock or locate your
vehicle.
F First of all, use the key in the lock to unlock

or lock your vehicle.
F Then, reinitialise the remote control.
If the problem persists, contact a PEUGEOT
dealer as soon as possible.

Reinitialisation

F Switch off the ignition.
F Turn the key to position 2 (Ignition).
F Press the closed padlock immediately for a

few seconds.
F Switch off the ignition and remove the key

from the ignition switch.
The remote control is fully operational again.

Changing the battery

Battery ref.: CR1620 / 3 volts.

If the battery is flat, you are informed
by lighting of this warning lamp in the
instrument panel, an audible signal
and a message in the screen.

F Unclip the cover using a screwdriver in the

cutout.

F Remove the cover.
F Extract the flat battery from its location.
F Place the new battery into its location

observing the original direction.

F Clip the cover in place.

Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
Take them to an approved collection
point.

Access

Lost keys

Go to a PEUGEOT dealer with the vehicle's registration document, your personal identification documents and if possible the key code label.
The PEUGEOT dealer will be able to look up the key code and the transponder code required to order a new key.

Remote control

The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the
vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from
working and the remote control would have to be reinitialised.
No remote control can operate when the key is in the ignition switch, even when the ignition is switched off, except for reinitialisation.

Locking the vehicle

Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency.
As a safety precaution, never leave children alone in the vehicle, except for a very short period.
In all cases, it is essential to remove the key from the ignition switch when leaving the vehicle.

Anti-thef t p rotection

Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.

When purchasing a second-hand vehicle

Have the pairing of all of the keys in your possession checked by a PEUGEOT dealer, to ensure that only your keys can be used to open and
start the vehicle.

2

49

Access

Alarm

System which protects and provides a deterrent
against theft and break-ins. It provides the
following types of monitoring:

Self-protection function

The system checks for the putting out of
service of its components.
The alarm is triggered if the battery, the
central control or the wires of the siren
are put out of service or damaged.

For all work on the alarm system,
contact a PEUGEOT dealer or a
qualified workshop.

Locking the vehicle with full
alarm system

After the locking button on the remote control
is pressed, the exterior perimeter monitoring
is activated after a delay of 5 seconds and the
interior volumetric monitoring after a delay of
45 seconds.
If an opening (door, boot...) is not closed
fully, the vehicle is not locked but the exterior
perimeter monitoring will be activated after a
delay of 45 seconds at the same time as the
interior volumetric monitoring.

50

- Exterior perimeter

The system checks for opening of the vehicle.
The alarm is triggered if anyone tries to open a
door, the boot, the bonnet...

- Interior volumetric

The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compartment or
moves inside the vehicle.

Activation

F

Switch off the ignition and get out of the vehicle.

F Press the locking button on the

remote control.

The monitoring system is active: the
indicator lamp in the button flashes
once per second.

Deactivation

F Press the unlocking button on

the remote control.

The alarm system is deactivated: the
indicator lamp in the button goes off.

Access

Locking the vehicle
with exterior perimete r
monitoring only

Deactivate the interior volumetric monitoring
to avoid unwanted triggering of the alarm in
certain cases such as:

- leaving a pet in the vehicle,

- leaving a window partially open,

- washing your vehicle.

Deactivation of the interior
volumetric monitoring

F Switch off the ignition.
F Within ten seconds, press the

button until the indicator lamp is
on continuously.

F Get out of the vehicle.
F Press the locking button on the

remote control immediately.

The exterior perimeter monitoring alone is
activated: the indicator lamp in the button
flashes once per second.

To be effective, this deactivation must
be carried out each time the ignition is
switched off.

Reactivation of the interior
volumetric monitoring

F Press the unlocking button on

the remote control to deactivate
the exterior perimeter monitoring.

F Press the locking button on the

remote control to activate all the
monitoring functions.

The indicator lamp in the button
again flashes once per second.

Tr iggering of the alar m

This is indicated by sounding of the siren
and flashing of the direction indicators for
thirty seconds.
The monitoring functions remain active until
the alarm has been triggered eleven times
in succession.

When the vehicle is unlocked using
the remote control, rapid flashing
of the indicator lamp in the button

informs you that the alarm was
triggered during your absence. When the
ignition is switched on, this flashing stops
immediately.

Failure of the remote control

To deactivate the monitoring functions:
F Unlock the vehicle using the key in the

driver's door lock.

F Open the door; the alarm is triggered.
F Switch on the ignition; the alarm stops.

The indicator lamp in the button goes off.

Locking the vehicle without
activating the alarm

F Lock or deadlock the vehicle using the key

in the driver's door lock.

Malfunction

When the ignition is switched on, fixed
illumination of the indicator lamp in the button
indicates a malfunction of the system.
Have it checked by a PEUGEOT dealer or a
qualified workshop.

Automatic activation*

2 minutes after the last door or the boot is
closed, the system is activated automatically.
F To avoid triggering the alarm on entering

the vehicle, first press the unlocking button
on the remote control.

* According to country.

2

51

Access

Electric windows

1. Left hand front electric window.

2. Right hand front electric window.

3. Right hand rear electric window.

4. Left hand rear electric window.

5. Deactivating the rear electric window

switches.

Manual operation

To open or close the window, press or pull the
switch gently. The window stops as soon as the
switch is released.

Automatic one-touch
operation
(depending on version)

To open or close the window, press or pull
the switch fully: the window opens or closes
completely when the switch is released.
Pressing the switch again stops the movement
of the window.
The electric window switches remain
operational for approximately one minute after
the key has been removed.
Once this time has elapsed, the electric
windows will not operate. To reactivate them,
switch the ignition on again.

Safety anti- pinch
(depending on version)

When the window rises and meets an obstacle,
it stops and immediately partially lowers again.
In the event of unwanted opening of the window
when closing automatically, press the switch
until the window opens completely, then pull
the switch immediately until the window closes.
Continue to hold the switch for approximately
one second after the window has closed.
The safety anti-pinch function is not active
during this operation.

Deactivating the rear
window controls

For the safety of your children,
press switch 5 to prevent operation
of the windows of the rear doors,
irrespective of their position.

52

With the warning lamp on, the rear switches
are deactivated. With the warning lamp off, the
switches are active.

Reinitialising the electric
windows

Following reconnection of the battery, the
safety anti-pinch function must be reinitialised.
The safety anti-pinch is not active during these
operations:

- lower the window completely, then raise
it, it will rise in steps of a few centimetres
each time the switch is pressed. Repeat
the operation until the window closes
completely,

- press and hold the switch upwards for
at least one second after reaching this
position, window closed.

Access

2

Always remove the key when leaving the
vehicle, even for a short time.
In the event of contact during operation
of the windows, you must reverse the
movement of the window. To do this,
press the switch concerned.
When operating the passenger electric
window switches, the driver must ensure
that no one is preventing correct closing
of the windows.
The driver must ensure that the
passengers use the electric windows
correctly.
Be aware of children when operating the
windows.

53

Access

Boot

Opening Closing

F Lower the tailgate using the interior grab

handle.

F If necessary, press down on the tailgate to

fully close it.

If the tailgate is not closed correctly:

- when the engine is running,

- when the vehicle is moving (speed above

F After unlocking the boot or the vehicle

using the remote control or the key, press
the opening control, then raise the tailgate.

6 mph (10 km/h)), this warning lamp comes
on, accompanied by an audible signal and
the display of an alert message for a few
seconds.

Tailgat e release

System for mechanical unlocking of the boot in
the event of a central locking malfunction.

this warning lamp comes on,
accompanied by the display of an
alert message for a few seconds,

Unlocking

F Fold back the rear seats to gain access to

the lock from inside the boot.

F Insert a small screwdriver into hole A of the

lock to unlock the tailgate.

54

Panoramic sunroof

System which comprises configurable light guides and a panoramic tinted glass area to increase
the light and visibility in the passenger compartment.
It is fitted with an electric blind to improve temperature and acoustic comfort.

Electri c blind

Opening

F Lift the control A towards the rear.
The blind stops when you release

the control.

Closing

F Lift the control A towards the front.
The blind stops when you release

the control.

If something is trapped when operating

!

the blind, you should reverse the
movement of the blind. To do this press
the control in question.
When the driver operates the blind, they
should ensure that nobody prevents its
correct closing.
The driver should ensure that
passengers use the blind correctly.
Be aware of children when operating
the blind.

Access

2

55

Comfort

Front seats with manual adjustments

As a safety measure, seat adjustments should only be carried out when stationary.

Forwards-backwards Height Seat backrest angle

56

F Raise the control and slide the seat

forwards or backwards.

Before moving the seat backwards, ensure that there is nothing that might prevent the full travel of the seat, so as to avoid the risk of of jamming
the seat caused by the presence of objects on the floor behind the seat or rear passengers. If the seat jams, stop the movement immediately.

F Pull the control upwards to raise or push

it downwards to lower, as many times as
required, to obtain the position required.

F Push the control rearwards.

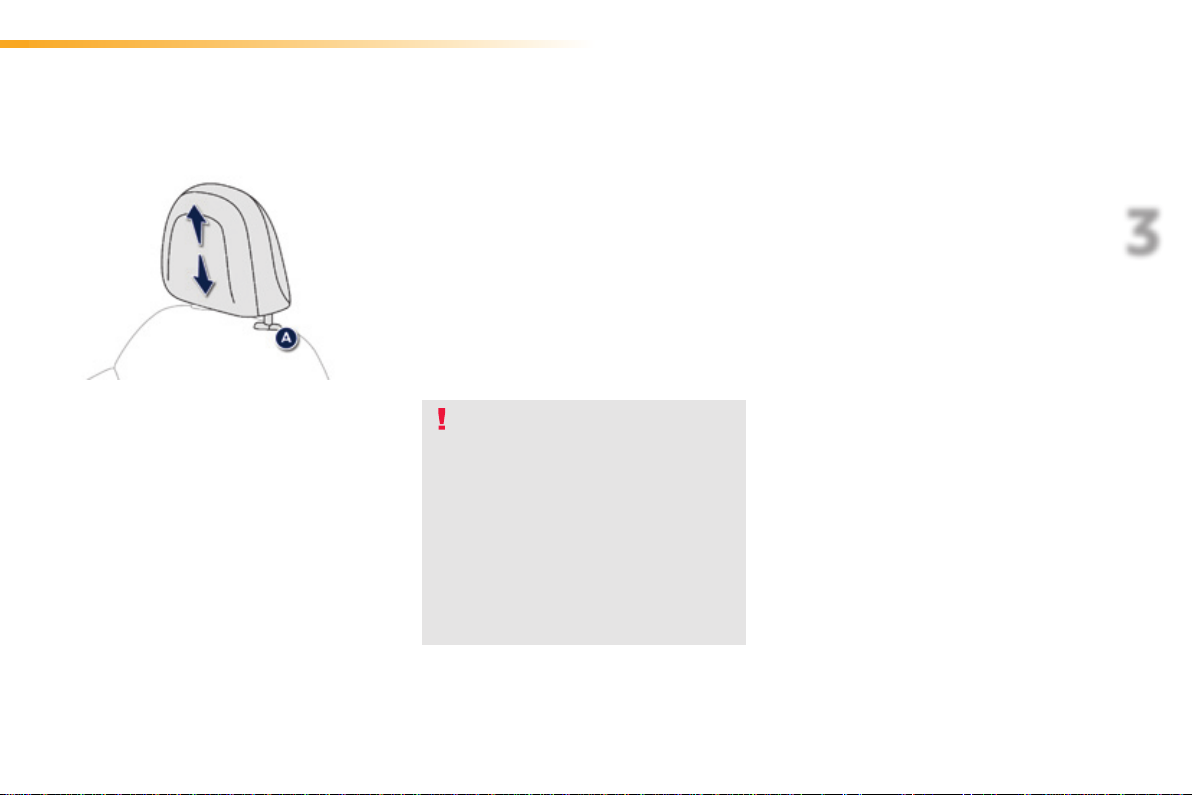

Head restraint height

Comfort

3

F To raise the head restraint, pull it upwards.
F To remove the head restraint, press the

lug A and pull the head restraint upwards.

F To put the head restraint back in place,

engage the head restraint stems in the
openings keeping them in line with the seat
back.

F To lower the head restraint, press the lug A

and the head restraint at the same time.

The head restraint is fitted with a frame
with notches which prevents it from
lowering; this is a safety device in case
of impact.

The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.

Never drive with the head restraints
removed; they must be in place and
adjusted correctly.

57

Comfort

Rear seats

Bench seat with fixed one-piece cushion and split backrest (left hand 2/3, right hand 1/3) which can be folded individually to adapt the load space in the boot.

Folding the backrest

F Move the corresponding front seat forward

if necessary.

F Check that the corresponding outer seat

belt is positioned correctly against the
backrest and buckle it.

F Place the head restraints in the low

position.

When folding the seat, the centre seat
belt should not be fastened, but laid out
flat on the seat.

F Press control 1 to release the seat

backrest 2.

F Fold the seat backrest 2 on to the

cushion 3.

The rear seat cushion does not fold,
just the seat backrest can be folded to
increase the boot loading space.

Repositioning the seat backrest

F Straighten the seat backrest 2 and

secure it.

F Check that the red indicator, located next to

the control 1, is no longer visible.

F Unbuckle and reposition the outer seat belt

on the side of the backrest.

When repositioning the seat backrest,
take care not to trap the seat belts.

58

Comfort

Rear head restraints

These have one position for use (up) and a
stowed position (down).
They can be removed and are interchangeable
side to side.
To remove a head restraint:

F pull the head restraint upwards to the stop,
F then, press the lug A.

Never drive with the head restraints
removed; they must be in place and
correctly adjusted.

PEUGEOT i-Cockpit

Before taking to the road and to make the most
of the special ergonomics of the PEUGEOT
i-Cockpit, carry out these adjustments in the
following order:

- height of the head restraint,

- backrest angle,

- cushion height,

- longitudinal position of the seat,

- reach and then height of the steering
wheel,

- the interior and door mirrors.

Once these adjustments have been made,
ensure that from your driving position you can
see the "head-up" instrument panel clearly ,
over the reduced diameter steering wheel.

Steering wheel adjustment

3

F When stationary, pull the control lever to

release the adjustment mechanism.

F Adjust the height and reach to suit your

driving position.

F Push the control lever to lock the

adjustment mechanism.

As a safety precaution, these
operations should only be carried out
with the vehicle stationary.

59

Comfort

Mirrors

Door mirrors

Each fitted with an adjustable mirror glass
providing the lateral rearward vision necessary
for overtaking or parking. They can also be
folded for parking in confined spaces.

As a safety measure, the mirrors should
be adjusted to reduce the "blind spots".

Folding

- Automatic: lock the vehicle using the
remote control or the key.

- Manual: with the ignition on, pull control A
rearwards.

If the mirrors are folded using control A,
they will not unfold when the vehicle is
unlocked. Pull again on control A.

60

Demisting - Defrosting

Demisting-defrosting of the door
mirrors operates with the engine
running, by switching on the heated
rear screen.

For more information on demisting and
defrosting the rear screen, refer to the
corresponding section.

Adjustment

F Move control A to the right or to the left to

select the corresponding mirror.

F Move control B in all four directions to

adjust.

F Return control A to the central position.

The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of vehicles
approaching from behind.

Unfolding

- Automatic: unlock the vehicle using the
remote control or the key.

- Manual: with the ignition on, pull control A
rearwards.

The folding and unfolding of the door
mirrors using the remote control can be
deactivated by a PEUGEOT dealer or a
qualified workshop.
Fold the mirrors when putting your
vehicle through an automatic car wash.

If necessary, it is possible to fold the
mirrors manually.

Rear view mir ror

Adjustable mirror providing a central rearward view.
Equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to
the driver caused by the sun, headlamps from other vehicles...

Comfort

3

Manual day/night model
Adjustment

F Adjust the mirror so that the glass is

directed correctly in the "day" position.

Day / night position

F Pull the lever to change to the "night" anti-

dazzle position.

F Push the lever to change to the normal

"day" position.

Automatic day/night model

By means of a sensor, which measures the
light from the rear of the vehicle, this system
automatically and progressively changes
between the day and night uses.

In order to ensure optimum visibility
during your manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.

61

Comfort

Ventilation

Air intake

The air circulating in the passenger compartment
is filtered and originates either from the outside via
the grille located at the base of the windscreen or
from the inside in air recirculation mode.

Air intake flow

The incoming air follows various paths
depending on the controls selected by the
driver:

- direct arrival in the passenger
compartment (air intake),

- passage through a heating circuit (heating),

- passage through a cooling circuit (air
conditioning).

Control panel

The controls of this system are grouped
together on control panel A on the centre
console.

Air distribution

1. Windscreen demisting-defrosting vents.

2. Front side window demisting-defrosting

vents.

3. Side adjustable air vents.

4. Central adjustable air vents.

5. Air outlets to the front footwells.

6. Air outlets to the rear footwells.

62

Recommendations for ventilation and air conditioning

Comfort

In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:
F To obtain an even air distribution, take care not to obstruct the exterior air intake grilles

located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the boot.

F Do not cover the sunshine sensor, located on the dashboard; this is used for regulation

of the air conditioning system.

F Operate the air conditioning system for at least 5 to 10 minutes, once or twice a month

to keep it in perfect working order.

F Ensure that the passenger compartment filter is in good condition and have the filter

elements replaced regularly.

We recommend the use of a combined passenger compartment filter. Thanks to its

special active additive, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).

F To ensure correct operation of the air conditioning system, you are also advised to have

it checked regularly as recommended in the warranty and maintenance record.

F If the system does not produce cold air, switch it off and contact a PEUGEOT dealer or

a qualified workshop.
When towing the maximum load on a steep gradient in high temperatures, switching off the
air conditioning increases the available engine power and so improves the towing ability.

Stop & Start

The heating and air conditioning systems only work when the engine is running. To maintain
a comfortable temperature in the passenger compartment, you can temporarily deactivate
the Stop & Start system (see the corresponding section).

If after an extended stop in sunshine,
the interior temperature is very high, first
ventilate the passenger compartment for
a few moments.
Put the air flow control at a setting high
enough to quickly change the air in the
passenger compartment.
The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.

The condensation created by the air
conditioning results in a discharge
of water under the vehicle which is
perfectly normal.

3

63

Comfort

Ventilation

Recommended interior settings

Heating or Manual air conditioning

64

I require...

Air distribution Air flow

HOT

COLD

DEMISTING

DEFROSTING

Digital air conditioning: use the automatic mode in preference by pressing the "AUTO" button.

Air recirculation/Intake of

exterior air

Temperature Manual AC

Manual air conditioningHeating / Ventilation

The air conditioning system only operates with the engine running.

Comfort

3

1. Temperature adjustment.

2. Air flow adjustment.

3. Air distribution adjustment.

4. Air intake/ air recirculation.

5. Air conditioning On / Off.

Temperature adjustment

F Turn the dial from blue

(cold) to red (hot) to adjust
the temperature to your
requirements.

Air ow adjustment

F Turn the dial from position 1

to position 6 to obtain a
comfortable air flow.

If you put the air flow control in
position 0 (system off), the temperature
is no longer controlled. However,
a slight flow of air can still be felt,
resulting from the movement of the
vehicle.

65

Comfort

Air distribution adjustment

Windscreen and side windows.

Windscreen, side windows and
footwells.

Footwells.

Central and side vents.

The air distribution can be adapted
by placing the dial in an intermediate
position.

Air intake / Air recirculation

The recirculation of interior air insulates the
passenger compartment from exterior odours
and smoke.
Return to exterior air intake as soon as possible
to prevent deterioration of the air quality and
the formation of mist.

F Press the button to recirculate

the interior air. The indicator
lamp comes on to confirm this.

F Press the button again to allow fresh air

into the passenger compartment. The
indicator lamp goes off to confirm this.

Air conditioning On / Off

The air conditioning is designed to
operate effectively in all seasons,
with the windows closed.

It enables you to:

- lower the temperature, in summer,

- increase the effectiveness of the demisting
in winter, above 3 °C.

Switching on

F Press the "A/C" button, the button's

indicator lamp comes on.

The air conditioning does not operate
when the air flow adjustment control 2
is in position "0".

To obtain cooled air more quickly, you can use
recirculation of interior air for a few moments.
Then return to fresh air intake.

Switching off

F Press the "A/C" button again, the button's

indicator lamp goes off.

Switching off may affect comfort levels
(humidity, condensation).

66

Dual-zone digital air conditioning

The air conditioning can only operate with the engine running.

Automatic operation

Comfort

When the engine is cold, to prevent too
great a distribution of cold air, the air
flow will only reach its optimum level
gradually.
In cold weather, it favours the
distribution of warm air to the
windscreen, the side windows and the
footwells only.

3

1. Automatic comfort programme.

2. Temperature adjustment on driver's side.

3. Temperature adjustment on passenger's

side.

4. Automatic visibility programme.

5. Air conditioning On/Off.

6. Air distribution adjustment.

7. Air flow adjustment.

8. Air intake/ Air recirculation.

Automatic comfort programme

Three modes are provided for the driver and for
the front passenger to select their desired level
of comfort in the passenger compartment.

F Press the "AUTO" button

repeatedly. The indicator lamp
comes on at the first press; the
mode activated appears in the
digital air conditioning screen:

Provides soft and quiet operation by
limiting air flow.

Offers the best compromise between
a comfortable temperature and quiet
operation.

Provides strong and effective air flow.

67

Comfort

68

Temperature adjustment

The driver and front passenger can each set
the temperature to suit their requirements.
The value indicated in the screen corresponds
to a level of comfort and not to a temperature in
degrees Celsius or Fahrenheit.

F Press the button 2 or 3 down

(blue) reduce the value or up
(red) to increase it.

A setting around 21 enables you to obtain an
optimum level of comfort. Depending on your
requirements, a setting between 18 and 24 is usual.
In addition, it is recommended that you avoid a left/
right setting difference of more than 3.

On entering the vehicle, if the interior
temperature is much colder or warmer
than the comfort value, there is no need
to alter the value displayed in order to
obtain the required level of comfort.
The system corrects the temperature
difference automatically and as quickly
as possible.

Automatic visibility
programme

See the "Front demisting-defrosting"
section.

Resuming manual control

Depending on your requirements, you can
make a different selection from that offered by
the system by changing a setting. The other
functions will still be controlled automatically.

When you modify a setting, the indicator
lamp in the "AUTO" button goes off.
F Press the "AUTO" button again

to return to the automatic comfort
programme.

For maximum cooling or heating of
the passenger compartment, you can
exceed the minimum value of 14 or the
maximum value of 28.

F Push the switch 2 or 3 down until

"LO" is displayed or up until "HI" is

displayed.

Air conditioning On/Off

The air conditioning is designed to
operate efficiently in all seasons, with
the windows closed.

It allows you:

- in summer, to lower the temperature,

- in winter, above 3 °C, to improve demisting.

Switching on

F Press the "A/C" button, the associated

indicator lamp comes on.

The air conditioning cannot operate when the
air flow is set to off.

Switching off

F Press the "A/C" button again; the

associated indicator lamp goes off.

Switching off may cause some problems
(humidity, misting).

Air distribution adjustment

F Press this button several times

in succession to direct the air
flow in turn towards:

- the windscreen, the side windows and the
footwells,

- the windscreen and side windows
(demisting or defrosting),

- the central and side vents,

- the central vents, the side vents and the
footwells,

- the footwells.

Air ow adjustment

F Press this "full fan" button to

increase the air flow.

The air flow symbol (a fan) appears in the
screen. It is filled in progressively in relation to
the value required.

F Press this "empty fan" button to

reduce the air flow.

Air intake/Air recirculation

F Press this button to recirculate

the interior air. The indicator
lamp in the button comes on and
the air recirculation symbol is
displayed.

Air recirculation prevents exterior odours
and fumes from entering the passenger
compartment. It is activated automatically when
operating the screen wash.
F As soon as possible, press this button

again to permit the intake of exterior air and
prevent misting. The indicator lamp in the
button goes off.

Avoid prolonged operation in interior air
recirculation mode (risk of misting and
of deterioration of the air quality).

Comfort

Switching the system off

F Press the "empty fan" air flow

button until the fan symbol
disappears and "---" appears.

This action switches off all of the functions of
the air conditioning system.
The temperature is no longer maintained at a
comfortable level. However, a slight flow of air,
due to the movement of the vehicle, can still
be felt.

Avoid driving for too long with the
system switched off (risk of misting and
of deterioration of the air quality).
Pressing the "full fan" button
reactivates the system with the settings
prior to deactivation.

3

69

Comfort

Front demist - defrost Rear screen

These markings on the control panel indicate the control positions for rapid demisting or
defrosting of the windscreen and side windows.

demist - defrost

70

With manual air
conditioning

F Put the air flow, temperature and

distribution controls to the dedicated
marked position.

F Press the "A/C" button for air conditioning;

the indicator lamp in the button comes on.

With dual-zone digital air
conditioning

Automatic visibility programme

F Select this programme to demist or defrost

the windscreen and side windows as

quickly as possible.
The system automatically manages the air
conditioning, air flow and air intake, and
provides optimum distribution towards the
windscreen and side windows.
F To stop the programme, press either the

"visibility" button again or "AUTO", the

warning lamp on the button goes off and

the warning lamp in the "AUTO" button

comes on.
The system reverts to the previous settings.

With Stop & Start, when demisting has
been activated, the STOP mode is not
available.

The control button is located on the
air conditioning system control panel.

Switching on

The rear screen demisting/defrosting can only
operate when the engine is running.
F Press this button to demist/defrost the

rear screen and (depending on version)
the door mirrors. The indicator lamp
associated with the button comes on.

Switching off

The demisting/defrosting switches off automatically
to prevent an excessive consumption of current.
F It is possible to stop the demisting/

defrosting operation before it is switched
off automatically by pressing the button
again. The indicator lamp associated with
the button goes off.

F Switch off the demisting/defrosting

of the rear screen and door mirrors
as soon as appropriate, as lower
current consumption results in
reduced fuel consumption.

Interior ttings

1. Glove box
(see details on the following page)

2. Open storage compartment (depending

on equipment)

3. 12 V accessory socket (120 W)

Observe the maximum power rating to

avoid damaging your accessory.

4. USB port / Auxiliary socket
(see details on following pages)

5. Open storage compartments

6. Cup holder

7. Closed storage compartment

8. Door pockets

Comfort

3

71

Comfort

Glove box

Its lid has locations for a pair of glasses...
F To open the glove box, raise the handle.
It houses the front passenger's airbag
deactivation switch A.
If the vehicle is fitted with air conditioning, it
provides access to the ventilation nozzle B,
distributing the same conditioned air as the
vents in the passenger compartment.
It gives access to the fusebox (see "Changing
a fuse").

12 V accessory
socket

F To connect a 12 V accessory (maximum

power: 120 Watts), lift the cover and

connect a suitable adaptor.

72

USB port / Jack auxiliary socket

Comfort

3

This connection box, consisting of a JACK
auxiliary socket and a USB port, is located on
the centre console.
It allows the connection of portable device,
such as a digital audio player of the iPod
or a USB memory stick.
It reads the audio files which are transmitted to
your audio system and played via the vehicle's
speakers.
You can manage these files using the steering
mounted controls or the audio system control
panel and display them in the instrument panel
screen.

®

type

When the USB port is used, the portable device
charges automatically.

For more information on the use of this
system, refer to the "Audio equipment
and telematics" section.

73

Comfort

Mats

Removable carpet protection.

Removal Refitting

To refit the mat on the driver's side:

F position the mat correctly,
F refit the fixings by pressing,
F check that the mat is secured correctly.

74

To remove the mat on the driver's side:

F move the seat as far back as possible,
F unclip the fixings,
F remove the mat.

To avoid any risk of jamming of the
pedals:

- only use mats which are suited to
the fixings already present in the
vehicle; these fixings must be used,

- never fit one mat on top of another.

The use of mats not approved by
PEUGEOT may interfere with access to
the pedals and hinder the operation of
the cruise control / speed limiter.

Boot ttings

1. High load retaining net (depending on
version)

(see following page for details)

2. Luggage cover

(see following page for details)

3. Boot lamp

4. Retaining strap

5. Stowing rings (depending on version)

6. Retaining net

Comfort

3

75

Comfort

Rear parcel shelf

This consists of two sections which can be
folded back on each other.
To store it, fold it on itself and place it at the
bottom of the boot.

To gain access to the boot from the rear seats:
F raise the front section of the rear parcel

shelf using the grip A.

High load retaining
net

Hooked onto the upper fixings and onto the
lower rings or the lugs, this permits use of the
entire loading volume up to the roof:

- behind the rear seats (row 2),

- behind the front seats (row 1) when the rear
seats are folded.

When positioning the net, check that
the strap loops are visible from the
boot; this will make slackening or
tightening easier.

76

Comfort

3

To use it in row 1:

F open the covers of the upper fixings 1,
F unroll the high load retaining net,
F position one of the ends of the net's metal

bar in the corresponding upper fixing 1,
then do the same with the other end,

F slacken the straps fully,
F fix the snap hook of each of the straps on

the corresponding lug 3, located under the
bench seat cushion,

F fold the rear seats,
F tighten the straps without raising the bench

seat,

F check that the net is hooked and tightened

correctly.

To use it in row 2:

F fold or remove the load space cover,
F open the covers of the upper fixings 2,
F unroll the high load retaining net,
F position one of the ends of the net's metal

bar in the corresponding upper fixing 2,
then do the same with the other end,

F attach the hook of each of the net's straps

in the corresponding lower ring 4,

F tighten the straps,
F check that the net is hooked and tightened

correctly.

Never use the ISOFIX ring intended for
fixing the upper strap of child seat to the
Top Tether.

77

Comfort

Warning triangle (stowing)

The location for stowing a folded triangle or its box is under the front seat or under the boot carpet (depending on version).

Before leaving your vehicle to set up
and install the triangle, put on your high
visibility vest.

The dimensions of the triangle (once folded) or
its storage box must be:

- A: length = 438 mm,

- B: height = 56 mm,

- C: width = 38 mm.
To use the triangle, refer to the manufacturer's
instructions.

Placing the triangle in the
road

F Place the triangle at a distance behind

the vehicle, as shown in the table below,
according to the type of road and the level
of ambient light.

Distance from your vehicle (in metres)

Road

Motorway

Day Night

50 m 80 m 150 m

These are the internationally
recognised values.
Use the triangle in line with local driving
regulations.

The triangle is available as an accessory,
contact a PEUGEOT dealer or a qualified
workshop.

78

Starting - Stopping the engine

With a manual gearbox, put the gear lever in neutral.
With an electronic gearbox, put the gear lever at N.
With an automatic gearbox, put the gear lever at P or N.

Driving

Starting the engine

F Insert the key in the ignition switch.
The system recognises the starting code.
F Turn the key fully towards the dashboard to

position 3 (Starting).

F When the engine starts, release the key.

Switching the engine off

F Immobilise the vehicle.
F Turn the key fully towards you to

position 1 (Stop).

F Remove the key from the ignition switch.

Free-wheeling

For safety reasons, do not free-wheel.
When free-wheeling, some vehicle
functions will no longer be active.

Switching off the engine leads to a loss
of braking assistance.

Avoid attaching heavy objects to the
key, which would weigh down on its
blade in the ignition switch and could
cause a malfunction.

4

Key left in the "Ignition on"
position

On opening the driver's door, an alert
message is displayed, accompanied by an
audible signal, to remind you that the key is
still in the ignition switch at position 1 (Stop).

If the key has been left in the ignition
switch at position 2 (Ignition on),
the ignition will be switched off
automatically after one hour.
To switch the ignition back on, turn the
key to position 1 (Stop), then back to
position 2 (Ignition on).

79

Driving

Manual parking brake

80

Application

F Pull the parking brake lever up to

immobilise your vehicle.

On level ground, it is not necessary to
make a maximum pull on the parking
brake lever.

Release

F With the foot brake applied, pull the

parking brake lever up gently, press the
trigger, then lower the lever fully.

When the vehicle is being driven,
if this warning lamp and the STOP
warning lamp come on, accompanied
by an audible signal and a message
in the screen, indicating that the
parking brake is still on or has not
been fully released.

When parking on a slope, direct your
wheels against the kerb, apply the
parking brake, engage a gear and
switch off the ignition.

Driving

5-speed manual
gearbox

Engaging reverse
gear

F Push the gear lever to the right then

backwards.

Only engage reverse gear when the
vehicle is stationary with the engine at idle.

As a safety precaution and to facilitate
starting of the engine:

- always select neutral,

- press the clutch pedal.

6-speed manual
gearbox

Engaging 5th or 6th gear

F Move the lever fully to the right to engage

th

5

or 6th gear.

Engaging reverse
gear

F Raise the ring under the knob and move

the gear lever to the left then forwards.

4

Only engage reverse gear when the
vehicle is stationary with the engine at idle.

As a safety precaution and to facilitate
starting of the engine:

- always select neutral,

- press the clutch pedal.

81

Driving

5-speed electronic gearbox

Five-speed electronically controlled gearbox
which offers a choice between the comfort of
automatic operation or the pleasure of manual
gear changing.
Three driving modes are offered:

- automated mode for automatic control
of the gears by the gearbox, without ant
action by the driver.

- manual mode for sequential changing of
the gears by the driver, using the gear lever
or the steering mounted control paddles

- auto sequential mode for overtaking, for
example, remaining in the automated mode
while using the functions of the sequential
mode.

Do not drive with your hand resting
on the gear lever, as there is a risk of
damaging the gearbox.

Gea r l ever

R. Reverse

F With your foot on the brake, move the lever

forwards to select this position.
N. Neutral.
F With your foot on the brake, select this

position to start the engine.
A. Automated mode.
F Move the lever backwards to select this

mode.
M. + / - Manual mode with sequential gear

changing.

F Move the lever backwards, then to the left

to select this mode, then:

- push forwards to change up a gear,

- or push backwards to change down a gear.

Steering mounted controls

+. Change up paddle.

F Press the back of the steering wheel "+"

paddle to change up a gear.

-. Change down paddle.
F Press the back of the steering wheel "-"

paddle to change down a gear.

The steering mounted paddles do not
permit the selection of neutral or the
engaging and disengaging of reverse
gear.

82

Driving

Display in the instrument panel

Gear lever positions

N. Neutral
R. Reverse
1 2 3 4 5. Gears in manual mode
AUTO. This comes on when the automated

mode is selected. It switches off on changing to
manual mode.

F Place your foot on the brake

when this warning lamp flashes
(e.g.: starting the engine).

There is an audible signal on
engagement of reverse.

Moving off

F To start the engine, place the lever in

position N.

F Press the brake pedal fully.
F Start the engine.

If the engine does not start:

- if N is flashing in the
instrument panel, move
the lever to position A,
then to position N,

- if the "Foot on the brake" warning
is flashing in the instrument panel,
press the brake pedal firmly.

F Select a mode (position M or A) or reverse

(position R)

F Release the parking brake.
F Progressively take your foot off the brake

pedal, then move off.

AUTO and 1 or R appear in the
instrument panel.

Stopping - Moving off on a slope

When stopping on a slope, do not use the
accelerator to immobilise the vehicle; apply the
parking brake.

When moving off on a slope, accelerate
gradually while releasing the parking
brake.

Manual mode

F After starting the vehicle, select position M

to change to manual mode.

AUTO disappears and the gears
engaged appear in succession in the
instrument panel.

The gear change commands are only carried
out if the engine speed permits.
When driving at low speed, on approaching
a stop sign or traffic lights for example,
the gearbox changes down to first gear
automatically.

Automated mode

F Following use of the sequential mode,

select position A to return to the automated
mode.

AUTO and the gear engaged appear
in the instrument panel.

The gearbox then operates in auto-adaptive
mode, without any action on the part of the
driver. It continuously selects the most suitable
gear for:

- optimisation of fuel consumption,

- the driving style,

- the road conditions,

- the vehicle load.

4

83

Driving

For best acceleration, when overtaking
another vehicle for example, press the
accelerator pedal firmly to pass the
point of resistance.

"Auto sequential" mode

In the automated mode, you can resume
control temporarily at any time using the
steering mounted control paddles.
The use of these paddles permits manual
selection of the gears in situations which
require a more rapid change-down than in
the automated mode (arrival at a roundabout,
leaving a car park with a steep gradient,
overtaking...).
The gearbox engages the required gear if
the engine speed permits. AUTO remains
displayed on the instrument panel.
After a few moments, the gearbox resumes
automatic control of the gears.

Stopping the vehicle

Before switching off the engine, you can
change to position N to be in neutral.
In this case, you must apply the parking

brake to immobilise the vehicle.

Reinitialisation

Following disconnection of the battery, the
gearbox must be reinitialised.
F Switch on the ignition.

AUTO and - appear in the instrument
panel.

F Select position N.
F Press the brake pedal.
F Wait approximately 30 seconds until N or a

gear appears in the instrument panel.
F Release the brake pedal.
The gearbox is operational again.

Operating fault

With the ignition on, if this
warning lamp comes on and

AUTO flashes, accompanied by
an audible signal and a message in the screen,
this indicates a gearbox fault.
Have it checked by a PEUGEOT dealer or a
qualified workshop.

You must press the brake pedal firmly
while starting the engine.
Never select neutral N while the vehicle
is moving.
Only engage reverse gear R when the
vehicle is immobilised, with your foot on
the brake pedal.
In all cases, you must apply the parking
brake to immobilise the vehicle.

84

6-speed electronic gearbox

Six-speed electronically controlled gearbox
which offers a choice between the comfort of
fully automatic operation or the pleasure of
manual gear changing.
There are two driving modes:

- automated mode for automatic control of
the gears by the gearbox,

- manual mode for sequential gear changing
by the driver.

In automated mode, it remains possible to
change gear manually by using the steering
mounted control paddles when required, when
overtaking, for example.

Do not drive with your hand resting
on the gear lever as there is a risk of
damaging the gearbox.

Gea r l ever

R. Reverse

F With your foot on the brake, lift the lever

and push forwards.
N. Neutral.
F With your foot on the brake, select this

position to start.
A. Automated mode.
F Move the lever backwards to select this

mode.
M. + / -. Manual mode with sequential gear

changing.

F Move the lever to the left to select this

mode, then:

- push it forwards to change up,

- or pull it backwards to change down.

Driving

Steering mounted control paddles

4

+. Change up paddle.

F Press the back of the "+" steering mounted

paddle to change up a gear.

-. Change down paddle.
F Press the back of the "-" steering mounted

paddle to change down a gear.

The steering mounted paddles cannot
be used to select neutral, or to engage
or disengage reverse gear.

85

Driving

Display in the instrument panel

Gear lever positions

N. Neutral
R. Reverse
1 2 3 4 5 6. Gears in manual mode
AUTO. This comes on when the automated

mode is selected. It switches off on
changing to manual mode.

F Place your foot on the brake

when this warning lamp is
flashing (for example, when
starting the engine).

Engagement of reverse gear is
accompanied by an audible signal.

Moving off Automated mode

F To start the engine, place the lever in

position N.

F Press the brake pedal down fully.
F Start the engine.

If the engine does not start:

- if N is flashing in the
instrument panel, move
the lever to position A,
then to position N,

- if the message "Foot on the
brake" is displayed, press the
brake pedal firmly.

F Select a mode (position A - automated

or M - manual) or reverse (position R).

F Release the parking brake.
F Take your foot off the brake pedal, then

accelerate.

AUTO and 1, 1 or R appears in the instrument
panel screen.

F After starting the vehicle, select position A

for enter automated mode.

AUTO and the gear engaged appear
in the instrument panel screen.

The gearbox is then operating in auto-active
mode, without any action on the part of the
driver. It continuously selects the most suitable
gear, depending on the:

- style of driving,

- profile of the road.

For optimum acceleration, for example
when overtaking another vehicle, press
the accelerator pedal firmly past the
point of resistance.

86

Driving

Manual gear
changing

This selective gear change mode enables you
to overtake, for example, while still remaining in
automatic mode.
F Operate the + or - steering mounted control

paddle.
The gearbox engages the gear requested if the
engine speed permits. AUTO is still displayed
in the instrument panel.
After a few moments without any action on
the controls, the gearbox resumes automatic
control of the gears.

Manual mode

F When the vehicle has moved off, select

position M to change to manual mode.
F Pull the lever towards the + sign to

change up a gear.

F Push the lever towards the - sign to

change down a gear.

The gears engaged appear
successively in the instrument panel
screen.

The gear change requests are only carried out
if the engine speed permits.
It is not necessary to release the accelerator
during gear changes.
When braking or slowing down, the gearbox
changes down automatically to permit
acceleration in the correct gear.

At very low speed, if reverse gear
is requested, this will only be taken
into account when the vehicle is
immobilised. A warning lamp appears in
the instrument panel screen.

4

On sharp acceleration, the gearbox will
not change up unless the driver acts on
the gear lever or the steering mounted
paddles.
Never select neutral N while the vehicle
is moving.
Only engage reverse gear R when the
vehicle is immobilised with the brake
pedal pressed.

87

Driving

Stopping the vehicle

Before switching off the engine, you can
choose to:

- move to position N to engage neutral,

- leave the gear engaged; in this case, it will
not be possible to move the vehicle.

In both cases, you must apply the parking
brake to immobilise the vehicle.

When immobilising the vehicle, with
the engine running, you must place the
gear lever in neutral N.
Before carrying out any work in the
engine compartment, check that the
gear lever is in neutral N and that the
parking brake is applied.

Operating fault

With the ignition on, the flashing
of this warning lamp and the

flashing of AUTO, accompanied
by an audible signal and a message in
the instrument panel screen, indicates a
malfunction of the gearbox.
Have it checked by PEUGEOT or a qualified
workshop.

You must press the brake pedal firmly
when starting the engine.
Whatever the circumstances, you must
manually apply the parking brake to
immobilise the vehicle.

88

Automatic gearbox

Four-speed automatic gearbox which offers a
choice between the comfort of fully automatic
operation, enhanced by sport and snow
programmes, or manual gear changing.
There are therefore four driving modes:

- automatic operation for electronic
management of the gears by the gearbox,

- sport programme for a more dynamic style
of driving,

- snow programme to improve driving when
traction is poor,

- sequential operation for manual changing
of the gears by the driver.

Gear selection gate

1. Gear lever.

2. Button "S" (sport).

3. Button "T" (snow).

Gea r l ever

P. Park.

- Immobilisation of the vehicle, parking brake
on or off.

- Starting the engine.

R. Reverse.

- Reversing manoeuvres, vehicle stationary,
engine at idle.

N. Neutral.

- Immobilisation of the vehicle, parking
brake on.

- Starting the engine.

D. Automatic operation.
M + / -. Manual operation with sequential

changing of the four gears.

F Push forwards to change up through the

gears.

or
F Pull backwards to change down through

the gears.

Driving

Displays in the instrument panel

4

When you move the lever in the gate to select
a position, the corresponding indicator is
displayed in the instrument panel.

P. Park
R. Reverse
N. Neutral
D. Drive (Automatic driving)
S. Sport programme
T. Snow programme
1 2 3 4. Gears engaged during manual

operation

-. Invalid value during manual operation

Foot on brake

F Press the brake pedal when this

indicator lamp is displayed in the
instrument panel (e.g.: starting
the engine).

89

Driving

Moving off

F Apply the parking brake.
F Select position P or N.
F Start the engine.

If this procedure is not followed, there is an
audible signal, accompanied by the display of
an warning message.
F With the engine running, press the brake

pedal.

F Release the parking brake.
F Select position R, D or M.
F Gradually release the brake pedal.

The vehicle moves off immediately.

If position N is selected inadvertently
while driving, allow the engine to
return to idle then select position D to
accelerate.
If the ambient temperature is
below -23°C, the engine should be left
at idle for four minutes, to ensure the
correct operation and life of the engine
and gearbox.

When the engine is running at idle, with
the brakes released, if position R, D
or M is selected, the vehicle moves
even without the accelerator being
pressed.
When the engine is running, never
leave children in the vehicle without
supervision.
When carrying out maintenance with
the engine running, apply the parking
brake and select position P.

Automatic operation

F Select position D for automatic changing

of the four gears.
The gearbox then operates in auto-adaptive
mode, without any intervention on the part
of the driver. It continuously selects the
most suitable gear according to the style of
driving, the profile of the road and the load in
the vehicle.
For maximum acceleration without touching the
gear lever, press the accelerator pedal down
fully (kick down). The gearbox changes down
automatically or maintains the gear selected
until the maximum engine speed is reached.
On braking, the gearbox changes down
automatically to provide efficient engine
braking.
If you release the accelerator sharply, the
gearbox will not change to a higher gear for
safety reasons.

Never select position N while the
vehicle is moving.
Never select positions P or R unless the
vehicle is completely stationary.

90

Driving

Sport and snow programmes

These two special programmes supplement the
automatic operation in very specific conditions
of use.

Sport programme "S"

F Press button "S", after starting the engine.
The gearbox automatically favours a dynamic
style of driving.

S appears in the instrument panel.

Snow programme "T"

F Press button "T", after starting the

engine.
The gearbox adapts to driving on slippery
roads.
This programme improves starting and drive
when traction is poor.

T appears in the instrument panel.

Return to automatic
operation

F At any time, press the button selected

again to quit the programme engaged and
return to auto-adaptive mode.

Manual operation

F Select position M for sequential changing

of the four gears.

F Push the lever towards the + sign to

change up a gear.

F Pull the lever towards the - sign to change

down a gear.
It is only possible to change from one gear to
another if the vehicle speed and engine speed
permit; otherwise, the gearbox will operate
temporarily in automatic mode.

D disappears and the gears
engaged appear in succession in the
instrument panel.

If the engine speed is too low or too high, the
gear selected flashes for a few seconds, then
the actual gear engaged is displayed.
It is possible to change from position D
(automatic) to position M (manual) at any time.
When the vehicle is stationary or moving
very slowly, the gearbox selects gear M1
automatically.
The sport and snow programmes do not
operate in manual mode.

4

91

Driving

Invalid value during manual
operation

This symbol is displayed if a gear
is not engaged correctly (selector
between two positions).

Stopping the vehicle

Before switching off the engine, you can
engage position P or N to place the gearbox in
neutral.
In both cases, apply the parking brake to
immobilise the vehicle.

If the lever is not in position P, when the
driver's door is opened or approximately
45 seconds after the ignition is switched
off, a warning message appears in
the screen.
F Return the lever to position P; the

message disappears.
When driving on flooded roads or when
crossing a ford, proceed at walking
pace.

Operating fault

When the ignition is on, the

lighting of this warning lamp,
accompanied by an audible signal and a
message in the multifunction screen, indicates
a gearbox fault.
In this case, the gearbox switches to back-up
mode and is locked in 3rd gear. You may feel
a substantial knock when changing from P
to R and from N to R. This will not cause any
damage to the gearbox.
Do not exceed 60 mph (100 km/h), local speed
restrictions permitting.
Contact a PEUGEOT dealer or a qualified
workshop as soon as possible.

There is a risk of damage to the
gearbox:

- if you press the accelerator and
brake pedals at the same time,

- if you force the movement of the
gear lever from the P position to
another position when the battery
is flat.

To reduce fuel consumption when at
a prolonged standstill with the engine
running (traffic jam...), put the gear lever
in the N position and apply the parking
brake.

92

Gear shift indicator

System which reduces fuel consumption by advising the driver to change up.

Operation

Depending on the driving situation and your
vehicle's equipment, the system may advise
you to skip one (or more) gear(s). You can
follow this instruction without engaging the
intermediate gears.
The gear engagement recommendations must
not be considered compulsory. In fact, the
configuration of the road, the amount of traffic
and safety remain determining factors when
choosing the best gear. Therefore, the driver
remains responsible for deciding whether or not
to follow the advice given by the system.
This function cannot be deactivated.

Example:

- You are in third gear.

Driving

- The system may suggest that you engage
a higher gear.

The information appears in the instrument
panel in the form of an arrow.

On vehicle fitted with a manual gearbox,
the arrow may be accompanied by the
gear recommended.

4

With an electronic or automatic
gearbox, the system is only active in
manual mode.

- You press the accelerator pedal.

The system adapts its gear change
recommendation according to the
driving conditions (slope, load, ...) and
the demands of the driver (power,
acceleration, braking, ...).
The system never suggests:

- engaging first gear,

- engaging reverse gear,

- engaging a lower gear.

93

94

Driving

Stop & Start

The Stop & Start system puts the engine temporarily into standby - STOP mode - during stops in the traffic (red lights, traffic jams, or other...).
The engine restarts automatically - START mode - as soon as you want to move off. The restart takes place instantly, quickly
and silently.
Perfect for urban use, the Stop & Start system reduces fuel consumption and exhaust emissions as well as the noise level when
stationary.

Operation

Going into engine STOP
mode

The "ECO" warning lamp comes
on in the instrument panel and the
engine goes into standby:

- for e-HDi Diesel engines:

● with a manual gearbox, at speeds
below 12 mph (20 km/h), when you
place the gear lever into neutral, and you
release the clutch pedal,

● with an electronic gearbox, at speeds
below 5 mph (8 km/h), when you press
the brake pedal or place the gear lever
into position N,

- for e-VTI and e-THP petrol engines and
Blue HDi Diesel engines, with the vehicle
stationary.

A time counter calculates the sum
of the periods in STOP mode
during a journey. It rests itself
to zero every time the ignition is
switched on with the key.

For your comfort, during parking
manoeuvres, STOP mode is not
available for a few seconds after
coming out of reverse gear.
STOP mode does not affect the
functionality of the vehicle, such as for
example, braking, power steering...

Never refuel with the engine in STOP
mode; you must switch off the ignition
with the key.

Special cases: STOP mode not
available

STOP mode is not invoked when:

- the driver's door is open,

- the driver's seat belt is not fastened,

- the vehicle has not exceeded 6 mph
(10 km/h) since the last engine start using
the key,

- the engine is needed to maintain a
comfortable temperature in the passenger
compartment,

- demisting is active,

- some special conditions (battery charge,
engine temperature, braking assistance,
ambient temperature...) where the engine is
needed to assure control of a system.

The "ECO" warning lamp flashes for
a few seconds then goes off.

This operation is perfectly normal.

Going into engine START
mode

The "ECO" warning lamp goes off
and the engine starts:

Driving

Deactivation

Special cases: START invoked
automatically

For reasons of safety and for your comfort,
START mode is invoked automatically when:

- with a manual gearbox, when you
depress the clutch pedal,

- with an electronic gearbox:

● gear lever in position A or M, when you

release the brake pedal,

● or gear lever in position N and the brake

pedal released, when you place the gear
lever into position A or M,

● or when you engage reverse gear.

- you open the driver's door,

- you unfasten the driver's seat belt,

- some special conditions (battery charge,
engine temperature, braking assistance,
ambient temperature...) where the engine is
needed for control of a system.

The "ECO" warning lamp flashes for
a few seconds, then goes off.

This operation is perfectly normal.

4

At any time, press the "ECO OFF" switch to
deactivate the system.
This is confirmed by the switch warning lamp
coming on accompanied by a message in
the screen.

If the system has been deactivated
in STOP mode, the engine restarts
immediately.

95

Driving

Reactivation

Press the "ECO OFF" switch again.
The system is active again; this is confirmed
by the switch warning lamp going off,
accompanied by a message in the screen.

The system is reactivated automatically
at every new start using the key.

Operating fault

In the event of a fault with the system, the
"ECO OFF" switch warning lamp flashes then
comes on continuously.
Have it checked by a PEUGEOT dealer or a
qualified workshop.
In the event of a fault in STOP mode, the
vehicle may stall. All of the warning lamps
come on. It is then necessary to switch off
the ignition and start the engine again using
the key.

Maintenance

Before doing anything under the
bonnet, deactivate the Stop & Start
system to avoid any risk of injury
resulting from automatic operation of
START mode.

This system requires a battery with a special
specification and technology (reference
numbers available from a PEUGEOT dealer or
a qualified workshop).
Fitting a battery not listed by PEUGEOT
introduces the risk of malfunction of the
system.

The Stop & Start system makes use
of advanced technology. All work on
this type of battery must be done by
a PEUGEOT dealer or a qualified
workshop.

96

Hill start assist

System which keeps your vehicle immobilised
temporarily (approximately 2 seconds) when
starting on a gradient, the time it takes to
move your foot from the brake pedal to the
accelerator pedal.
This function is only active when:

- the vehicle is completely stationary, with
your foot on the brake pedal,

- when certain conditions of gradient are
met,

- with the driver’s door closed.

The hill start assist function cannot be
deactivated.

Driving

Operation

4

Do not leave the vehicle while it is being
held in the hill start assist phase.
If you need to leave the vehicle while
the engine is running, apply the parking
brake manually then ensure that the
parking brake warning lamp is on (not
flashing) in the instrument panel.

On an ascending slope, the vehicle is held
for a brief moment when you release the
brake pedal:

- if you are in first gear or neutral with a
manual gearbox*,

- if you are in position A or M with an
electronic gearbox,

- if you are in position D or M with an
automatic gearbox.

* Depending on version.

On a descending slope, with the vehicle
stationary and reverse gear engaged, the
vehicle is held for a brief moment when you
release the brake pedal.

Operating fault

If a fault occurs with the system, these warning
lamps come on. Contact a PEUGEOT dealer
or a qualified workshop to have the system
checked.

97

Driving

Speed limiter

System which prevents the vehicle from
exceeding the speed programmed by the driver.
When the programmed speed limit is reached,
pressing the accelerator pedal in the normal
manner no longer has any effect.

The speed limiter is switched on manually: the
programmed speed must be at least 20 mph
(30 km/h).

The speed limiter is switched off by manual
operation of the control.

Steering mounted controls

Displays in the instrument panel

98

The programmed speed can be exceeded
temporarily by pressing the accelerator firmly.
To return to the programmed speed, simply
slow down to a speed below the programmed
speed.

The programmed speed remains in the memory
when the ignition is switched off.

The speed limiter cannot, in any circumstances,
replace the need to respect speed limits, nor can it
replace the need for vigilance on the part of the driver.

1. Selection of speed limiter mode.

2. Increase the programmed value.

3. Decrease the programmed value.

4. Speed limiter On / Off.

The programmed information is grouped
together in the instrument panel screen.

5. Speed limiter on/off indication.

6. Speed limiter mode selection indication.

7. Programmed speed value.

8. Selection of a memorised speed setting.
