Page 1
15-07-2002
YOUR AT A GLANCE
2
Page 2
3

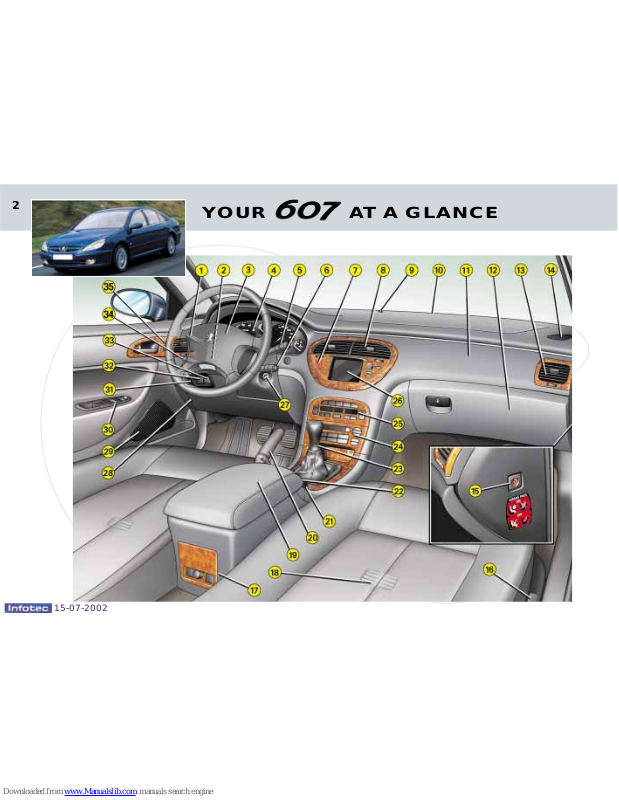

YOUR AT A GLANCE

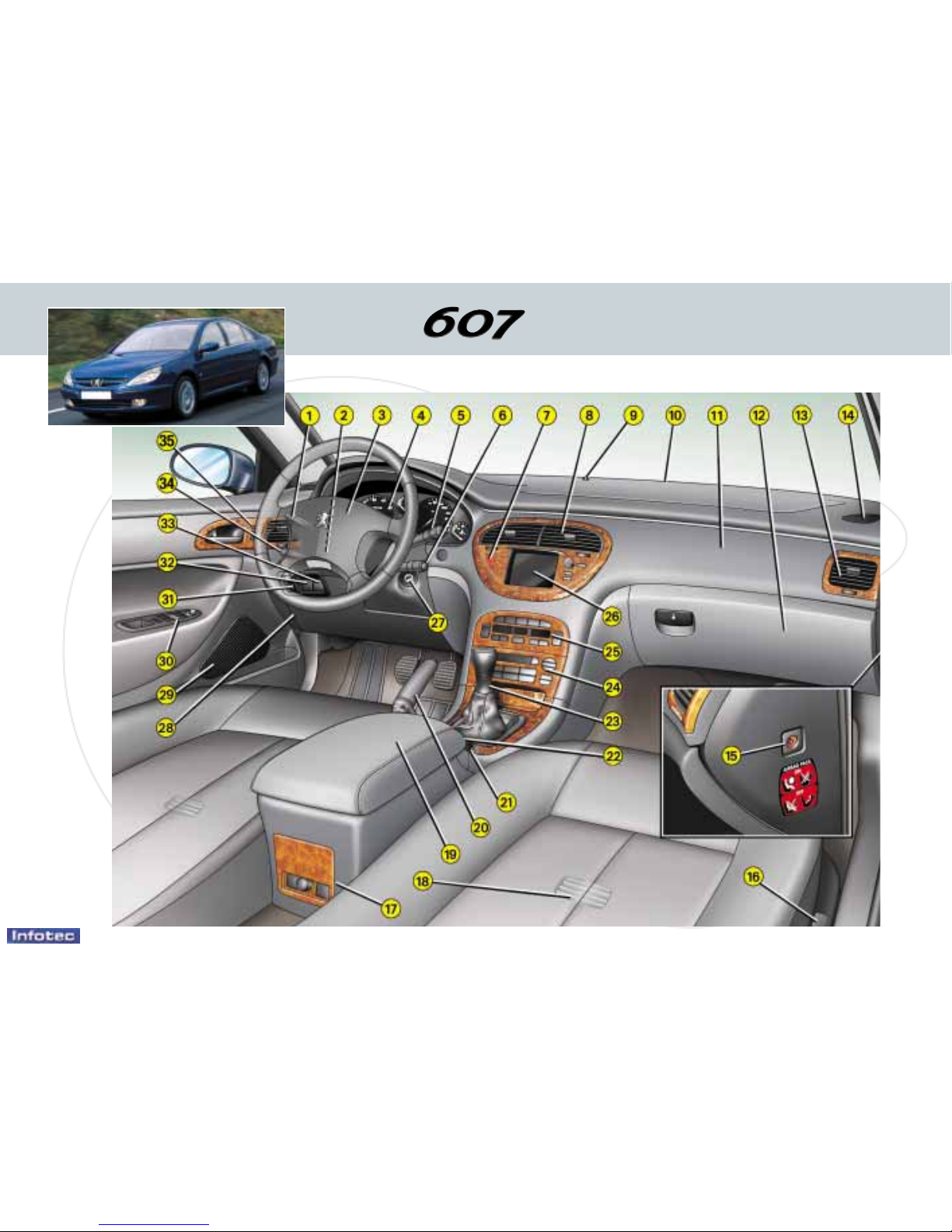

1-Lights and direction indica-
tors stalk.
2-Steering wheel adjustment.
3-Driver's front air bag.
- Horn.
4-Instrument dials.
5-Windscreen wash/wipe
stalk.
- Trip computer stalk.
6-Audio remote control stalk.
7-Hazard warning lights
switch.

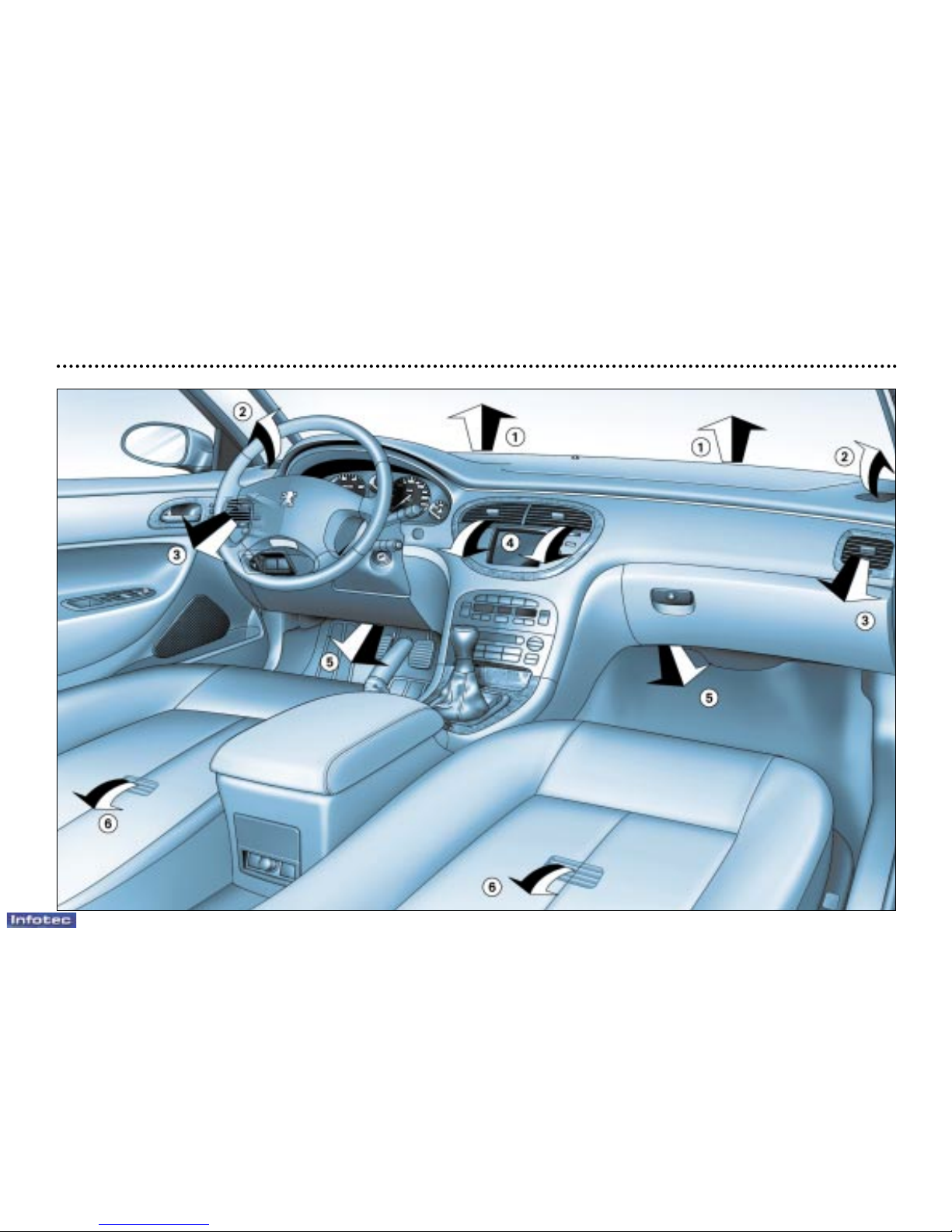

8-Central adjustable
heating/ventilation vents and
air flow regulation.
9-Sunshine / brightness
sensor.
10 - Windscreen demisting vents.
11 - Passenger air bag.
12 - Glove compartment.
13 - Side adjustable
heating/ventilation vents and
air flow regulation.
14 - Door window demisting vent.
15 - Passenger airbag disarming
switch.
16 - Front seats heating switch.
17 - Rear ashtray.
- Rear lighter.
- Rear seats heating switch.
18 - Rear footwell heating vent.
19 - Two-position armrest with
compartments.
20 - Handbrake.
21 - Electronically controlled
suspension switch.
- Doors and boot locking
switch.
- Sunroof switch.
- Rear blind switch.
22 - Front ashtray.
- Front lighter.

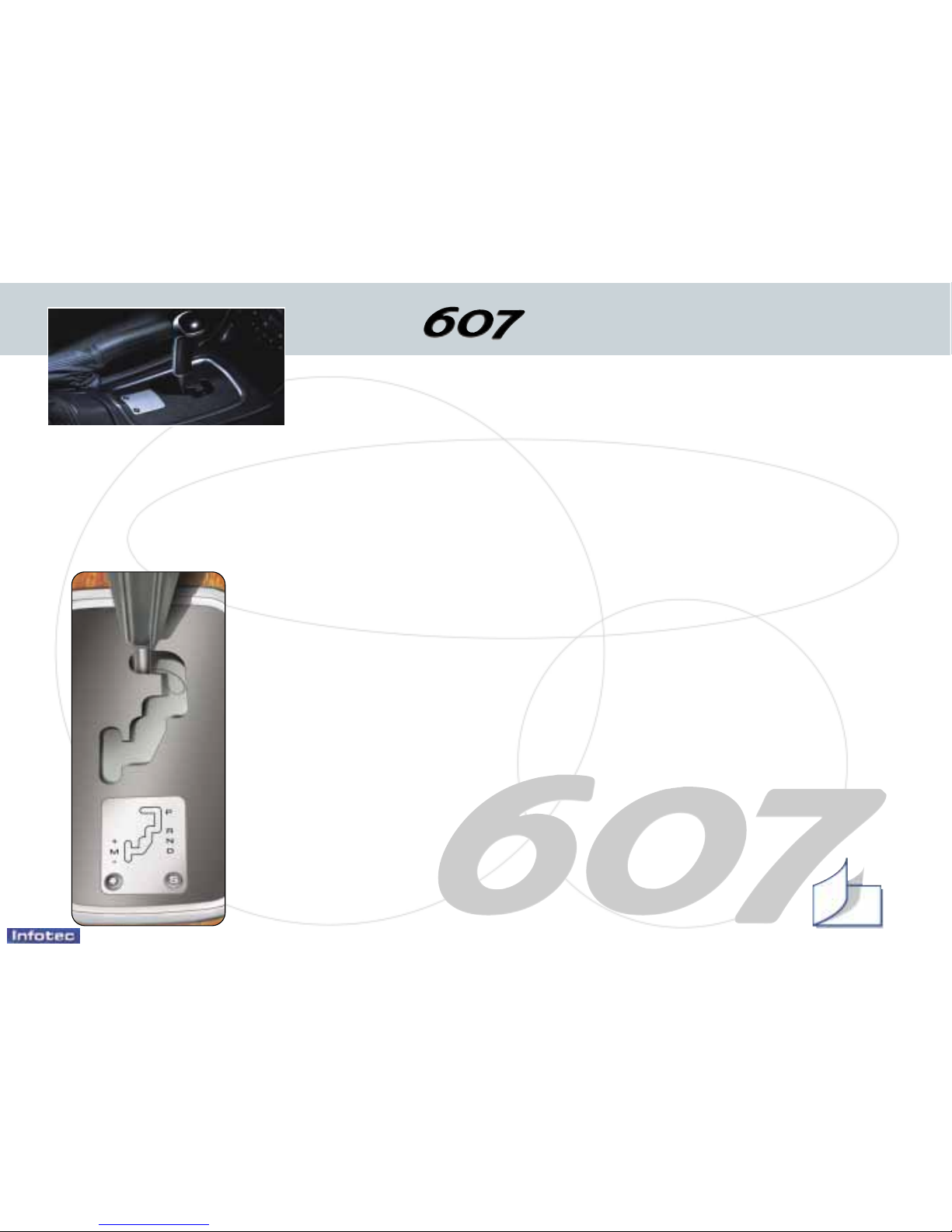

23 - Gear lever.
24 - RM2 audio system or RT2
audio/telephone system with
PEUGEOT call button.
25 - Heating/ventilation controls.
26 - Multi-function display.
27 - Steering lock and ignition.
28 - Fuse box.
29 - Speakers location.
30 - Electric mirror controls.
- Window controls.
- Rear window locking control.
31 - Headlamp height adjust-
ment.
32 - ESP disarming switch.
33 - Alarm button.
34 - Cruise control.
35 - Memory buttons for:
- Front seat settings
- Electric mirror settings
15-07-2002
Page 3
15-07-2002
YOUR AT A GLANCE
4
THE REMOTE CONTROL
KEY
From the driver's door, the key
allows you to lock or unlock the
doors, the boot and the fuel filler
flap, as well as to fold back or
open out the exterior mirrors.
The remote control in the key
performs the same function at a
distance.
Locking with the remote
control
☞ Press button A.
This is confirmed by fixed lighting
of the direction indicators for
approximately two seconds.
Unlocking with the remote
control key
☞ Press button B.
This is confirmed by rapid flashing of the direction indicators.
With the vehicle unlocked, the
boot is opened using the push
button located on the right rear
side, in the 'zero' of the 607
badge.
Opening the boot with the
remote control key
☞ Keep button C pressed.
Key in ignition
If you leave the key in the
ignition, this is indicated by a
buzzer upon opening the driver's door.
Locating the vehicle
To locate your vehicle in a car
park, press button A; the courtesy lights come on and the
direction indicators flash for
approximately twenty seconds.
Driving position memorised
by the remote control key
When locking the doors, the
remote control key memorises
the position of the driver's seat
and the driving mirrors.
Each remote control key memorises a specific setting.
When unlocking the doors, the
driver's seat and the driving mirrors assume the position memorised by the remote control key, if
this position has been changed in
the meantime.
Note: do not press the buttons of
your remote control key out of
range of your vehicle as there is
a risk that you could render it
inoperative. It would then be necessary to reprogramme it.
Deadlocking
This renders the internal and
external door locking controls
inoperative and permits the automatic closing of the windows and
the sunroof.
With the key:
☞ lock the vehicle and keep the
key in the locked position for
approximately one second.
With the remote control:
☞ press button A to lock the
vehicle (the direction indicator
lights remain on for approximately two seconds),
☞ within five seconds, press but-
ton A again to deadlock the
vehicle (the direction indicator
lights remain on for approximately two seconds).
102
Page 4
YOUR AT A GLANCE
5
STARTING
STOP position:
The ignition is switched off.
1st notch, Accessories position:
The ignition is switched off but
the accessories still function.
2nd notch, Running position:
The ignition is on.
Starting position:
Operates the starter.
Starting a diesel engine
If the temperature is high
enough, the pre-heat indicator light does not come
on and you can start
immediately.
If the indicator light comes on,
wait for it to go out before operating the starter.
If the engine stalls, it is necessary to return the key to the
'Stop' position before re-starting.
CHECK (vehicle autotest)
Automatic check
With the ignition on (2nd notch)
If no malfunction has been
detected: In the absence of
vehicle function status indicator lights, the OK light is
displayed after two seconds
on the instrument panel screen.
Otherwise, it will be displayed after
these indicator lights come on.
If a 'minor' malfunction has been
detected: the warning light for the
faulty function is displayed on the
instrument panel screen. Certain
indicator lights showing the status of
vehicle functions may also come on,
followed by the OK indicator light.
If a 'major' malfunction has been
detected: the corresponding warn-
ing light is displayed on the instrument panel screen. Certain indicator
lights showing the status of vehicle
functions may also come on. The
OK indicator light does not come
on. Do not start your vehicle.
Contact a PEUGEOT dealer.
Afterwards, if the passenger airbag
is disarmed, the corresponding
warning light will come on.
With the engine running or if the
vehicle is moving, the instrument
panel screen temporarily displays:
– lights indicating warnings, when
these occur,
– vehicle function sta-
tus indicator lights,
when a change
occurs.
The display of certain indicator
lights is accompanied by an audible signal and a message on the
multi-function display.
Manual check
☞ Press the "CHECK" button on the
instrument panel.
With the ignition key in the accessories
position, with the ignition switched on,
with the engine running or the vehicle
moving, this function informs you at all
times of the following:
– any current warnings,
– the status of functions which it is
possible to switch on or switch off
(windscreen wipers, automatic
switching on of lights, cruise control, disarming of passenger air
bag, etc.).
The corresponding warning lights are
displayed in succession on the instrument panel screen.
If a warning or a change of status
occurs during the CHECK mode, the
corresponding indicator light(s) will be
displayed at the end of this mode.
31
Never run the engine in
a confined space.
Do not make any modifications to the steering
lock.
15-07-2002
Page 5
15-07-2002
YOUR AT A GLANCE
6
STEERING WHEEL
STALKS
LIGHTS
Front and rear lights (ring A)
Lights off.
Side lights.
Dipped / main
beam headlamps.
Front and rear fog lamps
(ring B)
Front fog lamps.
Neutral position of the
ring.
Rear fog lamps.
Parking lights
To switch on the parking lights on
the traffic side, with the engine
off, place the direction indicator
lights stalk on the traffic side.
Automatic switching on of lights
This occurs if the light is poor, as well as in cases of continuous operation
of the windscreen wipers, and stops as soon as the light has become
bright enough or the windscreen wipers have stopped.
☞ To activate or disarm the function, place the key in the accessories
position (1st notch), place the lights stalk in position 0 and press the
end of the stalk for more than two seconds.
Do not cover the sunshine / brightness sensor located in
the centre of the fascia. It helps to regulate the air conditioning, the automatic switching on of the lights and the
automatic adjustment of the instrument panel brightness.
Windsreen wipers
3 Rapid wipe
2 Normal wipe
1 Automatic wipe
0 Off
Automatic wipe
In position 1, the wipers operate
automatically and adjust their
speed to the intensity of the rainfall.
When the ignition has been
switched off for more than one
minute with the control in a
wipe position, it is necessary
to reactivate this function.
To do this, move the control to
any position, then return to the
required position.
109 111
Page 6
YOUR AT A GLANCE
7
ELECTRIC WINDOWS
1 - Driver's electric window.
2 - Passenger's electric window.
3 - Rear right electric window.
4 - Rear left electric window.
5 - Disarming the rear window controls.
Manual mode:
☞ Press or pull the switch lightly. The window stops as soon as the switch
is released.
Automatic mode:
☞ Press or pull the switch firmly.
One touch completely opens or closes the window.
Safety auto-reverse: when the glass rises and meets an
obstacle, it stops and lowers again.
ELECTRIC REAR VIEW MIRRORS
☞ Turn knob 6 to the right or to the left to select the corresponding mirror.
☞ Move the knob in all four directions to adjust.
When parked, the mirrors can be folded back manually,
electrically by means of button 6 or automatically on locking
the vehicle.
STEERING WHEEL
HEIGHT AND DEPTH
ADJUSTMENT
☞ Pull handle A downwards to
unlock the steering wheel.
☞ Adjust the height and depth of
the steering wheel.
☞ Lock by pushing handle A fully
upwards.
116
117 119
15-07-2002
Page 7
15-07-2002
YOUR AT A GLANCE
8

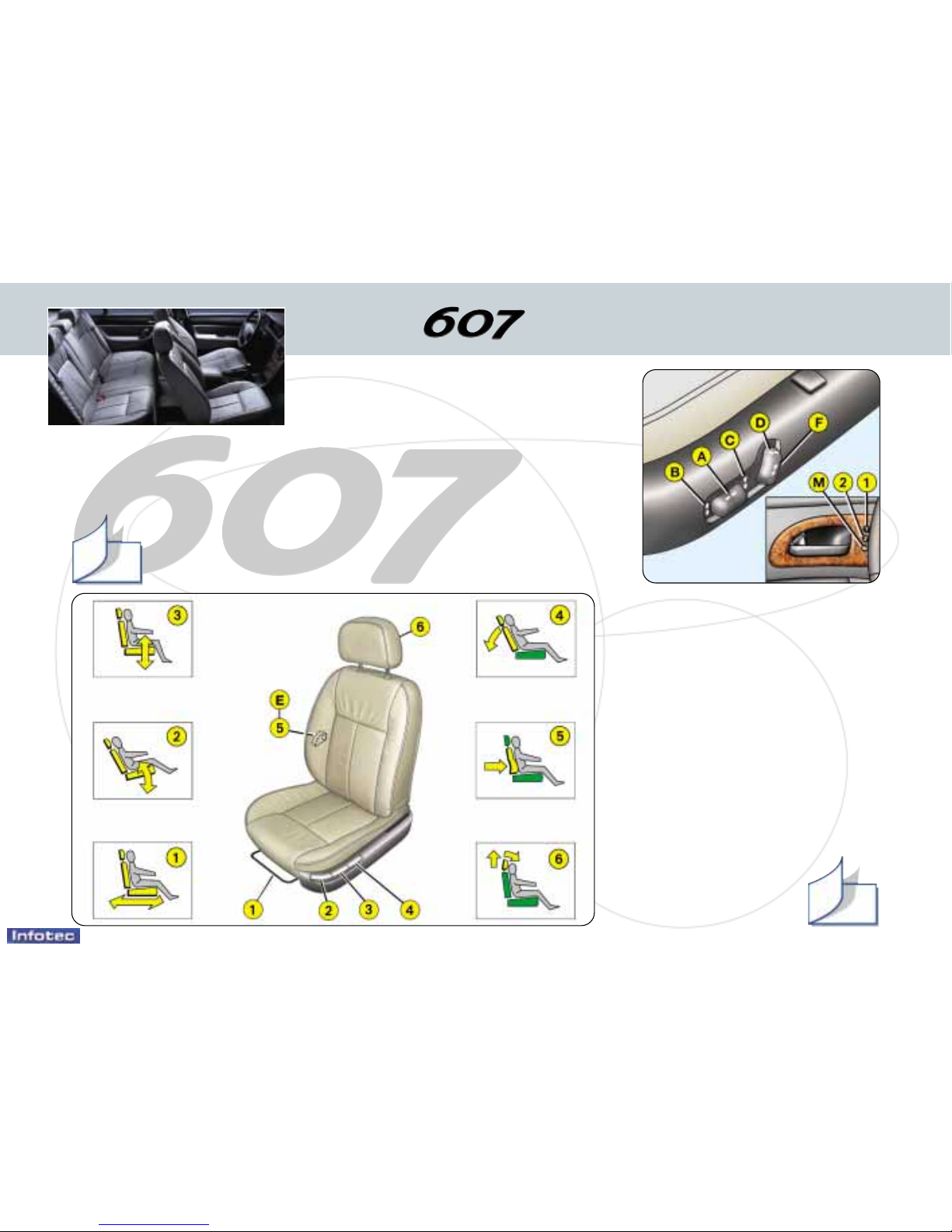

THE SEATS
Manual front seats
1 - Forwards-backwards adjustment.
2 - Seat angle adjustment*.
3 - Seat height adjustment*.
4 - Seat back angle adjustment.
5 - Lumbar adjustment*.
6 - Head restraint height and tilt adjust-
ment (press the tab to slide it down).
* Driver's seat only.
Electric front seats
A - Forwards-backwards adjust-
ment.
B - Seat angle adjustment.
C - Seat height adjustment
D - Seat back angle adjustment.
E - Lumbar adjustment.
F - Head restraint height adjust-
ment.
M - Memorises settings.
☞ Switch on the ignition and
adjust the seat and the mirrors.
☞ Press button 'M' then within
4 seconds either button '1' for
the first position, or button '2'
for the second
position.
1 - Recalls the first
position.
2 - Recalls the
second position.
94
93
Page 8
YOUR AT A GLANCE
9
REAR PARKING
ASSISTANCE
This system, installed in the rear
bumper, detects any obstacle (person, vehicle, tree, gate, kerb...)
located behind the vehicle.
To activate
With the engine running, the system is activated as soon as
reverse gear is engaged; a bleep
sounds to inform you that it is
active.
The proximity information is
given by an audible signal, consisting of bleeps which become
more and more rapid as the vehicle approaches the obstacle.
When the distance between the
rear of the vehicle and the obstacle is less than approximately
twenty-five centimetres, the
signal becomes continuous.
☞ The system ceas-
es to be active
when you change
to neutral.
TYRE UNDER-INFLATION
DETECTION
Sensors check the tyre pressure
during driving, and trigger a warning if there is a malfunction (speed
greater than 15 mph (25 km/h).
Tyre under-inflation
When this warning light
comes on, accompanied
by a bleep and the mes-
sage 'Tyre(s) pressure
low', have the tyre pressure
checked as soon as possible.
Puncture
Display of this warning
light, accompanied by an
audible signal and the
message 'Punctured
tyre(s) detected', is followed by illumination of the
STOP warning light.
Stop immediately, avoiding all
abrupt manoeuvres with the
steering wheel and the brakes.
Change the damaged (punctured
or very under-inflated) wheel and
have the tyre pressure checked
as soon as possible.
Note: if the damaged wheel is
stored temporarily in the boot, it
will again send this message as a
reminder of the necessity of having it repaired. This will prevent a
similar warning being displayed.
Sensor(s) not detected
Display of this warning
light, accompanied by an
audible signal and the
message 'X tyre pres-
sure sensor(s) missing', indicates that one or more wheels
are not being detected.
Contact a PEUGEOT dealer to
replace the faulty sensor(s).
Warning: this message is displayed when one of the wheels is
at a distance from the vehicle
(being repaired) or when a wheel
without a sensor is fitted (winter
fitting).
This system does not eliminate
the need to check the tyre
pressure regularly.
129 140
15-07-2002
Page 9
15-07-2002
YOUR AT A GLANCE
10
AUTOMATIC GEARBOX
'PORSCHE TIPTRONIC system'
The four speed automatic gearbox offers a choice between the comfort
of integral automatic operation, enhanced by a sport programme and
a snow programme, or the pleasure of manual gear changing.
Gear selection gate
☞ Move the lever in the gate to select one of the functions.
Once the function is selected, the indicator light for that function is displayed on the instrument panel screen.
S: sport programme.
: snow programme.
Park: to immobilise the vehicle and to start the
engine, with the handbrake on or off.
Reverse: to engage reverse; select this function
with the vehicle stationary and the engine at idle.
Neutral: to start the engine and to park, with the
handbrake on.
Note: if position N is engaged by mistake while
the car is moving, allow the engine to return to
idling speed before engaging function D to accelerate.
Drive: for automatic gear changing.
Manual: for manual gear changing.
To change the four gears manually:
☞ Push the lever to the + symbol to change up to
the next gear and pull it towards the - symbol to
change down a gear.
Note: the S (sport) and
(snow) programmes do
not operate in manual mode.
Moving Off
With the engine running, to move
off from position P:
☞ it is essential to press the
brake pedal to exit position P,
☞ select function R, D or M, then
gradually release the pressure
on the brake pedal; the vehicle will move off immediately.
You can also move off from position N:
☞ release the handbrake, with
your foot on the brake,
☞ select function R, D or M, then
gradually release the pressure
on the brake pedal; the vehicle will move off immediately.
WARNING
When the engine is idling with
the brakes not applied, if function
R, D or M is selected, the vehicle
moves without the accelerator
being pressed.
For this reason, do not leave
children unsupervised inside
the vehicle, with the engine
running.
When maintenance operations
have to be carried out with the
engine running, apply the handbrake and select position P.
123
Page 10
CRUISE CONTROL
Cruise control enables the vehicle to maintain a steady speed
programmed by the driver, without the accelerator being
pressed.
In order for it to be memorised,
the speed of the vehicle must be
greater than 25mph (40km/h) or
40mph (60km/h) depending on
engine.
Operation
☞ Place the ring of stalk
A in the ON position.
The indicator light
comes on, accompanied by an audible
signal.
FRONT AIR BAGS
Disarming the passenger
air bag*
☞
with the ignition off, insert the
key into slot 1 and turn it:
– to the 'ON' position, the pas-
senger air bag is armed,
– to the 'OFF' position, the pas-
senger air bag is disarmed.
Operating check
When the passenger air
bag is disarmed, the
warning light comes on
when the ignition is
switched on (2nd notch),
accompanied by an audible signal and the message 'Passenger
air bag disarmed'.
Front air bag faulty
If this warning light
comes on, accompanied
by an audible signal and
the message 'Air bag
faulty', contact a
PEUGEOT dealer to have the
system checked.
Passenger air bag
precautions
☞
Disarm the
air bag if
you install
a rearfacing child
seat.
☞
Arm the air
bag for an
adult passenger.
Never place your feet or any
object on the fascia.
* According to country
YOUR AT A GLANCE
11
128 130
15-07-2002
Page 11
15-07-2002
No. Symbol Function
1 Air conditioning
on/off.
2 Front visibility
programme.
3 Air intake
control.
4 Rear screen
demisting.
5
Switching
off.
6 Passenger
setting
7 Passenger comfort
programme.
8 Passenger
air distribution
setting.
9 Air flow
adjustment.
10 Driver
air distribution
setting.
11 Driver comfort
programme.
12 Driver
setting.
12
YOUR AT A GLANCE
AUTOMA TIC AIR CONDITIONING
Do not cover the sunshine / brightness sensor located
in the centre of the fascia.
It helps to regulate the air conditioning, automatic
switching on of the lights and the automatic adjustment of the instrument panel brightness.
90
Page 12
13
YOUR AT A GLANCE

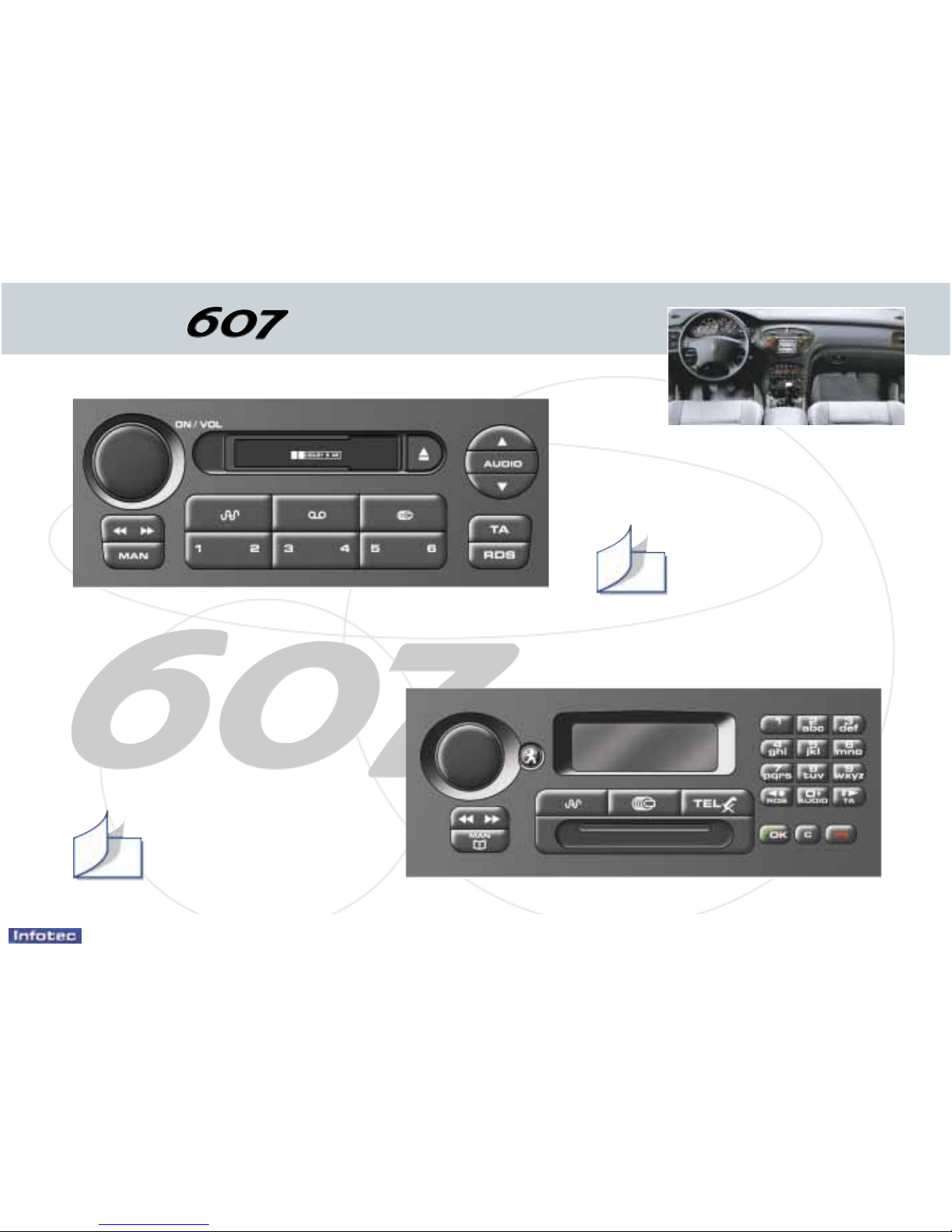

RM2 AUDIO SYSTEM

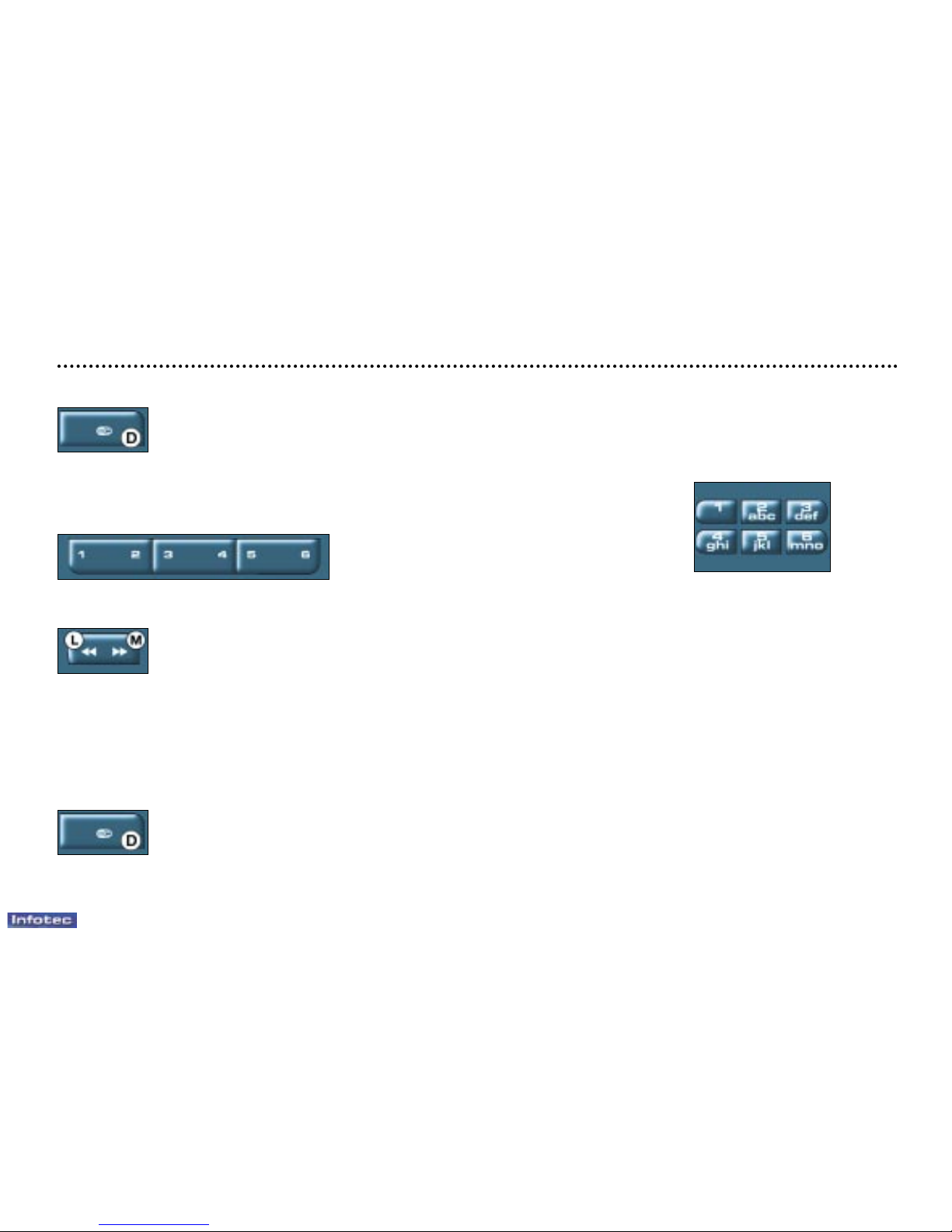

RT2 AUDIO/TELEPHONE SYSTEM
48
50
15-07-2002
Page 13
15-07-2002
14

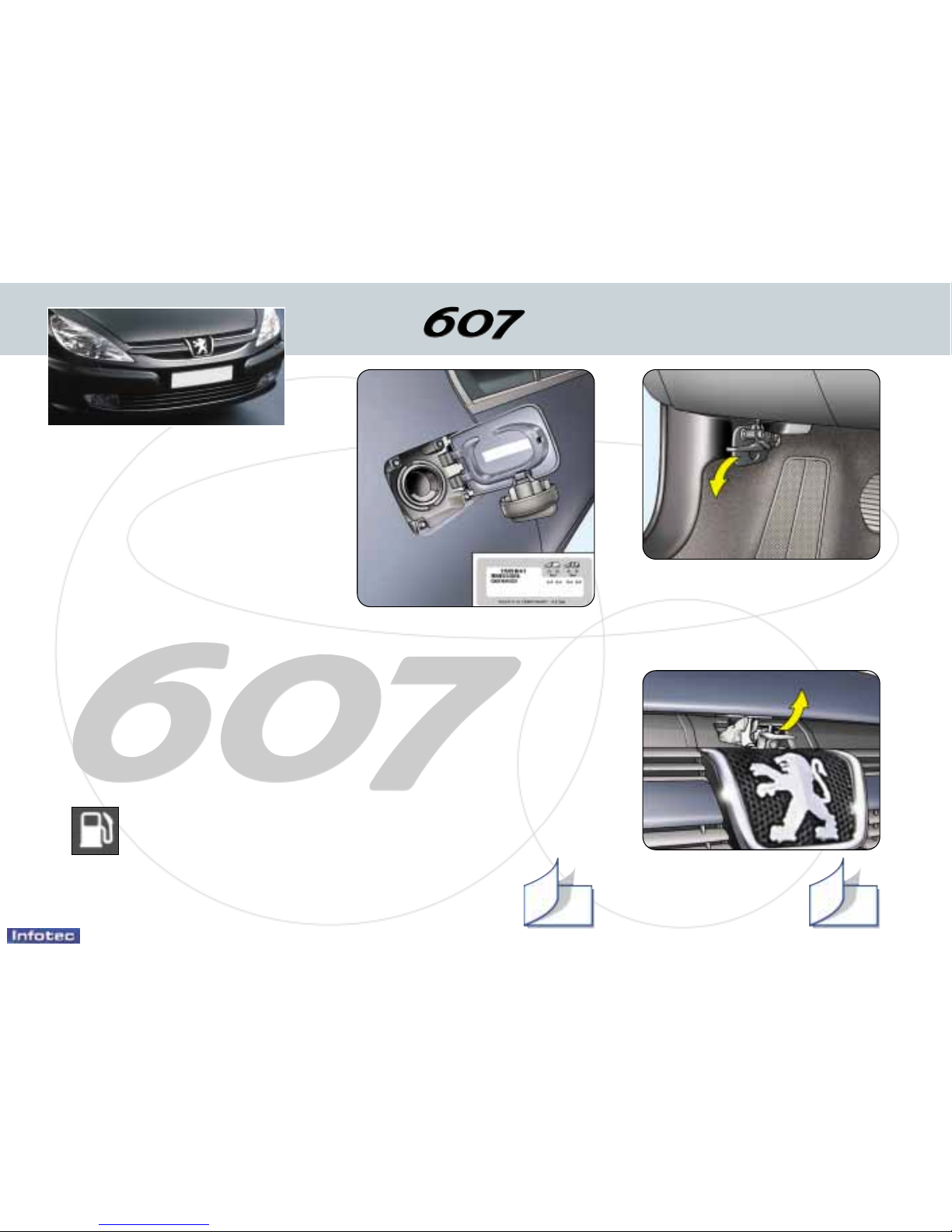

FUEL FILLER FLAP
Opening / Closing:
Locking and unlocking of the fuel filler
flap, the doors and boot is simultaneous (except when selective unlocking
is initialised; in this case press the
unlocking button of the remote control
once).
FILLING WITH FUEL
This must be carried out with the engine and the ignition switched
off.
A hook is provided inside the fuel filler flap to hold the filler cap.
A label affixed to the inside of the fuel filler flap informs you which fuels
are authorised or prohibited.
The tank capacity is approximately 80 litres.
When the minimum level of the tank is reached, this light comes
on, accompanied by an audible signal and the message 'Fuel
level low' on the multi-function display.
You have enough fuel to drive approximately
30 miles (50 km).
OPENING THE BONNET
From inside:
☞ pull the handle downwards.
From outside:
☞ lift the catch and
raise the bonnet.
YOUR AT A GLANCE
108 108
Page 14
15-07-2002
PEUGEOT SERVICING
The maintenance cycle of your 607 is based on level A (including the replacement of the engine oil, the oil filter and a
set of checks) and level C services [service level A + workshop operations carried out every 40,000 miles (60 000 km)] in
accordance with the tables on the following pages.
So that the driving conditions and your style of driving may be taken into account, your 607 is fitted with a service indica-
tor which programmes the intervals for the level A service:
• every 20,000 miles (30 000 km) maximum or 2 years for petrol engines,
• every 12,000 miles (20 000 km) maximum or 2 years for direct injection diesel engines.
The frequency of level A services specific to your vehicle will be determined by three elements:
• the number of engine revolutions,
• the engine oil temperature,
• prolonged periods of the vehicle not being used.
Depending on these elements, the service indicator will suggest a time which is more or less the same as the initial plan.
Depending on the conditions of use, one or more level A services can be carried out between two level C services.
Depending on the mileage recorded, your dealer may offer to carry out the level C service to avoid the visits being too close
together.
PEUGEOT SERVICING
18
Page 15
15-07-2002
The extension of the service intervals means that the engine oil level must be checked regularly: topping up of the
oil between two oil changes is normal.
It is for this reason that your PEUGEOT dealer will invite you to an intermediate visit between services. The date of
this visit is not shown by the service indicator.
It is to be carried out between two services.
A Peugeot professional will carry out a quick check and will top up the levels if necessary (oil, coolant, screen wash up to
2 litres).
If the oil level is too low, there is a risk of significant damage to the engine: check the engine oil level at least every
3,000 miles (5 000 km).
This maintenance frequency is the result of developments to our vehicles and to the lubricants:
THUS IT IS ESSENTIAL THAT YOU ONLY USE ENGINE LUBRICANTS THAT ARE APPROVED AND RECOMMENDED

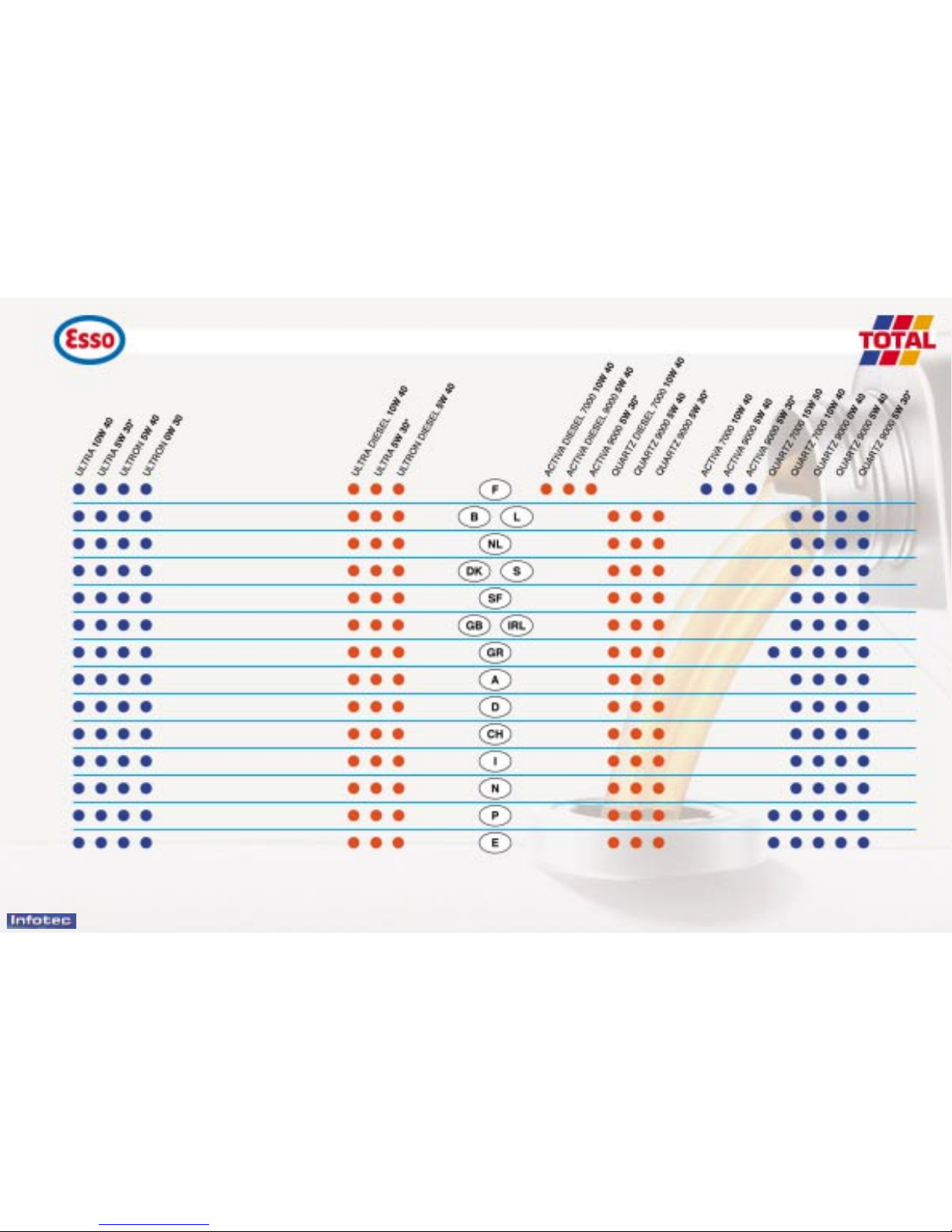

BY THE MANUFACTURER (see pages on 'Lubricants').
PEUGEOT SERVICING
1919
Page 16
15-07-2002
PEUGEOT SERVICING
20
A few seconds after the ignition is
switched on, the total distance
recorder resumes normal operation
and the display shows the total and
trip distances.
The distance remaining before the
next service is less than 1,000 km.
A few seconds after the ignition is
switched on, the distance recorder
resumes normal operation and the
spanner remains lit. This indicates
that a service should be carried out
shortly.

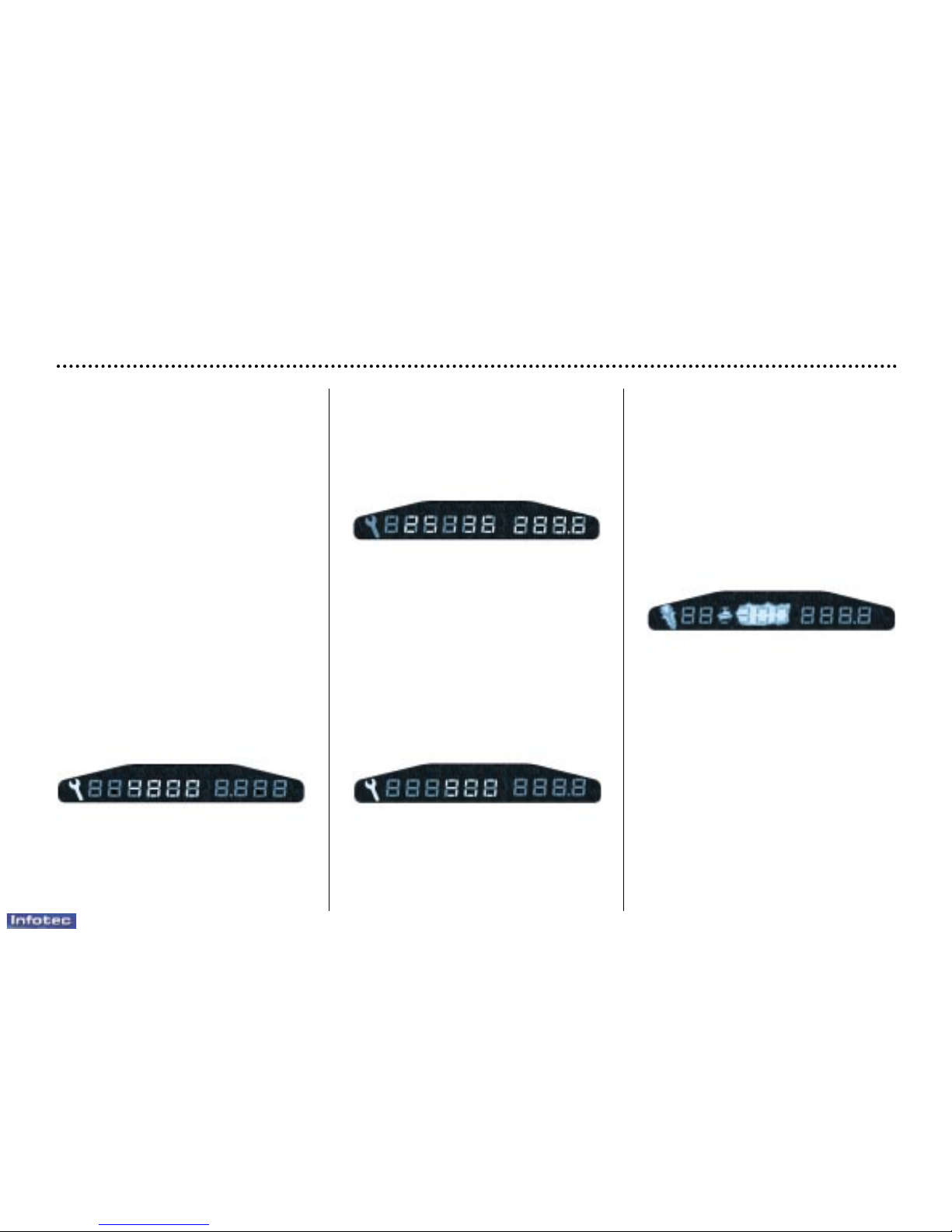

SERVICE INDICATOR
Located on the instrument panel with
the total distance recorder (total and
trip distances), this programmes
drain/refill intervals depending on the
use of the vehicle.
Operation
A few moments after the ignition has
been switched on, the spanner symbolising services lights up; the display for the total distance recorder
tells you (in round figures) the distance remaining before your next
service.
Example: 4,800 km remain before
the next service is due. When the
ignition is switched on and for a few
seconds, the display shows:
The service is overdue.
Each time the ignition is switched on
and for a few seconds, the symbol
and the excess distance flash.
Note: with the engine running the
symbol flashes until the service has
been carried out
Page 17
15-07-2002
MAINTENANCE OF PARTS SUBJECT T O WEAR AND A CHECK OF CONSUMABLES
Certain essential components on your vehicle are subject to checks at specific
frequencies.
• The brake fluid is to be replaced at a maximum of every 36,000/40,000 miles
(60 000km) or every two years.
• The pollen filter must be checked at each service by a PEUGEOT dealer
(services and intermediate visits) or more often, depending on the environment (dust, pollution, etc.).
• For HDI turbo diesel engines with particulate emission filter, maintenance
of the filter and topping up of the additive reservoir must be carried out
every 48,000 miles (80 000 km) by a PEUGEOT dealer.
• Replacement of the timing belt : contact a PEUGEOT dealer.
• Air bags and pretensioning parts on seat belts must be checked every
10 years by a PEUGEOT dealer.
• Tyre pressure sensors are to be replaced every 10 years.
• The check on tyre inflation presure must be carried out cold at least once a
month.
PEUGEOT SERVICING
21
Zero re-set
Your PEUGEOT dealer carries out
this operation after each service.
However, if you carry out the service
yourself, the re-set procedure is as
follows:
☞ Switch off the ignition,
☞
Press and hold the trip recorder reset button,
☞ Switch on the ignition.
The display begins a countdown.
When the display shows 0, release
the button; the service symbol disappears.
Important: after this operation, if you
wish to disconnect the battery, lock
the vehicle and wait for at least five
minutes, otherwise the zero re-set
will not be registered.
Page 18
15-07-2002
PEUGEOT SERVICING
22
THE SERVICE LEVELS
Each vehicle has its own servicing cycle, defined by the manufacturer in terms of its technical specification.
This cycle consists of alternating 2 types of service A and C, intermediate visits and a few additional operations specific to
your vehicle; these correspond to key stages in the life of your 607.
At your first and each subsequent service, your dealer will advise you of the type and content of the next service
due.
Intermediate top-up
visit.
MAINTENANCE CYCLE FOR YOUR PETROL ENGINE 607
2 litre 16 V and 2.2 litre 16V petrol engines : service every 2 years or 20,000 miles (30 000 km) maximum (unless the
service indicator shows it is required before this)
1st service at 6,000 miles
(10 000 km) or 6 months*.
This is necessary in order to
benefit from the warranty.
MILES (KM) 40,000 (60 000) 80,000 (120 000) 120,000 (180 000)
24V V6 petrol injection engine: service every 2 years or 20,000 miles (30 000 km) maximum (unless the service indi-
cator shows it is required before this)
1st service at 6,000 miles
(10 000 km) or 6 months*.
This is necessary in order to
benefit from the warranty.
MILES (KM) 40,000 (60 000) 80,000 (120 000) 120,000 (180 000)
Automatic gearbox oil level every 40,000 miles (60 000 km).
Replacement of brake fluid every 2 years or 40,000 miles (60 000 km).
These fixed operations are carried out with synthetically based oil. Fuel economy oil
or synthetic oil may also be used (except for the 2.2 litre 16 V petrol engine).
+ replacement of air filter
+ replacement of
fuel filter
+ replacement of air filter
+ replacement of
fuel filter
* Whichever comes first.
Page 19
15-07-2002
PEUGEOT SERVICING
23
Intermediate top-up
visit.
MAINTENANCE CYCLE FOR YOUR 607 TURBO DIESEL HDI
Turbo diesel HDI: service every 2 years or 12,000 miles (20 000 km) maximum (unless the service indicator shows it is
required before this).
1st service
at 6,000 miles (10 000 km)
or 6 months*.
This is necessary in
order to benefit from
the warranty.
MILES (KM) 36,000 (60 000)
72,000 (120 000) 108,000 (180 000)
+ maintenance of particu-
late emission filter at
48,000 miles (80 000 km)
+ maintenance of
particulate emission filter at
96,000 miles
(160 000 km)
Automatic gearbox oil every 36,000 miles (60 000 km).
Replacement of brake fluid every 2 years or 36,000 miles (60 000 km).
These fixed operations are carried out:
– with synthetically based oil, Fuel Economy oil or synthetic oil;
– with 5W 40 oil for Turbo Diesel HDI engines fitted with a particulate emission filter.
* Whichever comes first.
Page 20
15-07-2002
ARDUOUS CONDITIONS OF USE
• Continuous door-to-door use.
• Town use (e.g. taxi).
• Repeated short journeys, with the engine cold at low temperatures.
• Aprolonged stay under the following conditions:
– countries with temperatures often above +30 °C,
– countries with temperatures often below –15 °C,
– countries with a dusty atmosphere,
– countries whose lubricants or fuels do not conform to our recommendations.
Recommendations:
– replace the air filter every 24,000 miles (40 000 km) for petrol engines and every 27,000 miles (45 000 km) for diesel
engines,
– to replace the timing belt: contact a PEUGEOT dealer.
PEUGEOT SERVICING
24
Page 21
15-07-2002
PEUGEOT SERVICING
25
All driving conditions o Arduous conditions * According to destination
A AND C SERVICE LEVELS AND THE INTERMEDIATE VISIT
Level
Operations Description of operations
1st service
AC
Intermediate visit
DRAIN AND REFILL
- Engine oil.
- Bleed fuel filter (diesel only).
- Oil filter.
- Fuel filter* (petrol).
REPLACE
- Fuel filter (diesel).
- Air filter element.
- Spark plugs (petrol).
- Engine oil (check + top up).
- Manual gearbox oil (check + top up).
- Battery (check + top up) if cap is removable.
LEVELS
- Screen wash (check + top-up)
- Coolant (check + top up).
- Brake fluid (check + top up).
- Power steering fluid (check + top up, according to specification).
- Operation of lights and indicators.
- Condition of glass, headlamp and light lenses and mirrors.
- Horn.
- Windscreen washer jets.
- Condition of wiper blades.
- Condition and tension of the ancillary drive belts.
- Handbrake.
- Condition of hydraulic circuits (hoses and covers) and check for leaks.
CHECK
- Condition of rubber boots and gaiters.
- Brake pad wear.
- Play in hubs, link rods, ball joints, flexible mountings.
- Shock absorbers for leaks.
- Rear drum brake lining wear.
- Condition and pressure of tyres (including spare wheel).
- Emission control check according to current legislation (petrol).
- Smoke opacity (diesel).
- Pollen filter (according to specification).
- Visual check of the whole vehicle by a Peugeot technician.
SERVICE
- Courtesy vehicle
ROAD TEST
Page 22
15-07-2002
DIESELPETROL
26
(1) Minimum grade: Petrol engines: ACEA A3 and API SH/SJ; diesel engines: ACEA B3 and API CF/CD ACEA = Association de Constructeurs Européens Automobiles (Association of European Automobile Manufacturers) API = American Petroleum Institute
If oil is used which does not conform to ACEA A3-B3 standard, this requires the 'Arduous conditions' servicing schedule to be followed, which involves shorter intervals between services.
Use only 5W 40 oil for diesel engines with particulate emission filter.
* Fuel Economy oil cannot be used for the 2.2 l 16V petrol engine and for diesel engines with particulate emission filter.
TRADE NAMES OF APPROVED AND RECOMMENDED LUBRICANTS IN EUROPE (1)
DIESEL PETROL
Page 23
15-07-2002
27
Recommendation for
approved lubricants
The oils which appear in the table
opposite are suitable for most purposes.
The diagram opposite states the
optimum range of viscosity depending on the temperatures at which the
oils are to be used.
It is also possible to use synthetic
oils of 'superior quality'.
In the absence of semi-synthetic or
synthetic oils, oils of API SH/SJ quality (for petrol engines) or CD/CF
quality (for diesel engines) can be
used by following the 'Arduous conditions' servicing schedule, which
specifies shorter intervals.
Do not hesitate to ask for advice
from a PEUGEOT dealer to maintain
driving pleasure and to minimise the
maintenance cost of your vehicle.
For countries outside Europe, please
contact a local PEUGEOT dealer.
ONLY ONLY
Manual ESSO GEAR OIL BV TOTAL TRANSMISSION BV
gearbox 75W 80 Part no. 9736.41 75W 80
Automatic ONLY
gearbox ATF 4HP20-AL4
4HP20 Part no. 9736.22
Power steering ESSO ATF D TOT ALFLUIDE A T42
Part no. 9730.94
Power steering FLUIDE DA Part no. 9730. A1*
Brake fluid PEUGEOT DOT 4
Coolant PROCORTM108/GLYSANTIN G33 or REVKOGEL 2000
ONLY.Protection to -35°C
*Only in very cold climates.
Other approved products
PEUGEOT SERVICING
Page 24
15-07-2002
INSTRUMENTS AND CONTROLS
28
1 - Handbrake indicator light.
2 - Main beam headlamps indicator
light.
3 - Dipped beam headlamps
indicator light.
4 - Rev counter.
5 - Left-hand direction indicator.
6 - Fuel gauge.
7 - Right-hand direction indicator.
8 - Speedometer.
9 -Front fog lamps indicator light.
10 -ABS anti-lock braking system
warning light.
11 - Rear fog lamps indicator light.
12 -Engine diagnostics warning
light.
13 -Coolant temperature indicator.
14 -CHECK button.
15 -Trip recorder zero re-set.
16 -Service indicator and total
distance recorder.
17 -Warning/status screen.
18 -Illumination button +.
19 -Illumination button -.
20 -Engine oil level indicator.
-Engine oil temperature
indicator.
INSTRUMENT PANEL DIALS: PETROL
Page 25
15-07-2002
INSTRUMENTS AND CONTROLS
29
1 - Handbrake indicator light.
2 - Main beam headlamps
indicator light.
3 - Dipped beam headlamps
indicator light.
4 - Rev counter.
5 - Left-hand direction indicator.
6 - Fuel gauge.
7 - Right-hand direction indicator.
8 - Speedometer.
9 -Front fog lamps indicator light.
10 -ABS anti-lock braking system
warning light.
11 - Rear fog lamps indicator light.
12 -Engine diagnostics warning
light.
13 -Coolant temperature indicator.
14 -CHECK button.
15 -Trip recorder zero re-set.
16 -Service indicator and total
distance recorder.
17 -Warning/status screen.
18 -Illumination button +.
19 -Illumination button -.
20 -Engine oil level indicator.
-Engine oil temperature
indicator.
INSTRUMENT PANEL DIALS: DIESEL
Page 26
15-07-2002
INSTRUMENTS AND CONTROLS
30
INDICATOR LIGHTS
With the key in the accessories position (1st notch): the battery charge warning light illuminates on the instrument panel display .
With the ignition on (2nd notch): the following three warning lights illuminate on the sides of the instrument panel:
Brake fluid level and brake force distribution fault warning light.
This light should go out after 3 seconds.
If the warning light remains on, or if it comes on when the engine is running and the vehicle is moving, it indicates
an excessive drop in the brake fluid level or a malfunction of the brake force distribution.
Stop immediately. Contact a PEUGEOT dealer.
Anti-lock braking system (ABS) warning light
This should go out after 3 seconds.
If the warning light remains on or comes on above 8 mph (12 km/h), this indicates a malfunction of the ABS.
However, the vehicle retains conventional servo-assisted braking.
Contact a PEUGEOT dealer.
Engine diagnostics warning light
This should go out 3 seconds after the engine starts.
If it flashes with the engine running, this indicates a malfunction in the injection or the ignition system. There is a risk
of damage to the catalytic converter (petrol engine only).
If it is on continuously, this indicates a fault in the emission control system.
Contact a PEUGEOT dealer as soon as possible.
At the same time, on the instrument panel display:
If no malfunction has been detected: the OK light comes on after two seconds (following a black screen), in the
absence of indicator lights showing the status of vehicle functions. If these indicator lights are present, the OK button will come on after these. You may start your vehicle.
If a 'minor' malfunction has been detected: the warning light for the faulty function comes on. Certain indicator
lights showing the status of vehicle functions may also come on, followed by the OK indicator light. You can start
your vehicle; however, contact a PEUGEOT dealer as soon as possible.
If a 'major' malfunction has been detected: the corresponding warning light comes on. Certain indicator lights showing
the status of vehicle functions may also come on. The OK indicator light does not come on. Do not start your vehicle.
Contact a PEUGEOT dealer.
Afterwards, if the passenger air bag is disarmed, the corresponding indicator light will come on.
Page 27
15-07-2002
INSTRUMENTS AND CONTROLS
31
Coolant temperature warning light
This symbol is accompanied by an audible signal and the message
'Engine temperature too high' on the multi-function display.
It is linked to the STOP warning light. Stop immediately.
Warning: wait for the engine to cool.
If necessary, top up the level.
With the engine running and the vehicle moving
The instrument panel display temporarily shows:
– lights indicating warnings, when these occur,
– vehicle function status indicator lights, when a change occurs.
Certain warning lights may be accompanied by an audible signal and a
message on the multi-function display.
List of warning symbols
MANUAL CHECK
(vehicle autotest)
☞ Press the "CHECK" button on
the instrument panel.
With the ignition key in the accessories position, with the ignition
switched on, with the engine running
or when the vehicle is moving, this
function informs you at all times of
the following:
– any current warnings,
– the status of functions which it is
possible to switch on or off (windscreen wipers, automatic switching on of lights, cruise control, disarming of passenger air bag, etc.).
The corresponding warning lights
are displayed in succession on the
instrument panel screen.
If a warning or a change of status
occurs during the CHECK mode, the
corresponding indicator lights will be
displayed at the end of this mode.
CHECK mode entry indicator light (vehicle
autotest)
This comes on when you
press the 'CHECK' button.
CHECK mode exit indicator light (vehicle autotest)
This comes on at the end of
the CHECK mode.
Engine oil pressure warning light
This symbol is accompanied by an audible signal and the message
'Insufficient engine oil pressure' or 'Engine oil pressure too low' on
the multi-function display.
It is linked to the STOP warning light.
Stop immediately if this comes on when the engine is running.
If there is a lack of oil in the lubrication circuit, top up the level.
Contact a PEUGEOT dealer as soon as possible.
Puncture warning light
This symbol comes on accompanied by an audible signal and the mes-
sage 'Punctured tyre(s) detected' on the multi-function display.
It is linked to the STOP warning light. Stop immediately.
Change the damaged wheel.
Have it repaired by a PEUGEOT dealer.
Page 28
15-07-2002
INSTRUMENTS AND CONTROLS
32
STOP warning light
This comes on after the engine oil pressure, coolant temperature or puncture warning lights, to which it is linked.
Stop immediately. Contact a PEUGEOT dealer.
Brake fluid level and brake force distribution fault warning light
This is linked to the light on the instrument panel.
Display of this warning light accompaned by an audible signal and the message 'Brake fluid low' indicates an
excessive drop in the brake fluid level.
Display of this warning light, accompanied by an audible signal and the message 'Braking system faulty' on the multi-func-
tion display indicates a malfunction of the brake force distribution system.
Stop immediately in both cases. Contact a PEUGEOT dealer.
Dynamic stability control (ESP/ASR) warning light
Display of this warning light, accompanied by an audible signal and the message 'ESP/ASR system faulty' on the
multi-function display indicates a system malfunction.
Contact a PEUGEOT dealer.
Handbrake warning light
Display of this warning light, accompanied by an audible signal (vehicle moving) and the message 'Handbrake on'
on the multi-function display, indicates that the handbrake is applied or has not been released correctly.
Battery charge warning light
This comes on each time the ignition key is in the accessories position (1st notch).
Display of this warning light when the engine is running is accompanied by an audible signal and the message 'Bat-
tery charge fault' on the multi-function display.
This can indicate:
– faulty operation of the charging circuit,
– loose battery or starter terminals,
– a cut or slack alternator belt,
– an alternator fault.
Contact a PEUGEOT dealer.
Page 29
15-07-2002
INSTRUMENTS AND CONTROLS
33
Tyre under-inflation warning light
Display of this warning light is acompanied by an audible signal and the message 'Tyre(s) pressure low' on the
multi-function display.
Have the tyre pressure checked as soon as possible.
Low coolant level warning light
Display of this warning light is accompanied by an audible signal and the message 'Cooling circuit level low' on
the multi-function display.
Stop immediately.
Warning: wait for the engine to cool before topping up.
The cooling system is pressurised.
In the event of breakdown and to prevent the risk of scalding, unscrew the cap by two turns to allow the pressure to drop.
When the pressure has dropped, remove the cap and top up the level.
Contact a PEUGEOT dealer.
Seat belt not fastened warning light
Display of this warning light is accompanied by an audible signal and the message 'Seat belt not fastened' on the
multi-function display.
With the engine running, the warning light comes on when the driver's seat belt is unfastened.
Electronic immobiliser warning light
Display of this warning light is accompanied by an audible signal and the message 'Electronic theft protection
faulty' on the multi-function display.
It indicates a malfunction of the electronic immobiliser system.
Contact a PEUGEOT dealer.
Page 30
15-07-2002
INSTRUMENTS AND CONTROLS
34
Water in diesel filter warning light (according to country)
Display of this warning light is accompanied by an audible signal and the message 'Water in diesel filter' on the
multi-function display.
There is a risk of damage to the injection system.
Contact a PEUGEOT dealer as soon as possible.
Front brake pad wear warning light
Display of this warning light is accompanied by an audible signal and the message 'Brake pads worn' on the multi-
function display.
For your safety, have the pads replaced by a PEUGEOT dealer as soon as the warning light comes on.
Low fuel level warning light
Display of this warning light is accompanied by an audible signal and the message 'Fuel level low' on the multi-
function display.
When the warning light comes on, you have enough fuel to drive approximately 30 miles (50 km). The tank capac-
ity is approximately 80 litres.
Fuel cap warning light
Display of this warning light is accompanied by an audible signal and the message 'Fuel cap open' on the multi-
function display.
It comes on if the fuel tank cap is not correctly screwed on or is missing.
Door/bonnet/boot open warning light
Display of this warning light with the engine running is accompanied by an audible signal and an illustration on the
multi-function display, showing which opening has not been correctly closed.
Air bag warning light
Display of this warning light is accompanied by an audible signal and the message 'Air bag faulty' on the multi-
function display.
Contact your PEUGEOT dealer.
Page 31
15-07-2002
INSTRUMENTS AND CONTROLS
35
Engine diagnostics warning light
This is linked to the warning light on the instrument panel.
Display of this warning light is accompanied by an audible signal and the message 'Engine emission control sys-
tem faulty' on the multi-function display.
If it flashes when the engine is running, this indicates a malfunction in the injection, ignition or emission control system. There
is a risk of damage to the catalytic converter (petrol engine only).
Contact a PEUGEOT dealer as soon as possible.
Bulb blown warning light
Display of this indicator light is accompanied by an audible signal and the message 'Bulb... faulty' on the multi-func-
tion display, indicating the faulty bulb: a bulb in the dipped beam lights, the side lights, the direction indicator lights
(except side repeaters) or the brake lights (except the central brake light).
Change the faulty bulb.
Windscreen/headlamp wash reservoir warning light
Display of this warning light is accompanied by an audible signal and the message 'Screenwash low' on the multi-
function display.
Fill the windscreen/headlamp wash reservoir the next time you stop.
Particulate emission filter saturation warning light (diesel engine)
Display of this warning light is accompanied by an audible signal.
When it occurs with the engine running, this indicates the start of saturation of the particulate emission filter (excep-
tionally long periods of town type driving conditions: reduced speed, long tailbacks...).
To regenerate the filter, you are advised to drive as soon as possible and when traffic conditions permit at a speed of 35 mph
(60 km/h) or more for at least five minutes (until the warning light goes out).
If the light remains on, contact a PEUGEOT dealer.
Note: After prolonged operation of the vehicle at a very low speed or at idle, you may sometimes notice steam coming from
the exhaust during acceleration. This has no effect on the performance of the vehicle or on the environment.
Page 32
15-07-2002
INSTRUMENTS AND CONTROLS
36
Anti-lock braking system (ABS) warning light
This is linked to the warning light on the instrument panel.
Display of this warning light is accompanied by an audible signal and the message 'ABS faulty' on the multi-func-
tion display.
If the warning light remains on, or comes on at over 8 mph (12 km/h), this indicates a malfunction of the ABS.
However, the vehicle retains conventional servo-assisted braking.
Contact a PEUGEOT dealer.
Automatic headlamp adjustment warning light
Display of this warning light is accompanied by an audible signal and the message 'Automatic adjustment of
headlamps faulty' on the multi-function display.
It comes on if there is a malfunction of the system.
Contact a PEUGEOT dealer.
Automatic gearbox fault warning light
Display of this warning light is accompanied by an audible signal and the message 'Automatic gearbox faulty' on
the multi-function display.
It comes on if there is an abnormality in the automatic gearbox.
The gearbox will continue to operate in downgrade mode (locked in 3rd gear).
Contact a PEUGEOT dealer.
Tyre under-inflation detector battery flat / remote control battery flat / impact sensor fault / wheel(s) miss-
ing warning light
Display of this warning light is accompanied by an audible signal and a message on the multi-function display show-
ing the cause of the warning:
– 'Tyre pressure sensor battery charge low',
– 'Remote control battery charge low',
– 'Impact sensor faulty',
– 'X tyre pressure sensor(s) missing'.
Contact a PEUGEOT dealer.
Page 33
15-07-2002
INSTRUMENTS AND CONTROLS
37
List of status indicator lights
SPORT suspension indicator light
Display of this indicator light is accompanied by an audible signal.
The indicator light comes on when the SPORT function is switched on.
Dynamic stability control (ESP/ASR) system disarming indicator light
Display of this indicator light when the system is disarmed is accompanied by an audible signal and the message
'ASR/ESP systems de-activated' on the multi-function display.
Dynamic stability control (ESP) system operation indicator light
This comes on when the system starts to function.
Diesel engine pre-heat indicator light
If the temperature is high enough, the indicator light does not come on and you can start the engine immediately.
If the indicator light does come on, wait for it to go out before operating the starter.
Air bag disarming indicator light*
Display of this light is accompanied by an audible signal and the message 'Passenger air bag disarmed' on the
multi-function display.
If the passenger air bag is disarmed, the indicator light comes on when the ignition is switched on (2nd notch).
In all cases, if the indicator light flashes, contact a PEUGEOT dealer.
*According to country
Page 34
15-07-2002
INSTRUMENTS AND CONTROLS
38
Automatic headlamps disarming indicator light
Display of this light is accompanied by an audible signal.
The light comes on when the function is disarmed.
Automatic headlamps indicator light
Display of this light is accompanied by an audible signal.
The indicator light comes on when the function is activated.
Automatic windscreen wiper disarming indicator light
Display of this light is accompanied by an audible signal.
The indicator light comes on when the function is disarmed.
Automatic windscreen wiper indicator light
Display of this light is accompanied by an audible signal.
The indicator light comes on when the function is activated.
Cruise control indicator light
Display of this light is accompanied by an audible signal.
The indicator light comes on when the function is activated.
AUTO suspension indicator light
Display of this light is accompanied by an audible signal.
The indicator light comes on when the SPORT function is disarmed.
Page 35
15-07-2002
INSTRUMENTS AND CONTROLS
39
Automatic gearbox selector lever position indicator lights
'Park' indicator lights
'Reverse' indicator lights
'Neutral' indicator lights
'Drive' indicator lights
Note: the letter S and the symbol
linked to the above indicator lights correspond respectively to the Sport and Snow oper-
ating programmes.
'Manual' indicator lights
These indicator lights correspond to the four manually operated gears.
Page 36
15-07-2002
INSTRUMENTS AND CONTROLS
40
Coolant temperature indicator
When the needle is in zone A, the
temperature is correct.
When the needle is in zone B, the
temperature is too high.
In cases where the coolant temperature warning light comes on
(linked to the STOP warning light),
you must stop immediately.
Warning: wait for the engine to cool
down.
If necessary, top up the level.
Because the cooling system is pressurised, to prevent the risk of scalding, turn the cap two turns to allow
the pressure to drop.
When the pressure has dropped,
remove the cap and top up the level.
Contact a PEUGEOT dealer.
Engine oil level and
temperature
When the ignition is switched on, this
gauge indicates the engine oil level
for approximately 20 seconds, then it
indicates the engine oil temperature.
Engine oil level
The reading is valid only if the vehicle is on level ground, and the
engine has been switched off for 10
minutes.
With the ignition on, wait for the
graduated sector to light up and the
indicator needle to move.
When the needle is in zone C, the oil
level is correct.
When the needle is in zone D, the oil
level is incorrect.
There is a risk of damage to the
engine.
☞ Check the level with the dipstick.
You must top up the level without
exceeding the maximum level on
the gauge.
Engine oil temperature
When the needle is in zone E, the
temperature is correct.
When the needle is in zone F, the
temperature is too high.
Reduce your speed to lower the
temperature.
Service indicator and total
distance recorder
When the ignition is switched on, this
indicates servicing information for a
few seconds, then the total and trip
distances.
Service function
See the 'Service indicator' section.
Total distance recorder function
The total distance is displayed on the
left side of the screen and the trip
distance on the right side.
Page 37
15-07-2002
Trip recorder
zero reset
With the ignition on, press
the button.
INSTRUMENTS AND CONTROLS
41
Manual operation
With the headlamps on, press button
B to increase the brightness of the
instrument panel lighting or button A
to reduce it.
As soon as the lighting reaches the
required level of brightness, release
the button.
Illumination
buttons
Automatic operation
The degree of illumination of the
instrument panel automatically
adapts to the external brightness.
By day, the setting cannot be altered.
At night, the brightness can be
increased by means of button B.
A PEUGEOT dealer is able to cancel
automatic operation if you prefer
manual operation.
Page 38
15-07-2002
YOUR 607 IN DETAIL
42
THE MULTI-FUNCTION
DISPLAY
General
The multifunction, monochrome C or
colour display shows the
following:
– the time,
– the date,
– the outside temperature (symbol
°C flashes if there is a risk of ice),
– the audio system displays,
– the telephone displays,
– status of the openings,
– warning messages (e.g. 'Fuel level
low') and vehicle function status
messages, displayed temporarily,
– trip computer display (see corre-
sponding section),
– satellite navigation system dis-
plays* (see corresponding sec-
tion),
– video images.
It is controlled by a keypad.
Superimposed display
When the status of a function (audio
system, telephone, trip computer,
satellite navigation system,....)
changes while the display has been
showing a different function, a window opens to announce the modification (information / warning message), then disappears.
* According to country
The control pad
This enables the functions, controls and parameters displayed to be selected
and validated. It is located next to the display.
Dial; This has two functions:
– Rotation of the dial:
This allows you to move around the screen and thus select a
function.
It also allows you :
– after selection of a 'setting' type parameter, to increase or
decrease the value,
– with a 'list' type parameter, to open the list and scroll through
the values.
– Pressing the dial:
This allows:
– confirmation of the selected function or the modified value.
– selection of a 'setting' or 'list' type parameter in order to
modify it.
– cancelling of a superimposed display.
'MENU' button:
This allows access at any time to the general menu.
'MODE' button:
– brief press:
– monochrome screen C: selection of functions (audio system,
navigation / guidance...),
– colour screen: access to the list of controls (context menu) of
the function being displayed.
– Press for more than two seconds: putting the screen on standby.
'ESC' button:
– brief press: cancelling of the operation in progress and a return
to the previous screen or erasing of a superimposed display.
– press for more than two seconds: return to the start-up screen.
Page 39
15-07-2002
YOUR 607 IN DETAIL
43
Setting the parameters
From the 'general menu', the
'Display configuration' menu
allows you to access the following
parameters:
– setting the video brightness and
display,
– setting the date and time,
– choosing the language in which
information is heard and displayed
(German, Spanish, French, Eng-
lish, Italian), setting the formats
and the units. These settings allow
you to choose a display in km/h or
mph, the temperature in Celsius or
in Fahrenheit, and to modify the
hour (12 or 24 hour) and date
format.
Monochrome screen C
General menu
Press the 'Menu' button to select
one of the following functions:
–navigation/guidance*
(see Section on 'Satellite navigation system'),
–display configuration
(see paragraph on 'Setting the
parameters', below),
–navigation options*
(see Section on 'Satellite navigation system'),
–telephone phone books
(see 'RT2 audio equipment' section).
* According to destination.
The colour screen
General menu
From the general menu, select one
of the following functions by turning
the dial then press the dial to confirm:
• general information,
• navigation/guidance*,
• map*,
• trip computer,
• settings,
• video.
Note: to enable you to make full use
of all the system functions, you have
two CD-Roms: one contains the software and the different languages of
the voice synthesis, the other contains the "Satellite navigation system" map data. The latter must be in
the drive for the "Navigation/Guidance" and "Map" functions to be
active.
Page 40
15-07-2002
Language
Select the required language, then
confirm and record the modification.
The system then asks you to load
the language inn the navigation
system.
Select "YES" then confirm.
YOUR 607 IN DETAIL
44
General information
The 'General information' function
displays an information summary on
the following items:
– the time, outside temperature, date
or telephone status,
– the audio equipment and the tele-
phone,
– the range (see Section on 'Trip
computer'),
– Navigation/guidance details* not
covered by the map (see Section
on 'Satellite navigation system').
The context menu for this function
enables you to access:
– the parameters to adjust for opti-
mum use of the screen,
– the telephone directories (SIM,
BIS, and TEL).
* According to destination.
Setting the parameters
To modify a parameter, press the dial or
the mode button.
The 'Settings' function displays a summary of the settings used.
The context menu allows you to change
these settings:
– language used for vocal messages or
visual displays (French, English, German, Spanish, Italian, Dutch),
– colour (blue, green, grey, beige /
auto),
– brightness,
– frame (horizontal, vertical),
– time / date,
– units (km-litres, miles-gallons, °C, °F).
To confirm modification of a
setting, select 'OK', then confirm
by pressing the dial.
Carry out this operation with the
engine running to prevent activa-
tion of the vehicle's energy economy mode and therefore cutting off
of the electrical supplies during loading of the data.
Page 41
15-07-2002
YOUR 607 IN DETAIL
45
Carry out this operation with the
engine running to prevent activa-
tion of the vehicle's energy economy
mode and therefore cutting off of the
electrical supplies during loading of
the data.
Changing the colours
Select the desired colour, then confirm.
If required, select 'automatic
day/night', then confirm and record
the changes.
Note: this function allows the system
to change automatically to 'Night'
colour when the vehicle lights are on.
Changing the brightness
Select the 'Brightness' function,
then confirm:
– turn the dial clockwise to increase,
– turn the dial anti-clockwise to
decrease.
Record the modifications.
Note: this function allows only limit-
ed adjustment of the brightness,
since the screen lighting is dependent on the sunshine/brightness sensor in the vehicle.
Page 42
15-07-2002
Changing the brightness
Select the 'Brightness' function,
then confirm:
– turn the dial clockwise to increase,
– turn the dial anti-clockwise to
decrease.
Record the modifications.
Note: this function allows only limit-
ed adjustment of the brightness,
since the screen lighting is dependent on the sunshine/brightness sensor in the vehicle.
Setting the time and date
Select the 'Hours' function, then
confirm:
– turn the dial clockwise to scroll
upwards through the hours, or turn
it anti-clockwise to scroll down-
wards through the hours,
– confirm, to finish setting the time.
Proceed in the same way for the
'Minutes' function.
Select the '12h' or '24h' function by
pressing the dial.
Select the 'Day' function, then confirm:
– turn the dial clockwise to scroll for-
wards through the days, or turn it
anti-clockwise to scroll backwards
through the days,
– confirm, to finish setting the day.
Proceed in the same way for the
'Month' and 'Year' functions.
Record the changes.
Changing the units
Select the units required, then confirm and record the changes.
YOUR 607 IN DETAIL
46
Page 43
15-07-2002
Videos
Video sockets may be used what-
ever the position of the key. It is
impossible to use the video when
driving above 20 mph (30 km/h).
You have three cinch (RCA) points,
located in the glove box, for connecting a camcorder, a DVD drive, etc.:
– a video socket (yellow),
– two audio system sockets (red +
white) for stereophonic sound.
The video connection is compatible
with PAL, SECAM and NTSC.
Open the glove box and connect the
equipment.
Switch on the equipment.
To set the video, press the 'MENU'
button to access the general menu,
then select the 'Video' symbol and
confirm.
YOUR 607 IN DETAIL
47
Page 44
15-07-2002
Stalk movement Function
1 - Upwards Increase volume
2 - Downwards Decrease volume
3 - Forwards Automatic search of higher frequencies (radio)
Press for more than 2 seconds, repeat until button is released: manual search of
higher frequencies (radio) - Selection of next track (cassette and CD)
Press for more than 2 seconds until button is released: fast forward (cassette and CD)
4 - Backwards Automatic search of higher frequencies (radio)
Selection of previous track (cassette and CD)
Press for more than 2 seconds until button is released: rewind (cassette and CD)
5 - Press the end Change of source (Radio/cassette/CD)
6 - Rotation Selection of next station stored in memory (radio) - Selection of next CD (CD)
(clockwise) Reversal of direction of play (cassette)
7 - Rotation Selection of previous station stored in memory (radio) - Selection of previous CD (CD)
(anti-clockwise) Reversal of direction of play (cassette)
YOUR 607 IN DETAIL
48
AUDIO RM2
Page 45
15-07-2002
Button Function
A ON/VOL Radio on/off Adjustment of volume.
B Selection of the radio . Selection of FM1, FM2, FMast and AM wavebands.
Press for more than 2 seconds: automatic storing of stations in the memory (autostore).
C Selection of cassette. Reversal of the direction of play.
Press for more than 2 seconds: noise reduction.
D Selection of the CD changer.
Press for more than 2 seconds: shuffle.
E ▲
Ejection of the cassette.
F ▲ Increase audio setting.
G AUDIO Adjustment of bass, treble, loudness and sound distribution.
H ▼ Decrease audio setting.
I TA Traffic information priority on/off.
Press for more than 2 seconds: PTY function on/off.
J RDS RDS function on/off.
Press for more than 2 seconds; regional following mode on/off.
K MAN Manual/automatic operation of buttons L and M in radio mode.
L
jjjj
Automatic search of lower frequency.
Selection of previous cassette and CD track.
M
kkkk
Automatic search of higher frequency.
Selection of next cassette and CD track.
1 to 6 12 34 56 Selection of station stored in the memory.
Press for more than 2 seconds: storing a station in the memory.
Selection of a CD changer disc.
YOUR 607 IN DETAIL
49
Page 46
15-07-2002
50
Stalk movement Function
1 - Upwards Increase volume
2 - Downwards Decrease volume
3 - Forwards Automatic search of higher frequencies (radio)
Press for more than 2 seconds, repeat until button is released: manual search of
higher frequencies (radio) - Selection of next track (CD)
Press for more than 2 seconds until button is released: fast forward (CD)
Selection of following page (Tel.) – Press for more than 2 seconds: selection of last page (Tel.)
4 - Backwards Automatic search of lower frequencies (radio)
Press for more than 2 seconds, repeat until button is released: manual search of
lower frequencies (radio) - Selection of previous track (CD)
Press for more than 2 seconds until button is released: rewind (CD)
selection of previous number (Tel.) – Press for more than 2 seconds: selection of first page (Tel.)
5 - Press the end Change of source (Radio/CD)
Press for more than 2 seconds: switch between radio/tel. mode.
Selection of directory (Tel./off) - Lift/replace handset (Tel./on).
6 - Rotation Selection of next station stored in memory (radio) - Selection of next CD (CD)
(clockwise) Selection of following menu item (Tel.)
7 - Rotation Selection of previous station stored in memory (radio) - Selection of previous CD (CD)
(anti-clockwise) Selection of previous menu item (Tel.)
YOUR 607 IN DETAIL
AUDIO/TELEPHONE RT2
Page 47
15-07-2002
Button Function
A Radio on/off. Adjustment of volume.
B TUNER Selection of the radio. Selection of FM1, FM2, FMast and AM wavebands.
D CD Selection of CD changer: shuffle.
F #kkTA Higher frequency - TA - Press for more than two seconds: PTY.
G 0 + AUDIO Adjustment of bass, treble, loudness, sound distribution and automatic
volume correction.
H
jj
* RDS Lower frequency - RDS - Press for more than 2 seconds: Regional following mode.
K MAN Manual/automaic operation of buttons L and M.
Selection of options. In telephone mode this button allows 4 menus to be accessed.
L Automatic search of lower frequency - Selection of previous CD track.
jjjj
Press for more than 2 seconds: backwards accelerated play (CD).
Selection of previous page (Tel.)
Press for more than 2 seconds: selection of first page (Tel.)
M Automatic search of higher frequency - Selection of next CD track.
kkkk
Press for more than 2 seconds: forwards accelerated play (CD).
Selection of following page (Tel.) - Press for more than 2 seconds: selection of last page (Tel.)
O HELP 'PEUGEOT' direct line (if option and service are available).
P Replace handset. Return to previous menu.
Q C Cancel. Refuse call.
R OK Lift handset. Validate function.
S TEL Selection of telephone - Switching off of microphone.
1 to 6 1 2 3 4 5 6
Selection of a station stored in the memory. Press for more than 2 seconds: storing a station in the memory.
Selection of a CD changer disc.
0 to 9 * #
0 1 2 3 4 5
Telephone keypad.
6 7 8 9 * #
51
YOUR 607 IN DETAIL
Page 48
15-07-2002
GENERAL FUNCTIONS
On/off
With the ignition key in the accessories position (1st notch) or with the ignition on (2nd notch), press button
A to switch the set on or off.
The set can operate for 30 minutes without the vehicle ignition being switched on.
Anti-theft system
The audio system is coded in such a way that it can operate only on your vehicle. It would not function if fitted to another
vehicle.
This system is automatic and requires no action on your part.
ADJUSTING THE SOUND
Turn button A to increase or decrease the volume.
Note: the automatic volume correction function "CAV", which depends on the speed of the vehicle, is acces-
sible using the audio menu on the multi-function display.
AUDIO SETTINGS
Press the 'AUDIO' button several times in succession to access the bass (BASS), treble (TREB), loudness
(LOUD), fader (FAD), balance (BAL) and automatic volume correction (CAV).
Exit from audio mode is automatic after a few seconds without pressing any button, or by pressing the
'AUDIO' button after adjusting the balance.
Note: bass and treble settings are specific to each source. It is possible to set them differently for radio,
cassette (RM2 audio) or CD changer.
YOUR 607 IN DETAIL
52
Page 49
15-07-2002
YOUR 607 IN DETAIL
53
Adjusting the bass
When 'BASS' is displayed, press button F or H to vary the setting:
– 'BASS -9' for a minimum bass setting,
– 'BASS 0' for a normal setting,
– 'BASS +9' for a maximum bass setting.
RM2 RT2
Adjusting the treble
When 'TREB' is displayed, press button F or H to vary the setting:
– 'TREB -9' for a minimum treble setting,
– 'TREB 0' for a normal setting,
– 'TREB +9' for a maximum treble setting.
Adjusting the loudness
This function automatically emphasises bass and treble tones.
Press button F or H to switch the function on or off.
Adjusting the front/rear sound distribution (Fader)
When 'FAD' is displayed, press button F or H to vary the setting.
Button F increases the volume in the front.
Button H increases the volume in the rear.
Page 50
15-07-2002
YOUR 607 IN DETAIL
54
Adjusting the left/right sound distribution (Balance)
When 'BAL' is displayed, press button F or H to vary the setting.
Button F increases the volume on the right-hand side.
Button H increases the volume on the left-hand side.
Automatic volume correction "CAV"
This function allows the volume to be adjusted automatically depending on the level of noise produced by the speed of the
vehicle. Press buttons F or H to switch the function on or off.
Note: this function is only operational from 35 mph (60 km/h).
RADIO
Notes on radio reception
Your radio is subject to phenomena which do not affect domestic radio sets. Both MW/LW and FM reception are subject to
various forms of interference. This is no reflection on the quality of the equipment, but is due to the nature of the signals and
the way in which they are transmitted.
On MW/LW, interference may be noticed when passing under high voltage power lines or bridges, or in tunnels.
On FM, interference may be the result of increasing distance from the transmitter, deflection of the signals by obstacles
(mountains, hills, buildings, etc.) or of being in an area which is not covered by a transmitter.
Selecting radio mode / Selecting a waveband
Press button B.
Briefly press button B to select the FM1, FM2, FMast and AM wavebands.
Automatic station search
Briefly press button M or L to search for the station immediately above or below. By continuing to press the
button in the direction selected, you will obtain continuous scrolling of the frequency.
The scrolling stops at the first station found as soon as the button is released.
Page 51
YOUR 607 IN DETAIL
55
If the TA traffic programme is selected, only stations broadcasting this type of programme are selected.
Searching for a station occurs first in 'LO' sensitivity (selection of the most powerful transmitters) during scanning of the
waveband, then in 'DX' sensitivity (selection of the weakest and most distant transmitters).
To make a direct search in 'DX' sensitivity, briefly press button M or L twice.
Manual station search
Press the 'MAN' button.
Briefly press button M or L to increase or decrease the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency.
The searching stops at the first station found as soon as the button is released.
Pressing the 'MAN' button again returns you to automatic station search.
Manual storing of stations in the memory
Select the station required.
Press one of the buttons '1' to '6' for more than two seconds.
The sound stops, then becomes audible again, confirming that the station has been stored in the memory.
RM2
RT2
15-07-2002
Page 52
15-07-2002
YOUR 607 IN DETAIL
56
Automatic storing of FM stations in the memory (autostore)
Press button B for more than two seconds, to automatically store the 6 stations with the strongest signal in
FM. These stations are stored in the FMast waveband.
If it is not possible to find 6 stations, the remaining memories are empty.
Recalling stations stored in the memory
For each waveband, briefly press buttons '1' to '6' to recall the corresponding station.
The list of the 6 stations stored on the waveband is displayed each time one of the buttons '1' to '6' is pressed.
RDS SYSTEM
Using the RDS (Radio Data System) function on FM
Radio Data System allows you to continue listening to the same station, whatever frequency it is using for the region you are
going through.
RM2 audio: Press the 'RDS' button to switch the function on or off.
RT2 audio: Press the '
jj
✱
RDS' button to switch the function on or off.
The display will show:
– 'RDS' if the function is selected.
– '(RDS)' or 'RDS
' if the function is selected but not available.
RDS station following
The display indicates the name of the station selected. The radio is continually searching for the station which has the best
reception and which is transmitting the same programme.
Page 53
15-07-2002
YOUR 607 IN DETAIL
57
Traffic information programme
RM2 audio: press the 'TA' button to switch the function on or off.
RT2 audio: press the '# kkTA' button to switch the function on or off.
The display will show:
– 'TA' if the function is selected.
– '(TA)' or 'T
A' if the function is selected but not available.
Any traffic information flash will be given priority, whatever source you are listening to (radio, cassette or CD changer).
Note: the volume of the traffic information announcements is independent of the volume of normal radio listening. You can
adjust it by using the volume button. The setting will be stored and will be used when the next messages are broadcast.
Regional following mode
When they are part of a network, certain stations broadcast regional programmes in the various areas they serve. With
regional following mode you can keep listening to the same programme.
RM2 audio:press the 'RDS' button for more than two seconds to switch the function on or off.
RT2 audio: press the '
jj
✱
RDS' button for more than two seconds to switch the function on or off.
Page 54
15-07-2002
PTY function
This allows you to listen to stations broadcasting a specific type of programme (news, culture, sport, rock etc.)
RM2 audio: with FM selected, press the 'TA' button to switch the function on or off.
RT2 audio: with FM selected, press the '# kkTA' button to switch the function on or off.
To search for a PTY programme:
– select the PTY function,
– briefly press button M or L to scroll down the list of the various programmes offered.
– when the programme of your choice is displayed, keep button M or L pressed for more than two seconds
to carry out an automatic search (after an automatic search the PTY function is switched off).
Audio RM2: in PTY mode the different types of programmes can be stored in the
memory. To do this, press one of the preselection buttons '1' to '6' for more than
two seconds. Briefly press the corresponding button to recall the type of programme stored in the memory.
Audio RT2: in PTY mode the different types of programmes can be stored in the memory. To do this,
press one of the preselection buttons '1' to '6' for more than two seconds. Briefly press the corresponding button to recall the type of programme stored in the memory.
EON system
This connects stations which are part of the same network. It enables the broadcast of traffic information or a PTY programme by a station, which is part of the same network as the station to which you are listening.
To do this, select the TAtraffic information programme or the PTY function.
YOUR 607 IN DETAIL
58
Page 55
15-07-2002
YOUR 607 IN DETAIL
59
CASSETTE: Audio RM2
Selecting cassette mode
When a cassette is inserted, the cassette player will start automatically.
If a cassette is already inserted, press button C.
Ejecting the cassette
Press button E to eject the cassette from the drive.
Direction of play
The player will play sides 1 and 2 of the cassette alternately, automatically reversing the direction of play at the end of the side.
To manually reverse the direction of play of the cassette, press button C.
Selecting a cassette track (blank search)
Press button M to select the next track.
Press button L to return to the start of the current track or to select the previous track.
Fast forward and rewind
Fully press button M or L to fast forward or rewind the tape. At the end of the fast forward/rewind, the current side is played.
Noise reduction (Dolby B NR system)
Press button C for more than 2 seconds to switch the function on or off.
Dolby noise reduction is manufactured under licence by Dolby Laboratories Licensing Corporation.
'Dolby' and the double D symbol are brand marks of Dolby Laboratories Licensing Corporation.
Recommendations concerning the use of cassettes
– Use good quality cassettes.
– Avoid the use of cassettes which play for more than 90 minutes.
– Never expose cassettes to heat or sunlight.
– Re-tension the tape if necessary before inserting the cassette into the player.
– Regularly clean the playing heads with a damp-type cleaning cassette.
Page 56
15-07-2002
CD CHANGER: Audio RM2 and RT2
Selecting CD changer mode.
Press button D.
Selecting a disc
Press one of the buttons '1' to '6' to select the corresponding disc.
RT2
RM2
Selecting a track
Press button M to select the next track.
Press button L to return to the start of the current track or to select the previous track.
Accelerated play
Press and hold button M or L for forwards or backwards accelerated play.
Accelerated play stops as soon as the button is released.
Shuffle (RDM)
When the CD changer is selected, press and hold button D for 2 seconds. The tracks will be played in random sequence (pressing button D for longer allows other discs to be played in random sequence). Pressing
button D again returns you to normal play.
YOUR 607 IN DETAIL
60
Page 57
15-07-2002
YOUR 607 IN DETAIL
61
This is located inside the boot, in the storage compartment on the left hand side.
It holds up to 6 discs.
To insert a disc into the changer:
– open the storage compartment panel,
– open sliding panel A,
– press button B to eject the cartridge C,
– open one of the six compartments of the cartridge by pulling tab D,
– insert the disc with the printed face upwards and close the compartment,
– insert the cartridge into the changer,
– close the sliding panel A.
CD CHANGER: Audio RM2 and RT2
The use of copied compact discs may cause malfunctions.
Page 58
15-07-2002
TELEPHONE: Audio/T elephone RT2
This function is a GSM 900 MHZ telephone incorporated in the audio system.
It possesses a 'hands free' function, provided by a microphone located in the front courtesy light and a steering column
remote control which allows access to most of the functions.
It also possesses a 'confidential' function, provided by the instrument panel located in the upper casing of the centre front
armrest.
Note: An echo may be heard for a few seconds at the beginning of the call.
The principal "mobile" type functions are shown on the display incorporated in the audio system; the menu lists can be
referrred to on the multi-function display.
This function is active when the ignition key is in the accessories position (1st notch), the ignition is switched on (2nd notch),
the engine is running or the vehicle is being driven.
Note: when the ignition key is in the accessories position (1st notch) or the ignition is switched on (2nd notch), this function
will be interrupted after thirty minutes, when the message 'Economy mode active' appears on the multi-function display. If
you are using the telephone at that time, you will be able to finish your call.
General information about the display (Audio/Telephone RT2 display)
In telephone mode, the display shows the following information, where applicable.
1. Network signal indicator (3 levels).
2. Service indicator not available.
3. Indicates a communication in progress.
4. Indicator showing connection to an outside network.
5. Indicates:
– when continuously lit: presence of an unread message or messages.
– when flashing: the message tape is full.
6. Display zone (10 symbols x 2 lines).
YOUR 607 IN DETAIL
62
Page 59
15-07-2002
Selecting telephone mode / Entering a number / Switching off the microphone
To change to telephone mode, press the 'TEL' button or for more than 2 seconds on the steering column
remote control.
Insert your SIM card fully into the slot at the front (use only the new generation 3V SIM card with bank card
format).
Note: the SIM card must not be taken out while the audio/telephone system is still in use. If you forget to do this, an audible
signal will sound for a few seconds after the ignition is switched off.
Enter your PIN number and confirm with the 'OK' button in order to access the network. The welcome screen is
displayed.
Note: the PIN code is erased each time the ignition is switched off, but the ''PIN code protection'' function may be
cancelled.
Enter the number of the person you wish to speak to on the digital keypad and pres the 'OK' button to make the call.
To switch off the microphone mid-communication, press the 'TEL' button.
Cancelling the PIN code request
To cancel the PIN code request, select 'PIN code protection' in the 'Telephone parameters' menu and confirm; select 'OFF'
and confirm, then input your PIN code and confirm.
Receiving / Ending a call
When a ringing sounds to let you know that a call is waiting, you can choose either to accept it by pressing the 'OK' button or not to accept it by pressing button P or by selecting 'Refuse call' using the steering column remote control, pressing the end to confirm.
If you do not accept it, the call is diverted to your voice mail (if this service is available and active).
To end the call, press button P or the end of the steering wheel remote control.
Note: Not accepting or ending a call by means of the steering wheel control returns the system to radio mode.
Receiving two incoming calls
During a call, when there is another incoming call, you are informed of this by a ring and a message. You may choose:
– to accept the call by pressing button 2 then "OK"; the first caller is put on hold and you are in contact with the second.
However, pressing button 2 again allows you to return to the first caller,
– to finish the call you are on and talk to the second caller by pressing button 1 then "OK",
– not to accept the new call by pressing button "C".
YOUR 607 IN DETAIL
63
Page 60
15-07-2002
Handset
To change to the 'confidential' function during a call, lift the handset located in the front armrest; the 'hands free' function
is then neutralised.
To return to the 'hands free' function during the call, replace the handset on its support.
'PEUGEOT' call*
To call PEUGEOT's Customer Contact Centre and access the services available:
– press button O then confirm by pressing O again or the 'OK' button,
– or, press button O to display the "Services" menu, select the ''Peugeot Service"* function then confirm (see
paragraph on ''Services'').
Emergency call*:
– directly enter the number 112 (it is not necessary to insert your SIM card or enter the PIN code),
– or, press button O to display the "Services" menu and select the 'Emergency call'* function then confirm (see paragraph
on ''Services'').
YOUR 607 IN DETAIL
64
Using the menus
From the welcome screen, press the "MAN" button to access the menus.
Press the "MAN" button to change from one menu to another on the list, in order to reach the one you
require.
Inside each menu:
Cancel a function using button P,
Move around using buttons M and L,
Confirm a function with the "OK" button,
Change the values with buttons F and H,
Clear using the "C" button.
Note: during communication, the menus are accessible with the exception of functions which depend on the network
(message service, sending a message etc.). In this case, to cancel any operation, use the "TEL" button rather than button
P, as this allows you to return to the welcome screen at any time.
Page 61
15-07-2002
Services
This menu gives direct access.
Press button O to display the "Services" menu and make a selection from the following three menus, then validate by press-
ing the end of the steering wheel remote control:
– ''Emergency call''* to automatically send a call containing a mini-message (SMS) which allows you to be identified and
located; vocal communication is established with the help centre,
– ''Technical assistance''* for contacting the call centre controlling the PEUGEOT breakdown service,
– ''Peugeot Service"* to contact directly the PEUGEOT customer contact centre and access the services offered.
IMPORTANT: as is the case for all telephones, your on-board telephone operates using cellular and terrestrial networks.
Because of this, connection cannot be guaranteed in all cases.
Selecting a directory
To consult the various directories, insert your SIM card and input the PIN code.
To access the 'Directories' menu, press the 'MAN' button or press the end of the steering wheel remote
control.
Make a selection from the three directories available: DIRECTORY (SIM), LAST NUMBERS CALLED or TEL (PEUGEOT
customer contact centre).
Storing numbers
Last numbers called: your phone stores in the memory the five last numbers called or which were used to call you.
To access these numbers, press the 'OK' button or the end of the steering column remote control and scroll
through these numbers using buttons M and L or the knob of the steering column remote control. Then, if
you want to call one of these numbers, press the 'OK' button, or the end of the steering column remote control.
Telephone directory (SIM): this can store around eighty numbers (if more than 80 numbers are stored on the SIM card
used, only the first 80 will be accessible).
YOUR 607 IN DETAIL
65
* If option and service available.
Page 62
15-07-2002
YOUR 607 IN DETAIL
66
Storing numbers in the telephone directory (SIM)
In the 'PHONEBOOK' menu, validate the 'New Entry' function with the 'OK' button.
Using the alphanumerical keypad input the name, telephone number and address (the memory number) or keep the one
suggested. Confirm each operation with the 'OK' button.
To access a number in the memory:
– look for and select it in the menu 'Find by name' or 'Find by address' of the 'PHONEBOOK' menu and
press the 'OK' button to make the call,
– or press the end of the steering wheel remote control for more than two seconds, look for and select the
number, then press the end of the remote control to make the call,
– or enter the memory number using the keypad, then press button F followed by the 'OK' button to make the
call.
Note: the first nine numbers in this list are directly accessible. Hold one of the nine buttons of the keypad down, then press
the 'OK' button to call.
Selecting the previous item of a menu
Press button L as many times as necessary to select the required item. Confirm with the 'OK' button.
Selecting the following item of a menu
Press button M as many times as necessary to select the required item. Validate with the 'OK' button.
Accessing mini messages
In telephone mode: when the buzzer sounds and the 'envelope' symbol is displayed on the screen, you can access new
messages by pressing the 'MAN' button.
In radio mode: when the symbol appears, you must change to telephone mode (press the "TEL" button) to be able to
access the new messages.
Note: the old stored messages are accessible. In the 'SMS' menu, confirm the 'Messages received' function with the 'OK'
button, then select the message using button 'M' or 'L' to consult it.
Page 63
15-07-2002
YOUR 607 IN DETAIL
67
Sending a mini message
Note: Before typing your first message, check that your SMS service centre number is correctly stored in the sub-menu
'SMS parameters'.
If it is not correctly stored, any message you have typed before inputting this number will be deleted and not sent.
In the 'SMS' menu, confirm the 'Send new message' function with the 'OK' button.
Input your message with the alphanumerical keypad and confirm it with the 'OK' button, then enter the number of the recip-
ient or select it from the list and confirm with the 'OK' button.
Then confirm the 'Send message' or 'Store message' function with the 'OK' button.
For sending multiple messages, the 'Store message' function allows you to re-use an existing message, to delay sending
a message, to modify a message and to send it with the 'Send the message' function.
Description of menus
'PHONEBOOK'
Find by name: gives you access to a stored name, a telephone number and allows you to erase information. The search
may be carried out either by scrolling through the list or by inputting the first letter of the name being searched for and confirming it.
Find by address: enables you to erase information and gives you access to a stored name and number by inputting the
memory number and confirming it.
New entry: this allows you to add a name and telephone number to the directory.
'SMS'
Received messages: allows you to access the old messages received.
Sending a message: allows you to key in and send short messages.
Stored messages: allows you to access and send old messages.
SMS setting: allows you to allocate to a message the service centre number (supplied by the network operator), an 'E Mail,
fax or messenger' (network service) type detail, duration of validity, etc.
Page 64
15-07-2002
YOUR 607 IN DETAIL
68
'CALL SETTINGS'
Network search: if the automatic mode is active, your telephone will automatically select the cellular network available which
is compatible with your SIM card. In manual mode, you must choose from the list of networks the one which matches the
operator who supplied you with your SIM card.
Voice mail: allows you to call your voice mail to listen to the latest messages received.
Call broadcast: activates the receipt of information issued by your network (depending on subscription agreement).
Call waiting: in the case of two simultaneous calls, you can go from one to the other.
Call diverting: allows incoming calls to be diverted to your voice mail or to another telephone number.
My phone number: allows three telephone numbers to be stored.
Barring: allows the possibilities of calls from the telephone to be restricted (it is necessary to use PIN 2 code).
Call ID display: allows your number to be disclosed to or withheld from the person being called (depending on subscription
agreement).
'TELEPHONE SETTINGS'
Cumulative time: tells you the total duration of incoming and outgoing calls.
Ring tone: allows you to select a call ring from the six options.
Ring volume: allows you to adjust the volume of the incoming call ring.
Operating tone: allows you to activate or disarm the sound signal (bleep) emitted each time a button is pressed, and to
adjust the volume.
TEL position: allows you to select the monitor speakers (left side/right side/both).
Automatic answer: allows you to programme the automatic reply (after five seconds) to an incoming call.
Automatic redial: when your call is not successful, automatic recall (ten times maximum) of the same number.
PIN request: protects your SIM card against any unauthorised use.
PIN change: lets you change your pin code.
Language select: lets you select the displayed language (French/English/German/Spanish/Italian/Dutch).
Master reset: lets you store the initial parameters of your telephone, without erasing the information in the memory.
Page 65
15-07-2002
YOUR 607 IN DETAIL
69
USING THE ALPHANUMERIC KEYPAD
To go from inputting in upper case to inputting in lower case, press and hold one of the keypad buttons numbered 0 to 9.
Buttons H and F of the keypad allow you to move the cursor to the left or right respectively, when you are inputting.
Buttons Upper case Lower case
[1] (space) . , ! ? ¡ ¿ : ; ' " () % & 1 (space) . , ! ? ¡ ¿ : ; ' " ( ) % & 1
[2] A B C Ä Å Æ Ç à 2 a b c ä å æ Ç à 2
[3] D E F É È ∆
Φ
3 d e f é è ∆Φ3
[4] G H I ì
Γ
4 g h i ì Γ4
[5] J K L
Λ
5 j k l Λ5
[6] M N O Ñ Ö Ø ò Ω 6 m n o ñ ö ø ò Ω 6
[7] P Q R S ß ∏∑7 p q r s ß ∏∑7
[8] T U V Ü ù
Θ
8 t u v ù Θ8
[9] W X Y Z
Ξ Ψ
9 w x y
Ξ Ψ
9
[10] + - * / = < > # § £ $ ¥ @ 0 + - * / = < > # § £ $ ¥ @ 0
Erasing
To erase the last character input, briefly press this button once.
To erase the whole line of characters, press this button down (more than two seconds).
Page 66
15-07-2002
YOUR 607 IN DETAIL
70
AUDIO SYSTEM (RM2 and RT2)
Presentation
Your 607 is fitted with a JBL Audio Hi-Fi system, designed specifically for the vehicle's passenger compartment.
At the heart of the system, a 240 Watt multi-function amplifier (1), located in the boot, independently controls 12
high–definition acoustic speakers.
These speakers make it possible to obtain optimum reproduction and distribution of the sound in the vehicle, in the
front and in the rear.
The speakers are located:
– in the fascia: two Micro Tweeters (4) fitted in two Mediums (5) for clear reproduction of the sound.
– in the front doors: two Woofers (6) for reproduction of the bass (low frequencies).
– in the rear doors: two Tweeters (2) and two Woofers (3) permitting a balance of frequencies (of the bass and the treble)
in the rear.
– on the rear shelf: two Subwoofers (7), designed specifically for reproduction of the extreme bass (very low frequencies)
for real listening pleasure: you will notice the impact and depth without noticing that the sound comes from the rear
of the vehicle.
Adjustment in CD mode
The basic functions remain those of the audio equipment.
No further adjustment is required. However, to benefit fully from your JBL audio system you are advised
to adjust AUDIO functions (BASS, TREB, FAD, BAL)
to "0" (zero) and the Loudness (LOUD) to the "ON"
position.
Page 67
15-07-2002
The control pad
This lets you select and confirm the functions, controls and programmes displayed. It is located by the side of the screen.
Dial; this has two functions:
– Rotation of the dial:
This allows you to move round the screen and thus select a
function.
It also allows you:
– with a 'setting' type parameter, after selection, to increase
or decrease the value,
– with a 'list' type parameter, to open the list and scroll
through the values.
– Pressing the dial:
This allows:
– confirmation of the selected function or the modified value.
– selection of a 'setting' or 'list' type parameter for modifica-
tion.
– cancelling of a superimposed display.
'MENU' button:
This allows access at any time to the general menu.
'MODE' button:
– brief press:
– monochrome screen C: selection of functions (audio sys-
tem, navigation / guidance...),
– colour screen: access to the list of controls (context menu)
of the function being displayed.
– Pressing for more than two seconds puts the screen on standby.
'ESC' button:
– brief press: cancelling of operation in progress and return to the
previous screen or erasing of a superimposed display.
– pressing for more than two seconds returns to the welcome
screen.
71
SATELLITE NAVIGATION
SYSTEM
Introduction
The satellite navigation system
guides you, by means of vocal and
visual instructions (graphics), to
your chosen destination.
The heart of the system lies in the
use of a map data base and GPS
(Global Positioning System). With
this system you can fix the position
of your vehicle by means of a satellite network.
The system uses the following elements:
– the control pad,
– the CD-ROM drive,
– the last voice message and route
change recall control,
– the map data in CD-ROM format,
– the monochrome or colour screen.
Certain functions or services
described may vary depending
on the version of CD-ROM or the
country where the vehicle is sold.
YOUR 607 IN DETAIL
Page 68
15-07-2002
The CD-ROM drive
This is located on the left hand side of the boot. Open the
panel to access it.
1. Ejection button of the CD-ROM.
2. CD-ROM housing.
3. The CD indicator light shows the presence of a CD-ROM
in the drive.
72
YOUR 607 IN DETAIL
The last voice message and route change recall
control
A brief press on the button on
the end of the lights stalk
repeats the last voice information and if necessary provides more detailed voice and
graphic information on the
route ahead.
Press for more than two seconds to make a route change.
The CD–ROM
This contains all the map
data.
It must be inserted in the
drive, printed face upwards.
With the colour screen, you
have a second CD-ROM (software) containing the voice
synthesis software and languages.
The use of copied compact discs may cause
malfunctions.
Page 69
15-07-2002
YOUR 607 IN DETAIL
73
Satellite navigation system with monochrome
screen C
General remarks regarding the display
When using menus, the functions which appear at the bottom of the screen are presented in various ways:
1 – Function selected,
2 – Function inaccessible in this situation.
3 – Function accessible.
Note: the 'List' function can hold a maximum of
80 addresses.
During guidance, the screen displays various information,
depending on the manoeuvres to be carried out:
1 – Distance to next manoeuvre,
2 – Next manoeuvre to be carried out,
3 – Next road to be taken,
4 – Time,
5 – External temperature,
6 – Current road,
7 – Distance to final destination,
8 – Manoeuvre to be carried out.
8 7
5
6 4
1 3
2
1
2
3
Page 70
15-07-2002
The 'Navigation/Guidance' menu offers various possibilities for activating guidance:
– by inputting the address of a new destination,
– by selecting a service (hotel, station, airport...) available
in a town,
– by selecting an address stored in one of the two directo-
ries,
– by resuming previously interrupted guidance,
Two messages may be displayed, depending on the previous action: 'Resume guidance' or 'Stop guidance'.
Main menu
Switch on the ignition.
Press the 'Menu' button to access the 'Main menu'.
Select a function by turning the dial, then confirm (press
the dial).
Navigation / guidance
Following selection of the 'Navigation / guidance' menu,
a screen warns you about the use of the navigation system. Please observe the instructions.
Press the dial to access the next screen.
YOUR 607 IN DETAIL
74
Page 71
15-07-2002
Inputting a new destination
The last town input is displayed.
The 'Change' function allows the town input to be com-
pletely cleared.
Note: Inputting the first letter of the name of the chosen
town will cancel the name of the town displayed.
To input the name of another town, select each letter
using the dial, then confirm (by pressing the dial) for each
letter.
If an error is made, the 'Correct' function allows the last
letter input to be cleared.
The 'List' function indicates, as the name is input, the
number of towns starting with the same letters. Activation
of this function allows a town to be selected from the list.
When the list contains fewer than 5 names, these names
are automatically displayed.
Select a town then confirm (press the dial).
When the complete name of the town is displayed, select
the 'Validate' function, then press the dial.
Note: after confirmation of a letter, only those letters which
can make up an existing name in the data base are shown.
Input the name of the street. Select the 'Validate' function, then press the dial.
Note: guidance can be activated as soon as the town is
input, without the street name or number. To do this, confirm or select the 'Town centre' function.
Input the street number. Select the 'Validate' function
then press the dial.
Note: guidance can be activated as soon as the town and
street are input, without details of the number. To do this,
select the 'Validate' function.
YOUR 607 IN DETAIL
75
Page 72
15-07-2002
The complete destination is displayed. Select the 'Vali-
date' function then press the dial.
Note: you can also change the destination or store it in one
of the two directories (see paragraph 'Storing an address
in a directory').
The last guidance criterion used is displayed.
Guidance begins automatically by retaining this criterion if
there is no action within 5 seconds or after validating the
'YES' function.
Follow the instructions.
If you wish to change the guidance criterion, select the
'NO' function, then press the dial.
Select a criterion from the list offered, then confirm (press
the dial). When the criterion of your choice is selected,
select the 'Validate' function, then press the dial.
Guidance begins, follow the instructions.
YOUR 607 IN DETAIL
76
Page 73
15-07-2002
Selecting a service
The last destination address input is displayed.
There are 3 ways of defining the location in which you wish
to obtain a service:
– repeat the last address input using the 'Validate' func-
tion,
– input the name of a new town then input the street (or the
'Town Centre' function), using the 'Change' function,
– automatically input your current location by means of the
'Current location' function.
YOUR 607 IN DETAIL
77
After validating the address, scroll through the list of services by turning the dial, then press the dial to select one
of them.
Note: if the service selected is not available at the programmed location, a message (by means of a superimposed display) will indicate this.
The cursor on the left-hand side of the screen indicates
your position in the list.
The address of the service required is displayed.
Information on the right-hand side of the screen (e.g. 1/50)
indicates whether there are several establishments (50
maximum) within a radius of 30 miles (50km) of the
address selected, as the crow flies.
Use the 'Next' or 'Previous' functions to consult the list
offered.
When the establishment of your choice is displayed, select
the 'Validate' function, then press the dial. If necessary,
select a guidance criterion.
Guidance begins, follow the instructions.
Page 74
15-07-2002
Selecting a destination stored in the memory
Using the dial, select the directory in which the address
you are looking for is stored, then press the dial.
The addresses stored in the memory are displayed.
The cursor on the left-hand side of the screen indicates
your position in the list. Make your selection by scrolling
through the list using the dial, then press the dial. The complete address is displayed. Select the 'Validate' function,
then press the dial.
If you wish, select a new guidance criterion.
Guidance begins, follow the instructions.
Storing an address in a directory.
When a new address is input, you can store it in the memory by selecting the 'Archive' function.
Input the address. If the details already exist for a different
address, you can replace the old address (after removing
it) with a new one.
Select the Personal or Professional directory, then press
the dial. The address is then stored in the directory of your
choice (storage capacity of 100 addresses).
YOUR 607 IN DETAIL
78
Page 75
15-07-2002
Navigation options
From the main menu, 'Navigation options' gives you
access to the following programmes:
– management of the directories. This allows details of a
stored address to be renamed or deleted, by selecting
the directory and the details to be modified,
– voice synthesis volume adjustment,
Once the function has been selected, adjust the volume
of the voice synthesis using the dial, the audio system
button or the steering wheel stalk, then confirm.
Note: the voice synthesis volume can also be adjusted
during a message using the audio system button or the
steering wheel stalk.
– deletion of all data stored in both directories.
Guidance tools
Access to the 'Guidance tools' menu is by pressing the
dial at any time during guidance.
It enables:
– the current guidance criterion to be changed,
– the programmed destination to be displayed or changed,
– the voice synthesis volume to be adjusted (see 'Naviga-
tion options' paragraph),
– the current guidance to be stopped.
YOUR 607 IN DETAIL
79
Page 76
15-07-2002
Satellite navigation system
with colour screen
Updating the software
When you receive the system update
CD-ROMs:
– start the engine to avoid any risk of
switching to energy economy
mode during the operation,
– eject the mapping CD-ROM from
the drive located in the boot,
– insert the software update CD-
ROM in the drive (the indicator
light on the drive comes on permanently); after a few seconds the
screen 'management of software
configuration of the system
appears,
YOUR 607 IN DETAIL
80
– compare the "System" versions
installed (Multi-function display-D
or Navigation-D) with those of the
CD-Rom in the drive; if a software
version of the CD-ROM (or both) is
later than the version installed,
load the CD-ROM by confirming
"YES"; the red indicator light on
the drive flashes while the data is
being loaded (a few minutes),
– when the message "Software
Loading End - Eject CD" appears,
remove the software CD-ROM and
insert the mapping CD-ROM in its
place (the indicator light on the
drive comes on permanently after
going out briefly).
General remarks regarding
the display
When using context menus, the
functions are presented in various
ways:
– function selected (text on coloured
background),
– function accesible (black text),
– function inaccesible in this situa-
tion (text on grey background).
During off-the-map guidance, the
screen displays the following various
information, depending on the
manoeuvres to be carried out:
1 – Next road to be taken,
2 – Estimated time of arrival,
3 – Remaining distance to be trav-
elled,
4 – Diagram of the next crossroads
and direction to be taken,
5 – The direction to your destination,
6 – Street taken,
7 – Symbol showing voice synthesis
status,
8 – Distance remaining before the
next manoeuvre,
9 – GPS status symbol.
1
2
3
5
4
9
8
7
6
Page 77
15-07-2002
Main menu
– Switch on the ignition,
– Place the mapping CD-ROM in the
drive (if absent),
– Press the 'Menu' button to access
the Main menu,
– Select one of the following applica-
tions by turning the dial, then confirm:
• General information (see section
on ''Multi-function display - &
Colour screen''),
• Navigation / Guidance,
• Map.
Navigation / guidance
The ''Navigation/Guidance'' context menu offers the following possibilties:
– selecting a destination,
– guidance using a map,
– changing the route,
– details of the route,
– geographical information,
– guidance options,
– stopping/resuming guidance.
YOUR 607 IN DETAIL
81
Page 78
15-07-2002
Access a list by the selecting the
"List" function when inputting the
town or road. Select a name then
confirm.
Select a name then confirm.
When the required information has
been given, confirm so that you can
go on to the next.
YOUR 607 IN DETAIL
82
Selecting a destination
The menu ''Selecting a destination'' offers various ways for reach-
ing a destination:
– by inputting an address (country,
area...),
– by selecting a service (airport,
hotel, restaurant, bank),
– GPS details,
– most recent destinations,
– personal directory,
– professional directory.
General operation
When the details are completed for
one of the above options, you can:
– confirm to start guidance,
– store the address of the destina-
tion in one of the two directories
(see Paragraph 'Personal/ Profes-
sional directory'),
– press the 'ESC' key to finish
inputting modifications.
Inputting an address
The last guidance address input is
displayed.
To input a new address, complete
the following details: the country, the
area, the road and the road number.
For each of these, select each letter
using the dial, then confirm each
time.
If an error is made while inputting,
the 'Correct' function allows the last
letter input to be cleared.
Page 79
15-07-2002
YOUR 607 IN DETAIL
83
Selecting a service
To select a service:
• select the location. The last destination appears; you can
- change it,
- replace it with the current location, by confirmation of
the corresponding button),
• select 'OK' to look at the list of services for the type and
location selected,
• select a type of service from the list (hotel, service station, restaurant etc.)
• select 'OK' to activate guidance towards the service
selected.
GPS details
The details of your current location (longitude and latitude
shown in degrees, minutes and seconds). You can store
them to activate guidance to this location later.
Most recent destinations
With the dial, select the destination required from the list,
then confirm.
Personal /Professional directory
Select one of the two directories to choose a destination
address from the list.
Page 80
15-07-2002
Map
The 'Map' context menu offers various possibilities for following the route defined by the navigation:
– centering the vehicle,
– journey mode,
– zoom,
– selecting,
– navigation / guidance,
– map configuration,
– stopping / resuming guidance.
The guidance function offers two journey modes:
– manual mode (see 'Movement mode'),
– automatic mode (see 'Centering the vehicle').
Centering the vehicle
This function permits activation of the automatic map
movement mode. The map moves over the screen, following the direction of the vehicle. Depending on the programming, the top of the screen represents either the
North or the direction followed by the vehicle.
The vehicle is shown as a symbol in the centre of the
screen.
Movement mode
Press the dial so that the map moves in the direction
shown by the pointer. The pointer is in the centre of the
screen and the map slides underneath it.
Rotating the dial lets you select one of 16 different directions (North, N/NE, NE, E/NE, East, E/SE, SE, S/SE,
South etc.).
When moving, it is possible to change the direction selected.
Zoom
This function allows the scale of the map displayed to be
enlarged or reduced.
Selecting
This function opens the screen which allows selection of
the destination on the map.
It enables guidance towards this destination to be activated.
Navigation / guidance
This function allows you to return to the 'Navigation/
Guidance' application off the map.
YOUR 607 IN DETAIL
84
Page 81
15-07-2002
Map configuration
This function offers various possibilities to optimise and
enhance the display of the route:
– map orientation,
– type of services displayed,
– selection of scale.
Map orientation
This function allows orientation of the map to be selected:
North or according to the direction of the vehicle.
Note: the "vehicle orientation" option is only active if the
display scale is less than or equal to 1km.
Types of services displayed
This function allows the required service to be displayed.
From the list presented, select the service(s) required (for
insertion), the service(s) not required (for deletion), or
choose 'Any' (parking, hotel, restaurant, service station,
cinema...).
Changing the route
This function allows you, for example, to avoid a tail-back
on the route which has been worked out.
Using the 'Navigation/Guidance' context menu, or by
holding down the last voice message recall control, you
can introduce a change to the route that had been worked
out, at any time during guidance.
This change occurs on the stretch between your present
position and a point located at a distance which has to be
input, using the initial route.
Enter a distance between 1 and 10 km, using the alphanumeric keypad, then confirm.
The system takes this change into account and suggests
new guidance, having invalidated the section selected.
Details of the route
At all times during guidance, the sub-menu 'Details of the
route' gives you access to the following functions:
– destination selected,
– see the places to be travelled through (display of roads,
streets and towns to be passed),
– see the route on the map (change to map display).
Apointer located on the side indicates your position in rela-
tion to the route.
Geographical information
The sub-menu 'Geographical information' presents the
GPS information regarding the position of the vehicle.
YOUR 607 IN DETAIL
85
Page 82
15-07-2002
Guidance options
The sub-menu 'Guidance options' offers various possibilities for improving guidance:
– calculation criteria,
– voice synthesis adjustment,
– managing the directories,
– clearing the directories.
Calculation criteria
Select the criteria which interest you from the proposed list,
then confirm.
When the criteria of your choice have been selected,
choose the ''OK'' function, then confirm.
Voice synthesis adjustment
Activate using the 'Switch off/Activate' button, then
confirm:
– once to cancel the function,
– a second time to re-activate it.
Select "Female speaker" or "Male speaker", then
confirm.
Select the volume adjustment zone, then confirm:
– turn the dial clockwise to increase the volume,
– turn the dial anti-clockwise to decrease the volume,
– confirm the setting.
Select the 'OK' function when the setting is satisfactory,
then confirm.
Note: the voice synthesis volume can also be adjusted
during a message using the audio system button or the
steering wheel stalk.
YOUR 607 IN DETAIL
86
Page 83
15-07-2002
Managing the directories
This allows a stored address to be renamed or deleted, by
selecting the directory then the details to be modified.
Select the 'Delete' function, then confirm, to delete the
selected address in the chosen directory.
Select the 'Rename' function, then confirm, to change the
wording of the address.
Select the 'OK' function to record the modifications made.
Clearing the directories
Select the directory to be cleared, or all data for all the
directories, then confirm.
Stopping/resuming guidance
– Stopping guidance
During guidance, select this function, then confirm.
The guidance will then be interrupted.
– Resuming guidance
In the absence of guidance, select this function, then
confirm, to activate guidance to the last destination
programmed.
YOUR 607 IN DETAIL
87
Page 84
YOUR 607 IN DETAIL
88
15-07-2002
Page 85
15-07-2002
YOUR 607 IN DETAIL
89
VENTILATION
1 - Windscreen de-icing or demisting vents
2 - Front window de-icing or demisting vents
3 - Side vents
4 - Centre vents
5 - Air outlet to the front passengers' feet
6 - Air outlet to the rear passengers' feet
Recommendations for use
For an even air distribution, make sure that you do not obstruct the air inlet grille at the base of the windscreen, the vents,
the air passages under the front seats and the air extractor in the boot.
Page 86
15-07-2002
1 - Driver's side
adjustment
2 - Passenger's
side adjustment
The required value is
displayed (from 15 to
30: comfort value = 22).
☞ Press the corresponding top and
bottom arrows to adjust.
YOUR 607 IN DETAIL
90
AUTOMATIC AIR CONDITIONING
Located on the centre console, the control panel is between the multi-function
display and the audio system.
The driver and front passenger can each adjust the temperature and the air distribution, to suit their requirements.
Do not cover the sunshine / brightness sensor located in the centre of the
fascia. It helps to regulate the air conditioning, automatic switching on of
the lights and the automatic adjustment of the instrument panel brightness.
3 - Driver comfort
programme
4 - Passenger
comfort
programme
☞ Press the 'AUTO' button(s).
The system adjusts automatically to
the required value.
It also controls the air distribution,
flow and intake so that there is sufficient air circulation in the passenger
compartment.
The air flow (fan) symbol and the
'AUTO' symbols are displayed.
Note: when programme 5 or function
11 (following pages) are being used,
the 'AUTO' passenger button does
not operate; it causes temporary
flashing of button 5 or 11 indicator
light.
Page 87
15-07-2002
5 -Visibility
programme
In certain cases, the
comfort programme
may prove inadequate
to demist or de-ice the
windows (humidity,
many passengers, ice).
☞ In this situation, select the visibili-
ty programme for rapid clearing of
the windows.
It manages the air conditioning and
the air flow and intake and distributes the ventilation towards the windscreen and the side windows.
The symbols 'A/C', 'AUTO' and air
flow (fan) are displayed.
Note: for your comfort, between two
starting operations the settings are
retained if the temperature of the
passenger compartment has not varied a great deal. If it has, automatic
mode is used.
Manual adjustment
You may, if you wish, make a different selection from the one offered by
the system, by manually modifying a
setting.
☞ Pressing the 'AUTO' driver or
passenger button enables you to
return to the corresponding automatic operation.
6 - Adjustment of
the driver's air
distribution
7 - Adjustment of
the passenger's
air distribution
☞ Pressing the dri-
ver's or passenger's button several
times in succession
allows you to position the air flow on
the driver's or passenger's side,
towards:
– the windscreen and the feet,
– the feet,
– the centre vent, the side vent
and the feet,
– the centre vent and the side
vent,
– the windscreen.
Note: when programme 5 (following
page) is being used, button 7 does
not operate; it causes temporary
flashing of the button 5 indicator
light.
8 -Air conditioning
(A/C) on/off
☞ Press this button
once to stop the air
conditioning.
The symbol 'A/C' goes out.
☞ Press this button again to return to
automatic air conditioning.
The symbol 'A/C' comes on.
YOUR 607 IN DETAIL
91
Page 88
15-07-2002
Flashing of the points in
the temperature setting
values indicates that
there is a malfunction of
the air conditioning. Contact your
PEUGEOT dealer
9 - Switching off
the system
☞ Press the 'OFF'
button.
This action switches
off the display and the
indicator lights and disarms all the
system functions, with the exception
of demisting of the rear screen.
☞ Press this button, button 5 or one
of the two 'AUTO' buttons again to
reactivate the system with the values which were present before it
was switched off.
10 -Air flow
☞ Press buttons '+'
and '-' respectively
to increase or
decrease the air
flow.
As the air flow is adjusted, the inner
sections of the air flow symbol (fan)
are filled in accordingly on the display.
11 -Air intake/
Recirculation
☞ Press this button to
recirculate the interior air.
Recirculation insulates
the passenger compartment from outside smells and
smoke.
Avoid prolonged operation of interior air recirculation (risk of condensation and deterioration of air
quality).
☞ Press this button again to return
air intake to automatic control.
12 -Demisting the
rear screen
☞ Press this button,
with the engine
running, to demist
the rear screen and
the mirrors.
Demisting stops automatically after
fifteen minutes.
☞ Press again to resume demisting.
If the engine is switched off before
the end of the fifteen minutes,
demisting will resume when the
engine is switched on again.
Note: it is possible to stop demisting
before it goes off automatically, by
pressing the button again.
Note: the condensation created by
the air conditioning system causes a
flow of water under the vehicle when
stationary, which is perfectly normal.
YOUR 607 IN DETAIL
92
Page 89
15-07-2002
YOUR 607 IN DETAIL
93
THE SEATS
Manual front seats
1 - Forwards-backwards adjustment
Lift the lever and slide the seat forwards or backwards.
2 - Seat cushion angle adjustment*
Raise the catch while pressing on or easing off the
seat back to obtain the required height.
3 - Driver's seat height adjustment*
Raise the catch to obtain the required height.
4 - Seat back angle adjustment
Raise the catch to obtain the required angle.
5 - Lumbar adjustment
*
Raise or lower the lever to obtain the correct position.
6 - Head restraint height adjustment
The head restraint has a frame with notches which
prevent the head restraint dropping down (safety
device in the event of an impact).
To raise the head restraint, push it upwards.
The setting is correct when the upper edge of the
head restraint is level with the top of the head.
To lower the head restraint, it is necessary to push
simultaneously :
–
the button located on the base of the head restraint frame,
– the head restraint downwards.
The head restraint angle is also adjustable.
T o remove the head restraint, lift it out by pressing the lug.
Warning : never drive with the head restraints removed; they
must be in place and correctly adjusted.
* Driver's seat only.
Page 90
15-07-2002
YOUR 607 IN DETAIL
94
Electric front seats
A - Forwards-backwards adjustment
Push the control forwards or backwards to slide the
seat.
B - Seat cushion angle adjustment
Tilt the front of the control upwards or downwards to
obtain the required angle.
C - Seat height adjustment
Tilt the rear part of the control upwards or downwards
to obtain the required height.
D - Seat back angle adjustment
Tilt the control to the front or the rear to obtain the correct angle.
E - Lumbar adjustment (mechanical adjustment)
Raise or lower the lever to obtain the correct position.
F - Head restraint height adjustment
Tilt the control upwards or push it downwards to obtain
the correct height.
The setting is correct when the upper edge of
the head restraint is level with the top of the
head.
The head restraint angle is also adjustable manually.
To remove the head restraint, tilt the seat back to 45°
and place the head restraint in the high position, then
pull with both hands.
Note: the electrical functions of the driver's seat are inoperative three minutes after the ignition has been switched off.
Page 91
15-07-2002
YOUR 607 IN DETAIL
95
Memorising using the buttons
To memorise:
☞ Place the ignition key in the 'run-
ning' position (2nd notch),
☞ Adjust your seat and mirrors,
☞ Press button M, then button 1
(first driving position) or button 2
(second driving position) within
four seconds.
An audible signal confirms that a
position has been memorised.
Memorising a new position cancels
the previous one.
Recalling a memorised position
Engine off
☞ Briefly press button 1 or 2 to recall
the corresponding memorised
position. The end of the setting is
indicated by a bleep.
Note: after recalling a memorised
position five times in succession, the
function will be cancelled until the
engine is started.
Engine running
☞ Keep button 1 or 2 pressed down
until the bleep indicates the end of
setting of the corresponding memorised position.
Memorising seat
and mirror positions
Four driving positions can be memorised:
– two, using two remote control
keys (two users),
– two, using buttons M/1 and M/2.
Driving positions memorised by
the remote control key
When locking the doors, the remote
control key memorises the position
of the driver's seat and the exterior
mirrors.
When unlocking the doors, the driver's seat and the exterior mirrors
resume the position memorised by
the remote control key if this has
changed in the meantime.
Each remote control key can
memorise a specific setting.
Front and rear heated seats
controls
☞ Press the switch. The tempera-
ture is regulated automatically.
☞ Press it again to stop operation.
Note: the command to activate heat-
ing of the seat(s) remains in the
memory for two minutes after the
ignition is switched off.
Page 92
15-07-2002
YOUR 607 IN DETAIL
96
REAR SEATS
Rear seat
The seat back in the rear is folded
down in two parts.
Before folding down the seat back:
☞ lock the side seat belts.
Note: Before folding down the
2/3 part of the seat back, release the
lap belt strap by pressing the black
button of the lock.
Front armrest
To obtain a resting or driving position:
☞ Lift the centre handle 1 and pull
the armrest forwards. To return to
the initial position, push the armrest backwards.
To open the lower compartment:
☞ Raise the left handle 2. CDs and
coins can be stored here.
To open the top compartment:
☞ Raise the right handle 3.
To fold down the seat back
The unlocking controls are located in
the boot.
☞ pull the control corresponding to
the part of the seat back that you
wish to fold down.
It is also possible to unlock from inside the vehicle:
☞ lower the armrest and open the
ski flap,
☞ pull the button located on the
unlocking housing corresponding
tothe part of the seat back that
you wish to fold down.
When putting the seat back to its original position, for your safety make
sure that it is correctly locked.
Page 93
15-07-2002
YOUR 607 IN DETAIL
97
''Isofix'' mountings*
Available on the one third side of the
rear seat, the Isofix mountings allow
fitting of a special child seat,
approved for PEUGEOT vehicles
and sold within its network.
The locks incorporated in the child
seat fit onto the Isofix mountings and
ensure safe, reliable and fast assembly.
* According to current legislation.
Ski flap
☞ Lower the armrest to access the
ski flap. Open by pulling the handle.
The special child seat approved by
PEUGEOT is the KIDDY Isofix seat.
It can be used in the rearwards facing position from birth to 13 kg and in
the forwards facing position from 9 to
18 kg.
In the forwards facing position, the
front seat must be in the intermediate longitudinal position, with
the seat back upright.
In this position, the combined use of
the Isofix mountings, the restraining
cushion and the seat belt is compulsory.
This seat may also be used where
there are no Isofix mountings: in this
case it is compulsory to wear a
three-point seat belt.
☞ Follow the instructions in the
brochure for fitting the child
seat.
Page 94
15-07-2002
YOUR 607 IN DETAIL
98
CHILD SEATS
Although one of PEUGEOT's main concerns when designing your vehicle, the safety of your children also depends on you.
For maximum safety, please follow these precautions:
– All children under the age of 10* must travel in a special approved child seat*, adapted to their weight, in a seat fitted with
a seat belt.
– Front passenger seat*: children under the age of 10 must not travel in the forwards facing position**.
The rearwards facing position is permitted. In this position it is compulsory to disarm the passenger air bag.
After carrying out numerous tests, PEUGEOT recommends the following systems:
Up to 18 months (up to 13 kg)
"Britax Babysure": installed with its back to the engine in the front or in the rear using a three-point seat belt.
In the front, the passenger seat must be in the 'mid-way' position on the slide.
From 9 months to 3 or 4 years (9 to 18 kg)
"Römer Prince": installed in the rear using a three-point seat belt.
For the safety of your child, the seat and the restraining cushion must never be separated.
From 3 to 6 years (15 to 25 kg)
"Römer Vario'': installed in the rear with a three point seat belt.
1
2
3
Page 95
15-07-2002
YOUR 607 IN DETAIL
99
Never leave a child or an
animal in a vehicle which
is exposed to the sun and
has the windows closed.
Never leave the keys within reach
of children inside the car.
Disarm the passenger air bag
when installing a rearwards-facing
child seat in the front.
The child would risk being killed or
seriously injured if the air bag
were to inflate.
Observe strictly the recommendations for assembling or attaching
the child seat as shown in the
child seat instructions.
From 3 to 10 years (15 to 36 kg)
''Recaro start'': installed in the rear with a three–point seat belt.
The height and width of the seat back must be adjusted according to the
age and the build of your child.
"Klippan Optima": installed in the rear with a three–point seat belt. From
the age of 6 years (approximately 22 kg), the booster is used on its own.
Remember, even for short journeys, to fasten the three-point seat belts or the
child seat straps, keeping the slack in relation to the child's body to a minimum.
To prevent the doors from opening accidentally, use the child-lock.
Also, do not open the rear windows more than a third.
* According to current legislation in the country of destination.
** Unless the rear seats are already occupied by other children or the rear seats
cannot be used (because they are missing or folded down). In this case, adjust
the front passenger seat to the rear-most position and leave the air bag active.
4
5
Page 96
15-07-2002
In accordance with European regulations (Directive 2000/3), the table below indicates to what extent each seat in your
vehicle may be fitted with a child seat:
U : universal category
U (R) : universal category, rearwards facing and forwards facing, set in the highest position.
X : no child seat
According to destination:
L1 : BRITAX Babysure E11 0344117 Universal (birth to 13 kg).
L2 : RÖMER Prince E1 03301058 Universal (9 to18 kg).
L3 : RÖMER Vario E1 03301120 Universal (15 to 25 kg).
L4 : RECARO Start E1 03301108 Universal (15 to 36 kg).
L5 : KLIPPAN Optima E17 030007 Universal (15 to 36 kg).
L6 : KIDDY Isofix Rearwards facing E1 03301123 and Universal (birth to 13 kg)*.
L7 : KIDDY Isofix Forwards facing E2 030011 Universal (9 to 18 kg)*.
* See section "Seats - Isofix mountings" for use of the KIDDY child seat on the vehicle's Isofix mountings.
Weight range
Seat
< 13 kg 9 - 18 kg 15 - 25 kg 22 - 36 kg
Front passenger
Fixed seat L1, L6 L2, L7 L3, L4, L5 L4, L5
Front passenger U (R) U (R) U (R) U (R)
Booster seat (R) L1, L6 L2, L7 L3, L4, L5 L4, L5
Rear passenger UUUU
Side L1, L6 L2, L7 L3, L4, L5 L4, L5
Rear passenger XXL3, L4, L5 L4, L5
Centre
YOUR 607 IN DETAIL
100
Page 97
15-07-2002
YOUR 607 IN DETAIL
101
SEAT BELTS
Front seat belt height adjustment :
☞ To lower the attachment point,
squeeze control 1 and slide it
downwards.
☞ To raise the attachment point,
squeeze control 1 and slide it
upwards.
To lock the seat belts
☞ Pull the strap, then insert the end
into the buckle.
Front seat belts with
pre-tensioner and force limiter
Safety in the event of a frontal impact
has been improved by the introduction of seat belts with pre-tensioner
and force limiter connected to the
front air bags. Depending on the
seriousness of the impact, the pretensioning system instantly tightens
the seat belts firmly against the bodies of the occupants.
The pre-tensioning seat belts are
armed when the ignition is on.
The force limiter reduces the pressure of the seat belt on the body of
the occupant in the event of an accident.
Rear seat belts with force limiter
The rear seats are all fitted with a
three-point inertia reel seat belt.
Third rear central seat belt
– pull the belt located between the
two head restraints at the left rear,
– insert the fixed buckle in the black
clasp located on the left,
– insert the sliding buckle in the red
and black (movable) clasp.
To release it, press the black button
of the locking clasp.
To be effective, a seat
belt must be tightened as
close to the body as possible.
Depending on the nature and seriousness of the impact, the pretensioners may be triggered
before and independently of the
air bags.
In all cases, the air bag warning
light comes on.
After an impact, have the system
checked by a PEUGEOT dealer.
The system has been designed to
be fully operational for ten years.
For improved safety, have it
checked by a PEUGEOT dealer
within ten years of purchase of the
vehicle.
Page 98
15-07-2002
YOUR 607 IN DETAIL
102
THE REMOTE CONTROL KEY
From the driver's door, the key
allows you to lock or unlock the
doors, the boot and the fuel filler flap,
as well as to fold back and unfold the
exterior mirrors.
The remote control in the key performs the same functions at a distance.
If one of the front doors or the boot is
open, the central locking does not
function.
Selective unlocking with the
remote control key
This function must be initialised by a
PEUGEOT dealer.
Press button B to unlock the driver's
door as well as to fold out the exterior mirrors.
Press button B again to unlock the
other doors, the boot and the fuel
filler flap.
Folding/opening out the key
To tuck away the key blade, fold it
down into the remote control module.
To open out the key, press button D.
Deadlocking
This renders the internal and external door controls inoperative, and
enables automatic closing of the windows and the sunroof.
With the key
☞ Lock the vehicle and keep the key
in the locking position for approximately one second.
With the remote control incorporated in the key
☞ Press button A once to lock the
vehicle (the direction indicators
come on for approximately two
seconds).
☞ Within a maximum of five sec-
onds, press button A a second
time to deadlock the vehicle (the
direction indicators come on for
approximately two seconds).
Unlocking with the remote
control key
☞ Press button B.
This is confirmed by rapid flashing of
the direction indicators.
Locking with the remote
control key
☞ Press button A.
This is confirmed by fixed lighting of
the direction indicators for approximately two seconds.
If one of the doors or the boot is
open, the central locking does not
function.
Note: the function that controls folding back of the exterior mirrors can
be disarmed by a PEUGEOT dealer.
Opening the boot with the
remote control key
☞ Press and hold button C.
Note: this also unlocks the doors or
the driver's door only, if selective
unlocking is initialised.
Page 99
15-07-2002
YOUR 607 IN DETAIL
103
Electronic engine immobiliser
This locks the engine control system
a few moments after the ignition has
been switched off and therefore prevents starting of the vehicle by anyone who does not have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code
is recognised and starting is possible.
If the system does not function
correctly, the central locking button
indicator light, situated on the centre
console, flashes rapidly when the
ignition is switched on (2nd notch).
WARNING: your vehicle is no longer
protected in this event.
Contact a PEUGEOT dealer as soon
as possible.
Flat battery
(CR 2025/3 volt battery)
This is indicated by illumination of a
warning light on the instrument panel
display, accompanied by an audible
signal and a message on the multifunction display.
Contact a PEUGEOT dealer to
replace the battery.
Key in ignition
A buzzer sounds on opening the driver's door, if the key has been left in
the ignition.
Locating your car
To locate your car in a car park:
☞ press button A; the courtesy lights
come on and the direction indicators flash for a few seconds.
CONFIDENTIAL CARD
The confidential card contains the
identification code necessary for any
work carried out by a PEUGEOT
dealer on the system. This code is
hidden by a film, which should be
removed only if necessary.
Keep your card in a safe place,
never inside the vehicle.
Programming the
remote control
in the key
☞ Switch off the ignition.
☞ Switch the ignition on again.
☞ Immediately press button A.
☞ Switch off the ignition and remove
the remote control key from the
ignition lock. The remote control
key is now working again.
Page 100
15-07-2002
Make a careful note of the number on each key. The key number is coded on the label attached to the key. If
the key is lost, your PEUGEOT dealer can rapidly supply you with new keys.
The high-frequency remote control key is a high-performance system.
Do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle without your
knowledge.
The remote control cannot operate if the key is in the ignition, even if the ignition is switched off, except for
reprogramming.
Do not operate the deadlock if there is someone inside the vehicle.
As a safety measure (when there are children on board), remove the ignition key when leaving the vehicle, even for a
short time.
Do not handle the buttons of your remote control when out of range of your vehicle as you run the risk of stopping it from
working. It would then be necessary to reprogramme the remote control.
When buying a second-hand car:
– Ensure that you are given the confidential card;
– Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones
which can start your vehicle.
Do not make any modifications to the electronic engine immobiliser system.
YOUR 607 IN DETAIL
104
Loading...
