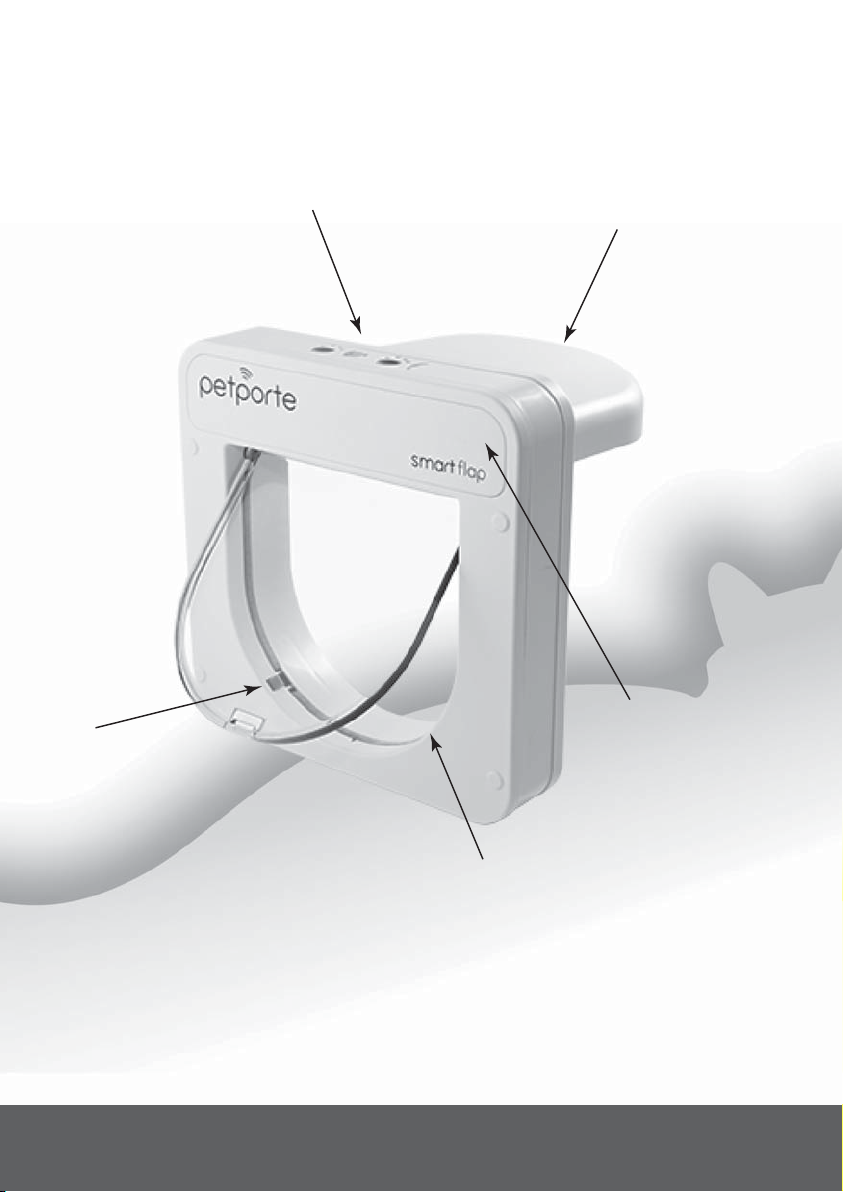

Smart Flap - At a glance
program buttons (paw & moon)
porch with reader
in lock
2 at a glance
cover plate
out lock
Quick Guide
FUNCTION BUTTON ACTIVATION
Normal Mode
Night Mode
(not available
in battery
mode)
Vet Mode
Program Entry
Extended Modes
Child Lock
This is the default mode on powering up and requires no
button activation.
Press the Red Button for < 2 seconds:
The red light should then illuminate. During the hours of
darkness the green light will illuminate and, automatically,
the system will not allow any cats to go out.
Press the Red Button for > 2 seconds:
The red light will then flash and the unit will not allow any
cats to go out.
Press and hold the Green Button for > 10 seconds:
The green light will flash and you then have 30 seconds in
which to program your cat by passing the porch over the
animal.
Press and hold both the Red and Green Buttons for
> 2 seconds
The unit will emit a long beep indicating that the extended
modes are now available and the green light will be lit.
(See the Extended Modes - Quick Guide on page 4)
Press and hold the Red Button for > 30 seconds
Erase Mode
Default Mode
The unit will emit a series of beeps indicating the unit is
now locked.
Press and hold both the Red and Green Buttons for
> 30 seconds
The unit will emit a series of short beeps followed by a long
beep. Both lights should now be flashing.
Press and hold the Green Button for > 30 seconds
The unit will emit a series of short beeps followed by a long
beep. Both lights should extinguish.
quick guide 3
Extended Modes - Quick Guide
Press and hold both the Red and Green Buttons for > 2 seconds and then release to
enter the extended mode menu.
When in extended mode the green light illuminates. Modes are selected by pressing
the Red Button to go “up” a mode and the Green Button to go “down” a mode. The
current mode is indicated by a number of beeps. When you are in the mode you
require a quick press of both buttons simultaneously will activate that mode.
NO. OF
BEEPS
MODE
RED AND GREEN BUTTON PRESS ACTIVATION
1
2
3
4
5
6
Cancel
Open Mode
Silent Mode
Set Light Level
Lock-out Time
Power-Down
Lock State
Cancels the extended mode option system and returns
the Smart Flap to a normal mode of operation.
The green light will flash and the green lock will lower
allowing any cat access through the Smart Flap.
The audible beep will no longer sound when your cat is
recognised by the Smart Flap.
Sets the desired light level for which the cat flap will
lock and unlock during Night Mode operation.
The red light will flash to indicate you are in “lock-out
time” mode.
Press and hold the Green Button for the desired lock-out
time of between 1 and 25 seconds before releasing.
During this period an audible beep will sound until the
Green Button is released and the Smart Flap re-enters
its normal mode of operation.
Pressing the Green Button toggles the green-lock state,
while pressing the Red Button toggles the red-lock state.
Once the locks are in the required position a press of
both Red and Green Buttons returns the Smart Flap to
a normal mode of operation.
7 - 9
Reserved
Reserved modes.
4 extended modes - quick guide
Contents
At a glance 2
Quick Guide 3
Extended Modes - Quick Guide 4
Contents 5
Introduction: 6
Your Smart Flap 6
Your Cat’s Microchip
Safety First 8
Operating Modes: 9
Programming New Cats 9
Normal Mode
Night Mode
Vet Mode
Extended Modes
Child Lock
Erase Mode
Default Mode
Extended Modes:
Cancel Mode 13
Open Mode
Silent Mode
Set Light Level
Lockout Time
Power-Down Lock State
LED Indicator - Quick Guide 15
Battery Backup Facility 16
Help 17
10
10
10
13
14
14
7
9
11
11
12
12
13
13
contents 5
Introduction
Your Smart Flap
Your Pet Porte® Smart Flap is a natural development of the original Pet Porte Microchip cat flap and has been designed to allow your animals easy access to the
outside world whilst keeping other troublesome cats out of your house. Unlike
other cat flap products, Pet Porte cat flaps do not require your animals to wear
collars or accessories.
The Smart Flap uses the same patented technology as the original Pet Porte Microchip Cat Flap to read the unique identification number stored on your cat’s microchip that your vet has implanted in your animal. Whenever your cat passes under the
porch of the cat flap, the system scans the unique number and, if that number
matches the number already programmed in for that cat, it will unlock the cat flap
and allow that particular animal to enter. If the animal has not been programmed
into the system then the number scanned will not match and the cat flap will remain
locked preventing access to your property.
If you are not sure whether your cat has a microchip, then just ask your vet to scan
for it. The Pet Porte Smart Flap is designed to read the most common type of microchip, the FDX-B; it will not read other types of microchip. If you are not sure what
type of microchip your cat has, then please either ask your vet or visit
www.petporte.com and navigate to our microchip compatibility checker to verify
that your microchip is compatible.
Other features of the Smart Flap are:
1) Battery backup facility:
has space for a battery to be fitted, ensuring your cat does not get locked out in the
event of a power failure.
2) Night mode:
darkness. If already out, it can still come back in.
Automatically prevents your cat going out during the hours of
Powered by a low-voltage power supply, your Smart Flap
cont. over page
6 introduction
Introduction (continued)
Your Smart Flap
3) Audible beep: An audible beep gives auditory feedback to your cat and lets you
know when your cat comes home.
4) Vet mode:
example when you want to take your animal to the vet), then the cat flap will allow
your animal to enter but will prevent it from going out.
5) Weatherproofing:
6) Fits traditional cat flap openings :
the more traditional cat flap and will fit into a hole either 17cm x 17cm or 21cm diameter. (Please see the installation guide for further information.)
If you want your animal to stay in, even if it is out at the moment (for
Includes a magnetic latch and draught excluder.
The Smart Flap has been designed to replace
Your Cat’s Microchip
Extensive testing of the Pet Porte, with a large range of available microchip manufacturers, has proved that the technology behind the Pet Porte range of cat flaps
works perfectly with the majority of FDX-B microchips.
However, a very small percentage of cats have a microchip that has a reduced read
range and slow reaction time. This does not mean the microchip is faulty as your vet
can still scan for it with their own handheld scanners when in close proximity to the
microchip. On these rare occasions the Pet Porte Smart Flap can only be used as a
traditional cat flap without selective entry or exit.
If a new hole in a door or wall is to be cut for installation, we strongly advise testing
your Smart Flap with your cats first.
For further advice and to check your cat’s microchip compatibility visit
www.petporte.com or contact our customer services.
introduction 7
Safety First
Pet Porte cat flaps have been designed with safety for you and your animals in mind.
However, please follow these guidelines to ensure your safety, especially during
installation.
1) Simply clean the cat flap with a damp (not wet) cloth, or antistatic wipe. Never
use household polish as this may damage the product.
2) Only use the power supply included with the product. Using an unauthorised
power supply will invalidate your guarantee and may damage the cat flap.
3) Do not dismantle the cat flap. This could expose you to high voltages or other
risks.
4) During installation great care must be taken using drills or other cutting equipment. If you are at all in doubt then please hire the services of a qualified professional to fit the cat flap for you.
8 safety first
Operating Modes
PROGRAMMING NEW CATS INTO THE SMART FLAP
Because your Smart Flap is initially supplied unprogrammed, when it is first powered
both the green and red lights will flash to indicate that there are no animals
programmed in. The door locks will also open, allowing free access for any animal to
enter or exit. Prior to installing your Smart Flap to a door or wall we advise that you
test the Smart Flap’s operation by programming your cats, as shown below.
When programming the Smart Flap with an animal for the first time, ensure that
your pet is nearby as you have 30 seconds in which to introduce the animal to the
scanner. (You may wish to enlist the help of another person, as cats are naturally
suspicious of anything new!)
Press and hold the Green Button for about 10 seconds until the green light stays
illuminated and then release the Green Button. A beep should sound and the red
light should stop flashing with only the green light left flashing. You now have 30
seconds to move the porch part of the Smart Flap over your cat. There is no need to
post the cat through the Smart Flap as this can lead to unnecessary stress for the
animal. Microchips are normally implanted between the shoulder blades of the
animal; it is that part of the animal that needs to be under the porch area in order to
program the unique identification number for that animal. Once the microchip has
been successfully scanned, the Smart Flap will beep three times. The green light will
stop flashing, and the green lock will come up to its locked position.
If this procedure fails the first time, simply repeat the process.
You will need to program the unit with each of your cats by using this method. Your
Pet Porte Smart Flap can be programmed with up to 31 animals
Normal Mode:
This is the default mode on powering the cat flap and will allow only your cat(s) to
enter.
operating modes 9
Operating Modes (continued)
Night Mode:
For a variety of reasons many pet owners prefer their animals not to go outside at
night. The Pet Porte Smart Flap provides a mode whereby it will automatically
prevent your pet from going outside during hours of darkness and the cat flap will
automatically unlock when daylight dawns. If your pet is already outside when
darkness falls, the system will still allow the animal to enter.
To employ this mode, press the Red Button for 1 second and then release it. The unit
should beep and the red light will come on to inform you that it is in Night Mode.
When darkness falls, the green light will illuminate, indicating that the cat flap will
be locked. When daylight dawns again outside, the green light will extinguish,
indicating that the cat flap will be unlocked.
Please note: Night mode can take up to 30 seconds to start functioning.
Vet Mode:
If you are intending to take your pet to the vet, or just want it to stay inside, then
the Pet Porte Smart Flap provides a mode whereby your cat can enter but will not be
allowed out again.
To employ this mode, press the Red Button for 5 seconds, or until the red light begins
to flash, and then release it. The unit will then beep and the red light will start to
flash, indicating that the cat flap is locked and your cat cannot go out.
To exit this mode, press the Red Button again for 5 seconds, or until the red light
begins to flash, and then release it. The unit will beep again and the red light will
extinguish.
Extended Modes:
The Pet Porte Smart Flap has a number of extended modes that allow you to
customise the Smart Flap to suit your individual needs.
cont. over page
10 operating modes
Operating Modes (continued)
Extended Modes (continued):
To enter the Extended Modes menu, press both the Red and Green Buttons for 2
seconds, or until both lights begin to flash, and then release them. The Smart Flap
should beep and the green light will come on to inform you that you have now
entered the Extended Mode menu.
For information on how to use the Extended Modes please see the Extended Modes
section on page 12 of this user guide.
If no buttons are pressed within a 20 second period, the Smart Flap will beep and
the green light will extinguish, indicating that the unit has gone back to its normal
mode of operation
Child Lock
If you wish to lock the buttons on your Smart Flap (preventing children from adjusting the modes!), press and hold the Red Button for 30 seconds. The unit should begin
to beep repeatedly. Release the Red Button and the unit will now be set to Child
Lock.
To re-enable the button controls and disable the Child Lock, repeat the above
process.
Erase Mode:
If you wish to erase all programmed animal identification numbers from the
system’s memory, please use the following procedure. However, it must be noted
that once the memory has been erased, you will have to re-program the unit with
any animals that are to use the cat flap. Therefore, please ensure that you really
wish to erase the memory before proceeding.
cont. over page
operating modes 11
Operating Modes (continued)
Erase Mode (continued):
To erase all microchip numbers, press and hold both the Red and Green Buttons for
30 seconds. The unit should begin to beep repeatedly. Release both the Red and
Green buttons and the unit should emit a long beep and both lights should begin to
flash, indicating that the memory has been erased.
Remember: Once the unit’s memory has been erased, it will have to be
re-programmed before further use!
Default Mode
Should you wish to reset your Smart Flap back to its Default Mode, with no other
modes running, please use the following procedure.
To enter the Default Mode, press and hold the Green Button for greater than 25
seconds, or until the unit emits a series of short beeps, before releasing the button.
The unit should emit a long beep and all lights should extinguish, indicating the
Smart Flap is in it’s Default Mode of operation.
Extended Modes
The Pet Porte Smart Flap’s “extended mode” system gives you the opportunity to
tailor the Smart Flap to your individual requirements and can be accessed by pressing both the Red and Green Buttons for 2 seconds, or until both lights begin to flash,
and then release them. The Smart Flap should beep and the green light will come on
to inform you that you have now entered the “extended mode” menu.
When in “extended mode” the modes are selected by pressing the Red Button to go
“up” a mode and the Green Button to go “down” a mode. The current mode is
indicated by a number of beeps. When you are in the mode you require, a quick press
of both buttons simultaneously will activate that mode. See page 4 of this user
guide for a table of available extended modes.
cont. over page
12 extended modes
Extended Modes (continued)
Cancel Mode - 1 Beep
Indicated by a single audible beep, this option simply cancels the “extended mode”
and puts the Smart Flap back into a normal mode of operation.
Open Mode - 2 Beeps
In the unlikely event that you wish to have the Smart Flap open to allow any animal
entry, the Pet Porte Smart Flap provides a mode whereby any animal (be it microchipped or not) can enter through the Smart Flap.
When Open Mode is activated the unit will emit a long beep and the green light
should flash to show the unit is in Open Mode.
To de-activate Open Mode, activate the Open Mode once more. The unit will again
emit a long beep and the green light should extinguish, indicating the Smart Flap has
returned to a normal mode of operation.
Silent Mode - 3 Beeps:
Each time that a recognised animal enters or leaves via the Smart Flap the unit will
emit a short beep. To silence this beep, activate the Silent Mode. A short beep
should be heard, following which no further beeps will be emitted whenever your
pet enters or exits the Smart Flap.
To turn the beep back on, activate the Silent Mode once more. The unit will again
emit a short beep, following which a short beep will be emitted whenever your pet
enters or exits the Smart Flap.
Set Light Level - 4 Beeps:
When the Smart Flap is set to Night Mode the light sensor detects a pre-determined
level of ambient light and locks or unlocks the Smart Flap accordingly.
cont. over page
extended modes 13
Extended Modes (continued)
Set Light Level - 4 Beeps (continued):
If you wish to alter when the Smart Flap locks or unlocks in Night mode, simply
activate the Set Light Level mode, in the morning or evening, when the outside light
is enough for your cat to be safely outside. The unit will emit a beep and enter its
previous mode of operation.
The next time the light reaches the set level the Smart Flap will either lock or unlock,
depending if it is morning or evening.
Note: The light level setting will remain in memory even if you lose power to your
Smart Flap.
Lockout Time - 5 Beeps
The default time for your Smart Flap’s locks to return to their locked positions after
your cat’s microchip has been recognised is 4 seconds. However, should you have a
particularly timid cat, or if your cat is being chased and closely followed by a hostile
animal, the lock return time can be lengthened or shortened by the following procedure.
Activating Lockout Time from the extended mode menu will result in the red light
flashing. Press and hold the Green Button for the desired lockout time of between 1
and 25 seconds before releasing. During this period an audible beep will sound for
the duration of the button press, until the Green Button is released. On releasing the
Green Button the Smart Flap will return to its normal mode of operation.
Power-Down Lock State - 6 Beeps
If, when the Smart Flap is running in battery mode, the battery charge runs low, the
Smart Flap has a built in option to allow the locks to be set at a specified open or
closed position.
cont. over page
14 extended modes
Extended Modes (continued)
Power-Down Lock State - 6 Beeps (continued)
This option, for example, will allow the green lock to be open or locked when the
battery is low, preventing or allowing any animal access inside the house through
the Smart Flap. Likewise, the red lock can be set to be open or locked when the
battery is low, preventing or allowing any animal access outside the house through
the Smart Flap.
Activating “Power-Down Lock State” from the extended mode menu will result in
the unit emitting a beep. Pressing the Green Button will toggle the green lock state
between open and closed, while pressing the Red Button toggles the red lock state.
When both red and green locks are in the required position a quick press of both Red
and Green Buttons will result in a short beep sounding and the Smart Flap will return
to its normal mode of operation.
LED Indicator - Quick Guide
Explanation of LED indicators:
Flash Flash Power on but nothing programmed
OFF OFF Normal Operating Mode
OFF Flash Vet Mode
Flash OFF Open Mode
ON Flash Battery Level Low
FUNCTION
ONOFF (Day) / ON (Night) Night Mode
LED indicator - quick guide 15
Battery Backup Facility
Your Pet Porte Smart Flap has the facility to fit a backup battery, ensuring your cat
can still have access to your house in the event of a power cut on the low voltage
power supply.
Instructions on how to fit the backup battery and the type of battery required can
be found in the installation guide supplied with the Smart Flap.
Please note that the following functions are currently unavailable with your Pet
Porte Smart Flap, when the unit is being operated by battery alone:
1) Wall Mounting - Currently the Smart Flap Battery Backup Facility is unable to
function on a wall fitted unit.
2) Night Mode - Currently Night Mode is unavailable when the unit enters battery
backup mode.
For future changes and improvements to the battery backup facility please visit
www.petporte/smartflap for further information.
16 Battery Backup Facility
Loading...
