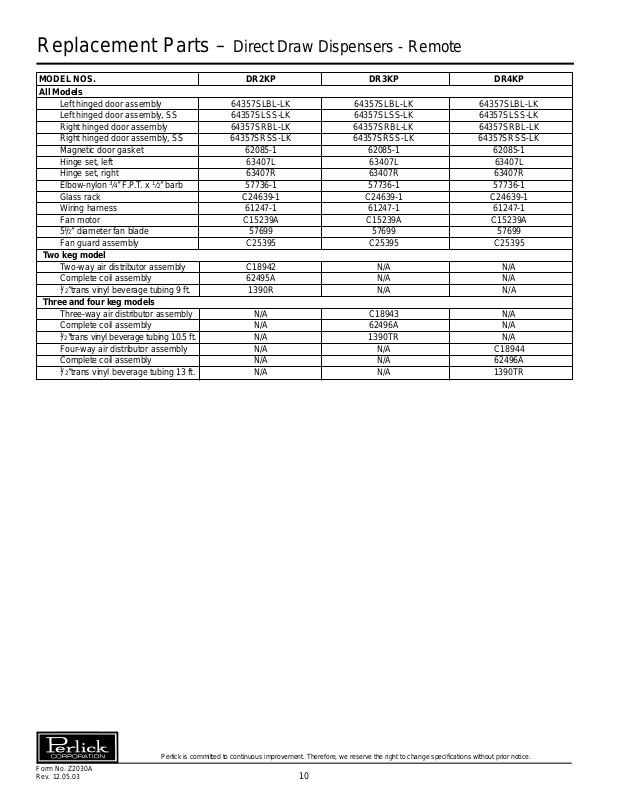

Replacement Parts – Direct Draw Dispensers - Remote
MODEL NOS. DR2KP DR3KP DR4KP
All Models
Left hinged door assembly 64357SLBL-LK 64357SLBL-LK 64357SLBL-LK
Left hinged door assembly, SS 64357SLSS-LK 64357SLSS-LK 64357SLSS-LK
Right hinged door assembly 64357SRBL-LK 64357SRBL-LK 64357SRBL-LK
Right hinged door assembly, SS 64357SRSS-LK 64357SRSS-LK 64357SRSS-LK
Magnetic door gasket 62085-1 62085-1 62085-1
Hinge set, left 63407L 63407L 63407L
Hinge set, right 63407R 63407R 63407R
Elbow-nylon
Glass rack C24639-1 C24639-1 C24639-1
Wiring harness 61247-1 61247-1 61247-1
Fan motor C15239A C15239A C15239A
1
/2” diameter fan blade 57699 57699 57699
5
Fan guard assembly C25395 C25395 C25395
Two keg model
Two-way air distributor assembly C18942 N/A N/A
Complete coil assembly 62495A N/A N/A
1
/2”trans vinyl beverage tubing 9 ft. 1390R N/A N/A
Three and four keg models
Three-way air distributor assembly N/A C18943 N/A
Complete coil assembly N/A 62496A N/A
1
/2”trans vinyl beverage tubing 10.5 ft. N/A 1390TR N/A
Four-way air distributor assembly N/A N/A C18944
Complete coil assembly N/A N/A 62496A
1
/2”trans vinyl beverage tubing 13 ft. N/A N/A 1390TR
3
⁄4” F.P.T. x 1⁄2” barb 57736-1 57736-1 57736-1
Form No. Z2030A
Rev. 12.05.03
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.
10
Replacement Parts – Direct Draw Dispensers - Remote
For Single Valve Keg Coupler (Series D)
Item Part
No. No. Description
1............26000D ..............Single valve keg coupler
2............C14316 ..............“O” ring
3...........31080-2P.............Ball check
4...........31089-2P.............“O” ring (3 per assembly)
5...........31088-2P.............Bottom seal washer
6...........31087-2P.............Probe washer domestic
7............157R2P ..............Coupling Gasket
8...........23682-2P.............Check valve
Miscellaneous
Part
No. Description
157L2P................Beer line connector gasket
57F2P .................CO
1392R .................Red air hose
529......................Beer hose
2928D .................Twin gauge CO
2 tank washer
2 regulator
1
8
7
2
3
4
5
6
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.
11
Form No. Z2030A
Rev. 12.05.03
