INSTALLATION AND OPERATION INSTRUCTIONS
SINGLE KEG BEER DISPENSER
MODEL NOS.
DP32S
DS32S
Table of Contents
PREPARING THE CABINET FOR USE
Specifications.........................................................2
List of Included Parts.............................................3
IMPORTANT INFORMATION
A Warranty card is enclosed that must be filled out
and mailed to the Perlick Corporation in order to register the warranty. If the card is not returned to
Perlick, the warranty period will begin from the date
the equipment is shipped from the factory.
This manual has been prepared to assist you in the
installation of your Single Keg Dispenser and to
acquaint you with its operation and maintenance.
We dedicate considerable time to ensure that our
products provide the highest level of customer
satisfaction. If service is required, your dealer can
provide you with a list of qualified service agents. For
your own protection, never return merchandise for
credit without our approval.
We thank you for selecting a Perlick product and
assure you of our continuing interest in your
satisfaction.
WARNING: When lifting, the full weight of the
cabinet must be supported. Lift from the cabinet
base and not from the top. Improper lifting can
result in severe damage to the cabinet.
Tools Required.......................................................3
Plumbing................................................................3
Electrical................................................................3
Uncrating ...............................................................3
Installing Casters...................................................3
Placing the Cabinet ...............................................3
Leveling the Cabinet ..............................................3
Installing Faucet and Dispensing Head .................3
TAPPING
Connecting the Keg Coupler.................................4
Tapping the Keg.....................................................4
Connecting the Regulator ......................................4
Adjusting Gas Flow................................................4
CO
2 Leak Test .......................................................5
Replacing a CO
Handling CO
TEMPERATURE
Beer Temperature..................................................6
Refrigeration and Temperature Control.................6
Adjusting the Temperature.....................................6
CLEANING
Cleaning the Beer System.....................................7
Cleaning the Cabinet.............................................7
Cleaning the Condenser ........................................7
Condenser.............................................................7
GENERAL INFORMATION
How to Pour a Perfect Glass of Beer....................8
Troubleshooting.....................................................9

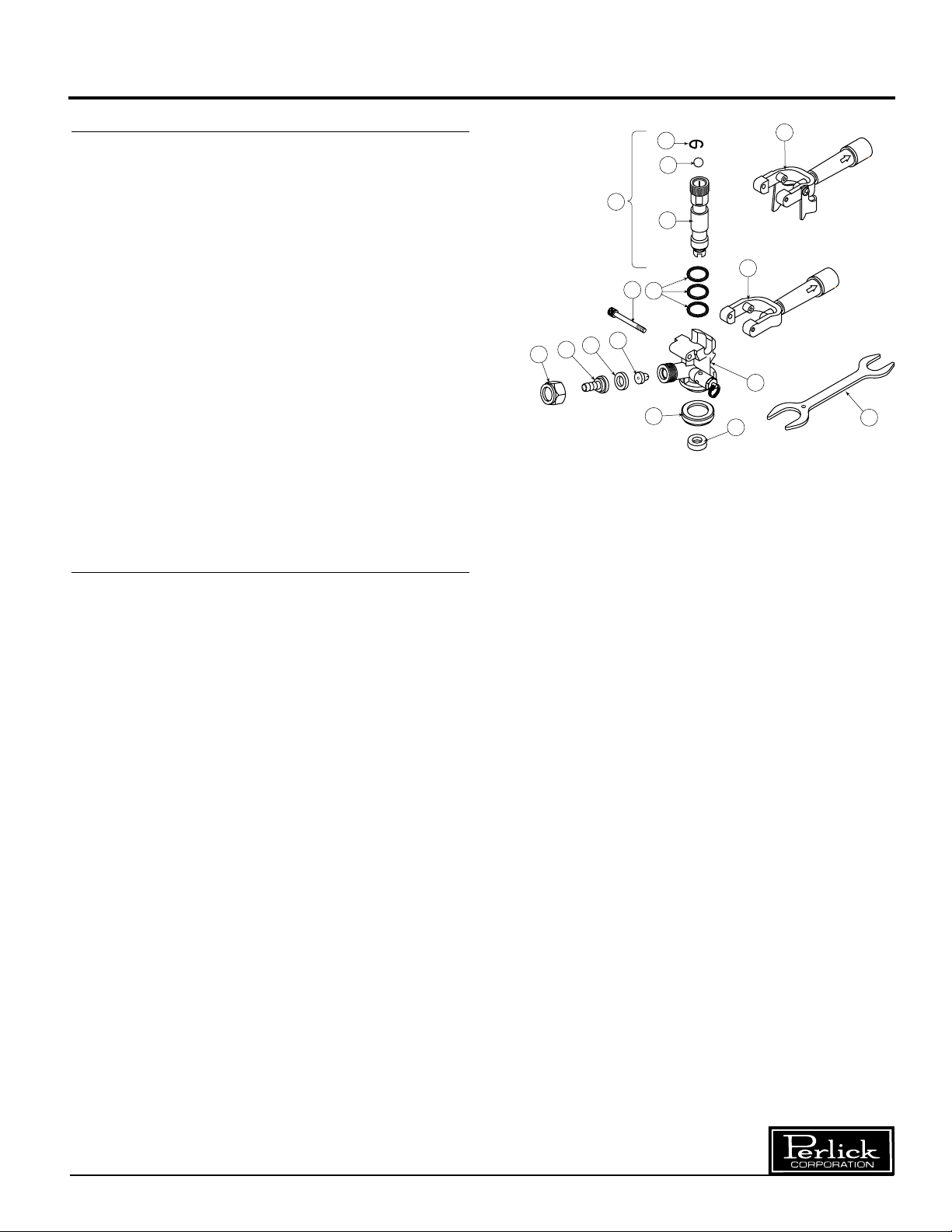

REPLACEMENT PARTS................................10-11
Wiring Diagram....................................................12
2 Gas Cylinder..............................5
2 Gas.................................................5
8300 West Good Hope Road • Milwaukee, WI 53223 • Phone 414-353-7060 • Fax 414-353-7069
Toll Free 800-558-5592 • E-Mail: Perlick@Perlick.com • www.Perlick.com
Form No. Z2268
Installation and Operating Instructions
Sizes and Specifications, Single Keg Beer Dispensers
MODEL NUMBERS DP32S DS32S
CABINET STYLE Portable Underbar
HALF BARREL CAPACITY 1 Keg 1 Keg
AMPS 2.7 2.7
SHIP WT lbs. (kg) 222 (101) 216 (98)
INTERIOR Door Pan & Ceiling: High strength polystyrene. Door Sill: High strength polyethylene.
EXTERIOR
REFRIGERATION
VENTILATION Front ventilated.
ELECTRICAL
PLUMBING
OPTIONALACCESSORIES • Leg Set • Caster Sets
Floor Pan: Stainless steel. Walls: Galvanized steel.
Stainless steel top, back, sides and front. Galvanized bottom. Condensing unit grille
stainless steel. Decorative handle. Right hinged door standard from factory. Door
hinging is field reversible.
R-134a capillary tube-type. Aluminum fin and copper tube evaporator coil.
Adjustable temperature control. Self-defrosting.
115 Volt, 60 Hz., 1 Phase AC. Furnished with three-prong, six foot NEMA5-15P cord.
Contact Perlick-Milwaukee for other voltage/frequency requirements.
3
/4” NPT drain exits out right end or 1” NPS out bottom.
20 1/8”
[511]
16”
23 3/16” R
[589]
11 15/16”
[334]
TOP VIEW
24 3/4”
[699]
12 3/4”
[324]
19 7/8”
[505]
OPENING
32”
[813]
FRONT VIEW END VIEW BACK VIEW
27 1/2”
[699]
OPENING
2 3/4”
[70]
1 1/8”
[29]
[406]
27 1/4”
[692]
34 1/2”
4 3/16”
[94]
[876]
CORD EXIT
4 1/16”
[103]
2 1/16”
[52]
Form No. Z2268
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.
2
Preparing the Cabinet for Use – Single Keg Beer Dispensers
Parts List
■
Casters* .
■
Faucet Standard.
■
Faucet Head Assembly.
■
Spanner Wrench for Faucet.
■
Black Connector Hose 3⁄16” x 3’.
5
■
⁄16” Air Hose.
■
Bag of Miscellaneous Parts.
■
Plastic Waste Bottle.*
* Portable Model Only.
Suggested Tools
■
#2 Phillips Screwdriver.
■
Spanner Wrench (included).
■
10” Crescent Wrench.
9
■
/16” Allen Wrench.
5
■
16” and
/
■
Power drill or driver.
3
8” Hex Socket.
/
Plumbing
Portable Model
No plumbing connections are required. Condensate
from the cooling coil is automatically evaporated.
Drain pan waste is accumulated in the plastic bottle
installed inside the cabinet.
Underbar Model
3
Features a floor drain with a
⁄4” female pipe thread
connection for disposal of both condensate and
drip pan waste. Remove bottom 1” NPS or side 3⁄4”
drain plug attach male pipe to create external drain.
Electrical
The cabinet must be connected to a separately
fused power source (see electrical specification
plate) and grounded in accordance with National
and Local Electrical Codes. Caution: Do not
attempt to operate the equipment on any other
power source than that listed on the Electrical
Specification plate.
Installing Casters
(Portable Models Only)
Attach four casters to the cabinet bottom; rigid
casters at the rear and swivel casters on the front.
1
Use the supplied
/4”- 20 x 3/4” hex head self-
tapping machine screws.
Placing the Cabinet
Push the cabinet into place using rollers when
necessary. Important: Proper air flow around the
condensing unit is necessary for efficient operation.
Never obstruct the air flow in and out of the
condensing unit.
Leveling the Cabinet
When the cabinet is in place, check installation with
carpenter’s level. When perfectly level, accumulated
water will drain out. Aslight pitch to the drain side
will not harm the cabinet. Water may accumulate if
cabinet is pitched to the opposite side.
Installing the Faucet and
Dispensing Head
Before you begin: Wash dispensing head and
faucet. Flush beer, dispensing head and faucet
lines with fresh water.
■
Apply RTV around the base of the dispensing
head to seal it to the top. Align the dispensing
head over the five holes on the cabinet top
and use the five stainless steel #10-32 x 1
Phillips pan head stainless steel machine
screws to secure standard to cabinet top.
Wipe off excess RTV to complete the seal.
■
Attach faucet to standard using spanner
wrench to tighten coupling. Attach faucet
handle to faucet.
■
Insert flexible plastic air hose six to seven
inches into bottom of faucet standard.
Secure hose with tie wrap (supplied).
3
⁄4”
Uncrating and Inspection
Remove all crating material before operating.
Carefully inspect cabinet for hidden damage. If
damage is discovered, file your claim immediately
with the transportation company. Perlick is
not responsible for damage in transit.
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.
WARNING!
To avoid compressor damage, after returning
cabinet to an upright position, let unit stand for 24
hours before plugging it in and running the unit.
3
Form No. Z2268
Installation and Tapping – Single Keg Beer Dispensers
OUT
DOWN
1/4
TURN
CO2
PRESSURE
GAUGE
CO2
GAS
DRUM
REGULATOR
FITTING
REGULATOR
ADJUSTING
SCREW
FITTING FOR
RED AIR HOSE
SHUT-OFF VALVE
(BLACK LEVER IN
CLOSED POSITION)
HAND
VALVE
PERLICK
PSI
10
50
0
60
20
40
30
Connecting the Keg Coupler
(when Supplied by Perlick)
■
Place one brown leather washer into black beer
line connector hose on hex nut side. Screw
connector to stainless steel beverage line on
faucet standard. Tighten with a wrench, but do
not over tighten.
■
Make sure lever handle on the keg coupler is in
the UP (untapped) position. Place one brown
leather washer into wing nut end of black beer
line connector hose and thread onto top of keg
coupler. Hand tighten.
■
Place clamp on one end of red air line. Push
end over air valve located inside cabinet.
Tighten clamp with screwdriver. Turn shut-off
valve to OFF (horizontal) position.
■
Place clamp on the other end of red air line and
push over tailpiece on coupler. Tighten clamp
with screwdriver.
CAUTION: Do not use keg coupler as a
handle to lift keg.
Connecting the Regulator to the
CO2 Cylinder
■
Remove blue plug from regulator fitting.
(Note: Do not remove the carbonic washer).
■
Screw regulator onto gas cylinder valve. Tighten
with wrench until vertically straight. Be sure that
shut-off valve (black lever) on regulator is in
the OFF (horizontal) position.
■
Place a screw clamp over end of red air line
and push onto regulator tailpiece. Tighten clamp
with a screwdriver.
Tapping a Single Valve Keg
Step 1
Single Valve Keg Coupler
Step 3
Step 2
■
■
■
■
Form No. Z2268
Be sure beer faucet is in closed position.
Align keg lugs with lug openings on bottom
of coupler.
Turn clockwise 1⁄4 turn. Pull handle out and
down. Keg is now tapped.
Open shut-off valve on air distributor located
inside of the cabinet.
Important: Be sure to close this valve
when untapping keg.
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.
(Sankey):
Adjusting the CO2 Gas Flow
■
Turn regulator adjusting screw counterclockwise
until it turns freely.
■
Turn hand valve counterclockwise on CO2
cylinder to the fully open position.
■
Turn regulator adjusting screw clockwise until
desired pressure is reached (approximately
12-15 lbs.). Tighten stop nut on adjusting screw.
■
Open shut-off valve on bottom of regulator.
4
Installation and Tapping – Single Keg Beer Dispensers
CO2 Leak Test
Dilute a small amount of liquid dishwashing soap
and rub the soapy mixture around each connection.
If bubbles appear, tighten connection.
Replacing CO2 Gas Cylinder
■
Tur n CO2
close shut-off valve on regulator.
■
Unscrew regulator from cylinder fitting.
■
Replace carbonic washer (Part No. 157F2P),
if needed and reattach regulator to filled
cylinder.
■
Tur n CO2 hand valve counterclockwise until
fully open. Turn regulator shut-off valve to
open position.
■
Adjust CO2 gas flow as required, turning
clockwise for higher pressure.
hand valve clockwise until seated and
Proper CO2 Handling
ALWAYS...
■
Connect a regulator (reducing valve) to
2 cylinder.
CO
■
Secure cylinder in upright position whether in
storage or in use.
■
Keep cylinder away from heat. Rupture disc
vents at 122° F. maximum.
■
Ventilate room after high pressure gas leakage.
■
Check the last DOT test date on cylinder neck
before filling. If more than five years old, the
cylinder must be retested to DOT specifications.
■
Be sure CO2 cylinder outlet fitting is free of dust
or dirt before attaching regulator.
■
Store CO2 cylinder and regulator assembly
upright.
■
Allow only properly trained and experienced
personnel to handle high pressure gas.
NEVER...
■
Connect cylinder directly to a keg without a
regulator (reducing valve).
■
Drop or throw regulator or CO2 cylinder.
■
Transport CO
■
Apply oil to a regulator.
■
Shut off CO2 cylinder when not in use. You will
2 cylinder in a closed vehicle.
not save gas by doing so!
■
Allow untrained, inexperienced personnel to
handle high pressure gas.
Failure to heed this warning could result in
personal injury or death.
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.
5
Form No. Z2268
Draft Beer Information – Single Keg Beer Dispensers
Temperature
One of the most common causes of dispensing
problems is improper temperature. Draft beer
should be stored at a temperature between 32° and
38°. At warmer temperatures, beer will foam.
At temperatures lower than 30° F., beer will freeze.
When beer freezes, the alcohol in the beer may
separate and cause the beer to be cloudy with an
“off” taste.
Draft beer is not pasteurized and must be kept cool at all times.
Refrigeration and Temperature Control
The Partymaster Dispenser is equipped with a
heavy-duty refrigeration system designed to
automatically maintain a storage temperature of
36-41 degrees F. The control is factory set at 38
degrees F.
Adjusting the temperature
The temperature control is inside the cabinet on
the right-hand side of the evaporator fan panel
assembly. You will need a screwdriver to turn the
adjusting screw. Make small adjustments until the
desired temperature is achieved.
■
Colder Temperatures:
Turn the adjusting screw clockwise (to the right).
■
Warmer Temperatures:
Turn the adjusting screw counterclockwise
(to the left).
In normal operation the condensing unit will turn on
and off, depending on the cooling load required.
The condenser fan motor turns off and on with the
condensing unit. The evaporator fan motor runs
continuously. The fan motors are lifetime lubricated
and will require no oiling.
NOTE:
Cabinet Temperatures lower than 34° will not allow
for proper defrosting of the evaporator coil. If
defrosting is necessary, turn the control knob to the
OFF position until coil is defrosted.
Form No. Z2268
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.
6
Cleaning the Beer System – Single Keg Beer Dispensers
The entire beer system, to include the faucet, flexible
beer line and tapping devices must be cleaned at
regular intervals. We recommend flushing the entire
system with fresh water immediately after a keg has
been emptied. Once each month the system should
be cleaned chemically.

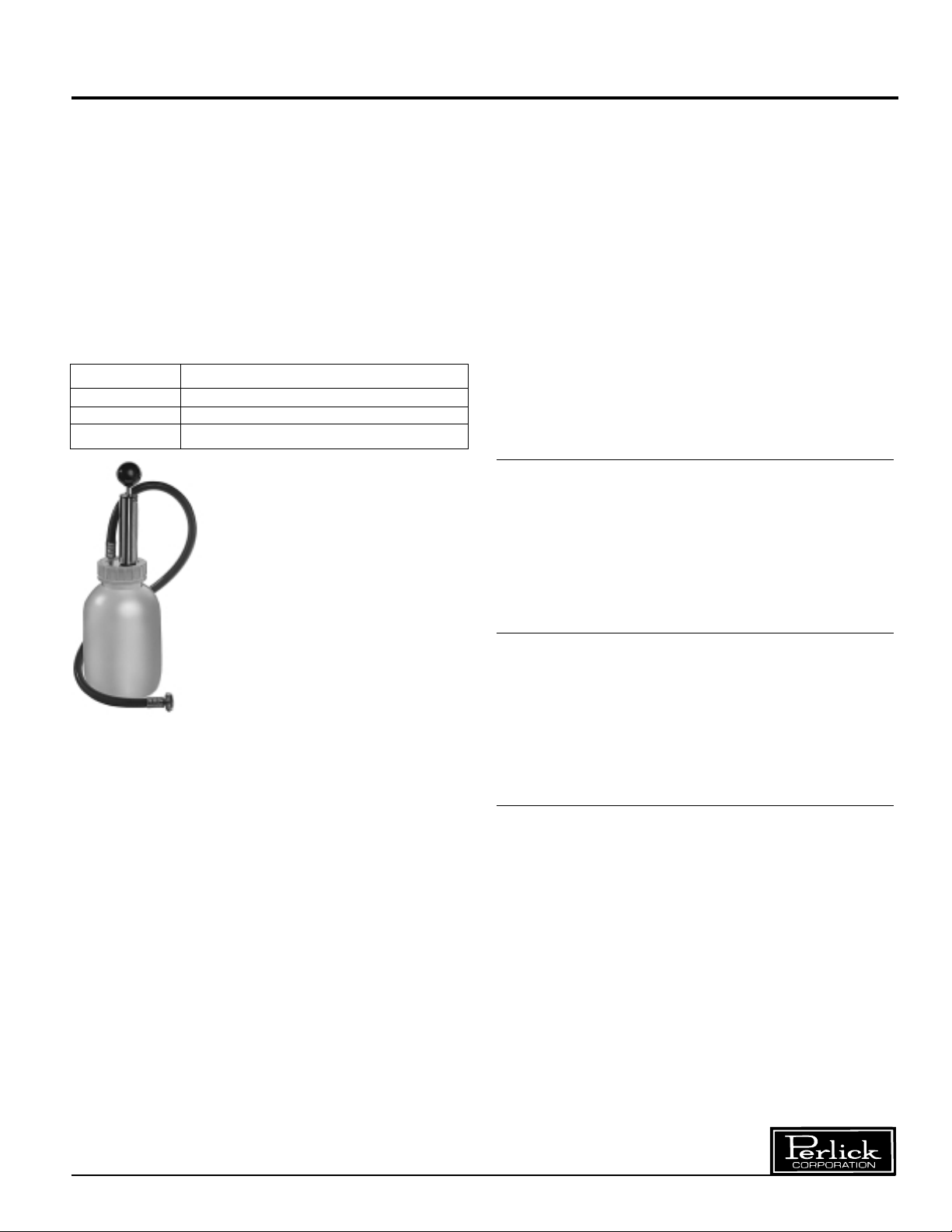

It is recommended that you purchase Perlick’s
Pump Type Sterilizer, as shown below. It is
equipped with an adapter that attaches directly to
the faucet shank in lieu of the faucet. It is also
available with a slip coupling for those who choose
to clean their faucets in place.
Part Nos. Description
887P
887PSC
848A33 33 oz. liquid alkaline cleaner.
1
⁄2 Gallon sterilizer w/faucet coupling.
1
⁄2 Gallon sterilizer w/slip coupling.
Cleaning the draft beer system
will help to eliminate the build-up
of the following materials:
■
Bacteria:
Beer is an excellent food for
bacteria (none of which is
harmful). Proper conditions
may begin the growth of
bacteria in draft beer and on
the beer faucet. By regular
cleaning, we prevent this
bacterial buildup and
No. 887P
maintain the quality of the
draft beer. Greenish or yellowish colored material on the faucet may indicate
bacterial growth.
■
Yeast:
All domestic draft beers contain a small amount
of yeast which remains in the beer from the
fermentation process. When the temperature of
draft beer exceeds 50° a process of secondary
fermentation may take place. The beer faucet
may exhibit a white colored substance (yeast
build up) if not cleaned on a regular basis.
■
Beer Stone:
All beer contains calcium which is present from
the grains used in the brewing process. it is an
important natural material in draft systems in
that as it oxidizes it coats the internal parts of
the beer lines and equipment. This thin coat of
beer stone helps prevent the beer from picking
up strong metallic or plastic flavors as it flows
through the system. The beer stone will
continue to build if the system is not cleaned
properly or regularly and can cause drawing
problems if it begins to flake off. Beer stone is
present if one can see a brownish color on the
faucet or inner wall of the beer line, or tobaccolike flakes in the beer.
Cleaning the Cabinet
Use a mild detergent and water to clean the inside
and outside of the cabinet. Dry thoroughly. Never
use a scouring pad or abrasive cleanser.
NOTE: An industrial strength, commercial cleaner
can be used to clean the outside of painted
cabinets.
Cleaning the Condenser
Use a long handled, stiff brush to clean the dirt from
the front surface of the condenser. Keeping the
condenser free from dust and dirt will ensure efficient operation.
CAUTION: Do not bend the fins while brushing the
front of the condenser.
Condenser
The condenser (located behind the back cover)
should be inspected every 30 days and cleaned, if
necessary. Failure to keep the condenser clean will
cause a loss in condensing unit efficiency.
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.
7
Form No. Z2268
Pouring a Perfect Glass of Beer – Single Keg Beer Dispensers
➠
STEP 1
Start with a clean glass.
Place the glass at a
45° angle, one inch
below faucet. Do not
let the glass touch the
faucet. Open the faucet
all the way.
STEP 2
After the glass has
reached half full,
gradually bring the
glass to the upright
➠
STEP 3
Let the remaining beer
run straight down the
middle of the glass.
This ensures proper
release of CO
producing a 3⁄4” to 1”
foam head.
2 by
➠
position
Form No. Z2268
STEP 4
Close the faucet quickly
and completely.
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.
8
➠
Trouble Shooting – Single Keg Beer Dispensers
Beer Service Problems
■
Wild Beer:
Dispensed beer has either too much foam or
is all foam.
C
AUSES:
■
Beer has been dispensed improperly.
Solution: See pouring instructions
on page 8.
■
Regulator pressure is set too high.
■
Warm keg temperature.
Solution: Keg must be colder than
40°. Target temperature is between
36° and 38° F.
■
Cabinet door is opened and closed
frequently and temperature is warmer
than 38° F.
Solution: Adjust temperature to between
36° and 38° F.
■
Kinks, dents or obstructions in the line.
■
Using oddly shaped glasses. Frosted,
waxed or styrofoam containers may
cause foaming.
■
Dispenser has been turned off for a
long period of time.
■
Faucet is bad, dirty or in a worn condition.
■
Regulator malfunction.
Cloudy Beer:
■
Beer in glass appears hazy, not clear.
AUSES:
C
■
Dirty glass.
■
Dirty faucet or beer line.
■
Frozen or nearly frozen beer.
■
Old beer.
■
Beer that has not been refrigerated for a
long period of time.
Beer and CO2 Facts
Keg No. of No. of No. of No. of Full Keg
Size Gallons Oz. Cases 12Oz. Weight
Quarter 7
Half 15
■
Beer foam is 25% liquid beer and 75% CO2
3
⁄4 992 3.445 105 87 lbs.
1
⁄2 1,984 6.889 210 161 lbs.
gas. Don’t waste it!
■
Most people prefer beer stored at 38° F.
■
Beer lines and faucets require regular cleaning
(see cleaning instructions on page 7).
■
A fully-charged 4.2 lb. CO2 cylinder will
dispense approximately 5
■
CO2 gas gives beer its sparkling effervescence.
It also gives beer its creamy head of foam.
Servings
1
⁄2 to 61⁄2 half barrels.
Flat Beer:
■
Foamy head disappears quickly; beer lacks
brewery fresh flavor.
AUSES:
C
■
Dirty glassware.
■
CO2 pressure is too low, due to leak or
pressure setting.
■
CO2 is turned off at night.
■
Cooler is too cold.
■
CO2 leak or defective (sticking)
check valve.
■
Sluggish CO2 regulator.
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.
9
Form No. Z2268
Replacement Parts – Single Keg Beer Dispensers
MODEL NOS. DP32S & DS32S
Item Description Part #’s
1 Compressor for R134a 63778
2 Condenser fan motor 63807
3 Condenser fan motor bracket 65166-1
4 Condenser fan blade 63808
5 Side panel 66215-1SS
6 Front grille 66210-8SS
7 Condenser 65528
8 Evaporator fan blade - 4” 63461
9 Evaporator fan motor C15239A
10 Evaporator assembly - complete 66295
11 Top assembly 66230-32T
12 Temperature control 61271
13 Door assembly 66256-1
14 Magnetic door gasket 66237-4
15 Door sill 65500-1
16 Door handle C31409-1
16A Door handle bracket 65189-1
17 Swivel caster 57788
18 Waste bottle C24392-1
19 Waste bottle holder 65524-1
20 Drip pan assembly 65507
20A Drain insert 65510-1
21 Dispensing head draft arm complete w/ Faucet 63251
21A Faucet 408X
Parts Not Shown on Drawing
Wiring harness
Power cord 65531
Top evaporator 65532
Top 65532
Liquid and Suction line assembly 65529
21A
21
20A
9
10
8
12
11
20
18
19
14
16
16A
5
1
15
6
3
2
4
7
17
13
Form No. Z2268
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.
10
Replacement Parts – Single Keg Beer Dispensers
16
5
12
8
9
10
11
14
13
15
3
4
2
1
7
6
For Single Valve Keg Coupler (Series D)
Item Part
No. No. Description
1 .............32499................Probe assembly
2 ............F40184...............Probe body
3...........31080-2P.............Ball
4............43641-1..............Ball retainer
5...........31087-2P.............Probe washer
6 .............31089................“O” Ring - 3-per assembly
7 .............43061................Body
8...........23682-2P.............Check valve
9............157R2P..............Washer
10............206B-1...............Tailpiece
11..............2026.................Coupling nut
12..........31088-2P.............Bottom seal washer
13 ...........31084-1 ..............Retaining screw
14...........43002A ...............Yoke assembly w/lock
15...........43001A ...............Yoke assembly standard
16...........32474-1..............Wrench
Miscellaneous
Part
No. Description
157L2P................Beer line connector gasket
57F2P .................CO
1392R .................Red air hose
529......................Beer hose
2928D .................Twin gauge CO
2 tank washer
2 regulator
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.
11
Form No. Z2268
Wiring Diagram – Single Keg Beer Dispensers
EVAPORATOR FAN
BLACK
WHITE
THERMOSTAT
BLACK
JUNCTION
POINTS
RED
WHITE
CONDENSER FAN
POWER CONNECTION
NEMA–15P CORD
BLACK
WHITE
GREEN
BLACK
GREEN
WHITE
RED
WHITE
COMPRESSOR
OVERLOAD
RELAY
END VIEW
8300 West Good Hope Road • Milwaukee, WI 53223 • Phone 414-353-7060 • Fax 414-353-7069
Toll Free 800-558-5592 • E-Mail: Perlick@Perlick.com • www.Perlick.com
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.
Form No. Z2268
12
Loading...
