Perlick BC72, BC48, BC36, BC60, BC96 User Manual

INSTALLATION AND OPERATION INSTRUCTIONS

FLAT TOP BOTTLE COOLER

MODEL NOS.

BC24 Series
BC36 Series
BC48 Series
BC60 Series
BC72 Series
BC96 Series

IMPORTANT INFORMATION

This manual has been prepared to assist you in the
installation of your Bottle Cooler and to acquaint you
with its operation and maintenance.

We dedicate considerable time to ensure that our
products provide the highest level of customer
satisfaction. If service is required, call Perlick at
1-800-777-7267 or your dealer who can provide you
with a list of qualified service agents. For your own
protection, never return merchandise for credit with­out our approval.

We thank you for selecting a Perlick product and
assure you of our continuing interest in your
satisfaction.

IMPORTANT WARRANTY INFORMATION

A Warranty card is enclosed that must be completed
and mailed to the Perlick Corporation to register the
warranty. If the card is not returned to Perlick, the
warranty period will begin from the date the
equipment is shipped from the factory.

Table of Contents

Cabinet Specifications ..........................................2

Installing

Uncrating and Inspection................................3

Plumbing.........................................................3

Electrical..........................................................3

Adjusting Partitions .........................................3

Installing Casters and Legs.............................3

Placing the Cabinet.........................................3

Sealing to the Floor .........................................3

Temperature Control .............................................4

Cleaning the Cabinet ............................................4

Wiring Diagram.....................................................5

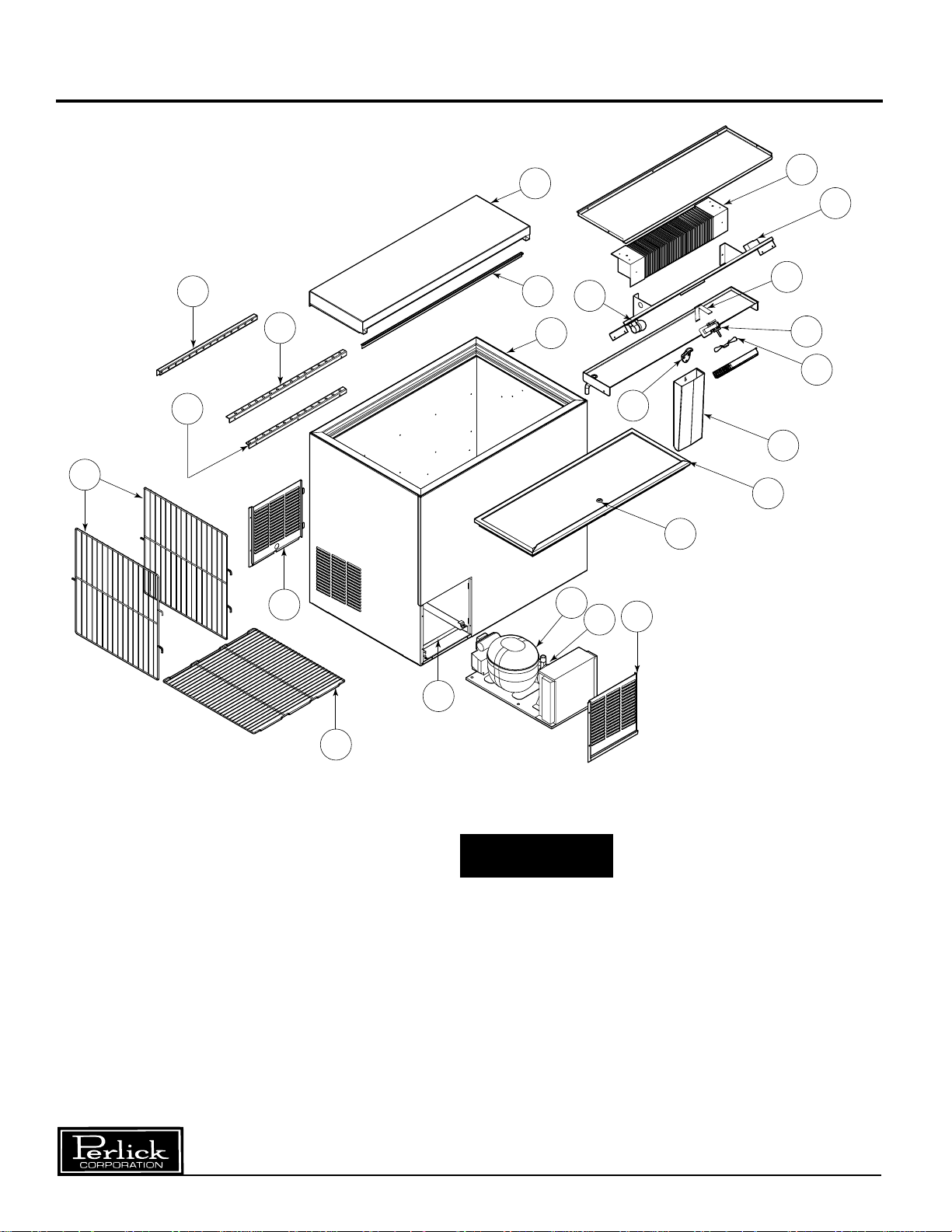

Replacement Parts ............................................6/7

8300 West Good Hope Road • Milwaukee, WI 53223 • Phone [phone] • Fax [phone]

Toll Free 800-558-5592 • E-Mail: [e-mail] • www.Perlick.com

Form No. Z2219

Rev. 4.15.06

Installation and Operating Instructions

Sizes and Specifications, Flat Top Bottle Coolers

MODEL NUMBERS

BLACK BC24PG BC36PG BC48PG BC60PG BC72PG BC96PG
STAINLESS EXTERIOR BC24SG BC36SG BC48SG BC60SG BC72SG BC96SG
STAINLESS INTERIOR BC24SS BC36SS BC48SS BC60SS BC72SS BC96SS
ALL STAINLESS BC24AS BC36AS BC48AS BC60AS BC72AS BC96AS

SPECIFICA TIONS

LENGTH (mm) 24” (610) 36” (915) 48” (1219) 60” (1524) 72” (1828) 96” (2438)
INTERIOR CU. FT. (m3) 3.75 (0.10) 7.83 (0.22) 11.68 (0.33) 15.53 (0.44) 19.38 (0.55) 27.08 (0.77)
CASE CAPACITY(12oz. bottles) 5.5 9.75 17.2 21 28.3 41
CASE CAPACITY(12oz. cans) 7 16 25 30 36 58
NUMBER OF BINS 2 2 3 4 5 7
CONDENSING UNIT H.P.
AMPS 3.2 3.0 5.2 7.0 6.9 7.6
SHIP WT lbs. (kg) 190 (86) 245 (111) 300 (136) 353 (160) 405 (184) 515 (235)
INTERIOR Black and Stainless Exterior Models (PG & SG): Walls are galvanized steel. Floors are stainless steel.

EXTERIOR Black Model: Front and ends are 20 gauge, black vinyl coated steel. Back is galvanized steel.

DOORS (Sliding) Stainless steel top and door pan with ABS plastic frame and integral handle. Includes door locks.
ELECTRICAL 115V, 60 Hz., 1 Phase. Furnished with 6 foot rubber plug-in cord (115V model only). Also available in 230V, 50Hz.,

PLUMBING No drain required. Condensate evaporates automatically.
INSULATION 2 inch foamed-in-place polyurethane insulation.
REFRIGERATION R134a capillary tube/type with hermetic condensing unit. Pulls out for service and cleaning.
VENTILATION 2’ model is front vented, all other models require 2” clearance from wall on either left end or back of cabinet

OPTIONALACCESSORIES • Floor racks • Casters • Additional opener and receiver

1

⁄5

1

⁄5

1

⁄4

1

⁄3

1

⁄3

1

Stainless Interior and All Stainless Models (SS & AS): Walls and floor are stainless steel.
All Models: Adjustable vinyl coated wire partitions.

Bottom is galvanized steel.
Stainless Exterior and Stainless Interior Models: Front and ends are stainless steel. Back is galvanized steel.
Bottom is galvanized steel.

All Stainless Models: Front, ends, back and bottom are stainless steel.
All Models: Top is stainless steel. Aluminum front and back grilles and stainless steel cap receivers.

1 Phase AC. Carries marking of conformity.

for proper air flow.

• Additional partitions • Bottle rails

• Interior light kit • Adjustable legs

⁄3

2”

[50]

24”

[610]

11 5/8”

[295]

2”

[50]

END VIEW

24” CABINET

36” [914]

24”

[610]

2”

[50]

34 1/4”

[870]

FRONT VIEW
24” CABINET

Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.

2”

[50]

19 1/16”

[485]

INSIDE

2”

[50]

36”, 48”, 60”, 72” & 96”

24”

[610]

11 5/8”

[295]

END VIEW

CABINETS

34 1/4”

[870]

2”

[50]

2”

[50]

17 3/16”

[437]

HOUSING

STEP

48” [1219]
60” [1524]
72” [1829]
96” [2436]

FRONT VIEW

36”, 48”, 60”, 72” & 96”

CABINETS

2

2”

[50]

27 7/8”

[708]

INSIDE

Form No. Z2219

Rev. 4.15.06

Preparing the Cabinet – Flat Top Bottle Coolers

Uncrating and Inspection

Remove all crating material before operating.
Carefully inspect cabinet for hidden damage.
If damage is discovered, file your claim immediately
with the transport company. Perlick is not
responsible for damage in transit.

Plumbing

No plumbing connections are required. Condensate
from the cooling coil automatically evaporated
through a condensate pan located in the
condensing unit section.

Electrical

The cabinet must be connected to a separately
fused power source (see Electrical Specification
Plate) and grounded in accordance with National
and Local Electrical Codes.
CAUTION: Do not attempt to operate the equipment
on any other power source than that listed on the
Electrical Specification Plate.

Placing the Cabinet

To assure maximum performance, fresh air must
be allowed to circulate through the machinery
compartment. It is important to allow at least two
inches of clearance at the back or left end of the
cabinet. Do not place anything in front of the
cabinet that would obstruct air flow at these grilles.
Do not place the unit in an unventilated small room.

CAUTION:
Removing the factory installed back clearance
spacers without providing proper left side grill
clearance for compressor air flow will void
the warranty.

Cabinet should be leveled.
For sanitation purposes, it may be necessary to

seal the base of the cabinet to the floor. This
can be accomplished by laying a bead of silicone
sealant along the base of the cabinet as shown
by the figure below.

Adjustable Partitions

Perlick Bottle Coolers are provided with adjustable
partitions which will accommodate various bottle
sizes.

■ Remove bottles and cans from their cases

before placing in cooler to ensure proper
air flow.

■ On 2’ and 3’ models keep air intake open for

proper circulation.

Installing Casters or Legs (optional)

Attach casters or legs to the cabinet bottom in holes
provided. Use the supplied
tapping machine screws. If unit is tipped on its back
for an extended period of time, wait 24 hours after
unit is uprighted to plug the unit in.

1

⁄4”–20 hex head self-

CABINET

BEAD SILICON
SEALER (RTV)

FLOOR

Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.

3
