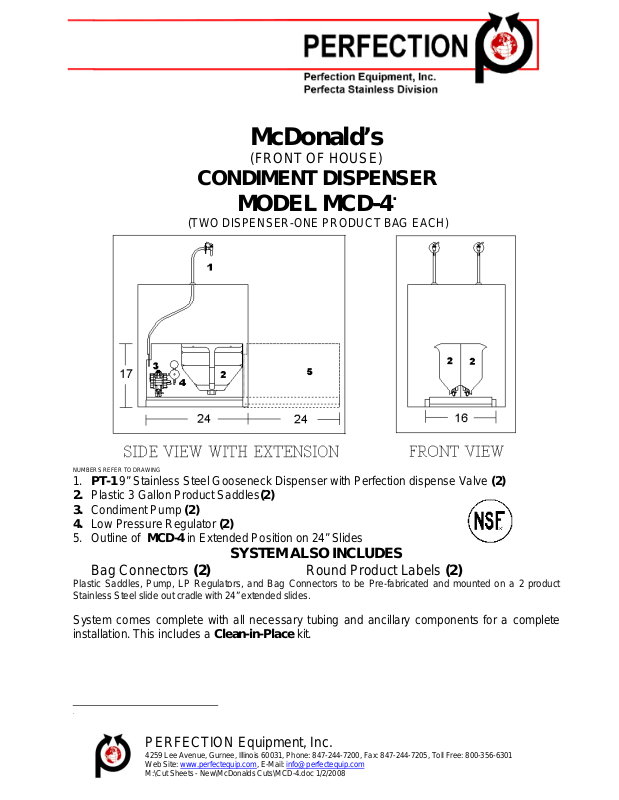

McDonald’s
(FRONT OF HOUSE)
CONDIMENT DISPENSER
MODEL MCD-4.
(TWO DISPENSER-ONE PRODUCT BAG EACH)

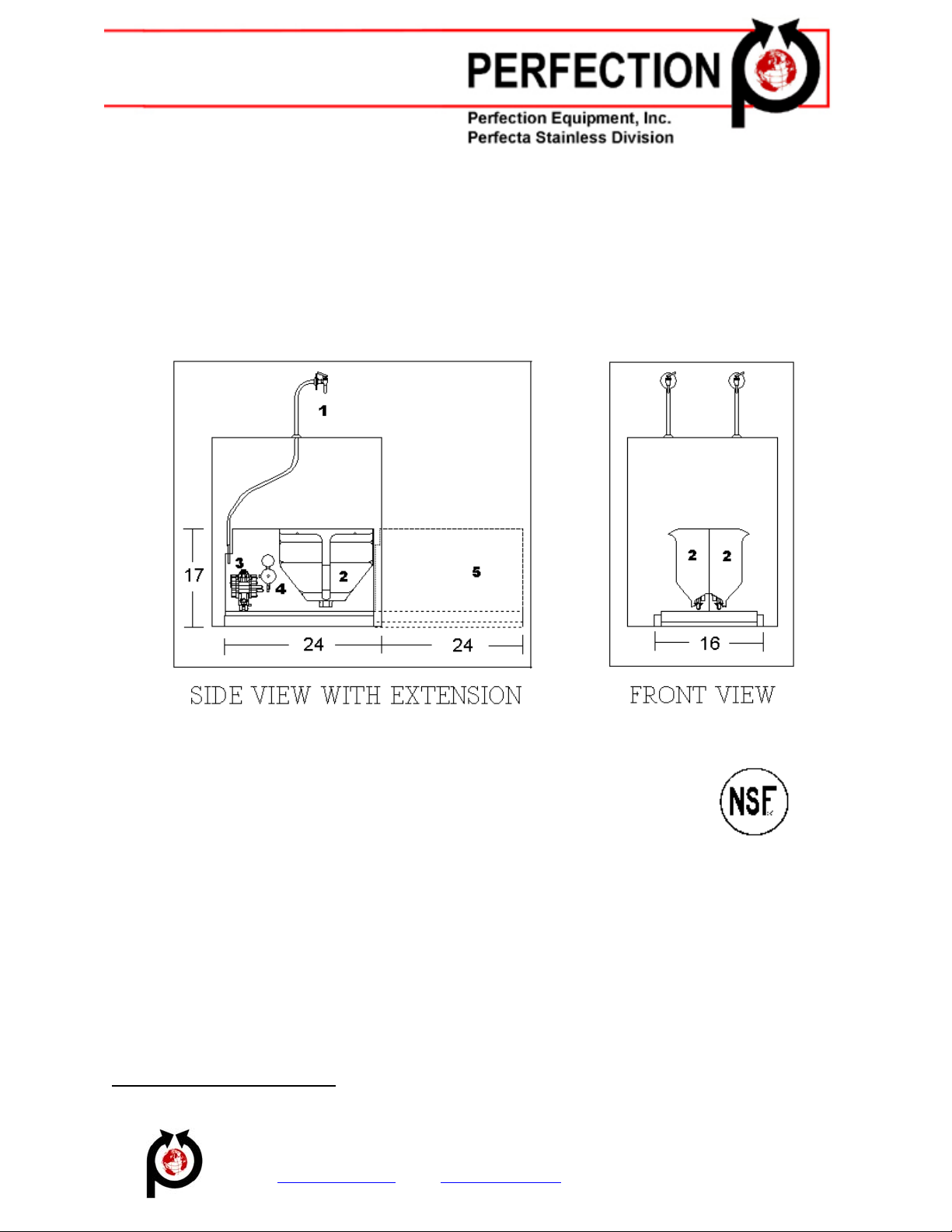

NUMBERS REFER TO DRAWING
1. PT-1 9” Stainless Steel Gooseneck Dispenser with Perfection dispense Valve (2)
2. Plastic 3 Gallon Product Saddles(2)
3. Condiment Pump (2)
4. Low Pressure Regulator (2)
5. Outline of MCD-4 in Extended Position on 24” Slides
SYSTEM ALSO INCLUDES
Bag Connectors (2) Round Product Labels (2)
Plastic Saddles, Pump, LP Regulators, and Bag Connectors to be Pre-fabricated and mounted on a 2 product
Stainless Steel slide out cradle with 24” extended slides.
System comes complete with all necessary tubing and ancillary components for a complete
installation. This includes a Clean-in-Place kit.
.
PERFECTION Equipment, Inc.
4259 Lee Avenue, Gurnee, Illinois 60031, Phone: 847-244-7200, Fax: 847-244-7205, Toll Free: 800-356-6301
Web Site: www.perfectequip.com, E-Mail: [email protected]
M:\Cut Sheets - New\McDonalds Cuts\MCD-4.doc 1/2/2008
