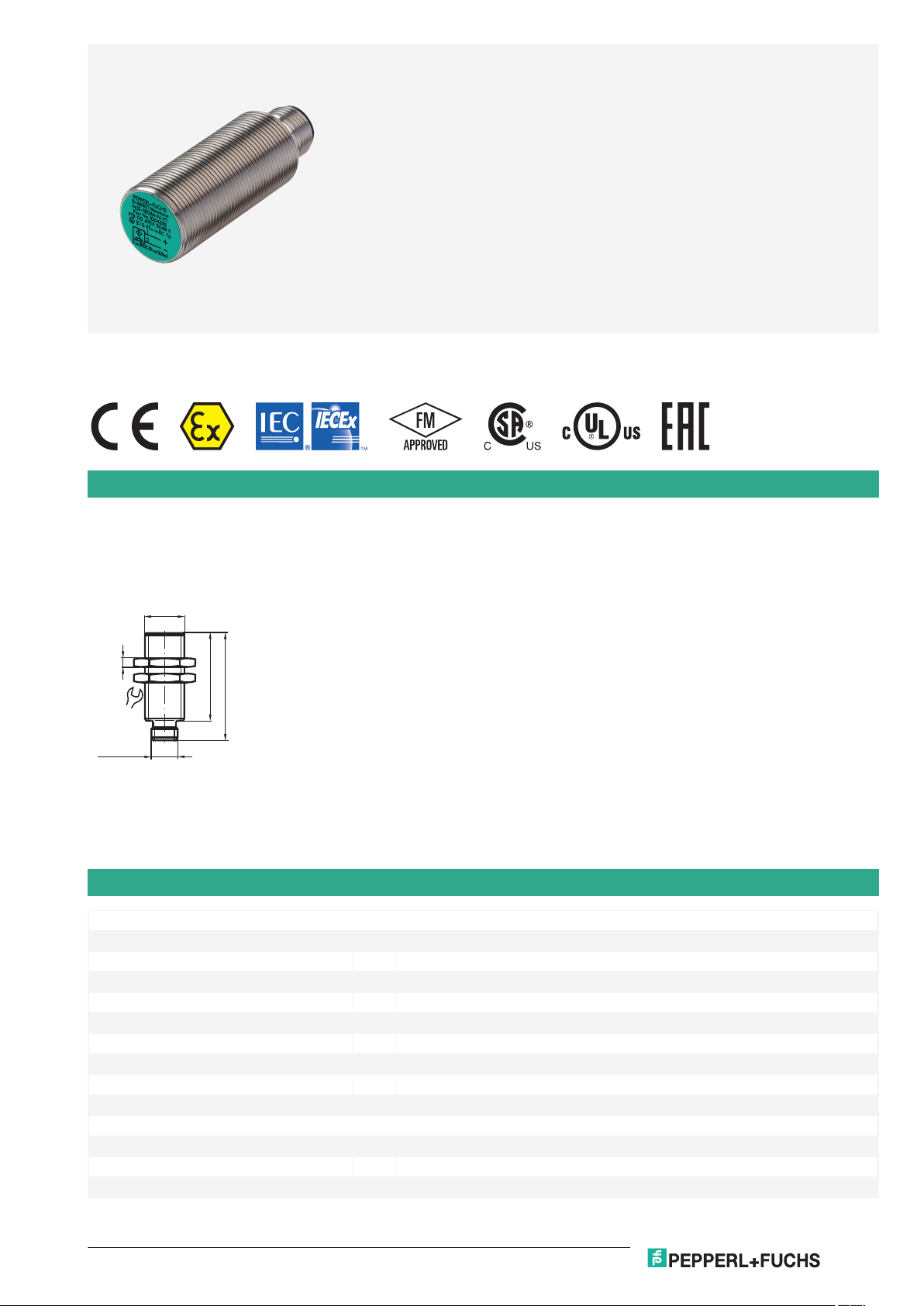

Page 1
50
4
40
M12x1
M18x1
24
Germany: +49 621 776 1111Pepperl+Fuchs Group
Refer to "General Notes Relating to Pepperl+Fuchs Product Information".
USA: +1 330 486 0001 Singapore: +65 6779 9091
Dimensions
Inductive sensor
NJ5-18GM-N-V1
5 mm flush
<
Usable up to SIL 2 acc. to IEC 61508
<
Technical Data
General specifications
Switching function Normally closed (NC)
Output type NAMUR
Rated operating distance s
Installation flush
Assured operating distance s
Reduction factor rAl 0.21
Reduction factor rCu 0.18
Reduction factor r
Output type 2-wire
Nominal ratings
Nominal voltage U
Operating voltage U
Switching frequency f 0 ... 500 Hz
Release date: 2020-12-14 Date of issue: 2020-12-14 Filename: 106453_eng.pdf
0.63
304
5 mm
n
0 ... 4.05 mm
a
8.2 V (Ri approx. 1 kΩ)
o
5 ... 25 V
B
1
Page 2
Inductive sensor NJ5-18GM-N-V1
Germany: +49 621 776 1111Pepperl+Fuchs Group
Refer to "General Notes Relating to Pepperl+Fuchs Product Information".
USA: +1 330 486 0001 Singapore: +65 6779 9091
Technical Data
Hysteresis H 3 %
Current consumption
Measuring plate not detected ≥ 3 mA at nominal voltage
Measuring plate detected ≤ 1 mA at nominal voltage
Compliance with standards and directives
Standard conformity
NAMUR EN 60947-5-6:2000
Standards EN 60947-5-2:2007
Approvals and certificates
IECEx approval
Equipment protection level Ga IECEx PTB 11.0037X
Equipment protection level Gb IECEx PTB 11.0037X
Equipment protection level Da IECEx PTB 11.0037X
Equipment protection level Mb IECEx PTB 11.0037X
ATEX approval
Equipment protection level Ga PTB 00 ATEX 2048 X
Equipment protection level Gb PTB 00 ATEX 2048 X
Equipment protection level Da PTB 00 ATEX 2048 X
EAC conformity TR CU 012/2011
FM approval
Control drawing 116-0165
UL approval
Ordinary Location E87056
Hazardous Location E501628
Control drawing 116-0452
CSA approval cCSAus Listed, General Purpose
CCC approval
Hazardous Location 2020322315002255
NEPSI approval
NEPSI certificate GYJ16.1393X
Marine approval DNVGL TAA00001A5
Ambient conditions
Ambient temperature -25 ... 100 °C (-13 ... 212 °F)
Mechanical specifications
Connection type Connector plug
Housing material Stainless steel 1.4305 / AISI 303
Sensing face PBT
Degree of protection IP66 / IP67
Connector
Threading M12 x 1
Number of pins 4
General information
Use in the hazardous area see instruction manuals
IEC 60947-5-6:1999
EN 60947-5-2/A1:2012
IEC 60947-5-2:2007
IEC 60947-5-2 AMD 1:2012
Release date: 2020-12-14 Date of issue: 2020-12-14 Filename: 106453_eng.pdf
2
Page 3
1
L+
L-
2
1
3
4
2
1 BN
2 BU
Wire colors in accordance with EN 60947-5-6
(brown)
(blue)
Inductive sensor NJ5-18GM-N-V1
Germany: +49 621 776 1111Pepperl+Fuchs Group
Refer to "General Notes Relating to Pepperl+Fuchs Product Information".
USA: +1 330 486 0001 Singapore: +65 6779 9091
Connection
Connection Assignment
Accessories
V1-G-N-2M-PUR Female cordset single-ended M12 straight A-coded, 2-pin, PUR cable blue, NAMUR
V1-W-N-2M-PUR Female cordset single-ended M12 angled A-coded, 2-pin, PUR cable blue, NAMUR
BF 18 Mounting flange, 18 mm
EXG-18 Quick mounting bracket with dead stop
Release date: 2020-12-14 Date of issue: 2020-12-14 Filename: 106453_eng.pdf
3
