smc PENTAX-DA
INTERCHANGEABLE LENS
OPERATING MANUAL
FOREWORD
Thank you for purchasing the smc PENTAX-DA lens.
Please read this operating manual carefully before using the lens to ensure that it is
used properly. In addition, also refer to your camera operating manual.
smc PENTAX-DA lens can be used exclusively with PENTAX digital SLR
cameras. This lens is not compatible with film SLR cameras.
• In this operating manual, “smc PENTAX-DA lens” is shortened to “DA lens.”
• Illustrations shown herein may differ from the actual appearance.
• PENTAX and smc PENTAX are trademarks of HOYA CORPORATION.
• SDM is a trademark of HOYA CORPORATION.
USING YOUR LENS SAFELY
Although we have carefully designed these lenses for safe operation, please pay special
attention to items marked with the following symbols when using this product.
11
WARNING This symbol indicates precautions that if not followed,
could result in serious injuries to the user.
CAUTION This symbol indicates precautions that if not followed,
could result in minor or medium injuries to the user or
damage to the equipment.
WARNING
• Never look at the sun through the lens or camera for a long time. Serious damage
to the retina or total loss of eyesight may occur, particularly when looking directly
through the lens.
CAUTION
• Do not leave the lens in direct sunlight without the lens cap. Direct sunlight
passing through the lens will be intensified, and should it focus on flammable
materials, fire may occur.
2
2
1. Storage and mildew prevention
• Take the lens out of the protective case or camera bag, and store it in a dry, well-ventilated place.
• Avoid storing the lens in a poorly ventilated location such as a closet, wardrobe, drawer, vehicle,
or where insect repellent or medicine is kept.
• Avoid storing the lens in areas of high temperature and humidity, where there is a risk of mildew
growth. Store the lens with a desiccant in a dry cabinet, airtight container, or plastic bag.
(Leaving a saturated desiccant in the storage container can cause damage to the lens. Be sure
to read the instructions that come with the desiccant before use.)
2. The following lenses are dust and water resistant.
(DA
DA
Lenses other than those listed above are not dust and water resistant. Be careful not to allow dust,
dirt, water, harmful gases, salt, or other materials to get on those lenses.
3. When the lens is not attached to the camera body, attach both the supplied lens cap and lens mount
cap to protect it from dust, etc.
4. Never use any organic solvent such as thinner, alcohol, or benzine, etc. to remove dust on the lens.
5. The lens is a precise optical instrument. Be careful not to let it fall, or subject it to strong shocks or
pressure. Use a cushion or similar pad to protect the lens from the vibrations of motorcycles or other
vehicles, boats, etc.
6. Avoid subjecting the lens to rapid changes in temperature, otherwise condensation can occur on
both the inside and the outside of the lens. Put the lens in a plastic bag or camera bag, and take it
out after the lens has reached ambient temperature.
7. Do not leave the camera with the lens cap off attached to a tripod or other rigid camera support. The
inner parts of the camera can be damaged by direct sunlight.
8. Have the lens inspected by a dealer every one or two years to maintain its high performance.
PRECAUTIONS AND LENS MAINTENANCE
300mm f/4ED [IF] SDM, DA 200mm f/2.8ED [IF] SDM, DA 16-50mm f/2.8ED AL [IF] SDM,
50-135mm f/2.8ED [IF] SDM)
CONTENTS
FOREWORD
USING YOUR LENS SAFELY ................................................................................. 1
PRECAUTIONS AND LENS MAINTENANCE ........................................................ 2
FEATURES OF THE smc PENTAX-DA LENS ....................................................... 6
smc PENTAX-DA LENS .......................................................................................... 7
About the DA lens mount .................................................................................... 8
About lenses with a supersonic motor ................................................................. 9
Precautions for using lenses equipped with a supersonic motor on
the ........................................................................................................ 10
MOUNTING AND REMOVING THE LENS ............................................................ 11
LENS CAP ............................................................................................................. 12
Attaching the dedicated lens cap to DA 40mm f/2.8 Limited ............................. 13
FOCUSING ............................................................................................................. 14
Changing the Focus Mode ................................................................................ 14
For the DA lens .............................................................................................. 14
Using Autofocus ................................................................................................ 15
Focusing with the OK Button ............................................................................. 15
Using Manual Focus .......................................................................................... 17
Using the Quick-Shift Focus System ................................................................. 17
How to use the Quick-Shift Focus System ........................................................ 18
DA 200mm f/2.8ED [IF] SDM, DA 300mm f/4ED [IF] SDM focusing .......... 20
33
4
4
Precautions on close-distance scale ................................................................. 21
ZOOM LENS .......................................................................................................... 22

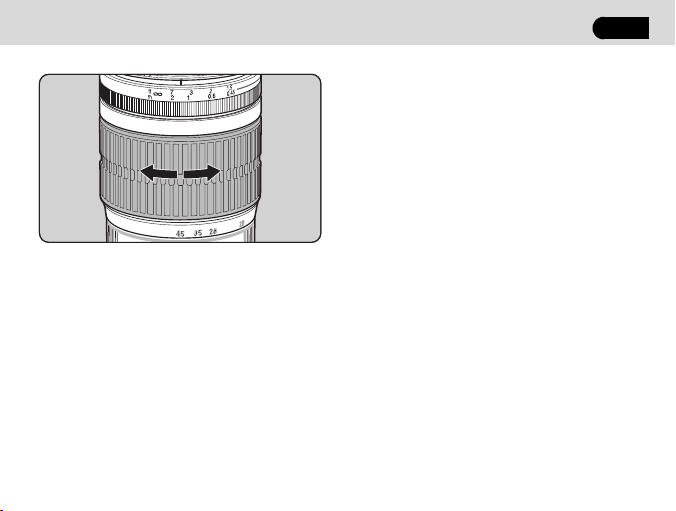

About the zoom ring .......................................................................................... 23
About the zoom lock switch ............................................................................... 24
MACRO LENS ....................................................................................................... 25
Magnification Scale ........................................................................................... 25
ATTACHING THE LENS HOOD ............................................................................ 26
Screw-on Type (DA 70mm f/2.4 Limited dedicated lens hood) .........................26
Screw-on Type (DA 40mm f/2.8 Limited dedicated lens hood) .........................27
Bayonet Type .................................................................................................... 27
Bayonet Type (DA 21mm f/3.2 AL Limited dedicated lens hood) ...................... 28
About the PL filter window ................................................................................. 29
Built-in lens hood ............................................................................................... 31
FILTERS ................................................................................................................. 32
Precaution on filters ........................................................................................... 32
Attaching the 30.5mm filter to the DA 40mm f/2.8 Limited lens ......................... 32
Attaching a filter and the dedicated lens hood to the DA 21mm f/3.2
AL Limited lens .................................................................................................. 33
Attaching a filter and the dedicated lens hood to the DA 70mm f/2.4
Limited lens ....................................................................................................... 34
Circular polarizing filters and vignetting ............................................................. 35
Compatibility table for PENTAX circular polarizing filters .................................. 36
PRECAUTIONS WHEN USING THE LENS WITH A FLASH ............................... 40
Built-in Flash ...................................................................................................... 40
External Flash ................................................................................................... 40
Compatibility of DA Lenses with the Built-in Flash ............................................42
TRIPOD MOUNT .................................................................................................... 44
Removing the Tripod Mount .............................................................................. 45
MAIN SPECIFICATIONS ....................................................................................... 46
55
6
6
• The smc PENTAX-DA lens is an interchangeable lens specifically designed for digital
cameras. Its image circle is specialized for the image sensor (23.5 x 15.7mm) and its
optical system is optimized for the characteristics of digital images.
• When autofocusing is finished, it is possible to make fine adjustments by hand using the
“Quick-Shift Focus System” (see page 18 for details).
• Lenses that have “SDM” in their name are equipped with a supersonic motor. When
mounted on a camera that supports supersonic motors, the autofocus is quiet and
smooth.
• The following lenses are dust and water resistant because each part is individually
sealed. This makes it difficult for dust and water to enter inside the lens.
DA 300mm f/4ED [IF] SDM, DA 200mm f/2.8ED [IF] SDM, DA 16-50mm f/2.8ED AL
[IF] SDM, DA 50-135mm f/2.8ED [IF] SDM
FEATURES OF THE smc PENTAX-DA LENS

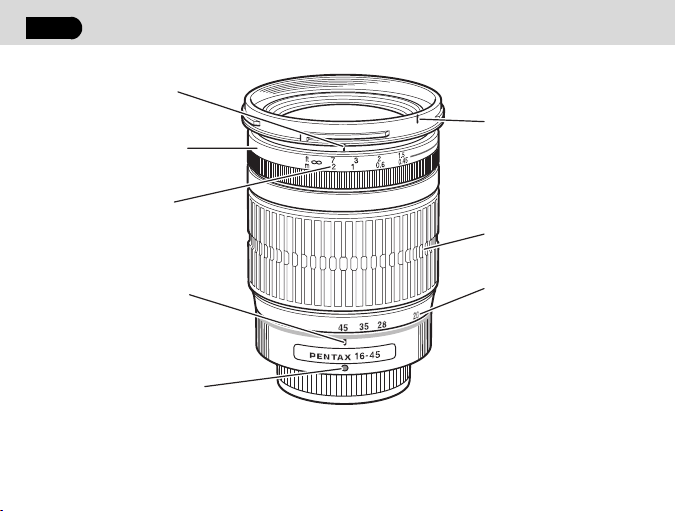

smc PENTAX-DA LENS
77
Focusing ring
Distance scale
window
Depth-of-field scale
Mounting index
Lens hood
attaching index
Distance scale
Depth-of-field scale
Distance index
Note:
• The DA lens does not have an aperture ring. Aperture settings are controlled
automatically as if set to the auto “A” position, so accessories without an auto
“A” setting cannot be used with this lens.
• The DA lens is not compatible with film SLR cameras.
8
8
About the DA lens mount
The DA lens is an interchangeable lens specifically designed for the PENTAX digital SLR
cameras.
There are three mounts for the DA lens, the KAF, KAF2 and KAF3.
KAF-mount KAF2-mount KAF3-mount
AF coupler
Refer to the next page for more information on lenses with supersonic motors.
Lens-information
contacts
AF coupler
Power supply contacts
Lenses with a supersonic motor
Lens-information
contacts
Lens-information
contacts
Power supply contacts
Lenses with a supersonic motor
(supersonic motor only)
CAUTION
Be careful not to damage or dirty the lens mount surfaces as this can result in failure
or malfunction.
99
About lenses with a supersonic motor
The lenses in the table below are equipped with internal supersonic motors. When mounted
on a camera body that supports supersonic motors, the autofocus (AF) is quiet and
smooth.
• Supersonic motor compatible camera body
* If the firmware is version 1.30 or later, refer to page 10.
DA17-70mm f/4 AL [IF] SDM
DA 16-50mm f/2.8ED AL [IF] SDM
DA 50-135mm f/2.8ED [IF] SDM
DA 200mm f/2.8ED [IF] SDM
DA 300mm f/4ED [IF] SDM
* In both cases focusing can be done manually.
, , *,
Lens
Precautions
Lens uses a supersonic motor. When the lens is
mounted on a camera body that does not support
supersonic motors (including with
firmware older than version 1.30), the autofocus
cannot be operated by either the AF motor in the
camera body or the supersonic motor.
When the lens is mounted on a camera body that
does not support supersonic motors (including
autofocus is operated by the AF motor in the camera
body.
with firmware older than version 1.30), the
10
10
Precautions for using lenses equipped with a supersonic motor on the
When using lenses equipped with a supersonic motor on the , use the camera
firmware version 1.30 or later.
• How to Check and Update the Firmware
Holding-down the MENU button while turning ON the will display the firmware
version in the center of the display.
Download and install the firmware update for the using the link below.
• Firmware Download Page:
http://www.pentax.jp/english/support/download_digital.html
MOUNTING AND REMOVING THE LENS
1111
1
2
1. To mount the lens on the camera body
Attach the lens while aligning the red dots on the lens and body, then turn the lens
clockwise until it clicks in place.
"Memo:
• Do not hold down the lens unlock button while mounting the lens, otherwise the lens
will not be properly mounted.
• After mounting the lens, gently turn the lens counterclockwise to make sure it is
locked in place.
2. To remove the lens
Hold down the lens unlock button on the camera body and turn the lens
counterclockwise.
12
12
Take off the lens cap by pressing the two tabs inward.
LENS CAP
"Memo:
• When not using the lens, be sure to attach the lens cap.
• Attach the dedicated lens cap over the lens hood on the DA 21mm f/3.2 AL Limited,
DA 35mm f/2.8 Macro Limited, DA FISH-EYE 10-17mm f/3.5-4.5ED [IF], and DA
70mm f/2.4 Limited. Also, with the DA 21mm f/3.2 AL Limited, DA 40mm f/2.8
Limited, DA 70mm f/2.4 Limited, it is possible to mount the F49mm lens cap
(option) by removing the lens hood.
1313
Attaching the dedicated lens cap to DA 40mm f/2.8 Limited
First screw the dedicated hood onto the front of the lens, then screw the lens cap onto the
lens hood.
14
14
FOCUSING
Changing the Focus Mode
Use the camera’s focus mode switch to change between the autofocus mode and manual
focus mode. For details, refer to your camera operating manual.
For the DA lens
The focus mode switch on the DA lens is used to
change between the autofocus and manual focus modes
(the focus mode switch on the camera is always set to
autofocus).
To use the autofocus, set the switch to the AF position.
To use the manual focus, set the switch to the MF
position.
Focus mode
switch
1515
Using Autofocus
Set the focus mode to autofocus. Press the shutter release button halfway to autofocus.
With the , or camera, you can also press the AF button to autofocus.
See page 14 for information about changing the focus mode.
Focusing with the OK Button
With the , , , , , ,
or camera set as explained below, autofocusing by pressing the shutter release
button halfway will be disabled and the OK button can be used instead to autofocus.
On the C Custom menu, select “Enable AF” for “OK btn when shooting”.
/ //////:
"Memo:
• For details on the setting procedure, refer to the camera operating manual.
16
16
CAUTION
During autofocusing, the focusing ring of the following lenses will rotate.
• To prevent malfunction, do not touch the focusing ring during autofocusing.
Particularly be careful when the Focus Mode is set to AF.C (AF-continuous). The
camera continues adjusting the focus while the AF button is pressed or the
shutter release button is pressed halfway.
- DA FISH-EYE 10-17mm f/3.5-4.5ED [IF] - DA 12-24mm f/4ED AL [IF]
- DA 16-45mm f/4ED AL - DA 18-55mm f/3.5-5.6 AL ΙΙ
- DA 18-55mm f/3.5-5.6 AL - DA 18-250mm f/3.5-6.3ED AL [IF]
- DA 50-200mm f/4-5.6ED - DA 55-300mm f/4-5.8ED
- DA 21mm f/3.2 AL Limited - DA 35mm f/2.8 Macro Limited
- DA 40mm f/2.8 Limited - DA 70mm f/2.4 Limited
1717
Using Manual Focus
Set the focus mode to MF, and turn the focusing ring to focus manually.
See page 14 for information about changing the focus mode.
Using the Quick-Shift Focus System
If the focus mode is set to autofocus, you can focus manually after autofocus is achieved.
Manually turn the focusing ring to finely adjust the focus. You can do this without changing
the focus mode to MF.
* The Quick-Shift Focus System is not available with the DA 18-250mm f/3.5-6.3ED AL [IF].
18
18
How to use the Quick-Shift Focus System
1. Using Autofocus
Set the focus mode switch to autofocus, then press the shutter release button halfway to
autofocus.
With the , or camera, you can also press the AF button to focus.
With the , , , , , ,
or camera set as explained in “Focusing with the OK Button” on page
15, you can focus by pressing the OK button.
2. Hold down the shutter release button halfway (or hold down the AF button or OK
button), then turn the focusing ring to finely adjust focus.
3. Finally, press the shutter release button fully to take a picture.
The focusing ring on some lenses may rotate during autofocus.
• Do not touch the focusing ring while autofocus is operating as it may cause a
malfunction. For more information see “CAUTION” on page 16.
CAUTION
• When using the Quick-Shift Focus System, keep pressing the shutter release button
(or AF button) after you achieve focus and before taking a picture. If you let go of the
shutter release button before taking the picture, autofocus will operate all over again
when you press the shutter release button again.
However, you can use the menus to set the camera according to the procedure below
so you can take the picture without autofocusing after letting go of the shutter release
button. See the camera operating manual for details about the setting procedure.
• For the , and the
, : “C Custom Setting” menu → “AF by Press Halfway” → “Off”
: “Custom function” → “AF with Press Halfway” → “Off”
"Memo:
• Use the AF button to focus when using autofocus.
• For the , , , , , ,
and
“C Custom Setting” menu → “OK btn when shooting” → “Cancel AF”
"Memo:
• When the OK button is pressed, focus temporarily changes to manual focus.
1919
20
20
DA 200mm f/2.8ED [IF] SDM, DA 300mm f/4ED [IF] SDM focusing
• The mechanism does not allow the angle of rotation of the focusing ring and the distance
scale to align while focusing. Always check the focus using the view finder before taking
a picture. This is especially true with manual focus and the Quick-Shift Focus System.
• When focusing with manual focus or the Quick-Shift Focus System, the mechanism
allows the focusing ring to rotate freely after it is set to ∞ (infinity) or the minimum focus
distance.
2121
Close-distance scale
Precautions on close-distance scale
(For DA 16-45mm f/4ED AL, DA 18-55mm f/3.5-5.6 AL II, DA18-55mm f/3.5-5.6 AL)
In the close-distance scale range (the orange area on the distance scale), when shooting at
the maximum aperture, image quality deterioration in the picture corners may result
because of the optical characteristics of the lens.
When taking a picture in this range, we recommend that you use a smaller aperture,
stopping down from full aperture.
22
22
Focusing index
Focusing ring
Distance scale
ZOOM LENS
Lens hood
attaching index
Zoom ring
Zoom index
Mounting index
Focal length scale

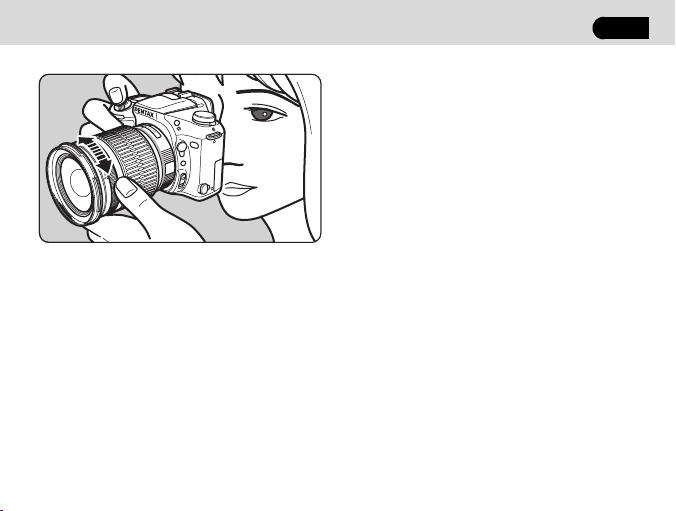

The zoom lens has a focusing ring on the front side and a zoom ring on the rear side.
Turn the zoom ring to set the desired angle of view (lens focal length).
"Memo:
• The focusing point may shift slightly by changing the focal length. First adjust the
zoom and then adjust focus.
• The focusing index on the zoom lens is set to match the focus point when the focal
length is at telephoto. The focusing index may not match the focus point for other
focal lengths.
About the zoom ring
Turn the zoom ring clockwise for telephoto and counterclockwise for wide-angle.
2323
24
LOCK
LOCK
24
Red line
1
About the zoom lock switch
The DA 18-250mm f/3.5-6.3ED AL [IF] is equipped with a zoom ring lock. This prevents the
lens from extending under its own weight while you are carrying the camera.
2
1. Set the zoom ring to the widest angle (18mm).
2. Move the lock switch in the direction of 1.
The lock is engaged and the zoom ring is immovable when the red line is visible.
To zoom in the telephoto direction, move the lock switch in the direction of 2.
* If the switch does not move, the lens may be extended. Do not attempt to force the switch.
Check the lens and try again.
MACRO LENS
DA 35mm f/2.8 Macro Limited lens adjust focus from infinity to life-size [1x].

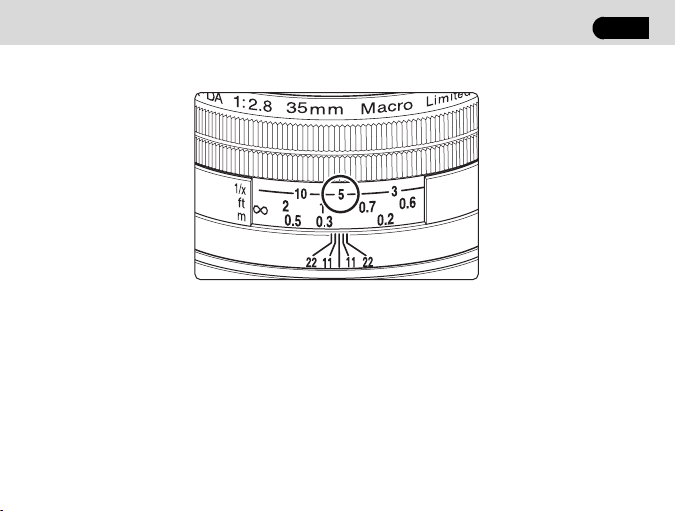

Magnification Scale
The magnification is indicated by denominators on the distance scale. “5” indicates “1/5x”.
When determining the magnification first, set the magnification in the manual focus mode
and adjust focus by moving the camera closer or further from the subject.
2525
26
26
In order to avoid the deterioration in image quality from internal reflection, use of the lens
hood is recommended.
ATTACHING THE LENS HOOD
a
a. Screw-on Type (DA 70mm f/2.4 Limited dedicated lens hood)
Screw the hood on to the front of the lens to attach it.
The hood is telescopic. Extend it fully to use it.
"Memo:
The lens hood cannot be mounted on some circular polarizing filters that are not
produced by PENTAX, depending on the type.
2727
b
c
Lens hood
attaching
index
b. Screw-on Type (DA 40mm f/2.8 Limited dedicated lens hood)
Screw the hood on to the front of the lens to attach it.
c. Bayonet Type
When attaching the lens hood, align the index on the lens hood with the attaching index
on the lens, and push both parts straight toward each other. Attach the lens hood on the
lens by turning the hood in the clockwise direction to lock it as viewed from the front of
the lens until it clicks into position.
"Memo:
• When attaching the lens hood, hold the focusing ring and zoom ring securely to
prevent them from turning.
• When the lens hood is not in use, it can also be turned around and attached in the
reversed position.
28
28
d
Lens hood
attaching
index

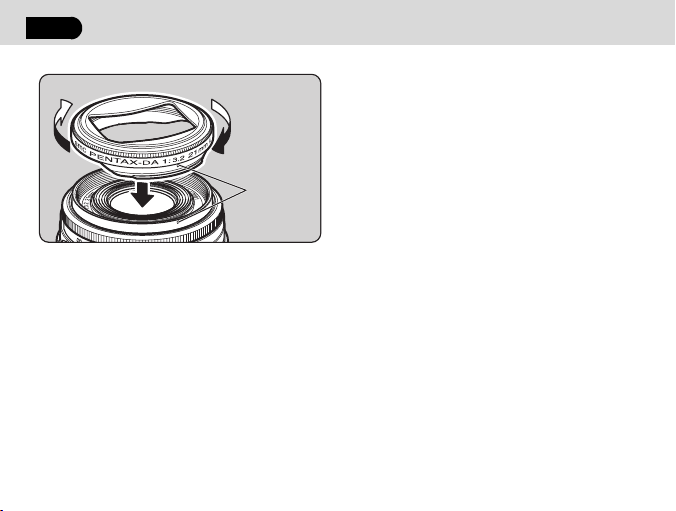

d. Bayonet Type (DA 21mm f/3.2 AL Limited dedicated lens hood)
When attaching the lens hood, align the index on the lens hood with the attaching index
on the lens, and push both parts straight toward each other. Attach the lens hood on the
lens by turning the hood in a clockwise direction, as seen from the front of the lens, until
it stops.
"Memo:
• Vignetting occurs if the camera is used while the hood is not completely attached.
• The dedicated lens hood cannot be attached if a filter is attached to the front of the
lens. To use a filter and the dedicated lens hood together, attach a 43mm diameter
filter to the back of the hood. (Refer to page 33)
2929
1
About the PL filter window
If a circular polarizing filter is attached to the DA lens, you can easily turn the filter via the
PL filter window on the bayonet-type hood.
Lens with hood with a PL filter window
- DA 14mm f/2.8ED [IF] - DA 50-135mm f/2.8ED [IF] SDM
- DA 16-45mm f/4ED AL - DA 50-200mm f/4-5.6ED
- DA 16-50mm f/2.8ED AL [IF] SDM - DA 55-300mm f/4-5.8ED
- DA 17-70mm f/4 AL [IF] SDM - DA 200mm f/2.8ED [IF] SDM
- DA 18-55mm f/3.5-5.6 AL ΙΙ - DA 300mm f/4ED [IF] SDM
- DA 18-55mm f/3.5-5.6 AL
2
30
3
30
How to use the lens hood with polarizing filter window
1. Remove the PL filter window cap by sliding it in the direction as shown above.
2. Turn the outer rim of the circular polarizing filter from the PL filter window as shown above.
3. Attach the PL filter window cap.
"Memo:
• When shooting, be sure the PL filter window cap is in place to use the lens hood to
maximum effect.
3131
Built-in lens hood
The following lenses have a lens hood built into the lens body. The hood cannot be
removed from the lens.
• DA FISH-EYE 10-17mm f/3.5-4.5ED [IF]
• DA35mm f/2.8 Macro Limited (*)
Lenses marked with an * have built-in sliding hoods which should be extended.
32
32
Make sure the filter size matches the lens, then screw the filter onto the front of the lens.
FILTERS
"Memo:
• The compatible filter size for each lens is listed on pages 46-51.
• Filters cannot be mounted on the DA FISH-EYE 10-17mm f/3.5-4.5ED [IF].
Precaution on filters
• Since a filter becomes a part of the optical system when attached on the lens, handle it in
the same way you handle the lens with care to dust, dirt and scratches. Normally,
attaching two or more filters on a lens does more harm than good. However, attaching a
circular polarizing filter and another filter would not be a problem.
• Use a circular polarizing filter with an autofocus camera for proper exposure and
autofocusing.
Attaching the 30.5mm filter to the DA 40mm f/2.8 Limited lens
Normally, you attach the 49mm filter to the front of the lens. But you can also screw a
30.5mm filter to the back of the dedicated hood.
3333
Attaching a filter and the dedicated lens hood to the DA 21mm f/3.2 AL Limited
lens
It is possible to attach a 49mm diameter filter to the front of the DA 21mm f/3.2 AL Limited
lens, but not when the dedicated lens hood is attached. To use a filter with the dedicated
lens hood, screw a 43mm diameter filter to the back of the filter.
34
34
Attaching a filter and the dedicated lens hood to the DA 70mm f/2.4 Limited lens
With the DA 70mm f/2.4 Limited lens, attach the 49mm diameter filter to the front of the
lens. To use it together with the dedicated lens hood, screw it on over the filter that is
attached.
"Memo:
• The lens hood cannot be mounted on some circular polarizing filters that are not
produced by PENTAX, depending on the type.
3535
Circular polarizing filters and vignetting
Circular polarizing filters are thicker than regular filters. Depending on the lens that is
mounted and the shooting conditions, vignetting may occur in the four corners of the image.
Refer to the “Compatibility table for PENTAX circular polarizing filters” on the following page
for information on compatibility of the PENTAX circular polarizing filters (currently not

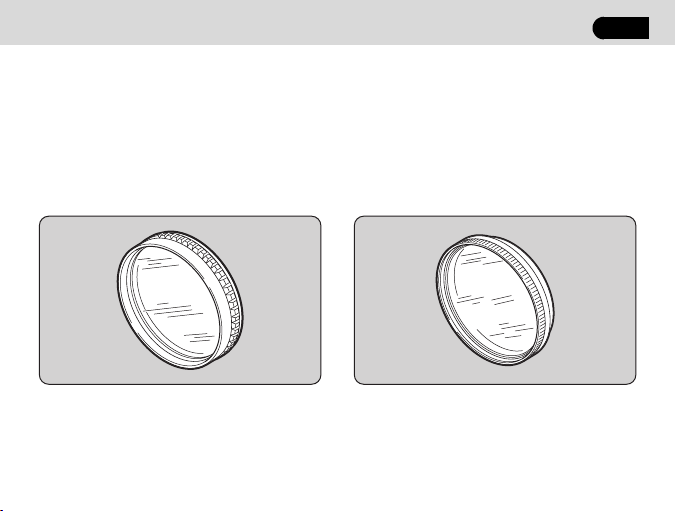

available) with various lenses. There are two types of PENTAX circular polarizing filters.
The A type (on the left in the diagram below) and the B type (on the right in the diagram
below). The B type filter is thinner than the A type filter.
A type B type
36
36
Compatibility table for PENTAX circular polarizing filters
* PENTAX circular polarizing filters are not currently available.
* PENTAX does not produce a circular polarizing filter with a 62mm diameter that can be
used with the DA 18-250mm f/3.5-6.3ED AL [IF].
YES: Compatible *YES: Compatible in some conditions NO: Incompatible
Circular polarizing filter
Lens
DA 14mm f/2.8ED [IF] NO Vignetting occurs. YES
DA 21mm f/3.2 AL Limited*
DA 35mm f/2.8 Macro Limited *YES
DA 40mm f/2.8 Limited*
DA 70mm f/2.4 Limited*
Compatibility
3
YES
1
1
YES
YES YES
(A type)
Notes
Use a filter with a
diameter of 49mm.
*Can be mounted and
used. However, the built-in
lens hood cannot be
withdrawn while the A
type circular polarizing
filter is attached.
Use a filter with a
diameter of 49mm.
Circular polarizing filter
Compatibility
(B type)
Use a filter with a
YES
diameter of 49mm.
YES
Use a filter with a
YES
diameter of 49mm.
Notes
3737
Lens
DA 200mm f/2.8ED [IF] SDM
DA
300mm f/4ED [IF] SDM
DA 12-24mm f/4ED AL [IF]*
DA
16-50mm f/2.8ED AL [IF]
SDM
50-135mm f/2.8ED [IF]
DA
SDM
2
Circular polarizing filter
Compatibility
*YES
*YES
(A type)
Notes
*Can be mounted and
used. However, when the
A type of circular polarizing
filter is mounted, the mount
of the dedicated bayonet
hood interferes with the
filter's mount so it cannot
be mounted on that.
*Vignetting occurs at focal
lengths below 15mm.
NO Vignetting occurs. YES
YES YES
Circular polarizing filter
Compatibility
(B type)
Notes
YES
*Vignetting occurs
*YES
at focal lengths
below 15mm.
38
38
Circular polarizing filter
Lens
DA 16-45mm f/4ED AL *YES
DA 17-70mm f/4 AL [IF] SDM NO *YES
DA 18-55mm f/3.5-5.6 AL ΙΙ
DA 18-55mm f/3.5-5.6 AL
DA 50-200mm f/4-5.6ED
DA 55-300mm f/4-5.8ED
*1 The lens hood cannot be mounted on some circular polarizing filters that are not produced by
PENTAX, depending on the type.
*2 Vignetting occurs at focal lengths below 15mm with other PENTAX filters (such as the
Skylight) besides circular polarizing filters.
*3 The dedicated hood cannot be mounted if a filter is mounted on the front of the lens, including
circular polarizing filters.
Compatibility
*YES
(A type)
Notes
*Can be mounted and
used. However, when the
A type of circular polarizing
filter is mounted, the mount
of the dedicated bayonet
hood interferes with the
filter’s mount so it cannot
be mounted on that.
*Can be mounted and
used. However, when the
A type of circular polarizing
filter is mounted, the mount
of the dedicated bayonet
hood interferes with the
filter’s mount so it cannot
be mounted on that.
Circular polarizing filter
YES
Vignetting occurs
when the focal
length is 17mm.
YES
(B type)
Notes
Compatibility
"Memo:
• Filters, including circular polarizing filters, cannot be mounted on the DA FISH-EYE
10-17mm f/3.5-4.5ED [IF] lens.
3939
40
40
PRECAUTIONS WHEN USING THE LENS WITH A FLASH
Built-in Flash
The built-in flash can not be used when the distance is less than 0.7m. When the flash is
used within 0.7m, it causes incorrect exposure control and vignetting in the picture corners.
• Refer to the “Compatibility of DA Lenses with the Built-in Flash” chart on page 42 for
information on the compatibility of the built-in flash with the lens being used.
External Flash
The external flash can be used while the lens hood is attached. However, the following
conditions apply to some types of lens.
zDA 14mm f/2.8ED [IF]
The AF540FGZ and AF360FGZ external flash units can only be used when the wide-angle
panel is used (it is also possible to use the lens hood). Other external flash units are not
recommended because their coverage angle is not compatible with the angle of view of the
lens.
zDA 21mm f/3.2 AL Limited
External flash units can be used while the lens hood is mounted without problems if it is
possible to set their zoom [coverage angle] up to 28mm.
zDA FISH-EYE 10-17mm f/3.5-4.5ED [IF]
External flash units cannot be used because their coverage angle is not compatible with the
angle of view of the lens.
4141
zDA 12-24mm f/4ED AL [IF]
PENTAX external flash units which cover a 24mm lens on a 35mm SLR, or 16mm lens on a
digital SLR, can be used when the lens is set from 16mm to 24mm.
AF540FGZ and AF360FGZ can be used from 13mm to 24mm with the wide angle panel (In
both cases, it is possible to use the lens hood). Please note that at focal lengths less than
13mm the corners of the picture will not be fully illuminated.
Other external flash units are not recommended, because their coverage angle is not wide
enough to cover the angle of view of the lens.
zDA 16-50mm f/2.8ED AL [IF] SDM
zDA 16-45mm f/4ED AL
PENTAX external flash units which cover a 24mm lens on a 35mm SLR, or 16mm lens on a
digital SLR, can be used with the lens hood without problems.
* For more information, refer to the manual for the external flash unit.
42
42
Compatibility of DA Lenses with the Built-in Flash
Compatibility
Lens
,
,
DA 14mm f/2.8ED [IF] NO NO NO NO
DA 21mm f/3.2 AL Limited YES YES YES YES
DA 35mm f/2.8 Macro Limited YES YES YES YES
DA 40mm f/2.8 Limited YES YES YES YES
DA 70mm f/2.4 Limited YES YES YES YES
DA
200mm f/2.8ED [IF] SDM YES YES YES YES
DA
300mm f/4ED [IF] SDM YES YES YES YES
DA FISH-EYE 10-17mm
f/3.5-4.5ED [IF]
DA 12-24mm f/4ED AL [IF] NO NO NO NO
DA
16-50mm f/2.8ED AL [IF]
SDM
NO NO NO NO
YES*1 YES*2 YES*3 YES*3
DA 16-45mm f/4ED AL YES*4 YES*4 YES*4 YES*4
DA 17-70mm f/4 AL [IF] SDM YES*5 YES*6 YES*7 YES*7
DA 18-55mm f/3.5-5.6 AL ΙΙ YES YES YES YES
DA 18-55mm f/3.5-5.6 AL YES YES YES YES
DA 18-250mm f/3.5-6.3ED AL [IF] YES*6 YES*6 YES*6 YES*6
DA
50-135mm f/2.8ED [IF] SDM YES YES YES YES
,
,
,
,
4343
Compatibility
Lens
DA 50-200mm f/4-5.6ED YES YES YES YES
DA 55-300mm f/4-5.8ED YES YES YES YES
,
,
Except for the DA 35mm f/2.8 Macro Limited, DA 70mm f/2.4 Limited, DA 40mm f/2.8
Limited and DA 21mm f/3.2 AL Limited, do not use the lens hood when using the built-in
flash. This is to prevent obstruction of the flash coverage by the lens hood.
*1 Vignetting occurs when the focal length is 35mm or less, or when the focal length is 16 to
50mm and the shooting distance is below 1.5 m.
*2 Vignetting occurs when the focal length is 28mm or less, or when the focal length is 16 to
50mm and the shooting distance is below 1.5 m.
*3 Vignetting occurs when the focal length is 20mm or less, or when the focal length is
35mm and the shooting distance is below 1.5 m.
*4 Vignetting occurs when the focal length is below 28mm, or when the focal length is
28mm and the shooting distance is 1 m or less.
*5 Vignetting occurs when the focal length is below 35mm, or when the focal length is
35mm and the shooting distance is 1 m or less.
*6 Vignetting occurs when the focal length is below 35mm.
*7 Vignetting occurs when the focal length is below 24mm, or when the focal length is
24mm and the shooting distance is 1 m or less.
,
,
,
,
44
44

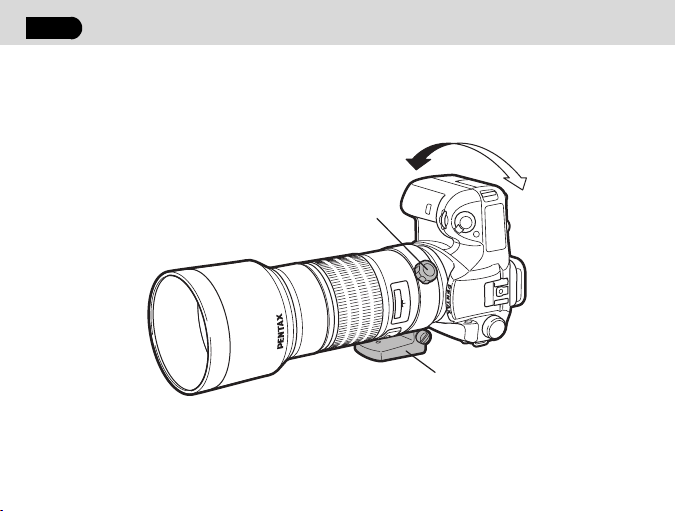

DA 300mm f/4ED [IF] SDM is equipped with the tripod mount. To position the camera
vertically or horizontally, loosen the camera position shift lock screw, turn the camera 90° to
the right or left as desired, and tighten the lock screw firmly.
The tripod mount is detachable.
TRIPOD MOUNT
Camera position shift lock screw
Tripod Mount
• Attach only to a stable tripod.
• We recommend using a fast shutter speed as large lenses may contribute to camera
shake.

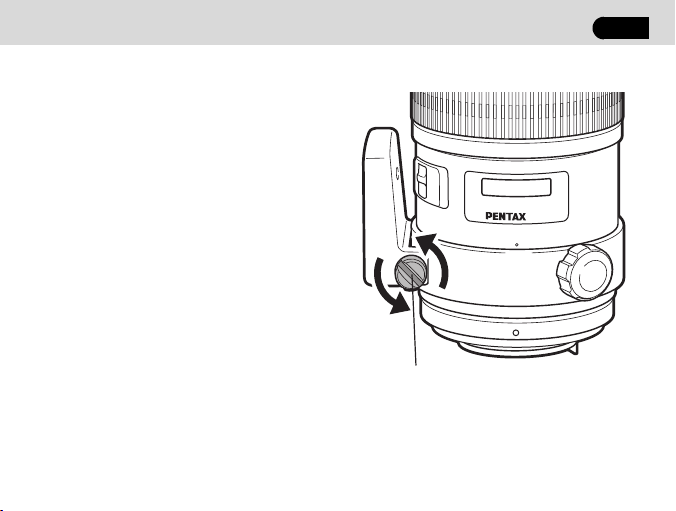

Removing the Tripod Mount
To remove the mount, use a coin to
loosen the screw by turning it to the left.
Be careful not to loosen the screw too
much or else it may fall out.
4545
Insert a coin into the slot on the screw
and turn to the left.
46
46
MAIN SPECIFICATIONS
* For use with any PENTAX digital SLR camera.
* AL = Uses an aspheric lens, ED = lens made with extra-low dispersion glass, IF = inner
focus-type lens, SDM = lens with a supersonic motor
Lens DA 1 4mm f/2.8ED [IF] DA 21mm f/3.2 AL Limited DA 35mm f/2.8 Macro Limited
Focal length
Elements in groups
Angle of view 90° 68° 44°
Aperture f/2.8 f/3.2 f/2.8
Minimum aperture
Mount type KAF-mount KAF-mount KAF-mount
Minimum focus
distance
Maximum
magnification
Filter size 77mm 49mm or 43mm 49mm
Lens hood PH-RBH 77mm MH-RBA 43mm Built-in
Max. Diameter
× Length
Weight
Soft case S100-120 Dedicated case Soft case DA70
14mm (equivalent to approx.
21.5mm in 35mm format)
12-11 8-5 9-8
f/22 f/22 f/22
0.17m (0.56ft) 0.2m (0.66ft) 0.139m (0.46ft)
Approx. 0.19× Approx. 0.17× Approx. 1.00×
83.5mm × 69mm
(3.3in × 2.7in)
Approx. 420g/14.8oz
(with hood approx. 455g/
16oz)
21mm (equivalent to approx.
32mm in 35mm format)
63mm × 25mm
(2.5in × 1.0in)
Approx. 140g/4.9oz
(with hood approx. 155g/
5.5oz)
35mm (equivalent to approx.
53.5mm in 35mm format)
63mm × 46.5mm
(2.5in × 1.9in)
Approx. 215g/7.58oz
4747
Lens DA 40mm f/2.8 Limited DA 70mm f/2.4 Limited DA
Focal length
Elements in groups
Angle of view 39° 23° 8.1°
Aperture f/2.8 f/2.4 f/2.8
Minimum aperture
Mount type KAF-mount KAF-mount KAF2-mount
Minimum focus
distance
Maximum
magnification
Filter size 49mm or 30.5mm 49mm 77mm
Lens hood MH-RC 49mm MH-RD 49mm PH-RBK 77mm
Max. Diameter
× Length
Weight
Soft case Dedicated case Soft case DA70 S120-160
40mm (equivalent to
approx. 61mm in 35mm
format)
5-4 6-5 9-8
f/22 f/22 f/22
0.4m (1.31ft) 0.7m (2.3ft) 1.2m (4ft)
Approx. 0.13× Approx. 0.12× Approx. 0.20×
63mm × 15mm
(2.5in × 0.6in)
Approx. 90g/3.15oz
(with hood approx. 100g/
3.5oz)
70mm (equivalent to
approx. 107mm in 35mm
format)
63mm × 26mm
(2.5in × 1.0in)
Approx. 130g/4.59oz
(with hood approx. 150g/
5.29oz)
200mm f/2.8ED [IF] SDM
200mm (equivalent to
approx. 307mm in 35mm
format)
83mm × 134mm
(3.3in × 5.4in)
Approx. 825g/29.1oz
(with hood approx. 915g/
32.27oz)
48
48
Lens DA
Focal length
Elements in groups
Angle of view 5.4° 180°–100° 99°–61°
Aperture f/4 f/3.5–f/4.5 f/4
Minimum aperture
Mount type KAF2-mount KAF-mount KAF-mount
Minimum focus
distance
Maximum
magnification
Filter size 77mm Cannot be mounted 77mm
Lens hood PH-RBK 77mm Built-in PH-RBI 77mm
Max. Diameter
× Length
Weight
Soft case S120-210 S80-80 S100-120
300mm f/4ED [IF] SDM
300mm (equivalent to
approx. 460mm in 35mm
format)
8-6 10-8 13-11
f/32 f/22–f/32 f/22
1.4m (4.67ft)
Approx. 0.24× Approx. 0.39× Approx. 0.12×
83mm × 184mm
(3.3in × 7.4in)
Approx. 1070g/37.74oz
(with hood approx. 1160g/
40.91oz)
(with hood + tripod attachment
approx. 1240
g
/43.73oz)
DA FISH-EYE 10-17mm f/3.5-4.5ED [IF]
10-17mm
not possible)
0.14m (0.46ft)
(Approximately 2.5cm
from front of lens)
68mm × 71.5mm
(2.7in × 2.8in)
Approx. 320g/11.3oz
(35mm conversion
DA 12-24mm f/4ED AL [IF]
12-24mm (equivalent to
approx. 18.5-37mm in
35mm format)
0.3m (0.98ft)
84mm × 87.5mm
(3.3in × 3.4in)
Approx. 430g/15.2oz
(with hood approx. 457g/
16.1oz)
4949
Lens DA 16-45mm f/4ED AL
Focal length
Elements in groups
Angle of view 83°–35° 83°–31.5° 79°-23°
Aperture f/4 f/2.8 f/4
Minimum aperture
Mount type KAF-mount KAF2-mount KAF3-mount
Minimum focus
distance
Maximum
magnification
Filter size 67mm 77mm 67mm
Lens hood PH-RBL 67mm PH-RBJ 77mm PH-RBM 67mm
Max. Diameter
× Length
Weight
Soft case S90-140 S100-140 S90-140
16-45mm (equivalent to
approx. 24.5-69mm in
35mm format)
13-10 15-12 17-12
f/22 f/22 f/22
0.28m (0.92ft) 0.3m (0.98ft) 0.28m (0.92ft)
Approx. 0.26× Approx. 0.21× Approx. 0.31×
72mm × 92mm
(2.8in × 3.6in)
Approx. 365g/12.9oz
(with hood approx. 390g/
13.8oz)
DA 16-50mm f/2.8ED AL [IF] SDM
16-50mm (equivalent to
approx. 24.5-76.5mm in
35mm format)
84mm × 98.5mm
(3.3in × 3.9in)
Approx. 565g/19.9oz
(with hood approx. 600g/
21.2oz)
DA 17-70mm f/4 AL [IF] SDM
17-70mm (equivalent to
approx. 26-107mm in
35mm format)
75mm × 93.5mm
(3.0in × 3.7in)
Approx. 485g/17.1oz
(with hood approx. 515g/
18.2oz)
50
50
Lens DA 18-55mm f/3.5-5.6 AL ΙΙ DA18-55mm f/3.5-5.6 AL
Focal length
Elements in groups
Angle of view 76°–29° 76°–29° 76°–6.5°
Aperture f/3.5–f/5.6 f/3.5–f/5.6 f/3.5–f/6.3
Minimum aperture
Mount type KAF-mount KAF-mount KAF-mount
Minimum focus
distance
Maximum
magnification
Filter size 52mm 52mm 62mm
Lens hood PH-RBA 52mm PH-RBA 52mm PH-RBB 62mm
Max. Diameter
× Length
Weight
Soft case S80-120 S80-120 S80-120
18-55mm (equivalent to
approx. 27.5-84mm in
35mm format)
11-8 12-9 16-13
f/22–f/38 f/22–f/38 f/22–f/45
0.25m (0.82ft) 0.25m (0.82ft) 0.45m (1.5ft)
Approx. 0.34× Approx. 0.34× Approx. 0.28×
68mm × 67.5mm
(2.7in × 2.6in)
Approx. 220g/7.76oz
(with hood
8.64oz)
approx.
18-55mm (equivalent to
approx. 27.5-84mm in
35mm format)
68mm × 67.5mm
(2.7in × 2.6in)
Approx. 225g/7.9oz
245g/
(with hood
8.8oz)
approx.
DA 18-250mm f/3.5-6.3ED AL [IF]
18-250mm (equivalent to
approx. 27.5-383mm in
35mm format)
75mm × 85.5mm
(3.0in × 3.4in)
Approx. 455g/16.0oz
250g/
(with hood approx. 470g/
16.6oz)
5151
Lens
Focal length
Elements in groups
Angle of view 31.5°–11.9° 31.5°–8.1° 29°–5.4°
Aperture f/2.8 f/4–f/5.6 f/4–f/5.8
Minimum aperture
Mount type KAF2-mount KAF-mount KAF-mount
Minimum focus
distance
Maximum
magnification
Filter size 67mm 52mm 58mm
Lens hood PH-RBK 67mm PH-RBB 52mm PH-RBG 58mm
Max. Diameter
× Length
Weight
Soft case S90-160 S80-120 S80-160
DA 50-135mm f/2.8ED [IF] SDM
50-135mm (equivalent to
approx. 76.5-207mm in
35mm format)
18-14 11-10 12-8
f/22 f/22–f/32 f/22–f/32
1.0m (3.3ft) 1.1m (3.6ft) 1.4m (4.67ft)
Approx. 0.17× Approx. 0.24× Approx. 0.28×
76.5mm × 136mm
(3.0in × 5.4in)
Approx. 685g/24.2oz
(with hood approx. 765g/
27.0oz)
DA 50-200mm f/4-5.6ED DA 55-300mm f/4-5.8ED
50-200mm (equivalent to
approx. 76.5-306mm in
35mm format)
66.5mm × 78.5mm
(2.6in × 3.1in)
Approx. 255g/9oz
(with hood approx. 285g/
10oz)
55-300mm (equivalent to
approx. 84.5-460mm in
35mm format)
71mm × 111.5mm
(2.8in × 4.5in)
Approx. 440g/15.52oz
(with hood approx. 470g/
16.6oz)
52
52
For customers in USA
STATEMENT OF FCC COMPLIANCE
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions
: (1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Changes or modifications not approved by the party responsible for compliance could void the user's
authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
*Consult the dealer or an experienced radio/TV technician for help.
For customers in Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Memo
5353
HOYA CORPORATION
PENTAX Imaging Systems Division
PENTAX Europe GmbH Julius-Vosseler-Strasse 104, 22527 Hamburg, GERMANY
(European Headquarters) (HQ - http://www.pentaxeurope.com) (Germany - http://www.pentax.de)
PENTAX U.K. Limited PENTAX House, Heron Drive, Langley, Slough, Berks SL3 8PN, U.K. (http://www.pentax.uk)
PENTAX France S.A.S. 112 Quai de Bezons, B.P. 204, 95106 Argenteuil Cedex, FRANCE (http://www.pentax.fr)
PENTAX Italia S.r.l. Via Dione Cassio 15, 20138 Milano, ITALY (http://www.pentaxitalia.it)
PENTAX (Schweiz) AG Widenholzstrasse 1, 8304 Wallisellen, Postfach 367 8305 Dietlikon, SWITZERLAND
PENTAX Europe GmbH (Tyskland) Filial Sverige
PENTAX Imaging Company
A Division of PENTAX of America, Inc.
PENTAX Canada Inc. 1770 Argentia Road Mississauga, Ontario L5N 3S7, CANADA (http://www.pentax.ca)
PENTAX Trading
(SHANGHAI) Limited
2-36-9,Maeno-cho, Itabashi-ku, Tokyo 174-8639, JAPAN (http://www.pentax.jp)
(http://www.pentax.ch)
Box 650, 75127 Uppsala, SWEDEN (http://www.pentax.se)
(Headquarters)
600 12th Street, Suite 300 Golden, Colorado 80401, U.S.A.
(PENTAX Service Department)
12000 Zuni Street, Suite 100B Westminster, Colorado 80234, U.S.A.
(http://www.pentaximaging.com)
23D, Jun Yao International Plaza, 789 Zhaojiabang Road, Xu Hui District, Shanghai, 200032
CHINA (http://www.pentax.com.cn)
The CE Mark is a Directive conformity mark of the European Union.
✩Specifications and external dimensions are subject to change without notice.
Copyright HOYA CORPORATION 2008
57298ENG H17-200806 Printed in Vietnam
Loading...
