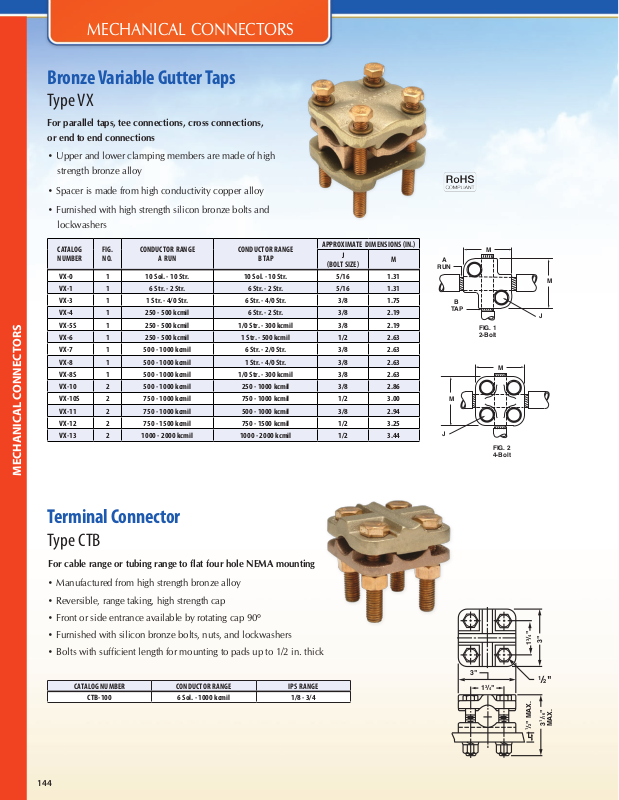

Penn Union VX Catalog Page
MECHANICAL CONNECTORS
M
A
RUN
B
TAP
J
M
M
FIG. 2
4-Bolt
FIG. 1
2-Bolt
M
4-Bolt
Bronze Variable Gutter Taps
Type VX
For parallel taps, tee connections, cross connections,
or end to end connections
• Upper and lower clamping members are made of high
strength bronze alloy
• Spacer is made from high conductivity copper alloy
• Furnished with high strength silicon bronze bolts and
lockwashers
CATALOG
NUMBER
VX-0 1 10 Sol. - 10 Str. 10 Sol. - 10 Str. 5/16 1.31
VX-1 1 6 Str. - 2 Str. 6 Str. - 2 Str. 5/16 1.31
VX-3 1 1 Str. - 4/0 Str. 6 Str. - 4/0 Str. 3/8 1.75
VX-4 1 250 - 500 kcmil 6 Str. - 2 Str. 3/8 2.19
VX-5S 1 250 - 500 kcmil 1/0 Str. - 300 kcmil 3/8 2.19
VX-6 1 250 - 500 kcmil 1 Str. - 500 kcmil 1/2 2.63
VX-7 1 500 - 1000 kcmil 6 Str. - 2/0 Str. 3/8 2.63
VX-8 1 500 - 1000 kcmil 1 Str. - 4/0 Str. 3/8 2.63
VX-8S 1 500 - 1000 kcmil 1/0 Str. - 300 kcmil 3/8 2.63
VX-10 2 500 - 1000 kcmil 250 - 1000 kcmil 3/8 2.86
VX-10S 2 750 - 1000 kcmil 750 - 1000 kcmil 1/2 3.00
VX-11 2 750 - 1000 kcmil 500 - 1000 kcmil 3/8 2.94
VX-12 2 750 - 1500 kcmil 750 - 1500 kcmil 1/2 3.25
VX-13 2 1000 - 2000 kcmil 1000 - 2000 kcmil 1/2 3.44
FIG.
NO.
MECHANICAL CONNECTORS
Terminal Connector
CONDUCTOR RANGE
A RUN
CONDUCTOR RANGE
B TAP
APPROXIMATE DIMENSIONS (IN.)
J
(BOLT SIZE)
M
M
J
FIG. 2
Type CTB
For cable range or tubing range to flat four hole NEMA mounting
• Manufactured from high strength bronze alloy
• Reversible, range taking, high strength cap
• Front or side entrance available by rotating cap 90º
• Furnished with silicon bronze bolts, nuts, and lockwashers
• Bolts with sufficient length for mounting to pads up to 1/2 in. thick
CATALOG NUMBER CONDUCTOR RANGE IPS RANGE
CTB-100 6 Sol. - 1000 kcmil 1/8 - 3/4
144
"
4
/
3
3"
1
3"
3
1
/4"
1
/2"
.XAM "
.XAM
"
16
/
1
3
2
/
1
