FUMEX ROOF MOUNTED FAN - DIRECT DRIVE MODELS
FX08SR, FX10SR, FX11VSR and FX11Q
18
PENNBARRY |
1401 N. Plano Road; Richardson, TX 75081 | www.PennBarry.com
FUMEX ROOF MOUNTED FAN - DIRECT DRIVE MODELS
FX08SR FX10SR
REF. # DESCRIPTION
1 Hood 1 18311-0 18311-0
2 Top Plate 1 18300-0 18300-0
3 Discharge Apron 1 18313-0 18313-0
4 Vertical Brace 4 18301-0 18302-0
5 Conduit Pipe 1 18305-0 18306-0
6 Base / Venturi 1 18303-1 18303-1
7 Wheel 1 18174-1 18175-1
8 Screen (optional) 1 — —
9 Motor (115/1/60) 1 63745-0 63746-0
10 Gasket 4 63211-0 63211-0
11 Screen Clip 4 55196-0 55196-0
12 Acorn Nut 4 55490-0 55490-0
13 1/4 - 20 Nut 2 — —
REF. # DESCRIPTION
1 Hood 1 18311-0 18611-0
2 Top Plate 1 18300-0 18300-0
3 Discharge Apron 1 18313-0 18313-0
4 Vertical Brace 4 18302-0 18302-0
5 Conduit Pipe 1 18306-0 18306-0
6 Base / Venturi 1 18303-1 18303-1
7 Wheel 1 18176-2 18176-2
8 Screen (optional) 1 — —
9 Motor (115/1/60) 1 63747-0 63753-0
10 Gasket 4 63211-0 63211-0
11 Screen Clip 4 55196-0 55196-0
12 Acorn Nut 4 55490-0 55490-0
13 1/4 - 20 Nut 2 — —
QTY /
UNIT
QTY /
UNIT
PART # PART #
FX11VSR FX11Q
PART # PART #
PENNBARRY | 1401 N. Plano Road; Richardson, TX 75081 | www.PennBarry.com
19
FUMEX ROOF MOUNTED FAN - DIRECT DRIVE MODELS
FX13SVR (FT) and FX13Q (FT)
20
PENNBARRY |
1401 N. Plano Road; Richardson, TX 75081 | www.PennBarry.com
FUMEX ROOF MOUNTED FAN - DIRECT DRIVE MODELS
FX13VSR (FT) FX13Q (FT)
REF. # DESCRIPTION
1 Hood 1 18312-0 18312-0
2 Hood Top 1 18320-0 18320-0
3 Top Plate 1 18449-0 18449-0
4 Vertical Brace 4 18302-0 18302-0
5 Conduit Pipe 1 18306-0 18306-0
6 Base / Venturi 1 — —
7 Base 1 18315-1 18315-1
8 Discharge Apron 1 — —
9 Apron Venturi 1 18314-0 18314-0
10 Wheel 1 18179-2 18179-2
12 Screen (optional) 1 — —
13 Motor (115/1/60) 1 63748-0 63749-0
14 Cooling Tube 1 16407-0 16407-0
15 Cooling Tube Gasket 1 63043-0 63043-0
16 Bushing 1 — —
17 Screen Clip 4 55196-0 55196-0
18 Acorn Nut 4 55490-0 55490-0
19 1/4 - 20 Nut 2 — —
20 Clip 1 55196-0 55196-0
21 Gasket 4 — —
22 Cotter Pin 3 55286-0 55286-0
23 Drain Spout 1 16392-0 16392-0
24 Down Spout 1 56072-0 56072-0
25 1/4 - 20 Bolt 1 — —
QTY /
UNIT
PART # PART #
PENNBARRY | 1401 N. Plano Road; Richardson, TX 75081 | www.PennBarry.com
21
FUMEX ROOF MOUNTED FAN - DIRECT DRIVE MODELS
FX16VSR (FT), FX16Q1 (FT), FX16Q2 (FT) and FX18V
22
PENNBARRY |
1401 N. Plano Road; Richardson, TX 75081 | www.PennBarry.com
FUMEX ROOF MOUNTED FAN - DIRECT DRIVE MODELS
FX16VSR (FT) FX16Q1 (FT) FX16Q2 (FT) FX18V
REF. # DESCRIPTION
1 Hood 1 18293-0 18293-0 18293-0 16227-0
2 Hood Top 1 13708-0 13708-0 13708-0 16202-0
3 Top Plate 1 18379-0 18379-0 18379-0 16052-1
4 Vertical Brace 4 16250-0 16250-0 16250-0 16252-0
5 Conduit Pipe 1 16370-0 16370-0 16370-0 16372-0
7 Base (Non-FT) 1 13693-1 13693-1 13693-1 16003-1
7 Base (With FT) 1 13690-1 13690-1 13690-1 16003-1
9 Apron Venturi 1 18316-0 18316-0 18316-0 16033-0
10 Wheel 1 18181-1 18181-1 18181-1 21185-0
11 Wire Clip 1 16391-0 16391-0 16391-0 18380-0
12 Screen (optional) 1 16380-0 16380-0 16380-0 16382-0
13 Motor (115/1/60) 1 63750-0 63751-0 63752-0 67234-0
14 Cooling Tube 1 16407-0 16407-0 16407-0 16407-0
15 Cooling Tube Gasket 1 63043-0 63043-0 63043-0 63043-0
16 Bushing 1 — — — —
17 Screen Clip 4 — — — —
18 Acorn Nut 4 55490-0 55490-0 55490-0 55490-0
19 1/4 - 20 Nut 2 — — — —
20 Clip 1 — — — —
21 Gasket 4 — — — —
22 Cotter Pin 3 55286-0 55286-0 55286-0 55286-0
23 Drain Spout 1 16392-0 16392-0 16392-0 16392-0
24 Down Spout 1 56072-0 56072-0 56072-0 56072-0
25 1/4 - 20 Bolt 1 — — — —
26 Windband 1 — — — 16150-0
27 Discharge Apron 1 — — — 16125-0
QTY /
UNIT
PART # PART # PART # PART #
PENNBARRY | 1401 N. Plano Road; Richardson, TX 75081 | www.PennBarry.com
23
FUMEX ROOF MOUNTED FAN - BELT DRIVE MODELS
FX08B (FT), FX10B (FT) and FX12BH (FT)
24
PENNBARRY |
1401 N. Plano Road; Richardson, TX 75081 | www.PennBarry.com
FUMEX ROOF MOUNTED FAN - BELT DRIVE MODELS
FX08B (FT) FX10B (FT) FX12BH (FT)
REF. # DESCRIPTION
1 Wind Band 1 — — —
2 Discharge Apron 1 16351-0 16351-0 16351-0
3 Cooling Tube 1 16407-0 16407-0 16407-0
4 Cooling Tube Gasket 2 63043-0 63043-0 63043-0
5 Motor Hood Lid 1 16201-0 16201-0 16201-0
6 Motor Hood 1 16226-0 16226-0 16226-0
7 Motor & Brg Frame 1 30080-0 30080-0 30080-0
8 Anti-Vibration Mount 4 63010-0 63010-0 63010-0
9 Top Plate 1 16051-0 16051-0 16051-0
10 Bird Guard (optional) 1 16381-0 16381-0 16381-0
11 Support Wires 4 16251-0 16251-0 16251-0
Support Wires Mnting
12
Clips
13 Conduit Guide 1 16371-0 16371-0 16371-0
14 Venturi 1 16028-0 16028-0 16031-0
15 Base 1 16041-1 16002-1 16002-1
QTY /
UNIT
4 18380-0 18380-0 18380-0
PART # PART # PART #
16 Fan Pulley 1
17 Belt 1
18 Motor Pulley 1
19 Motor 1
20 Bearings 1 36165-0 36165-0 36165-0
21 Shaft 1 03359-0 03359-0 03359-0
22 Wheel 1 21133-0 21133-0 21165-1
See Next Page For Details
FATRAP OPTION
23 Drain Spout 1 16392-0 16392-0 16392-0
24 Down Spout 1 56072-0 56072-0 56072-0
25 Grease Collector 1 13726-1 13726-1 13726-1
26 Cotter Pins 3 55286-0 55286-0 55286-0
27 U Clips 4 55196-0 55196-0 55196-0
PENNBARRY | 1401 N. Plano Road; Richardson, TX 75081 | www.PennBarry.com
25
FUMEX ROOF MOUNTED FAN - BELT DRIVE MODELS
FX08B (FT), FX10B (FT) and FX12BH (FT)
26
PENNBARRY |
1401 N. Plano Road; Richardson, TX 75081 | www.PennBarry.com
FUMEX ROOF MOUNTED FAN - BELT DRIVE MODELS
FX08B - MOTOR / BELT / PULLEY PARTS
HP PHASE
.25 115/1/60 60396-0 62802-0 62484-0 62105-0 900 - 1370
.33 115/1/60 63720-0 62802-0 62453-0 62106-0 1050 - 1480
.50 115/1/60 63726-0 62851-0 62453-0 62107-0 1225 - 1660
.75 115/1/60 60196-0 62812-0 62484-0 62108-0 1490 - 1925
.25 230/3/60 60117-0 62802-0 62484-0 62105-0 900 - 1370
.33 230/3/60 60905-0 62803-0 62453-0 62106-0 1050 - 1480
.50 230/3/60 60920-0 62807-0 62453-0 62107-0 1225 - 1660
.75 230/3/60 60930-0 62812-0 62484-0 62108-0 1490 - 1925
MOTOR
PART #
FX10B - MOTOR / BELT / PULLEY PARTS
HP PHASE
.25 115/1/60 60396-0 62805-0 62477-0 62107-0 840 - 1190
.33 115/1/60 63720-0 62851-0 62477-0 62108-0 980 - 1330
.50 115/1/60 63726-0 62805-0 62453-0 62105-0 1050 - 1480
.75 115/1/60 60196-0 62807-0 62484-0 62106-0 1330 - 1790
.25 230/3/60 60117-0 62805-0 62477-0 62107-0 840 - 1190
.33 230/3/60 60905-0 62807-0 62477-0 62108-0 980 - 1330
.50 230/3/60 60920-0 62806-0 62453-0 62105-0 1050 -1480
.75 230/3/60 60930-0 62807-0 62484-0 62106-0 1330 - 1790
MOTOR
PART #
MOTOR
PULLEY
MOTOR
PULLEY
FAN
PULLEY
FAN
PULLEY
BELT RPM RANGE
BELT RPM RANGE
FX12BH - MOTOR / BELT / PULLEY PARTS
HP PHASE
.25 115/1/60 60396-0 62805-0 62478-0 62210-0 700 - 990
.33 115/1/60 63720-0 62802-0 62477-0 62107-0 665 - 1015
.50 115/1/60 63726-0 62805-0 62477-0 62108-0 840 - 1190
.75 115/1/60 60196-0 62807-0 62472-0 62109-0 980 - 1330
.25 230/3/60 60117-0 62805-0 62478-0 62210-0 700 - 990
.33 230/3/60 60905-0 62802-0 62477-0 62108-0 665 - 1015
.50 230/3/60 60920-0 62805-0 62477-0 62109-0 840 - 1190
.75 230/3/60 60930-0 62807-0 62477-0 62107-0 980 - 1330
1.0 230/3/60 60935-0 62812-0 62496-0 62108-0 1090 - 1475
1.5 230/3/60 60942-0 62815-0 62496-0 62267-0 1325 - 1710
MOTOR
PART #
MOTOR
PULLEY
FAN
PULLEY
BELT RPM RANGE
PENNBARRY | 1401 N. Plano Road; Richardson, TX 75081 | www.PennBarry.com
27
FUMEX ROOF MOUNTED FAN - BELT DRIVE MODELS

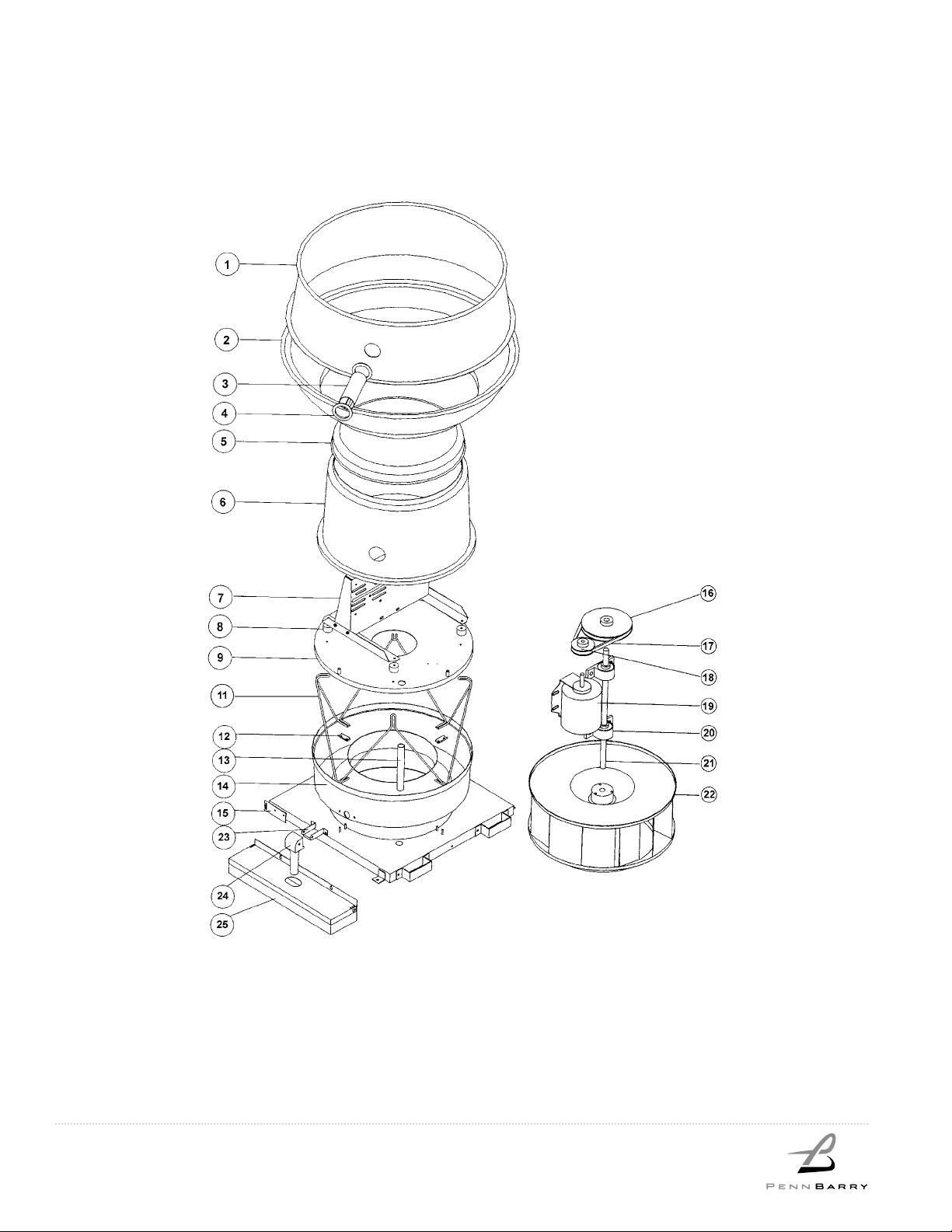

FX13B (FT), FX13BH (FT) and FX14B (FT)
28
PENNBARRY |
1401 N. Plano Road; Richardson, TX 75081 | www.PennBarry.com
FUMEX ROOF MOUNTED FAN - BELT DRIVE MODELS
FX13B (FT) FX13BH (FT) FX14B (FT)
REF. # DESCRIPTION
1 Wind Band 1 — — —
2 Discharge Apron 1 16351-0 16351-0 16351-0
3 Cooling Tube 1 16407-0 16407-0 16407-0
4 Cooling Tube Gasket 2 63043-0 63043-0 63043-0
5 Motor Hood Lid 1 16201-0 16201-0 16201-0
6 Motor Hood 1 16226-0 16226-0 16226-0
7 Motor & Brg Frame 1 30080-0 30080-0 30080-0
8 Anti-Vibration Mount 4 63010-0 63010-0 63010-0
9 Top Plate 1 16051-0 16051-0 16051-0
10 Bird Guard (optional) 1 16381-0 16381-0 16381-0
11 Support Wires 4 16251-0 16251-0 16251-0
Support Wires Mnting
12
Clips
13 Conduit Guide 1 16371-0 16371-0 16371-0
14 Venturi 1 16030-0 16024-0 16031-0
15 Base 1 16002-1 16002-1 16002-1
QTY /
UNIT
4 18380-0 18380-0 18380-0
PART # PART # PART #
16 Fan Pulley 1
17 Belt 1
18 Motor Pulley 1
19 Motor 1
20 Bearings 1 36165-0 36165-0 36165-0
21 Shaft 1 03359-0 03398-0 03397-0
22 Wheel 1 21139-0 21167-1 21165-0
See Next Page For Details
FATRAP OPTION
23 Drain Spout 1 16392-0 16392-0 16392-0
24 Down Spout 1 56072-0 56072-0 56072-0
25 Grease Collector 1 13726-1 13726-1 13726-1
26 Cotter Pins 3 55286-0 55286-0 55286-0
27 U Clips 4 55196-0 55196-0 55196-0
PENNBARRY | 1401 N. Plano Road; Richardson, TX 75081 | www.PennBarry.com
29
FUMEX ROOF MOUNTED FAN - BELT DRIVE MODELS
FX13B (FT), FX13BH (FT) and FX14B (FT)
30
PENNBARRY |
1401 N. Plano Road; Richardson, TX 75081 | www.PennBarry.com
FUMEX ROOF MOUNTED FAN - BELT DRIVE MODELS
FX13B - MOTOR / BELT / PULLEY PARTS
HP PHASE
.25 115/1/60 60396-0 62802-0 62496-0 62105-0 740 - 1125
.33 115/1/60 63720-0 62802-0 62453-0 62105-0 835 - 1265
.50 115/1/60 63726-0 62805-0 62453-0 62106-0 1050 - 1485
.75 115/1/60 60196-0 62807-0 62453-0 62107-0 1225 - 1660
.25 230/3/60 60117-0 62802-0 62496-0 62105-0 740 - 1125
.33 230/3/60 60905-0 62803-0 62453-0 62105-0 835 - 1265
.50 230/3/60 60920-0 62806-0 62453-0 62106-0 1050 - 1485
.75 230/3/60 60930-0 62807-0 62453-0 62107-0 1225 - 1660
MOTOR
PART #
MOTOR
PULLEY
FAN
PULLEY
BELT
FX13BH - MOTOR / BELT / PULLEY PARTS
HP PHASE
.25 115/1/60 60396-0 62802-0 62478-0 62109-0 555 - 845
.33 115/1/60 63720-0 62802-0 62453-0 62105-0 835 - 1265
.50 115/1/60 63726-0 62805-0 62553-0 62257-0 765 - 1080
.75 115/1/60 60196-0 62806-0 62477-0 62698-0 840 - 1190
.25 230/3/60 60117-0 62802-0 62478-0 62109-0 555 - 845
.33 230/3/60 60905-0 62803-0 62453-0 62105-0 835 - 1265
.50 230/3/60 60920-0 62806-0 62553-0 62257-0 765 - 1080
.75 230/3/60 60930-0 62806-0 62477-0 62698-0 840 - 1190
1.0 230/3/60 60935-0 62807-0 62477-0 62257-0 980 - 1330
1.5 230/3/60 60942-0 62807-0 62496-0 62698-0 1090 - 1475
MOTOR
PART #
MOTOR
PULLEY
FAN
PULLEY
BELT RPM RANGE
RPM
RANGE
FX14B - MOTOR / BELT / PULLEY PARTS
HP PHASE
.25 115/1/60 60396-0 62805-0 62478-0 62110-0 700 - 990
.33 115/1/60 63720-0 62802-0 62477-0 62107-0 665 - 1015
.50 115/1/60 63726-0 62805-0 62477-0 62108-0 840 - 1190
.75 115/1/60 60196-0 62807-0 62478-0 62109-0 980 - 1330
.25 230/3/60 60117-0 62805-0 62478-0 62110-0 700 - 990
.33 230/3/60 60905-0 62803-0 62477-0 62107-0 665 - 1015
.50 230/3/60 60920-0 62806-0 62477-0 62108-0 840 - 1190
.75 230/3/60 60930-0 62807-0 62478-0 62109-0 980 - 1330
1.0 230/3/60 60935-0 62807-0 62496-0 62108-0 1090 - 1475
MOTOR
PART #
MOTOR
PULLEY
FAN
PULLEY
BELT RPM RANGE
PENNBARRY | 1401 N. Plano Road; Richardson, TX 75081 | www.PennBarry.com
31
FUMEX ROOF MOUNTED FAN - BELT DRIVE MODELS
FX16B (FT), FX18B (FT) and FX18BH (FT)
32
PENNBARRY |
1401 N. Plano Road; Richardson, TX 75081 | www.PennBarry.com
FUMEX ROOF MOUNTED FAN - BELT DRIVE MODELS
FX16B (FT) FX18B (FT) FX18BH (FT)
REF. # DESCRIPTION
1 Wind Band 1 16150-0 16150-0 16150-0
2 Discharge Apron 1 16125-0 16125-0 16125-0
3 Cooling Tube 1 16407-0 16407-0 16407-0
4 Cooling Tube Gasket 2 63043-0 63043-0 63043-0
5 Motor Hood Lid 1 16202-0 16202-0 16202-0
6 Motor Hood 1 16227-0 16227-0 16227-0
7 Motor & Brg Frame 1 30081-0 30081-0 30081-0
8 Anti-Vibration Mount 4 63010-0 63010-0 63010-0
9 Top Plate 1 16052-0 16052-0 16052-0
10 Bird Guard (optional) 1 16382-0 16382-0 16382-0
11 Support Wires 4 16252-0 16252-0 16252-0
Support Wires Mnting
12
Clips
13 Conduit Guide 1 16372-0 16372-0 16372-0
14 Venturi 1 16032-0 16033-0 16033-0
15 Base 1 16003-1 16003-1 16003-1
QTY /
UNIT
4 18380-0 18380-0 18380-0
PART # PART # PART #
16 Fan Pulley 1
17 Belt 1
18 Motor Pulley 1
19 Motor 1
20 Bearings 1 36165-0 36165-0 36165-0
21 Shaft 1 03397-0 03397-0 17439-0
22 Wheel 1 21167-0 21170-0 21170-1
See Next Page For Details
FATRAP OPTION
23 Drain Spout 1 16392-0 16392-0 16392-0
24 Down Spout 1 56072-0 56072-0 56072-0
25 Grease Collector 1 13726-1 13726-1 13726-1
26 Cotter Pins 3 55286-0 55286-0 55286-0
27 U Clips 4 55196-0 55196-0 55196-0
PENNBARRY | 1401 N. Plano Road; Richardson, TX 75081 | www.PennBarry.com
33
FUMEX ROOF MOUNTED FAN - BELT DRIVE MODELS
FX16B (FT), FX18B (FT) and FX18BH (FT)
34
PENNBARRY |
1401 N. Plano Road; Richardson, TX 75081 | www.PennBarry.com
FUMEX ROOF MOUNTED FAN - BELT DRIVE MODELS
FX16B - MOTOR / BELT / PULLEY PARTS
HP PHASE
.25 115/1/60 60396-0 62802-0 62595-0 62113-0 475 - 725
.33 115/1/60 63720-0 62805-0 62170-0 62115-0 525 - 740
.50 115/1/60 63726-0 62805-0 62595-0 62113-0 600 - 850
.75 115/1/60 60196-0 62803-0 62477-0 62698-0 665 - 1015
.25 230/3/60 60117-0 62802-0 62595-0 62113-0 475 - 725
.33 230/3/60 60905-0 62806-0 62170-0 62115-0 525 - 740
.50 230/3/60 60920-0 62806-0 62595-0 62113-0 600 - 850
.75 230/3/60 60930-0 62803-0 62477-0 62698-0 665 -1015
1.0 230/3/60 60935-0 62807-0 62478-0 62278-0 820 - 1100
1.5 230/3/60 60942-0 62812-0 62478-0 62278-0 995 - 1280
2.0 230/3/60 63832-0 62812-0 62553-0 62278-0 1085 - 1400
MOTOR
PART #
FX18B - MOTOR / BELT / PULLEY PARTS
HP PHASE
.25 115/1/60 60396-0 62802-0 62170-0 62114-0 420 - 630
.33 115/1/60 63720-0 62802-0 62595-0 62111-0 475 - 725
.50 115/1/60 63726-0 62805-0 62595-0 62112-0 600 - 850
.75 115/1/60 60196-0 62807-0 62595-0 62280-0 700 - 950
.25 230/3/60 60117-0 62802-0 62170-0 62114-0 420 - 630
.33 230/3/60 60905-0 62803-0 62595-0 62111-0 475 - 725
.50 230/3/60 60920-0 62806-0 62595-0 62112-0 600 - 850
.75 230/3/60 60930-0 62807-0 62595-0 62280-0 700 - 950
1.0 230/3/60 60935-0 62806-0 62478-0 62290-0 700 - 990
1.5 230/3/60 60942-0 62806-0 62477-0 62257-0 840 -1190
2.0 230/3/60 63832-0 62809-0 62477-0 62707-0 1050 - 1485
MOTOR
PART #
MOTOR
PULLEY
MOTOR
PULLEY
FAN
PULLEY
FAN
PULLEY
BELT RPM RANGE
BELT RPM RANGE
FX18BH - MOTOR / BELT / PULLEY PARTS
HP PHASE
.33 115/1/60 63720-0 62802-0 62595-0 62111-0 475 - 725
.50 115/1/60 63726-0 62805-0 62595-0 62112-0 600 - 850
.75 115/1/60 60196-0 62807-0 62595-0 62280-0 700 - 950
.33 230/3/60 60905-0 62803-0 62595-0 62111-0 475 - 725
.50 230/3/60 60920-0 62807-0 62595-0 62112-0 600 - 850
.75 230/3/60 60930-0 62807-0 62595-0 62280-0 700 - 950
1.0 230/3/60 60935-0 62806-0 62478-0 62278-0 700 -990
1.5 230/3/60 60942-0 62806-0 62477-0 62257-0 840 - 1190
2.0 230/3/60 63832-0 62808-0 62453-0 62707-0 1050 - 1485
3.0 230/3/60 63833-0 62831-0 62563-0 62257-0 1490 - 1925
PENNBARRY | 1401 N. Plano Road; Richardson, TX 75081 | www.PennBarry.com
MOTOR
PART #
MOTOR
PULLEY
FAN
PULLEY
BELT RPM RANGE
35
FUMEX ROOF MOUNTED FAN - BELT DRIVE MODELS
FX24B (FT), FX24BH (FT) and FX30B (FT)
36
PENNBARRY |
1401 N. Plano Road; Richardson, TX 75081 | www.PennBarry.com
FUMEX ROOF MOUNTED FAN - BELT DRIVE MODELS
FX24B (FT) FX24BH (FT) FX30B (FT)
REF. # DESCRIPTION
1 Wind Band 1 16151-0 16151-0 16152-0
2 Discharge Apron 1 16126-0 16126-0 16127-0
3 Cooling Tube 1 16406-0 16406-0 16406-0
4 Cooling Tube Gasket 2 63043-0 63043-0 63043-0
5 Motor Hood Lid 1 16203-0 16203-0 16204-0
6 Motor Hood 1 16228-0 16228-0 16229-0
7 Motor & Brg Frame 1 30082-0 30082-0 30083-0
8 Anti-Vibration Mount 4 63010-0 63010-0 63010-0
9 Top Plate 1 16053-0 16053-0 16054-0
10 Bird Guard (optional) 1 16383-0 16383-0 16384-0
11 Support Wires 4 16253-0 16253-0 16254-0
Support Wires Mnting
12
Clips
13 Conduit Guide 1 16373-0 16373-0 16374-0
14 Venturi 1 16034-0 16034-0 16035-0
15 Base 1 16004-1 16004-1 16005-1
QTY /
UNIT
4 18380-0 18380-0 18380-0
PART # PART # PART #
16 Fan Pulley 1
17 Belt 1
18 Motor Pulley 1
19 Motor 1
20 Bearings 1 36166-0 36166-0 36166-0
21 Shaft 1 03391-0 03401-0 03391-0
22 Wheel 1 21173-0 21173-1 21176-0
See Next Page For Details
FATRAP OPTION
23 Drain Spout 1 16392-0 16392-0 16392-0
24 Down Spout 1 56072-0 56072-0 56072-0
25 Grease Collector 1 13726-1 13726-1 13726-1
26 Cotter Pins 3 55286-0 55286-0 55286-0
27 U Clips 4 55196-0 55196-0 55196-0
PENNBARRY | 1401 N. Plano Road; Richardson, TX 75081 | www.PennBarry.com
37
FUMEX ROOF MOUNTED FAN - BELT DRIVE MODELS
FX24B (FT), FX24BH (FT) and FX30B (FT)
38
PENNBARRY |
1401 N. Plano Road; Richardson, TX 75081 | www.PennBarry.com
FUMEX ROOF MOUNTED FAN - BELT DRIVE MODELS
FX24B - MOTOR / BELT / PULLEY PARTS
HP PHASE
.25 115/1/60 60396-0 62800-0 62544-0 62693-0 315 - 465
.33 115/1/60 63720-0 62802-0 62430-0 62120-0 335 - 505
.50 115/1/60 63726-0 62802-0 62544-0 62200-0 370 - 560
.75 115/1/60 60196-0 62806-0 62544-0 62200-0 470 - 660
.25 230/3/60 60117-0 62800-0 62544-0 62693-0 315 - 465
.33 230/3/60 60905-0 62803-0 62430-0 62120-0 335 - 505
.50 230/3/60 60920-0 62803-0 62544-0 62200-0 370 - 560
.75 230/3/60 60930-0 62806-0 62544-0 62200-0 470 - 660
1.0 230/3/60 60935-0 62807-0 62544-0 62270-0 545 - 735
1.5 230/3/60 60942-0 62807-0 62507-0 62289-0 615 - 830
2.0 230/3/60 63832-0 62813-0 62507-0 62199-0 745 - 960
3.0 230/3/60 63833-0 62827-0 62551-0 62280-0 760 - 1050
5.0 230/3/60 63834-0 62831-0 62551-0 62287-0 995 - 1280
MOTOR
PART #
FX24BH - MOTOR / BELT / PULLEY PARTS
HP PHASE
.50 115/1/60 63726-0 62802-0 62544-0 62200-0 370 - 560
.75 115/1/60 60196-0 62806-0 62544-0 62200-0 470 - 660
.50 230/3/60 60920-0 62803-0 62544-0 62200-0 370 - 560
.75 230/3/60 60930-0 62806-0 62544-0 62200-0 470 - 660
1.0 230/3/60 60935-0 62807-0 62507-0 62199-0 545 - 735
1.5 230/3/60 60942-0 62807-0 62507-0 62199-0 615 - 830
2.0 230/3/60 63832-0 62813-0 62507-0 62199-0 745 - 960
3.0 230/3/60 63833-0 62828-0 62551-0 62287-0 760 -1050
5.0 230/3/60 63834-0 62831-0 62574-0 62288-0 1190 - 1540
MOTOR
PART #
MOTOR
PULLEY
MOTOR
PULLEY
FAN
PULLEY
FAN
PULLEY
BELT RPM RANGE
BELT RPM RANGE
FX30B - MOTOR / BELT / PULLEY PARTS
HP PHASE
.33 115/1/60 63720-0 62802-0 62431-0 62372-0 280 - 420
.50 115/1/60 63726-0 62802-0 62402-0 62207-0 305 - 460
.75 115/1/60 60196-0 62806-0 62402-0 62207-0 385 - 540
.33 230/3/60 60905-0 62803-0 62431-0 62372-0 280 - 420
.50 230/3/60 60920-0 62803-0 62402-0 62207-0 305 - 460
.75 230/3/60 60930-0 62806-0 62402-0 62207-0 385 - 540
1.0 230/3/60 60935-0 62806-0 62402-0 62206-0 385 - 540
1.5 230/3/60 60942-0 62807-0 62430-0 62206-0 490 - 665
2.0 230/3/60 63832-0 62813-0 62402-0 62207-0 540 - 700
3.0 230/3/60 63833-0 62831-0 62697-0 62204-0 665 - 855
5.0 230/3/60 63834-0 62836-0 62567-0 62207-0 735 - 910
PENNBARRY | 1401 N. Plano Road; Richardson, TX 75081 | www.PennBarry.com
MOTOR
PART #
MOTOR
PULLEY
FAN
PULLEY
BELT RPM RANGE
39
Loading...
