BREEZEWAY P-SERIES WALL MOUNT FAN - DIRECT DRIVE
MODELS P10VRA, P12VRA, P16VSA, P16RA, P16Q1A, P18VA
60
PENNBARRY |
1401 N. Plano Road; Richardson, TX 75081 | www.PennBarry.com

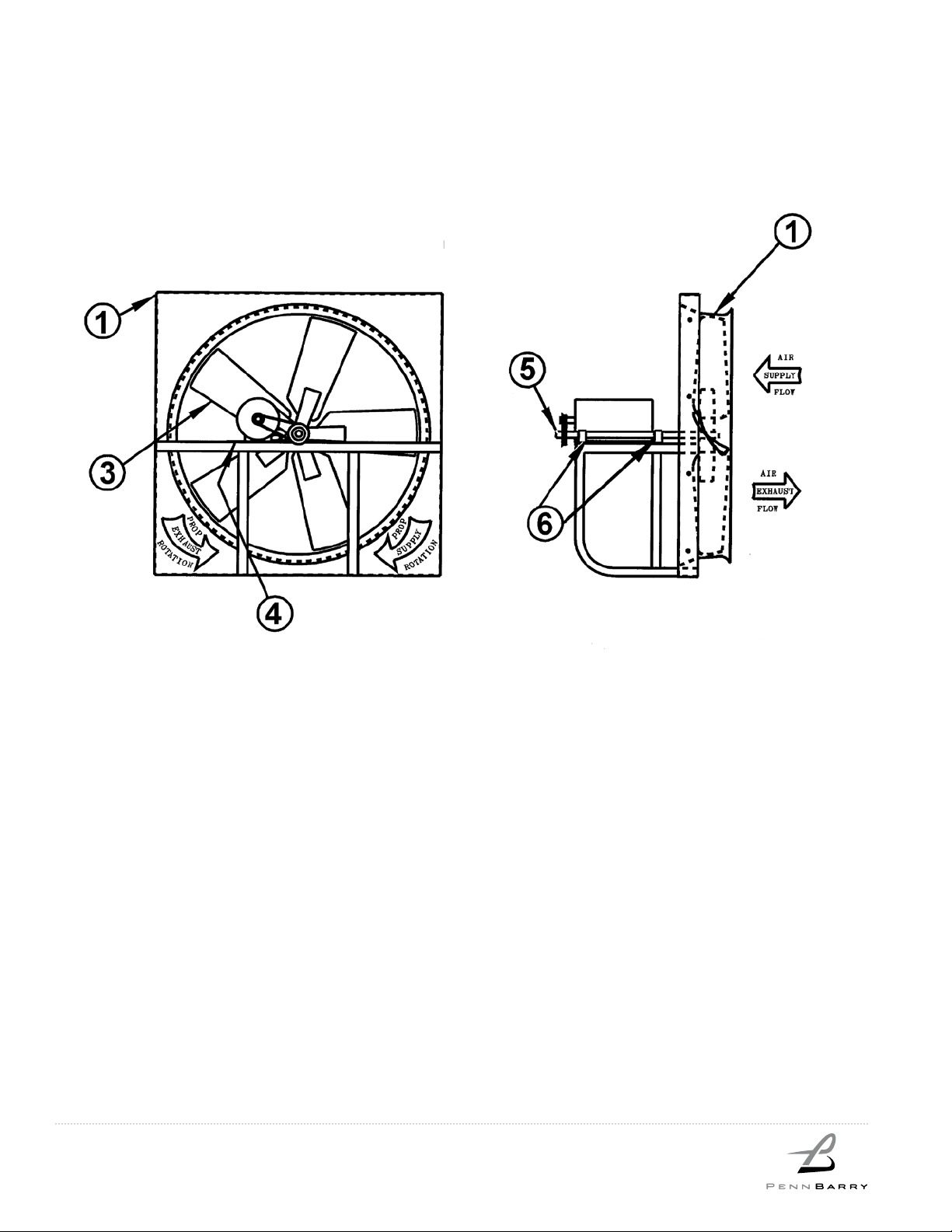

BREEZEWAY P-SERIES WALL MOUNT FAN - DIRECT DRIVE
P10VRA P12VRA P16VSA
REF. # DESCRIPTION
1 Panel / Venturi Orice 1 05642-1 05643-1 05644-1
2 Wire Guard 1 54115-0 54115-0 18745-0
3 Fan Blade 1 61171601 50608-0 50607-0
4 Ball Bearing Motor 1 67012-0 67013-0 67014-0
5 Structural Supports 1 — — —
6 Motor Mounting Plate 1 — — —
REF. # DESCRIPTION
1 Panel / Venturi Orice 1 05644-1 05644-1 05645-1
2 Wire Guard 1 18745-0 18745-0 18745-0
3 Fan Blade 1 50607-0 50607-0 50605-0
4 Ball Bearing Motor 1 67010-0 67011-0 67010-0
5 Structural Supports 1 — — —
6 Motor Mounting Plate 1 — — —
QTY /
UNIT
QTY /
UNIT
PART # PART # PART #
P16RA P16Q1A P18VA
PART # PART # PART #
PENNBARRY | 1401 N. Plano Road; Richardson, TX 75081 | www.PennBarry.com
61
BREEZEWAY P-SERIES WALL MOUNT FAN - DIRECT DRIVE
MODELS P18RA, P20TA, P20SA and P24VA
62
PENNBARRY |
1401 N. Plano Road; Richardson, TX 75081 | www.PennBarry.com
BREEZEWAY P-SERIES WALL MOUNT FAN - DIRECT DRIVE
P18RA P20TA
REF. # DESCRIPTION
1 Panel / Venturi Orice 1 05645-1 05646-1
2 Wire Guard 1 18745-0 54117-0
3 Fan Blade 1 50605-0 61171801
4 Ball Bearing Motor 1 67011-0 60192-0
5 Structural Supports 1 — —
6 Motor Mounting Plate 1 — —
REF. # DESCRIPTION
1 Panel / Venturi Orice 1 05646-1 05600-1
2 Wire Guard 1 54117-0 54110-0
3 Fan Blade 1 61171801 61171901
4 Ball Bearing Motor 1 63806-0 60192-0
5 Structural Supports 1 — —
6 Motor Mounting Plate 1 — —
QTY /
UNIT
QTY /
UNIT
PART # PART #
P20SA P24VA
PART # PART #
PENNBARRY | 1401 N. Plano Road; Richardson, TX 75081 | www.PennBarry.com
63
BREEZEWAY BLL-SERIES WALL MOUNT
EXHAUST PROPELLER FANS
MODELS BLL 24, BLL 30 and BLL 36
64
PENNBARRY |
1401 N. Plano Road; Richardson, TX 75081 | www.PennBarry.com

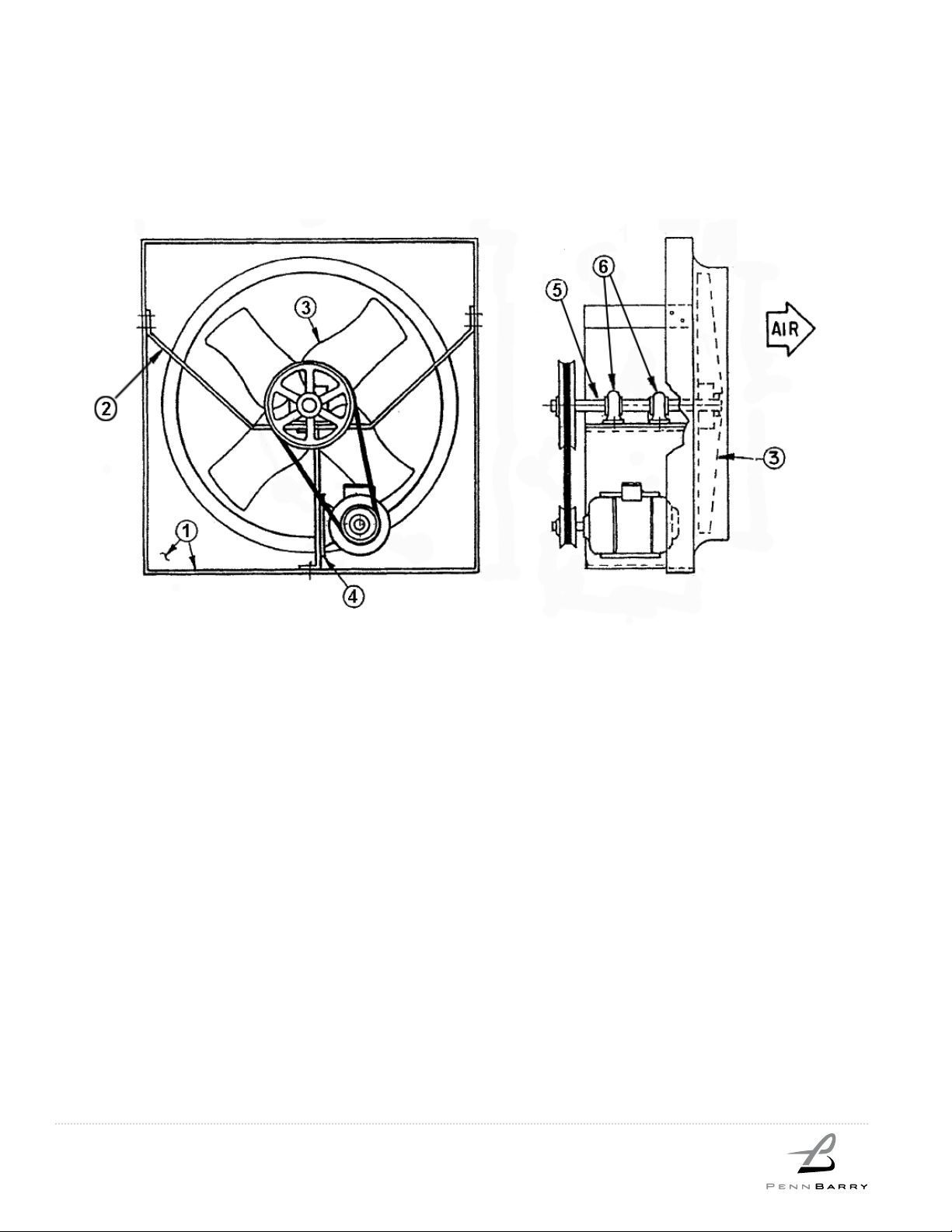

BLL WALL MOUNT EXHAUST PROPELLER FAN - BELT DRIVE
BLL 24 BLL 30 BLL 36
REF. # DESCRIPTION
1 Panel / Venturi Orice 1 05750-3 05751-3 05752-3
2 Web / Bearing Plate 1 19050-0 19051-0 19052-0
3 Fan Blade 1 50075-0 50076-0 50077-0
4 Motor Mounting Plate 1 19053-0 19054-0 19055-0
5 Fan Shaft 1 03039-0 03039-0 03039-0
6 Bearings 2 57088-0 57088-0 57088-0
QTY /
UNIT
BLL 24 - MOTOR / BELT / PULLEY PARTS
HP PHASE
.25 115/1/60 60396-0 62802-0 90794-0 62124-0 475 - 725
.33 115/1/60 63720-0 62802-0 90794-0 62124-0 475 - 725
.50 115/1/60 63726-0 62802-0 90791-0 62123-0 555 - 845
.75 115/1/60 60196-0 62807-0 90791-0 62205-0 555 - 845
1.0 230/3/60 60935-0 62807-0 55266-0 62204-0 895 - 1205
MOTOR
PART #
PART # PART # PART #
MOTOR
PULLEY
FAN
PULLEY
BELT
RANGE
RPM
BLL 30 - MOTOR / BELT / PULLEY PARTS
HP PHASE
.25 115/1/60 60396-0 62802-0 90795-0 62135-0 370 - 560
.33 115/1/60 63720-0 62802-0 90795-0 62135-0 370 - 560
.50 115/1/60 63726-0 62802-0 91260-0 62134-0 420 - 630
.75 115/1/60 60196-0 62803-0 90795-0 62136-0 370 - 560
1.0 230/3/60 60935-0 62807-0 91260-0 62216-0 615 - 830
MOTOR
PART #
MOTOR
PULLEY
FAN
PULLEY
BELT
RPM
RANGE
BLL 36 - MOTOR / BELT / PULLEY PARTS
HP PHASE
.25 115/1/60 60396-0 62802-0 91261-0 62145-0 335 - 505
.33 115/1/60 63720-0 62802-0 91261-0 62145-0 335 - 505
.50 115/1/60 63726-0 62802-0 91261-0 62145-0 335 - 505
.75 115/1/60 60196-0 62803-0 91262-0 62149-0 280 - 425
1.0 230/3/60 60935-0 62807-0 91261-0 62209-0 490 - 665
MOTOR
PART #
MOTOR
PULLEY
FAN
PULLEY
BELT
RPM
RANGE
PENNBARRY | 1401 N. Plano Road; Richardson, TX 75081 | www.PennBarry.com
65
BREEZEWAY BHH-SERIES WALL MOUNT
EXHAUST PROPELLER FANS
MODELS BHH24, BHH30 and BHH36
66
PENNBARRY |
1401 N. Plano Road; Richardson, TX 75081 | www.PennBarry.com
BHH WALL MOUNT EXHAUST PROPELLER FAN - BELT DRIVE
BHH24 BHH30 BHH36
REF. # DESCRIPTION
1 Panel / Venturi Orice 1 19659-0 19660-3 19661-0
2 Fan Blade (Prop) 1 23041-0 23042-0 23043-0
3 Motor Mounting Plate 1 19684-0 19684-0 19685-0
4 Fan Shaft 1 19797-0 19797-0 19716-0
5 Bearings 1 57090-0 57090-0 57091-0
QTY /
UNIT
BHH24 - MOTOR / BELT / PULLEY PARTS
HP PHASE
.25 115/1/60 60396-0 62802-0 62507-0 62115-0 420 - 630
.33 115/1/60 63720-0 62802-0 62560-0 62280-0 515 - 780
.50 115/1/60 63726-0 62802-0 62560-0 62280-0 515 - 780
.75 115/1/60 60196-0 62806-0 62560-0 62287-0 650 - 915
MOTOR
PART #
BHH30 - MOTOR / BELT / PULLEY PARTS
HP PHASE
.25 115/1/60 60396-0 62802-0 90795-0 62135-0 370 - 560
.33 115/1/60 63720-0 62802-0 90795-0 62135-0 370 - 560
.50 115/1/60 63726-0 62802-0 91260-0 62134-0 420 - 630
.75 115/1/60 60196-0 62803-0 90795-0 62136-0 545 - 735
1.0 230/3/60 60935-0 62807-0 91260-0 62216-0 615 - 830
1.5 230/3/60 60942-0 62806-0 62594-0 62288-0 600 - 850
2.0 230/3/60 63832-0 62809-0 62594-0 62288-0 700 - 950
MOTOR
PART #
PART # PART # PART #
MOTOR
PULLEY
MOTOR
PULLEY
FAN
PULLEY
FAN
PULLEY
BELT
BELT
RANGE
RANGE
RPM
RPM
BHH36 - MOTOR / BELT / PULLEY PARTS
HP PHASE
.33 115/1/60 63720-0 62802-0 62618-0 62210-0 260 - 390
.50 115/1/60 63726-0 62802-0 62510-0 62206-0 335 - 505
.75 115/1/60 60196-0 62803-0 62510-0 62206-0 420 - 595
1.0 230/3/60 60935-0 62803-0 62510-0 62206-0 420 - 595
1.5 230/3/60 60942-0 62806-0 62510-0 62206-0 420 - 595
2.0 230/3/60 63832-0 62809-0 62510-0 62207-0 490 - 665
PENNBARRY | 1401 N. Plano Road; Richardson, TX 75081 | www.PennBarry.com
MOTOR
PART #
MOTOR
PULLEY
FAN
PULLEY
BELT
RPM
RANGE
67
BREEZEWAY BHH-SERIES WALL MOUNT
EXHAUST PROPELLER FANS
MODELS BHH42 and BHH48
68
PENNBARRY |
1401 N. Plano Road; Richardson, TX 75081 | www.PennBarry.com
BHH WALL MOUNT EXHAUST PROPELLER FAN - BELT DRIVE
BHH42 BHH48
REF. # DESCRIPTION QTY / UNIT PART # PART #
1 Panel / Venturi Orice 1 19662-0 19663-0
2 Web / Bearing Plate 1 — —
3 Fan Blade 1 23044-0 23045-0
4 Motor Mounting Plate 1 19685-0 —
5 Fan Shaft 1 19716-0 03350-0
6 Bearings 2 57091-0 57092-0
BHH42 - MOTOR / BELT / PULLEY PARTS
HP PHASE
1.0 230/3/60 60935-0 62807-0 62664-0 62219-0 330 - 440
1.5 230/3/60 60942-0 62807-0 62664-0 62219-0 330 - 440
2.0 230/3/60 63832-0 62813-0 62664-0 62220-0 400 - 510
3.0 230/3/60 63833-0 62827-0 62783-0 62212-0 415 - 570
MOTOR
PART #
MOTOR
PULLEY
FAN
PULLEY
BELT
RPM
RANGE
BHH48 - MOTOR / BELT / PULLEY PARTS
HP PHASE
.75 115/1/60 60196-0 62803-0 62664-0 62218-0 225 - 335
1.0 230/3/60 60935-0 62803-0 62664-0 62218-0 225 - 335
1.5 230/3/60 60942-0 62806-0 62664-0 62219-0 280 - 395
2.0 230/3/60 63832-0 62809-0 62664-0 62219-0 330 - 440
3.0 230/3/60 63833-0 62828-0 62571-0 62217-0 325 - 450
MOTOR
PART #
MOTOR
PULLEY
FAN
PULLEY
BELT
RPM
RANGE
PENNBARRY | 1401 N. Plano Road; Richardson, TX 75081 | www.PennBarry.com
69
