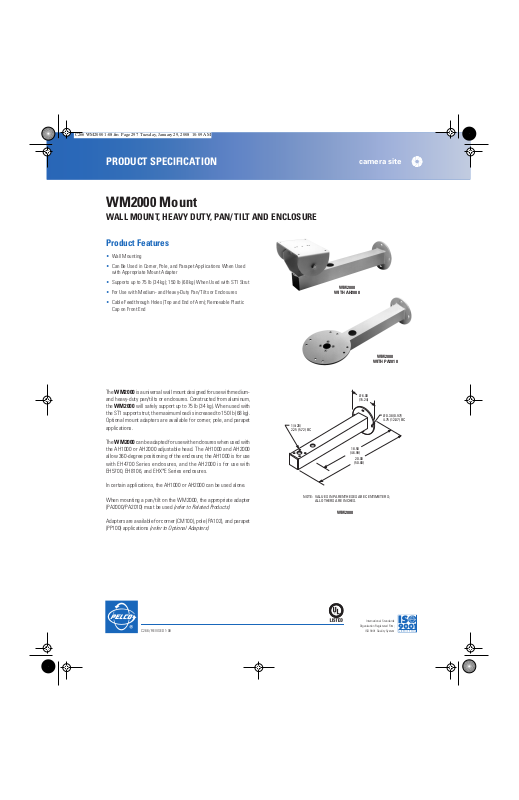

PRODUCT SPECIFICATION
NOTE: VALUES IN PARENTHESES ARE CENTIMETERS;
ALL OTHERS ARE INCHES.
18.50
(46.99)
20.00
(50.80)
Ø 6.00
(15.24)
Ø 0.38 (0.97)/
4.75 (12.07) BC
1/4-20/
2.25 (5.72) BC
WM2000
WITH AH2000
WM2000
WITH PA2010
WM2000
WM2000 Mount
WALL MOUNT, HEAVY DUTY, PAN/TILT AND ENCLOSURE
camera site
Product Features
• Wall Mounting
• Can Be Used in Corner, Pole, and Parapet Applications When Used
with Appropriate Mount Adapter
• Supports up to 75 lb (34 kg); 150 lb (68 kg) When Used with ST1 Strut
• For Use with Medium- and Heavy-Duty Pan/Tilts or Enclosures
• Cable Feedthrough Holes (Top and End of Arm); Removable Plastic
Cap on Front End
The
WM2000
is a universal wall mount designed for use with mediumand heavy-duty pan/tilts or enclosures. Constructed from aluminum,
the
WM2000
will safely support up to 75 lb (34 kg). When used with
the ST1 support strut, the maximum load is increased to 150 lb (68 kg).
Optional mount adapters are available for corner, pole, and parapet
applications.
The
WM2000
the AH1000 or AH2000 adjustable head. The AH1000 and AH2000
allow 360-degree positioning of the enclosure; the AH1000 is for use
can be adapted for use with enclosures when used with
with EH4700 Series enclosures, and the AH2000 is for use with
EH5700, EH8106, and EHX*E Series enclosures.
In certain applications, the AH1000 or AH2000 can be used alone.
When mounting a pan/tilt on the WM2000, the appropriate adapter
(PA2000/PA2010) must be used
(refer to Related Products).
Adapters are available for corner (CM100), pole (PA102), and parapet
(PP100) applications
(refer to Optional Adapters).
C266 / REVISED 1-08
International Standards
Organization Registered Firm;
ISO 9001 Quality System
Page 2
MODELS/TECHNICAL SPECIFICATIONS
ST1
22.50
(57.15)
Ø0.38 (0.97)/
4.75 (12.07)BC
Ø0.25 (0.64)/
2.25 (5.72) BC
Ø6.00 (15.24)
PA2000
Ø0.38 (0.97)/
7.25 (18.42) BC
Ø0.38 (0.97)/
7.00 (17.78) BC
Ø0.25 (0.64)/
2.25 (5.72) BC
Ø8.50 (21.59)
PA2010
3.00
(7.62)
2.84 (7.20)
3.47
(10.41)
AH1000
5.87
(14.91)
8.31
(21.11)
5.00
(12.70)
AH2000
ST1
AH1000 AH2000
PA2000 PA2010
WM2000 and Related Products
MODEL
WM2000 Universal wall mount for pan/tilts and
RELATED PRODUCTS
AH1000 Manually adjustable pan/tilt head for use
AH2000 Manually adjustable pan/tilt head for use
PA2000 Mount adapter for PT520P, PT520SL, PT570P,
PA2010 Mount adapter for PT1250DC, PT1250P,
ST1 Support strut; for use with WM2000.
OPTIONAL ADAPTERS
CM100 Corner mount adapter for WM2000 mount
PA102 Pole mount adapter for WM2000 mount.
PP100 Parapet mount for WM2000 mount
SCM100 Corner mount adapter for ST1 strut
SPA102 Pole mount adapter for ST1 strut. Straps fit
enclosures
with EH4700 Series enclosures
with EH5700, EH8106, and EHX*E Series
enclosures
PT570-24P, and PT680-24P pan/tilts
PT1280P, PT1280SL, and PT1260EX heavy
duty pan/tilts
Increases maximum load to 150 lb (68 kg)
Straps fit 3-inch (7.62 cm) to 8-inch (20.32 cm)
diameter pole.
3-inch (7.62 cm) to 8-inch (20.32 cm) diameter
pole.
MECHANICAL
Pan Adjustment 360° (models AH1000 and AH2000 only)
Tilt Adjustment ±90° (models AH1000 and AH2000 only)
Mounting Method Secure to a solid surface with fasteners of a
GENERAL
Effective Projected Area (EPA)
WM2000 ~60 square inches
AH1000 ~21 square inches
AH2000 ~7 square inches
ST1 ~30 square inches
Construction Aluminum
Finish Gray polyester powder coat
Maximum Load 75 lb (34 kg); 150 lb (68 kg) when used with
Unit Weight
AH1000 0.88 lb (0.40 kg)
AH2000 2.92 lb (1.32 kg)
PA2000 0.63 lb (0.28 kg)
PA2010 1.28 lb (0.58 kg)
ST1 1.34 lb (0.61 kg)
WM2000 3.07 lb (1.39 kg)
Shipping Weight
AH1000 2 lb (0.90 kg)
AH2000 4 lb (1.81 kg)
PA2000 1 lb (0.45 kg)
PA2010 2 lb (0.90 kg)
ST1 3 lb (1.35 kg)
WM2000 5 lb (2.26 kg)
CERTIFICATIONS
• UL Listed
suitable size (not supplied)
ST1 strut
Page 3
MODELS/TECHNICAL SPECIFICATIONS
NOTE: VALUES IN PARENTHESES ARE CENTIMETERS;
ALL OTHERS ARE INCHES.
C
A
B
4.00 (10.16)
2.00 (5.08)
Ø0.37 (0.94), 4X
1.50 (3.81)
3.00
(7.62)
8.00
(20.32)
2.00 (5.08)
4.75
(12.07)
6.00
(15.24)
0.60 (1.52)
Ø0.37 (0.94), 8X
A 3.50 (8.89) 7.00 (17.78)
B 2.75 (6.99) 4.50 (11.43)
C 8.00 (20.32) 12.00 (30.48)
DIM. SCM100 CM100
SCM100
CM100
CM100 (TOP) AND SCMP100 (BOTTOM)
Corner Adapters
MODELS
CM100 Corner mount adapter for WM2000 wall
SCM100 Corner mount adapter for ST1 support strut
MECHANICAL
Adapter Mounting Four 5/16-inch studs provided for mounting
Suggested
Mounting Method Secure to solid mounting surface with
CM100 8 required
SCM100 4 required
Maximum Load
CM100 75 lb (34 kg)
CM100 with SCM100 150 lb (68 kg)
mount
the WM2000 to CM100 (nuts and split lock
washers supplied). Three 5/16-inch studs
provided for mounting ST1 strut to the
SCM100 (nuts and split lock washers
supplied).
fasteners of a suitable size. (Fasteners are not
supplied.)
GENERAL
Construction 0.125-inch (3.17 mm) thick, 5052H32
Finish Gray polyester powder coat
Unit Weight
CM100 3 lb (1.4 kg)
SCM100 1.5 lb (0.6 kg)
Shipping Weight
CM100 5 lb (2.3 kg)
SCM100 2 lb (0.9 kg)
aluminum
CERTIFICATIONS
• UL Listed
Page 4
MODELS/TECHNICAL SPECIFICATIONS
Pole Adapters
MODELS
PA102 Pole mount adapter for WM2000
SPA102 Pole mount adapter for ST1 strut
GENERAL
Construction
Mount Aluminum, 0.125-inch (3.17 mm) thick
PEM Studs Stainless steel
Adapter Mounting
PA102 4, 5/16-inch studs
SPA102 3, 1/4-inch studs
(Nuts to secure mount to adapter are not
supplied)
Suggested
Mounting Method Slots are provided for mounting straps;
stainless steel straps supplied. Straps fit
3-inch (7.62 cm) to 8-inch (20.32 cm) diameter
pole.
Maximum Load Will support maximum load specified for
WM2000 mount: 75 lb (33.97 kg);
150 lb (67.95 kg) when used with ST1 strut
and SPA102
Unit Weight
PA102 3.35 lb (1.52 kg)
SPA102 1.83 lb (0.83 kg)
Shipping Weight
PA102 5 lb (2.27 kg)
SPA102 3 lb (1.36 kg)
CERTIFICATIONS
• UL Listed
Parapet Adapters
MODEL
PP100 Parapet adapter mount for use with WM2000
wall mount. Refer to PP100 specification
sheet (C245) for additional information.
PA102 POLE ADAPTER SHOWN WITH WM2000 MOUNT
AND SPA102 STRUT ADAPTER WITH ST1 STRUT
0.50
(1.27)
4.00
(10.16)
1/4-20 X 3/4 STUD, 3X
6.50
(16.51)
2.50
(6.35)
SPA102
Pelco Worldwide Headquarters:
3500 Pelco Way, Clovis, California 93612-5699 USA
USA & Canada
International
www.pelco.com
Tel: (800) 289-9100 • FAX (800) 289-9150
Tel: (559) 292-1981 • FAX (559) 348-1120
7.00
(17.87)
0.50
(1.27)
2.75
(6.99)
REF.
Note: VALUES IN PARENTHESES ARE CENTIMETERS; ALL OTHERS ARE INCHES.
0.812
(2.06)
2.75
(6.99)
1.75
(4.45)
0.75 X 0.25 SLOT
(1.19 X 0.64), 6X
1.012
(2.57)
5.00
(12.70)
5.00
(12.70)
5/16-18 X 1-1/4 STUD
4X EQUALLY SPACED
ON A Ø4.75 (12.06) BC
7.00
(17.78)
3.50
(8.89)
4.00
(10.16)
12.77
(32.43)
2.46
(6.24)
PA102
Pelco and the Pelco logo are registered trademarks of Pelco, Inc.
2.75
(6.99)
Specifications subject to change without notice.
©Copyright 2008, Pelco, Inc. All rights reserved.
