Pelco SD4E27-HPE1 Specsheet

PRODUCT SPECIFICATION

camera solutions

Spectra® IV IP Series Network Dome System

H.264, DIGITAL PAN/TILT/ZOOM HIGH-SPEED DOME

Product Features

• Ability to Control and Monitor Video Over IP Networks

• Simultaneous IP and Analog Video and Control

• H.264, MPEG-4, and MJPEG Compression

• Supported Protocols: TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP,

DNS, DHCP, RTP, RTSP, NTP, IPv4, SNMP, QoS, HTTP, HTTPS, LDAP
(client), SSH, SSL, SMTP, FTP, mDNS (Bonjour

• Multilevel Password Protection

• 3 Autofocus, High Resolution Integrated Camera/Optics Packages

• Horizontal Zone and Window Blanking

• Sensitivity Down to 0.00015 lux PAL (35X Models)

• On-Screen Compass and Tilt Display

• Up to 2 Simultaneous Video Streams

• Web Viewing, up to 16 Cameras Simultaneously

®

), and 802.1x (EAP)

• Open IP Standards

• Bidirectional Full-Duplex Audio

Spectra® IV IP

functions of Spectra IV (including analog), while allowing you to
control and monitor video over an IP network from virtually anywhere
in the world. Spectra IV IP is a high-speed dome with a built-in
100Base-TX network interface for live streaming to any network
application.

Spectra IV IP

streams can be compressed in MJPEG, MPEG-4, and H.264 formats
across several resolution configurations. The streams can be
configured in a variety of frame rates, bit rates, and group of pictures
(GOP) structures for additional bandwidth administration. The H.264
compression video files are up to 20 times smaller than MJPEG,
making network video storage more affordable.

Spectra IV IP

viewing, recording, and controlling network IP video. There is no need
to abandon your current analog infrastructure if you are making the
move to network video as a recording solution. Continue to monitor
and control video in the analog domain while recording video in the
network domain, and let Spectra IV IP’s professional compression
method do the work for you without the need for external encoders.

Spectra IV IP

a lower dome. These three system components are interchangeable
with other Spectra IV IP dome systems, making retrofitting and
application adjustments simple.

Spectra IV IP

feature built-in memory, which can be used to store camera and
location-specific dome settings, including labels, presets, patterns,
and zones.

dome systems incorporate all of the features and

supports two simultaneous video streams. The two

allows you to view and control analog video while

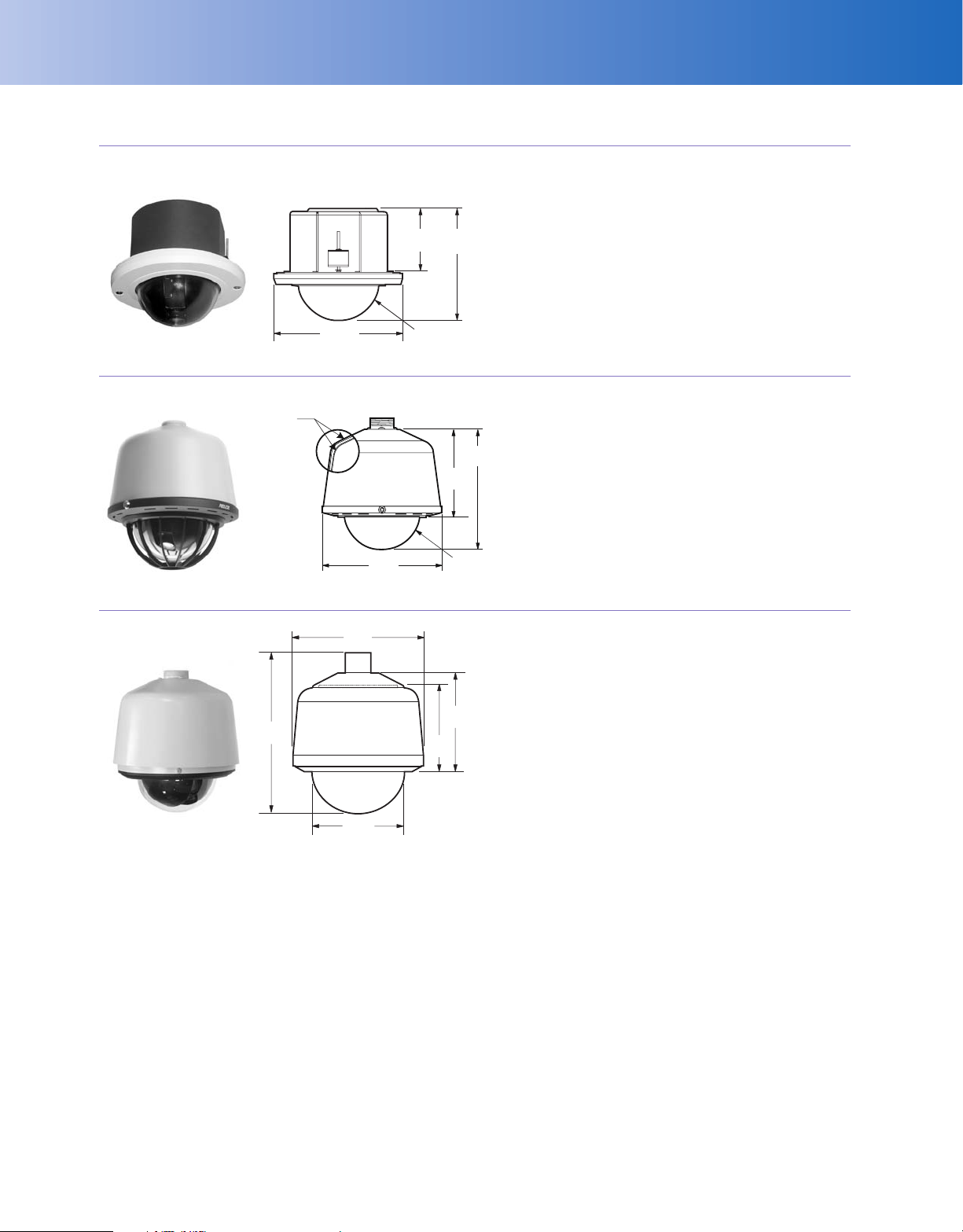

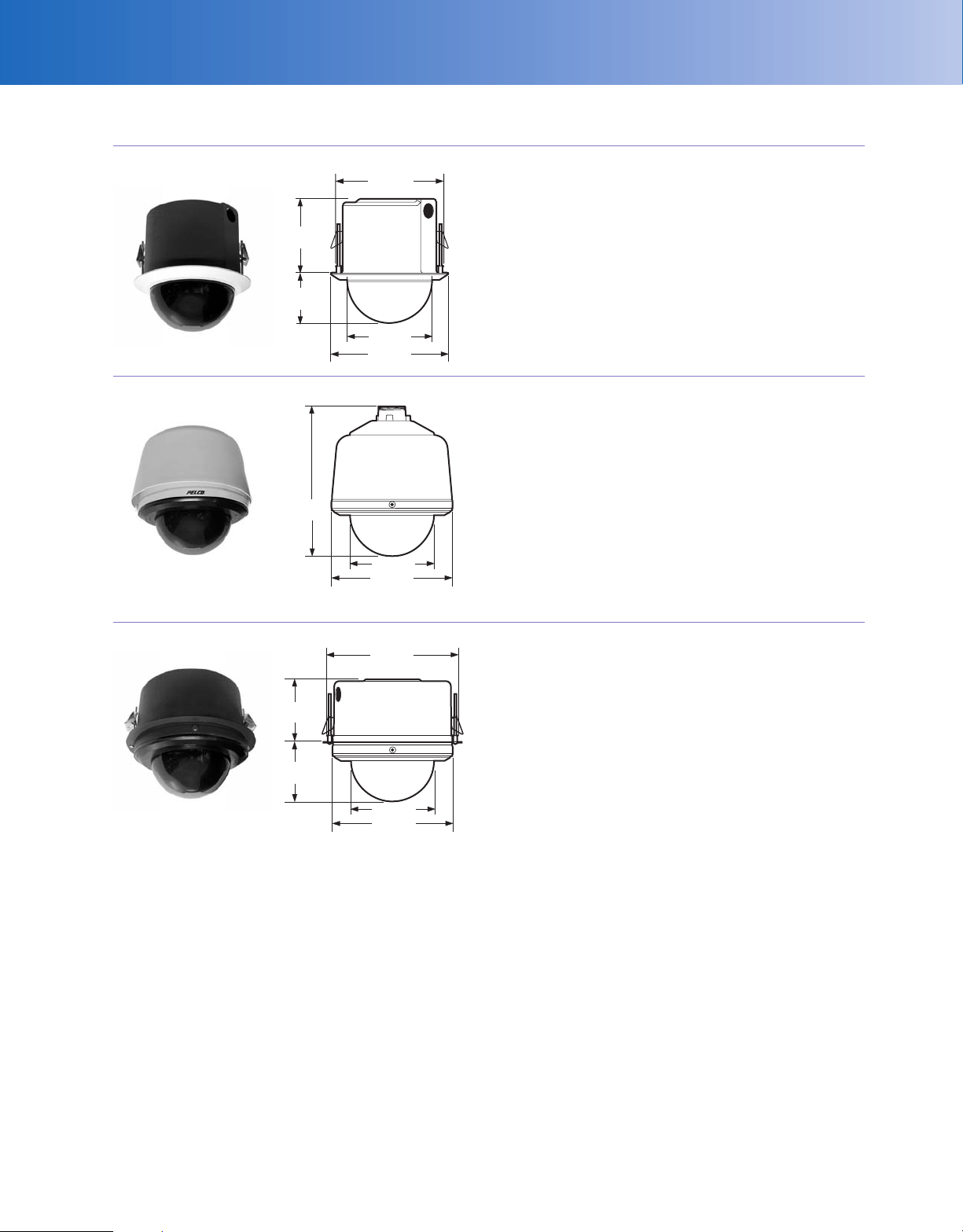

dome system consists of a back box, a dome drive, and

features several back box options. All back boxes

All cameras in
imager for increased sensitivity and LowLight™ technology allowing
the cameras to compensate for scenes where minimal light is present.
Both the 27X and the 35X cameras feature built-in motion detection
and advanced 128X wide dynamic range (WDR) that enables the
system to compensate for scenes where dramatic contrasts in lighting
are present. The 35X day/night camera’s electronic image
stabilization digitally reduces blurring of the camera image due to
vibration caused by external sources, such as wind and traffic.

Spectra IV IP

dome drives feature an EXview HAD

Web Interface

Spectra IV IP

setup and administration. Up to 16 cameras can be viewed on the
same network.

Network protocols such as Secure Sockets Layer (SSL) configuration
for security certificates, Secure Shell (SSH) for remote logon, and
Quality of Service (QoS) for priority or guarantee data flow can be
managed using a Web browser.

uses a standard Web browser for powerful remote

Systemization

Spectra IV IP

Endura
H.264; Digital Sentry® version 4.2 (or later); DX8100 version 2.0 (or
later); and DVR5100 version 1.5.4 (or later). The camera also features
open architecture connectivity to third-party software. Pelco offers an
application programming interface (API) for interfacing to Pelco’s
network cameras.

easily connects to Pelco IP and hybrid systems such as

®

version 1.5 (or later), MPEG-4; Endura version 2.0 (or later),

™

International Standards

Organization Registered Firm;

ISO 9001 Quality System

C3468 / REVISED 10-4-10

TECHNICAL SPECIFICATIONS

CAMERA/OPTICS

Day/Night (35X) Day/Night (27X) Day/Night (23X)

Signal Format NTSC

Scanning System Interlace/Progressive selectable Interlace/Progressive selectable 2:1 Interlace

Image Sensor

Effective Pixels

NTSC
PAL

Horizontal Resolution

NTSC
PAL

Lens f/1.4 (focal length, 3.4 ~ 119 mm) f/1.4 (focal length, 3.4 ~ 91.8 mm) f/1.6 (focal length, 3.6 ~ 82.8 mm)

Zoom 35X optical, 12X digital 27X optical, 12X digital 23X optical, 12X digital

Zoom Speed (optical range) 3.2/4.6/6.6 seconds 3.2/4.6/6.6 seconds 2.9/4.2/5.8 seconds

Horizontal

Angle of view
Focus

Maximum Sensitivity at 35 IRE

NTSC/EIA

PAL/CCIR

Sync System Internal/AC line lock, phase adjustable

White Balance Automatic with manual override Automatic with manual override Automatic with manual override

Shutter Speed

NTSC
PAL

Iris Control Automatic iris control with manual

Gain Control Automatic/OFF Automatic/OFF Automatic/OFF

Video Output 1 Vp-p, 75 ohms 1 Vp-p, 75 ohms 1 Vp-p, 75 ohms

Video Signal-to-Noise >50 dB >50 dB >50 dB

Wide Dynamic Range 128X 128X —

Electronic Image Stabilization Integrated/Selectable — —

Image Enhancement Integrated/Selectable — —

Video Motion Detection Integrated Integrated —

(DD4CBW35)

PAL

(DD4CBW35-X)

1/4-inch EXview HAD

768 (H) X 494 (V)
752 (H) X 582 (V)

>540 TV Lines
>540 TV Lines

55.8° at 3.4 mm wide zoom;

1.7° at 119 mm telephoto zoom
Automatic with manual override

0.55 lux at 1/60 sec

0.018 lux at 1/2 sec

0.00018 lux at 1/2 sec

0.45 lux at 1/50 sec

0.015 lux at 1/1.5 sec

0.00015 lux at 1/1.5 sec

using remote control, V-Sync

Automatic (electronic iris)/Manual
1/2 ~ 1/30,000
1/1.5 ~ 1/30,000

override

™

(color)
(color)

(B-W)

(color)

(color)

(B-W)

NTSC

(DD427)

PAL

(DD427-X)

1/4-inch EXview HAD

768 (H) X 494 (V)
752 (H) X 582 (V)

>540 TV Lines
>540 TV Lines

55.8° at 3.4 mm wide zoom;

2.3° at 91.8 mm telephoto zoom
Automatic with manual override

0.55 lux at 1/60 sec

0.018 lux at 1/2 sec

0.00018 lux at 1/2 sec

0.45 lux at 1/50 sec

0.015 lux at 1/1.5 sec

0.00015 lux at 1/1.5 sec

Internal/AC line lock, phase adjustable
using remote control, V-Sync

Automatic (electronic iris)/Manual
1/2 ~ 1/30,000
1/1.5 ~ 1/30,000

Automatic iris control with manual
override

(color)

(color)

(B-W)

(color)

(color)

(B-W)

NTSC

(DD423)

PAL

(DD423-X)

1/4-inch EXview HAD

768 (H) X 494 (V)
752 (H) X 582 (V)

540 TV Lines
540 TV Lines

54° at 3.6 mm wide zoom;

2.5° at 82.8 mm telephoto zoom
Automatic with manual override

0.65 lux at 1/60 sec

0.15 lux at 1/60 sec

0.55 lux at 1/50 sec

0.12 lux at 1/50 sec

Internal/AC line lock, phase adjustable
using remote control, V-Sync

Automatic (electronic iris)/Manual
1/2 ~ 1/30,000
1/1.5 ~ 1/30,000

Automatic iris control with manual
override

(color)

(B-W)

(color)
(B-W)

TECHNICAL SPECIFICATIONS

VIDEO

Video Encoding H.264 base profile, MPEG-4, and MJPEG
Video Streams Up to 2 simultaneous streams; the second

Frame Rate Up to 30, 25, 24, 15, 12.5, 12, 10, 8, 7. 5, 6, 5,

Available Resolutions

Supported Protocols TCP/IP, UDP/IP (Unicast, Multicast IGMP),

Users

Unicast Up to 20 simultaneous users depending on

Multicast Unlimited users H.264 or MPEG-4
Security Access Password protected
Software Interface Web browser view and setup, up to

Pelco System Integration Endura 1.5 or later (MPEG-4) or Endura 2.0 or

Open IP Integration Pelco IP camera API
Minimum System Requirements

Processor Intel

Operating System Microsoft

Memory 512 MB RAM

Network Interface Card 100 megabits (or greater)

Monitor Minimum of 1024 x 768 resolution, 16- or

Web Browser* Internet Explorer

Media Player

†

stream is variable based on the setup of the
primary stream

4, 3, 2, 1 (dependent upon coding, resolution,
and stream configuration)

Resolution MJPEG H.264 Base Profile MPEG-4

Maximum

Width Height Format

IPS

704 480 NTSC 30 ips 5.4 Mbps 30 ips 1.9 Mbps 30 ips 2.0 Mbps

352 240 NTSC 30 ips 1.3 Mbps 30 ips 0.5 Mbps 30 ips 0.6 Mbps

704 576 PAL 25 ips 5.4 Mbps 25 ips 1.9 Mbps 25 ips 2.0 Mbps

UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, SNMP,
QoS, HTTP, HTTPS, LDAP (client), SSH, SSL,
SMTP, FTP, mDNS (Bonjour), and 802.1x (EAP)

resolution settings (2 guaranteed streams)

16 cameras

later (H.264); Digital Sentry 4.2 IP bundle 3 or
later; DX8100 Series 2.0 or later; and
DVR5100 version 1.5.4 or later

®

Pentium® 4 microprocessor, 1.6 GHz

®

Windows® XP, Windows Vista®,

or Mac® OS X 10.4 (or later)

32-bit pixel color resolution

®

Firefox

®

7.0 (or later) or Mozilla®

3.0 (or later)

Pelco Media Player or QuickTime® 7.6.5 for
Windows XP, Windows Vista, or QuickTime

7.6.4 for Mac OS X 10.4

Recommended

Bit Rate

Maximum

IPS

Recommended

Bit Rate

Maximum

IPS

Recommended

Bit Rate

*Internet Explorer is not supported by Mac OS X 10.4.

†

This product is not compatible with QuickTime version 7.6.4 for

Windows XP or Windows Vista. If you have this version installed on
your PC, you will need to upgrade to QuickTime version 7.6.5.
