PRODUCT SPECIFICATION
camera solutions

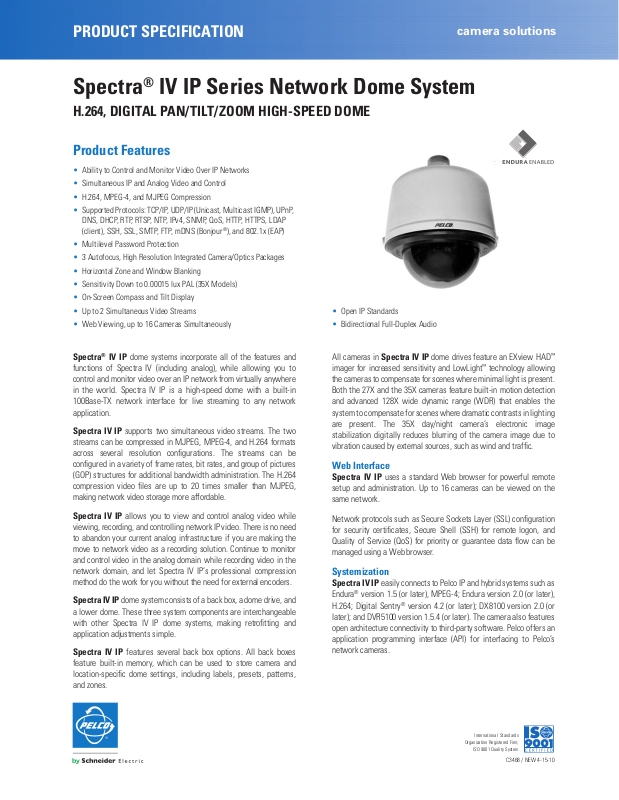

Spectra® IV IP Series Network Dome System
H.264, DIGITAL PAN/TILT/ZOOM HIGH-SPEED DOME
Product Features
• Ability to Control and Monitor Video Over IP Networks
• Simultaneous IP and Analog Video and Control
• H.264, MPEG-4, and MJPEG Compression
• Supported Protocols: TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP,
DNS, DHCP, RTP, RTSP, NTP, IPv4, SNMP, QoS, HTTP, HTTPS, LDAP
(client), SSH, SSL, SMTP, FTP, mDNS (Bonjour
• Multilevel Password Protection
• 3 Autofocus, High Resolution Integrated Camera/Optics Packages
• Horizontal Zone and Window Blanking
• Sensitivity Down to 0.00015 lux PAL (35X Models)
• On-Screen Compass and Tilt Display
• Up to 2 Simultaneous Video Streams
• Web Viewing, up to 16 Cameras Simultaneously
®
), and 802.1x (EAP)
• Open IP Standards
• Bidirectional Full-Duplex Audio
Spectra® IV IP
functions of Spectra IV (including analog), while allowing you to
control and monitor video over an IP network from virtually anywhere
in the world. Spectra IV IP is a high-speed dome with a built-in
100Base-TX network interface for live streaming to any network
application.
Spectra IV IP
streams can be compressed in MJPEG, MPEG-4, and H.264 formats
across several resolution configurations. The streams can be
configured in a variety of frame rates, bit rates, and group of pictures
(GOP) structures for additional bandwidth administration. The H.264
compression video files are up to 20 times smaller than MJPEG,
making network video storage more affordable.
Spectra IV IP
viewing, recording, and controlling network IP video. There is no need
to abandon your current analog infrastructure if you are making the
move to network video as a recording solution. Continue to monitor
and control video in the analog domain while recording video in the
network domain, and let Spectra IV IP’s professional compression
method do the work for you without the need for external encoders.
Spectra IV IP
a lower dome. These three system components are interchangeable
with other Spectra IV IP dome systems, making retrofitting and
application adjustments simple.
Spectra IV IP
feature built-in memory, which can be used to store camera and
location-specific dome settings, including labels, presets, patterns,
and zones.
dome systems incorporate all of the features and
supports two simultaneous video streams. The two
allows you to view and control analog video while

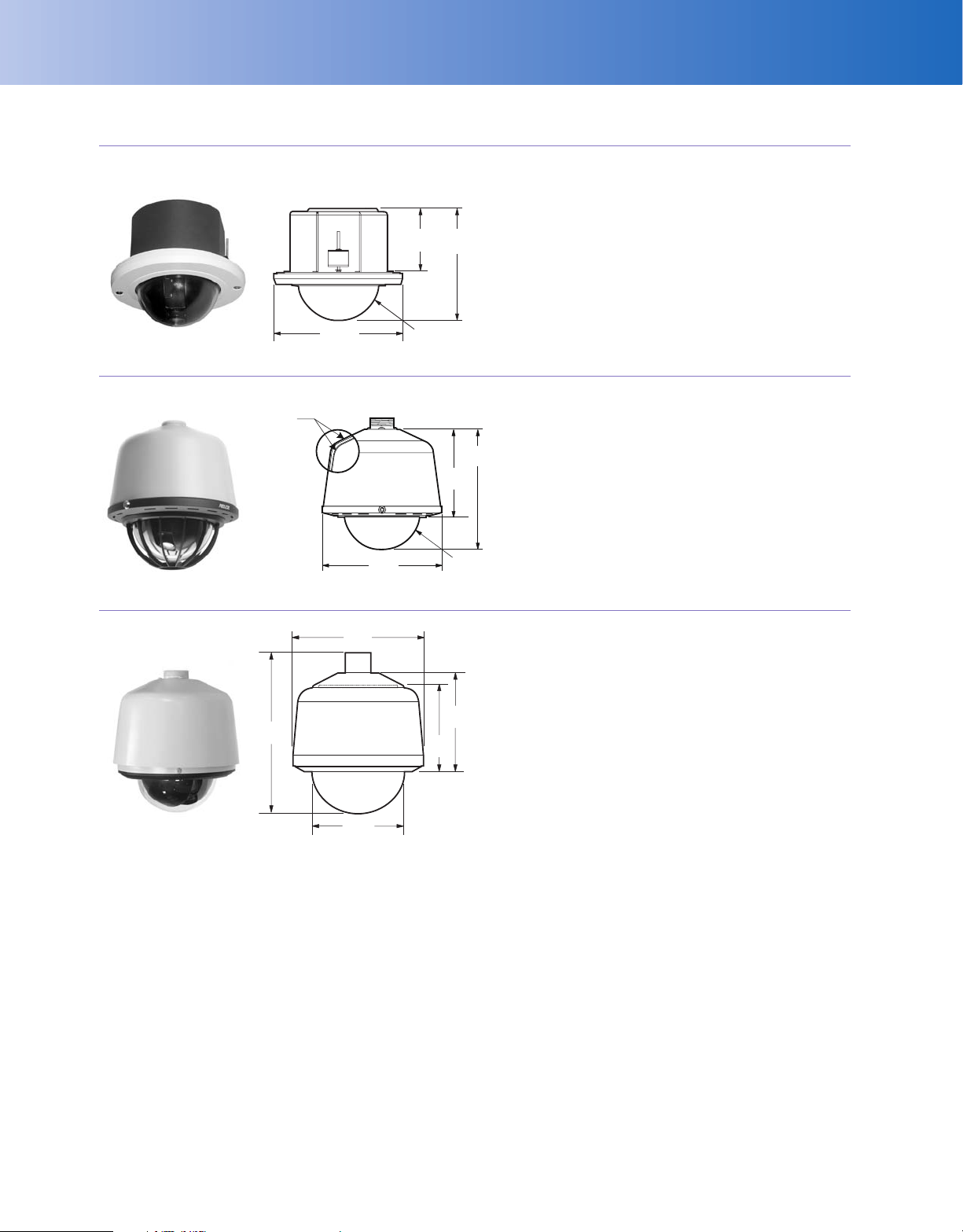

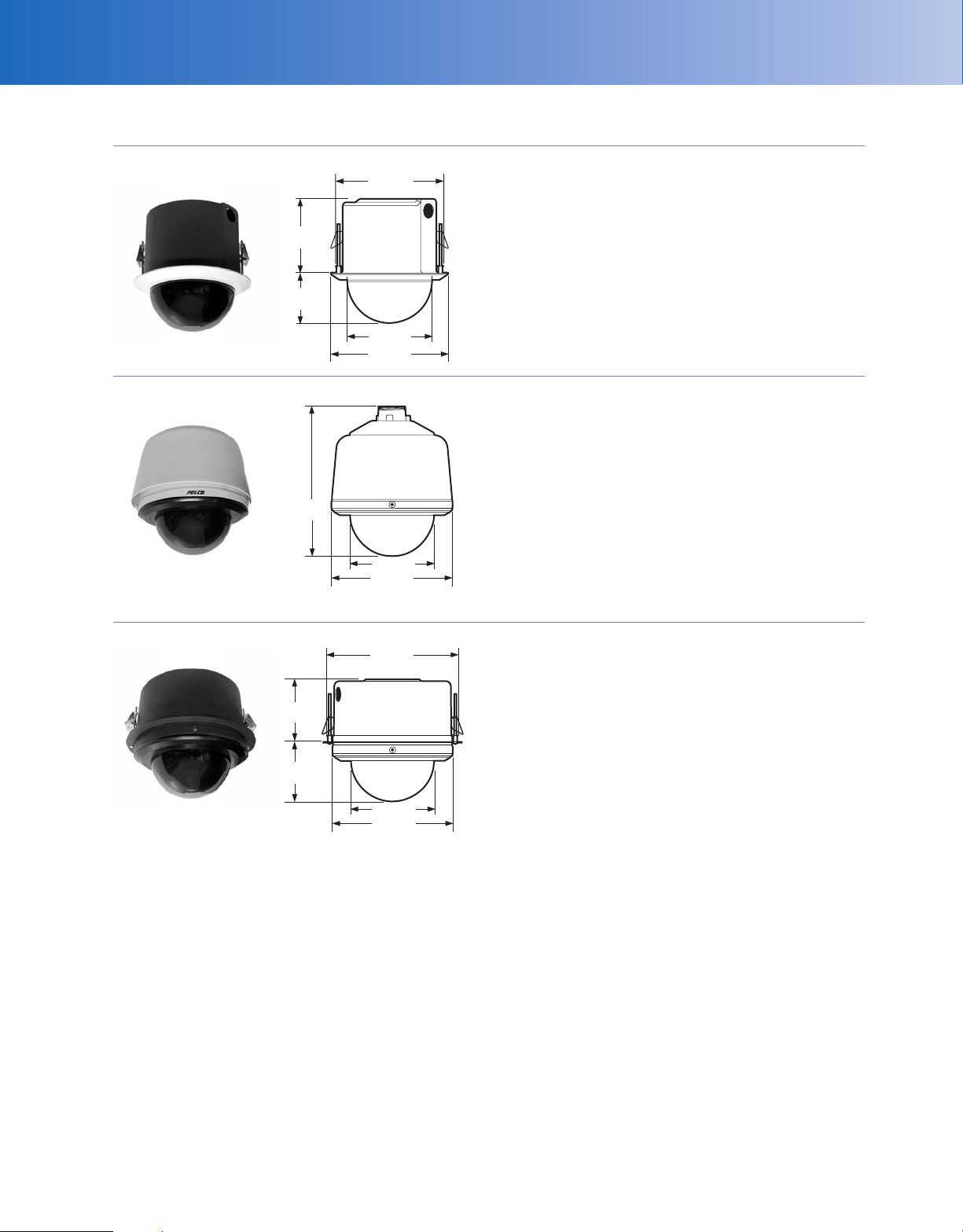

dome system consists of a back box, a dome drive, and
features several back box options. All back boxes
All cameras in
imager for increased sensitivity and LowLight™ technology allowing
the cameras to compensate for scenes where minimal light is present.
Both the 27X and the 35X cameras feature built-in motion detection
and advanced 128X wide dynamic range (WDR) that enables the
system to compensate for scenes where dramatic contrasts in lighting
are present. The 35X day/night camera’s electronic image
stabilization digitally reduces blurring of the camera image due to
vibration caused by external sources, such as wind and traffic.
Spectra IV IP
dome drives feature an EXview HAD
Web Interface
Spectra IV IP
setup and administration. Up to 16 cameras can be viewed on the
same network.
Network protocols such as Secure Sockets Layer (SSL) configuration
for security certificates, Secure Shell (SSH) for remote logon, and
Quality of Service (QoS) for priority or guarantee data flow can be
managed using a Web browser.
uses a standard Web browser for powerful remote
Systemization
Spectra IV IP
Endura
H.264; Digital Sentry® version 4.2 (or later); DX8100 version 2.0 (or
later); and DVR5100 version 1.5.4 (or later). The camera also features
open architecture connectivity to third-party software. Pelco offers an
application programming interface (API) for interfacing to Pelco’s
network cameras.
easily connects to Pelco IP and hybrid systems such as
®
version 1.5 (or later), MPEG-4; Endura version 2.0 (or later),
™
International Standards
Organization Registered Firm;
ISO 9001 Quality System
C3468 / NEW 4-15-10
Page 2
CAMERA/OPTICS
Day/Night (35X) Day/Night (27X) Day/Night (23X)
Signal Format NTSC
Scanning System Interlace/Progressive selectable Interlace/Progressive selectable 2:1 Interlace
Image Sensor
Effective Pixels
NTSC
PAL
Horizontal Resolution
NTSC
PAL
Lens f/1.4 (focal length, 3.4 ~ 119 mm) f/1.4 (focal length, 3.4 ~ 91.8 mm) f/1.6 (focal length, 3.6 ~ 82.8 mm)
Zoom 35X optical, 12X digital 27X optical, 12X digital 23X optical, 12X digital
Zoom Speed (optical range) 3.2/4.6/6.6 seconds 3.2/4.6/6.6 seconds 2.9/4.2/5.8 seconds
Horizontal
Angle of view
Focus
Maximum Sensitivity at 35 IRE
NTSC/EIA
PAL/CCIR
Sync System Internal/AC line lock, phase adjustable
White Balance Automatic with manual override Automatic with manual override Automatic with manual override
Shutter Speed
NTSC
PAL
Iris Control Automatic iris control with manual
Gain Control Automatic/OFF Automatic/OFF Automatic/OFF
Video Output 1 Vp-p, 75 ohms 1 Vp-p, 75 ohms 1 Vp-p, 75 ohms
Video Signal-to-Noise >50 dB >50 dB >50 dB
Wide Dynamic Range 128X 128X —
Electronic Image Stabilization Integrated/Selectable — —
Image Enhancement Integrated/Selectable — —
Video Motion Detection Integrated Integrated —
(DD4CBW35)
PAL
(DD4CBW35-X)
1/4-inch EXview HAD
™
768 (H) X 494 (V)
752 (H) X 582 (V)
>540 TV Lines
>540 TV Lines
55.8° at 3.4 mm wide zoom;
1.7° at 119 mm telephoto zoom
Automatic with manual override
0.55 lux at 1/60 sec
0.018 lux at 1/2 sec
0.00018 lux at 1/2 sec
0.45 lux at 1/50 sec
0.015 lux at 1/1.5 sec
0.00015 lux at 1/1.5 sec
(color)
(color)
(B-W)
(color)
(color)
(B-W)
using remote control, V-Sync
Automatic (electronic iris)/Manual
1/2 ~ 1/30,000
1/1.5 ~ 1/30,000
override
NTSC
(DD427)
PAL
(DD427-X)
1/4-inch EXview HAD
768 (H) X 494 (V)
752 (H) X 582 (V)
>540 TV Lines
>540 TV Lines
55.8° at 3.4 mm wide zoom;
2.3° at 91.8 mm telephoto zoom
Automatic with manual override
0.55 lux at 1/60 sec
0.018 lux at 1/2 sec
0.00018 lux at 1/2 sec
0.45 lux at 1/50 sec
0.015 lux at 1/1.5 sec
0.00015 lux at 1/1.5 sec
(color)
(color)
(B-W)
(color)
(color)
(B-W)
Internal/AC line lock, phase adjustable
using remote control, V-Sync
Automatic (electronic iris)/Manual
1/2 ~ 1/30,000
1/1.5 ~ 1/30,000
Automatic iris control with manual
override
NTSC
(DD423)
PAL
(DD423-X)
1/4-inch EXview HAD
768 (H) X 494 (V)
752 (H) X 582 (V)
540 TV Lines
540 TV Lines
54° at 3.6 mm wide zoom;
2.5° at 82.8 mm telephoto zoom
Automatic with manual override
0.65 lux at 1/60 sec
0.15 lux at 1/60 sec
0.55 lux at 1/50 sec
0.12 lux at 1/50 sec
(color)
(B-W)
(color)
(B-W)
Internal/AC line lock, phase adjustable
using remote control, V-Sync
Automatic (electronic iris)/Manual
1/2 ~ 1/30,000
1/1.5 ~ 1/30,000
Automatic iris control with manual
override
Page 3
VIDEO
Video Encoding H.264 base profile, MPEG-4, and MJPEG
Video Streams Up to 2 simultaneous streams; the second
Frame Rate Up to 30, 25, 24, 15, 12.5, 12, 10, 8, 7. 5, 6, 5,
Available Resolutions
Supported Protocols TCP/IP, UDP/IP (Unicast, Multicast IGMP),
Users
Unicast Up to 20 simultaneous users depending on
Multicast Unlimited users H.264 or MPEG-4
Security Access Password protected
Software Interface Web browser view and setup, up to
Pelco System Integration Endura 1.5 or later (MPEG-4) or Endura 2.0 or
Open IP Integration Pelco IP camera API
Minimum System Requirements
Processor Intel
Operating System Microsoft
Memory 512 MB RAM
Network Interface Card 100 megabits (or greater)
Monitor Minimum of 1024 x 768 resolution, 16- or
Web Browser* Internet Explorer
Media Player
†
stream is variable based on the setup of the
primary stream
4, 3, 2, 1 (dependent upon coding, resolution,
and stream configuration)
Resolution MJPEG H.264 Base Profile MPEG-4
Width Height Format
Maximum
Recommended
IPS
704 480 NTSC 30 ips 5.4 Mbps 30 ips 1.9 Mbps 30 ips 2.0 Mbps
352 240 NTSC 30 ips 1.3 Mbps 30 ips 0.5 Mbps 30 ips 0.6 Mbps
704 576 PAL 25 ips 5.4 Mbps 25 ips 1.9 Mbps 25 ips 2.0 Mbps
UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, SNMP,
QoS, HTTP, HTTPS, LDAP (client), SSH, SSL,
SMTP, FTP, mDNS (Bonjour), and 802.1x (EAP)
resolution settings (2 guaranteed streams)
16 cameras
later (H.264); Digital Sentry 4.2 IP bundle 3 or
later; DX8100 Series 2.0 or later; and
DVR5100 version 1.5.4 or later
®
Pentium® 4 microprocessor, 1.6 GHz
®
Windows® XP, Windows Vista®,
or Mac® OS X 10.4 (or later)
32-bit pixel color resolution
®
Firefox
®
7.0 (or later) or Mozilla®
3.0 (or later)
QuickTime® 7.6.5 for Windows XP, Windows
Vista, or QuickTime 7.6.4 for Mac OS X 10.4
Bit Rate
Maximum
IPS
Recommended
Bit Rate
Maximum
IPS
Recommended
Bit Rate
*Internet Explorer is not supported by Mac OS X 10.4.
†
This product is not compatible with QuickTime version 7.6.4 for
Windows XP or Windows Vista. If you have this version installed on
your PC, you will need to upgrade to QuickTime version 7.6.5.
Page 4
DOME DRIVE FEATURES
35X and 27X Models
• 256 Presets
• ±0.1° Preset Accuracy
• Electronic Image Stabilization (35X model)
• Image Enhancement (35X model)
• Multilingual Menus (English, Spanish, Portuguese, Italian, French,
German, Russian, Polish, Turkish, and Czech)
• RJ-45 Data Port for Software Update and Setup
• On-Screen Compass, Tilt, and Zoom Display
• Password Protection
• 400°/sec Pan Preset Speed and 200°/sec Tilt Preset Speed
• Rotating Discreet Liner with Sealed Fixed Bubble
• Window Blanking: Up to 8, Four-Sided, User-Defined Shapes
• 8 Zones (configurable in size) Can Be Labeled with up to 20 Characters
Each or Set to Output Blank Video
• 7 Alarm Inputs
• 1 Auxiliary (Form C) Relay Output and 1 Open Collector Auxiliary Output
(can be alternately programmed to operate upon alarm)
• Configurable Locations of Labels and On-Screen Displays
• Action on Alarm: Alarms Can Be Individually Programmed for 3 Priority
Levels, to Initiate a Stored Pattern, or to Go to an Associated Preset When
Received
• Resume After Alarm: Allows the Dome to Return to a Previously
Programmed State After Alarm Acknowledgement or to its Previous
Position Before Alarm
• Multiple Park and Power-Up Action
• Patterns: Up to 8, On-Screen, User-Defined Configurable Patterns;
Includes Pan, Tilt, Zoom, and Preset Functions
• Proportional Pan/Tilt: Continually Decreases Pan/Tilt Speeds in Proportion
to Depth of Zoom
• Variable Scan Speed: Scan Speed Can Be Configurable Between
1 to 40°/sec
• Pan Motion Allows 0.1° to 150°/sec Pan Speed
• Configurable Limit Stops for Auto/Random/Frame Scan Modes
• Autosensing Protocol (Coaxitron®, RS-422 Pelco P and Pelco D,
Sensormatic®, Vicon®); Accepts Other Control Protocols with Optional
Translator Card
• Digital Position and Zoom Control and Feedback Through Pelco D Protocol
• Built-in Menu System for Setup of Configurable Functions
• “Auto Flip” Rotates Dome 180° at Bottom of Tilt Travel
• Configurable Zoom Speeds
• Freeze Frame During Presets
23X Models
• 64 Presets
• ±0.1° Preset Accuracy
• Multilingual Menus (English, Spanish, Portuguese, Italian, French,
German, Russian, Polish, Turkish, and Czech)
• RJ-45 Data Port for Software Update and Setup
• On-Screen Compass, Tilt, and Zoom Display
• Password Protection
• 400°/sec Pan Preset Speed and 200°/sec Tilt Preset Speed
• Rotating Discreet Liner with Sealed Fixed Bubble
• Window Blanking: Up to 4, Four-Sided, User-Defined Shapes
• 8 Zones (configurable in size) Can Be Labeled with up to 20 Characters
Each or Set to Output Blank Video
• 1 Alarm Input
• 1 Auxiliary (Form C) Relay Output
• Configurable Locations of Labels and On-Screen Displays
• Patterns: 1 On-Screen, User-Defined Configurable Pattern; Includes Pan,
Tilt, Zoom, and Preset Functions
• Proportional Pan/Tilt: Continually Decreases Pan/Tilt Speeds in Proportion
to Depth of Zoom
• Variable Scan Speed: Scan Speed Can Be Configurable Between
1 to 40°/sec
• Pan Motion Allows 0.1° to 150°/sec Pan Speed
• Autosensing Protocol (Coaxitron, RS-422 Pelco P and Pelco D,
Sensormatic, Vicon); Accepts Other Control Protocols with Optional
Translator Card
• Digital Position and Zoom Control and Feedback through Pelco D Protocol
• Built-in Menu System for Setup of Configurable Functions
• “Auto Flip” Rotates Dome 180° at Bottom of Tilt Travel
• Freeze Frame During Presets
Page 5
BACK BOX FEATURES
(ENVIRONMENTAL DOME
WITH SUN SHROUD SHOWN)
5.2
(13.2)
3.5
(8.8)
10.6
(26.9)
7.5 (19.0)
5.9 (15.0)
8.2 (20.8)
5.9 (15.0)
8.6 (21.8)
In-Ceiling (Indoor)
• Built-in Memory Stores Camera/Dome Settings
• Single Back Box for Suspended or Hard Ceiling Applications
• Requires 5.25-Inch Space Above Ceiling and 3.25 Inches Below
• Minimum Ceiling Thickness 0.5-Inch; Maximum 1.75 Inches
• Quick Disconnect to Dome Drive
• Aluminum Construction
• Suitable for Use in Environmental Air Handling Spaces
Standard and Environmental Pendant
• Standard and Environmental Models
• Built-in Memory Stores Camera/Dome Settings
• Standard Pendant Available in Black or Gray Finish; Environmental
Pendant Gray Finish Only
• Quick Disconnect to Dome Drive
• Aluminum Construction
• Environmental Model Includes Sun Shield, Fan, and Heater
9.9 (25.2)
4.4
(11.0)
4.3
(10.9)
5.9 (15.0)
8.6 (21.8)
NOTE: VALUES IN PARENTHESES ARE
CENTIMETERS; ALL OTHERS ARE INCHES.
Environmental In-Ceiling
• Built-in Memory Stores Camera/Dome Settings
• Single Back Box for Hard Ceiling Applications
• Requires 4.4-Inch Space Above Ceiling and 4.3 Inches Below
• Includes Heater and Fan
• Minimum Ceiling Thickness 0.5-Inch; Maximum 1.75 Inches
• Quick Disconnect to Dome Drive
• Aluminum Construction
Page 6
BACK BOX FEATURES
DUAL WALL
CONSTRUCTION
9.75
(24.77)
9.70
(24.64)
5.25
(13.34)
Ø6.13
(Ø15.57)
8.5
(21.59)
7.5
(19.05)
10.1
(25.65)
Ø6.13
(Ø 15.57)
Heavy-Duty In-Ceiling (Indoor)
Available only with 27X and 35X models
• Built-in Memory Stores Camera/Dome Settings
• Single Back Box for Hard Ceiling Applications
• Requires 5.25-Inch Space Above Ceiling and 3.25 Inches Below
• Quick Disconnect to Dome Drive
• Reinforced Mounting System
• Heavy-Duty Polycarbonate Dome Bubble
• Aluminum Trim Ring with Barrel-Type Key Locks
• Optional Protective Cage
Heavy-Duty Pendant
Available only with 27X and 35X models
• Standard and Environmental Models
• Built-in Memory Stores Camera/Dome Settings
• Quick Disconnect to Dome Drive
• Dual Wall Construction
• Heavy-Duty Polycarbonate Dome Bubble
• Aluminum Trim Ring with Barrel-Type Key Locks
• Optional Protective Cage
• Environmental Model Includes Sun Shield, Fan, and Heater
8.52
(21.64)
10.90
(27.69)
5.90
(14.99)
NOTE: VALUES IN PARENTHESES ARE
CENTIMETERS; ALL OTHERS ARE INCHES.
5.83
(14.80)
6.75
(17.15)
Stainless Steel Pendant
Available only with 27X and 35X models
• Standard and Environmental Models
• Built-in Memory Stores Camera/Dome Settings
• Quick Disconnect to Dome Drive
• All Stainless Steel Construction
• Includes Sun Shield, Fan, and Heater
Page 7
GENERAL
Construction
Back Box
In-Ceiling Aluminum
Pendant Aluminum
Heavy-Duty Aluminum
Stainless Steel 316 stainless steel; gray, polyurethane
powder coated finish
Dome Drive Aluminum, thermo plastic
Lower Dome
In-Ceiling Acrylic
Pendant Acrylic
Heavy-Duty Polycarbonate, 0.09-inch thick
Stainless Steel Acrylic
Light Attenuation
Smoked f/0.5 light loss
Clear Zero light loss
Chrome f/2.0 light loss
Gold f/2.0 light loss
Cable Entry (back box)
In-Ceiling 0.75-inch conduit fitting
Pendant Through 1.5-inch NPT pendant mount
Weight (approximate) Unit Shipping
In-Ceiling 5.2 lb (2.4 kg) 8 lb (3.6 kg)
Environmental In-Ceiling 6.2 lb (2.8 kg) 10 lb (4.5 kg)
Standard Pendant 6.5 lb (3.0 kg) 11 lb (5.0 kg)
Environmental Pendant 7.6 lb (3.5 kg) 12 lb (5.4 kg)
Heavy-Duty In-Ceiling* 7.3 lb (3.3 kg) 12 lb (5.4 kg)
Heavy-Duty Pendant* 9.8 lb (4.5 kg) 16 lb (7.3 kg)
Heavy-Duty Environmental
Pendant* 9.8 lb (4.5 kg) 16 lb (7.3 kg)
Stainless Steel 10.1 lb (4.6 kg) 16 lb (7.3 kg)
Environment
In-Ceiling Indoor
Environmental In-Ceiling Outdoor
Pendant, Standard and
Environmental Indoor/outdoor
Heavy-Duty In-Ceiling Indoor
Heavy-Duty Pendant,
Standard & Environmental Indoor/outdoor
Stainless Steel Indoor/outdoor
Operating Temperature
In-Ceiling 32° to 122°F (0° to 50°C)
Standard Pendant (Assumes no wind chill factor)
Maximum 113°F (45°C) absolute maximum; 95°F (35°C)
sustained maximum
Minimum 25°F (–4°C) sustained minimum
Environmental In-Ceiling
and Environmental Pendant (Assumes no wind chill factor)
Maximum 140°F (60°C) absolute maximum; 122°F (50°C)
sustained maximum
Minimum –60°F (–51°C) absolute minimum; prevents
icing at sustained minimum of –50°F (–45°C);
de-ices 0.1 inch (2.5 mm) within 3 hours after
power-up
Heavy-Duty In-Ceiling 32° to 122°F (0° to 50°C)
Heavy-Duty Pendant 32° to 122°F (0° to 50°C) absolute maximum;
32° to 122°F (0° to 50°C) sustained maximum
Heavy-Duty
Environmental Pendant (Assumes no wind chill factor)
Maximum 140°F (60°C) absolute maximum; 122°F (50°C)
sustained maximum
Minimum –60°F (–51°C) absolute minimum; minimal
icing at sustained minimum of –50°F (–45°C);
prevents icing at sustained minimum of –40°F
(–40°C); de-ices 0.1 inch (2.5 mm) within
3 hours after power-up
Stainless Steel (Assumes no wind chill factor)
Maximum 140°F (60°C) absolute maximum; 122°F (50°C)
sustained maximum
Minimum –60°F (–51°C) absolute minimum; minimal
icing at sustained minimum of –50°F (–45°C);
prevents icing at sustained minimum of –40°F
(–40°C); de-ices 0.1 inch (2.5 mm) within
3 hours after power-up
Effective Projected Area (EPA) 20.5 square inches (without mount);
47 square inches (with IWM Series mount)
MECHANICAL
(Dome Drive Only)
Pan Movement 360° continuous pan rotation
Vertical Tilt Unobstructed +2° to –92°
Manual Pan/Tilt Speeds
Pan 0.1° to 80°/sec manual operation,
150°/sec Turbo
Tilt 0.1° to 40°/sec manual operation
Preset Speeds
Pan 400°/sec
Tilt 200°/sec
For variable-speed operation, an appropriate
controller is required. (With nonvariable
speed control, Spectra IV IP pan/tilt speed is
20°/sec)
AUDIO
Streaming Bidirectional: full or half duplex
Input/Output Terminal block, analog for microphone and
speaker; 600-ohm differential; 1 Vp-p
maximum signal level
Compression G.711 PCM 8 bit, 8 kHz mono at 64 kbit/s
ELECTRICAL
Ports RJ-45 connector for 100Base-TX
Auto MDI/MDI-X
Autonegotiate/Manual setting
Cabling Type Cat5 or better for 100Base-TX
Input Voltage 18 to 32 VAC; 24 VAC nominal
22 to 27 VDC; 24 VDC nominal
Input Power
24 VAC 23 VA nominal (without heater);
73 VA nominal (with heater)
24 VDC 0.7 A nominal (without heater);
3 A nominal (with heater)
Fuse 1.25 A
Auxiliary Outputs 2
Alarm Inputs 7
CERTIFICATIONS/RATINGS/PATENTS
• CE, Class B
• FCC, Class B
• UL/cUL Listed
• C-Tick
• U.S. Patents 5,931,432; 6,793,415 B2; 6,802,656 B2; 6,821,222 B2;
7,161,615 B2
Meets the following standards:
• NEMA Type 4X, IP66 when installed properly (BB4E-F-E, BB4E-PB,
BB4E-PG, BB4E-PG-E, BB4EHD-PG, BB4EHD-PG-E, and BB4E-PSG-E)
• NEMA Type 1, IP40 (BB4E-F and BB4EHD-F)
*Add 2 lb (0.90 kg) to the total weight if the system includes a lower dome cage.
Page 8
RELATED PRODUCTS
OPTIONAL ACCESSORIES
HD-KEYS 1 set of keys for heavy-duty lower dome
IPS-RMK Remote monitor kit; stand-alone kit consisting
IPS-CABLE Remote monitor cable and software kit
IPS-RDPE-2 Remote data port; 24 VAC, wall/pole mount
of a 5.6-inch TFT-LCD monitor, Palm
compatible handheld, cables and carrying
case; allows viewing of camera video, local
pan/tilt/zoom (PTZ) control, and system setup
at any installed dome
consisting of the Spectra IV remote monitor
interface cable and necessary software for
use with a PC (Windows 95, Windows 98,
Windows Me, Windows 2000), Palm OS
compatible handheld or iPaq™ Series Pocket
PC; refer to
compatible devices
video/data breakout box; allows ground-level
control/programming when used with the
IPS-RMK or IPS-CABLE
www.pelco.com
™
OS
for a list of
RECOMMENDED MOUNTS
In-Ceiling Domes
SD5-P 2' x 2' drop ceiling panel, aluminum
SCA1 Support rails for BB4N-F; for use in ceiling tile
Pendant Domes
BB5-PCA-BK Pendant conduit adapter, black
BB5-PCA-GY Pendant conduit adapter, gray
IWM Series Wall mount, with or without integral 24 VAC,
MRCA Ceiling mount, black
PP4348 Parapet roof mount
PP350/PP351 Parapet wall/roof mount
SWM Series Compact wall mount, black or gray finish; can
IDM4012SS Stainless steel wall mount with feedthrough
construction; replaces 2' x 2' ceiling tile
applications
100 VA transformer; black or gray finish; can
be adapted for corner, parapet or pole
application
be adapted for corner or pole applications
capabilities
RECOMMENDED POWER SUPPLIES
MCS Series Indoor, 24 VAC power supply
WCS Series Outdoor, 24 VAC power supply
Refer to individual power supply specifications for more information.
Page 9
SYSTEM AND COMPONENT MODELS
SYSTEM MODEL NUMBERS
Type Back Box Color Lower Dome Cage 35X Day/Night* 27X Day/Night* 23X Day/Night*
SD4E35-F0 SD4E27-F0 SD4E23-F0
SD4E35-F1 SD4E27-F1 SD4E23-F1
SD4E35-F2 SD4E27-F2 SD4E23-F2
SD4E35-F3 SD4E27-F3 SD4E23-F3
SD4E35-F-E0 SD4E27-F-E0 SD4E23-F-E0
SD4E35-F-E1 SD4E27-F-E1 SD4E23-F-E1
SD4E35-F-E2 SD4E27-F-E2 SD4E23-F-E2
SD4E35-F-E3 SD4E27-F-E3 SD4E23-F-E3
SD4E35-PB-0 SD4E27-PB-0 SD4E23-PB-0
SD4E35-PB-1 SD4E27-PB-1 SD4E23-PB-1
SD4E35-PB-2 SD4E27-PB-2 SD4E23-PB-2
SD4E35-PB-3 SD4E27-PB-3 SD4E23-PB-3
SD4E35-PG-0 SD4E27-PG-0 SD4E23-PG-0
SD4E35-PG-1 SD4E27-PG-1 SD4E23-PG-1
SD4E35-PG-2 SD4E27-PG-2 SD4E23-PG-2
SD4E35-PG-3 SD4E27-PG-3 SD4E23-PG-3
SD4E35-PG-E0 SD4E27-PG-E0 SD4E23-PG-E0
SD4E35-PG-E1 SD4E27-PG-E1 SD4E23-PG-E1
SD4E35-HF0 SD4E27-HF0
No
SD4E35-HCF0 SD4E27-HCF0
Yes
SD4E35-HF1 SD4E27-HF1
No
SD4E35-HCF1 SD4E27-HCF1
Yes
SD4E35-HP0 SD4E27-HP0
No
SD4E35-HCP0 SD4E27-HCP0
Yes
SD4E35-HP1 SD4E27-HP1
No
SD4E35-HCP1 SD4E27-HCP1
Yes
SD4E35-HPE0 SD4E27-HPE0
No
SD4E35-HCPE0 SD4E27-HCPE0
Yes
SD4E35-HPE1 SD4E27-HPE1
No
SD4E35-HCPE1 SD4E27-HCPE1
Yes
SD4E35-PSGE0 SD4E27-PSGE0
SD4E35-PSGE1 SD4E27-PSGE1
In-Ceiling, Indoor Black
In-Ceiling,
Environmental
Pendant, Standard
Pendant,
Environmental
Heavy-Duty
In-Ceiling, Indoor
Heavy-Duty
Pendant, Indoor
Heavy-Duty
Pendant,
Environmental
Stainless Steel
Pendant,
Environmental
†
†
†
†
Black
Black
Light Gray
Light Gray
Light Gray
Stainless Steel
Smoked
Clear
Chrome
Gold
Smoked
Clear
Chrome
Gold
Smoked
Clear
Chrome
Gold
Smoked
Clear
Chrome
Gold
Smoked
Clear
Smoked
Clear
Smoked
Clear
Smoked
Clear
Smoked
Clear
*For PAL and CCIR models add “-X” suffix to part number (for example, BB4E-PG-E-X).
†
Environmental dome systems include a heater, fan, and sun shield.
Page 10
SYSTEM AND COMPONENT MODELS
k
COMPONENT MODEL NUMBERS
Back Box* Dome Drive* Lower Dome
BB4E-F
BB4E-F-E
BB4E-PB
BB4E-PG
BB4E-PG-E
BB4EHD-F
BB4EHD-PG
BB4EHD-PG-E
BB4E-PSG-E
In-ceiling, black, with back box memory
In-ceiling, black, environmental, with
back box memory
Pendant mount, black, standard, with
back box memory
Pendant mount, gray, standard, with
back box memory
Pendant mount, gray, environmental,
†
with back box memory
Heavy-duty, in-ceiling, gray, with back
box memory
Heavy-duty, pendant, gray, with back
box memory
Heavy-duty, environmental pendant,
†
gray, with back box memory
Stainless steel, environmental
†
pendant, gray 316 SS, with back box
memory
Note:
For environmental applications you must order an environmental back box.
DD423
DD427
DD4CBW35
Day/Night (NTSC) camera (23X)
Day/Night (NTSC) camera (27X)
Day/Night (NTSC) camera (35X)
LD5F-0
LD5F-1
LD5F-2
LD5F-3
LD53PB-0
LD53PB-1
LD53PB-2
LD53PB-3
LD53HDF-1
LD53HDCF-1
LD53HDPB-1
LD53HDPB-1
LD53PSB-0
LD53PSB-1
‡
Smoked, in-ceiling
Clear, in-ceiling
Chrome, in-ceiling
Gold, in-ceiling
Smoked, pendant, black
Clear, pendant, black
Chrome, pendant, black
Gold, pendant, black
§
§
Clear, in-ceiling, heavy-duty
Clear, in-ceiling, heavy-duty
with cage
Clear, pendant, heavy-duty
Clear, pendant, heavy-duty,
with cage
Smoked, pendant, black trim
ring, 316 SS
Clear, pendant, black trim ring,
316 SS
*For PAL and CCIR models add “-X” suffix to part number (for example, BB4E-PG-E-X).
†
Environmental dome systems include a heater, fan, and sun shield.
‡
For environmental pendant back boxes, use the pendant lower domes.
§
Not recommended for outdoor use due to possible light reflections.
Pelco, Inc. Worldwide Headquarters:
3500 Pelco Way, Clovis, California 93612-5699 USA
USA & Canada
International
www.pelco.com
Tel: (800) 289-9100 • FAX: (800) 289-9150
Tel: +1 (559) 292-1981 • FAX: +1 (559) 348-1120
Pelco, the Pelco logo, Coaxitron, Endura, Digital Sentry, and Spectra are registered trademarks of Pelco, Inc.
All product names and services identified throughout this document are trademarks or registered
trademarks of their respective companies. The absence of a trademark or registered trademar
from this document does not constitute a waiver of intellectual property rights.
Product specifications and availability subject to change without notice.
LowLight is a trademark of Pelco, Inc.
©Copyright 2010, Pelco, Inc. All rights reserved.
Loading...
