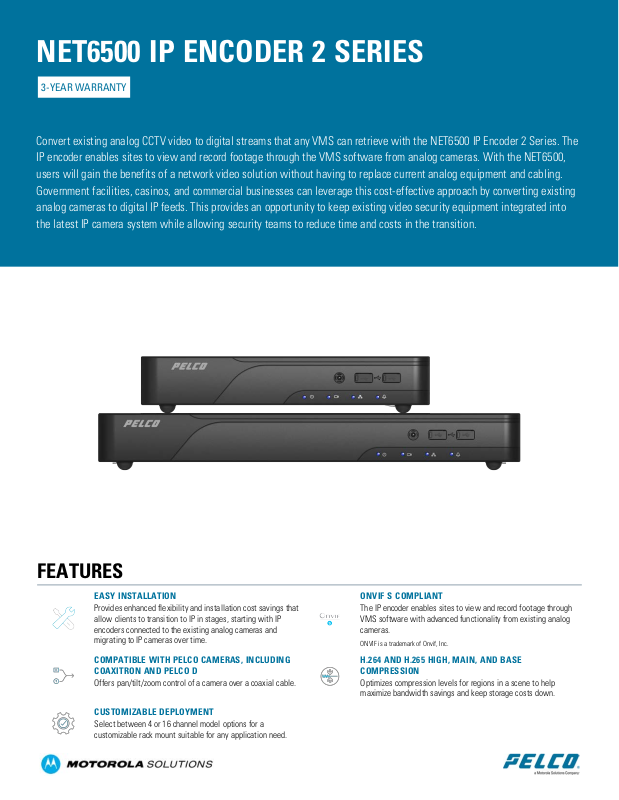

NET6500 IP ENCODER 2 SERIES
3-YEAR WARRANTY
Convert existing analog CCTV video to digital streams that any VMS can retrieve with the NET6500 IP Encoder 2 Series. The
IP encoder enables sites to view and record footage through the VMS software from analog cameras. With the NET6500,
users will gain the benefits of a network video solution without having to replace current analog equipment and cabling.
Government facilities, casinos, and commercial businesses can leverage this cost-effective approach by converting existing
analog cameras to digital IP feeds. This provides an opportunity to keep existing video security equipment integrated into
the latest IP camera system while allowing security teams to reduce time and costs in the transition.
FEATURES
EASY INSTALLATION
Provides enhanced flexibility and installation cost savings that
allow clients to transition to IP in stages, starting with IP
encoders connected to the existing analog cameras and
migrating to IP cameras over time.
COMPATIBLE WITH PELCO CAMERAS, INCLUDING COAXITRON AND PELCO D
Offers pan/tilt/zoom control of a camera over a coaxial cable.
CUSTOMIZABLE DEPLOYMENT
Select between 4 or 16 channel model options for a
customizable rack mount suitable for any application need.
ONVIF S COMPLIANT
The IP encoder enables sites to view and record footage through
VMS software with advanced functionality from existing analog
cameras.
ONVIF is a trademark of Onvif, Inc.
H.264 AND H.265 HIGH, MAIN, AND BASE COMPRESSION
Optimizes compression levels for regions in a scene to help
maximize bandwidth savings and keep storage costs down.
Page 2
SPECIFICATIONS
MODEL NAME NET6504 NET6516
Video Input Signal
Input Signal 4CH (10 KOhm, 1 Vrms) 4CH (10 KOhm, 1 Vrms)
Audio
Encoding
Alarm I/O
Output Signal 1CH (600 Ohm, 2.8 Vpp) 1CH (600 Ohm, 2.8 Vpp)
CODEC G.711 u-law G.711 u-law
CODEC
Encoding Rate
Encoding
Resolution
Alarm Input
Alarm Out
AHD (8M, 5M, 4M, 3M, 2M, 720p)
TVI (8M, 5M, 4M, 3M, 2M, 720p)
SD (NTSC, PAL)
H.264 / H.265 H.264 / H.265
Up to 32FPS @ 3840 x 2160 (8M)
Up to 40FPS @ 2592 x 1944 (5M)
Up to 60FPS @ 2688 x 1520 (4M)
Up to 60FPS @ 2560 x 1440 (QHD)
Up to 72FPS @ 2048 x 1536 (3M)
CIF, 2CIF, D1, 960H, 720P, 1080P, 3M, 4M, 5M, 8M CIF, 2CIF, D1, 960H, 720P, 1080P, 3M, 4M, 5M, 8M
4CH, Pulled up to 5V via 10 KOhm 16CH, Pulled up to 5V via 10 KOhm
1CH, RELAY(120 VAC, 24 VDC) 1CH, RELAY(120 VAC, 24 VDC)
AHD (8M, 5M, 4M, 3M, 2M, 720p)
TVI (8M, 5M, 4M, 3M, 2M, 720p)
SD (NTSC, PAL)
Up to 128FPS @ 1920 x 2160 (8M Half)
Up to 64FPS @ 2560 x 2160 (8M)
Up to 160FPS @1296 x 1944 (5M Half)
Up to 96FPS @ 2560 x 1944 (5M)
Up to 240FPS @ 1344 x 1520 (4M Half)
Up to 120FPS @ 2560 x 1520 (4M)
Up to 240FPS @ 1280 x 1440 (QHD Half)
Up to 120FPS @ 2560 x 1440 (QHD)
Up to 240FPS @1024 x 1536 (3M Half)
Up to 144FPS @2048 x 1536 (3M)
Up to 240FPS @ FHD
INTERFA CES NET6504 NET6516
USB 1 1
RS-485 1 1
RS-232 -- --
LAN 1 (10/100 Mbps) 1 (10/100/1,000 Mbps)
Watchdog Yes Yes
Cooling Fan -- 1EA
Real Time Clock Yes Yes
Buzzer Yes Yes
MODEL NAME NET6504 NET6516
Power Supply 12V / 3A adaptor 12V / 3A adaptor
Power
Environment
Chassis
Certifications
Power
Consumption
Temperature 0°C ~ 40°C (32°F ~ 104°F) 0°C ~ 40°C (32°F ~ 104°F)
Humidity 10 ~ 90% NC 10 ~ 90% NC
Dimension
Weight
6W (12V) 15W (12V)
1U
260(W) x 262.6(D) x 44(H)
1.5 kg (3.30 lb) 2.6 kg (5.73 lb)
UL, cUL, FCC, CE, UKCA, KC UL, cUL, FCC, CE, UKCA, KC
1U
380(W) x 314.6(D) x 44(H)
ENCODIN G
Video Compression H.264 / H.265
Audio Compression G.711 u-law
Encoding Resolution CIF, 2CIF, D1, 960H, 720P, 1080P, 3M, 4M, 5M, 8M
[email protected]|pelco.com 2
Page 3
ENCODIN G
Encoding Rate Up to 30FPS, varies with stream configuration
NETWORK
Maximum Connections Connections: 32 users
Dual Streaming Yes
ONVIF ONVIF Profile S
Protocols RTP, RTSP, RTCP, SMTP, NTP, HTTP, FTP, DDNS, DHCP, Upnp (Router Port Forwading)
(Maximum connection number is fixed)
EVENT & ACTION S
Event Notification Yes
Alarm Sensor Event Yes
Video Loss Event Yes
Motion Detection Event Yes
SYSTEM
Operating System LINUX®
PTZ Protocols Pelco D & P, Coaxitron
Network Time Sync Yes
Auto Time Sync Yes
Daylight Savings Time Yes
F/W Upgrade Yes
Setup Import/Export Yes
Browser Support Internet Explorer 11, Edge, Chrome1, Safari, Firefox
Language Multi-language
1
Although Chrome is a preferred browser, it has a slower live view speed that is not optimized for PTZ movement.
OUTLINE DIMENSIONS

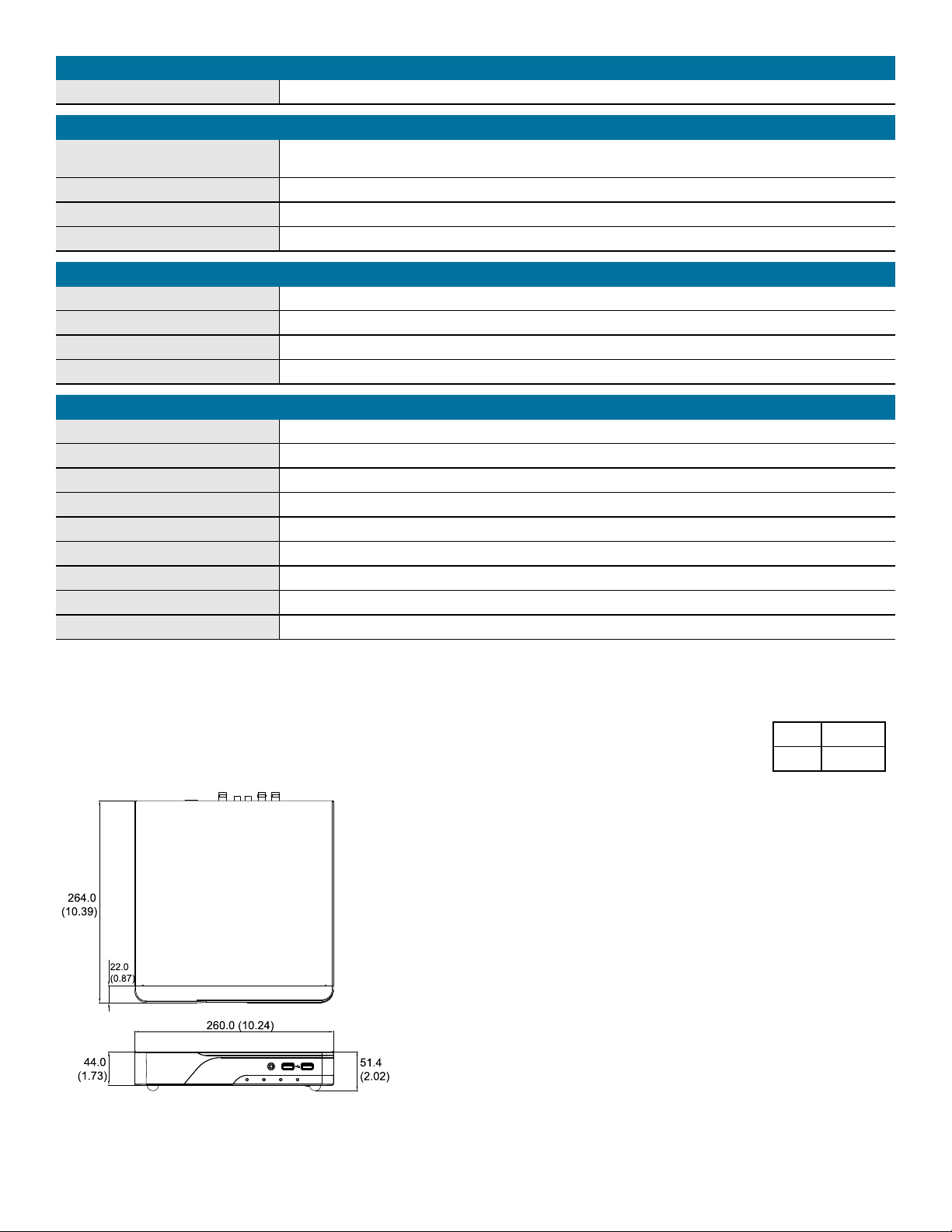

NET6504
[X.X] INCHES
X MM
[email protected]|pelco.com 3
Page 4
Page 5

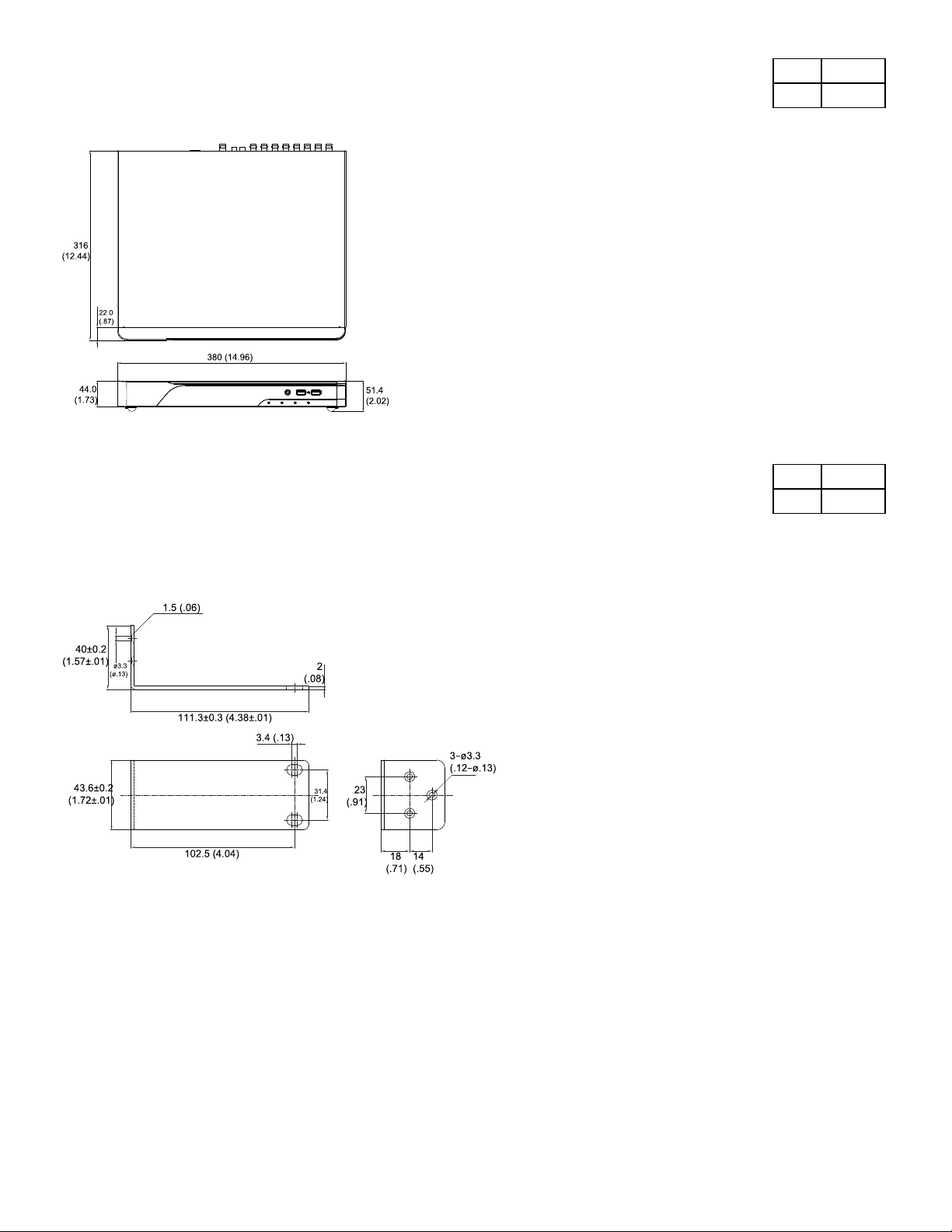

16-CHANNEL RACK MOUNT
[X.X] INCHES
X MM

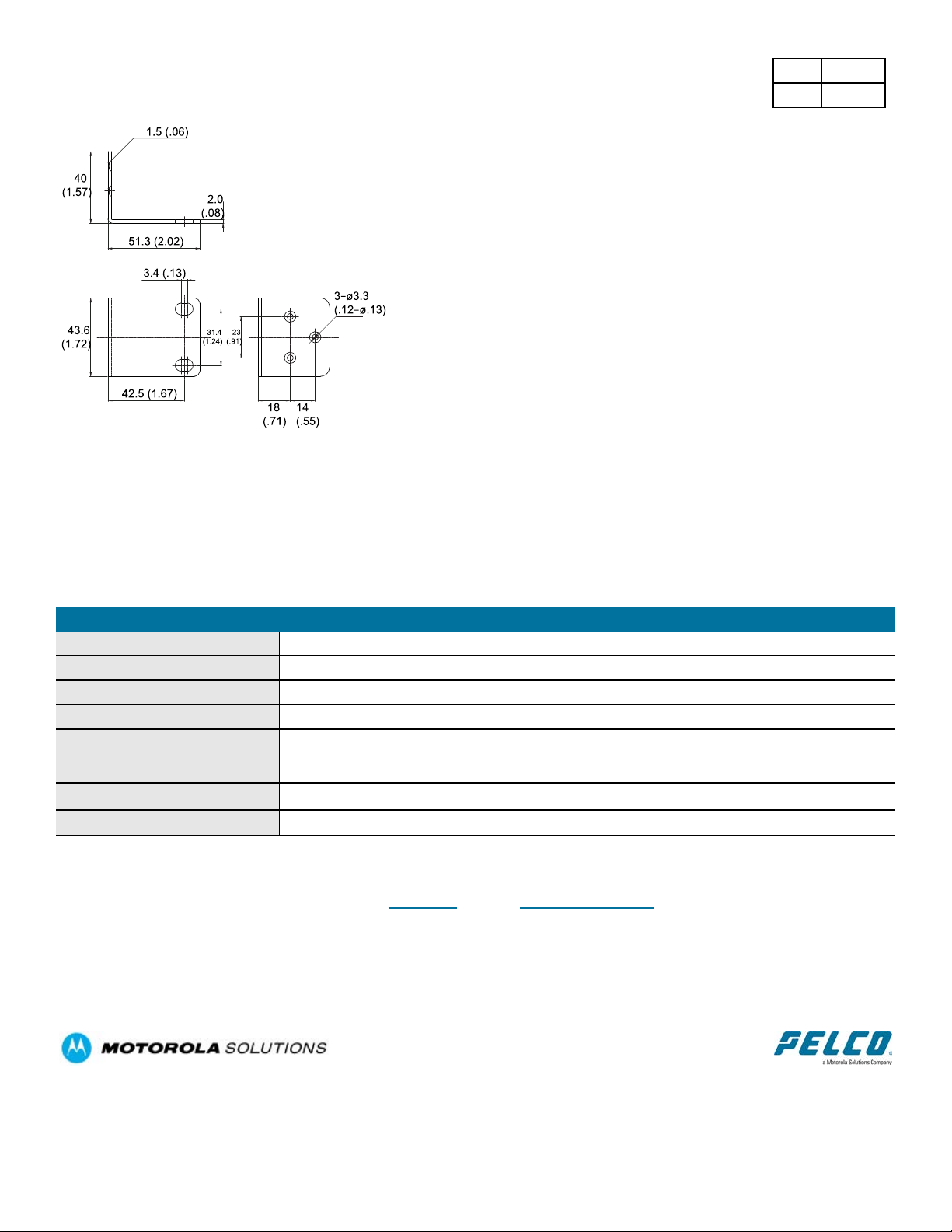

ORDERING INFORMATION
SYSTEM MODELS
MODEL NUMBER DESCRIP TION
NET6504-AU Rack Mount Encoder 4-CH, AU Power Cord
NET6516-AU Rack Mount Encoder 16-CH, AU Power Cord
NET6504-EU Rack Mount Encoder 4-CH, EU Power Cord
NET6516-EU Rack Mount Encoder 16-CH, EU Power Cord
NET6504-UK Rack Mount Encoder 4-CH, UK Power Cord
NET6516-UK Rack Mount Encoder 16-CH, UK Power Cord
NET6504-US Rack Mount Encoder 4-CH, US Power Cord
NET6516-US Rack Mount Encoder 16-CH, US Power Cord
SUPPORT
Learn more and find additional documentation at pelco.com or email [email protected] for specific product support.
Aug 2022| | Rev 1
