Pelco IXE32, IXE22, IXE12, SM-FHLE12-3998 Specsheet

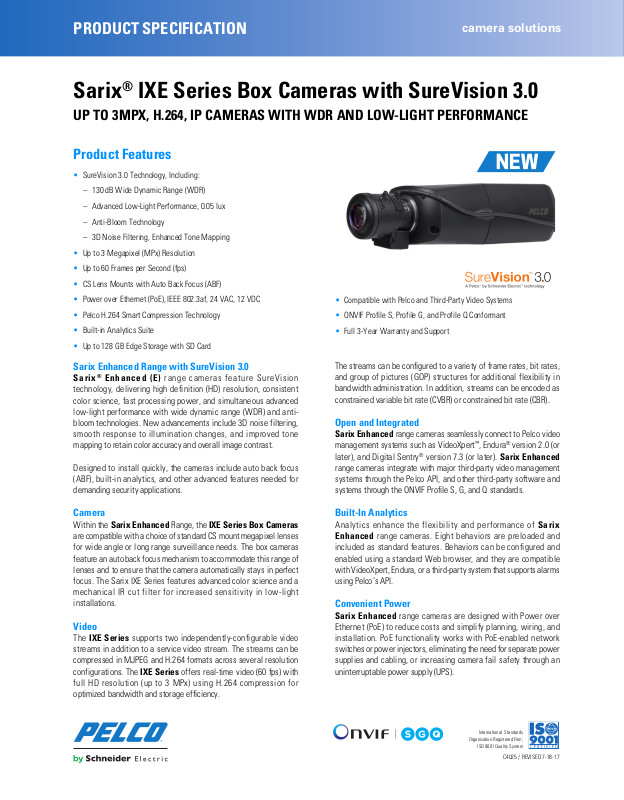

Page 1
PRODUCT SPECIFICATION
camera solutions
Sarix® IXE Series Box Cameras with SureVision 3.0
UP TO 3MPX, H.264, IP CAMERAS WITH WDR AND LOW-LIGHT PERFORMANCE
Product Features
SureVision 3.0 Technology, Including:
– 130 dB Wide Dynamic Range (WDR)
– Advanced Low-Light Performance, 0.05 lux
– Anti-Bloom Technology
– 3D Noise Filtering, Enhanced Tone Mapping
Up to 3 Megapixel (MPx) Resolution
Up to 60 Frames per Second (fps)
CS Lens Mounts with Auto Back Focus (ABF)
Power over Ethernet (PoE), IEEE 802.3af, 24 VAC, 12 VDC
Pelco H.264 Smart Compression Technology
Built-in Analytics Suite
Up to 128 GB Edge Storage with SD Card
Compatible with Pelco and Third-Party Video Systems
ONVIF Profile S, Profile G, and Profile Q Conformant
Full 3-Year Warranty and Support
Sarix Enhanced Range with SureVision 3.0
Sarix® Enhanced (E) range cameras feature SureVision
technology, delivering high definition (HD) resolution, consistent color science, fast processing power, and simultaneous advanced low-light performance with wide dynamic range (WDR) and anti­bloom technologies. New advancements include 3D noise filtering, smooth response to illumination changes, and improved tone mapping to retain color accuracy and overall image contrast.
Designed to install quickly, the cameras include auto back focus (ABF), built-in analytics, and other advanced features needed for demanding security applications.
Camera
Within the Sarix Enhanced Range, the IXE Series Box Cameras are compatible with a choice of standard CS mount megapixel lenses for wide angle or long range surveillance needs. The box cameras feature an auto back focus mechanism to accommodate this range of lenses and to ensure that the camera automatically stays in perfect focus. The Sarix IXE Series features advanced color science and a mechanical IR cut filter for increased sensitivity in low-light installations.
Video
The IXE Series supports two independently-configurable video streams in addition to a service video stream. The streams can be compressed in MJPEG and H.264 formats across several resolution configurations. The IXE Series offers real-time video (60 fps) with full HD resolution (up to 3 MPx) using H.264 compression for optimized bandwidth and storage efficiency.
The streams can be configured to a variety of frame rates, bit rates, and group of pictures (GOP) structures for additional flexibility in bandwidth administration. In addition, streams can be encoded as constrained variable bit rate (CVBR) or constrained bit rate (CBR).
Open and Integrated
Sarix Enhanced range cameras seamlessly connect to Pelco video
management systems such as VideoXpert later), and Digital Sentry® version 7.3 (or later). Sarix Enhanced range cameras integrate with major third-party video management systems through the Pelco API, and other third-party software and systems through the ONVIF Profile S, G, and Q standards.
, Endura® version 2.0 (or
Built-In Analytics
Analytics enhance the flexibility and performance of Sarix Enhanced range cameras. Eight behaviors are preloaded and
included as standard features. Behaviors can be configured and enabled using a standard Web browser, and they are compatible with VideoXpert, Endura, or a third-party system that supports alarms using Pelco’s API.
Convenient Power
Sarix Enhanced range cameras are designed with Power over
Ethernet (PoE) to reduce costs and simplify planning, wiring, and installation. PoE functionality works with PoE-enabled network switches or power injectors, eliminating the need for separate power supplies and cabling, or increasing camera fail safety through an uninterruptable power supply (UPS).
International Standards
Organization Registered Firm;
ISO 9001 Quality System
C4025 / REVISED 7-18-17
Page 2
TECHNICAL SPECIFICATIONS
CONVENIENT POWER
Sarix Enhanced range cameras are designed with Power over
Ethernet (PoE), 24 VAC and 12 VDC to reduce costs and simplify planning, wiring, and installation. PoE functionality works with PoE­enabled network switches or power injectors, eliminating the need for separate power supplies and cabling, and increasing camera fail safety through an uninterruptable power supply (UPS).
ANALYTICS
Sarix Enhanced range cameras includes eight user-configurable
behaviors. The camera is capable of running up to two behaviors at the same time.
For each behavior, you can create several custom profiles that contain different camera settings. With these profiles, you can set up different scenarios for the behavior, which will automatically detect and trigger alarms when specific activity is detected.
Analytics are configured and enabled using a standard Web browser, and behavior alarms are compatible with VideoXpert, or a third-party system that supports Pelco’s API system.
Analytics behaviors can be scheduled to work during a certain time or condition. For example, during the day, a camera can be configured with Object Counting to count the number of people that enter a lobby door. At night, the operator can change the profile to Camera Sabotage to trigger an alarm if a camera is moved or obstructed. Available behaviors include:
Abandoned Object: Detects objects placed within a defined zone and
triggers an alarm if the object remains in the zone longer than the user-defined time allows. An airport terminal is a typical installation for this behavior. This behavior can also detect objects left behind at an ATM, signaling possible card skimming.
Intrusion Detection: Detects and tracks objects that enter a scene and
then triggers an alarm when the objects enter a user-defined zone. This behavior is primarily used in outdoor environments with light traffic to reduce the number of false alarms caused by environmental changes.
Camera Sabotage: Detects contrast changes in the field of view. An
alarm is triggered if the lens is obstructed by spray paint, a cloth, or a lens cap. Any unauthorized repositioning of the camera also triggers an alarm.
Wrong Direction: Generates an alarm in a high traffic area when a
person or object moves in a specified direction. Typical installations for this behavior include an airport gate or tunnel where cameras can detect objects moving in the opposite direction of the normal flow of traffic or an individual entering through an exit door.
Loitering Detection: Identifies when people or vehicles remain in a
defined zone longer than the user-defined time allows. This behavior is effective in real-time notification of suspicious behavior around ATMs, stairwells, and school grounds.
Object Counting: Counts the number of objects that cross a defined
line. This behavior can be used to count the number of people at a store entrance/exit or inside a store where the traffic is light. This behavior is based on tracking and does not count people in a crowded setting.
Object Removal: Triggers an alarm if an object is removed from a
user-defined zone. This behavior is ideal for customers who want to detect the removal of high value objects, such as a painting from a wall or a statue from a pedestal.
Stopped Vehicle: Detects vehicles stopped near a sensitive area longer
than the user-defined time allows. This behavior is ideal for airport curbside drop-offs, parking enforcement, suspicious parking, traffic lane breakdowns, and vehicles waiting at gates.
Page 3
TECHNICAL SPECIFICATIONS
7.84
(3.08)
5.24
(2.06)
14.88 (5.86)
6.38
(2.51)
8.50
(3.35)
COMPONENT FEATURES
VALUES IN PARENTHESES ARE INCHES; ALL OTHERS ARE CENTIMETERS.
Box
• RAL 9005, matte black
• Aluminum back and plastic front
• Recommended lenses (15 ~ 50 mm,
2.8 ~ 8 mm, or 2.2 ~ 6 mm)
• Recommended universal camera mount (C10-UM)
• Recommended enclosures (EH16, EH35, and EH47 Series)
FRONT AND SIDE VIEW
REAR VIEW
Page 4
TECHNICAL SPECIFICATIONS
CAMERA
Imaging Device 1/2.8-inch Imager Type CMOS Imager Readout Progressive scan Highest Resolution
3 MPx 2048 x 1536 2 MPx 1920 x 1080
1 MPx 1280 x 960 Signal-to-Noise Ratio >60 dB Auto Back Focus Yes Electronic Shutter Range True Wide Dynamic Range 130 dB White Balance Range 2,000° to 10,000°K Day/Night Capabilities Yes Mechanical IR Cut Filter Yes, (ON/OFF/AUTO selectable), with
Micro SD Card Support Up to 128 GB SDHC/SDXC Cards Supported Yes Sensitivity f/1.3; 2,850°K; SNR >20 dB
Color (33 ms) 0.050 lux
Color (500 ms) 0.005 lux
Mono (33 ms) 0.010 lux
Mono (500 ms) 0.001 lux
1/20000 sec to 2 sec
different set points on lux
NETWORK
Supported Protocols TCP/IP, UDP/IP (Unicast, Multicast IGMP),
Users
Unicast Up to 20 simultaneous users depending on
Multicast Unlimited users H.264 Security Access Password protected Software Interface Web browser view and setup
UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6, SNMP v2c/v3, QoS, HTTP, HTTPS, SSH, SSL, SMTP, FTP, ARP, ICMP, and 802.1x (EAP), NTCIP 1205
the resolution settings
MECHANICAL
Lens Mount CS mount Auto Iris Type DC auto iris Camera Mount 1/4 in. UNC-20 screw;
Field of View Recommended Lenses
Focal
Length
2.2 ~ 6 mm
2.8 ~ 8 mm
15 ~ 50 mm
Aspect
Wide 132° 100° 124° 70°
Tele 50° 37° 47° 26°
Wide 112° 81° 105° 57°
Tele 38° 29° 36° 20°
Wide 20° 15° 19° 11°
Tele
top and bottom of camera housing
3 MPx 1.3 & 2 MPx
Horiz Vert Horiz Vert
Page 5
TECHNICAL SPECIFICATIONS
AUDIO
Streaming Bidirectional: full or half duplex
Input/Output Line level/external microphone input and
Compression G.711and PCM 8 bit, 8 kHz mono at 64 kbit/s
built-in microphone; Single-ended, 1 Vp-p max. signal level
PHYSICAL
Construction
Material Aluminum back and plastic front Finish RAL 9005, matte black
Weight
Unit 0.52 kg (1.16 lb) Shipping 0.64 kg (1.41 lb)
Product Box Dimensions
(approximate) 12.7 x 19.69 x 12.7 cm
(5.0" D x 7.75" W x 5.0" H)
ENVIRONMENTAL
Operating Temperature –10° to 55°C (14° to 131°F)
Storage Temperature –40° to 60°C (–40° to 140°F)
Operating Humidity 5 to 95%, RH noncondensing
Storage Humidity 20 to 80%, RH noncondensing
ELECTRICAL
Network Port RJ-45 connector for 100Base-TX
Cable Type Cat5 or better for 100Base-TX
Input Power PoE (
Power Consumption Up to 12W nominal
Current Consumption 330 mA @ POE; 0.5 A @ 24 VAC;
Local Storage Micro SD, SDHC, SDXC
Alarm
Unsupervised Detects open or closed alarm state Input 5 VDC maximum, 0.5 mA maximum
Relay Output ±350V VDC maximum, ±130 mA maximum
Auto MDI/MDI-X
IEEE 802.3af, Class 3), 24 VAC ±10%,
12 VDC
±10%
1A @ 12 VDC
VIDEO
Video Streams Independently configurable primary and
Available Resolutions Two configurable streams as follows:
Camera Model
3 MPx
3 MPx and 2 MPx
Maximum Frame Rate Up to 60 frames per second, 30 fps with WDR Video Encoding H.264 High, Main, or Base profiles; and
Bit Rate Control Constrained variable bit rate (CVBR) and
Corridor Mode Electronic image flip and mirror: 180°, 90°
Service Stream JPEG stream; 640 x 480 or 640 x 360,
secondary streams plus service stream
Aspect
Ratio
2 MPx and 1 MPx
0.5 MPx
1 MPx 0.9
0.5 MPx
MJPEG
constant bit rate (CBR)
and 270° (H.264 only)
up to 15 fps
MPx Width Height
3.0 2048 1536
2.95 1984 1488
1.8 1600 1200
1.2 1280 960
4:3
0.5 800 600
0.3 704 480
0.3
(480p)
0.07 320 240
2.0
(1080p)
(720p)
16:9
0.6 1024 576
0.5 960 544
0.3 800 448
0.2 640 360
0.06 320 192
640 480
1920 1080
1280 720
PELCO’S H.264 SMART COMPRESSION TECHNOLOGY
Pelco’s H.264 Smart Compression Technology lowers bandwidth and storage requirements by up to 70%. Our technology allows the user to make intelligent decisions regarding storage savings and image quality.
Pelco’s Smart Compression Technology dynamically analyzes motion
occurring within live video in real-time, to intelligently compress the information you don’t need, while retaining details with clear quality in the areas that are important in the scene. By enabling Dynamic GOP, an added feature of Smart Compression, the number of I-frames are automatically reduced in scenes with low motion. Based on the complexity of scenes and motion occurring, such as a store room that has limited entry and exit, up to 70% bandwidth savings can be achieved.
Page 6
TECHNICAL SPECIFICATIONS
MODELS
Resolution Model Number Description
Sarix Enhanced Box: Low-light,
1.3 MPx IXE12
WDR, day-night, network camera with built-in analytics
Sarix Enhanced Box: Low-light,
2 MPx IXE22
WDR, day-night, network camera with built-in analytics
Sarix Enhanced Box: Low-light,
3 MPx, IXE32
WDR, day-night, network camera with built-in analytics
SOFTWARE FEATURES
• Multilingual menus in user interface: English, French, Italian, German,
Spanish, Portuguese, Russian, Chinese, Turkish
• 16 window blanks, configurable in size
• Password protection
• Snapshot with JPEG capture at the same resolution as the highest stream
configured
• Text overlays for camera name, time, date
• Image Overlays
MINIMUM SYSTEM REQUIREMENTS
Processor Intel® Core™ i3 processor, 2.4 GHz Operating System Microsoft
Memory 4 GB RAM Network Interface 100 megabits (or greater) Monitor Minimum of 1024 x 768 resolution,
Web Browser
Media Player Pelco Media Player for Windows 7, XP, or
®
Windows® 7 (32- and 64-bit),, or
®
DirectX
11, Windows XP Service Pack 3 with
DirectX 9.0c or Mac
®
OS X 10.4 (or later)
16- or 32-bit pixel color resolution Internet Explorer® 8.0 (or later), Google
Chrome
(51 or later) or Mozilla® Firefox® 3.5 (or later); Internet Explorer 8.0 (or later) is recommended for configuring analytics
Vista; or QuickTime 7.6.4 for Mac OS X 10.4 (or later)
CERTIFICATIONS/RATINGS
• CE (Class A)
• FCC (Class A)
• ICES-003 (Class A)
• UL/cUL Listed
• UL/IEC 60950-22
•KC
•RCM
•RoHS
• ONVIF Profile S, Profile G, and Profile Q Conformant
RECOMMENDED MOUNT
C10-UM Universal camera mount
RECOMMENDED ENCLOSURES
EH16 Series PoE and 24 VAC indoor/environmental
enclosures (Note: The 230 VAC EH16 enclosure model is
not compatible with this camera. The combination of the 15 ~ 50 mm lens and this camera will not fit into the EH16 Series
enclosure.) EH35 Series Indoor and environmental enclosures EH47 Series Indoor and environmental enclosures
RECOMMENDED LENSES
YV3.3X15SR4A MPx lens, varifocal, 15 ~ 50 mm, f/1.5 YV2.8X2.8SR4A MPx lens, varifocal, 2.8 ~ 8 mm, f/1.3 YV2.7X2.2SR4A MPx lens, varifocal, 2.2 ~ 6 mm, f/1.3
ANALYTICS
Required Systems for Analytics Pelco Interface WS5200 Advanced System Management
Software on an Endura (2.0 or later) system
Open API The Pelco API can transmit behavior alarm
data to third-party applications, available at
pdn.pelco.com
INTEGRATION
Pelco System Integration VideoXpert; Endura 2.0 (or later);
Digital Sentry 7.3 (or later) Open API Pelco API or ONVIF Profile S, G, and Q Mobile Application Integrated with Pelco Mobile Application
Pelco by Schneider Electric
3500 Pelco Way, Clovis, California 93612-5699 United States
USA & Canada Tel (800) 289-9100 Fax (800) 289-9150 International Tel +1 (559) 292-1981 Fax +1 (559) 348-1120 www.pelco.com www.pelco.com/community
Pelco, the Pelco logo, and other tra demarks associated with Pelco products referred
to in this publication are trademarks of Pe lco, Inc. or its affiliates. ONVIF and the
ONVIF logo are trademarks of ONVIF Inc. All other product names and
Product specifications and availability are subject to change without notice.
services are the property of their resp ective companies.
©Copyright 2017, Pelco, Inc. All rights reserved.
