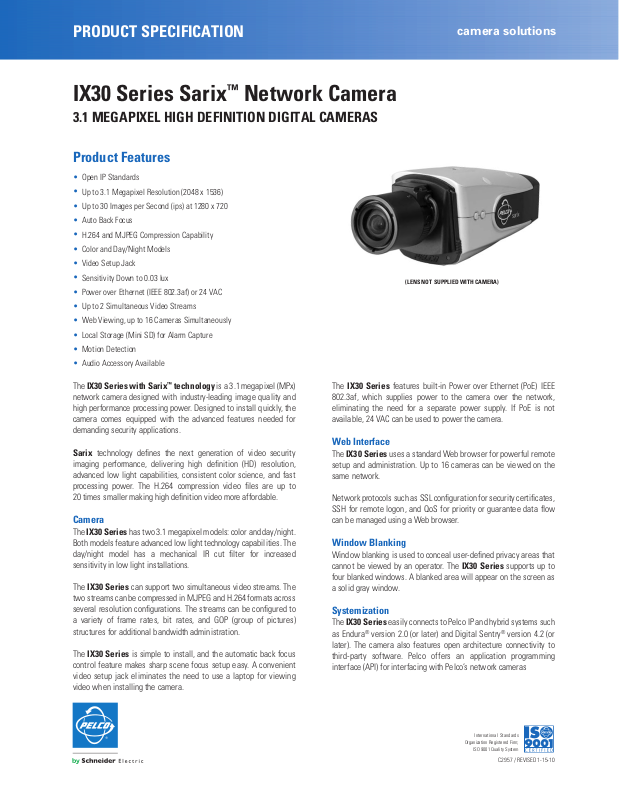

PRODUCT SPECIFICATION

IX30 Series Sarix™ Network Camera

3.1 MEGAPIXEL HIGH DEFINITION DIGITAL CAMERAS

camera solutions

Product Features

• Open IP S

•

•

•

•

•

•

•

•

• Up to 2 Simultaneous Video Streams

• Web Viewing, up to 16 Cameras Simultaneously

• Local Storage (Mini SD) for Alarm Capture

• Motion Detection

• Audio Accessory Available

The
network camera designed with industry-leading image quality and
high performance processing power. Designed to install quickly, the
camera comes equipped with the advanced features needed for
demanding security applications.

Sarix

imaging performance, delivering high definition (HD) resolution,
advanced low light capabilities, consistent color science, and fast
processing power. The H.264 compression video files are up to
20 times smaller making high definition video more affordable.

tandards

Up to 3.1 Megapixel Resolution (2048 x 1536)

Up to 30 Images per Second (ips) at 1280 x 720

Auto Back Focus

H.264 and MJPEG Compression Capability

Color and Day/Night Models

Video Setup Jack

Sensitivity Down to 0.03 lux

over Ethernet (IEEE 802.3af) or 24 VAC

Power

IX30 Series with Sarix

technology defines the next generation of video security

™

technology

is a 3.1 megapixel (MPx)

Camera

The

IX30 Series

Both models feature advanced low light technology capabilities. The
day/night model has a mechanical IR cut filter for increased
sensitivity in low light installations.

The

IX30 Series

two streams can be compressed in MJPEG and H.264 formats across
several resolution configurations. The streams can be configured to
a variety of frame rates, bit rates, and GOP (group of pictures)
structures for additional bandwidth administration.

The

IX30 Series

control feature makes sharp scene focus setup easy. A convenient
video setup jack eliminates the need to use a laptop for viewing
video when installing the camera.

has two 3.1 megapixel models: color and day/night.

can support two simultaneous video streams. The

is simple to install, and the automatic back focus

(LENS NOT SUPPLIED WITH CAMERA)

The

IX30 Series

802.3af, which supplies power to the camera over the network,
eliminating the need for a separate power supply. If PoE is not
available, 24 VAC can be used to power the camera.

features built-in Power over Ethernet (PoE) IEEE

Web Interface

The

IX30 Series

setup and administration. Up to 16 cameras can be viewed on the
same network.

Network protocols such as SSL configuration for security certificates,
SSH for remote logon, and QoS for priority or guarantee data flow
can be managed using a Web browser.

uses a standard Web browser for powerful remote

Window Blanking

Window blanking is used to conceal user-defined privacy areas that
cannot be viewed by an operator. The
four blanked windows. A blanked area will appear on the screen as
a solid gray window.

IX30 Series

supports up to

Systemization

The

IX30 Series

as Endura
later). The camera also features open architecture connectivity to
third-party software. Pelco offers an application programming
interface (API) for interfacing with Pelco’s network cameras

easily connects to Pelco IP and hybrid systems such

®

version 2.0 (or later) and Digital Sentry® version 4.2 (or

International Standards

Organization Registered Firm;

ISO 9001 Quality System

C2957 / REVISED 1-15-10

TECHNICAL SPECIFICATIONS

GENERAL

Imaging Device 1/3-inch (effective)
Imager Type CMOS
Imager Readout Progressive scan
Maximum Resolution 2048 x 1536
Signal-to-Noise Ratio 50 dB
Auto Iris Lens Type DC drive
Electronic Shutter Range 1~1/100,000 sec
Wide Dynamic Range 60 dB
White Balance Range 2,000° to 10,000°K
Sensitivity f/1.2; 2,850°K; SNR >24 dB

Color (33 ms) 0.50 lux
Color SENS (500 ms) 0.12 lux
Mono (33 ms) 0.25 lux

Mono SENS (500 ms) 0.03 lux
Weight (without lens) 1.11 lb (0.50 kg)
Shipping Weight 2.00 lb (0.90 kg)

ELECTRICAL

Port RJ-45 connector for 100Base-TX

Auto MDI/MDI-X
Cabling Type Cat5 or better for 100Base-TX
Power Input 24 VAC or PoE (IEEE 802.3af class 3)
Power Consumption <6 W
Current Consumption

PoE <200 mA maximum

24 VAC <295 mA nominal; < 390 mA maximum
Local Storage Mini SD
Alarm Input 10 VDC maximum, 5 mA maximum
Alarm Output 0 to 15 VDC maximum, 75 mA maximum
Service Port External 3-connector, 2.5 mm provides

NTSC/PAL video output

MECHANICAL

Lens Mount CS mount, adjustable
Camera Mount 0.25-inch (0.64 cm) UNC-20 screw, top and

bottom of camera housing

ENVIRONMENTAL

Operational Temperature 14° to 122°F (–10° to 50°C)
Storage Temperature 14° to 158°F (–10° to 70°C)
Storage Humidity 20% to 90%, noncondensing

SERVICE

PORT

LED

5.40

(13.67)

1.95

(4.90)

3.00

(7.59)

3.12

(7.92)

NOTE: VALUES IN PARENTHESES ARE CENTIMETERS; ALL OTHERS ARE INCHES.

3.37*
(8.53)

*FRONT COVER OPEN

FRONT VIEW, CAMERA ONLY

(OPENED TO EXPOSE SERVICE PORT)

REAR VIEW
