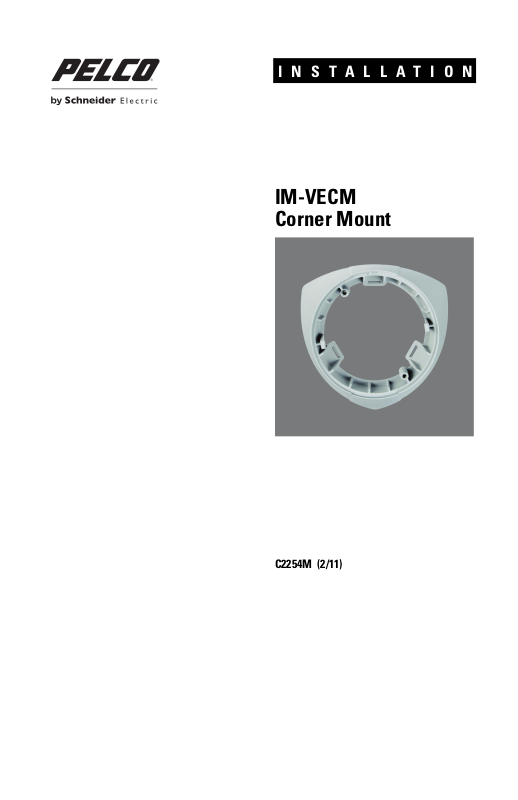

INSTALLATION
IM-VECM Corner Mount
C2254M (2/11)
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Only use attachments/accessories specified by the manufacturer.
6. Installation should be done only by qualified personnel and conform to all local codes.
7. Use only installation methods and materials capable of supporting four times the maximum
specified load.
8. Only use replacement parts recommended by Pelco.
2 C2254M (2/11)
Description
The IM-VECM corner mount adapter is specifically designed for use with Sarix™ IM-E/IM-V Series network
dome cameras. The corner mount adapter allows the network dome to be installed flush to a corner.
PARTS LIST
The following installation tools and parts are supplied:
Qty
Description
1
IM-VECM corner mount adapter
2
Screws, 8-32 x 1/2-inch Phillips, pan head
1
Installation manual
USER SUPPLIED PARTS LIST
The following installation tool and parts are needed but not supplied:
Qty
Description
1
IM-E or IM-V Series network dome camera
3
Fasteners, #8 (of appropriate length/type for the installation surface)
1
Screwdriver, #2 Phillips
1
IX-SC service cable
C2254M (2/11) 3
Installation
1. Position the corner mount adapter so that the TOP indicator is toward the ceiling.
Figure 1. Positioning the Corner Mount Adapter
2. Using the corner mount adapter as a template, mark the three slot (fastener) positions on the
mounting surface.
3. Prepare the mounting surface.
4. Route the system power and video wiring through the corner mount adapter.
4 C2254M (2/11)
5. Use three #8 fasteners (not supplied) of the appropriate length to secure the corner mount adapter
1
2
3
4
5
6
7
8
8 7 6 5
4 3
2 1
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
8 7 6 5 4 3 2 1
8
8
1
1
Pin Function
1TX+
2TX–
3RX+
4PoE 1-2
5PoE 1-2
6RX–
7PoE 3-4
8PoE 3-4
to the mounting surface.
Figure 2. Installing the Corner Mount Adapter
6. Connect the network cable to the RJ-45 network port.
Figure 3. RJ-45 Pin Descriptions
C2254M (2/11) 5
7. If you are installing an IM10-E or IM10-V Series model, connect the necessary wiring for audio.
+
–
+
–
Figure 4. Line-In Audio Wiring
ì
Microphone
î
Amplifier
ï
600-Ohm Impedance Matching Transformer
ñ
Line In –
ó
Line In +
Figure 5. Line-Out Audio Wiring
ì
Speaker
î
Amplifier
ï
600-Ohm Impedance Matching Transformer
ñ
Line Out –
ó
Line Out +
6 C2254M (2/11)
8. Install the back box:
a. Line up the two hooks on the mount adapter with the two slots on the back box.
b. Place the back box into the corner mount adapter.
c. Turn the back box clockwise to secure the back box to the corner mount adapter.
d. Insert the two 8-32 Phillips pan head screws (supplied) through the holes in the back box.
e. Tighten the screws completely to secure the back box to the corner mount adapter.
Figure 6. Installing the Back Box
9. Apply power to the camera.
NOTE: If the camera is not connected to a Dynamic Host Configuration Protocol (DHCP) server and
DHCP is enabled, the configuration sequence might take up to five minutes to complete.
C2254M (2/11) 7
10. Position the camera as needed:
a. View the camera image using the service port.
b. Manually rotate and tilt the camera module to position the camera. Do not over-rotate the
module.
WARNING: Excessively turning the module in one direction could result in damage to the wiring.
Figure 7. Adjusting the Pan and Tilt
ì
Pan 355°
î
Rotate 120°
ï
Tilt 164°
11. Adjust the field of view:
a. Loosen the zoom locking screw.
b. Turn the zoom adjustment ring clockwise or counterclockwise to adjust the field of view.
c. Tighten the zoom locking screw.
12. Focus the lens:
a. View the camera image using the service port or a Web browser.
b. Manually adjust the zoom and focus of the lens to the desired field of view.
c. The focus can be adjusted further using the settings in the Web interface.
8 C2254M (2/11)
13. Align the dome liner with the camera, and then snap it into place.
14. Install the bubble and trim ring:
a. Place the bubble inside the trim ring.
b. Align the trim ring screws with the three mounting screw holes on the back box.
c. Push the bubble and trim ring onto the back box.
d. Use the 1/8-inch hollow hex bit (supplied with IM10-E or IM10-V Series camera) to tighten the
tamper-resistant screws to secure the trim ring to the back box.
Figure 8. Installing the Dome Liner and Lower Dome
C2254M (2/11) 9
Specifications
REVISION HISTORY
Manual # Date Comments
C2254M 2/11 Original version.
Pelco, the Pelco logo, and other tradema rks associated with Pelco products referred to in this publication are trademarks of Pelco, Inc. or its affiliates.
All other product names and services are the pro perty of their respective companies.
Product specifications and availability are subject to change without notice.
©Copyright 2011, Pelco, Inc. All rights reserved.
The materials used in the manufacture of this document and its components are compliant to the requirements of
Directive 2002/95/EC.
MODEL
IM-VECM Corner mount adapter; for use with Sarix™ IM-E/IM-V Series
MECHANICAL
Mounting Method Secure with three #8 screws (not supplied) of the appropriate
Cable Entry Through the back of the mount adapter
GENERAL
Construction Aluminum
Finish Light gray polyester powder coat
Unit Weight 0.77 kg (1.69 lb)
NOTE: VALUES IN PARENTHESES ARE INCHES; ALL OTHERS ARE CENTIMETERS.
network dome cameras
length/type for the installation surface
Ø 11.13 (4.38)
Ø 13.26 (5.22)
10 C2254M (2/11)
