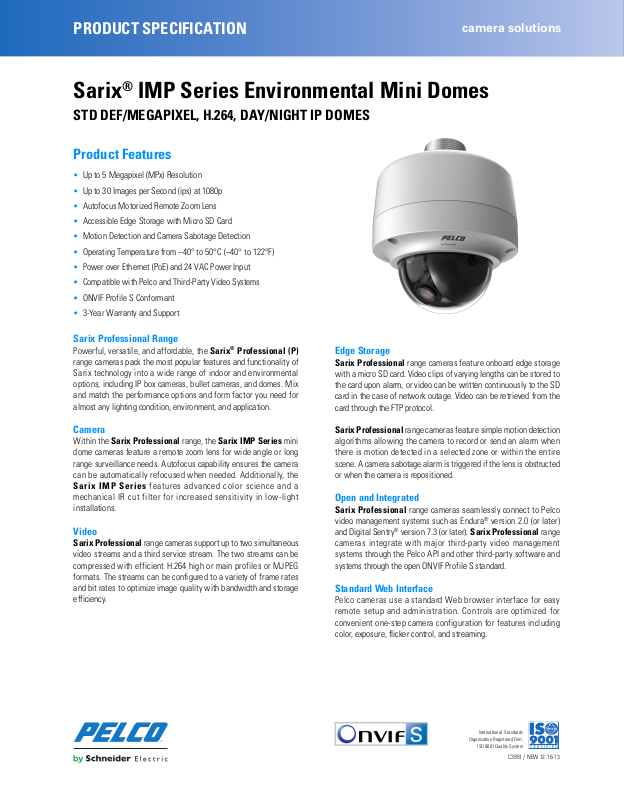

PRODUCT SPECIFICATION
camera solutions
Sarix® IMP Series Environmental Mini Domes
STD DEF/MEGAPIXEL, H.264, DAY/NIGHT IP DOMES
Product Features
• Up to 5 Megapixel (MPx) Resolution
• Up to 30 Images per Second (ips) at 1080p
• Autofocus Motorized Remote Zoom Lens
• Accessible Edge Storage with Micro SD Card
• Motion Detection and Camera Sabotage Detection
• Operating Temperature from –40° to 50°C (–40° to 122°F)
• Power over Ethernet (PoE) and 24 VAC Power Input
• Compatible with Pelco and Third-Party Video Systems
• ONVIF Profile S Conformant
• 3-Year Warranty and Support
Sarix Professional Range
Powerful, versatile, and affordable, the Sarix® Professional (P)
range cameras pack the most popular features and functionality of
Sarix technology into a wide range of indoor and environmental
options, including IP box cameras, bullet cameras, and domes. Mix
and match the performance options and form factor you need for
almost any lighting condition, environment, and application.
Camera
Within the Sarix Professional range, the Sarix IMP Series mini
dome cameras feature a remote zoom lens for wide angle or long
range surveillance needs. Autofocus capability ensures the camera
can be automatically refocused when needed. Additionally, the
Sarix IMP Series features advanced color science and a
mechanical IR cut filter for increased sensitivity in low-light
installations.
Video
Sarix Professional range cameras support up to two simultaneous
video streams and a third service stream. The two streams can be
compressed with efficient H.264 high or main profiles or MJPEG
formats. The streams can be configured to a variety of frame rates
and bit rates to optimize image quality with bandwidth and storage
efficiency.
Edge Storage
Sarix Professional range cameras feature onboard edge storage
with a micro SD card. Video clips of varying lengths can be stored to
the card upon alarm, or video can be written continuously to the SD
card in the case of network outage. Video can be retrieved from the
card through the FTP protocol.
Sarix Professional range cameras feature simple motion detection
algorithms allowing the camera to record or send an alarm when
there is motion detected in a selected zone or within the entire
scene. A camera sabotage alarm is triggered if the lens is obstructed
or when the camera is repositioned.
Open and Integrated
Sarix Professional range cameras seamlessly connect to Pelco
video management systems such as Endura® version 2.0 (or later)
and Digital Sentry
cameras integrate with major third-party video management
systems through the Pelco API and other third-party software and
systems through the open ONVIF Profile S standard.
®
version 7.3 (or later). Sarix Professional range
Standard Web Interface
Pelco cameras use a standard Web browser interface for easy
remote setup and administration. Controls are optimized for
convenient one-step camera configuration for features including
color, exposure, flicker control, and streaming.
International Standards
Organization Registered Firm;
ISO 9001 Quality System
C3951 / NEW 12-16-13
Page 2
TECHNICAL SPECIFICATIONS
VALUES IN PARENTHESES ARE INCHES; ALL OTHERS ARE CENTIMETERS.
Ø 15.52 (6.11)
13.88
(5.46)
8.88
(3.49)
Ø 9.66
(3.80)
Ø 15.00 (5.90)
18.54
(7.30)
Ø 9.66
(3.80)
BACK BOX FEATURES
Ø 2.69 (1.06)
18.04
(7.10)
Ø 15.00 (5.90)
8.50
(3.34)
Ø 9.66
(3.80)
Environmental, In-Ceiling
• Clearance Above Ceiling 10.16 cm (4 in).
• Maximum Ceiling Thickness 3.81 cm (1.5 in).
• 3/4-Inch NPT or 25 mm Conduit Attachments On side and top of Back Box
• IP66 Ingress Protection
• IK10 (20J) Impact Resistance
• Plenum Rated Back Box
Environmental, Surface Mount
• Attaches to Standard 4-Inch Square Outlet Box and Standard 2-Gang
Electrical Box
• 3/4-Inch NPT or 25 mm Conduit Attachments On Side and Top of Back Box
• IP66 Ingress Protection
• IK10 (20J) Impact Resistance
Environmental, Pendant
• 1.5-Inch NPT Thread for Use With Pelco Wall Mounts
• IP66 Ingress Protection
• IK10 (20J) Impact Resistance
Page 3
TECHNICAL SPECIFICATIONS
CAMERA
Imaging Device MPx Sensor Maximum Resolution
5 MPx 1/3.2-inch 2592 x 1944 (5.0 MPx)
3 MPx 1/3.2-inch 2048 x 1536 (3.1 MPx)
2 MPx 1/3.2-inch 1920 x 1080 (2.1 MPx)
1 MPx 1/4-inch 1280 x 720 (0.9 MPx)
SD 1/4-inch 800 x 600 (0.5 MPx)
Imager Type CMOS
Imager Readout Progressive scan
Electronic Shutter Range 1/5 ~ 1/10,000 sec
Dynamic Range 65 dB
White Balance Range 2,500° to 8,000°K
Digital Noise Reduction Yes (ON/OFF selectable)
Minimum Illumination
Mechanical IR Cut Filter Yes (AUTO/MANUAL selectable), with different set points on lux
Lens 2.8 to 10 mm or 3 to 9 mm remote zoom with DC iris
Focus Autofocus
MPx Sensitivity
5 MPx f/1.2 0.30 lux 0.02 lux 0.10 lux 0.01 lux
3 MPx f/1.2 0.30 lux 0.02 lux 0.10 lux 0.01 lux
2 MPx f/1.2 0.30 lux 0.02 lux 0.10 lux 0.01 lux
1 MPx f/1.4 0.30 lux 0.02 lux 0.10 lux 0.01 lux
SD f/1.4 0.30 lux 0.02 lux 0.10 lux 0.01 lux
Color Mono
33 ms 200 ms 33 ms 200 ms
LENS
Lens Type Built-in; varifocal
Focal Length f/1.2, 3 ~ 9 mm
Focus Autofocus, motorized
Zoom Remote
Auto Iris Type DC drive P-iris lens
Maximum Field of View MPx
5
3
2
1
SD
*Field of view may vary with changes in resolution settings
Length
Focal
Wide 4:3 112° 88° 64°
Tele 4:3 37° 30° 22°
Wide 4:3 111° 87° 64°
Tele 4:3 37° 30° 22°
Wide 4:3 85° 67° 49°
Tele 4:3 29° 23° 17°
Wide 16:9 94° 81° 44°
Tele 16:9 32° 28° 16°
Wide 4:3 74° 58° 41°
Tele 4:3 23° 19° 14°
Wide 16:9 84° 71° 37°
Tele 16:9 26° 22° 13°
Wide 4:3 74° 58° 41°
Tele 4:3 23° 19° 14°
Mode
(Aspect Ratio)
Diagonal Horizontal Vertical
Angle of View
Page 4
TECHNICAL SPECIFICATIONS
VIDEO
Video Streams Up to 2 simultaneous streams, plus service stream; the secondary stream is variable based on the setup of the primary stream
Video Overlay Camera name, time, date
Available Resolutions MPx Width Height Aspect Ratio
5.0 2592 1944 4:3
3.1 2048 1536 4:3
2.1 1920 1080 16:9
1.9 1600 1200 4:3
1.2 1280 960 4:3
0.9 1280 720 16:9
0.6 1024 576 16:9
0.5 960 540 16:9
0.5 800 600 4:3
0.3 640 480 4:3
0.1 320 240 4:3
0.1 320 180 16:9
Frame Rates MPx Images Per Second (ips)
5 MPx 12 (full), 10, 5, 1
3 MPx 20 (full), 16.67, 15, 12.5, 10, 5, 1
2 MPx 30 (full), 20, 25, 16.67, 15, 12.5, 10, 5, 1
1 MPx 30 (full), 20, 25, 16.67, 15, 12.5, 10, 5, 1
SD 30 (full), 20, 25, 16.67, 15, 12.5, 10, 5, 1
Note: Available frame rates are selectable for each independent stream depending on the coding, resolution, and stream configuration.
Video Encoding H.264 high or main profiles; and MJPEG
Bit Rate Control Constant bit rate (CBR), constrained variable bit rate (VBR) with target range
Service Stream 320 x 240 (0.1 MPx) or 320 x 180; 2 ips, MJPEG
Window Blanking 4 configurable windows
AUDIO
Streaming Dual-channel
Input Line in/terminal block
Encoding G.711 A-law/G.711 U-law
Page 5
TECHNICAL SPECIFICATIONS
ELECTRICAL
Network Port RJ-45 connector for 100Base-TX
Power Input PoE (IEEE 802.3af) Class 3
Power Consumption <8 W
Local Storage Up to 32 GB on Micro SDHC or SDXC card
Alarm
Input 1
Output 1; PhotoMOS
Triggers Unsupervised mode that detects switch
24 VAC nominal, 18 to 32 VAC range
™
relay (30 V, 1 A)
closures (N.O. and N.C.)
ENVIRONMENTAL
Operating Temperature –40° to 50°C (–40° to 122°F)*
Storage Temperature –40° to 60°C (–40° to 140°F)
Operating Humidity 15% to 85%, RH condensing
Storage Humidity 20% to 80% RH noncondensing
*Thermostatically controlled heating provides ramped heating control
between the initial heater on at 15° C (59°F) and full heating mode at –40° C
(–40°F).
GENERAL
Construction Die-cast aluminum; polycarbonate bubble
Ingress Protection IP66 per IEC 60529
Vandal Resistance IK10 (20J impact) per IEC 62262
Finish Light gray, RAL 7047; satin texture
Pan/Tilt Adjustment Manual
Pan 355°
Tilt 75°
Rotate 360°
Weight 0.81 kg (1.79 lb)
Shipping Weight 1.02 kg (2.25 lb)
NETWORK
Supported Protocols TCP/IP, UDP (unicast, multicast IGMP), ICMP,
Users
Unicast 1 administrator, up to 4 viewers
Multicast Unlimited users H.264
Security Access Multiple user access levels with password
IPv4, SNMP v2c/v3, HTTP, HTTPS, SSL, SSH,
SMTP, FTP, RTSP, UPnP, DNS, NTP, RTP, RTCP,
LDAP (client), QoS
protection
INTEGRATION
Video Management Digital Sentry 7.3 (or later);
Mobile Application Integrated to Pelco Mobile App
Video Motion Detection Simple motion detection and camera
Local Storage Capture 5- or 10-second video clips on camera
Camera Discovery
and Firmware Cameras discovered and firmware upgrade
Web Browser Support Microsoft
Endura 2.0 (or later);
Third-party VMS through Pelco API 1.0 and
ONVIF Profile S
sabotage
sabotage, motion detection, or alarm input;
record video continuously in the case of
network outage with option to overwrite;
access video through FTP protocol
through Pelco Device Utility 2 version 2.2;
cameras discovered and firmware upgrade
through Endura Utilities
®
Internet Explorer® 8.0 and later
Page 6
TECHNICAL SPECIFICATIONS
Pelco, the Pelco logo, and other trad emarks associated with Pelco products referred
to in this publication are trademarks of Pelco, Inc. or its affiliates. ONVIF and the
ONVIF logo are trademarks of ONVIF Inc. All othe r product names and
services are the property of their respective comp anies.
Product specifications and availability are subject to change without no tice.
©Copyright 2013, Pelco, Inc. All rights reserved.
MODELS CERTIFICATIONS *
• CE - EN 55022 (Class A), EN 50130-4, EN 60950-1
• FCC (Class A) - 47 CFR Part 15
• UL and cUL Listed - UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07
• ICES-003
•KCC
•NOM
*‘At the time of this publication, certifications are pending. Please
consult the factory, our Web site (www.pelco.com), or the most
recent B.O.S.S.
®
update for the current status of certifications.
RECOMMENDED MOUNTS
WMVE-SR Wall mount, light gray; for use with the
OPTIONAL ACCESSORIES
IPCT01 Pelco IP camera tester
†
Contact Pelco Product Support for more information about the use of
the Pelco IP camera tester with cameras.
Type Resolution Lens
5 MPx 3 to 9 mm IMP519-1EI
3 MPx 3 to 9 mm IMP319-1EI
In-Ceiling
2 MPx 3 to 9 mm IMP219-1EI
1 MPx 2.8 to 10 mm IMP1110-1EI
SD 2.8 to 10 mm IMPS110-1EI
5 MPx 3 to 9 mm IMP519-1ES
3 MPx 3 to 9 mm IMP319-1ES
Surface Mount
2 MPx 3 to 9 mm IMP219-1ES
1 MPx 2.8 to 10 mm IMP1110-1ES
SD 2.8 to 10 mm IMPS110-1ES
5 MPx 3 to 9 mm IMP519-1EP
3 MPx 3 to 9 mm IMP319-1EP
Pendant
2 MPx 3 to 9 mm IMP219-1EP
1 MPx 2.8 to 10 mm IMP1110-1EP
SD 2.8 to 10 mm IMPS110-1EP
Model Number
with Mount
environmental pendant mount option
†
Pelco by Schneider Electric
3500 Pelco Way, Clovis, California 93612-5699 United States
USA & Canada Tel (800) 289-9100 Fax (800) 289-9150
International Tel +1 (559) 292-1981 Fax +1 (559) 348-1120
www.pelco.com www.pelco.com/community
