Sarix® IME Indoor and Environmental Mini Domes
UP TO 3 MPX, WDR AND LOW-LIGHT PERFORMANCE, H.264, IK10, IP66
Product Features
• SureVision 3.0 Technology, Including:
– 130dB Wide Dynamic Range (WDR)
– Advanced Low-Light Performance, 0.05 lux
– Anti-Bloom Technology
– 3D Noise Filtering
– Enhanced Tone Mapping
• Up to 3 Megapixel (MPx) Resolution
• Up to 60 Frames per Second (fps)
• Autofocus Varifocal 3 ~ 9 mm or 9 ~ 22 mm Lens
• Power over Ethernet (PoE), IEEE 802.3af, 24 VAC, 12 VDC
• Pelco H.264 Smart Compression Technology
• Built-in Analytics Suite
• Adaptive IR Illumination up to 30 Meters (Option)
• Up to 128 GB Edge Storage with SD Card
• Compatible with Pelco and Third-Party Video Systems
• ONVIF Profile S, Profile G, and Profile Q Conformant
• Full 3-Year Warranty and Support
Sarix Enhanced Range with SureVision 3.0
Sarix® Enhanced (E) range cameras feature SureVision
technology, delivering high definition (HD) resolution, consistent
color science, fast processing power, and simultaneous advanced
low-light performance with wide dynamic range (WDR) and
anti-bloom technologies. New advancements include 3D noise
filtering, smooth response to illumination changes, and improved
tone mapping to retain color accuracy and overall image contrast.
Designed to install quickly, the cameras include autofocus, motorized
zoom, built-in analytics, and other advanced features needed for
demanding security applications.
Camera
The IME Series contains an integrated varifocal MPx autofocus lens
(3 ~ 9 mm or 9 ~ 22 mm). Form factors include indoor and outdoor
domes. All models feature a sturdy design that is both vandal- and
tamper-resistant. The environmental model features worry-free use
in a wide range of environmental operating conditions.
Sarix Enhanced range cameras include four unique, advanced
autofocus options: temperature change (every
transition, a daily autofocus routine, and manual autofocus. These
benefits ensure clear, focused images regardless of the scene or
environment. All autofocus options are available through the web UI.
Integrated and Adaptive IR Illumination is optionally available
on all outdoor models.
5°C / 9°F), day/night
Video
The IME Series supports two independently-configurable video
streams in addition to a service video stream. The streams can be
compressed in MJPEG and H.264 formats across several resolution
configurations. The IME Series offers real-time video (60 fps) with
full HD resolution (up to 3 MPx) using H.264 compression for
optimized bandwidth and storage efficiency.
The streams can be configured to a variety of frame rates, bit rates,
and group of pictures (GOP) structures for additional flexibility in
bandwidth administration. In addition, streams can be encoded as
constrained variable bit rate (CVBR) or constant bit rate (CBR).
Open and Integrated
Sarix Enhanced range cameras seamlessly connect to Pelco video
management systems such as VideoXpert™, Endura® version 2.0 (or
later), and Digital Sentry® version 7.3 (or later). Sarix Enhanced
range cameras integrate with major third-party video management
systems through the Pelco API, and other third-party software and
systems through the ONVIF Profile S, G, and Q standards.
Built-In Analytics
Analytics enhance the flexibility and performance of Sarix
Enhanced range cameras. Eight behaviors are preloaded and
included as standard features. These behaviors can be configured
and enabled using a standard Web browser, and they are compatible
with VideoXpert, Endura, or a third-party system that supports alarms
using Pelco’s API.
International Standards
Organization Registered Firm;
ISO 9001 Quality System
C4026 / REVISED 11-09-18
TECHNICAL SPECIFICATIONS
CONVENIENT POWER
Sarix Enhanced range cameras are designed with Power over
Ethernet (PoE), 24 VAC and 12 VDC to reduce costs and simplify
planning, wiring, and installation. PoE functionality works with PoEenabled network switches or power injectors, eliminating the need
for separate power supplies and cabling, and increasing camera fail
safety through an uninterruptable power supply (UPS).
ANALYTICS
Sarix Enhanced range cameras includes eight user-configurable
behaviors. The camera is capable of running up to two behaviors at
the same time.
For each behavior, you can create several custom profiles that
contain different camera settings. With these profiles, you can set up
different scenarios for the behavior, which will automatically detect
and trigger alarms when specific activity is detected.
Analytics are configured and enabled using a standard Web browser,
and behavior alarms are compatible with VideoXpert or a third-party
system that supports Pelco’s API system.
Analytics behaviors can be scheduled to work during a certain time
or condition. For example, during the day, a camera can be configured
with Object Counting to count the number of people that enter a lobby
door. At night, the operator can change the profile to Camera
Sabotage to trigger an alarm if a camera is moved or obstructed.
Available behaviors include:
• Abandoned Object: Detects objects placed within a defined zone and
triggers an alarm if the object remains in the zone unattended. An airport
terminal is a typical installation for this behavior. This behavior can also
detect objects left behind at an ATM, signaling possible card skimming.
• Intrusion Detection: Detects and tracks objects that enter a scene and
then triggers an alarm when the objects enter a user-defined zone. This
behavior is primarily used in outdoor environments with light traffic to
reduce the number of false alarms caused by environmental changes.
• Camera Sabotage: Detects contrast changes in the field of view. An
alarm is triggered if the lens is obstructed by spray paint, a cloth, or a
lens cap. Any unauthorized repositioning of the camera also triggers an
alarm.
• Wrong Direction: Generates an alarm in a high traffic area when a
person or object moves in a specified direction. Typical installations for
this behavior include an airport gate or tunnel where cameras can detect
objects moving in the opposite direction of the normal flow of traffic or an
individual entering through an exit door.
• Loitering Detection: Identifies when people or vehicles remain in a
defined zone too long. This behavior is effective in real-time notification
of suspicious behavior around ATMs, stairwells, and school grounds.
• Object Counting: Counts the number of objects that cross a defined
line. This behavior can be used to count the number of people at a store
entrance/exit or inside a store where the traffic is light. This behavior is
based on tracking and does not count people in a crowded setting.
• Object Removal: Triggers an alarm if an object is removed from a
user-defined zone. This behavior is ideal for customers who want to
detect the removal of high value objects, such as a painting from a wall or
a statue from a pedestal.
• Stopped Vehicle: Detects vehicles stopped near a sensitive area longer
than the user-defined time allows. This behavior is ideal for airport
curbside drop-offs, parking enforcement, suspicious parking, traffic lane
breakdowns, and vehicles waiting at gates.

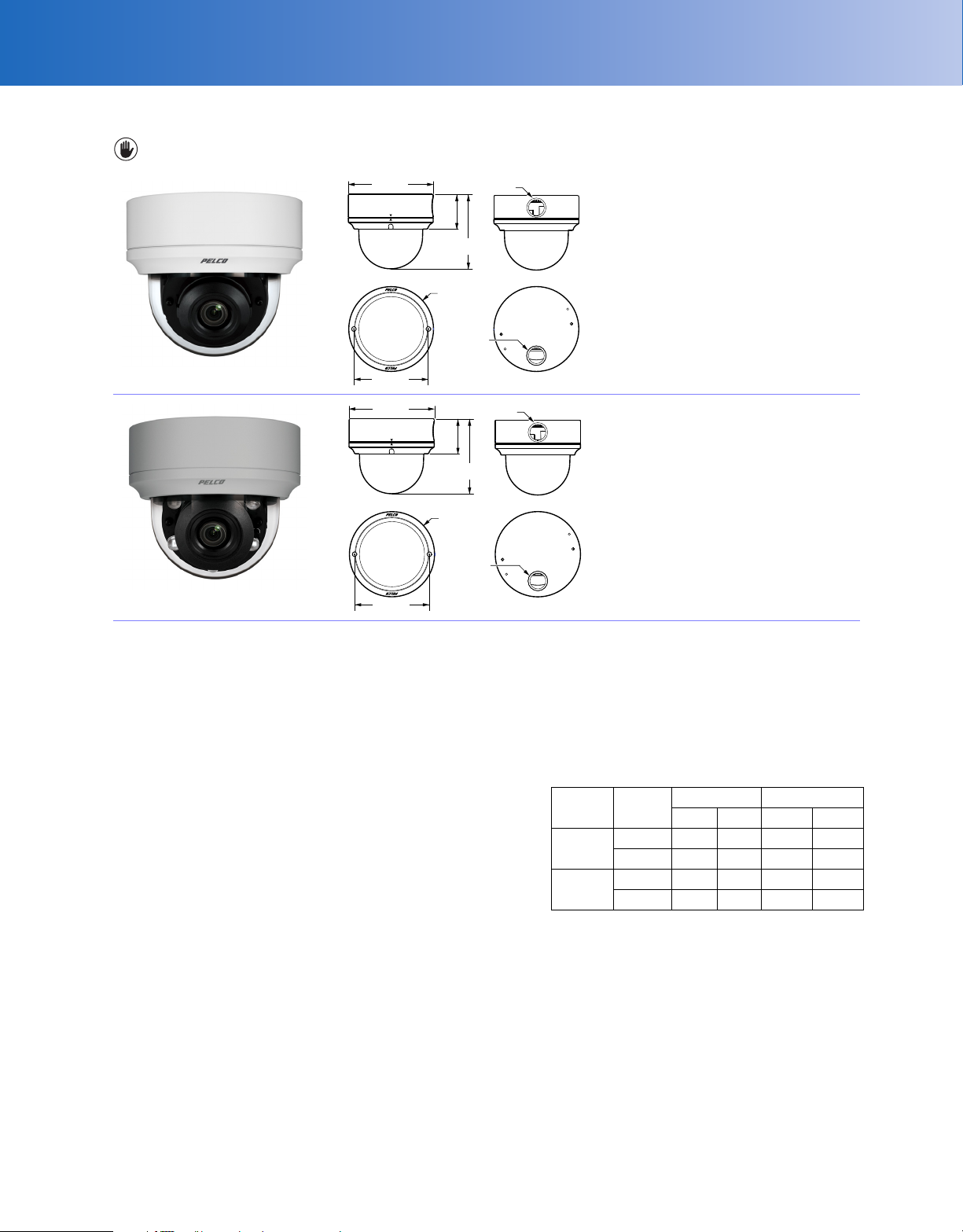

TECHNICAL SPECIFICATIONS
Ø 13.38 (5.27)
13.38 (5.27)
5.46
(2.15)
NPT 3/4”-14
NPT 3/4”-14
11.74
(4.62)
11.70 (4.60)
Ø 13.38 (5.27)
13.38 (5.27)
5.46
(2.15)
NPT 3/4”-14
NPT 3/4”-14
11.74
(4.62)
11.70 (4.60)
COMPONENT FEATURES
VALUES IN PARENTHESES ARE INCHES; ALL OTHERS ARE CENTIMETERS.
Indoor/Vandal-Resistant, Surface Mount
• Attaches to 4S Electrical Box Adapter
• Meets IP66
• Meets IK10 (20J)
• Aluminum Base and Plastic Trim Ring
• RAL 9003
Environmental/Vandal-Resistant, Surface Mount
• Attaches to 4S Electrical Box with Adapter
• Meets IP66
• Meets Type 4X (with IMEEBAP adapter plate
accessory and IMEPM-E pendant mount accessory)
• Meets IK10 (20J)
• Aluminum Construction
• RAL 7047
• Heater
• Optional IR Illuminator
CAMERA
Imaging Device 1/2.8-inch
Imager Type CMOS
Imager Readout Progressive scan
Highest Resolution
3 MPx 2048 x 1536
2 MPx 1920 x 1080
1.3 MPx 1280 x 960
Signal-to-Noise Ratio >60 dB
Electronic Shutter Range
Wide Dynamic Range 130 dB
White Balance Range 2,000° to 10,000°K
Sensitivity
3 ~ 9 mm f/1.3; 2,850°K; SNR >20 dB
Color (33 ms) 0.050 lux
Color (500 ms) 0.005 lux
Mono (33 ms) 0.010 lux
Mono (500 ms) 0.001 lux
Mono (IR on) 0.000 lux
Sensitivity
9 ~ 22mm f/1.6; 2,850°K; SNR >20 dB
Color (33 ms) 0.08 lux
Color (500 ms) 0.008 lux
Mono (33 ms) 0.04 lux
Mono (500 ms) 0.0025 lux
Mono (IR on) 0.000 lux
Day/Night Capabilities Yes
Mechanical IR Cut Filter Yes, (ON/OFF/AUTO selectable), with
Adaptive IR Illumination 850nm wavelength, maximum distance of
SD Card Support Up to 128 GB
SDHC/SDXC Cards Supported Yes
1/20000 sec (or faster) to 2 sec
different set points on lux
30 meters (100 feet) IR illumination at 0 lux
LENS
Lens Type Built-in; varifocal
Focal Length f/1.3, 3 ~ 9 mm, f/1.6, 9 ~ 22 mm
Focus Autofocus, motorized
Zoom Remote
Auto Iris Type DC drive P-iris lens
Field of View in Degrees
Lens
3 ~ 9 mm
9 ~ 22 mm
Focal
Length
Wide 100° 74° 93° 52°
Tele 39° 29° 37° 21°
Wide 33° 24° 30° 14°
Tele 14° 10° 13° 7°
3 MPx 1.3 & 2 MPx
Horiz Vert Horiz Vert
TECHNICAL SPECIFICATIONS
AUDIO
Streaming Bidirectional: full or half duplex
Input/Output Line level/external microphone input;
Compression G.711 PCM 8 bit, 8 kHz mono at 64 kbit/s
Single-ended, stereo, 1 Vp-p max. signal level
MECHANICAL
Dome Attenuation
Clear f/0.0 light loss
Pan/Tilt Adjustment Manual
Pan 355°
Tilt 75°
Rotation 340°
PHYSICAL
Weight Shipping
Indoor, Surface Mount 1020 gm (2.25 lb)
Environmental, Surface Mount 1020 gm (2.25 lb)
Product Box Dimensions (approximate) 6.75 x 6.75 x 6.75 in.
ENVIRONMENTAL
Operating Temperature
Indoor/Vandal-Resistant –10° to 55°C (14° to 131°F)
Environmental –40° to 60°C (–40° to 140°F)
Start-up Temperature
Indoor –10°C (14°F)
Environmental With heater, –40°C (–40°F)
Storage Temperature
Indoor and Environmental –40° to 60°C (–40° to 140°F)
Operating Humidity
Indoor/Vandal-Resistant 10 to 90%, RH noncondensing
Environmental 5 to 95%, RH noncondensing
Storage Humidity 20 to 80%, RH noncondensing
Impact Resistance IK10 (20J) all surfaces per IEC 62262
†
†
ELECTRICAL
Network Port RJ-45 connector for 100Base-TX
Cable Type Cat5 or better for 100Base-TX
Input Power PoE (
Power Consumption Up to 12 W nominal
Current Consumption 330 mA @ POE; 0.5 A @ 24 VAC;
Local Storage SD, SDHC, SDXC
Alarm Detects open or closed alarm state
Input 5 VDC maximum, 0.5 mA maximum
Relay Output ±350V VDC maximum, ±130 mA maximum
Auto MDI/MDI-X
IEEE 802.3af, Class 3), 24 VAC ±10%,
12 VDC
±10%
1A @ 12 VDC
NETWORK
Supported Protocols TCP/IP, UDP/IP (Unicast, Multicast IGMP),
Users
Unicast Up to 20 simultaneous users depending on
Multicast Unlimited users H.264
Security Access Password protected
Software Interface Web browser view and setup
UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6,
SNMP v2c/v3, QoS, HTTP, HTTPS,SSH, SSL,
SMTP, FTP, ARP, ICMP, and 802.1x (EAP) ,
NTCIP 1205
the resolution settings
VIDEO
Video Streams Independently configurable primary and
Available Resolutions Two configurable streams as follows:
Camera Model
3 MPx
3 MPx and 2 MPx
Maximum Frame Rate Up to 60 frames per second, 30 fps with WDR
Video Encoding H.264 High, Main, or Base profiles; and
Bit Rate Control Constrained variable bit rate (CVBR) and
Corridor Mode Electronic image flip and mirror: 180°, 90°
Service Stream JPEG stream; 640 x 480 or 640 x 360,
secondary streams plus service stream
Aspect
Ratio
2 MPx and
1 MPx
0.5
MPx
1 MPx 0.9
0.5
MPx
MJPEG
constant bit rate (CBR)
and 270° (H.264 only)
up to 15 fps
MPx Width Height
3.0 2048 1536
2.95 1984 1488
1.8 1600 1200
1.2 1280 960
4:3
0.5 800 600
0.3 704 480
0.3
(480p)
0.07 320 240
2.0
(1080p)
(720p)
16:9
0.6 1024 576
0.5 960 544
0.3 800 448
0.2 640 360
0.06 320 192
640 480
1920 1080
1280 720
PELCO’S H.264 SMART COMPRESSION TECHNOLOGY
Pelco’s H.264 Smart Compression Technology lowers bandwidth and storage
requirements by up to 70%. Our technology allows the user to make
intelligent decisions regarding storage savings and image quality.
Pelco’s Smart Compression Technology dynamically analyzes motion
occurring within live video in real-time, to intelligently compress the
information you don’t need, while retaining details with clear quality in the
areas that are important in the scene. By enabling Dynamic GOP, an added
feature of Smart Compression, the number of I-frames are automatically
reduced in scenes with low motion. Based on the complexity of scenes and
motion occurring, such as a store room that has limited entry and exit, up to
70% bandwidth savings can be achieved.
TECHNICAL SPECIFICATIONS
Ø 16.00
(6.30)
(4.05)
Ø 18.90
(7.44)
13.48
(5.30)
13.48
(5.30)
7.59
(2.99)
6.79
(2.67)
4.11
(1.62)
0.95
5.80
(2.28)
IN-CEILING
HOLE SIZE
IMEICM-I AND IMEICM-E IN-CEILING MOUNT
7.75
Ø 14.62 (5.75)
6.25
(2.46)
7.38
(2.90)
IMEPM-I AND IMEPM-E PENDANT MOUNT
Ø 0.48
(0.19)
Ø 13.38
(5.27)
Ø
2.74
(1.08)
0.30
(0.12)
0.55
(0.22)
Ø 0.42
(0.16)
Ø 0.33
(0.13)
IMEEBAP-I & IMEEBAP-E 4S ELECTRICAL BOX ADAPTER
MINIMUM SYSTEM REQUIREMENTS
Processor Intel® Core™ i3 processor, 2.4 GHz
Operating System Microsoft
Memory 4 GB RAM
Network Interface 100 megabits (or greater)
Monitor Minimum of 1024 x 768 resolution,
Web Browser Internet Explorer
Media Player Pelco Media Player for Windows 7, XP, or
®
Windows® 7 (32- and 64-bit), or
®
DirectX
11, Windows XP Service Pack 3 with
DirectX 9.0c; or Mac
®
OS X 10.4 (or later)
16- or 32-bit pixel color resolution
®
8.0 (or later), Google
™
Chrome
(51 or later) or Mozilla® Firefox® 3.5
(or later); Internet Explorer 8.0 (or later) is
recommended for configuring analytics
Vista; or QuickTime 7.6.4 for Mac OS X 10.4
(or later)
ANALYTICS
Required Systems for Analytics
Pelco Interface WS5200 Advanced System Management
Software on an Endura 2.0 (or later) system
Open API The Pelco API can transmit behavior alarm
data to third-party applications, available at
pdn.pelco.com
INTEGRATION
Pelco System Integration VideoXpert;
Endura 2.0 (or later);
Digital Sentry 7.3 (or later)
Open API Pelco API or ONVIF Profile S, Profile G, and
Mobile Application Integrated with Pelco Mobile Application
Profile Q
CERTIFICATIONS/RATINGS
• CE (Class A)
• FCC (Class A)
• ICES-003 (Class A)
• UL/cUL Listed
• UL/IEC 60950-22
•KC
•RCM
• Meets IP66 and IK10 rating, and Type 4X (environmental models)
• ONVIF Profile S, Profile G, and Profile Q Conformant
RECOMMENDED MOUNTS
WMVE-SR Wall mount, 1.5 in., NPT, outdoor,
RAL 7047
WMVE-SW Wall mount, 1.5 in., NPT, indoor,
RAL 9003
IMEICM-E Environmental in-ceiling mount, RAL 7047
IMEICM-I Indoor in-ceiling mount, RAL 9003
IMEPMB-I Wall mount bracket, light duty, indoor,
RAL 9003
IMEPM-I Indoor pendant mount, RAL 9003
IMEPM-E Environmental pendant mount, RAL 7047
IMEEBAP-I Indoor electrical box adapter
IMEEBAP-E Environmental electrical box and Type 4X
adapter
OPTIONAL ACCESSORIES
PA101 Pole adapter for use with WMVE-SR pendant
mount
IMELD2-0I Smoke lower dome (indoor)
IMELD2-0E Smoke lower dome (environmental)
IMELD2-1E Clear lower dome (environmental)
SOFTWARE FEATURES
• Multilingual menus in user interface: Arabic, English, French, Italian,
German, Korean, Spanish, Portuguese, Russian, Simplified Chinese,
Turkish
• 16 window blanks, configurable in size
• Password protection
• Snapshot with JPEG capture at the same resolution as the highest stream
configured
• Text overlays for camera name, time, date, or custom text
• Image overlays
Indoor color: RAL 9003; Outdoor color: RAL 7047
Ø 10.30
(0.37)
3.81 (1.50) NPT
15.14
(5.96)
10.10 (3.98)
Indoor color: RAL 9003; Outdoor color: RAL 7047
Indoor color: RAL 9003; Outdoor color: RAL 7047
(3.05)
TECHNICAL SPECIFICATIONS
Pelco, the Pelco logo, and other trad emarks associated with Pelco products referred
to in this publication are trademarks of Pelco, Inc. or its affiliates. ONVIF and the
ONVIF logo are trademarks of ONVIF Inc. All othe r product names and
services are the property of their respective comp anies.
Product specifications and availability are subject to change without no tice.
©Copyright 2017, Pelco, Inc. All rights reserved.
8.35
(3.29)
15.69 (6.18)
2.90
(1.14)
0.64
(0.25)
4.05
(1.59)
4.05
(1.59)
2x Ø 0.42 (0.16)
16.59 (6.53) 7.42 (2.92)
9.40 (3.70)
WMVE-SR (OUTDOOR) & WMVE-SW (INDOOR) WALL MOUNT
MODELS*
Back Box Resolution Model Number Lens Description
1.3 MPx IME129-1ES 3
1.3 MPx IME129-1IS 3
1.3 MPx IME129-1RS 3
1.3 MPx IME122-1ES 9
2 MPx IME229-1ES 3
2 MPx IME229-1IS 3
2 MPx IME229-1RS 3
Surface
2 MPx IME222-1ES 9
2 MPx IME222-1IS 9
2 MPx IME222-1RS 9
3 MPx IME329-1ES 3
3 MPx IME329-1IS 3
3 MPx IME329-1RS 3
3 MPx IME322-1ES 9
3 MPx IME322-1IS 9
3 MPx IME322-1RS 9
*System options contain a back box/mount, camera, and clear dome.
~ 9 mm Sarix Enhanced Environmental Dome
~ 9 mm Sarix Enhanced Indoor Dome
~ 9 mm Sarix Enhanced Environmental IR Dome
~ 22 mm Sarix Enhanced Environmental Dome
~ 9 mm Sarix Enhanced Environmental Dome
~ 9 mm Sarix Enhanced Indoor Dome
~ 9 mm Sarix Enhanced Environmental IR Dome
~ 22 mm Sarix Enhanced Environmental Dome
~ 22 mm Sarix Enhanced Indoor Dome
~ 22 mm Sarix Enhanced Environmental IR Dome
~ 9 mm Sarix Enhanced Environmental Dome
~ 9 mm Sarix Enhanced Indoor Dome
~ 9 mm Sarix Enhanced Environmental IR Dome
~ 22 mm Sarix Enhanced Environmental Dome
~ 22 mm Sarix Enhanced Indoor Dome
~ 22 mm Sarix Enhanced Environmental IR Dome
IMEPMB-I INDOOR WALL MOUNT
Color: RAL 9003
Indoor color: RAL 9003; Outdoor color: RAL 7047
Pelco by Schneider Electric
625 W. Alluvial, Fresno, California 93711 United States
USA & Canada Tel (800) 289-9100 Fax (800) 289-9150
International Tel +1 (559) 292-1981 Fax +1 (559) 348-1120
www.pelco.com www.pelco.com/community
Loading...
