Pelco IMD9118, IMD9127, IMD12136, IMD15118, IMD15127 specification sheets

SARIX

9 MP 12 MP 15 MP 20 MP 24 MP 32 MP

Providing multi-directional coverage and flexible mounting options, the Sarix® Multi Pro Camera series allows you to
achieve total coverage across 180, 270 or 360-degrees fields of view from a single vantage point. With resolutions of up to
32 MP, this camera series features SureVision technology that delivers great low light and True Wide Dynamic Range
performance, giving security operators the ability to look in multiple directions across large spaces with great clarity.

MULTI PRO CAMERA

®

FEATURES

FLEXIBLE CONFIGURATIONS FOR WIDE AREA COVERAGE

Choose from models with 3 or 4 imager modules that can be
configured to cover fields of view of up to 360-degrees from a
single vantage point.

ADAPTIVE IR TECHNOLOGY OPTION

Provides security detail in total darkness, even as objects
approach the camera.

H.264 AND H.265 WITH SMART COMPRESSION TECHNOLOGY

Optimizes compression levels for regions in a scene to help
maximize bandwidth savings and keep storage costs down.

ONVIF®COMPLIANT

ONVIF Profile S, G and T compliance allows for easy
integration with leading VMS brands.

ONVIF is a trademark of Onvif, Inc.

WIDE DYNAMIC RANGE AND SUREVISION TECHNOLOGY

SureVision technology delivers excellent low light and true wide
dynamic range performance simultaneously.

LOWER OVERALL DEPLOYMENT COSTS

Save on installation time and costs with a single camera
installation, cable and VMS license.

VANDAL &WATER RESISTANT

Rated IK10 for vandal resistance and IP66/67 for water
resistance, enabling use in indoor and challenging outdoor
conditions.

PEACE OF MIND

We back our Sarix Multi Pro Camera with a 5-year industry
leading warranty, with onsite support and 24/7 phone support.

SPECIFICATIONS

IMAGE PERFORMANCE 3.0 MP 5.0 MP 4K(8.0 MP )

Image Sensor 1/2.8” progressive scan CMOS

Active Pixels 2048 (H) x 1536 (V) 2592 x 1944

3 x Image Sensor, Max Resolution
(per image sensor)

4 x Image Sensor, Max Resolution
(per image sensor)

Aspect Ratio 4:3 4:3 16:9

IRIllumination - Optional
(high power 850 nm LEDs)

Minimum Illumination

Dynamic Range 100 dB, true WDR, dual exposure

3D Noise Reduction Filter Yes

All Sensors:

3 x Image Sensor (60 Hz, 50 Hz) 24 / 25 fps 15 / 17 fps 12 / 13 fps

4 x Image Sensor (60 Hz, 50 Hz) 20 / 20 fps 13 / 13 fps 8 / 8 fps

Image Rate-High Framerate Mode*:

3 x Image Sensor (60 Hz, 50 Hz) 30 / 25 fps 20 / 20 fps 15 / 14 fps

4 x Image Sensor (60 Hz, 50 Hz) 20 / 20 fps 15 / 14 fps 10 / 10 fps

*

Sabotage Detection is not operational in this mode.

6144 (H) x 1536 (V) 7776 x 1944

8192 (H) x 1536 (V) 10368 x 1944 15360 x 2160

30 m (98 ft) maximum distance at 0 lux when camera is mounted at 4 m (13 ft) off the ground

2.8 mm: 0.025 lux (F1.2) in color mode

0.005 lux (F1.2) in mono mode
0 lux with optional IR illuminator

4 mm: 0.05 lux (F1.6) in color mode

0.010 lux (F1.6) in mono mode
0 lux with optional IR illuminator

1/2.5" progressive scan CMOS

3840 x 2160

11520 x 2160

0.02 lux (F1.8) in color mode

0.04 lux (F1.8) in mono mode
0 lux with optional IRilluminator

IMAGE CONTROL

Image Compression Method

Streaming

Motion Detection

Electronic Shutter Control

Iris Control

Day/Night Control

Flicker Control

White Balance

Backlight Compensation

Privacy Zones

Audio Compression Method

Audio Input/Output

External I/O Terminals

H.264 Pelco Smart Compression, H.265 Pelco Smart Compression, Motion JPEG

Multi-stream H.264, Multi-stream H.265, Motion JPEG, Pelco Smart Compression

Selectable sensitivity and threshold

Automatic, Manual (1/8 to 1/8000 sec)

Fixed

Automatic, Manual

60 Hz, 50 Hz

Automatic, Manual

Adjustable

Up to 64 zones

G.711 PCM 8 kHz

Line level input and output

Alarm In, Alarm Out

LENS (PER IMA GE SENSOR) 3.0 MP 5.0 MP 4K(8.0 MP )

Lens and Horizontal Field of View 2.8 mm F1.2 - 103 °

4 mm F1.6 - 72 °
Remote Focus

2.8 mm F1.2 - 103 °
4 mm F1.6 - 72 °
Remote Focus

4 mm F1.8 - 101 °

5.2 mm F1.8 - 70 °
Remote Focus

[e-mail]|pelco.com 2

NETWORK

Network

Cabling Type

Connector

API

Security

Protocol

Streaming Protocols

Device Management Protocols SNMP v2c, SNMP v3

Gigabit Ethernet, 100BASE-TX, 1000BASE-TX

CAT5E

RJ-45

ONVIF® compliance Profile S, T and G (www.onvif.org)

Password protection, HTTPS encryption, digest authentication, WS authentication, user access log, 802.1x port based
authentication, TLS1.3, FIPS140-2 Level 1

IPv4, IPv6, HTTP, HTTPS, SOAP, DNS, NPT, RTSP, RTCP, RTP, TCP, UDP, IGMPv2, ICMP, DHCP, Zeroconf, ARP, HSTS

RTP/UDP, RTP/UDP multicast, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/RTSP/HTTPS/TCP, HTTP

PERIPHERALS

USBPort

Onboard Storage

USB 2.0

MicroSD/microSDHC/microSDXC slot - video speed class card required. Class V10 or better recommended.

ELECTRICAL IN-CEILING SURFACE MOUNT PENDANT MOUNT

Power Consumption 26 W with 24 VDC

External Power 24 VDC ± 10 %; 24 VAC rms ± 10%, 50 or 60Hz

PoE 25.5 WPoE+, IEEE 802.3at Type 2

*

High power PoE may not be compatible with all switches or injectors. High power PoE is compatible with Cisco® UPoE, up to 60 W over 4 pairs, or with the high PoEproducts listed in

the Accessories section. Contact Pelco sales or Pelco technical support for more information.

37 VA with 24 VAC
PoE+

PoEPlus

With IR:

52 W with 24 VDC
74 VA with 24 VAC
PoE++ or 60 WPoE*

Without IR:

26 W with 24 VDC
37 VA with 24 VAC
PoE+

With IR:High Power 51 WPoE++*
Without IR:25.5WPoE+, IEEE, 802.3at Type 2 PoEPlus

With IR:

52 W with 24 VDC
74 VA with 24 VAC
PoE++ or 60 WPoE*

Without IR:

26 W with 24 VDC
37 VA with 24 VAC
PoE+

MECHANICAL IN-CEILING SURFACE MOUNT PENDANT MOUNT

Dimension Overall:

298 mm x 161 mm
(11.75" x 6.33")

Below mounting surface:
298 mm x 64 mm
(11.75 " x 2.52")

Weight Mount:1100 g (2.4 lbs)

Bezel: 490 g (1.1 lbs)
Camera Module (4 lenses): 1550 g (3.4
lbs)

Body Aluminum, Plastic dome trim

Finish Plastic, Injection Molded, Pantone

427C

Environmental Not applicable

Optional IRIlluminator Ring Not available

304 mm x 114 mm
(11.95 "x 4.48 ")

Mount:950 g (2.1 lbs)
Bezel:1250 g (2.8 lbs)
Camera Module (4 lenses): 1550 g (3.4
lbs)
Optional IRIlluminator Ring:670 g (1.5
lbs)

Aluminum

Cast, Anodized and Powder Coated,
Pantone 427C

IK10 Impact Rating, IP66 Weather Rating, NEMA 4X, NEMATS-2

Optional accessory, 30 m (98 ft)IRrange

With Mount:
401 mm x 329 mm x 260 mm
(15.77 "x 12.96 "x 10.25 ")

With NPTAdapter:
248 mm x 329 mm
(9.75 " x 12.96 ")

Wall Mount:1190 g (2.6 lbs)
NPTAdapter Mount:470 g (1.04 lbs)
Pendant:1680 g (3.7 lbs)
Bezel:1250 g (2.8 lbs)
Camera Module (4 lenses): 1550 g (3.4
lbs)
Optional IRIlluminator Ring:670 g (1.5
lbs)

Aluminum

Cast, Anodized and Powder Coated,
Pantone 427C

ENVIRONMENTAL IN -C EI LI NG SU RF AC E MOUNT PENDANT MOUNT

Operating Temperature -10 °C to +50 °C (14 °F to 122 °F)

Storage Temperature -10 °C to +70 °C (14 °F to 158 °F)

Humidity 0 - 95% non-condensing

-40 °C to +60 °C (-40 °F to 140 °F)

[e-mail]|pelco.com 3

PER SENSOR

Tilt +7° to 96 ° from horizon

Pan +/-120 ° (depending on position of image sensors)

Azimuth +/-180 °

CERTIFICATIONS IN-CEILING SURFACE MOUNT PENDANT MOUNT

Certifications/Directives

Safety UL 62368-1, CSA 62368-1, IEC/EN 62368-1

Environmental UL2043 Plenum

Electromagnetic Emissions FCC Part 15 Subpart B Class B, IC ICES-003 Class B, EN 55032 Class B, EN 61000-6-3, EN 61000-3-2, EN 61000-3-3

Electromagnetic Immunity EN 55024, EN 61000-6-1, EN 50121-4 (when used with FERR-1001 on aux power)

Directives RoHS, Reach (SVHC), WEEE

*

These certifications are in process and will be available after launch.

UL, cUL, CE, ROHS, WEEE, RCM, EAC*, BIS*, KC*, UKCA, NOM

UL/CSA/IEC 60950-22
IEC 60529 IP66, IP67 Rating
IK10 Impact Rating
IEC 60068 2-6 Vibration
IEC 60068 2-27 Shock
NEMA 4X
FDOT*/NEMATS2, 150 mph Wind Speed rating*

*

SUPPORTED VIDEO EVE NT S

Sabotage Detection

Motion Detection

The event is triggered when the scene unexpectedly changes.

The event is triggered when there is pixel motion in specified region above set thresholds.

OUTLINE DIMENSIONS

PENDANT WALL MOUNT

PENDANT NPT MOUNT

[X.X] INCHES

X MM

[e-mail]|pelco.com 4

SURFACE MOUNT

IN-CEILING MOUNT

[e-mail]|pelco.com 5

ORDERING INFORMATION

The variety of mounting options for the Sarix Multi Pro Camera provides maximum flexibility. All the available camera
modules can be used in any of the mounting options.

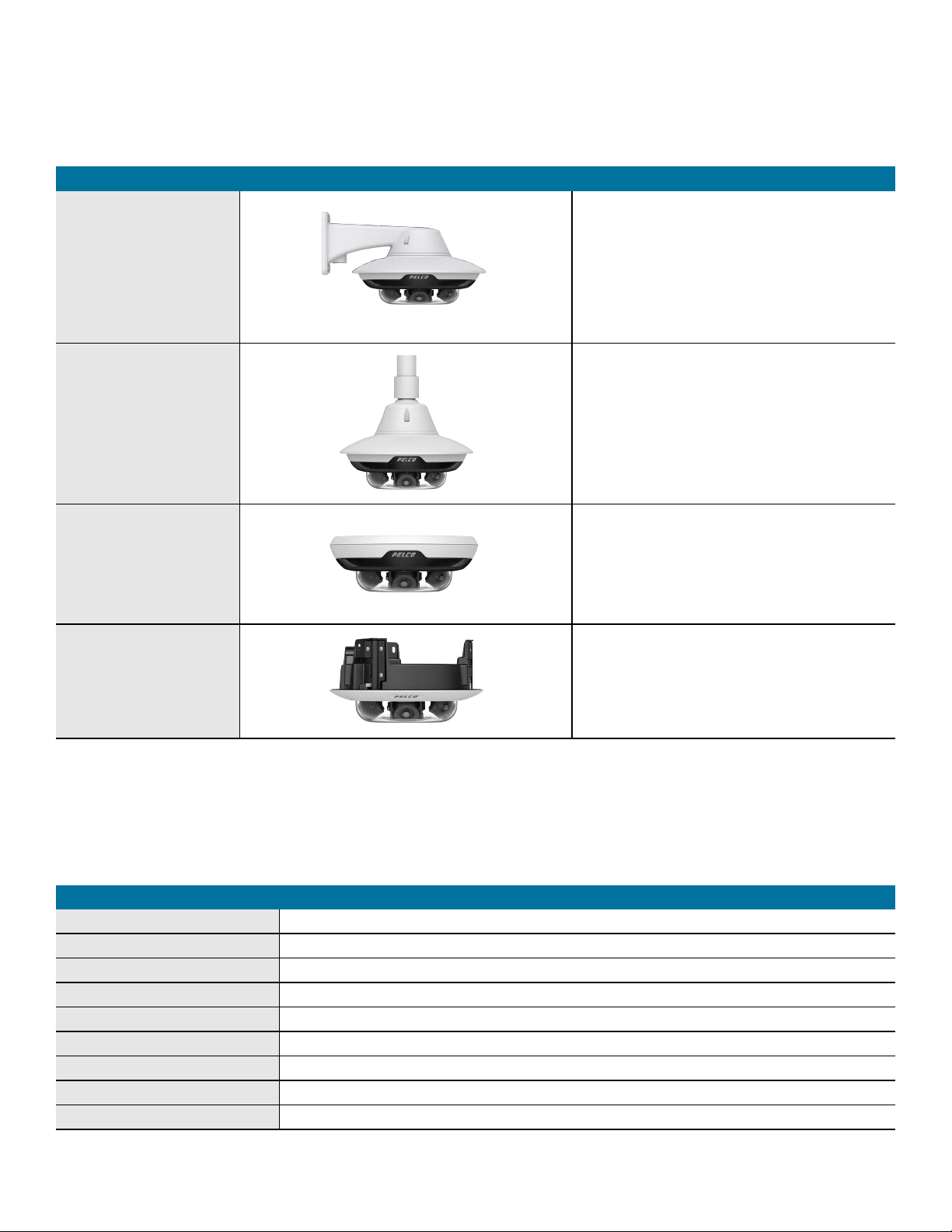

MOUNTING SCENARIO ORDERING INFORMATION

Order one of:

l

Camera base module

l

PENDANT WALL MOUNT

PENDANT NPT MOUNT

SURFACE MOUNT

IN-CEILING MOUNT

IMD1-PMT

l

IMD1-SPLD0 or IMD1-SPLD1

l

WLMT-1001

l

Optional, IMD1-IR

Order one of:

l

Camera base module

l

IMD1-PMT

l

IMD1-SPLD0 or IMD1-SPLD1

l

NPTA-1001

l

Optional, IMD1-IR1

Order one of:

l

Camera base module

l

IMD1-SMT

l

IMD1-SPLD0 or IMD1-SPLD1

l

Optional, IMD1-IR1

Order one of:

l

Camera base module

l

IMD1-INC

l

IMD1-INCLD1 or IMD1-INCLD0

l

Optional, CLPNL-1001 if ceiling panel is needed

CAMERA MODULES

With the modular design of the Sarix Multi Pro Camera, any camera module can be paired with any mounting adapter for
maximum versatility and optimal installation. Each camera module must be ordered with a matching mounting adapter and
dome cover. For complete coverage on the outside corner of a building, including downwards, order a 4-imager 360 degree
model.

DISPLAY PART NU MB ER DESCRIPTION

IMD9118

IMD9127

IMD12136

IMD15118

IMD15127

IMD20136

IMD24118

IMD24127

IMD32136

[e-mail]|pelco.com 6

3x3 MP, WDR, SureVision, 180 degree max field of view, 4 mm, Camera Base Module

3x3 MP, WDR, SureVision, 270 degree max field of view, 2.8 mm, Camera Base Module

4x3 MP, WDR, SureVision, 360 degree max field of view, 2.8 mm, Camera Base Module

3x5 MP, WDR, SureVision, 180 degree max field of view, 4 mm, Camera Base Module

3x5 MP, WDR, SureVision, 270 degree max field of view, 2.8 mm, Camera Base Module

4x5 MP, WDR, SureVision, 360 degree max field of view, 4 mm, Camera Base Module

3x4K (8 MP), WDR, SureVision, 180 degree max field of view, 5.2 mm, Camera Base Module

3x4K (8 MP), WDR, SureVision, 270 degree max field of view, 4 mm, Camera Base Module

4x4K (8 MP), WDR, SureVision, 360 degree max field of view, 4 mm, Camera Base Module

* For complete coverage on the outside corner of a building, including downwards, order a 4-imager 360 degree model.

MOUNTING ADAPTERS AND DOME COVERS

The Sarix Multi Pro Camera modular design provides pendant, surface, or in ceiling mounting adapters and a choice of two
lower domes compatible with all the Sarix Multi Pro Camera camera modules.

DISPLAY PART NU MB ER DESCRIPTION

IMD1-SMT

IMD1-PMT

IMD1-INC

IMD1-SPLD0

IMD1 SPLD1

IMD1-INCLD0

IMD1-INCLD1

WLMT-1001

NPTA-1001

PLMT-1001

CRNMT-1001

CLPNL-1001

CBLKT-1001

Outdoor surface mount adapter, must order either a IMD1-SPLD1 or IMD1-SPLD0.

Outdoor pendant mount adapter, must order one of WLMT-1001 or NPTA-1001 and one of IMD1-SPLD1 or IMD1-SPLD0.

In-ceiling adapter, must order either a IMD1-INCLD1 or IMD1-INCLD0.

Lower dome, for surface or pendant mounted Sarix Multi Pro, smoked. Not recommended for lowlight applications.

Lower dome, for surface or pendant mounted Sarix Multi Pro, clear.

Lower dome, for in-ceiling mounted Sarix Multi Pro, smoked. Not recommended for lowlight applications.

Lower dome, for in-ceiling mounted Sarix Multi Pro, clear.

Pendant wall arm adapter, for use with IMD1-PMT.

Pendant NPT adapter for use with IMD1-PMT.

Aluminum pole mount for use with WLMT-1001.

Aluminum corner mount for use with WLMT-1001.

Metal ceiling panel for use with in-ceiling mounted Sarix Multi Pro Camera.

Cable kit replacement for Multi Head cameras.

OPTIONAL IRILLUMINATOR

The optional IRIlluminator is available for the Sarix Multi Pro Camera when mounted in a pendant or surface mount adapter.

DISPLAY PART NU MB ER DESCRIPTION

IMD1-IR

Optional IRilluminator ring, up to 30 m (100 ft), for use with IMD1-SPLD1.

OPTIONAL INJECTORS AND SWITCHES

DISPLAY PART NU MB ER DESCRIPTION

PDS-104GO/AC/M-CC-MSI

PLMT-1011

PD-9501GR/AC-NA-MSI

PD-9001GR/AT/AC-*-MSI

*

NA, AU, EU, or UK

POE190-BT

POE430-AT

POE1236-AT

POE2436-AT

POE130-XT

Managed switch, 4 port, Outdoor IP66, -40 °C (-40 °F) to 50 °C (122 °C), Gigabit Ethernet, AC power input. 1x SFP uplink and
4 port RJ45.
Maximum PoE power allocation: Up to 4 ports of PoE+ each, or 2 ports of 60 W PoE each. In 60 W PoE mode, compatible
with Sarix Multi Pro Camera.

Pole mount bracket for PDS-104GO/AC/M-CC-MSI switch.

Indoor single port Gigabit PoE++ 60 W, North American power cord included. Injector operational temperature range -10
°C to +45 °C (14 °F to 113 °F). Enables use with IRilluminator.
May also be used in European Union, Japan, Australia, New Zealand, Mexico, China, South Korea, Russia, Argentina,
Saudi Arabia, Kuwait, UAE and Brazil.

Indoor single port PoE+ 30W injector. Injector operational temperature range -20 °C to +40 °C (-4 °F to 104 °F).
Versions of power cord available for North America, Australia, European Union, and United Kingdom.

HPoE 802.3BT SinglePort Injector 90 W. Models with US, EU, or UKpower cords for use with models with IRIlluminator.

4 Port PoE AT 30W Midspan AC Input. Models with US or EU power cord.

12 Port PoE AT 36W Midspan AC DC Input. Models with US or EU power cord.

24 Port PoE AT 36W Midspan AC DC Input. Models with US or EU power cord.

Single Port 802.3AF 802.3AT Extender 100M for use with POE190-BT.

OPTIONAL ACCESSORIES

DISPLAY PART NU MB ER DESCRIPTION

FERR-1001

[e-mail]|pelco.com 7

Ferrite clamp for use with aux power cable when meeting EN50121-4 requirements. Pack of 5.

SUPPORT

Learn more and find additional documentation at pelco.com or email [e-mail] for specific product support.

Jun 2022| C5059-S| Rev 3

© 2022 , Motorola Solutions, Inc. All rights reserved. MOTOROLA, MOTO, MOTOROLA SOLUTIONS, and the Stylized M Logo are trademarks or registered trademarks of Motorola
Trademark Holdings, LLC and are used under license. Pelco, the Pelco logo, and other trademarks associated with Pelco products referred to in this publication are trademarks of Pelco,
Inc. or its affiliates. All other product names and services are the property of their respective companies. Product specifications and availability are subject to change without notice.

[e-mail]|pelco.com 8
