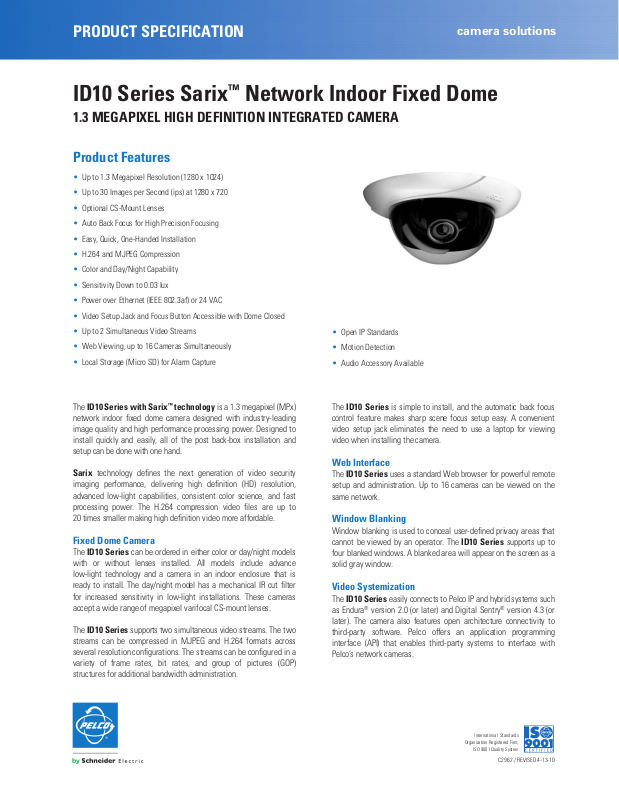

PRODUCT SPECIFICATION
camera solutions
ID10 Series Sarix™ Network Indoor Fixed Dome
1.3 MEGAPIXEL HIGH DEFINITION INTEGRATED CAMERA
Product Features
• Up to 1.3 Megapixel Resolution (1280 x 1024)
• Up to 30 Images per Second (ips) at 1280 x 720
• Optional CS-Mount Lenses
• Auto Back Focus for High Precision Focusing
• Easy, Quick, One-Handed Installation
• H.264 and MJPEG Compression
• Color and Day/Night Capability
• Sensitivity Down to 0.03 lux
• Power over Ethernet (IEEE 802.3af) or 24 VAC
• Video Setup Jack and Focus Button Accessible with Dome Closed
• Up to 2 Simultaneous Video Streams
• Web Viewing, up to 16 Cameras Simultaneously
• Local Storage (Micro SD) for Alarm Capture
• Open IP Standards
• Motion Detection
• Audio Accessory Available
™
The
ID10 Series with Sarix
network indoor fixed dome camera designed with industry-leading
image quality and high performance processing power. Designed to
install quickly and easily, all of the post back-box installation and
setup can be done with one hand.
Sarix
technology defines the next generation of video security
imaging performance, delivering high definition (HD) resolution,
advanced low-light capabilities, consistent color science, and fast
processing power. The H.264 compression video files are up to
20 times smaller making high definition video more affordable.
technology
is a 1.3 megapixel (MPx)
Fixed Dome Camera
The
ID10 Series
with or without lenses installed. All models include advance
low-light technology and a camera in an indoor enclosure that is
ready to install. The day/night model has a mechanical IR cut filter
for increased sensitivity in low-light installations. These cameras
accept a wide range of megapixel varifocal CS-mount lenses.
The
ID10 Series
streams can be compressed in MJPEG and H.264 formats across
several resolution configurations. The streams can be configured in a
variety of frame rates, bit rates, and group of pictures (GOP)
structures for additional bandwidth administration.
can be ordered in either color or day/night models
supports two simultaneous video streams. The two
The
ID10 Series
control feature makes sharp scene focus setup easy. A convenient
video setup jack eliminates the need to use a laptop for viewing
video when installing the camera.
is simple to install, and the automatic back focus
Web Interface
The
ID10 Series
setup and administration. Up to 16 cameras can be viewed on the
same network.
uses a standard Web browser for powerful remote
Window Blanking
Window blanking is used to conceal user-defined privacy areas that
cannot be viewed by an operator. The
four blanked windows. A blanked area will appear on the screen as a
solid gray window.
ID10 Series
supports up to
Video Systemization
The
ID10 Series
as Endura
later). The camera also features open architecture connectivity to
third-party software. Pelco offers an application programming
interface (API) that enables third-party systems to interface with
Pelco’s network cameras.
easily connects to Pelco IP and hybrid systems such
®
version 2.0 (or later) and Digital Sentry® version 4.3 (or
International Standards
Organization Registered Firm;
ISO 9001 Quality System
C2962 / REVISED 4-13-10
Page 2
TECHNICAL SPECIFICATIONS
GENERAL
Imaging Device 1/3-inch (effective)
Imager Type CMOS
Imager Readout Progressive scan
Maximum Resolution
Signal-to-Noise Ratio 50 dB
Auto Iris Lens Type DC drive
Electronic Shutter Range 1 ~ 1/100,000 sec
Wide Dynamic Range 60 dB
White Balance Range 2,000° to 10,000°K
Sensitivity f/1.2; 2,850°K; SNR >24 dB
Color (1x/33 ms) 0.5 lux
Color SENS (15x/500 ms) 0.12 lux
Mono (1x/33 ms) 0.25 lux
Mono SENS (15x/500 ms) 0.03 lux
Dome Attenuation
Clear Zero light loss
Smoked f/1.0 light loss
Construction
Back Box Cast aluminum
Trim Ring Polycarbonate plastic
Bubble Acrylic plastic
Finish White
Weight (without lens)
Unit 2.0 lb (0.9 kg)
Shipping 6.0 lb (2.7 kg)
Available Languages Chinese, English, French, German, Italian,
1280 x 1024
Portuguese, Russian, Spanish, and Turkish
IN-CEILING
3.33 (8.50)
Ø 5.00 (12.70)
SURFACE MOUNT
(Mounting Ring Included)
7.50 (19.05)
7.95 (20.19)
2.96 (7.52)
2.73 (6.93)3.32 (8.43)
6.32 (16.05)
ELECTRICAL
Port RJ-45 connector for 100Base-TX
Auto MDI/MDI-X
Cable Type Cat5 or better for 100Base-TX
Power Input 18 to 34 VAC; 24 VAC nominal or
PoE (IEEE 802.3af class 3)
Power Consumption <6 W
Current Consumption
PoE <200 mA maximum
24 VAC <295 mA nominal; < 390 mA maximum
Local Storage Micro SD
Alarm Input 10 VDC maximum, 5 mA maximum
Alarm Output 0 to 15 VDC maximum, 75 mA maximum
Service Port External 3-connector, 2.5 mm provides
NTSC/PAL video output
Accessory Port Connects Pelco accessories
MECHANICAL
Lens Mount CS mount, adjustable
Pan/Tilt Adjustment
Pan 368°
Tilt 160° (10° to 170°)
Rotate 355°
ENVIRONMENTAL
Operational Temperature 32° to 122°F (0° to 50°C)
Operational Humidity 20% to 80%, noncondensing
Ø 5.00 (12.70)
PENDANT
(Mount Available as Accessory)
7.73 (19.63)
7.63 (19.38)
Ø 5.00 (12.70)
NOTE: VALUES IN PARENTHESES ARE CENTIMETERS;
ALL OTHERS ARE INCHES
Page 3
TECHNICAL SPECIFICATIONS
VIDEO
Video Encoding H.264 base profile and MJPEG
Video Streams Up to 2 simultaneous streams; the second
Frame Rate Up to 30, 25, 24, 15, 12.5, 12, 10, 8, 7. 5, 6, 5,
Available Resolutions
Additional Resolutions 640 x 512, 640 x 352, 480 x 368, 480 x 272,
Supported Protocols TCP/IP, UDP/IP (Unicast, Multicast IGMP),
Users
Unicast Up to 20 simultaneous users depending on
Multicast Unlimited users H.264
Security Access Password protected
Software Interface Web browser view and setup, up to
Pelco System Integration Endura 2.0 (or later) or
Open IP Integration Pelco IP camera API
Min. System Requirements
Processor Pentium
Operating System Microsoft
Memory 512 MB RAM
Network Interface Card 100 megabits (or greater)
Monitor Minimum of 1024 x 768 resolution, 16- or
Web Browser* Internet Explorer
Media Player† QuickTime® 7.6.5 for Windows XP, Windows
*Internet Explorer is not supported by Mac OS X 10.4.
†
This product is not compatible with QuickTime version 7.6.4 for Windows XP
or Windows Vista. If you have this version installed on your PC, you will
need to upgrade to QuickTime version 7.6.5.
stream is variable based on the setup of the
primary stream
4, 3, 2, 1 (dependent upon coding, resolution,
and stream configuration)
Resolution MJPEG H.264 Base Profile
Aspect
MPx Width Height
Ratio
Maximum
IPS
1.3 1280 1024 5:4 20.0 ips 10.0 Mbps 8.0 ips 2.5 Mbps
1.2 1280 960 4:3 20.0 ips 9.8 Mbps 8.0 ips 2.4 Mbps
0.9 1280 720 16:9 30.0 ips 10.0 Mbps 12.5 ips 2.5 Mbps
0.5 800 600 4:3 30.0 ips 5.8 Mbps 25.0 ips 2.0 Mbps
0.3 640 480 4:3 30.0 ips 3.7 Mbps 30.0 ips 1.6 Mbps
0.1 320 240 4:3 30.0 ips 0.9 Mbps 30.0 ips 0.4 Mbps
320 x 256, and 320 x 176
UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4,
SNMP v2c/v3, QoS, HTTP, HTTPS, LDAP
(client), SSH, SSL, SMTP, FTP, and mDNS
®
(Bonjour
), and 802.1x (EAP)
resolution settings (2 guaranteed streams)
16 cameras
Digital Sentry 4.3 (or later)
®
4 microprocessor, 1.6 GHz
®
Windows® XP, Windows Vista®,
or Mac® OS X 10.4 (or later)
32-bit pixel color resolution
®
7.0 (or later) or Mozilla®
Firefox® 3.5 (or later); Internet Explorer® 8.0
(or later) is recommended for configuring
analytics
Vista, or QuickTime 7.6.4 for Mac OS X 10.4
Recommended
Bit Rate
Maximum
IPS
Recommended
Bit Rate
Page 4
MODELS
MODELS
ID10C8-1 Sarix indoor fixed dome network camera,
1.3 megapixel, color, 2.8 ~ 8 mm varifocal
megapixel lens, clear dome
ID10DN8-1 Sarix indoor fixed dome network camera,
1.3 megapixel, day/night, 2.8 ~ 8 mm
varifocal megapixel lens, clear dome
ID10C-0 Sarix indoor fixed dome network camera,
1.3 megapixel, color, no lens, smoked dome
ID10C-1 Sarix indoor fixed dome network camera,
1.3 megapixel, color, no lens, clear dome
ID10DN-0 Sarix indoor fixed dome network camera,
1.3 megapixel, day/night, no lens,
smoked dome
ID10DN-1 Sarix indoor fixed dome network camera,
1.3 megapixel, day/night, no lens, clear dome
CERTIFICATIONS/RATINGS/PATENTS
• CE, Class B
• FCC, Class B
• UL /cUL Listed
• C-Tick
• Patents Pending
ACCESSORIES
IX-SC 4-foot Sarix service cable; compatible with
standard BNC connectors
IA-A Audio adapter compatible with a USB 2.0 A to
5-pin mini-B cable; supplied with two USB
extension cables: 1 ft (0.3 m) and 3 ft (0.9 m)
ID-CB Plenum-rated conduit box
POE20U560G Single port PoE injector
RECOMMENDED MOUNTS
ID-P Pendant mount
SWM-WT Wall mount for pendant
SWM-CAWT Corner adapter for wall mount
SWM-PAWT Pole adapter for wall mount
RECOMMENDED LENSES
13M2.2-6 Megapixel lens, varifocal, 2.2 ~ 6.0 mm,
13M2.8-8 Megapixel lens, varifocal, 2.8 ~ 8.0 mm,
13M2.8-12 Megapixel lens, varifocal, 2.8 ~ 12.0 mm,
13M15-50 Megapixel lens, varifocal, 15.0 ~ 50.0 mm,
Pelco lenses have been designed and tested to deliver optimal image quality
for the ID10 Series megapixel camera. The use of standard definition lenses
on the ID10 Series will limit the resolution of the camera, creating poor image
quality.
Field of View
in Degrees
2.2 mm
2.8 mm
6.0 mm
8.0 mm
12.0 mm
15.0 mm
50.0 mm
Note:
For 800 x 600 (or lower) resolutions in 4:3 or 5:4 aspect ratios, the field
Horizontal 109 109 109
Vertical 63 83 89
Horizontal 89 89 89
Vertical 48 66 70
Horizontal 42 42 42
Vertical 24 32 34
Horizontal 32 32 32
Vertical 18 24 25
Horizontal 21 21 21
Vertical 12 16 17
Horizontal 16 16 16
Vertical 9 12 13
Horizontal 5 5 5
Vertical 3 4 4
of view is smaller than listed above. Refer to the Installation/Operation
manual for details.
f/1.3 ~ 2.0
f/1.2 ~ 1.9
f/1.4 ~ 2.7
f/1.5 ~ 2.1
Aspect Ratio
16:9 4:3 5:4
Pelco, Inc. Worldwide Headquarters:
3500 Pelco Way, Clovis, California 93612-5699 USA
USA & Canada
International
www.pelco.com
Tel: (800) 289-9100 • FAX: (800) 289-9150
Tel: +1 (559) 292-1981 • FAX: +1 (559) 348-1120
Pelco, the Pelco logo, Digital Sentry, and Endura are registered trademarks of Pelco, Inc.
All product names and services identified throughout this document are trademarks or registered
trademarks of their respective companies. The absence of a trademark or registered trademark
from this document does not constitute a waiver of intellectual property rights.
Product specifications and availability subject to change without notice.
©Copyright 2010, Pelco, Inc. All rights reserved.
Sarix is a trademark of Pelco, Inc.
