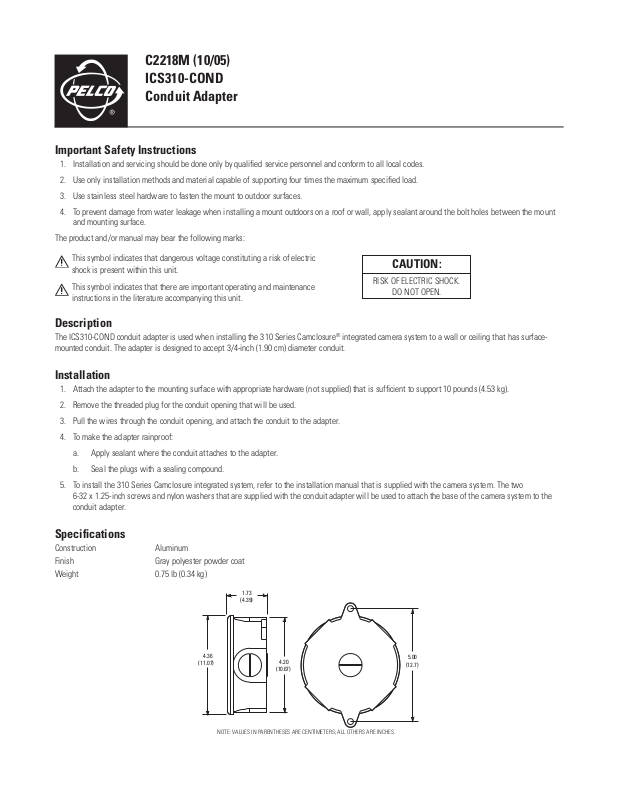

Pelco ICS310-COND User Manual

C2218M (10/05)
ICS310-COND
Conduit Adapter

Important Safety Instructions

1. Installation and servicing should be done only by qualified service personnel and conform to all local codes.

2. Use only installation methods and material capable of supporting four times the maximum specified load.

3. Use stainless steel hardware to fasten the mount to outdoor surfaces.

4. To prevent damage from water leakage when installing a mount outdoors on a roof or wall, apply sealant around the bolt holes between the mount
and mounting surface.

The product and/or manual may bear the following marks:

This symbol indicates that dangerous voltage constituting a risk of electric
shock is present within this unit.

This symbol indicates that there are important operating and maintenance
instructions in the literature accompanying this unit.

CAUTION:

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

Description

The ICS310-COND conduit adapter is used when installing the 310 Series Camclosure
mounted conduit. The adapter is designed to accept 3/4-inch (1.90 cm) diameter conduit.

®

integrated camera system to a wall or ceiling that has surface-

Installation

1. Attach the adapter to the mounting surface with appropriate hardware (not supplied) that is sufficient to support 10 pounds (4.53 kg).

2. Remove the threaded plug for the conduit opening that will be used.

3. Pull the wires through the conduit opening, and attach the conduit to the adapter.

4. To make the adapter rainproof:

a. Apply sealant where the conduit attaches to the adapter.

b. Seal the plugs with a sealing compound.

5. To install the 310 Series Camclosure integrated system, refer to the installation manual that is supplied with the camera system. The two
6-32 x 1.25-inch screws and nylon washers that are supplied with the conduit adapter will be used to attach the base of the camera system to the
conduit adapter.

Specifications

Construction Aluminum
Finish Gray polyester powder coat
Weight 0.75 lb (0.34 kg)

1.73

(4.39)

4.36

(11.07)

NOTE: VALUES IN PARENTHESES ARE CENTIMETERS; ALL OTHERS ARE INCHES.

4.20

(10.67)

5.00

(12.7)
