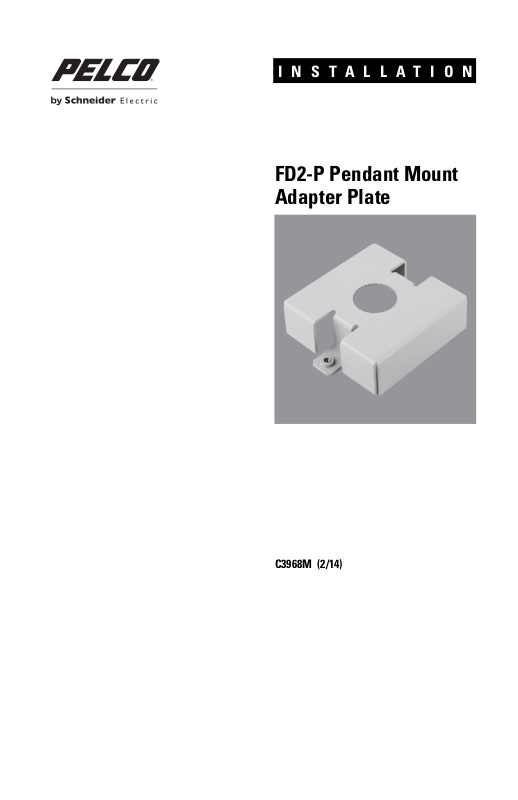

INSTALLATION
FD2-P Pendant Mount Adapter Plate
C3968M (2/14)
Contents
Important Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
User Supplied Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 C3968M (2/14)
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Only use attachments/accessories specified by the manufacturer.
6. Installation should be done only by qualified personnel and conform to all local codes.
7. Use only installation methods and materials capable of supporting four times the maximum
specified load.
8. Only use replacement parts recommended by Pelco.
Description
The FD2-P pendant mount adapter plate is specifically designed for use with the FD2 Series indoor fixed
dome cameras.
The FD2 Series pendant mounts are color matched, made from rugged aluminum for strength, and
designed with the installer in mind. The mounts provide internal cable routing to conceal wiring. The
pendant models are compatible with 3/4-inch conduit fittings, making them universal worldwide.
PARTS LIST
The following parts are supplied.
Qty Description
1 Pendant mount
2 Screws, Phillips pan head, 8-32 x 1/2-inch
1 Nut, conduit, 3/4-inch
1 Installation manual
USER SUPPLIED PARTS LIST
The following installation parts and tools are needed but not supplied.
Qty Description
1 FD2 Series camera
1 3/4-inch conduit, threaded or with a threaded pipe nipple
1 Phillips screwdriver
C3968M (2/14) 3
Installation
1. Place a threaded pipe or pipe nipple (not supplied) into the top of the pendant.
2. Screw the conduit nut (supplied) securely onto the bottom of the threaded pipe or nipple.
Figure 1. Preparing the Pendant
3. Pull all wiring through the pipe, conduit fitting, and pendant, and then terminate all wires (if not
already terminated).
4. Attach the pendant with conduit fitting to 3/4-inch conduit.
5. Unsnap and remove the top cover of the camera from the camera base.
NOTE: The dome cover and the bubble are joined into a single unit. Do not attempt to separate them.
6. Connect the wiring to the camera (refer to the installation/operation manual shipped with the
camera).
4 C3968M (2/14)
7. Use the two 8-32x1/2-inch screws (supplied) to attach the camera to the pendant.
Figure 2. Attach the Camera to the Pendant
8. Refer to the installation/operation manual shipped with the camera to complete the installation.
C3968M (2/14) 5
Specifications
MODEL
FD2-P Pendant mount adapter plate, designed for use with FD2 Series
GENERAL
Construction Aluminum
Finish Powder coat, white
Unit Weight 0.09 kg (0.20 lb)
NOTE: VALUES IN PARENTHESES ARE INCHES; ALL OTHERS ARE CENTIMETERS.
indoor dome cameras
6 C3968M (2/14)
WARRANTY STATEMENT
For information about Pelco’s product warranty and thereto related information, refer to www.pelco.com/warranty.
This equipment contains electrical or electronic components that must be recycled properly to comply with Directive
2002/96/EC of the European Union regarding the disposal of waste electrical and electronic equipment (WEEE).
Contact your local dealer for procedures for recycling this equipment.
REVISION HISTORY
Manual # Date Comments
C3968M 2/14 Original version.
