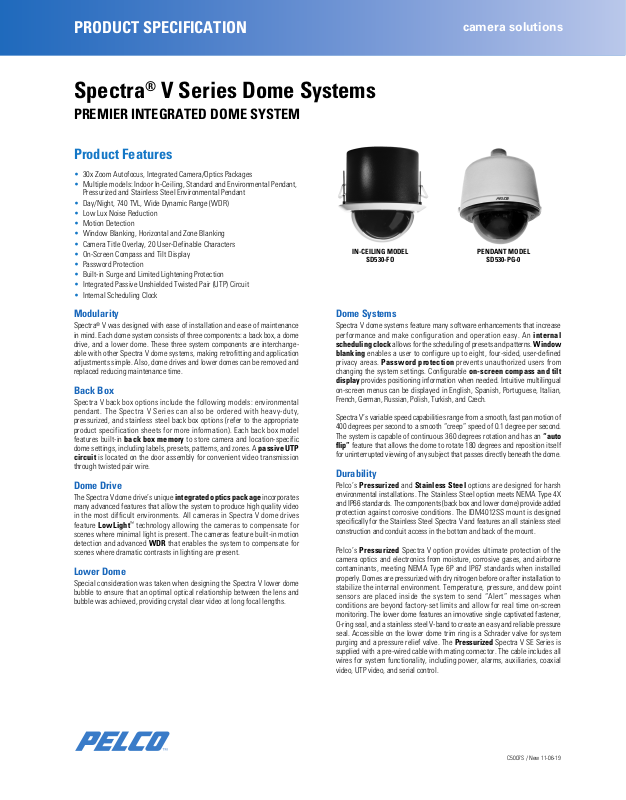

PRODUCT SPECIFICATION

Spectra®V Series Dome Systems

PREMIER INTEGRATED DOME SYSTEM

Product Features

• 30x Zoom Autofocus, Integrated Camera/Optics Packages

• Multiple models: Indoor In-Ceiling, Standard and Environmental Pendant,

Pressurized and Stainless Steel Environmental Pendant

• Day/Night, 740 TVL, Wide Dynamic Range (WDR)

• Low Lux Noise Reduction

• Motion Detection

• Window Blanking, Horizontal and Zone Blanking

• Camera Title Overlay, 20 User-Definable Characters

• On-Screen Compass and Tilt Display

• Password Protection

• Built-in Surge and Limited Lightening Protection

• Integrated Passive Unshielded Twisted Pair (UTP) Circuit

• Internal Scheduling Clock

IN-CEILING MODEL

SD530-FO

camera solutions

PENDANT MODEL

SD530-PG-0

Modularity

Spectra®V was designed with ease of installation and ease of maintenance
in mind. Each dome system consistsof three components: a back box, a dome
drive, and a lower dome. These three system components are interchange­able with other Spectra V dome systems, making retrofitting and application
adjustments simple. Also, dome drives and lower domes can be removed and
replaced reducing maintenance time.

Back Box

Spectra V back box options include the following models: environmental
pendant. The Spectra V Series can also be ordered with heavy-duty,
pressurized, and stainless steel back box options (refer to the appropriate
product specification sheets for more information). Each back box model
features built-in back box memory to store camera and location-specific
dome settings, including labels, presets, patterns, and zones. A passive UTP
circuit is located on the door assembly for convenient video transmission
through twisted pair wire.

Dome Drive

The Spectra V dome drive’s unique integrated optics package incorporates
many advanced features that allow the system to produce high quality video
in the most difficult environments. All cameras in Spectra V dome drives
feature LowLight™technology allowing the cameras to compensate for
scenes where minimal light is present. The cameras feature built-in motion
detection and advanced WDR that enables the system to compensate for
scenes where dramatic contrasts in lighting are present.

Lower Dome

Special consideration was taken when designing the Spectra V lower dome
bubble to ensure that an optimal optical relationship between the lens and
bubble was achieved, providing crystal clear video at long focal lengths.

Dome Systems

Spectra V dome systems feature many software enhancements that increase
performance and make configuration and operation easy. An internal

scheduling clock allows for the scheduling of presetsandpatterns.Window
blanking enables a user to configure up to eight, four-sided, user-defined

privacy areas. Password protection prevents unauthorized users from
changing the system settings. Configurable on-screen compass and tilt
display provides positioning information when needed. Intuitive multilingual
on-screen menus can be displayed in English, Spanish, Portuguese, Italian,
French, German, Russian, Polish, Turkish, and Czech.

Spectra V’s variable speed capabilities range from a smooth,fastpan motion of
400 degrees per second to a smooth “creep” speed of 0.1 degree per second.
The system is capable of continuous 360 degrees rotation and has an “auto
flip” feature that allows the dome to rotate 180 degrees and reposition itself
for uninterrupted viewing of any subject that passesdirectly beneath the dome.

Durability

Pelco’s Pressurized and Stainless Steel options are designed for harsh
environmental installations. The Stainless Steel option meets NEMA Type 4X
and IP66 standards. The components (back box and lower dome) provide added
protection against corrosive conditions. The IDM4012SS mount is designed
specifically for the Stainless Steel Spectra V and features an all stainless steel
construction and conduit access in the bottom and back of the mount.

Pelco’s Pressurized Spectra V option provides ultimate protection of the
camera optics and electronics from moisture, corrosive gases, and airborne
contaminants, meeting NEMA Type 6P and IP67 standards when installed
properly. Domes are pressurized with dry nitrogen before or after installation to
stabilize the internal environment. Temperature, pressure, and dew point
sensors are placed inside the system to send “Alert” messages when
conditions are beyond factory-set limits and allow for real time on-screen
monitoring. The lower dome features an innovative single captivated fastener,
O-ring seal, and a stainless steel V-band to create an easy and reliablepressure
seal. Accessible on the lower dome trim ring is a Schrader valve for system
purgingandapressurereliefvalve.ThePressurized Spectra V SE Series is
supplied with a pre-wired cable with mating connector. The cable includes all
wires for system functionality, including power, alarms, auxiliaries, coaxial
video, UTP video, and serial control.

C5007S / New 11-06-19

TECHNICAL SPECIFICATIONS

CAMERA/OPTICS

Day/Night (30X)

Signal Format NTSC / PAL

Scanning System 2:1 Interlace

Image Sensor

Effective Pixels

Horizontal Resolution

NTSC
PAL

Lens f/1.4 (focal length, 4.3 ~ 129 mm)

Zoom 30X optical, 12X digital

Zoom Speed (optical range) 5.5/7.4/10.3 seconds

Horizontal

Angle of view
Focus

Maximum Sensitivity at 35 IRE

NTSC/EIA

PAL/CCIR

White Balance Automatic with manual override

Shutter Speed

NTSC
PAL

Iris Control Automatic iris control with manual override

Gain Control Automatic/OFF

Video Output 1 Vp-p, 75 ohms

Video Signal-to-Noise >50 dB

Wide Dynamic Range 128 db

1/3-inch
1,296 (H) x 1,041 (V)

>740 TV Lines
>740 TV Lines

58.3° at 4.3 mm wide zoom;

2.1° at 129 mm telephoto zoom
Automatic with manual override

0.55 lux at 1/60 sec (color)

0.018 lux at 1/2 sec (color)

0.0048 lux at 1/2 sec (B-W)

0.45 lux at 1/50 sec (color)

0.015 lux at 1/1.5 sec (color)

0.004 lux at 1/1.5 sec (B-W)

Automatic (electronic iris)/Manual
1/15 ~ 1/30,000
1/13 ~ 1/30,000

DOME DRIVE FEATURES

• 256 Presets

• ± 0.1° Preset Accuracy

• Multilingual Menus (English, Spanish, Portuguese, Italian, French,
German, Russian, Polish, Turkish, and Czech)

• RJ-45 Data Port for Software Update and Setup

• On-Screen Compass, Tilt, and Zoom Display

• 400°/sec Pan Preset Speed and 200°/sec Tilt Preset Speed

• Rotating Discreet Liner with Sealed Fixed Bubble

• Window Blanking: Up to 8, Four-Sided, User-Defined Shapes

• 8 Zones (configurable in size) Can Be Labeled with up to 20 Characters
Each or Set to Output Blank Video

• 7 Alarm Inputs

• 1 Auxiliary (Form C) Relay Output and 1 Open Collector Auxiliary Output
(can be alternately configured to operate upon alarm)

• Configurable Locations of Labels and On-Screen Displays

• Action on Alarm: Alarms Can Be Individually Configured for 3 Priority
Levels, to Initiate a Stored Pattern, or to Go to an Associated Preset
When Received

• Resume After Alarm: Allows the Dome to Return to a Previously
Configured State After Alarm Acknowledgment or to its Previous Position
Before Alarm

• Multiple Park and Power-Up Action

• Patterns: Up to 8, On-Screen, User-Defined Configurable Patterns;
Includes Pan, Tilt, Zoom, and Preset Functions

• Proportional Pan/Tilt: Continually Decreases Pan/Tilt Speeds in Proportion
to Depth of Zoom

• Variable Scan Speed: Scan Speed Can Be Configurable Between
1 to 40°/sec

• Pan Motion Allows 0.1 to 150°/sec Pan Speed

• Configurable Limit Stops for Auto/Random/Frame Scan Modes

• Autosensing Protocol (Coaxitron®, RS-422 Pelco P and Pelco D,
Sensormatic®, Vicon®); Accepts Other Control Protocols with Optional
Translator Card

• Digital Position and Zoom Control and Feedback through Pelco D Protocol

• Built-in Menu System for Setup of Configurable Functions

• “Auto Flip” Rotates Dome 180° at Bottom of Tilt Travel

• Configurable Zoom Speeds

• Low Lux Noise Reduction (reduces noise in low light)

TECHNICAL SPECIFICATIONS

WINDOW BLANKING

Window blanking allows a

user to configure up to

eight, four-sided, user-defined

areas that cannot be viewed

by the operator of the dome
system. A blanked area will

move with pan and tilt

functions and automatically

adjust in size as the lens

zooms telephoto and wide.

BEFORE

AFTER AFTER

BEFORE

WIDE DYNAMIC RANGE

The WDR setting balances the
brightest and darkest sections
of a scene to produce a picture
that provides more detail.

TECHNICAL SPECIFICATIONS

A

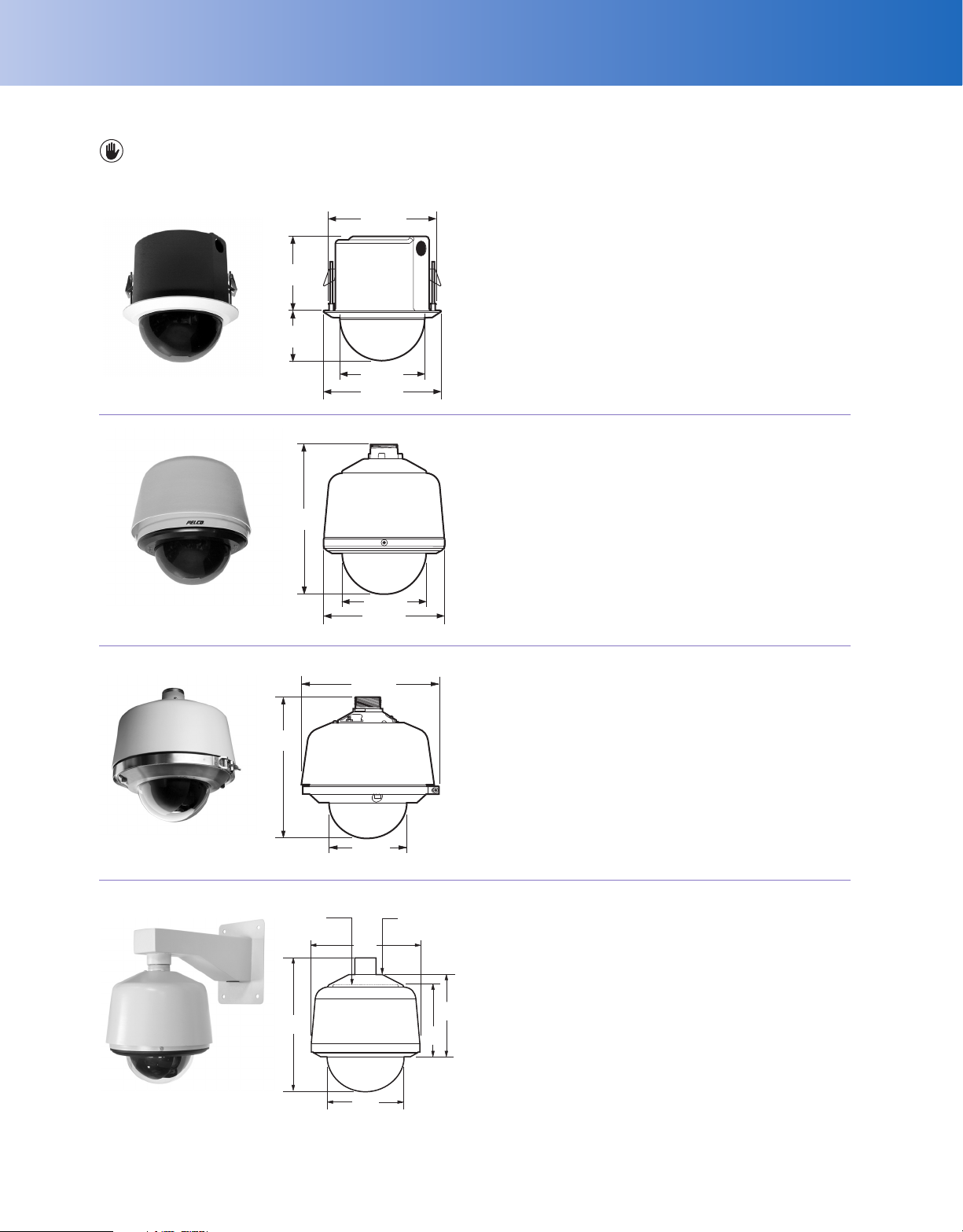

BACK BOX FEATURES

NOTE: VALUES IN PARENTHESES ARE INCHES; ALL OTHERS ARE CENTIMETERS.

19.0 (7.5)

13.2
(5.2)

9.2

(3.6)

IN-CEILING INDOOR

ENVIRONMENTAL DOME

WITH SUN SHROUD

28.2

(11.1)

15.0 (5.9)

20.8 (8.2)

15.0 (5.9)

21.8 (8.6)

In-Ceiling (Indoor)

• Built-in Memory Stores Camera/Dome Settings

• Single Back Box for Suspended or Hard Ceiling Applications

• Requires 13.35 cm (5.25 in) Space Above Ceiling and 8.25 cm (3.25
in) Below

• Minimum Ceiling Thickness 1.27 cm (0.50 in); Maximum 4.45 cm
(1.75 in)

• Quick Disconnect to Dome Drive

• Aluminum Construction

• Suitable for Use in Environmental Air Handling Spaces

• Integrated Passive UTP

Standard and Environmental Pendant

• Standard and Environmental Models

• Built-in Memory Stores Camera/Dome Settings

• Standard Pendant Available in Black or Gray Finish; Environmental

Pendant Gray Finish Only

• Quick Disconnect to Dome Drive

• Aluminum Construction

• Environmental Model Includes Sun Shield, Fan, and Heater

• Integrated Passive UTP

ENVIRONMENTAL PENDANT

PRESSURIZED

ENVIRONMENTAL PENDANT

STAINLESS STEEL

11.63
(29.5)

DOME IS SECURED
TO CEILING BY
MOUNTING BRACKET

10.90

(27.69)

10.50 (26.7)

5.96 (15.1)

8.52

(21.64)

5.90

(14.99)

TOP PORTION OF BACK BO
IS REMOVABLE FOR SURF
MOUNT APPLICATIONS

6.75

(17.15)

5.83

(14.80)

Environmental Pressurized Pendant Additions

• Back Box: Grey, Polyurethane Powder Coated Finish

• Type 316L Stainless Steel

• Schrader Value Brass

• Connect Nickel-Plated Steel

• Meets NEMA Type 6P and IP67 Standards

• Pressurization:

– Pressure 8 psig (55 kPa) (Not Factory Pressurized)

– Pressure Relief 10 psig (69 kPa)

Environmental Stainless Steel Pendant Additions

• Back Box: Grey, Polyurethane Power Coated Finish

• Lower Trim Ring: Black Polyurethane Powder Coated Finish

• Type 316L Stainless Steel

• Meets NEMA Type 4X and IP66 Standards

Note: The Spectra V Series can be ordered with heavy-duty, pressurized, and stainless steel back box options. Refer to the appropriate product specification sheets
for more information.

TECHNICAL SPECIFICATIONS

MECHANICAL (Dome Drive Only)

Pan Movement 360° continuous pan rotation
Vertical Tilt Unobstructed +2° to –92°
Manual Pan/Tilt Speeds

Pan 0.1° to 80°/sec manual operation,

150°/sec Turbo

Tilt 0.1° to 40°/sec manual operation

Preset Speeds

Pan 400°/sec
Tilt 200°/sec

For variable-speed operation, an appropriate
controller is required (with nonvariable speed
control, Spectra V pan/tilt speed is
20°/sec)

ELECTRICAL

Input Voltage 18 to 32 VAC; 24 VAC nominal

22 to 27 VDC; 24 VDC nominal

Input Power

24 VAC 23 VA nominal (without heater);

73 VA nominal (with heater)

24 VDC 0.7 A nominal (without heater);

3 A nominal (with heater)
Fuse 1.25 A
Auxiliary Outputs 2
Alarm Inputs 7

CERTIFICATIONS/RATINGS/PATENTS

• CE, Class B

• FCC, Class B

• UL/cUL Listed

• C-Tick

• S Mark for Argentina

• Meets NEMA Type 4X, IP66 when installed properly (BB4-PG,BB4-PSG-E,

and BB4-PG-E))

• Meets NEMA Type 1, IP40 (BB4-F)

• Meets NEMA Type 6P and IP67 standards when installed properly (BB4-

PR-E, LD53PR-0)

• U.S. Patents 5,931,432; 6,793,415 B2; 6,802,656 B2; 6,821,222 B2;

7,161,615 B2

GENERAL

Construction

Back Box

In-Ceiling Aluminum

Pendant Aluminum
Dome Drive Aluminum, thermo plastic
Bubble Acrylic

Construction Pressurized

Back Box and Lower Dome Type 316L stainless steel
Bubble Polycarbonate 0.090-inch thick Light Attenuation 1 F-stop

(smoked); zero light loss (clear)
V-Band Type 316L stainless steel
Pressure Relief Brass
Schrader Valve Brass
Connector Nickel-plated steel

Construction Stainless Steel

Back Box 316 stainless steel; gray, polyurethane

powder coated finish
Lower Dome Trim Ring 316 stainless steel; black,

polyurethane powder coated finish

Light Attenuation

Smoked f/0.5 light loss
Clear Zero light loss

Cable Entry (Back Box)

In-Ceiling and
Surface Mount 0.75-inch conduit fitting
Pendant Through 1.5-inch NPT pendant mount

Weight (Approximate) Unit Shipping

Back Box

In-Ceiling 0.95 kg (2.1 lb) 1.36 kg (3 lb)

Pendant 1.59 kg (3.5 lb) 2.27 kg (5 lb)
Dome Drive 1.48 kg (3.3 lb) 2.27 kg (5 lb)
Lower Dome

In-Ceiling 0.09 kg (0.2 lb) 0.45 kg (1 lb)

Pendant 0.27 kg (0.6 lb) 0.90 kg (2 lb)

Pressurized Weights Unit Shipping

Back Box 4.6 kg (10.2 lb) 5.9 kg (13 lb)
Lower Dome 1.5 kg (3.3 lb) 1.81 kg (4 lb)

Stainless Steel Weights Unit Shipping

Back Box 2.15 kg (4.75 lb) 3.18 kg (7 lb)
Lower Dome 0.83 kg (1.83 lb) 1.81 kg (4 lb)

Environment

In-Ceiling Indoor
Pendant, Environmental Indoor/outdoor

Operating Temperature

Indoor In-Ceiling 32° to 122°F (0° to 50°C)
Environmental Pendant (Assumes no wind chill factor)

Maximum 60°C (140°F) absolute maximum;

50°C (122°F) sustained maximum

Minimum –51°C (–60°F) absolute minimum; prevents

icing at sustained minimum of –45°C (–50°F);
de-ices 2.5 mm (0.1 inch) within 3 hours after
power-up

TS2 –34° to 74°C (–29.2° to 165°F)

Per NEMA TS2, para. 2.1.5.1, using fig. 2.1 test profile

Effective Projected
Area (EPA) 52.07squarecm(20.5 square inches), without

mount

119.38 square cm (47 square inches), with
IWM Series mount

TECHNICAL SPECIFICATIONS

RECOMMENDED MOUNTS

In-Ceiling Domes

SD5-P 2' x 2' drop ceiling panel, aluminum

construction; replaces 2' x 2' ceiling tile

SCA1 Support rails for BB4-F; for use in ceiling tile

applications

Pendant Domes

BB5-PCA-BK* Pendant conduit adapter, black

BB5-PCA-GY* Pendant conduit adapter, gray

IWM Series Wall mount, with or without integral 24 VAC,

100 VA transformer; black or gray finish; can
be adapted for corner, parapet, or pole
applications

MRCA Ceiling mount, black

PP350/PP351 Parapet wall/roof mount

SWM-GY Compact wall mount

*Not suitable for use with heavy-duty,pressurized, or stainless steel Spectra

domes.

Pressurized Domes and
Stainless Domes

IDM4012SS Stainless steel wall mount with feed-through

capabilities

RECOMMENDED POWER SUPPLIES

MCS Series Indoor, 24 VAC power supply
WCS Series Outdoor, 24 VAC power supply

Refer to individual power supply specifications for more information.

SYSTEM AND COMPONENT MODELS

SYSTEM MODEL NUMBERS

Type Back Box Color Lower Dome Spectra V Series, 30X Day/Night (NTSC/PAL)

In-Ceiling, Indoor White Smoked SD530-F0

Pendant, Standard

Pendant, Environmental*

Pendant, Environmental, Pressurized*

Grey

Grey

Grey

Pendant, Environmental, Stainless Steel* Grey Clear SD530-PSGE1

*Environmental dome systems include a heater, a fan, and a sun shield.

COMPONENT MODEL NUMBERS

Back Box Dome Drive Lower Dome

BB4-F In-ceiling, white
BB4-PG Pendant mount, grey
BB4-PG-E Pendant mount, grey, environmental
BB4-PR-E Pendant mount, environmental, pressurized, grey
BB4-PSG-E Pendant mount, stainless steel, grey

Notes:

To order a fixed mount dome system, refer to the component models above and select one each of the following options: back box, dome drive, plus choice of lower dome.

DD530 Day/Night (NTSC/PAL) camera

Smoked SD530-PG-0

Clear SD530-PG-1

Smoked SD530-PG-E0

Clear SD530-PG-E1

Smoked SD530-PRE0

Clear SD530-PRE1

(30X)

LDHQF-0 Smoked, surface, white
LDHQPB-0 Smoked, pendant, grey
LDHQPB-1 Clear, pendant, grey
LD53PR-0 Smoked, pressurized, grey
LD53PR-1 Clear, pressurized, grey
LD53PSB-1 Clear, stainless steel

†

Pelco

625 W Alluvial, Fresno, California 93711 United States

USA & Canada Tel [phone] Fax [phone]
International Tel [phone] Fax [phone]
www.pelco.com

Pelco, the Pelco logo, and other trademarks associated with Pelco products referred

to in this publication are trademarks of Pelco, Inc. or its affiliates. ONVIF and the

ONVIF logo are trademarks of ONVIF Inc. All other product names and

Product specifications and availability are subject to change without notice.

services are the property of their respective companies.

©Copyright 2019, Pelco, Inc. All rights reserved.
