PRODUCT SPECIFICATION
camera solutions
Spectra® HD Series IP Dome System
S5220 MODELS, HIGH DEFINITION PAN/TILT/ZOOM HIGH-SPEED DOME
Product Features
• Up to 1920 x 1080 Resolution
• 16:9 Aspect Ratio; 1080p at 30 Images per Second (ips)
• 2.0 Megapixel (MPx), 20X Optical Zoom, 12X Digital Zoom,
Wide Dynamic Range (WDR) Camera
• Ability to Control and Monitor Video Over IP Networks
• Built-in Analytics Including AutoTracker and Adaptive Motion
Detection
• 2 Simultaneous Video Streams: Dual H.264 and Scalable MJPEG
• 360° Continuous Pan Rotation at 280° per Second
• Supported Protocols: TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP,
DNS, DHCP, RTP, NTP, and More
• Power over Ethernet (PoE) IEEE 802.3af
• USB Expansion Slots for Alarms and Audio Accessories
• 16 Preset Tours, 255 Dome Presets, 32 Window Blanks
• Open IP Standards
• ONVIF v1.02 Conformant
Network Dome System
Pelco takes its industry-leading Spectra® Series dome into the
world of high definition. Spectra HD delivers crystal-clear, live
streaming images over the Internet using a standard Web browser
(Microsoft
times the resolution of standard definition domes, Spectra HD is
an ideal solution to view details such as faces, license plates,
tattoos, playing cards (in casinos), or other specific features.
Spectra HD supports High-Profile H.264 compression, a vast
improvement in quality over MPEG-4 and 20 times more efficient
than M-JPEG. The dome system features open architecture
connectivity for third-party software recording solutions allowing
integration into virtually any IP-based HD system. It is also
compatible with Digital Sentry
with all Pelco IP camera solutions, Spectra HD is Endura Enabled
to record, manage, configure, and view multiple live streams. When
connected to an Endura
the dome system has access to EnduraStor
optimized image quality and bandwidth efficiency.
Spectra HD features the same ease of installation and ease of
maintenance that you have come to expect from Spectra. Each dome
system consists of a back box, a dome drive, and a lower dome.
Spectra HD includes a choice of four back box models: in-ceiling,
environmental in-ceiling, pendant, and environmental pendant. All
environmental models meet NEMA Type 4X, IP66 when properly
installed.
®
Internet Explorer® or Mozilla® Firefox®). With nine
®
video management systems. As
®
HD network-based video security system,
™
and EnduraView™ for
Built-In Analytics
Pelco Analytics enhance the flexibility and performance of
Spectra HD. Nine Pelco behaviors are preloaded and included as
standard features. Pelco behaviors can be configured and enabled
using a standard Web browser, and they are compatible with Endura
or a third-party system that supports alarms using Pelco’s API.
Web Interface
Spectra HD uses a standard Web browser for powerful remote
setup and administration.
Window Blanking
Window blanking is used to conceal user-defined privacy areas that
cannot be viewed by an operator. Spectra HD supports up to 32
™
blanked windows. A blanked area will appear on the screen as a
solid gray window.
Video Systemization
Spectra HD easily connects to Pelco IP and hybrid systems such as
Endura version 2.0 (or later) and Digital Sentry version 7.3 (or later).
The camera is also compatible with Digital Sentry NVs (DS NVs), a
full-featured video management software, which is available as a
free download at www.pelco.com. DS NVs includes four free Pelco
IP licenses and allows for the management of video from up to
64 cameras.
Spectra HD features open architecture connectivity to third-party
software. Pelco offers an application programming interface (API)
and software developer’s kit (SDK) for interfacing with Pelco's IP
cameras.
International Standards
Organization Registered Firm;
ISO 9001 Quality System
C3940 / REVISED 11-29-12
TECHNICAL SPECIFICATIONS
PELCO ANALYTICS
Spectra HD Series includes nine user-configurable behaviors. The
camera is capable of running up to three behaviors at the same time;
although, the number of behaviors is limited to the available
processing power of the camera and the type of analytic being used.
NOTE: Available processing power is determined by the settings for
compression standards, resolution, image rate, bit rate, and analytic
configuration.
For each behavior, you can create several custom profiles that
contain different camera settings. With these profiles, you can set up
different scenarios for the behavior, which will automatically detect
and trigger alarms when specific activity is detected.
Pelco Analytics are configured and enabled using a standard Web
browser, and Pelco behavior alarms are compatible with Endura or a
third-party system that supports Pelco’s API system.
Multiple Pelco behaviors can be scheduled to work during a certain
time or condition. For example, during the day, a camera can be
configured with Object Counting to count the number of people that
enter a lobby door. At night, the operator can change the profile to
Camera Sabotage to trigger an alarm if a camera is moved or
obstructed. Available Pelco behaviors include:
• Abandoned Object: Detects objects placed within a defined zone and
triggers an alarm if the object remains in the zone longer than the
user-defined time allows. An airport terminal is a typical installation for
this behavior. This behavior can also detect objects left behind at an
ATM, signaling possible card skimming.
• Adaptive Motion Detection: Detects and tracks objects that enter a
scene and then triggers an alarm when the objects enter a user-defined
zone. This behavior is primarily used in outdoor environments with light
traffic to reduce the number of false alarms caused by environmental
changes.
• AutoTracker: Detects and tracks movement in the camera’s field of
view. When the AutoTracker behavior is configured, the system
automatically pans and tilts to follow the moving object until the object
stops or disappears from the monitored area.
• Camera Sabotage: Detects contrast changes in the field of view. An
alarm is triggered if the lens is obstructed by spray paint, a cloth, or if it is
covered with a lens cap. Any unauthorized repositioning of the camera
also triggers an alarm.
• Directional Motion: Generates an alarm in a high traffic area when a
person or object moves in a specified direction. Typical installations for
this behavior include an airport gate or tunnel where cameras can detect
objects moving in the opposite direction of the normal flow of traffic or an
individual entering through an exit door.
• Loitering Detection: Identifies when people or vehicles remain in a
defined zone longer than the user-defined time allows. This behavior is
effective in real-time notification of suspicious behavior around ATMs,
stairwells, and school grounds.
• Object Counting: Counts the number of objects that enter a defined
zone. This behavior can be used to count the number of people at a store
entrance/exit or inside a store where the traffic is light. This behavior is
based on tracking and does not count people in a crowded setting.
• Object Removal: Triggers an alarm if an object is removed from a
user-defined zone. This behavior is ideal for customers who want to
detect the removal of high value objects, such as a painting from a wall or
a statue from a pedestal.
• Stopped Vehicle: Detects vehicles stopped near a sensitive area longer
than the user-defined time allows. This behavior is ideal for airport
curbside drop-offs, parking enforcement, suspicious parking, traffic lane
breakdowns, and vehicles waiting at gates.
TECHNICAL SPECIFICATIONS
SYSTEM
SPECTRA
VIDEO
ANALYTICS OVERLAY
• CONFIGURATION
• ALARMS
• PELCO API
The following diagram illustrates how the camera system interprets streaming video when embedded analytics are configured and enabled.
IMPORTANT NOTE: PLEASE READ. The network implementation is shown as a general repr esentation only and is not intended to show a detailed network topology. Your actual network will differ,
requiring changes or perhaps additional network equipment to accommo date the system as illustrated. Please contact your local Pelco Representative to discuss your specific requirements.
TECHNICAL SPECIFICATIONS
25.2 (9.9)
11.0
(4.4)
15.0 (5.9)
21.8 (8.6)
10.9
(4.3)
21.8 (8.6)
15.0 (5.9)
26.9
(10.6)
15.00 (5.90)
26.90
(10.60)
23.80 (9.38)

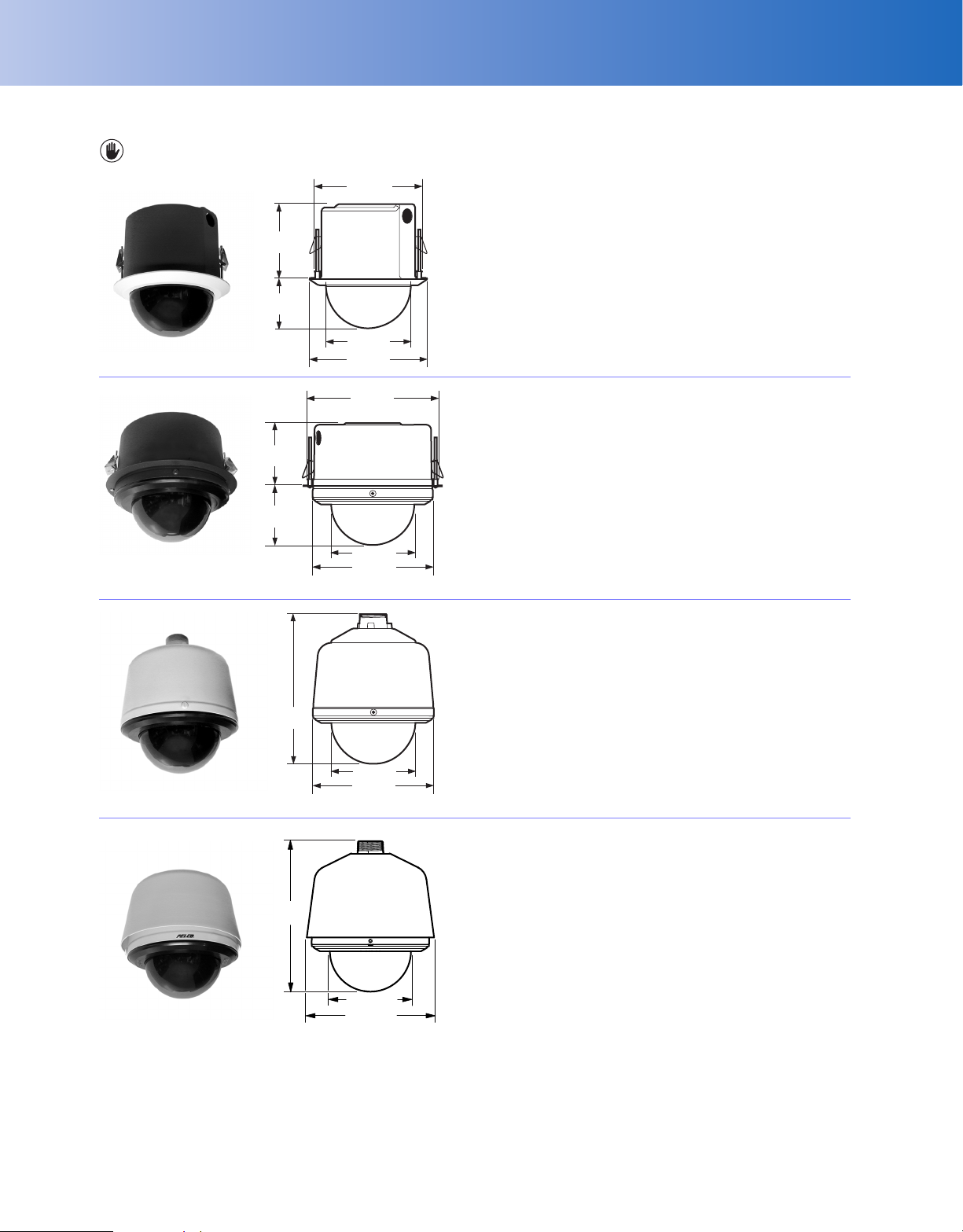

BACK BOX FEATURES
NOTE: VALUES IN PARENTHESES ARE INCHES; ALL OTHERS ARE CENTIMETERS.
19.0 (7.5)
13.2
(5.2)
8.8
(3.5)
15.0 (5.9)
20.8 (8.2)
In-Ceiling (Indoor)
• Single Back Box for Suspended or Hard Ceiling Applications
• Requires 13.35 cm (5.25 in.) Space Above Ceiling and 8.25 cm (3.25 in.) Below
• Minimum Ceiling Thickness 1.27 cm (0.50 in.); Maximum 4.45 cm (1.75 in.)
• Quick Disconnect to Dome Drive
• Aluminum Construction
• Suitable for Use in Environmental Air Handling Spaces
Environmental In-Ceiling
• Single Back Box for Hard Ceiling Applications
• Requires 11.18 cm (4.40 in.) Space Above Ceiling and
10.92 cm (4.30 in.) Below
• Includes Heater and Blower
• Minimum Ceiling Thickness 1.27 cm (0.50 in.); Maximum 4.45 cm (1.75 in.)
• Quick Disconnect to Dome Drive
• Aluminum Construction
Standard Pendant
• Standard Pendant Available in Black or Gray Finish
• Aluminum Construction
Environmental Pendant
• Environmental Pendant Available in Gray Finish Only
• Aluminum Construction
• Includes Sun Shield, Heater and Blower
TECHNICAL SPECIFICATIONS
SOFTWARE FEATURES
• 255 Presets
• 16 Tours
• ±0.1° Preset Accuracy
• Multilingual Menus (English, Spanish, Portuguese, Italian, German,
French, Russian, Turkish, Arabic, Chinese, and Korean).
• Password Protection
• 280°/sec Pan Preset Speed and 160°/sec Tilt Preset Speed
• Rotating Discreet Liner with Sealed Fixed Bubble
• 32 Window Blanks, Configurable in Size
• “Auto Flip” Feature Rotates Dome 180° at Bottom of Tilt Travel
• Configurable Park with Actions
• Proportional Pan/Tilt Continually Decreases Pan/Tilt Speeds in Proportion
to Depth of Zoom
CAMERA
Sensor Type 1/2.8-inch Type Exmor CMOS
Optical Zoom 20X
Digital Zoom 12X
Maximum Resolution 1920 x 1080
Lens f/1.6 ~ f/3.5,
Horizontal Angle of View 55.4° (wide) ~ 2.9° (tele)
Aspect Ratio 16:9
Light Sensitivity Sensitivity in lux for 90% reflectance, f/1.6
Color (33 ms) 0.65 lux
Color (250 ms) 0.07 lux
Mono (33 ms) 0.20 lux
Mono (250 ms) 0.015 lux
Day/Night Capabilities Yes
IR Cut Filter Yes
IR Trace Curves 850 nm and 950 nm
Wide Dynamic Range 80 dB
Iris Control Auto iris with manual override
Backlight Compensation Yes
Automatic Gain Control Yes
Active Noise Filtering Yes
focal length 4.7 mm (wide) ~ 94.0 mm (tele)
(wide-angle), 28 dB gain at 30 IRE (30% of
signal level) with Sensitivity Boost OFF.
4X improvement to sensitivity with
Sensitivity Boost ON.
TECHNICAL SPECIFICATIONS
VIDEO
Video Encoding H.264 High, Main, or Base profiles and
Video Streams Up to 2 simultaneous streams; the second
Frame Rate Up to 30, 25, 15, 12.5, 10, 8.333, 7.5, 6, 5, 3,
Available Resolutions Resolution MJPEG
Supported Protocols TCP/IP, UDP/IP (Unicast, Multicast IGMP),
Users
Unicast Up to 20 simultaneous users depending on
Multicast Unlimited users H.264
Security Access Password protected
Software Interface Web browser view and setup
Pelco System Integration Endura 2.0 (or later)
Open API Pelco API or ONVIF v1.02
MJPEG
stream is variable based on the setup of the
primary stream
2.5, 2, 1 (depending on the coding, resolution,
and stream configuration)
Aspect
MPx Width Height
Ratio
Maximum
IPS
Recommended
Bit Rate (Mbps)
2.07 1920 1080 16:9 30 12.0 30 3.50
0.92 1280 720 16:9 30 12.0 30 2.90
0.36 800 448 16:9 30 5.75 30 1.80
0.23 640 352 16:9 30 3.60 30 1.15
0.13 480 272 16:9 30 2.05 30 0.75
0.06 320 176 16:9 30 0.90 30 0.35
UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4,
SNMP v2c/v3, QoS, HTTP, HTTPS, LDAP
(client), SSH, SSL, SMTP, FTP, and
802.1x (EAP)
resolution settings (2 guaranteed streams)
Digital Sentry 7.3 (or later)
H.264 High Profile
(IP GOP structure)
Maximum
IPS
Recommended
Bit Rate (Mbps)
ANALYTICS
Required Systems for Pelco Analytics
Pelco Interface WS5200 Advanced System Management
Software on an Endura 2.0 (or later) system
Open API The Pelco API can transmit behavior alarm
data to third-party applications, available at
pdn.pelco.com
MINIMUM SYSTEM REQUIREMENTS
Processor Intel® Core™ i3 Processor, 2.4 GHz
Operating System Microsoft
Memory 4 GB RAM
Network Interface Card 100 megabits (or greater)
Monitor Minimum of 1024 x 768 resolution, 16- or
Web Browser* Internet Explorer
Media Player
†
This product is not compatible with QuickTime version 7.6.4 for Windows
†
Pelco Media Player‡ or QuickTime® 7.6.5 for
XP or Windows Vista. If you have this version installed on your PC, you will
need to upgrade to QuickTime version 7.6.5.
‡
Pelco Media Player is recommended for control, smoothness, and reduced
latency as compared to QuickTime.
®
with DirectX 11, Windows
Windows® 7 (32-bit and 64-bit)
with DirectX 9.0c, or Mac
32-bit pixel color resolution
®
Firefox
3.5 (or later); Internet Explorer 8.0 (or
®
XP Service Pack 3
®
OS X 10.4 (or later)
®
8.0 (or later) or Mozilla®
later) is recommended for configuring
analytics
Windows XP, Windows Vista, and Windows
7; or QuickTime 7.6.4 for Mac OS X 10.4 (or
later)
TECHNICAL SPECIFICATIONS
GENERAL
Construction
Back Box Aluminum
Dome Drive Aluminum, thermo plastic
Lower Dome Acrylic
Light Attenuation
Smoked f/0.5 light loss
Clear Zero light loss
Cable Entry (back box)
In-Ceiling 0.75-inch conduit fitting
Pendant Through 1.5-inch NPT pendant mount
Weight (approximate) Unit Shipping
In-Ceiling 2.1 kg (4.6 lb) 3.3 kg (7.3 lb)
Environmental In-Ceiling 2.4 kg (5.4 lb) 3.9 kg (8.5 lb)
Standard Pendant 3.5 kg (7.7 lb) 5.5 kg (12.2 lb)
Environmental Pendant 3.6 kg (7.9 lb) 5.6 kg (12.4 lb)
Environment
In-Ceiling Indoor
Environmental In-Ceiling Outdoor
Pendant, Standard, and
Environmental Indoor/outdoor
Operating Temperature
In-Ceiling 0° to 50°C (32° to 122°F)
Standard Pendant (Assumes no wind chill factor)
Maximum 45°C (113°F) absolute maximum;
35°C (95°F) sustained maximum
Minimum –4°C (25°F) sustained minimum
Environmental In-Ceiling,
Environmental Pendant (Assumes no wind chill factor)
Maximum 60°C (140°F) absolute maximum;
50°C (122°F) sustained maximum
Minimum –45°C (–50°F) sustained minimum;
–51°C (–60°F) absolute minimum;
prevents icing at sustained minimum of
–30°C (–22°F); de-ices 2.5 mm (0.1 in.) within
3 hours after power-up at –30°C (–22°F)
(no wind chill factor)
Operating Humidity
In-Ceiling (Indoor), 10 to 90% RH (non-condensing)
Standard Pendant
Environmental In-Ceiling, 10 to 100% RH (condensing)
Environmental Pendant
Effective Projected Area (EPA) 20.5 square inches (without mount),
47 square inches (with IWM Series mount)
ELECTRICAL
Port RJ-45 connector for 100Base-TX
Auto MDI/MDI-X
Autonegotiate/Manual setting
Cabling Type Cat5 or better for 100Base-TX
Input Voltage 18 to 32 VAC; 24 VAC nominal
22 to 27 VDC; 24 VDC nominal
Input Power
24 VAC 23 VA nominal (without heater and blower);
73 VA nominal (with heater and blower)
24 VDC 0.7 A nominal (without heater and blower);
3 A nominal (with heater and blower)
PoE IEEE802.3af (without heater and blower)
CERTIFICATIONS/RATINGS/PATENTS
• CE, Class A
• FCC, Class A
• UL /cUL Listed
•C-Tick
• U.S. Patents 5,931,432; 6,793,415 B2; 6,802,656 B2; 6,821,222 B2;
7,161,615 B2
• Meets NEMA Type 4X and IP66 standards when installed properly
(B52-F-E and B52-PG-E)
•ONVIF 1.02
•KCC
• For Environmental models:
– IEC 60068-2-1
– IEC 60068-2-2
– IEC 60068-2-6
– IEC 60068-2-14
– IEC 60068-2-27
– IEC 60068-2-30
– IEC 60068-2-78
MECHANICAL
(Dome Drive Only)
Variable Speed 0.1° to 280°
Preset Accuracy ±0.1°
Pan Movement 360° continuous pan rotation
Vertical Tilt +1° to –90°
Manual Pan/Tilt Speeds
Pan 0.1° to 80°/sec manual operation
Tilt 0.1° to 40°/sec manual operation
Preset Speeds
Pan 280°/sec
Tilt 160°/sec
TECHNICAL SPECIFICATIONS
Pelco, the Pelco logo, and other trademarks associ ated with Pelco products referred
to in this publication are trademarks of Pelco, Inc. or its affiliates. All other
product names and services are the property of t heir respective companies.
ONVIF and the ONVIF logo are trademarks of ONVIF Inc.
Product specifications and availability are subjec t to change without notice.
©Copyright 2012, Pelco, Inc. All rights reserved.
SYSTEM MODEL NUMBERS
Spectra HD,
Type Back Box Color Lower Dome
In-ceiling, indoor
In-ceiling,
environmental
Pendant, standard
Pendant,
environmental
Black with
white trim ring
Black with
black trim ring
Gray
Black
Gray
Smoked S5220-FW0
Clear S5220-FW1
Smoked S5220-YB0
Clear S5220-YB1
Smoked S5220-PG0
Clear S5220-PG1
Smoked S5220-PB0
Clear S5220-PB1
Smoked S5220-EG0
Clear S5220-EG1
COMPONENT MODEL NUMBERS
Back Box Lower Dome* Dome Drive
B52-F Back Box In-Ceiling LDHQF-0 Lower Dome High-Quality Smoked In-Ceiling D5220F
B52-F-E Back Box In-Ceiling Environmental LDHQF-1 Lower Dome High-Quality Clear In-Ceiling
B52-PG Back Box Pendant Gray LDHQPB-0 Lower Dome High-Quality, Smoked Pendant
B52-PB Back Box Pendant Black LDHQPB-1 Lower Dome High-Quality Clear Pendant
B52-PG-E Back Box Pendant Gray Environmental
*Use the pendant lower domes with the environmental in-ceiling and environmental pendant back boxes.
2.0 MPx, 20X
D5220P
Dome Drive In-Ceiling
Dome Drive Pendant
RECOMMENDED MOUNTS
In-Ceiling Domes
SD5-P 2' x 2' drop ceiling panel, aluminum
construction; replaces 2'þx 2' ceiling tile
SCA1 Support rails for B5-F; for use in ceiling tile
applications
Pendant Domes
BB5-PCA-BK Pendant conduit adapter, black
BB5-PCA-GY Pendant conduit adapter, gray
IWM Series Wall mount, with or without integral 24 VAC,
100 VA transformer; black or gray finish; can
be adapted for corner, parapet or pole
application
MRCA Ceiling mount, black
PP4348 Parapet roof mount
PP350/PP351 Parapet wall/roof mount
SWM Series Compact wall mount, black or gray finish; can
be adapted for corner or pole applications
OPTIONAL ACCESSORIES
ALM-1 External alarm accessory
AUD-1 External audio accessory
MCS Series Indoor, 24 VAC power supply
WCS Series Outdoor, 24 VAC power supply
Refer to individual power supply specifications for more information.
Pelco by Schneider Electric
3500 Pelco Way, Clovis, California 93612-5699 United States
USA & Canada Tel (800) 289-9100 Fax (800) 289-9150
International Tel +1 (559) 292-1981 Fax +1 (559) 348-1120
www.pelco.com
Loading...
