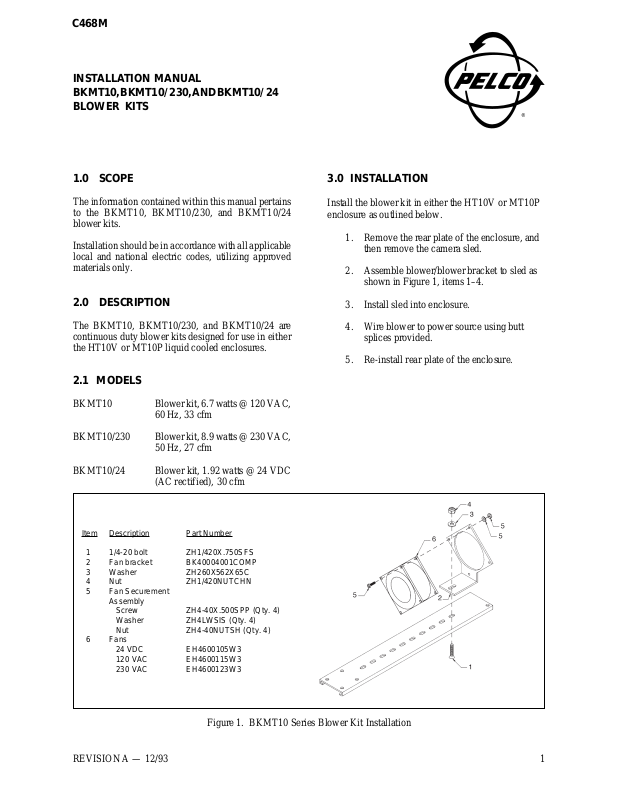

Pelco BKMT10-230, BKMT10-24 User Manual 2

C468M

INSTALLATION MANUAL
BKMT10, BKMT10/230, AND BKMT10/24
BLOWER KITS

®

1.0 SCOPE

The information contained within this manual pertains
to the BKMT10, BKMT10/230, and BKMT10/24
blower kits.

Installation should be in accordance with all applicable
local and national electric codes, utilizing approved
materials only.

2.0 DESCRIPTION

The BKMT10, BKMT10/230, and BKMT10/24 are
continuous duty blower kits designed for use in either
the HT10V or MT10P liquid cooled enclosures.

2.1 MODELS

BKMT10 Blower kit, 6.7 watts @ 120 VAC,

60 Hz, 33 cfm

BKMT10/230 Blower kit, 8.9 watts @ 230 VAC,

50 Hz, 27 cfm

BKMT10/24 Blower kit, 1.92 watts @ 24 VDC

(AC rectified), 30 cfm

3.0 INSTALLATION

Install the blower kit in either the HT10V or MT10P
enclosure as outlined below.

1. Remove the rear plate of the enclosure, and
then remove the camera sled.

2. Assemble blower/blower bracket to sled as
shown in Figure 1, items 1–4.

3. Install sled into enclosure.

4. Wire blower to power source using butt
splices provided.

5. Re-install rear plate of the enclosure.

Item Description Part Number

1 1/4-20 bolt ZH1/420X.750SFS
2 Fan bracket BK40004001COMP
3 Washer ZH260X562X65C
4 Nut ZH1/420NUTCHN
5 Fan Securement

Assembly

Screw ZH4-40X.500SPP (Qty. 4)
Washer ZH4LWSIS (Qty. 4)
Nut ZH4-40NUTSH (Qty. 4)

6 Fans

24 VDC EH4600105W3
120 VAC EH4600115W3
230 VAC EH4600123W3

Figure 1. BKMT10 Series Blower Kit Installation

REVISION A — 12/93 1

4.0 WARRANTY AND RETURN
INFORMATION

WARRANTY

If a warranty repair is required, contact PELCO at (800)
289-9100 or [phone] for a Repair Authoriza-

tion number (RA), and provide the following informa­tion:

PELCO will repair or replace, without charge, any
merchandise proved defective in material or workman­ship for a period of one year after the date of shipment
(six months on all pan and tilts with auto scan and
medium duty scanners, and two years on Legacy, Inter­cept and CM9500/CM8500 Matrix products). PELCO
will warranty all replacement parts and repairs for 90
days from the date of shipment. All goods for warranty
work shall be sent freight prepaid to our Clovis, Califor­nia facility. Repairs made necessary by reason of mis­use, alteration, normal wear, or accident are not covered
under this warranty. PELCO is not liable for any inci­dental or consequential expenses or liability incurred by
the customer as a result of field repair, installation, or
any other reason.

The above warranty is in lieu of any other expressed or
implied warranty, condition, or guarantee by PELCO of
the equipment listed herein. PELCO makes no warran­ties except for intended use and will not be liable for any
loss, damage, or costs arising, whether consequential or
incidental, from the use of said merchandise.

This warranty gives you specific legal rights. You may
also have additional rights, which are subject to varia­tion from state to state.

1. Model and serial number

2. Date of shipment, P.O. number, Sales Order
number, or PELCO invoice number

3. Details of the defect or problem

If there is a dispute regarding the warranty of a product
which does not fall under the warranty conditions stated
above, please include a written explanation with the
product when returned.

Ship freight prepaid to: PELCO

300 West Pontiac Way
Clovis, CA 93612-5699

Method of return shipment shall be the same as method
by which the repair item is received by PELCO.

RETURNS

In order to expedite parts returned to the factory for
repair or credit, please call the factory at (800) 289-
9100 or [phone] to obtain an authorization
number (CA number if returned for credit, and RA
number if returned for repair). Goods returned for
repair or credit should be clearly identified with the
assigned CA/RA number and freight should be prepaid.
All merchandise returned for credit may be subject to a
20% restocking and refurbishing charge.

Ship freight prepaid to: PELCO

300 West Pontiac Way
Clovis, CA 93612-5699

PELCO

300 West Pontiac Way, Clovis, CA 93612-5699 [phone] • [phone]

FAX [phone] or [phone] • DataFAX [phone] or [phone]

(Product specifications subject to change without notice.)

C468M

2 REVISION A — 12/93
