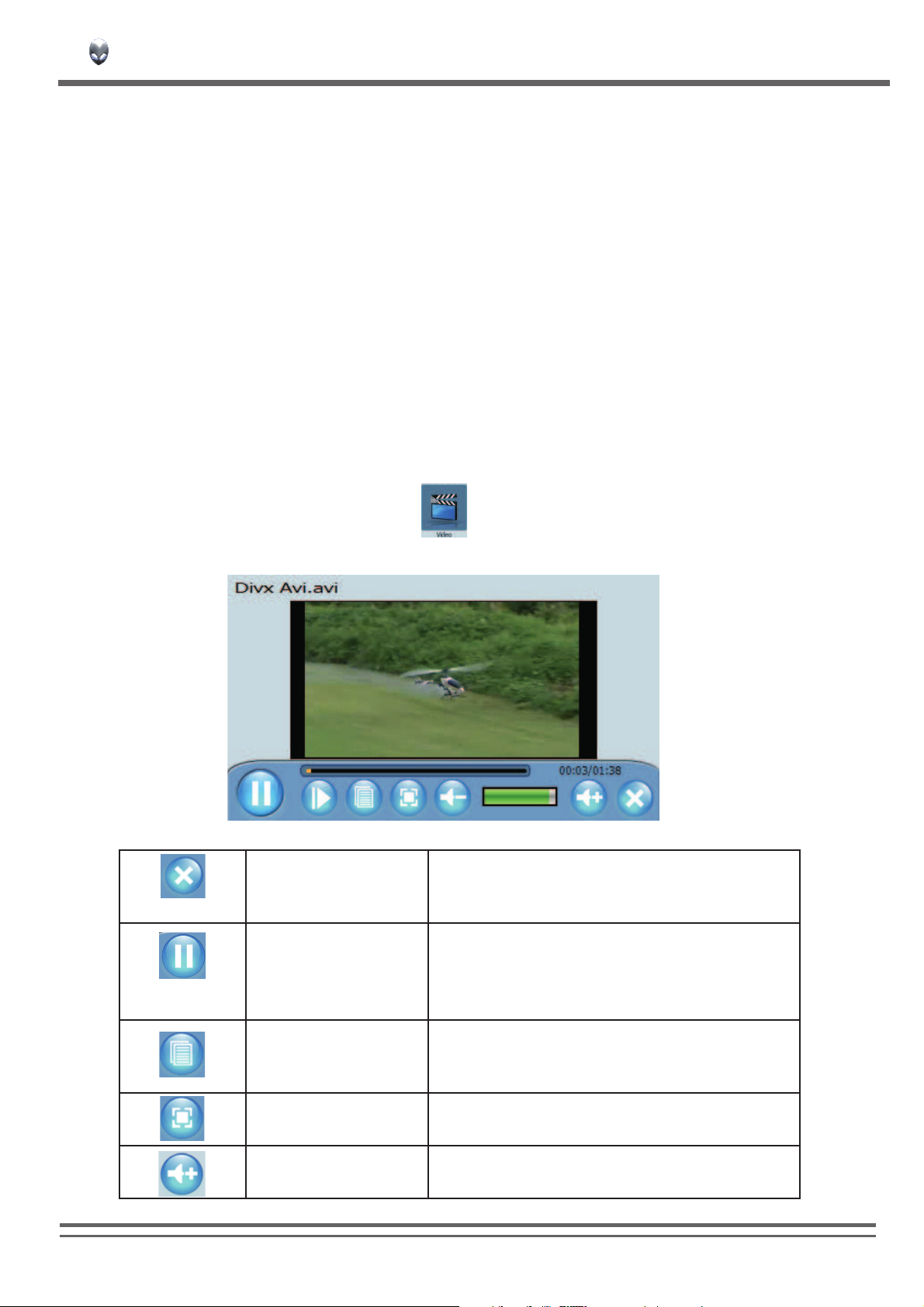

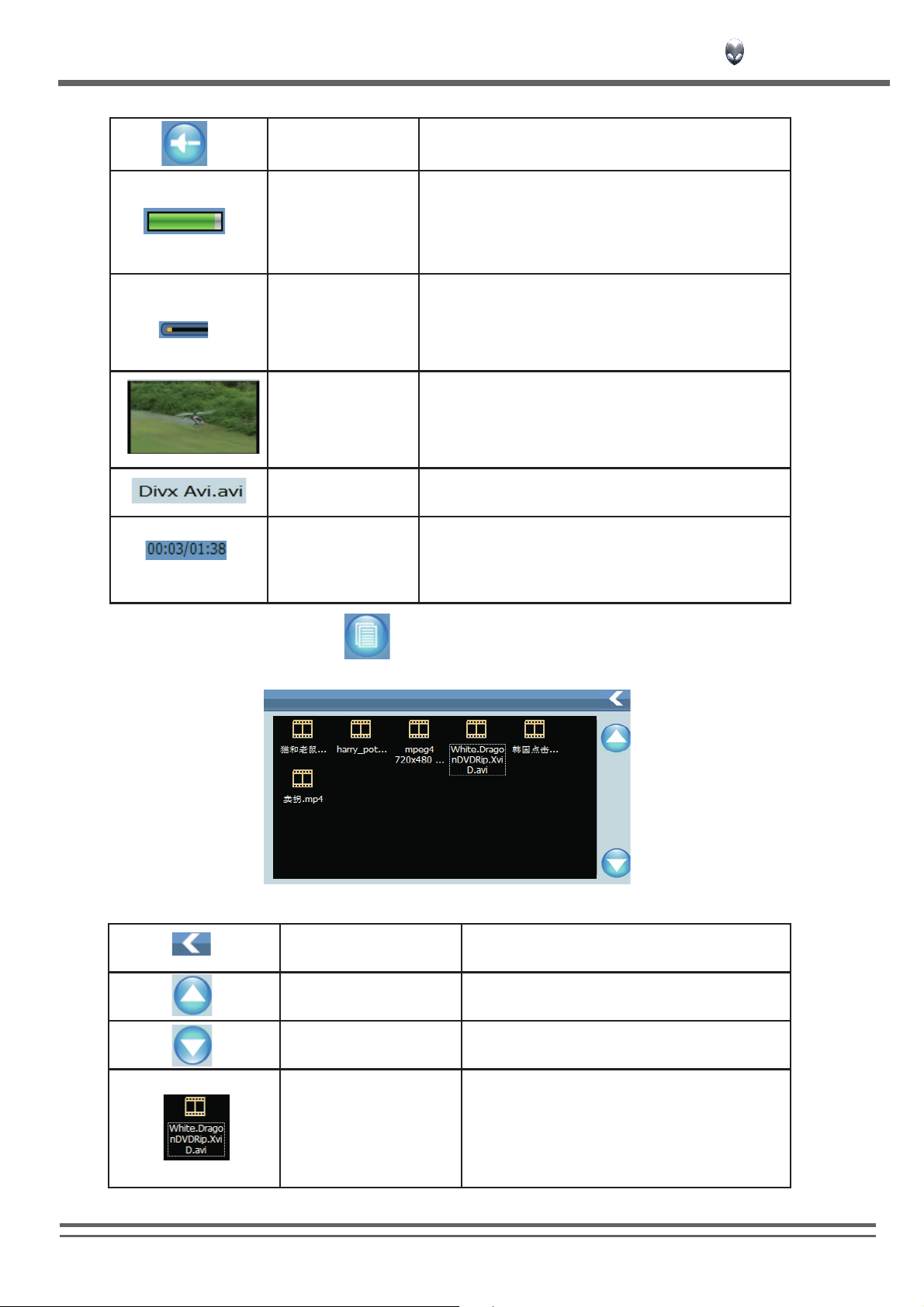

4.4 VEDIO PLAYER INTERFACE 17
4.4.1 FUNCTION FEATURE 17
4.4.2 OPERATION METHOD 17

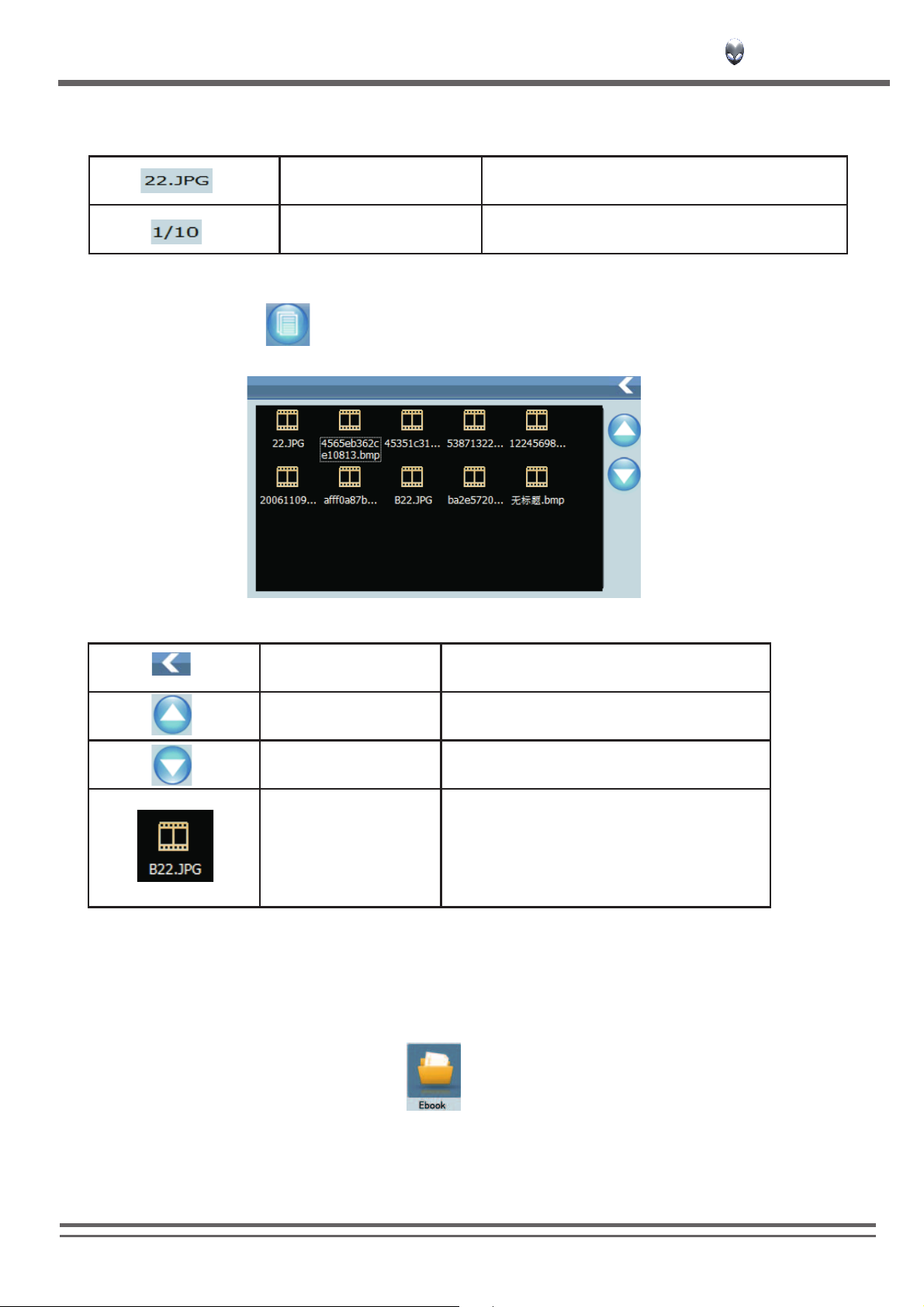

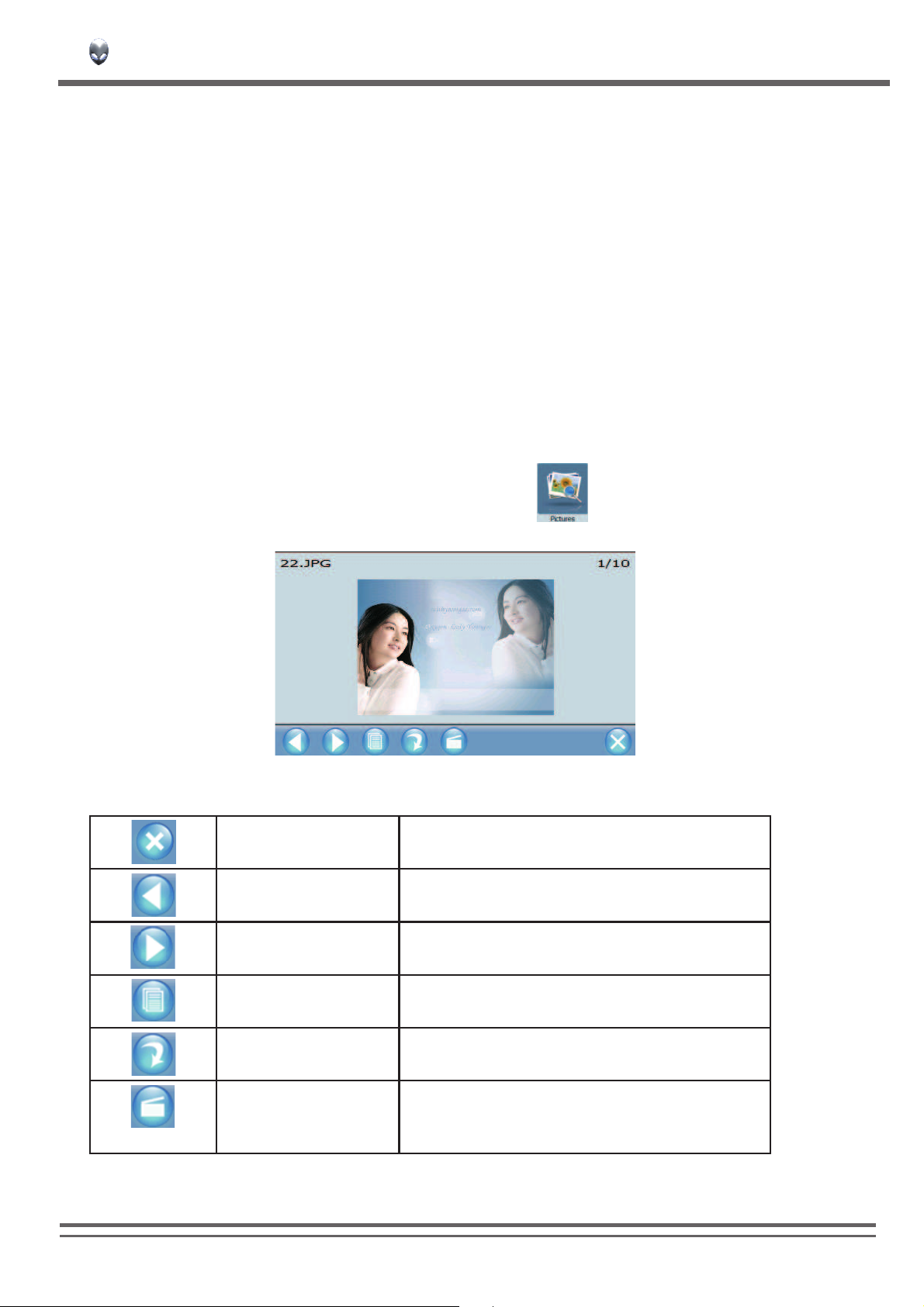

4.5 PHOTO VIEWER OPERATION INTERFACE 19
4.5.1 FUNCTION FEATURE 19
4.5.2 OPERATION METHOD 19
4.6 E-BOOK OPERATION 20
WWW.PEIYING.PL
3
ALIEN

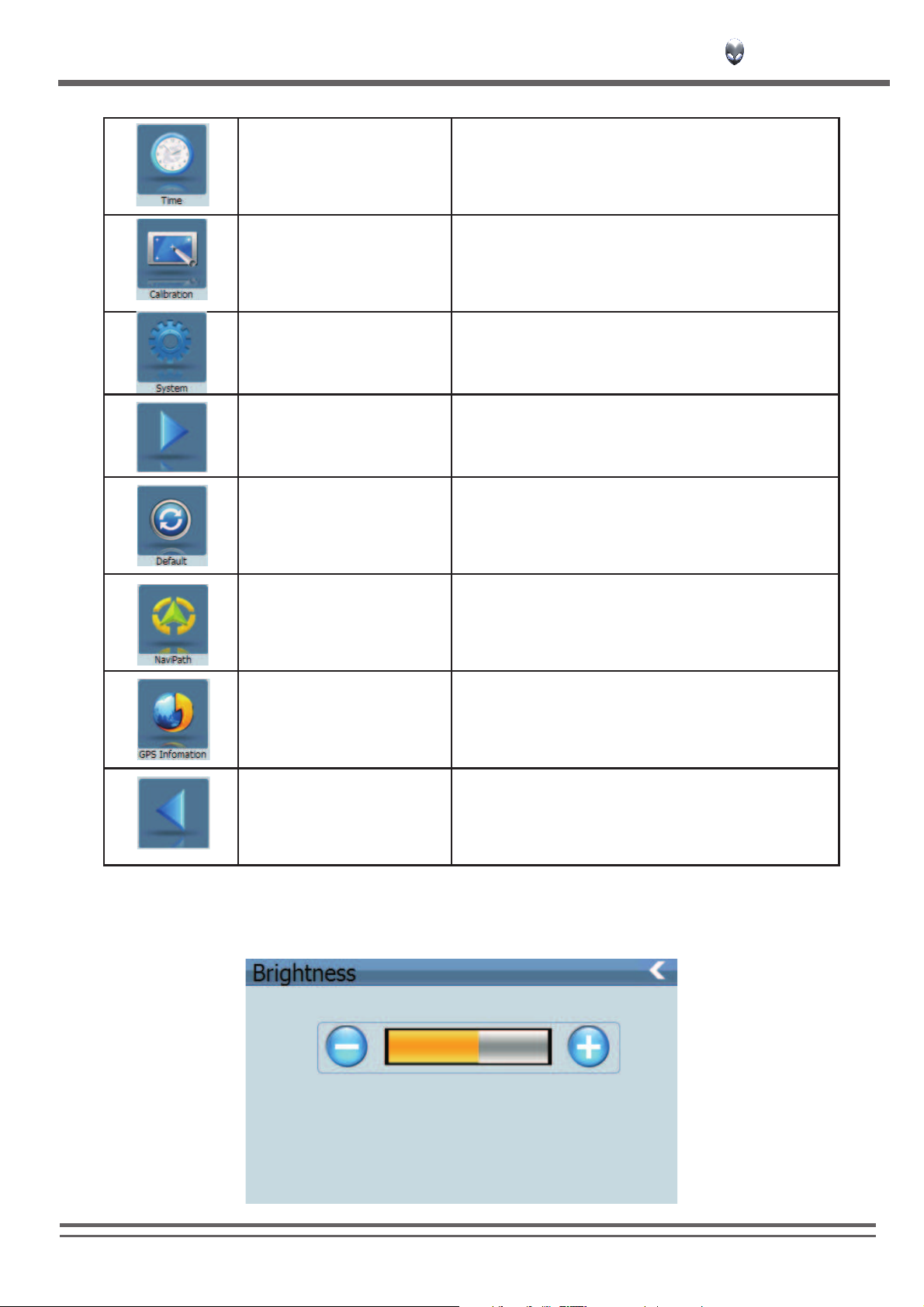

4.7 SYSTEM SETTING INTERFACE 21
4.7.1 BACK LIGHT SETTING 22
4.7.2 VOLUME ADJUST 23
4.7.3 LANAUGUE SETTING 24
4.7.4 GPS INFO 24
4.7.5 DATE AND TIME SETTING 25
4.7.6 SCREEN CALIBRATION 25
4.7.7 SYSTEM INFORMATION 26
4.7.8 DEFAULT SETTING 27
4.7.9 NAVIPATH 27
CHAPTER FIVE SIMPLE PROBLEM SHOOTING AND MAINTENANCE 28
PY-GPS5003
Product introduction
1.1 Introduction
1.2 Package
Welcome to use the GPS navigator, which is mainly used for navigating and also has the optional function of video playing, audio playing, Bluetooth hands free, FM, photo viewing, and E-Book etc.
- High performance, low-power consumption MediaTek MT3351 CPU
- Comfortable user interface: simple, easy to operate;
- Power management: keep the product to work longer and more steadily;
- Data transmitting: communicate with computer through USB cable;
- Excellent in receiving signal: accurate position fixing provides you the satisfied navigating service;
- Entertainment: MP3 and MP4 function can relieve your fatigue; You can use it when driving, walking, riding, or waiting for a meeting; the perfect “GPS + entertainment” function can make your life and work more splendid.
The packing box contains the following accessories, please confirm:
1. GPS navigator
2. Car charger
3. USB cable
4. User’s manual
5. Car Bracket
6. Car Cradle For the items listed above, please confirm the actual products. If any damage,please contact with the distributor or the agent as soon as possible.
WWW.PEIYING.PL
4
ALIEN
PY-GPS5003
Instruction
2.1 Main features
2.2 Specification
Chapter Two Features and specifications
Please read this user’s manual carefully to be familiar with all the operation details and to make the GPS navigator performs well:
[Remark]: The instruction relates to the theme; [Relative information]: The extending information relates to the theme; [Note]:The notes and warnings relate to the theme. Please value and follow
these notes, otherwise it will possibly bring damage to you and others.
This user manual only adapts to our GPS navigator products.
- Operating system: Microsoft Windows CE 5.0
- 4.3’’,5.0’’ TFT LCD display with resolution of 480*272 pixels
- Hi-Fi stereo earphone and built-in Hi-Fi speaker, volume adjustable
- Button and touch-screen operation
- Built-in sensitive GPS antenna
- The navigating software could run the T-FLASHSD card directly
- Audio format supported :MP and WMA
- Video format supported: ASF,AVI,WMV
- Photo format supported: BMP,JPG
- E-book format supported: TXT
- MINI USB port
- Built-in rechargeable Li-battery which can be powered by travel and car charger.
WWW.PEIYING.PL
5
ALIEN
CPU
MediaTek MT3351
RAM
64 MBytes
Flash memory
64 MBytes
LCD display
5.0 inch TFT LCD display, resolution: 480RGB(H)x272(V)
Touch-screen
high-accuracy, endurable touch-screen
USB
USB Client 2.0, MINI USB port
PY-GPS5003
Card Slot
T-Flash card slot, the maximum capacity of T­Flash Card it supports reaches to 4GB
Audio
A: Built-in high fidelity speaker B: High fidelity stereo earphone
GPS
Cold start: <42s Hot start: <3s(in the open area) Warm start: <36s
Battery
Built-in rechargeable Li-battery
Battery Charging port
DC 5V port
Car Charger
DC9-24V, 5V/ 1.5A
Status of the LCD light
When charging, the red light is on; when charge finished, the blue light is on.
Operating System
Microsoft Windows CE 5.0
Video Player
Support MPEG4, Divx 5.0, 4.0, 3.11, Xvid and MPEG2( maximum 480*272 pixels)
Audio Player
MP3, WMA
Photo viewer
E-Album, JPG, GIF, BMP, PNG
E-Book Viewer
TXT
System setting
[FM Transmitter] [screen adjust] [Default set] [Volume] [Power] [Backlight] [Time and Date] [Language] [Sys Info]
Temperature
o o
Operating Temperature : 0 C to 60 C
o o
Storage Temperature : -20 C to 60 C
Working humidity range
45% to 80%RH
Storage humidity range
30% to 90%RH
Atmospheric pressure
86KPa to 106KPa
Specifications are subject to change without notice. Sorry for any inconvenience caused!
WWW.PEIYING.PL
6
ALIEN
PY-GPS5003
2.3 Product appearance
Power Button
Mic
LED indicator
Earphone Jack
T-Flash Card Slot
Mini USB
This chapter will give an introduction of the apparent components and basic function of the GPS Navigator and it will help you to be familiar with the basic operation quickly.
WWW.PEIYING.PL
7
ALIEN
t
t
t
PY-GPS5003
3.1 Power supply and charge
3.1.1 Power supply
1
Screen
Display
2
Power button
Power on/off the device
3
LED indicator
Indicate whether there is external power supply; When charging, the red light is on; when charge finished, the blue light is on.
4
Microphone
Voice input for Bluetooth hands-free
5
MINI USB and common charging interface
Communicate with PC and adapter via MINI USB cable
6
T-Flash card slot
Can put T-Flash card in it. Please don’t take away the card when the program in the card is on! [Note] If you have taken away the card, please press RESET to reactive the system.
7
Earphone jack
Connect to stereo earphone.
Chapter Three Manual Instruction
If this navigator is first used, please use AV adaptor to fully charge it.
There are three types of supplying power: battery, adaptor, USB cable. GPS navigator uses the Li-battery to supply power when it is not connected with adaptor. The mark [ ] on the up left of interface indicates the current electric volume. GPS navigator uses the external power when it is connected with the adaptor. GPS navigator uses the USB cable to supply power when the GPS connects to the PC. When this navigator is been used, it is not charging nor discharging.
[Remark] This machine adopt built-in, unchangeable Lithium battery. At normal condition (if the back light is not so bright), the full charged battery can be used for 10 hours. The actual supply hour can be different because of the different way using the navigator. Some function (audio playing, video playing, bright back light) will consume a large power, which will reduce the using hour.
WWW.PEIYING.PL
8
ALIEN
PY-GPS5003
3.2 Power on/off
3.2.1 Power on:
3.1.2 Use the car adaptor to charge
WWW.PEIYING.PL
9
ALIEN
[Note] This machine adopts built-in, unchangeable Lithium battery. In order to avoid fire and burning, please do not poke, bump or take it apart or throw it into fire or water.
1. Connect the DC part of the adaptor with the power interface at the left side of the unit (The power interface is same as USB interface );
2. The other part connect to the power socket, it supplies power while charging.
[Note] Please insert the car adaptor after running the car so as not to damage the machine by electricity collision. [Remark] Red LED indicates it’s being charged. Please wait until it is fully charged and don’t pull out the adaptor while charging. When it is fully-charged, the LED will turn to Blue. If low battery or no battery, please charge it immediately
Power on/off is controlled by [ ] button. Turn off to enter the power saving mode, it will maintain the last operation status when boot next time.
Please check: The battery is enough, or it is connected to external power source; Please press the [ ] on the top of the unit to boot.
[Note] If bring the unit form one place to another place, please boot until it adapts to the environment. Big humidity fluctuation will make the mainframe short circuited.
PY-GPS5003
3.3 Reset system
3.4 Use bracket to fix navigator
3.5 Stylus
3.2.2 Power off
Press the [ ] on the top of the unit to turn off, the unit will enter the power saving mode and maintain the last operation status when boot next time.
When use GPS in the car, you should fix the device to the part of window besides the panel by using the bracket.
[Note] When use the bracket, please take care of the position. Please don't fix the navigator to the position where the driver's sight is being influenced. Please do not lay it aside freely; do not fix it to the air bag, do not lay it on the expand range of the air bag.
[Note] Any broken stylus, ball pen or any acute and harsh object will destroy the LCD if you use it to operate the device.
The stylus is the tool for you to use your navigator. Please keep it carefully.
1. Single click : Singly click the screen with the stylus point.
2. Double click: Double click the screen with the stylus point.
3. Drawing: Click one point and hold to move on the screen.
If the system cannot work, you can reset the system by the following way: Click the reset key on the left part of the machine to reset the system by using the stylus, then press power key to reset system. [relative information]: it can be no response in the following condition:
1. The shift between pictures is delayed or stopped.
2. The program select function cannot work normally, such as long time to carry out or cannot be activated.
3. The power button can not work [Note] The unsaved data will be lost as you reset the system when the system has no response. Please copy the data every other time.
WWW.PEIYING.PL
10
ALIEN
PY-GPS5003
3.6 T-Flash Card
3.7 Connect with computer
WWW.PEIYING.PL
11
ALIEN
[Note] Please do not take out the T-Flash card when the system is navigating or playing.
[Note]
1. Don't stress or curve the T-Flash card, avoid loss and bulge.
2. Avoid high temperature or high humidity when use and store the card, don't expose the card directly to sun light, let the card far away from liquid and corrosive material.
3. Please pay attention to the heading when insert the T-Flash card. If you insert the card improperly, you will damage the card.
The device can be connected with the computer through the MINI USB on its left part. You can copy the document between navigator and computer or copy the data from GPS navigator to computer so as to recover the data in GPS when you are in need of them.
1. Please confirm the GPS navigator is power on;
2. Connect the MINI end [ ] of USB cable with the USB port on the left part of GPS device and the normal end [ ] with the Host port on computer.
3. After connecting, the screen will dispaly the interface as below:
Enter the USB mode. After connection, the computer can recognize and find the new hardware unit automatically. GPS navigator will stop operating the current procedure and shift to the online interface. [Note] Data security: Please copy the data to the outer storage device every time before you update your system data. Our company takes no responsibility to any loss of data. [Remark] The GPS navigator will stop the operation when it is connected with computer.
PY-GPS5003
Chapter Four Primary function
4.1 The main interface and the function Main menu as picture
Function introduction
[Note] In the process of communication, the following operations will break off the connection with computer, the unfinished data will be lost.
1. Pull out the MINI USB cable;
2. Power off
3. Reset the system by using reset button or electric switch
4. Click the close button on the top right corner.
Navigation
Provide navigation reference
Video player
Video playing format: WMV, ASF and AVI. Support schedule adjustment, pause, volume, next play, full screen playing.
Photo viewer
Photo format : JPG? GIF? BMP and PNG Support previous/next, picture rotate, picture zoom, and auto play;
E-book
Text format: txt. Support page option
Audio player
Audio playing format: WM9, MP3, WAV. Support random playing, sequence playing, repeat playing, pause, previous/next, volume
Setting
Brightness, Volume, Languages, FM (optional), Bluetooth (optional), Time, Calibration, System, Default
WWW.PEIYING.PL
12
ALIEN
PY-GPS5003
4.2 Navigation functions and features
Notes
WWW.PEIYING.PL
13
ALIEN
This chapter will introduce the navigation function and notes.
According to your choice of navigation system, the GPS navigator can make position by GPS satellite signal receiver and display on the navigation map. The system can calculate a best route after setting the destination, which can help users to arrive the destination safely and rapidly. The system can let you enjoy the individual charm and enjoy your trip by many different ways such as vision map, vivid animation, voice indication, and words indication. The specific navigation functions are depended on your choice of navigating software. Please refer to the Navigation Software Instruction.
1. On map information It is probably that the electronic navigation data is not consistent with the real traffic instructions because of the traffic construction development. Please do comply with the highway condition and the actual traffic rules.
2. Navigation The navigator offers the route for the reference; determine the route by yourself, the driver may be more familiar with the route than GPS navigator.
3. On receiving signal Many factors such as high, dense buildings (in the tunnel, between the high building, underground parking, under the trestle), various weather condition, and closure of the satellite will affect the ability to receive signal so as to result in inaccurate position, inefficiency of navigation operation and system function.
PY-GPS5003
Media Player – Photo, E-book, Music, Video Playback
4.3 Music player operation interface
4.3.1 Functions and features
This chapter introduces how to use the GPS video player to play your favorite music, and let it be your personal MP3.
The audio player supports WMA9, MP3 and WAV format, you could set the playing sequence as you wish. Before using the audio player, please copy your txt file to any folder.
WWW.PEIYING.PL
14
ALIEN
PY-GPS5003

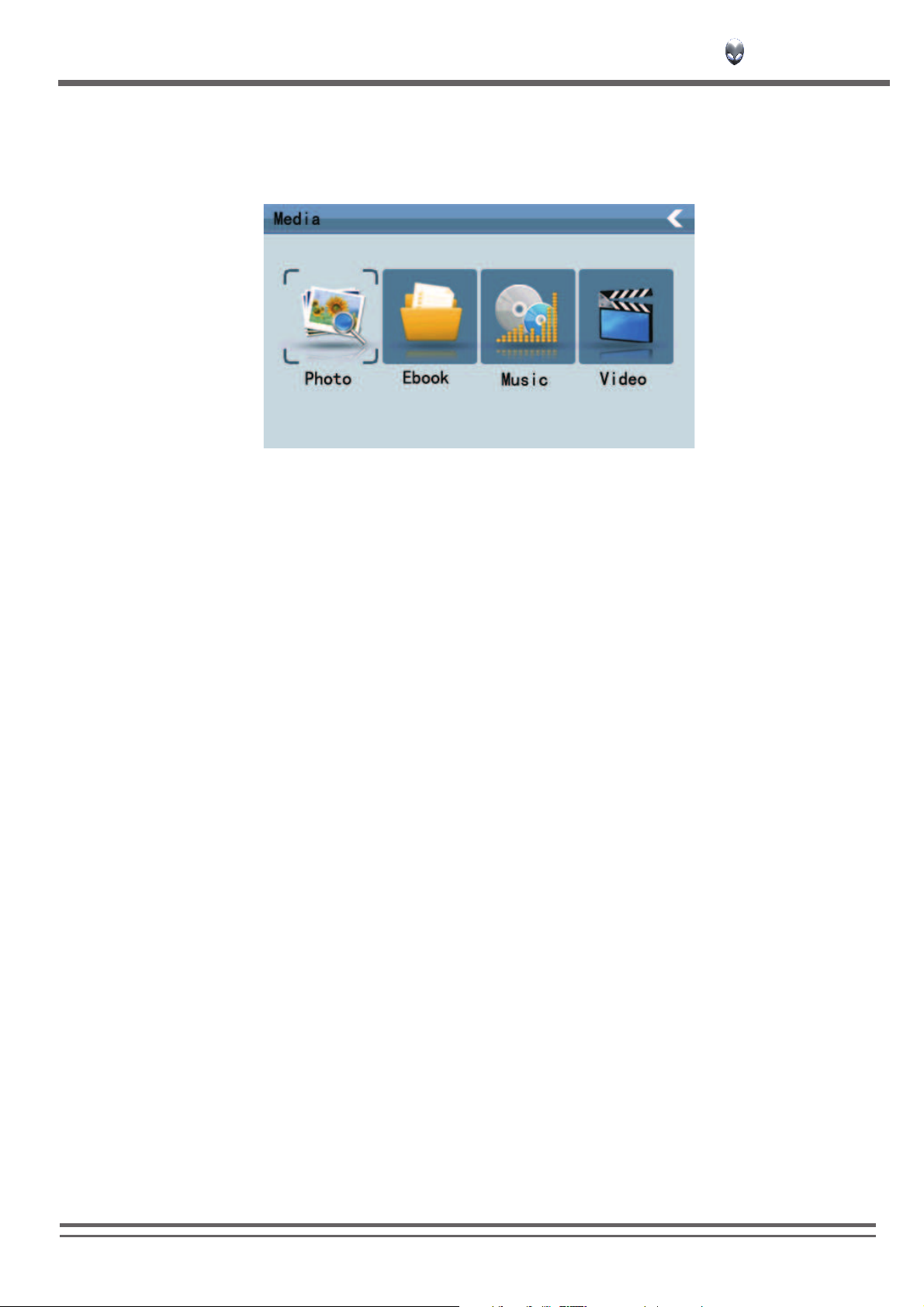

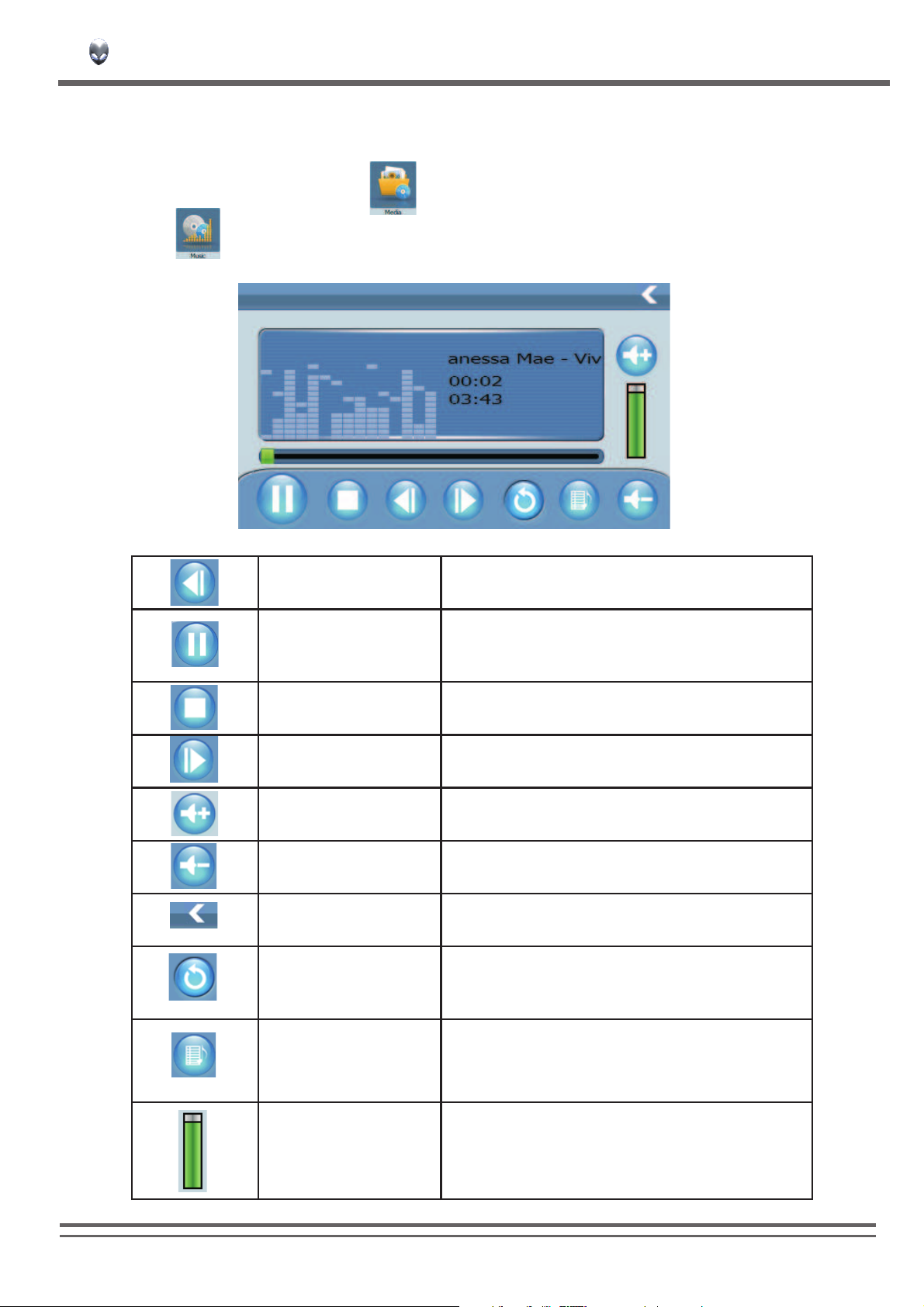

Single click the Media button to enter multimedia menu. Single click the Music button to open the audio player as the following picture:
4.3.2 Operation method
Previous song
Play the previous song;
Play/pause
To play and pause, single click to pause, click again to play continuously;
Stop
Single click to stop playing;
Next song
Play the next song;
Volume-
Single click to decrease the volume;
Volume+
Single click to increase the volume;
Close
Single click to close the audio player;
Setting the order
Support sequence playing, loop playing, repeat playing and random playing.
Open the play list
Single click to display the play list, and choose the item you like as picture 4-4 shows;
Volume indicator
Eight levels;
WWW.PEIYING.PL
15
ALIEN
PY-GPS5003
Playing progress
Adjust the progress by slide the progress-displaying bar; go left for backwards, go right for forwards;
Song title, format
Show the song title and the playing format;
Played Time
Showing the time already played
Total time
Showing the total time;
Play effect
Set the play effect

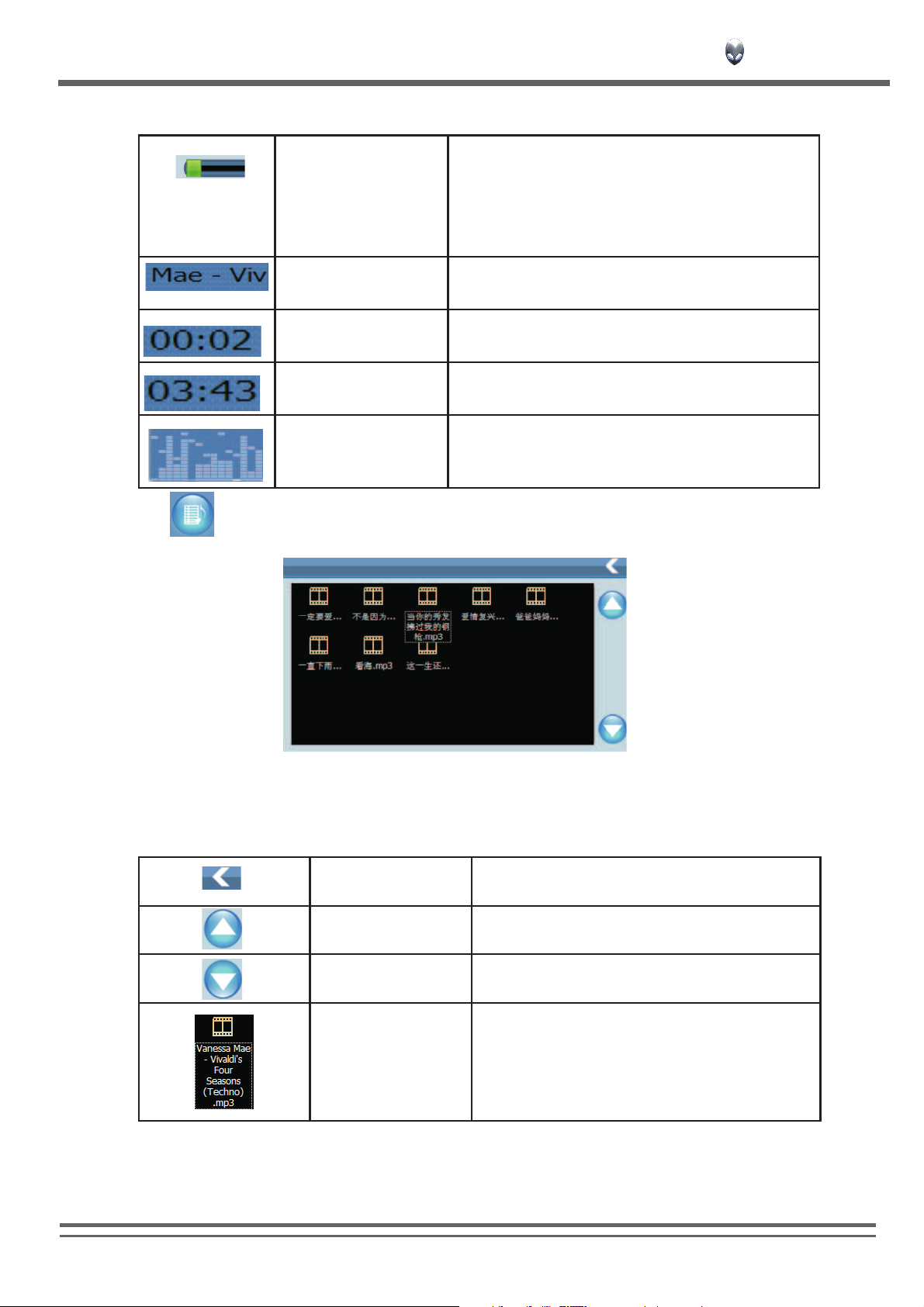

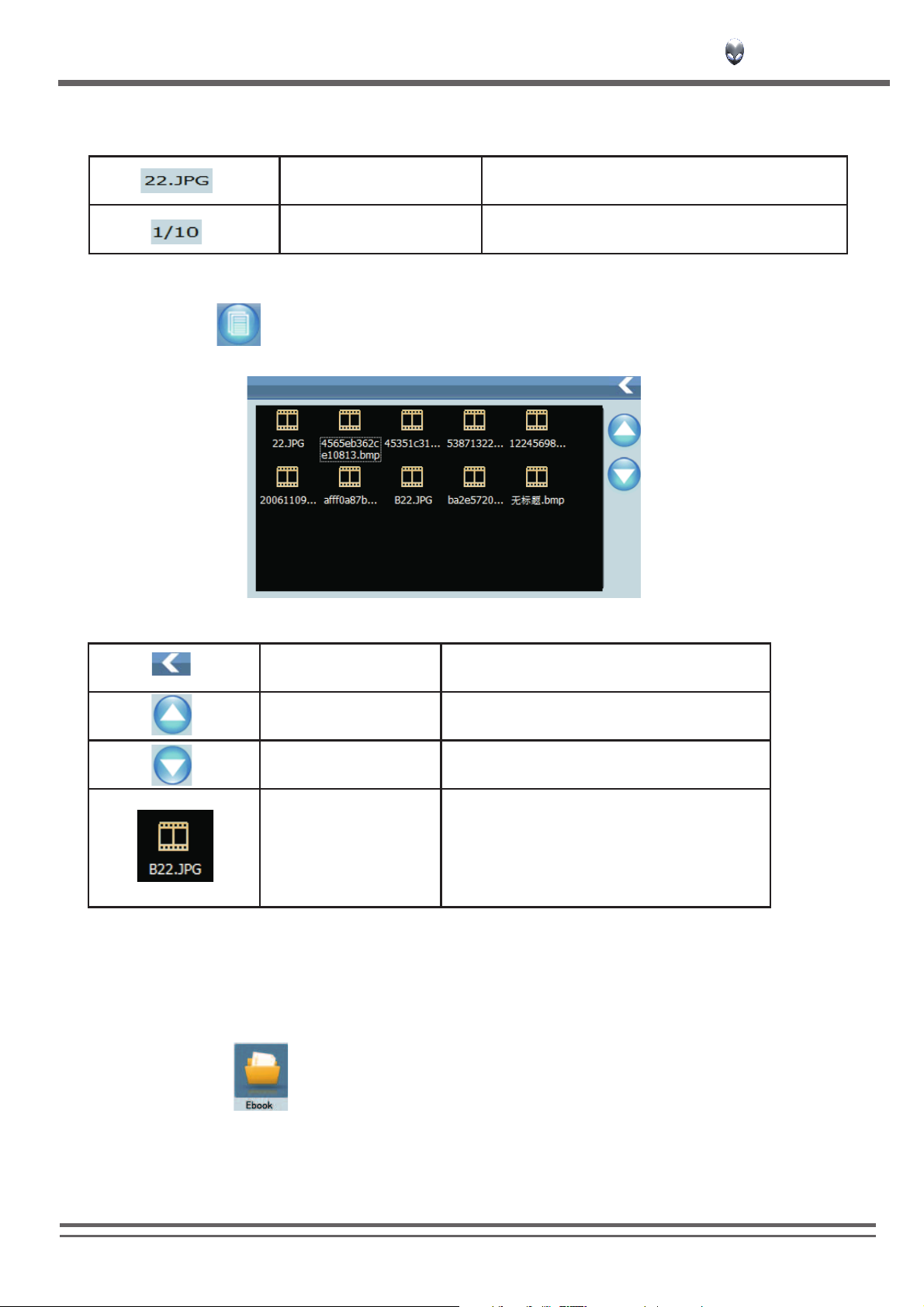

Single click the icon to enter the browse song list as shows:
Function features:
Close
Single click to close the play list
Last page
Show the last page;
Next page
Show the next page;
Name of song format
Show the name of the song and the format
WWW.PEIYING.PL
16
ALIEN
PY-GPS5003

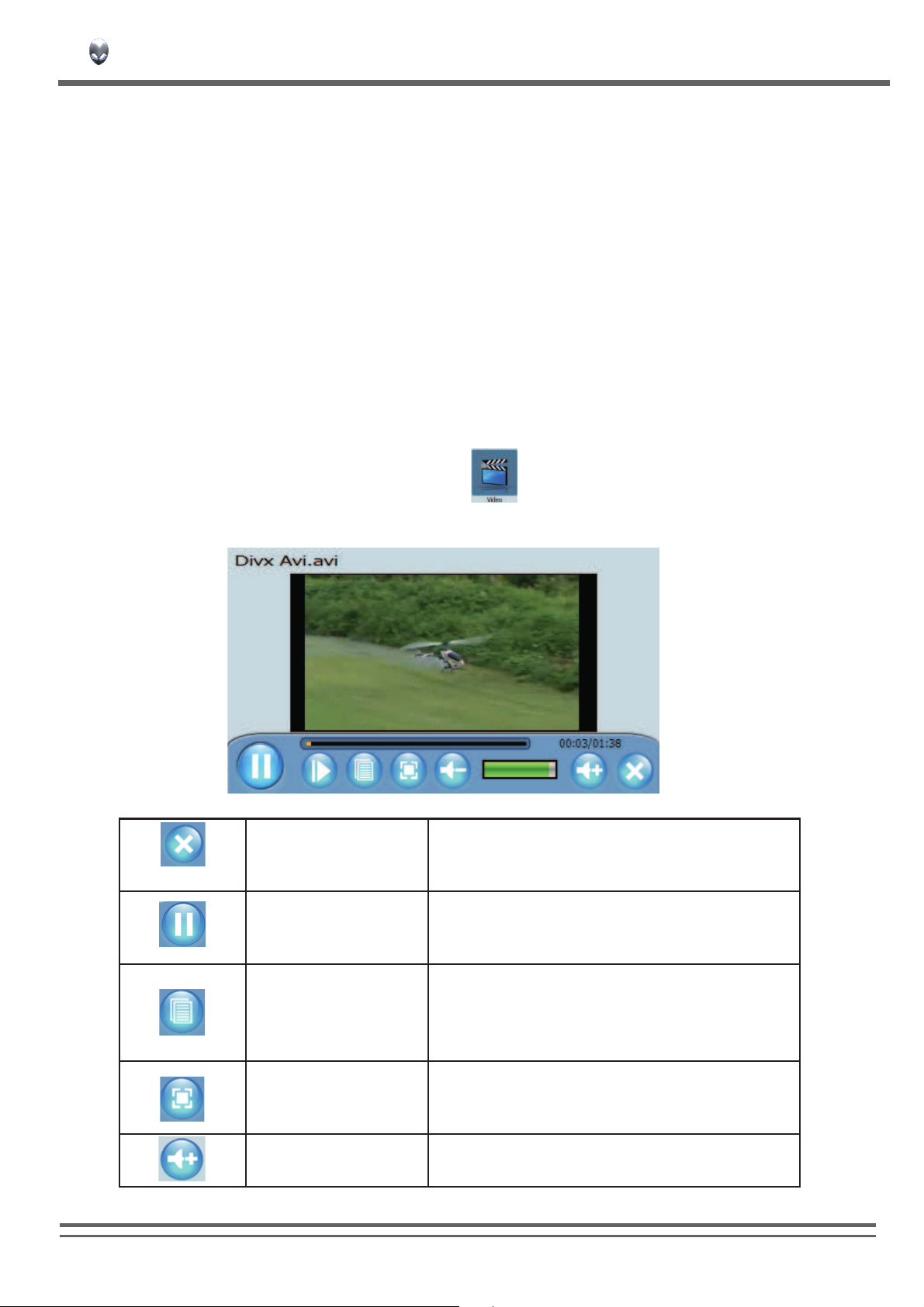

Single click the Video button and enter the video playing interface as the picture 4-5 shows.
This chapter introduced how to use the GPS video.
4.4.1 Functions and features
1.Support WMV, ASF and AVI
2.Support full-screen playing, progress choosing and file selection; Before using the Video player, please copy your video file (WMV, ASF and AVI) to any folder.
4.4 Video operation Interface
4.4.2 Operation
Close
Single click to close the video player;
Play/pause
Single click to pause the video, click again to play continuously;
File list
Single click to display the video file interface, and select the film you like as the 4-6 shows;
Full-screen playing
Single click to enter the full-screen playing mode;
Volume+
Single click to increase the volume;
WWW.PEIYING.PL
17
ALIEN
PY-GPS5003
Volume-
single click to decrease the volume;
Volume adjustment
Adjust the volume by slide the displaying bar; go left for decrease, go right for increase;
Playing progress
Adjust the progress by slide the progress displaying bar; go left for backwards, go right for forwards;
Play
Full screen playing, double click on the screen to return to the normal playing mode;
Video name and format
Show the name of the video playing and the format;
Played time and total time
Show the time played / The total time of the video
Single click the to enter the video list as 4-6 shows:
Function features:
Close
Click to close the video list;
Last page
Show the last page;
Next page
Show the next page;
Film name and format
The name of the film and the format.
WWW.PEIYING.PL
18
ALIEN
PY-GPS5003
4.5 Photo viewer operation interface
This chapter introduces how to use the photo viewer to browse pictures.
4.5.1 Function features:
1.Supports JPG, GIF, BMP and PNG format
2.Support picture rotate, picture zoom, and power point. Before using the photo viewer, please copy your photos to any folder.
4.5.2 Operation method

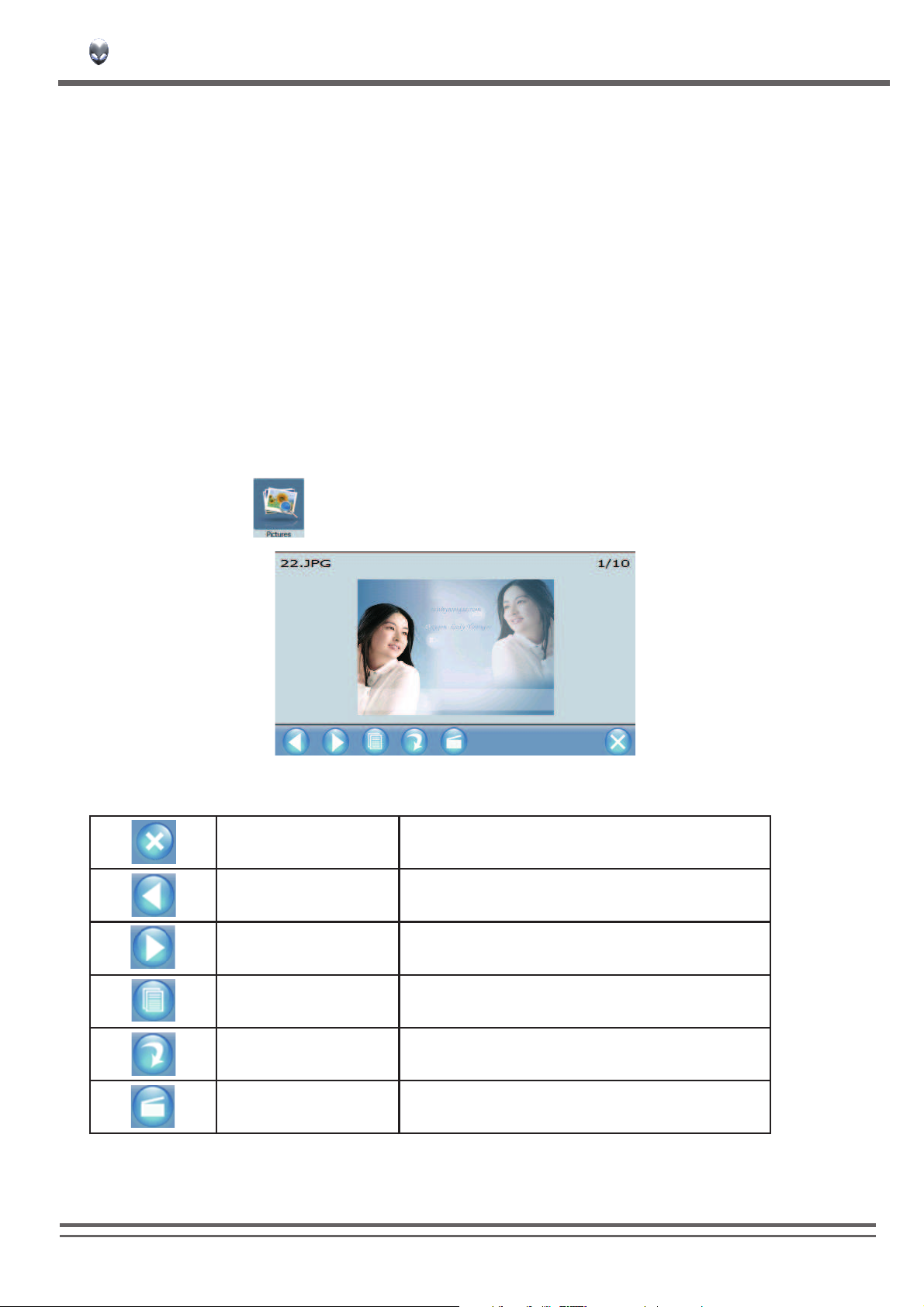

Single click the picture button to open the photo viewer as picture shows
Close
Click to close the viewer;
Last page
Show the last page;
Next page
Show the next page;
File
Single click can enter the photo list;
Revolve
Click to revolve the picture by 90 degree;
Power point
Play all the pictures circularly on full screen from the current picture
WWW.PEIYING.PL
19
ALIEN
PY-GPS5003
Photo name, format.
Show the photo name and the playing format.
Number
Show the ordinal number/ the total number
Single click to enter the file list.
Function features:
Close
Click to close the photo list;
Last page
Show the last page;
Next page
Show the next page;
Name of photo and format
Show name of photo and the playing format.
4.6 E-book Operation
Support TXT files.
Single click icon to enter E-book menu. Browse the txt file you want to
open and double click the file to open.
WWW.PEIYING.PL
20
ALIEN
PY-GPS5003
Click Settings icon to enter “system setting” menu, then you can set the relevant functions. There are backlights, volume, languages, Volume, Language, GPS information, Time, Calibration, System info, Default, and NaviPath.
4.7 System setting Interface and operation
Backlight
Adjust the screen backlight; Backlight turn off time interval under self power supply Backlight turn off time interval under external power supply
Volume
Adjust the volume; Turn on / off screen click tone
Language
Select the language for the system;
WWW.PEIYING.PL
21
ALIEN
PY-GPS5003
4.7.1 Backlight setting
Time and date
Time set; Date set; Time zone set
Calibrate the screen
Calibrate the screen and make the interface in the center position.
System info
Show the system version and ordinal number.
Next
Go to next system setting page.
Default setting
Return the default settings;
NaviPath
Set navigation path of map software
GPS information
Showing GPS signal information.
Back
Go to previous system setting page.
Adjust backlight brightness;
WWW.PEIYING.PL
22
ALIEN
PY-GPS5003
4.7.2 Volume adjust
„Volume adjustment” includes:
1. Speaker volume adjust;
2. “Screen click tone” set
Close
Exit backlight set interface;
Brightness decrease
Just click it, the brightness will decrease gradually to the lowest level;
Brightness increase
Just click it, the brightness will increase gradually to the highest level
Present Brightness
Yellow blank shows the present brightness
Close
Exit “volume adjust” interface;
Volume Adjustment-
Click the and to decrease / increase the volume gradually;
Set screen click tone
Turn on/ off the screen click tone . Click the and to set the screen click tone;
Present volume
Yellow blanks shows the present volume level;
WWW.PEIYING.PL
23
ALIEN
PY-GPS5003
Language setting includes: Default of language choose.
Single click language column to choose the language.
4.7.3 Language setting
Enter to see the GPS signal reception information.
4.7.4 GPS Information
WWW.PEIYING.PL
24
ALIEN
PY-GPS5003
Date and time include:
1. System time set;
2. System date set;
3. System time zone set.
Single click the item, then it will turn white, then click or to set year, month, date, hour, minute and second.
You can single click or to set time zone.
Click to enter the screen calibration
4.7.5 Date and time setting:
4.7.6 Screen Calibration
WWW.PEIYING.PL
25
ALIEN
PY-GPS5003
Click the crossin the center, it will move from in the sequence of the center, left up, left down, right down and right up till the calibration succeed, then the system will Exit to the main interface automatically.
System information includes:
1.Firmware version
2.OS version
3.AP version;
4.Serial No.(System ID.)
4.7.7 System information
Exit system information
Firmware Version
Show the firmware version;
OS Version
Show the operating system version;
AP Version
Show the application version;
Serial No.
Show the system ID.
WWW.PEIYING.PL
26
ALIEN
PY-GPS5003
Single click to enter the default setting as below.:
Single click to restore the factory default setting, single click to exit the default setting.
Press icon to browse the executable navigation file of your map software in SD card. Double click the executable navigation file to set the navigation path. Press icon to return to previous menu.
4.7.8 Default set
4.7.9 NaviPath
WWW.PEIYING.PL
27
ALIEN
PY-GPS5003
Loading...
+ 67 hidden pages
