Installation and Assembly: 32" - 65" Flat Panel
Display Stand
Models: SS560DPB, SS560DPS
2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerlessmounts.com
Max UL Load Capacity:
160 lb (72.5 kg) display
ISSUED: 09-08-11 SHEET #: 009-9055-5 07-25-12
NOTE: Read entire instruction sheet before you start installation and assembly.
WARNING
• Do not begin to install your Peerless product until you have read and understood the instructions and warnings
contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US
customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact
your local distributor.
• This product should only be installed by someone of good mechanical aptitude, and fully understands
these instructions.
• Never exceed the Maximum UL Load Capacity on page 1.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws fi rmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding
power.
• The stand is not affi xed or secured to the fl oor, and may therefore tip over and/or fall if display and/or stand is
shaken or hit. Always monitor children and do not let children play alone around stand as they could get hurt by a
falling display. Not recommended for use in areas with heavy traffi c.
• This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal
injury.
Tools Needed for Assembly
• phillips screwdriver
Table of Contents
Parts List.................................................................................................................................................................................3
Assembling Cart .....................................................................................................................................................................4
Installing Adapter Plate ...................................................................................................... .....................................................5
Mounting Flat Panel Display ...................................................................................................................................................7
Cable Management ................................................................................................................................................................8
2 of 9
ISSUED: 09-08-11 SHEET #: 009-9055-5 07-25-12
Before you begin, make sure all parts shown are included with your product.
r
A
Parts List
Description Qty. Part Number
column bracket 1 009-1419 009-1419
adapter plate 1 009-1599 009-1599
B
column base 1 009-1415 009-1415
C
column 2 009-1418
D
5/16"-18 x 3/8" socket cap screws 4 520-1693
E
1/4-20 x 12mm socket screws 4 520-2325 520-2325
F
5/16 x 1/4" set screw 4 520-9566 520-9566
G
4mm allen wrench 1 560-9646 560-9646
H
3/16" allen wrench 1 560-0071 560-0071
I
Parts may appear slightly different than illustrated.
A B C
SS560DPB SS560DPS
Part Numbe
009-5451
520-2693
D
E FG
Adapter Bracket Fasteners
M5 x 12 mm (4)
(520-1027)
M5 x 25 mm (4)
(520-9543)
M6 x 12 mm (4)
(520-1128)
M8 x 12 mm (4)
M6 x 25 mm (4)
(520-1208)
(520-9571)
H I
M8 x 25 mm (4)
(520-1031)
.75" spacer (4)
(540-1059)
Multi-washer (4)
(580-1398)
3 of 9
ISSUED: 09-08-11 SHEET #: 009-9055-5 07-25-12
Insert columns (D) over column base supports (C)
1
and align cable management holes. Secure columns
to column base supports using four 5/16" socket
screws (E). Tighten screws using 3/16" allen
wrench (I).
D
CABLE MANAGEMENT
HOLES
Insert two 1/4-20 x 12mm socket screws (F) into
2
column bracket (A) using 4mm allen wrench (H),
leaving 3/16" of exposed thread as shown in detail 1.
A
F
C
E
Insert column bracket (A) over columns (D) and
adjust to desired height.
A
3/16"
DETAIL 1
Lock column bracket (A) in place by installing
43
four 5/16" set screws (G). Tighten screws against
columns (D) using 4mm allen wrench (H).
A
G
D
FRONT VIEW REAR VIEW
D
4 of 9
D
ISSUED: 09-08-11 SHEET #: 009-9055-5 07-25-12
Installing Adapter Plate
WARNING
• Tighten screws so adapter plate is fi rmly attached. Do not tighten with excessive force. Overtightening can cause
stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become
detached. Tighten to 40 in. • lb (4.5 N.M.) maximum torque.
• If screws don't get three complete turns in the display inserts or if screws bottom out and adapter plate is still not
tightly secured, damage may occur to display or product may fail.
To prevent scratching the display, set a cloth on a fl at, level surface that will support the weight of the display. Place
5
display face side down. If display has knobs on the back, remove them to allow the adapter plates to be attached.
Place adapter plate (B) on back of display, align to holes, and center on back of display as shown below. Attach the
adapter plates to the back of the display using the appropriate combination of screws, multi-washers, and spacers
as shown in fi gure 5.1 or 5.2.
NOTE: Top and bottom mounting holes on display must be used for attaching brackets.
NOTE: Verify that all holes are properly aligned, and then tighten screws using a phillips screwdriver.
X
B
X
NOTE: "X" dimensions should be equal.
MULTI-WASHER
MEDIUM HOLE FOR M5 SCREWS
SMALL HOLE FOR M4 SCREWS
LARGE HOLE FOR M6 SCREWS
NOTE: For fl at back displays proceed to step 5-1. For bump-out or recessed back display skip to step 5-2.
NOTES:
• The number of fasteners used will vary, depending
upon the type of display.
• Multi-washers and spacers may not be used,
depending upon the type of display.
• Use the corresponding hole in the multi-washer that
matches your screw size as shown.
5 of 9
ISSUED: 09-08-11 SHEET #: 009-9055-5 07-25-12
Attaching Display using VESA 100, 200 or VESA 300 Mounting Pattern
WARNING
• If screws don't get three complete turns in the display inserts or if screws bottom out and adapter plate is still not
tightly secured, damage may occur to display or product may fail.
For Flat Back Display
Select the screws from the baffl ed fastener pack that best fi t your display. Begin with the shortest length screw,
5-1
hand thread through multi-washer and
three full turns into the mounting hole and fi t snug into place. Do not overtighten. If screw cannot make three full
turns into the display, select a longer length screw from the baffl ed fastener pack. Repeat for remaining mounting
holes and tighten screws.
NOTE: Spacers may not be used, depending upon the type of display.
adapter plate (B) into display as shown below. Screw must make at least
DISPLAY
MULTI-WASHER
fi g. 5.1
SCREW
B
If you have any questions, please call Peerless customer care at 1-800-865-2112.
For Bump-out or Recessed Back Display
Select the screws from the baffl ed fastener pack that best fi t your display. Begin with longer length screw, hand
5-2
thread through multi-washer, adapter plate (B) and spacer in that order into display as shown below. Screw must
make at least three full turns into the mounting hole and fi t snug into place. Do not overtighten. If screw cannot
make three full turns into the display, select a longer length screw from the baffl ed fastener pack. Repeat for
remaining mounting holes and tighten screws.
DISPLAY
If you have any questions, please call Peerless customer care at 1-800-865-2112.
SPACER
6 of 9
fi g. 5.2
MULTI-WASHER
SCREW
B
ISSUED: 09-08-11 SHEET #: 009-9055-5 07-25-12
Mounting Flat Panel Display

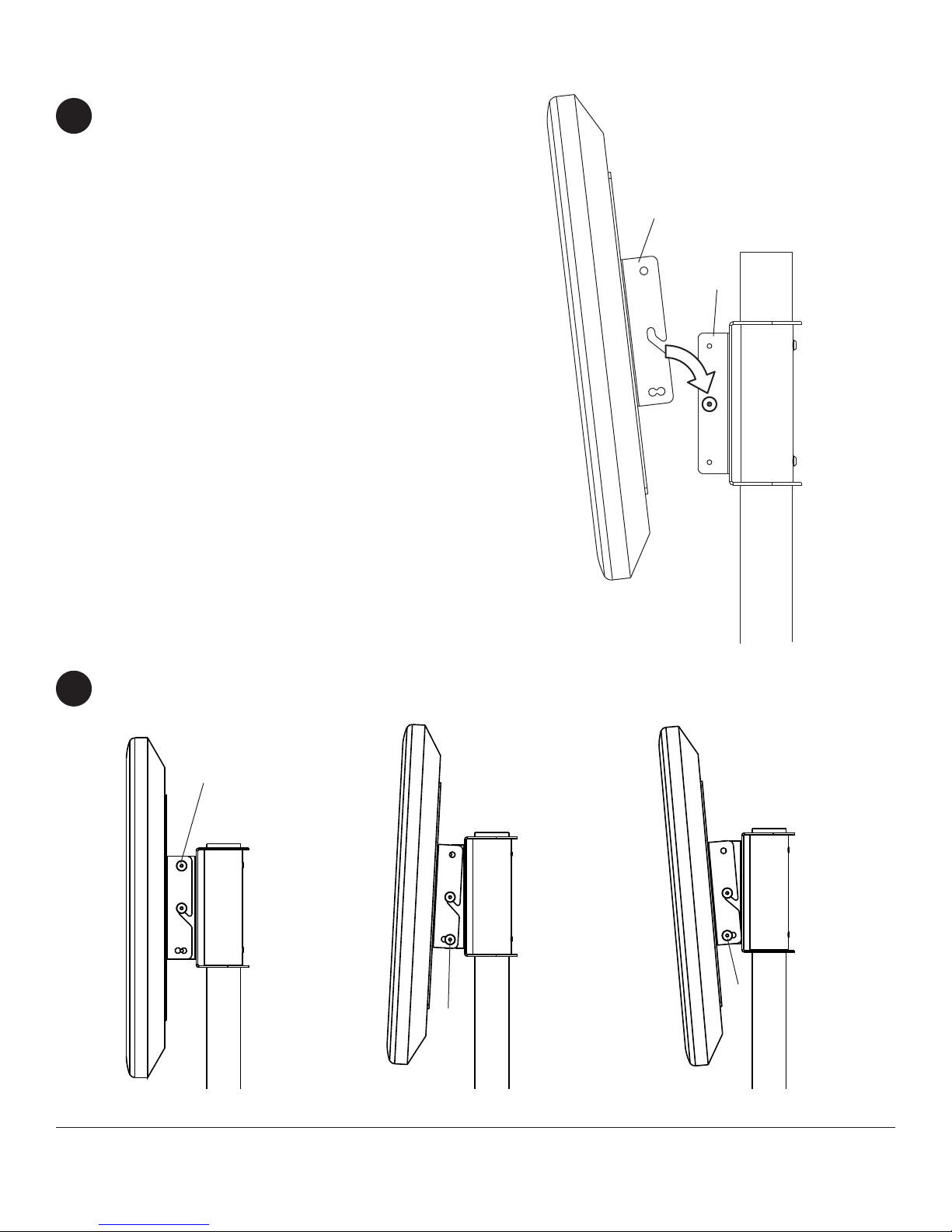

Attach adapter plate (B) onto 1/4-20 screws of
6
column bracket (A).
B
A
Insert two 1/4-20 x 12mm screws (F) into holes indicated below for desired display orientation. Tighten all screws
7
using 4mm allen wrench (H).
F
F
F
2° Backward Tilt 5° Forward TiltNo Tilt
7 of 9
ISSUED: 09-08-11 SHEET #: 009-9055-5 07-25-12
Cable Management
Run cables through columns (D) using cable management holes.
8
CABLE
MANAGEMENT
HOLES
D
8 of 9
