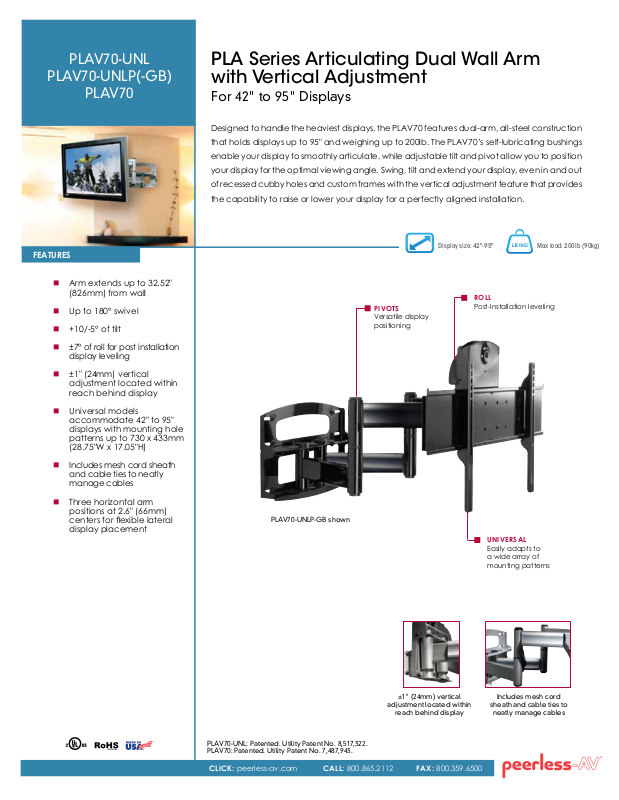

Peerless-AV PLAV70-UNL, PLAV70 Specsheet
PLAV70-UNL
PLAV70-UNLP(-GB)
PLAV70
PLA Series Articulating Dual Wall Arm
with Vertical Adjustment
For 42" to 95" Displays
Designed to handle the heaviest displays, the PLAV70 features dual-arm, all-steel construction
that holds displays up to 95" and weighing up to 200lb. The PLAV70’s self-lubricating bushings
enable your display to smoothly articulate, while adjustable tilt and pivot allow you to position
your display for the optimal viewing angle. Swing, tilt and extend your display, even in and out
of recessed cubby holes and custom frames with the vertical adjustment feature that provides
the capability to raise or lower your display for a perfectly aligned installation.
FEATURES
Arm extends up to 32.52"
(826mm) from wall
Up to 180° swivel
+10/-5° of tilt
±7° of roll for post installation
display leveling
±1" (24mm) vertical
adjustment located within
reach behind display
Universal models
accommodate 42" to 95"
displays with mounting hole
patterns up to 730 x 433mm
(28.75"W x 17.05"H)
Includes mesh cord sheath
and cable ties to neatly
manage cables
Three horizontal arm
positions at 2.6" (66mm)
centers for exible lateral
display placement
PLAV70-UNLP-GB shown
PIVOTS
Versatile display
positioning
Display size: 42"-95" Max load: 200lb (90kg)
ROLL
Post-Installation leveling
UNIVERSAL
Easily adapts to
a wide array of
mounting patterns
±1" (24mm) vertical
adjustment located within
reach behind display
PLAV70-UNL: Patented. Utility Patent No. 8,517,322.
PLAV70: Patented. Utility Patent No. 7,487,943.
CLICK: peerless-av.com CALL: 800.865.2112 FAX: 800.359.6500
Includes mesh cord
sheath and cable ties to
neatly manage cables
Model Numbers
PLAV70-UNL Universal Ariculating Dual Wall Arm with Vertical Adjustment for 42" to 95" Displays (security models)
PLAV70-UNLP(-GB) Universal Ariculating Dual Wall Arm with Vertical Adjustment for 42" to 95" Displays (standard models)
PLAV70 Dedicated* Ariculating Dual Wall Arm with Vertical Adjustment for 42" to 95" Displays (security models)
Product Specifications
DImENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITy FINISH AVAILABLE COLORS
*Requires display-specic adaptor to be purchased separately.
WARRANTY: Limited 5-year
PLAV70-UNL/-UNLP(-GB)
PLAV70
33.50" x 21.67" x 5.52"-32.52"
(851 x 550 x 140-826mm)
19.75" x 21.67" x 4.50"-29.30"
(502 x 550 x 114-744mm)
Package Specifications
PLAV70-UNL/-UNLP(-GB)
PLAV70
PACKAGE SIZE
(W x H x D)
34.69" x 23.63" x 8"
(881.1 x 600 x 203mm)
34.69" x 23.63" x 8"
(881.1 x 600 x 203mm)
PACKAGE
SHIP WEIGHT
72.4lb
(32.9kg)
58.5lb
(26.5kg)
Accessories
WSP716: Metal Stud Wall Plate (Triple stud on 16” centers)
WSP724: Metal Stud Wall Plate (Triple stud on 16”-24” centers)
63lb
(28.6kg)
50.5lb
(22.9kg)
PACKAGE UPC CODE PACKAGE CONTENTS
PLAV70-UNL
PLAV70-UNLP:
PLAV70-UNLP-GB:
PLAV70:
200lb (90kg)
735029243359
:
735029243373
735029247135
735029243199
Scratch resistant
fused epoxy
PLAV70-UNL/-UNLP(-GB):
Articulating arm, wall plate, mesh cord
sheath, cable ties, universal adaptor plate,
mounting and display attachment hardware
PLAV70: Articulating arm, wall plate, mesh
cord sheath, snap-cover cable channels
and mounting hardware
PLAV70-UNL/-UNLP(-GB)
PLAV70-UNL:
PLAV70-UNLP:
PLAV70-UNLP-GB:
PLAV70:
All dimensions = inch (mm)
Black
Black
Gloss black
Black
UNITS IN
PACKAGE
1
A R C H I T E C T S S P E C I F I C A T I O N S
The Ariculating Dual Wall Arm with Vertical Adjustment shall be Peerless-AV PLAV70/PLAV70-UNL/ PLAV70-UNLP(-GB) models and shall be located where indicated
on the plans. It shall be constructed of heavy gauge cold rolled steel with 10° adjustable forward and 5° backward tilt. It shall feature +/-7 degrees of roll. The nish
shall be scratch resistant Black or Gloss Black Fused Epoxy. Assembly and installation shall be done according to instructions provided by the manufacturer.
Peerless Industries, Inc. 2300 White Oak Circle Aurora, IL 60502 (800) 865-2112 (630) 375-5100 Fax: (800) 359-6500 peerless-av.com
Visit peerless-av.com to see the complete line of AV solutions from Peerless-AV, including at panel mounts, projector mounts, carts/stands, furniture, cables, display cleaners and a full assortment of accessories.
© 2014 Peerless Industries, Inc. Peerless-AV
®
is registered trademark of Peerless Industries, Inc. All rights reserved.
LIT-1153 rev.1
