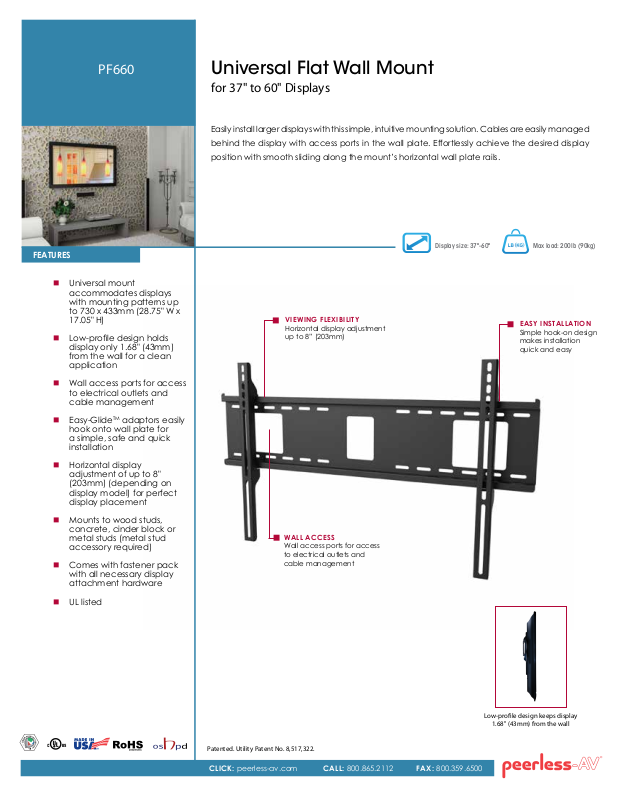

Peerless-AV PF650 User Manual

PF660

Universal Flat Wall Mount

for 37" to 60" Displays

Easily install larger displays with this simple, intuitive mounting solution. Cables are easily managed

behind the display with access ports in the wall plate. Effortlessly achieve the desired display

position with smooth sliding along the mount’s horizontal wall plate rails.

FEATURES

 Universal mount

accommodates displays with mounting patterns up to 730 x 433mm (28.75" W x

17.05" H)

 Low-prole design holds

display only 1.68" (43mm) from the wall for a clean application

 Wall access ports for access

to electrical outlets and cable management

 Easy-Glide

adaptors easily hook onto wall plate for a simple, safe and quick installation

 Horizontal display

adjustment of up to 8" (203mm) (depending on display model) for perfect display placement

 Mounts to wood studs,

concrete, cinder block or metal studs (metal stud accessory required)

 Comes with fastener pack

with all necessary display attachment hardware

VIEWING FLEXIBILITY

Horizontal display adjustment up to 8” (203mm)

WALL ACCESS

Wall access ports for access to electrical outlets and cable management

Display size: 37"-60" Max load: 200lb (90kg)

EASY INSTALLATION

Simple hook-on design makes installation quick and easy

 UL listed

Patented. Utility Patent No. 8,517,322.

CLICK: peerless-av.com CALL: 800.865.2112 FAX: 800.359.6500

Low-prole design keeps display

1.68" (43mm) from the wall

Model Numbers

PF660 Universal Flat Wall Mount for 37" to 60" Displays

Product Speciﬁcations

DImENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITy FINISH AVAILABLE COLORS

WARRANTY: Limited 5-year

PF660

30.75" x 18.00" x 1.68" (781 x 457 x 43mm)

Package Speciﬁcations

PACKAGE SIZE (W x H x D) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE

PF660

31.8" x 8.6" x 3.9"

(808 x 218 x 99mm)

Accessories

ACC925: Security Fasteners ACC415: 4-pack Metal Stud Fastener Kit

30.75"

(781mm)

5.00"

(127mm)

16.00"

(406mm)

20.00"

(508mm)

24.00"

(610mm)

WALL PLATE

7.74lb (3.5kg) 200lb (90.8kg) Matte Black

9.88lb (4.48kg) 735029252351

1.00"

(25mm)

7.45"

(189mm)

0.75"

(19mm)

VERTICAL ADAPTER

1.25"

(32mm)

0.85"

(22mm)

Wall plate, universal adapters, mounting

and display attachment

hardware

18.00"

(457mm)

All dimensions = inch (mm)

4.00"

(102mm)

4.50"

(114mm)

FRONT VIEW

28.75"

(730mm)

MAX.

2.75"

(70mm)

17.05"

(433mm)

MAX.

1.68"

(43mm)

ISOMETRIC VIEW

SIDE VIEW

A R C H I T E C T S S P E C I F I C A T I O N S

The Universal Flat Wall Mount shall be a Peerless-AV model PF660 and shall be located where indicated on the plans.
