Min.2 1/2" (64 mm)
Clearance to Back
Splash Recommended
P1519LF-▲-HA
6"
(152 mm)
6 11/16"
(170 mm)
1 1/8"~1 1/2"
(29~38 mm)
Hole Size
7 7/8"
(200 mm)
27 15/16"
(709 mm)
2 1/8"
(54 mm)
Dia.
2"
(50 mm)
1 3/8"
(35 mm)
Max. Deck
Thickness
9/16 - 24 UNEF
1 5/8"
(41 mm)
to
2 3/8"
(60 mm)
5"
(127 mm)

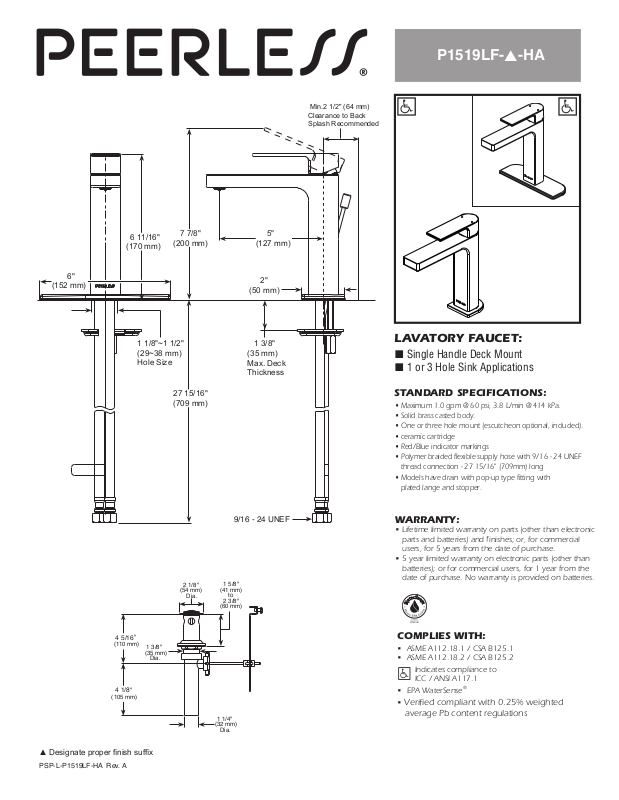

LAVATORY FAUCET:
■ Single Handle Deck Mount
■ 1 or 3 Hole Sink Applications
STANDARD SPECIFICATIONS:
• Maximum 1.0 gpm @ 60 psi, 3.8 L/min @ 414 kPa.
• Solid brass casted body.
• One or three hole mount (escutcheon optional, included).
• ceramic cartridge
• Red/Blue indicator markings
• Polymer braided flexible supply hose with 9/16 - 24 UNEF
thread connection - 27 15/16" (709mm) long
• Models have drain with pop-up type fitting with
plated lange and stopper.
WARRANTY:
• Lifetime limited warranty on parts (other than electronic
parts and batteries) and inishes; or, for commercial
users, for 5 years from the date of purchase.
• 5 year limited warranty on electronic parts (other than
batteries); or for commercial users, for 1 year from the
date of purchase. No warranty is provided on batteries.
"
4 5/16
(110 mm)
4 1/8
(105 mm)
1 3/8"
(35 mm)
Dia.
"
▲ Designate proper nish sufx
PSP-L-P1519LF-HA Rev. A
1 1/4"
(32 mm)
Dia.
COMPLIES WITH:
• ASME A112.18.1 / CSA B125.1
• ASME A112.18.2 / CSA B125.2
Indicates compliance to
ICC / ANSI A117.1
• EPA WaterSense
•
Veri ied compliant with 0.25% weighted
average Pb content regulations
®
